!A word about safe vehicle operations
This
Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Venza.
This Quick Reference Guide is not a full description of Venza
operations. Every Venza owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
413077M1.qxd 10/21/08 4:45 PM Page 2
Page 3 of 28
1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX

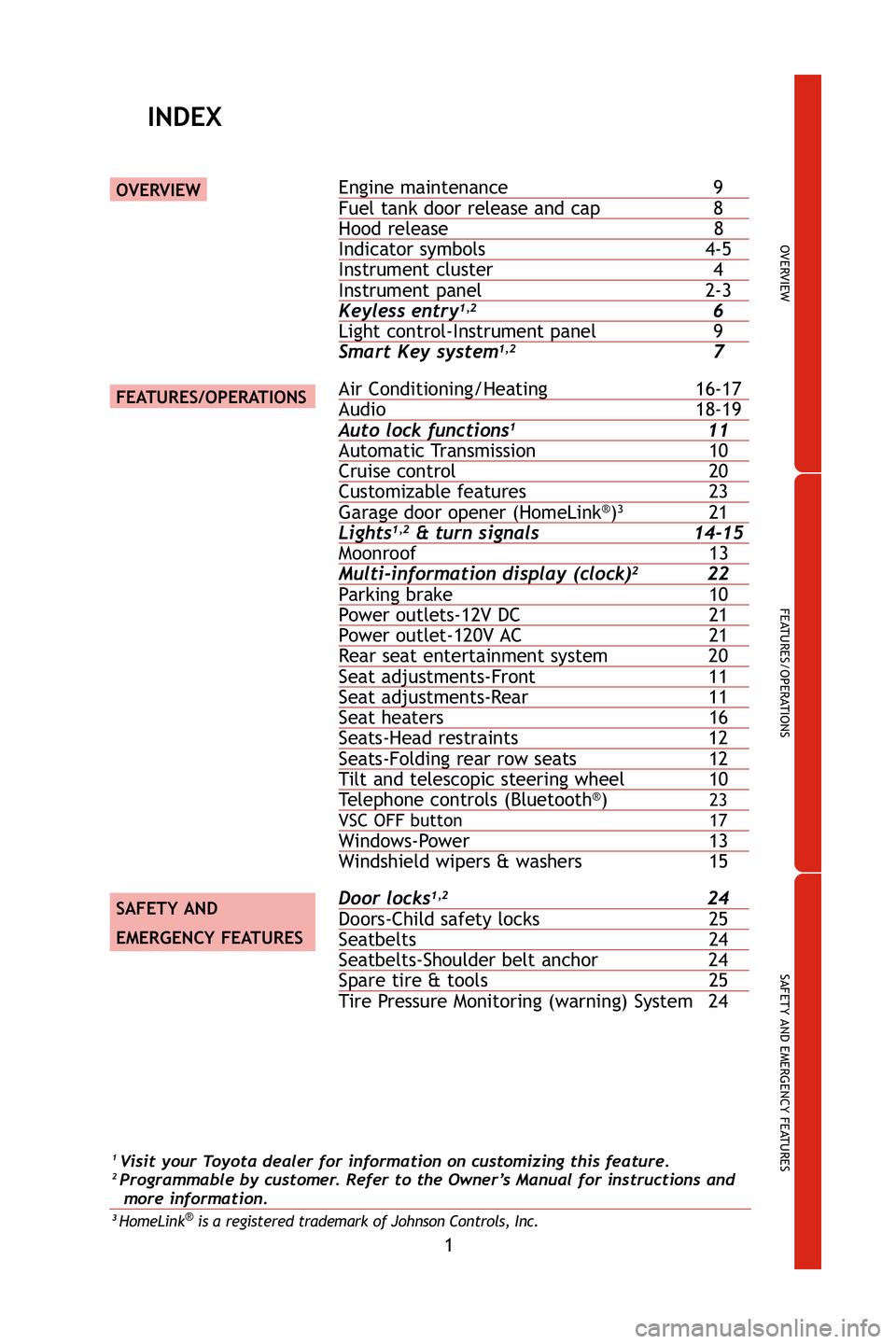

Engine maintenance9Fuel tank door release and cap8Hood release 8Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry1,26Light control-Instrument panel9
Smart Key system1,27
Air Conditioning/Heating16-17Audio 18-19Auto lock functions111Automatic Transmission 10Cruise control 20Customizable features23Garage door opener (HomeLink®)321Lights1,2& turn signals14-15Moonroof 13Multi-information display (clock)222Parking brake10Power outlets-12V DC 21Power outlet-120V AC21Rear seat entertainment system20Seat adjustments-Front 11Seat adjustments-Rear11Seat heaters 16Seats-Head restraints12Seats-Folding rear row seats12Tilt and telescopic steering wheel 10Te l e p h o n e controls (Bluetooth®)23VSC OFF button 17Windows-Power13
Windshield wipers & washers 15
Door locks1,224Doors-Child safety locks 25Seatbelts24Seatbelts-Shoulder belt anchor24Spare tire & tools25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
413077M1.qxd 10/21/08 4:45 PM Page 1
Page 4 of 28
2
OVERVIEW

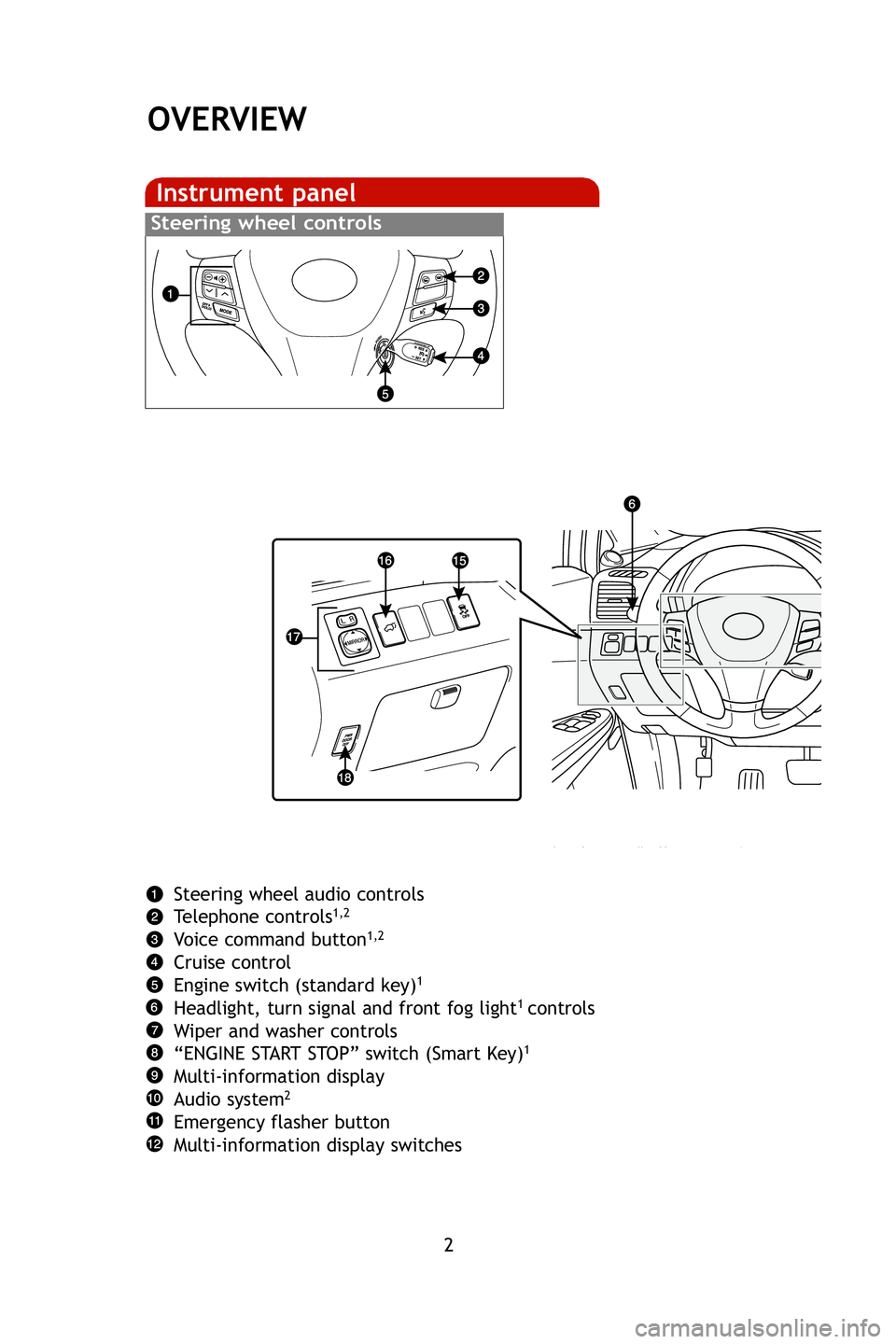

Instrument panel
Steering wheel audio controls
Telephone controls1,2
Voice command button1,2
Cruise control
Engine switch (standard key)1
Headlight, turn signal and front fog light1 controls
Wiper and washer controls
“ENGINE START STOP” switch (Smart Key)
1
Multi-information display
Audio system2
Emergency flasher button
Multi-information display switches
Steering wheel controls
413077M1.qxd 10/21/08 4:45 PM Page 2
Page 5 of 28
3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

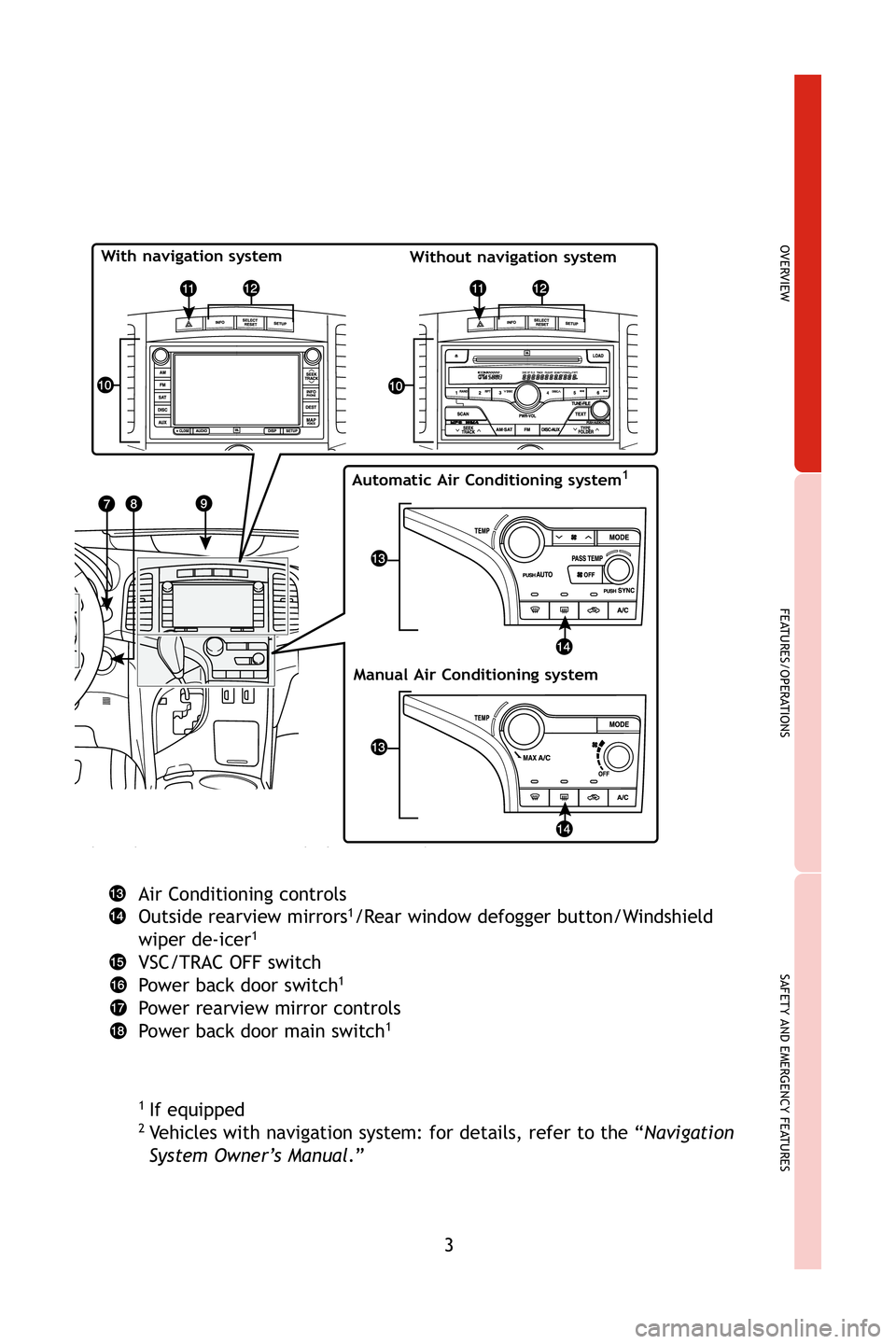

Air Conditioning controls
Outside rearview mirrors1/Rear window defogger button/Windshield
wiper de-icer1
VSC/TRAC OFF switch
Power back door switch1
Power rearview mirror controls
Power back door main switch1
1
If equipped2Vehicles with navigation system: for details, refer to the “ Navigation
System Owner’s Manual .”
Without navigation system
With navigation system
Automatic Air Conditioning system1
Manual Air Conditioning system
413077M1.qxd 10/21/08 4:45 PM Page 3
Page 6 of 28
4
OVERVIEW
Indicator symbols

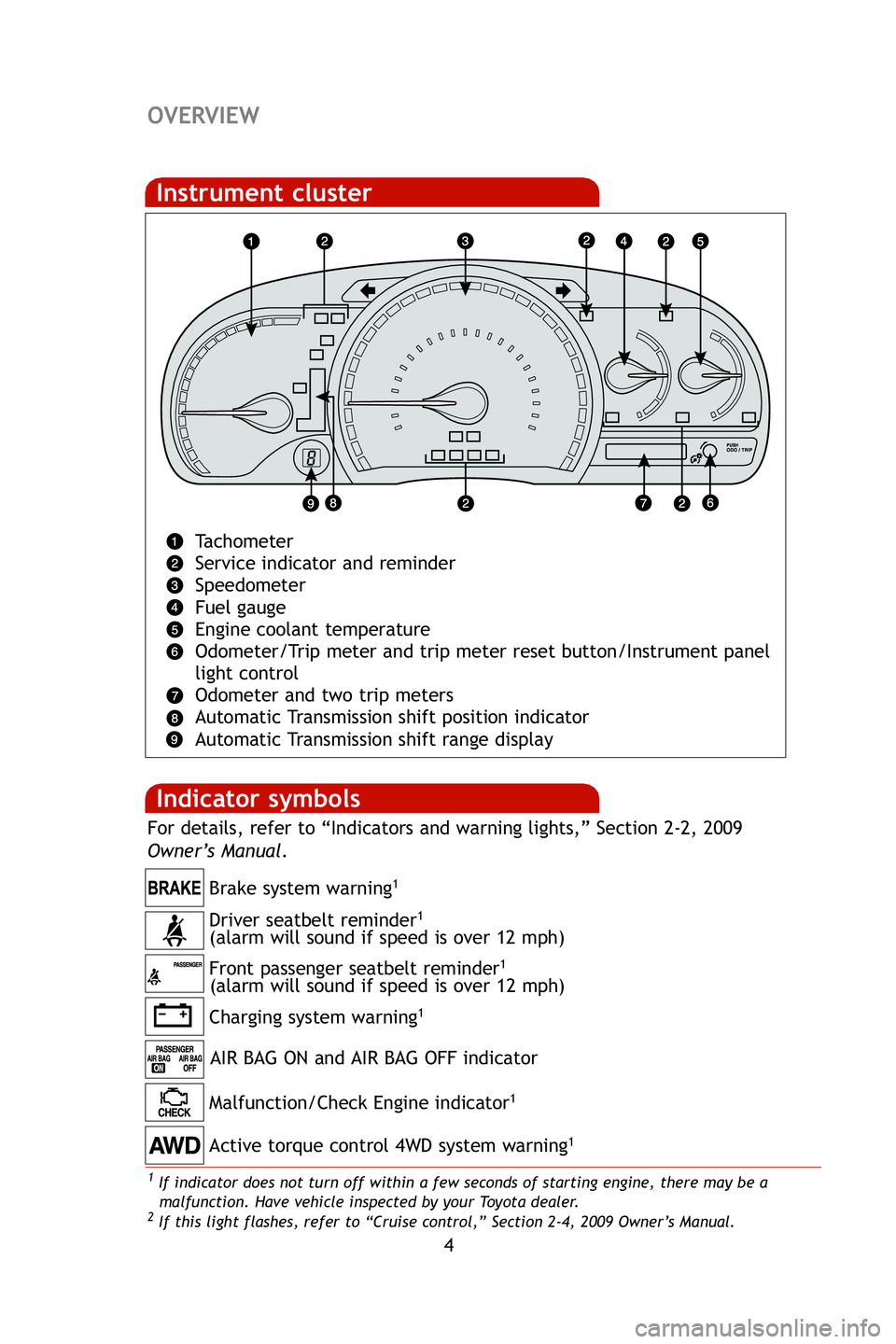

Instrument cluster
Tachometer
Service indicator and reminder
Speedometer
Fuel gauge
Engine coolant temperature
Odometer/Trip meter and trip meter reset button/Instrument panel
light control
Odometer and two trip meters
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator
Driver seatbelt reminder1
(alarm will sound if speed is over 12 mph)Front passenger seatbelt reminder
1
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Active torque control 4WD system warning1
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2009
Owner’s Manual .
1If indicator does not turn off within a few seconds of starting engine, \
there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2If this light flashes, refer to “Cruise control,” Section 2-4, 200\
9 Owner’s Manual.
413077M1.qxd 10/21/08 4:45 PM Page 4
Page 7 of 28
5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

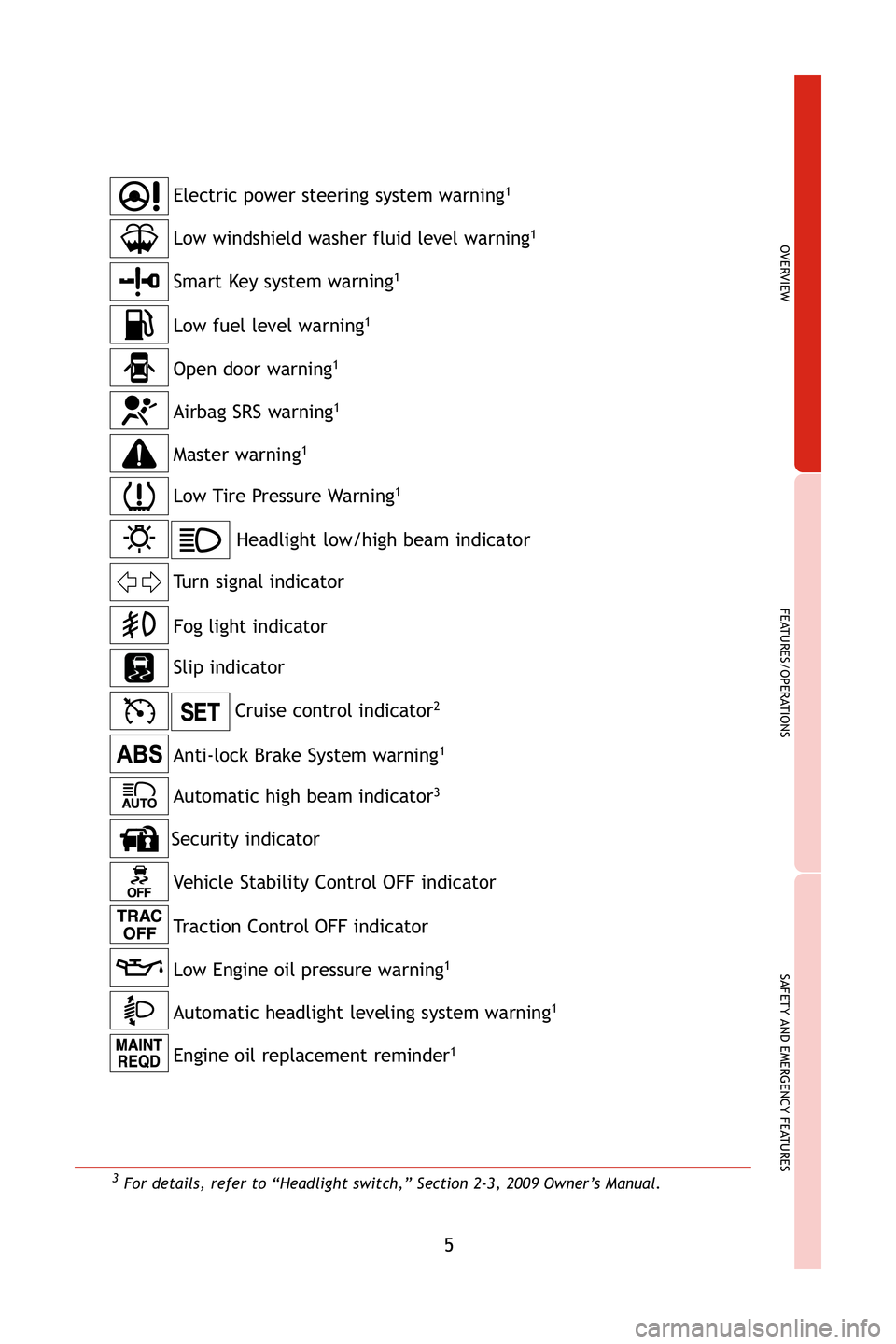

Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
Cruise control indicator2
Low Tire Pressure Warning1
Smart Key system warning1
Open door warning1
Airbag SRS warning1
Master warning1
Low windshield washer fluid level warning1
Low fuel level warning1
Electric power steering system warning1
Fog light indicator
3For details, refer to “Headlight switch,” Section 2-3, 2009 Owner’\
s Manual.
Vehicle Stability Control OFF indicator
Low Engine oil pressure warning1
Automatic headlight leveling system warning1
Engine oil replacement reminder1
Security indicator
Traction Control OFF indicator
Automatic high beam indicator3
413077M1.qxd 10/21/08 4:45 PM Page 5
Page 8 of 28
6
OVERVIEW
Panic button
Push and hold

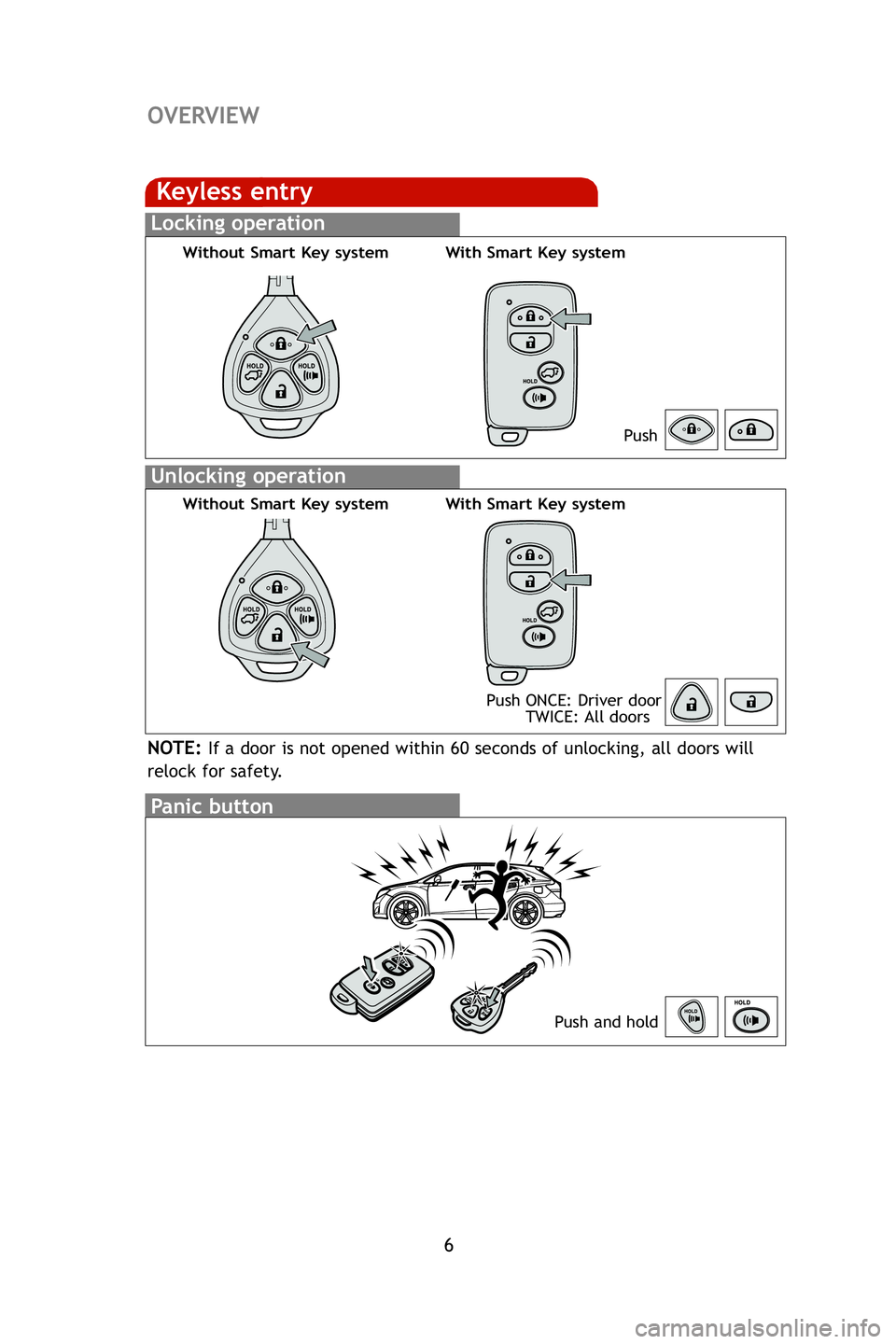

Keyless entry
Locking operation
Unlocking operation
NOTE:If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Push ONCE: Driver door TWICE: All doors Push
Without Smart Key systemWith Smart Key system
Without Smart Key systemWith Smart Key system
413077M1.qxd 10/21/08 4:45 PM Page 6
Page 9 of 28
7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

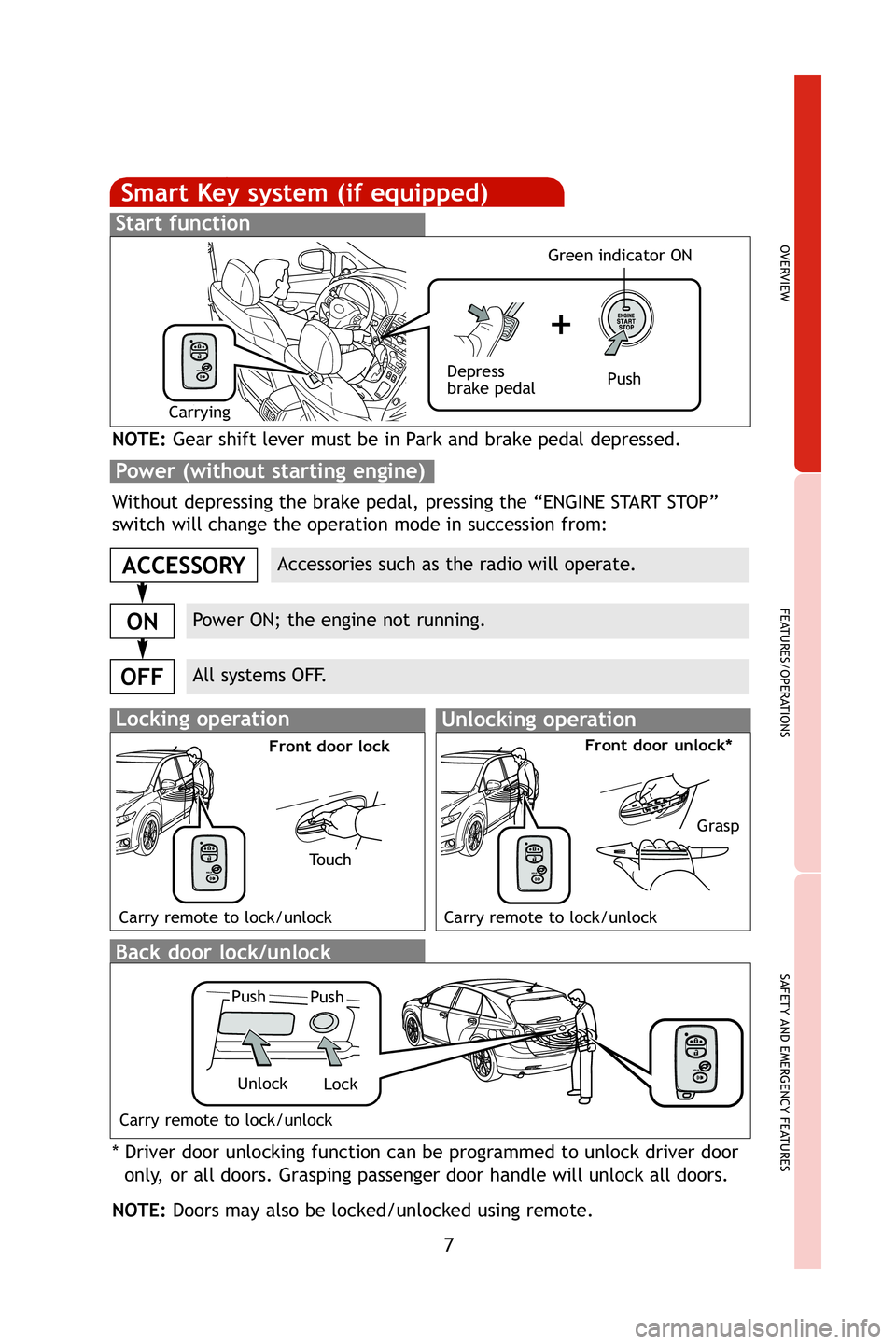

Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE:Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedal
Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door\
only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Push
UnlockPush
Lock
Locking operationUnlocking operation
Carry remote to lock/unlockCarry remote to lock/unlock
To u c h
Front door lockFront door unlock*
Grasp
Carry remote to lock/unlock
Back door lock/unlock
413077M1.qxd 10/21/08 4:45 PM Page 7
Page 10 of 28
8
Hood release

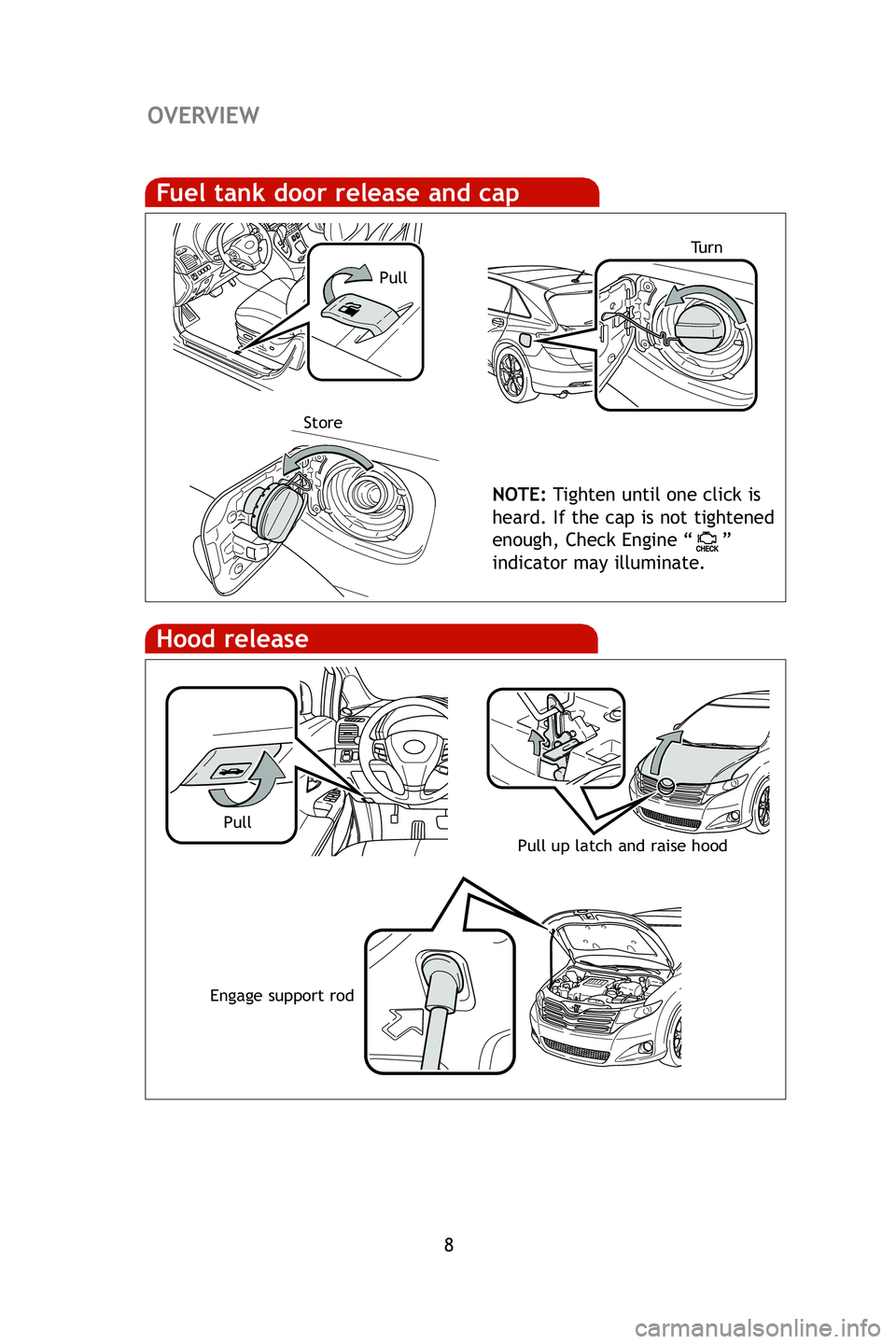

Fuel tank door release and cap
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Pull Tu r n
Store
Pull
OVERVIEW
Pull up latch and raise hood
Engage support rod
413077M1.qxd 10/21/08 4:45 PM Page 8
