TOYOTA VENZA 2009 Accessories, Audio & Navigation (in English)

-11-

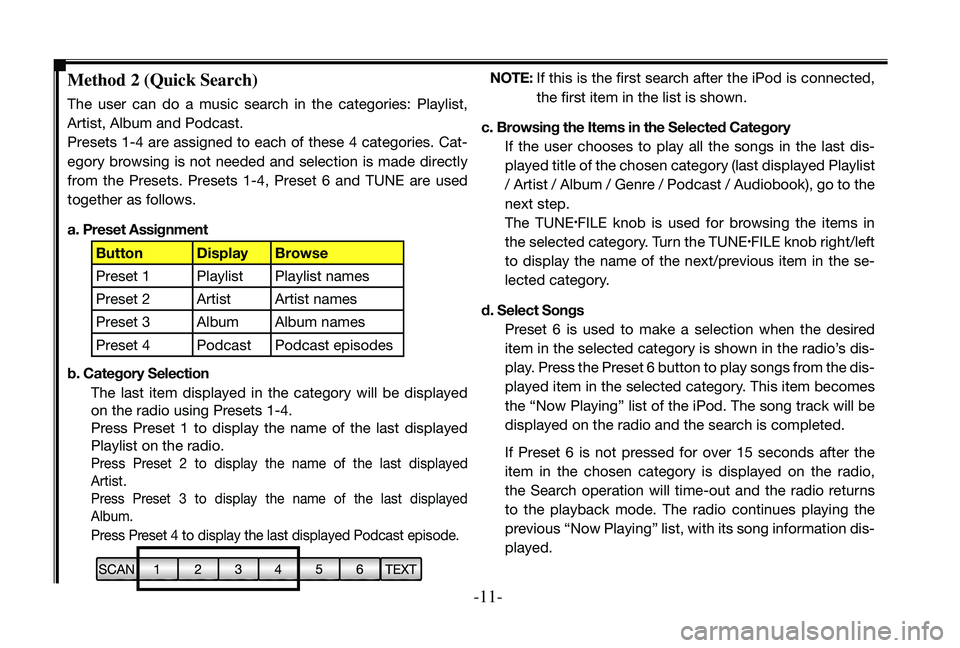

method 2 (Quick Search)
The user can do a music search in the categories: Playlist,
Artist, Album and Podcast.
Presets 1-4 are assigned to each of these 4 categories. Cat-
egory browsing is not needed and selection is made directly
from the Presets. Presets 1-4, Preset 6 and TUNe are used
together as follows.
a. Preset Assignment
ButtonDisplayBrowse
Preset 1PlaylistPlaylist names
Preset 2ArtistArtist names
Preset 3AlbumAlbum names
Preset 4PodcastPodcast episodes
b. Category Selection
The last item displayed in the category will be displayed
on the radio using Presets 1-4.
Press Preset 1 to display the name of the last displayed
Playlist on the radio.
Press Preset 2 to display the name of the last displayed
Artist.
Press Preset 3 to display the name of the last displayed
Album.
Press Preset 4 to display the last displayed Podcast episode.
NOTE: If this is the first search after the iPod is connected,
the first item in the list is shown.
c. Browsing the Items in the Selected Category
If the user chooses to play all the songs in the last dis
-
played title of the chosen category (last displayed Playlist
/ Artist / Album / Genre / Podcast / Audiobook), go to the
next step.
The TUNe
•FILe knob is used for browsing the items in
the selected category. Turn the TUNe•FILe knob right/left
to display the name of the next/previous item in the se-
lected category.
d. Select Songs
Preset 6 is used to make a selection when the desired
item in the selected category is shown in the radio’s dis-
play. Press the Preset 6 button to play songs from the dis-
played item in the selected category. This item becomes
the “Now Playing” list of the iPod. The song track will be
displayed on the radio and the search is completed.
If Preset 6 is not pressed for over 15 seconds after the
item in the chosen category is displayed on the radio,
the Search operation will time-out and the radio returns
to the playback mode. The radio continues playing the
previous “Now Playing” list, with its song information dis-
played.

-12-

rEmOTE CONT rOL
(Steering Wheel Switches)
1 Power ON/Change mode: Press
Power
OFF: Press and hold
2
Volume
3
Playback mode: Track UP/DOWN
Search mode: Sub Category select
(selected by Preset 6)
1
2
3
The radio system can be operated using the remote control lo-
cated on the steering wheel.

-1-

SAT
SOUNDTYPETYPETYPETYPESCAN
TEXT
SEEKSURROUND
1
1
2
36
5
4
Tr7ch
chPlaylist
Artist
000
ch000
Albumch000
chPodcast
ShuffleAll
000
ch000
Selectch000
007Playlist
Track NumberTrack NumberLast two digitsCategory Name
Podcast Search
Shuffle All Playback
Select Button
Text Information
SCAN Track or Shuffle ON/OFF (long press)
Fast-ForwardSearch Category Selection
Album Search
Artist Search
Playlist Search

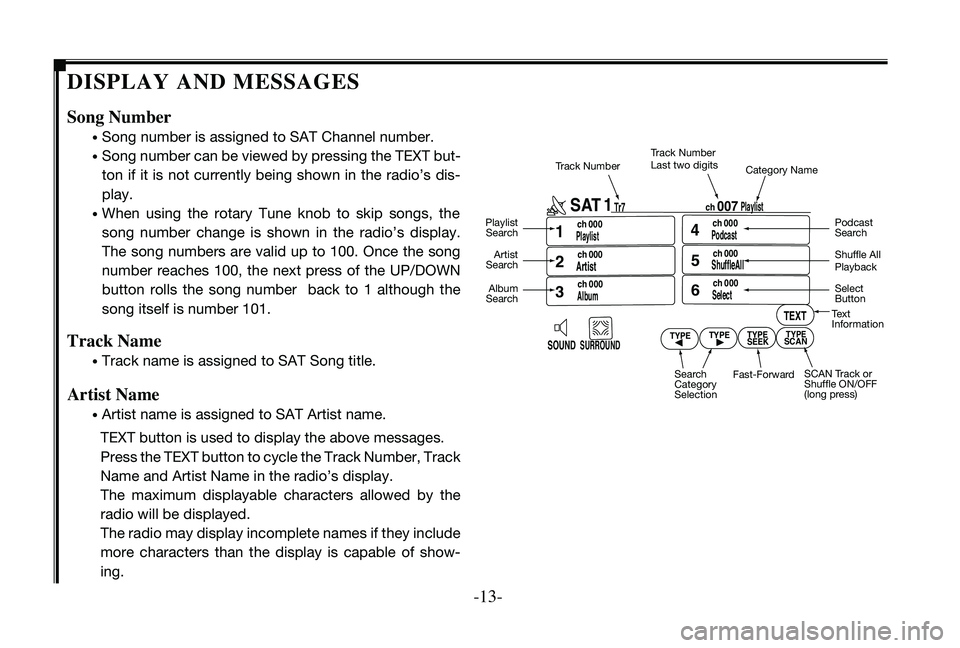

dISPLA y AN d m ESSA gES
Song Number
• Song number is assigned to SAT Channel number.
• Song number can be viewed by pressing the TeXT but-
ton if it is not currently being shown in the radio’s dis-
play.
• When using the rotary Tune knob to skip songs, the
song number change is shown in the radio’s display.
The song numbers are valid up to 100. Once the song
number reaches 100, the next press of the UP/DOWN
button rolls the song number back to 1 although the
song itself is number 101.
Track Name
• Track name is assigned to SAT Song title.
Artist Name
• Artist name is assigned to SAT Artist name.
TeXT button is used to display the above messages.
Press the TeXT button to cycle the Track Number, Track
Name and Artist Name in the radio’s display.
The maximum displayable characters allowed by the
radio will be displayed.
The radio may display incomplete names if they include
more characters than the display is capable of show-
ing.

-1-

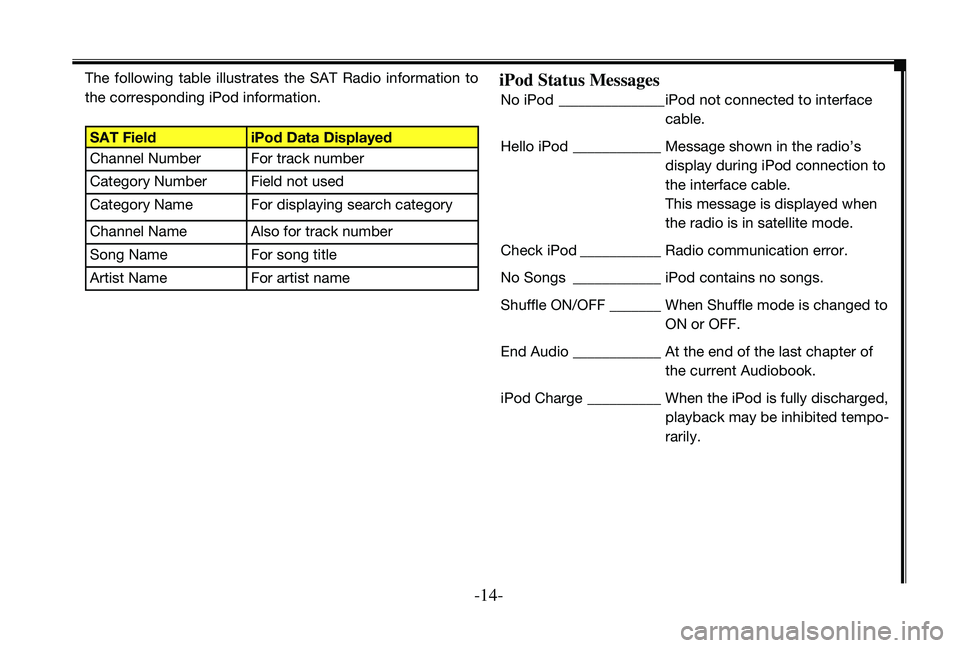

The following table illustrates the SAT Radio information to
the corresponding iPod information.
sAT FieldiPod Data Displayed
Channel NumberFor track number
Category NumberField not used
Category NameFor displaying search category
Channel NameAlso for track number
Song NameFor song title
Artist NameFor artist name
iPod Status messages
No iPod ________________iPod not connected to interface
cable.
Hello iPod ____________Message shown in the radio’s
display during iPod connection to
the interface cable.
This message is displayed when
the radio is in satellite mode.
Check iPod ___________Radio communication error.
No Songs ____________iPod contains no songs.
Shuffle ON/OFF _______When Shuffle mode is changed to
ON
or OFF.
end Audio
____________At the end of the last chapter of
the current Audiobook.
iPod Charge __________When the iPod is fully discharged,
playback may be inhibited tempo-
rarily.
