The Remote Engine Starter allows you to start your engine from outside the vehicle. It utilizes
your vehicle’s keyless entry remote, so there is no need to carry around an extra remote. The
Remote Engine Starter is operated the same way for vehicles equipped with or without the
Smart Entry / Push Start system; simply push the remote’s LOCK button in a quick, two-step
sequence. In addition, the Remote Engine Starter can activate the heater or air conditioner,
providing you with a comfortable cabin upon entry. As an added convenience, the Remote
Engine Starter can also activate the defroster (when preset) to clear up the windshield during
cold weather.
To ensure your safety, and the safety of anyone near the vehicle, the Remote Engine Starter
is designed to shut the engine off when it detects any attempt to enter or move the vehicle
after a remote engine start. Please consult your Toyota dealer for more details.
NOTE: To utilize the Remote Engine Starter, your vehicle must have an automatic transmis-
sion; it cannot be used for manual transmission models. The transmission range for remote
start may be shorter than the remote’s basic keyless entry operation. Range can also be
affected by the surrounding environment. Laws in some communities require that the vehicle
be within view of anyone using the Remote Engine Starter. In some states, use of the Remote
Engine Starter may violate state or local laws. Before using the Remote Engine Starter, check
your state and local laws.
For any questions or concerns about the Remote Engine Starter, please call Toyota Customer
Experience at (800) 331-4331.
Page 2 TOYOTAREMOTE ENGINE STARTERTOYOTAREMOTE ENGINE STARTER Page 11
Warning
•This product is applicable only to vehicles with 12V DC, negative grounding specifications. Do
not use in vehicles with 24V specifications. Otherwise, damage to the unit or a fire may result.
•Do not allow children to play with remote controls. The doors may be locked or unlocked, and
the engine may be started unintentionally.
•If an unusual event occurs, such as liquids spilling onto the product, or the product
emitting smoke or strange odors, stop using it immediately and consult the dealer from whom
you purchased it. Continued use of the product before corrective actions are taken may result in
an accident, injury, or fire.
•Never pull the plastic bag over your head. Otherwise, a serious injury or death from suffocation
may occur.
•The Remote Engine Starter is for vehicles with automatic transmissions only. Do not use it for
the manual transmission vehicles.
Notice
•Do not use this product for applications other than in-vehicle use. An electric shock or injury may
result.
•Do not operate the Remote Engine Starter if the Check Engine Light stays on and engine ser-
vice is required.
•Never attempt to disassemble or modify the product. An accident, fire, or electric shock may
result.
•When replacing fuses, be sure to use fuses with the same specified capacity (amperage).
Otherwise, damage to the unit or vehicle, fire, or electric shock may result.
NOTE: Laws in some communities require that the vehicle be within view of anyone using the
Remote Engine Starter. In some states, use of the Remote Engine Starter may violate state or
local laws. Before using the Remote Engine Starter, check your state and local laws.
INTRODUCTION

TOYOTAREMOTE ENGINE STARTERPage 3
IMPORTANT INFORMATION
Do not start the engine if a child or pet are
present in or near the vehicle. Interior power
components such as windows and seats can
accidentally be switched on and lead to injury.
Do not check the engine while it is still warm
after being remotely started. Allow at least five
minutes for the engine to cool to avoid being
burned. Do not start the engine near dry foliage,
paper, or other flammable substances. The
exhaust tube and emissions can create a fire
hazard at high temperatures.
Do not use the Remote Engine Starter from a
distance where the vehicle cannot be seen.
Children or small animals should not be near
the vehicle. Do not start the engine in an enclosed area
(such as a garage or indoor parking lot) where
too much exhaust may accumulate and create
a hazardous environment with potential for
CO poisoning.
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
Page 10
TOYOTAREMOTE ENGINE STARTER

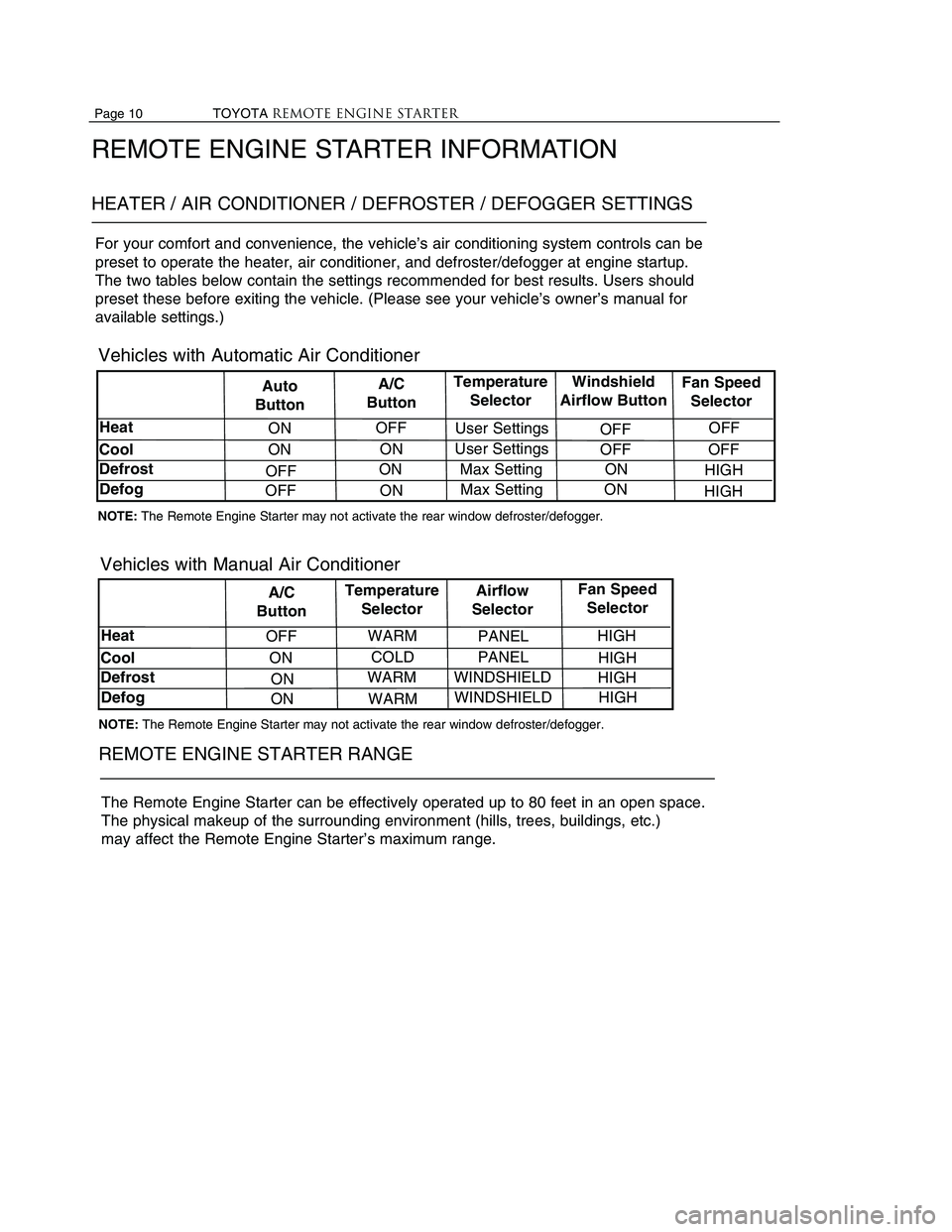

REMOTE ENGINE STARTER INFORMATION
HEATER / AIR CONDITIONER / DEFROSTER / DEFOGGER SETTINGS
For your comfort and convenience, the vehicle’s air conditioning system controls can be
preset to operate the heater, air conditioner, and defroster/defogger at engine startup.
The two tables below contain the settings recommended for best results. Users should
preset these before exiting the vehicle. (Please see your vehicle’s owner’s manual for
available settings.)
Heat
Cool
Defrost
Defog Auto
Button A/C
Button Temperature
Selector Windshield
Airflow Button Fan Speed
Selector
User Settings OFF
OFF
OFF
OFF
User Settings
ON
OFF ON
Max Setting ON
HIGH
OFF ONMax Setting ON
HIGH
ON
OFF
ON
Heat
Cool
Defrost
Defog A/C
Button Temperature
Selector Airflow
Selector Fan Speed
Selector
PANEL HIGH
HIGH
PANEL
COLD
ON WARM
WINDSHIELD
HIGH
ON WARM WINDSHIELD HIGH
OFF
WARM
ON
Vehicles with Automatic Air Conditioner
Vehicles with Manual Air Conditioner
REMOTE ENGINE STARTER RANGE
The Remote Engine Starter can be effectively operated up to 80 feet in an open space.
The physical makeup of the surrounding environment (hills, trees, buildings, etc.)
may affect the Remote Engine Starter’s maximum range.
NOTE: The Remote Engine Starter may not activate the rear window defroster/defogger.
NOTE:
The Remote Engine Starter may not activate the rear window defroster/defogger.

TOYOTAREMOTE ENGINE STARTERPage 9
Page 4
TOYOTAREMOTE ENGINE STARTER
IMPORTANT INFORMATION
Do not start the engine with the body cover
still on the vehicle. The exhaust tube and
emissions are capable of starting a fire at high
temperatures.
Only use the Remote Engine Starter when
you intend to drive the vehicle; excessive
engine starting consumes fuel and battery
power. To help reduce the risk of injury during engine
service, the Remote Engine Starter will not
function while the hood is open.
Always shut off components such as the wind-
shield wipers and radio after parking. If left on,
such components may be damaged by
remote engine start in extremely cold weather.
Check that all vehicle windows are closed and
all doors locked after parking.
NOTICE
NOTICE
NOTICE
NOTICE
If any door is manually unlocked via
Smart Key.
If any door is opened.
If the shift lever is moved to any
position other than “P.” If the hood is opened.
OPERATION
AUTOMATIC ENGINE SHUTDOWN
(Without Smart Entry System)
If the key is inserted in the key cylinder.
If the brake pedal is applied.
If the security alarm is triggered.
NOTE: The engine will continue to run
if the panic alarm is triggered.
The Remote Engine Starter will automatically shut down or will not start the vehicle’s
engine under the following conditions:
(With Smart Entry System)
If the push button is pressed.

TOYOTAREMOTE ENGINE STARTERPage 9
Page 4
TOYOTAREMOTE ENGINE STARTER
IMPORTANT INFORMATION
Do not start the engine with the body cover
still on the vehicle. The exhaust tube and
emissions are capable of starting a fire at high
temperatures.
Only use the Remote Engine Starter when
you intend to drive the vehicle; excessive
engine starting consumes fuel and battery
power. To help reduce the risk of injury during engine
service, the Remote Engine Starter will not
function while the hood is open.
Always shut off components such as the wind-
shield wipers and radio after parking. If left on,
such components may be damaged by
remote engine start in extremely cold weather.
Check that all vehicle windows are closed and
all doors locked after parking.
NOTICE
NOTICE
NOTICE
NOTICE
If any door is manually unlocked via
Smart Key.
If any door is opened.
If the shift lever is moved to any
position other than “P.” If the hood is opened.
OPERATION
AUTOMATIC ENGINE SHUTDOWN
(Without Smart Entry System)
If the key is inserted in the key cylinder.
If the brake pedal is applied.
If the security alarm is triggered.
NOTE: The engine will continue to run
if the panic alarm is triggered.
The Remote Engine Starter will automatically shut down or will not start the vehicle’s
engine under the following conditions:
(With Smart Entry System)
If the push button is pressed.

TOYOTAREMOTE ENGINE STARTERPage 3
IMPORTANT INFORMATION
Do not start the engine if a child or pet are
present in or near the vehicle. Interior power
components such as windows and seats can
accidentally be switched on and lead to injury.
Do not check the engine while it is still warm
after being remotely started. Allow at least five
minutes for the engine to cool to avoid being
burned. Do not start the engine near dry foliage,
paper, or other flammable substances. The
exhaust tube and emissions can create a fire
hazard at high temperatures.
Do not use the Remote Engine Starter from a
distance where the vehicle cannot be seen.
Children or small animals should not be near
the vehicle. Do not start the engine in an enclosed area
(such as a garage or indoor parking lot) where
too much exhaust may accumulate and create
a hazardous environment with potential for
CO poisoning.
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
Page 10
TOYOTAREMOTE ENGINE STARTER
REMOTE ENGINE STARTER INFORMATION
HEATER / AIR CONDITIONER / DEFROSTER / DEFOGGER SETTINGS
For your comfort and convenience, the vehicle’s air conditioning system controls can be
preset to operate the heater, air conditioner, and defroster/defogger at engine startup.
The two tables below contain the settings recommended for best results. Users should
preset these before exiting the vehicle. (Please see your vehicle’s owner’s manual for
available settings.)
Heat
Cool
Defrost
Defog Auto
Button A/C
Button Temperature
Selector Windshield
Airflow Button Fan Speed
Selector
User Settings OFF
OFF
OFF
OFF
User Settings
ON
OFF ON
Max Setting ON
HIGH
OFF ONMax Setting ON
HIGH
ON
OFF
ON
Heat
Cool
Defrost
Defog A/C
Button Temperature
Selector Airflow
Selector Fan Speed
Selector
PANEL HIGH
HIGH
PANEL
COLD
ON WARM
WINDSHIELD
HIGH
ON WARM WINDSHIELD HIGH
OFF
WARM
ON
Vehicles with Automatic Air Conditioner
Vehicles with Manual Air Conditioner
REMOTE ENGINE STARTER RANGE
The Remote Engine Starter can be effectively operated up to 80 feet in an open space.
The physical makeup of the surrounding environment (hills, trees, buildings, etc.)
may affect the Remote Engine Starter’s maximum range.
NOTE: The Remote Engine Starter may not activate the rear window defroster/defogger.
NOTE:
The Remote Engine Starter may not activate the rear window defroster/defogger.

The Remote Engine Starter allows you to start your engine from outside the vehicle. It utilizes
your vehicle’s keyless entry remote, so there is no need to carry around an extra remote. The
Remote Engine Starter is operated the same way for vehicles equipped with or without the
Smart Entry / Push Start system; simply push the remote’s LOCK button in a quick, two-step
sequence. In addition, the Remote Engine Starter can activate the heater or air conditioner,
providing you with a comfortable cabin upon entry. As an added convenience, the Remote
Engine Starter can also activate the defroster (when preset) to clear up the windshield during
cold weather.
To ensure your safety, and the safety of anyone near the vehicle, the Remote Engine Starter
is designed to shut the engine off when it detects any attempt to enter or move the vehicle
after a remote engine start. Please consult your Toyota dealer for more details.
NOTE: To utilize the Remote Engine Starter, your vehicle must have an automatic transmis-
sion; it cannot be used for manual transmission models. The transmission range for remote
start may be shorter than the remote’s basic keyless entry operation. Range can also be
affected by the surrounding environment. Laws in some communities require that the vehicle
be within view of anyone using the Remote Engine Starter. In some states, use of the Remote
Engine Starter may violate state or local laws. Before using the Remote Engine Starter, check
your state and local laws.
For any questions or concerns about the Remote Engine Starter, please call Toyota Customer
Experience at (800) 331-4331.
Page 2 TOYOTAREMOTE ENGINE STARTERTOYOTAREMOTE ENGINE STARTER Page 11
Warning
•This product is applicable only to vehicles with 12V DC, negative grounding specifications. Do
not use in vehicles with 24V specifications. Otherwise, damage to the unit or a fire may result.
•Do not allow children to play with remote controls. The doors may be locked or unlocked, and
the engine may be started unintentionally.
•If an unusual event occurs, such as liquids spilling onto the product, or the product
emitting smoke or strange odors, stop using it immediately and consult the dealer from whom
you purchased it. Continued use of the product before corrective actions are taken may result in
an accident, injury, or fire.
•Never pull the plastic bag over your head. Otherwise, a serious injury or death from suffocation
may occur.
•The Remote Engine Starter is for vehicles with automatic transmissions only. Do not use it for
the manual transmission vehicles.
Notice
•Do not use this product for applications other than in-vehicle use. An electric shock or injury may
result.
•Do not operate the Remote Engine Starter if the Check Engine Light stays on and engine ser-
vice is required.
•Never attempt to disassemble or modify the product. An accident, fire, or electric shock may
result.
•When replacing fuses, be sure to use fuses with the same specified capacity (amperage).
Otherwise, damage to the unit or vehicle, fire, or electric shock may result.
NOTE: Laws in some communities require that the vehicle be within view of anyone using the
Remote Engine Starter. In some states, use of the Remote Engine Starter may violate state or
local laws. Before using the Remote Engine Starter, check your state and local laws.
INTRODUCTION
