oil filter TOYOTA VENZA 2009 Owners Manual (in English)

1
2
3
4
5
6
7
5
VENZA_U (OM73004U)

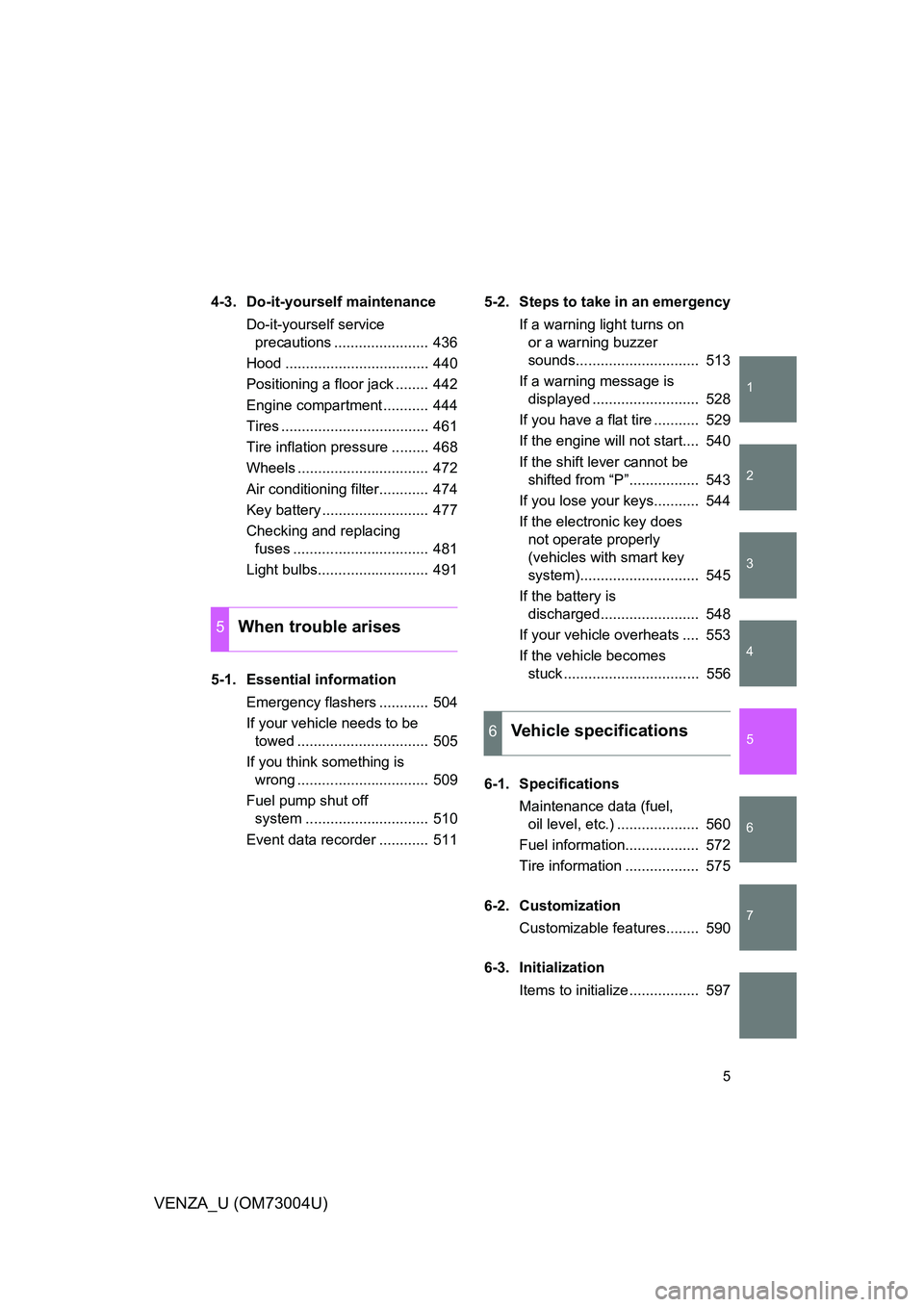

4-3. Do-it-yourself maintenanceDo-it-yourself service precautions ....................... 436
Hood ................................... 440
Positioning a floor jack ........ 442
Engine compartment ........... 444
Tires .................................... 461
Tire inflation pressure ......... 468
Wheels ................................ 472
Air conditioning filter............ 474
Key battery .......................... 477
Checking and replacing fuses ................................. 481
Light bulbs........................... 491
5-1. Essential information Emergency flashers ............ 504
If your vehicle needs to be towed ................................ 505
If you think something is wrong ................................ 509
Fuel pump shut off system .............................. 510
Event data recorder ............ 511 5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer
sounds.............................. 513
If a warning message is displayed .......................... 528
If you have a flat tire ........... 529
If the engine will not start.... 540
If the shift lever cannot be shifted from “P”................. 543
If you lose your keys........... 544
If the electronic key does not operate properly
(vehicles with smart key
system)............................. 545
If the battery is discharged........................ 548
If your vehicle overheats .... 553
If the vehicle becomes stuck ................................. 556
6-1. Specifications Maintenance data (fuel, oil level, etc.) .................... 560
Fuel information.................. 572
Tire information .................. 575
6-2. Customization Customizable features........ 590
6-3. Initialization Items to initialize ................. 597
5When trouble arises
6Vehicle specifications

451
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73004U)

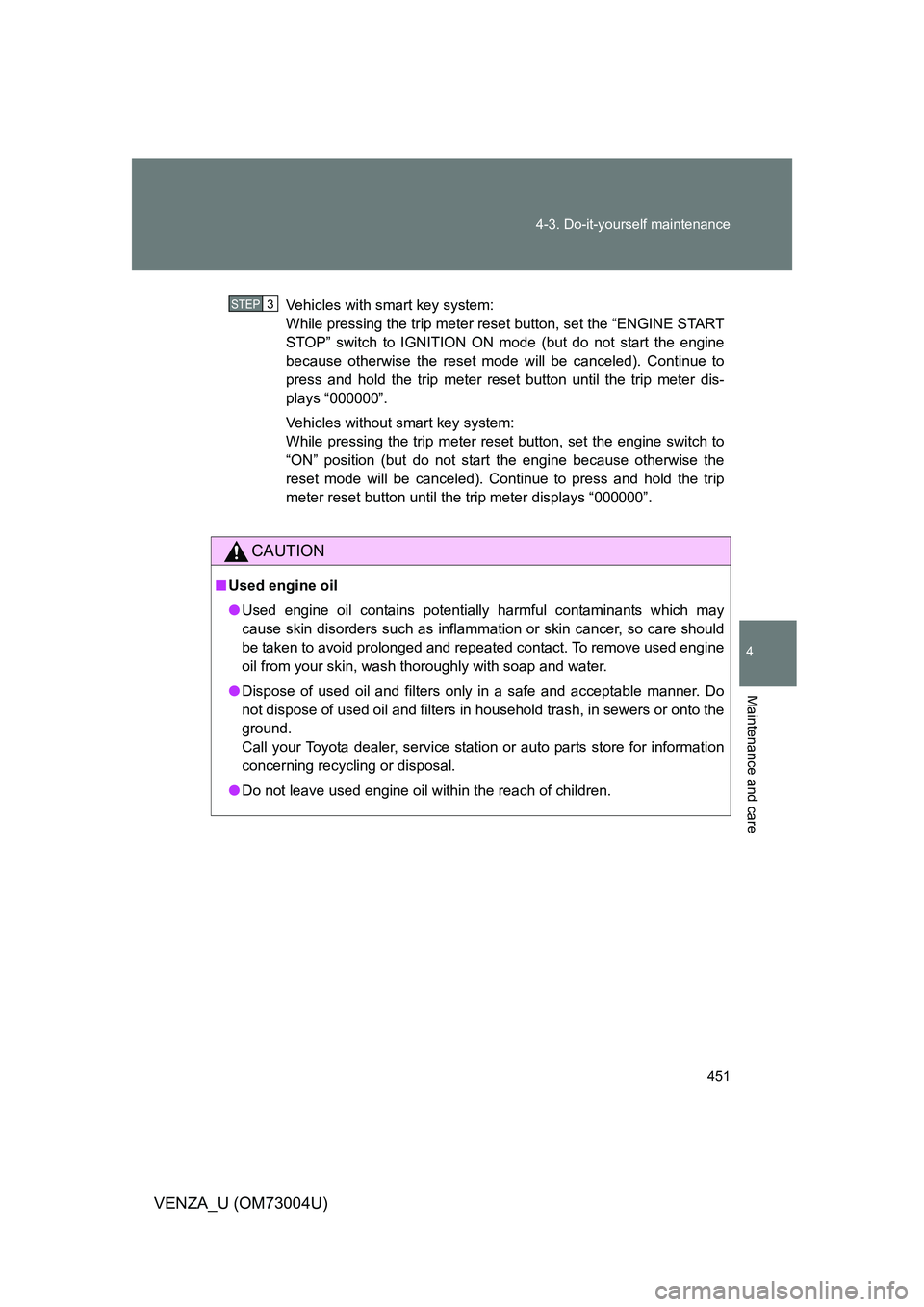

Vehicles with smart key system:
While pressing the trip meter reset button, set the “ENGINE START
STOP” switch to IGNITION ON mode (but do not start the engine
because otherwise the reset mode will be canceled). Continue to
press and hold the trip meter reset button until the trip meter dis-
plays “000000”.
Vehicles without smart key system:
While pressing the trip meter reset button, set the engine switch to
“ON” position (but do not start the engine because otherwise the
reset mode will be canceled). Continue to press and hold the trip
meter reset button until the trip meter displays “000000”.
CAUTION
■
Used engine oil
● Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation or skin cancer, so care should
be taken to avoid prolonged and repeated contact. To remove used engine
oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground.
Call your Toyota dealer, service station or auto parts store for information
concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
STEP3

564 6-1. Specifications
VENZA_U (OM73004U)
Lubrication system
Oil capacity
Drain and refill
(reference)
2GR-FE engineWith filter: 6.4 qt. (6.1 L, 5.4 lmp.qt.)
Without filter: 6.0 qt. (5.7 L, 5.0 lmp.qt.)
1AR-FE engineWith filter: 4.7 qt. (4.4 L, 3.9 lmp.qt.)
Without filter: 4.2 qt. (4.0 L, 3.5 lmp.qt.)
Oil gradeILSAC multigrade engine oil
Recommended oil
viscosityUse Toyota approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the grade and viscosity
shown below.
2GR-FE engine
1AR-FE engine
Outside temperature
Outside temperature

620
VENZA_U (OM73004U)

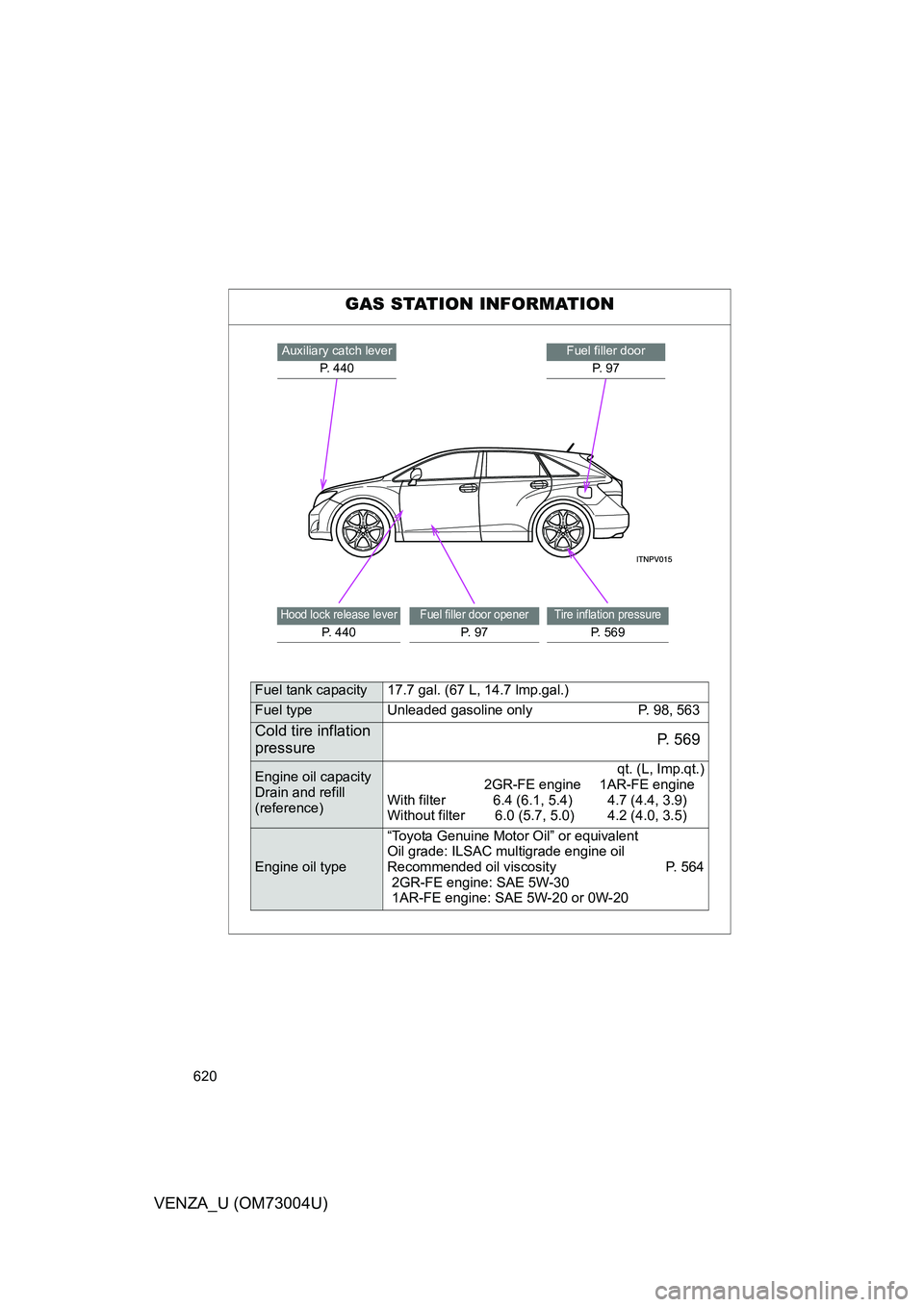

GAS STATION INFORMATION
Auxiliary catch leverP. 440Fuel filler doorP. 9 7
Hood lock release lever
P. 440
Fuel filler door opener
P. 9 7
Tire inflation pressure
P. 5 6 9
Fuel tank capacity17.7 gal. (67 L, 14.7 lmp.gal.)
Fuel typeUnleaded gasoline only P. 98, 563
Cold tire inflation
pressureP. 5 6 9
Engine oil capacity
Drain and refill
(reference)qt. (L, Imp.qt.)
2GR-FE engine 1AR-FE engine
With filter 6.4 (6.1, 5.4) 4.7 (4.4, 3.9)
Without filter 6.0 (5.7, 5.0) 4.2 (4.0, 3.5)
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC multigrade engine oil
Recommended oil viscosity P. 564 2GR-FE engine: SAE 5W-30
1AR-FE engine: SAE 5W-20 or 0W-20
