oil temperature TOYOTA VENZA 2009 Owners Manual (in English)

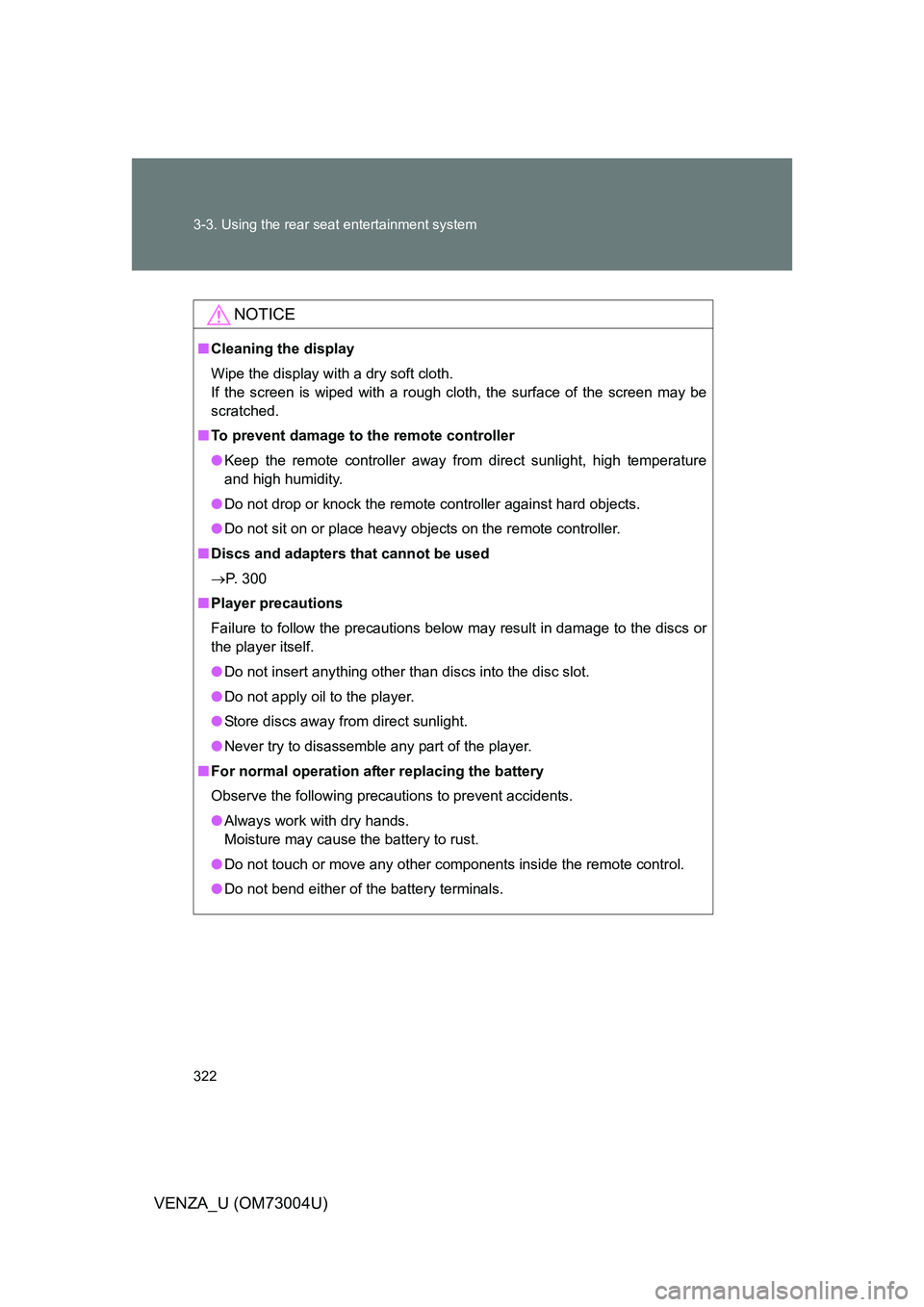

322 3-3. Using the rear seat entertainment system
VENZA_U (OM73004U)
NOTICE
■Cleaning the display
Wipe the display with a dry soft cloth.
If the screen is wiped with a rough cloth, the surface of the screen may be
scratched.
■ To prevent damage to the remote controller
● Keep the remote controller away from direct sunlight, high temperature
and high humidity.
● Do not drop or knock the remote controller against hard objects.
● Do not sit on or place heavy objects on the remote controller.
■ Discs and adapters that cannot be used
 P. 300
■ Player precautions
Failure to follow the precautions below may result in damage to the discs or
the player itself.
● Do not insert anything other than discs into the disc slot.
● Do not apply oil to the player.
● Store discs away from direct sunlight.
● Never try to disassemble any part of the player.
■ For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the remote control.
● Do not bend either of the battery terminals.

446 4-3. Do-it-yourself maintenance
VENZA_U (OM73004U)
Engine oilWith the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level gro und. After turning off the engine,
wait more than five minutes for the oil to drain back into the
bottom of the engine.
Hold a rag under the end and
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
STEP1
STEP2
STEP3
STEP4
STEP5

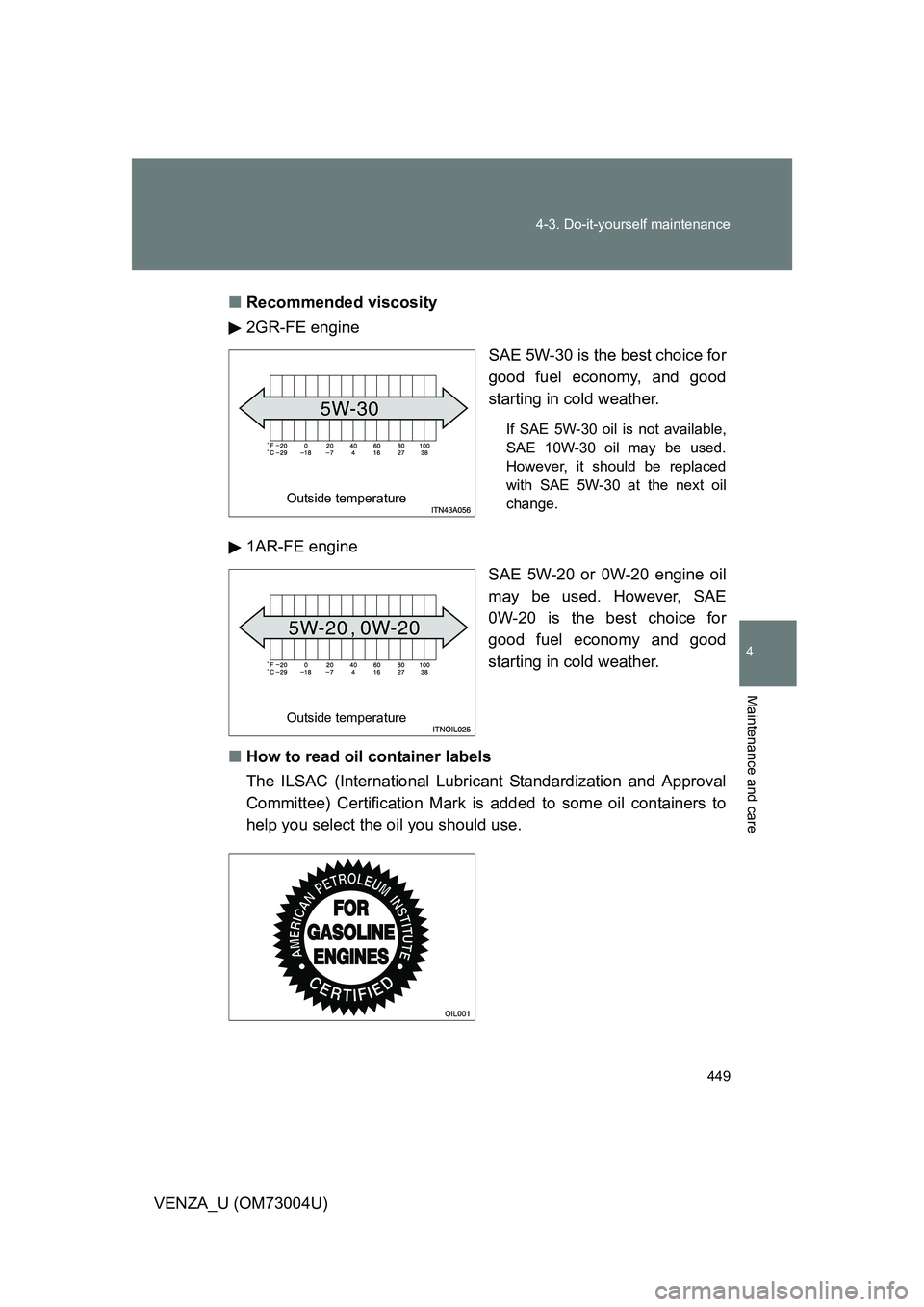

449
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73004U)
■
Recommended viscosity
2GR-FE engine
SAE 5W-30 is the best choice for
good fuel economy, and good
starting in cold weather.
If SAE 5W-30 oil is not available,
SAE 10W-30 oil may be used.
However, it should be replaced
with SAE 5W-30 at the next oil
change.
1AR-FE engineSAE 5W-20 or 0W-20 engine oil
may be used. However, SAE
0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
■ How to read oil container labels
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to
help you select the oil you should use.
Outside temperature
Outside temperature

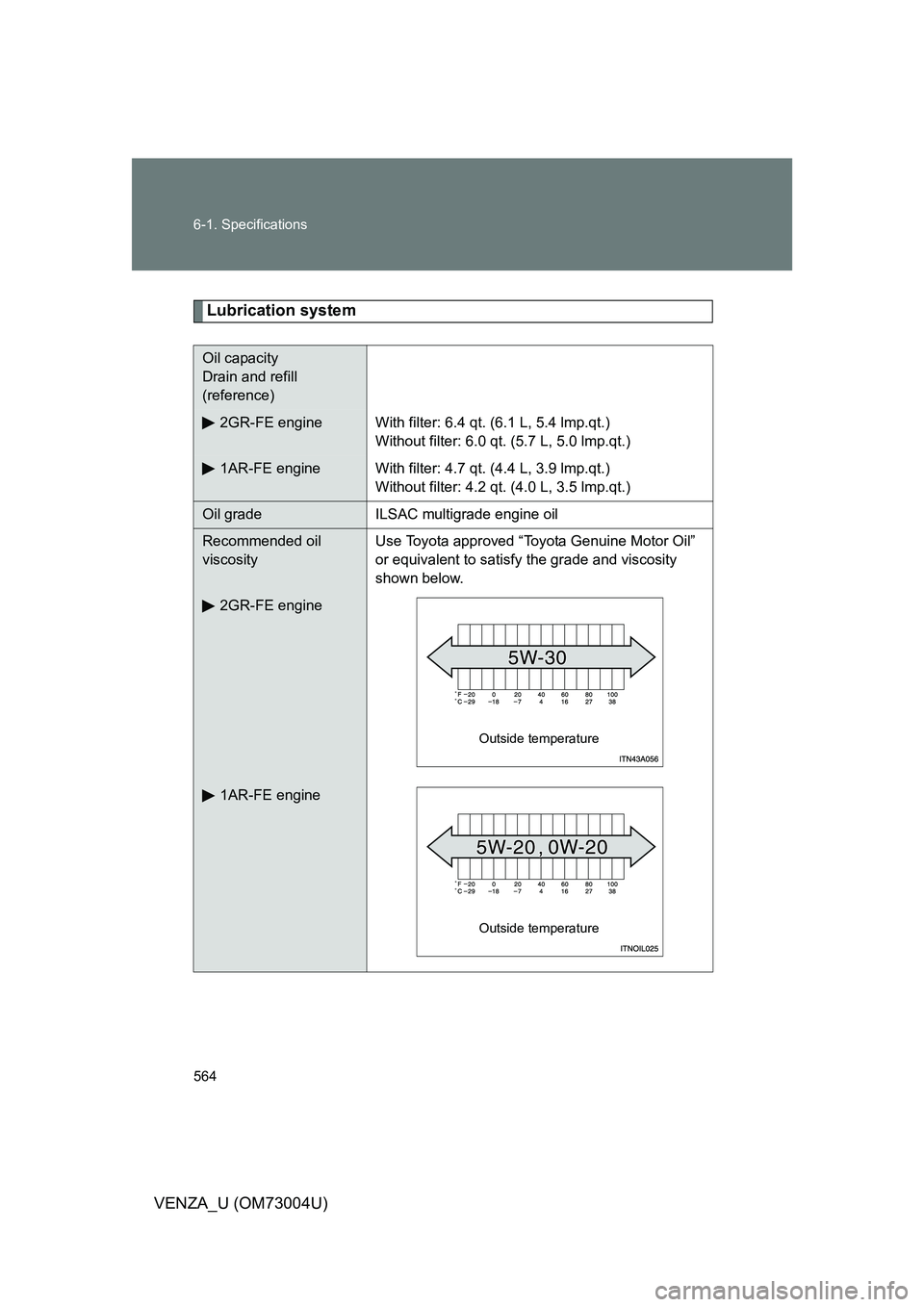

564 6-1. Specifications
VENZA_U (OM73004U)
Lubrication system
Oil capacity
Drain and refill
(reference)
2GR-FE engineWith filter: 6.4 qt. (6.1 L, 5.4 lmp.qt.)
Without filter: 6.0 qt. (5.7 L, 5.0 lmp.qt.)
1AR-FE engineWith filter: 4.7 qt. (4.4 L, 3.9 lmp.qt.)
Without filter: 4.2 qt. (4.0 L, 3.5 lmp.qt.)
Oil gradeILSAC multigrade engine oil
Recommended oil
viscosityUse Toyota approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the grade and viscosity
shown below.
2GR-FE engine
1AR-FE engine
Outside temperature
Outside temperature

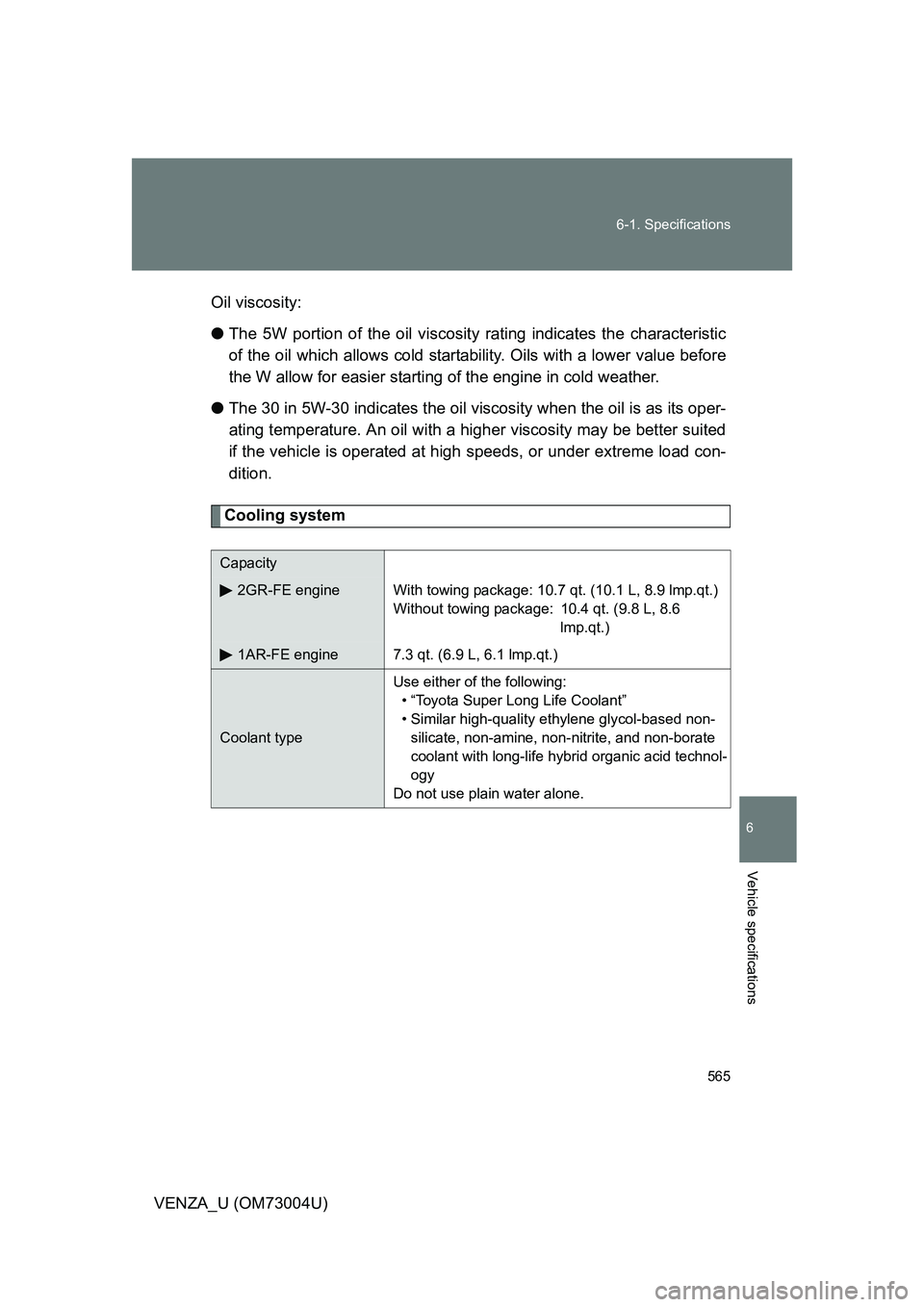

565
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73004U)
Oil viscosity:
●
The 5W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 30 in 5W-30 indicates the oil visc osity when the oil is as its oper-
ating temperature. An oil with a higher viscosity may be better suited
if the vehicle is operated at high speeds, or under extreme load con-
dition.
Cooling system
Capacity
2GR-FE engineWith towing package: 10.7 qt. (10.1 L, 8.9 lmp.qt.)
Without towing package: 10.4 qt. (9.8 L, 8.6 lmp.qt.)
1AR-FE engine7.3 qt. (6.9 L, 6.1 lmp.qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.

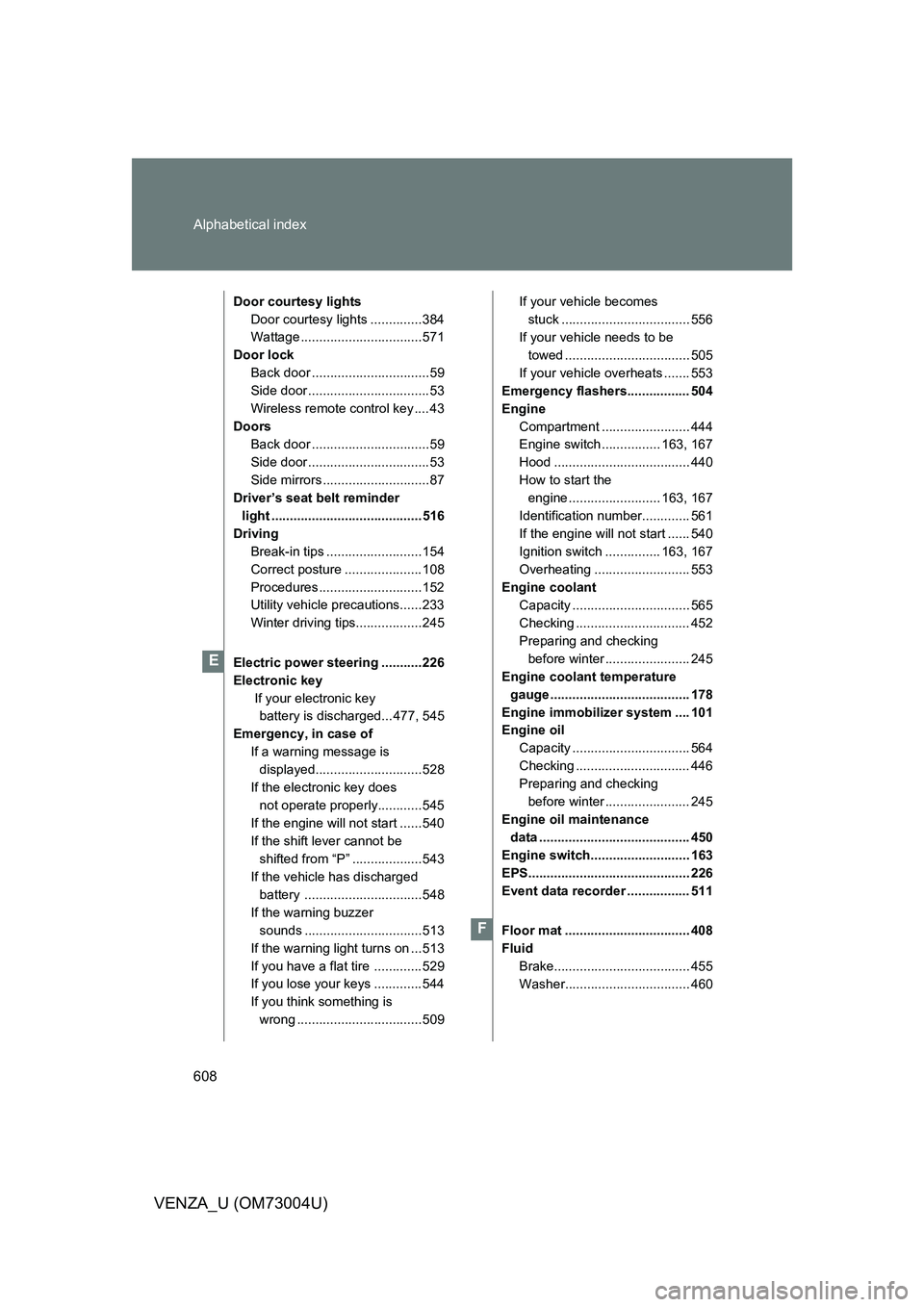

608 Alphabetical index
VENZA_U (OM73004U)
Door courtesy lightsDoor courtesy lights ..............384
Wattage .................................571
Door lock Back door ................................59
Side door ................................. 53
Wireless remote control key .... 43
Doors Back door ................................59
Side door ................................. 53
Side mirrors .............................87
Driver’s seat belt reminder
light ......................................... 516
Driving Break-in tips .......................... 154
Correct posture ..................... 108
Procedures............................ 152
Utility vehicle precautions......233
Winter driving tips.................. 245
Electric power steering ...........226
Electronic key If your electronic key battery is discharged...477, 545
Emergency, in case of If a warning message is displayed............................. 528
If the electronic key does not operate properly............ 545
If the engine will not start ......540
If the shift lever cannot be
shifted from “P” ...................543
If the vehicle has discharged
battery ................................548
If the warning buzzer sounds ................................513
If the warning light turns on ...513
If you have a flat tire ............. 529
If you lose your keys ............. 544
If you think something is wrong .................................. 509 If your vehicle becomes
stuck ................................... 556
If your vehicle needs to be
towed .................................. 505
If your vehicle overheats ....... 553
Emergency flashers................. 504
Engine
Compartment ........................ 444
Engine switch ................ 163, 167
Hood ..................................... 440
How to start the engine ......................... 163, 167
Identification number............. 561
If the engine will not start ...... 540
Ignition switch ............... 163, 167
Overheating .......................... 553
Engine coolant Capacity ................................ 565
Checking ............................... 452
Preparing and checking
before winter ....................... 245
Engine coolan t temperature
gauge ...................................... 178
Engine immobilizer system .... 101
Engine oil Capacity ................................ 564
Checking ............................... 446
Preparing and checking before winter ....................... 245
Engine oil maintenance data ......................................... 450
Engine switch........................... 163
EPS............................................ 226
Event data recorder ................. 511
Floor mat .................................. 408
Fluid Brake..................................... 455
Washer.................................. 460
E
F

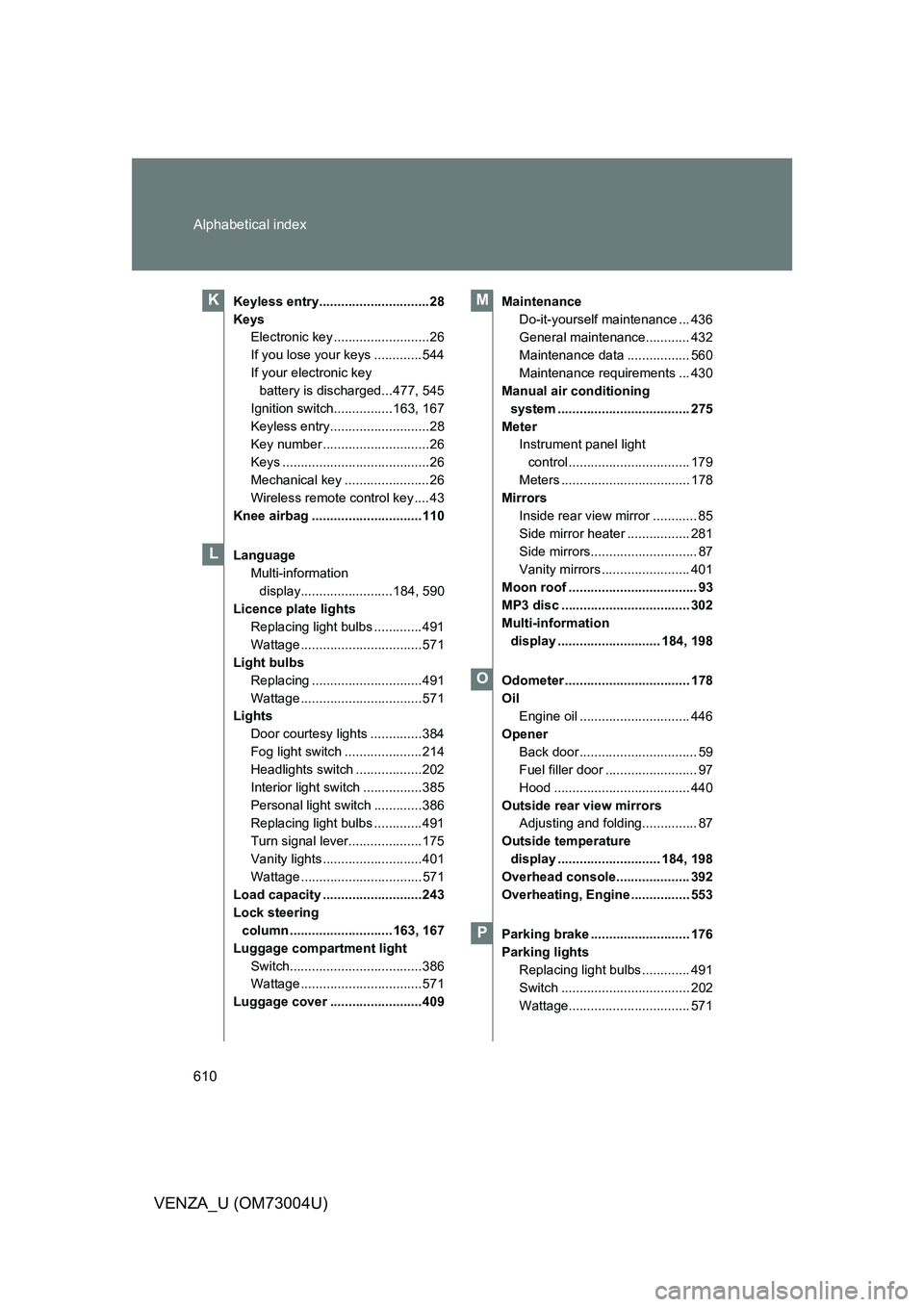

610 Alphabetical index
VENZA_U (OM73004U)
Keyless entry.............................. 28
KeysElectronic key ..........................26
If you lose your keys ............. 544
If your electronic key battery is discharged...477, 545
Ignition switch................163, 167
Keyless entry...........................28
Key number .............................26
Keys ........................................26
Mechanical key ....................... 26
Wireless remote control key .... 43
Knee airbag ..............................110
Language Multi-information display.........................184, 590
Licence plate lights Replacing light bulbs ............. 491
Wattage .................................571
Light bulbs
Replacing ..............................491
Wattage .................................571
Lights
Door courtesy lights ..............384
Fog light switch ..................... 214
Headlights switch .................. 202
Interior light switch ................385
Personal light switch ............. 386
Replacing light bulbs ............. 491
Turn signal lever.................... 175
Vanity lights ...........................401
Wattage .................................571
Load capacity ...........................243
Lock steering column ............................ 163, 167
Luggage compartment light Switch.................................... 386
Wattage .................................571
Luggage cover .........................409 Maintenance
Do-it-yourself maintenance ... 436
General maintenance............ 432
Maintenance data ................. 560
Maintenance requirements ... 430
Manual air conditioning
system .................................... 275
Meter Instrument panel light
control ................................. 179
Meters ................................... 178
Mirrors
Inside rear view mirror ............ 85
Side mirror heater ................. 281
Side mirrors............................. 87
Vanity mirrors ........................ 401
Moon roof ................................... 93
MP3 disc ................................... 302
Multi-information display ............................ 184, 198
Odometer .................................. 178
Oil Engine oil .............................. 446
Opener Back door ................................ 59
Fuel filler door ......................... 97
Hood ..................................... 440
Outside rear view mirrors Adjusting and folding............... 87
Outside temperature display ............................ 184, 198
Overhead console.................... 392
Overheating, Engine ................ 553
Parking brake ........................... 176
Parking lights Replacing light bulbs ............. 491
Switch ................................... 202
Wattage................................. 571K
L
M
O
P
