steering wheel TOYOTA VENZA 2009 Owners Manual (in English)

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance9Fuel tank door release and cap8Hood release 8Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry1,26Light control-Instrument panel9
Smart Key system1,27
Air Conditioning/Heating16-17Audio 18-19Auto lock functions111Automatic Transmission 10Cruise control 20Customizable features23Garage door opener (HomeLink®)321Lights1,2& turn signals14-15Moonroof 13Multi-information display (clock)222Parking brake10Power outlets-12V DC 21Power outlet-120V AC21Rear seat entertainment system20Seat adjustments-Front 11Seat adjustments-Rear11Seat heaters 16Seats-Head restraints12Seats-Folding rear row seats12Tilt and telescopic steering wheel 10Te l e p h o n e controls (Bluetooth®)23VSC OFF button 17Windows-Power13
Windshield wipers & washers 15
Door locks1,224Doors-Child safety locks 25Seatbelts24Seatbelts-Shoulder belt anchor24Spare tire & tools25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
413077M1.qxd 10/21/08 4:45 PM Page 1

2
OVERVIEW
Instrument panel
Steering wheel audio controls
Telephone controls1,2
Voice command button1,2
Cruise control
Engine switch (standard key)1
Headlight, turn signal and front fog light1 controls
Wiper and washer controls
“ENGINE START STOP” switch (Smart Key)
1
Multi-information display
Audio system2
Emergency flasher button
Multi-information display switches
Steering wheel controls
413077M1.qxd 10/21/08 4:45 PM Page 2

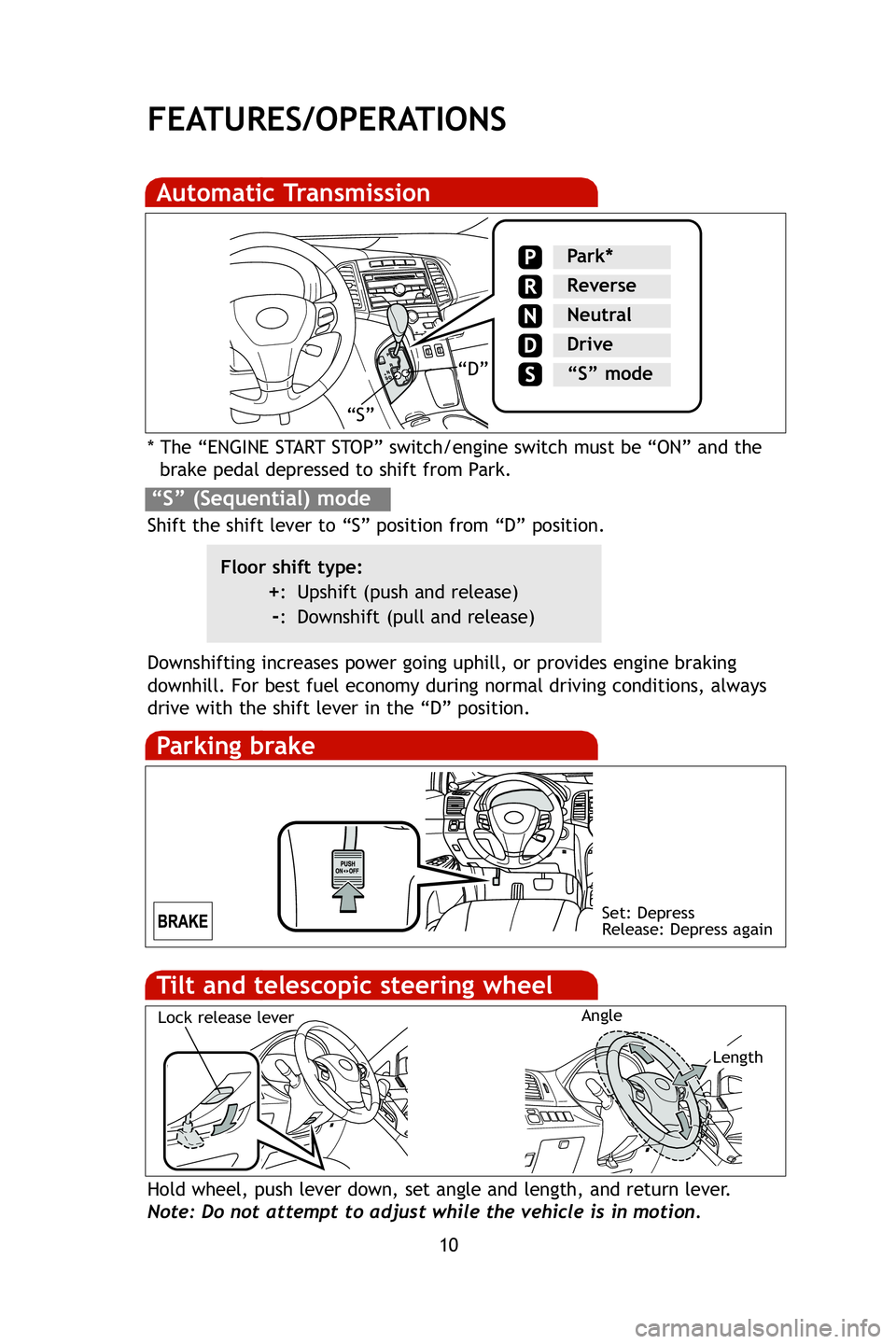

10
FEATURES/OPERATIONS
Automatic Transmission
* The “ENGINE START STOP” switch/engine switch must be “ON” and thebrake pedal depressed to shift from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always\
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
Park*
Reverse
Neutral
Drive
“S” mode
“S”
“D”
Parking brake
Set: Depress
Release: Depress again
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
Note: Do not attempt to adjust while the vehicle is in motion.
Lock release lever
Length
Angle
413077M1.qxd 10/21/08 4:45 PM Page 10

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6)\
to
select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Types 1 and 2 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE” or either side of “SEEK
TRACK.”
To select a folder (MP3/WMA only) Push either side of “TAPE FOLDER.”
“ ”
-In radio mode Push to select a preset station; push and hold to seek
the next strong station.
-In CD mode Push to skip up or down to next/previous track.
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to
turn audio system OFF.
vv
AUX audio jack
Steering wheel switches
Volume control
By inserting a mini plug into the AUX audio jack, you can listen to musi\
c
from a portable audio device through the vehicle’s speaker system while
in AUX mode.
413077M1.qxd 10/21/08 4:45 PM Page 19

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the telephone
and the system.
Refer to the Navigation System Owner’s Manual or the Owners Manual .
Telephone controls (Bluetooth®)
(if equipped)
MicrophoneAudio unit
Steering wheel telephone switches
Start call
End call
Voice command buttonVo l u m e
Customizable features
If your vehicle has a TFT type* multi-information display, you will be able
to customize certain electronic features. Press the “SETUP” button while
stopped to access the “Custom Settings” screen.
Please see the Owner’s Manual for details.
* On vehicles equipped with back-up camera
413077M1.qxd 10/21/08 4:45 PM Page 23
