warning TOYOTA VENZA 2009 Owners Manual (in English)

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance9Fuel tank door release and cap8Hood release 8Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry1,26Light control-Instrument panel9
Smart Key system1,27
Air Conditioning/Heating16-17Audio 18-19Auto lock functions111Automatic Transmission 10Cruise control 20Customizable features23Garage door opener (HomeLink®)321Lights1,2& turn signals14-15Moonroof 13Multi-information display (clock)222Parking brake10Power outlets-12V DC 21Power outlet-120V AC21Rear seat entertainment system20Seat adjustments-Front 11Seat adjustments-Rear11Seat heaters 16Seats-Head restraints12Seats-Folding rear row seats12Tilt and telescopic steering wheel 10Te l e p h o n e controls (Bluetooth®)23VSC OFF button 17Windows-Power13
Windshield wipers & washers 15
Door locks1,224Doors-Child safety locks 25Seatbelts24Seatbelts-Shoulder belt anchor24Spare tire & tools25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
413077M1.qxd 10/21/08 4:45 PM Page 1

4
OVERVIEW
Indicator symbols
Instrument cluster
Tachometer
Service indicator and reminder
Speedometer
Fuel gauge
Engine coolant temperature
Odometer/Trip meter and trip meter reset button/Instrument panel
light control
Odometer and two trip meters
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator
Driver seatbelt reminder1
(alarm will sound if speed is over 12 mph)Front passenger seatbelt reminder
1
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Active torque control 4WD system warning1
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2009
Owner’s Manual .
1If indicator does not turn off within a few seconds of starting engine, \
there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2If this light flashes, refer to “Cruise control,” Section 2-4, 200\
9 Owner’s Manual.
413077M1.qxd 10/21/08 4:45 PM Page 4

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
Cruise control indicator2
Low Tire Pressure Warning1
Smart Key system warning1
Open door warning1
Airbag SRS warning1
Master warning1
Low windshield washer fluid level warning1
Low fuel level warning1
Electric power steering system warning1
Fog light indicator
3For details, refer to “Headlight switch,” Section 2-3, 2009 Owner’\
s Manual.
Vehicle Stability Control OFF indicator
Low Engine oil pressure warning1
Automatic headlight leveling system warning1
Engine oil replacement reminder1
Security indicator
Traction Control OFF indicator
Automatic high beam indicator3
413077M1.qxd 10/21/08 4:45 PM Page 5

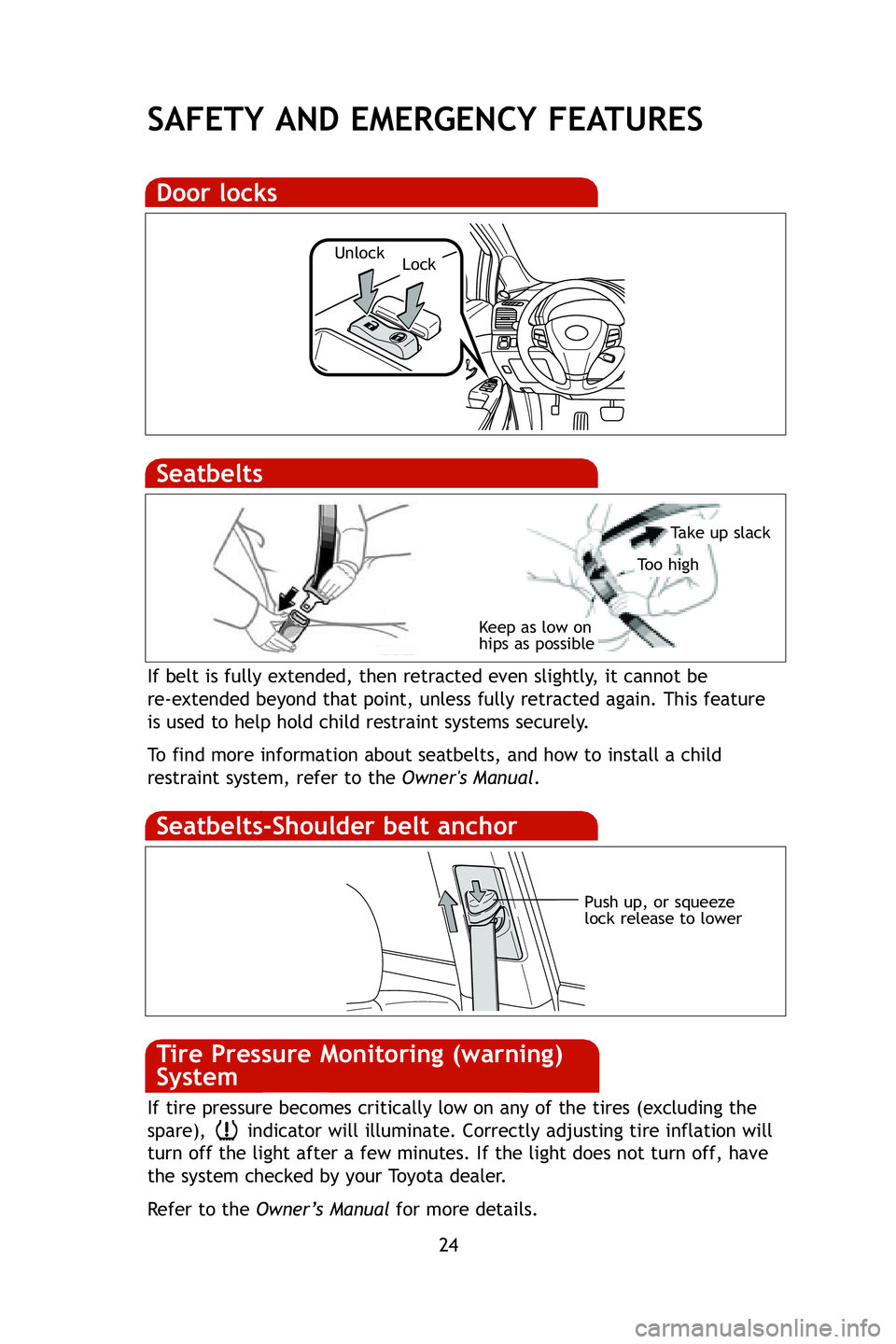

24
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This featur\
e
is used to help hold child restraint systems securely.
To find more information about seatbelts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seatbelts
Push up, or squeeze
lock release to lower
Seatbelts-Shoulder belt anchor
If tire pressure becomes critically low on any of the tires (excluding \
the
spare), indicator will illuminate. Correctly adjusting tire inflation will
turn off the light after a few minutes. If the light does not turn off, \
have
the system checked by your Toyota dealer.
Refer to the Owner’s Manual for more details.
Tire Pressure Monitoring (warning)
System
Door locks
LockUnlock
413077M1.qxd 10/22/08 4:55 PM Page 24
