TOYOTA VENZA 2010 Owners Manual (in English)

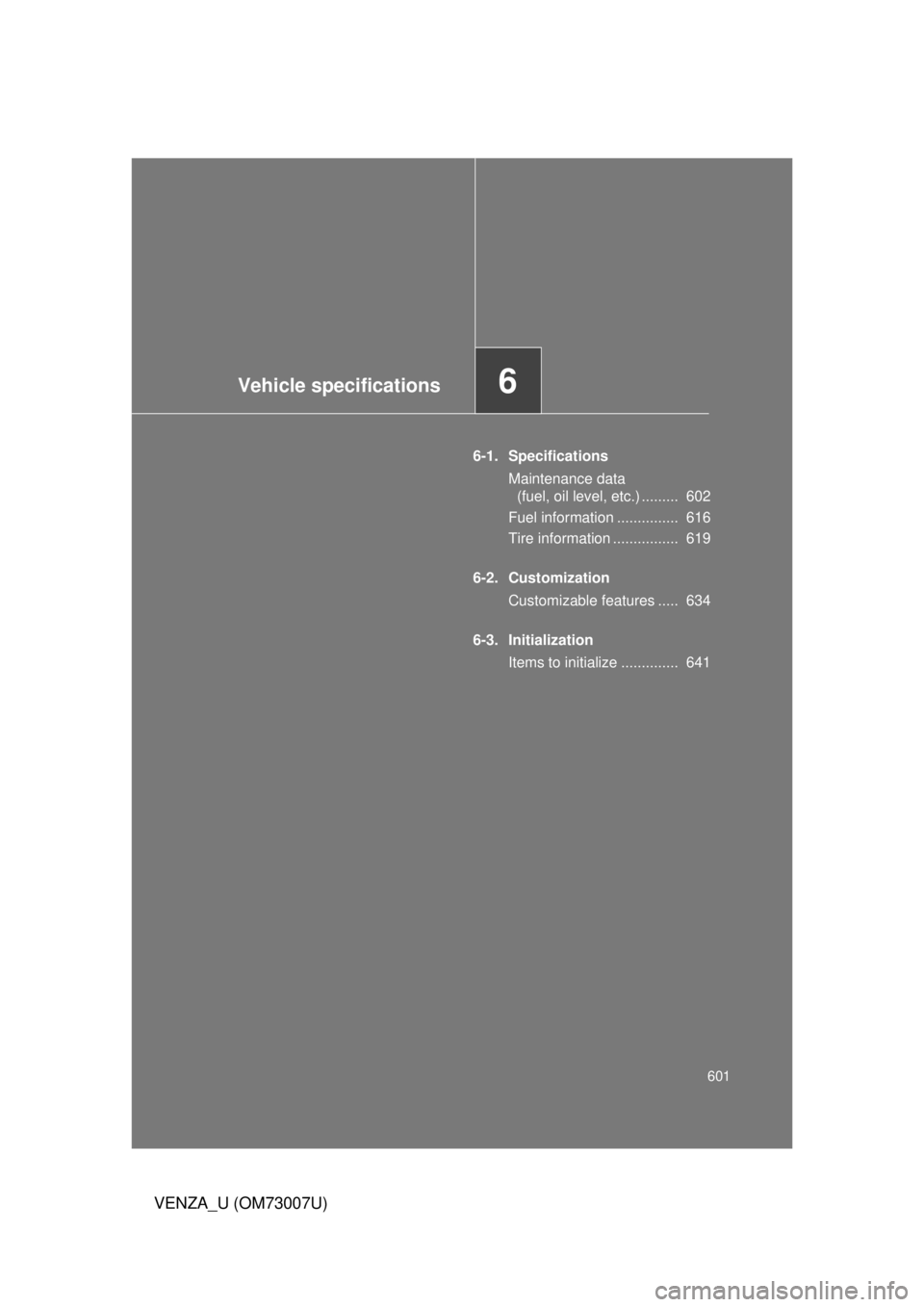

Vehicle specifications6
601
VENZA_U (OM73007U)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 602
Fuel information ............... 616
Tire information ................ 619
6-2. Customization Customizable features ..... 634
6-3. Initialization Items to initialize .............. 641

602
VENZA_U (OM73007U)
6-1. Specifications

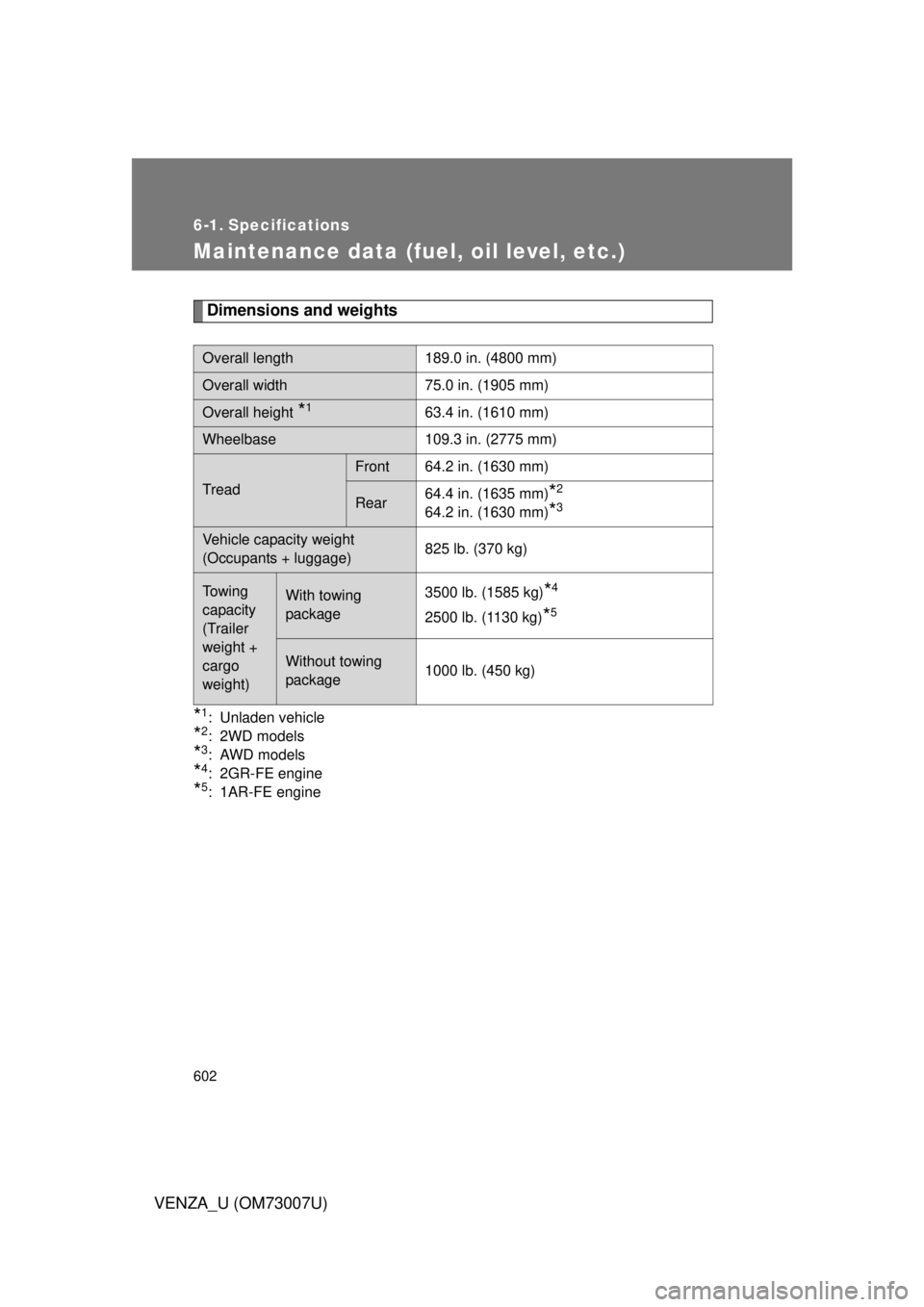

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*1: Unladen vehicle
*2: 2WD models
*3: AWD models
*4: 2GR-FE engine
*5: 1AR-FE engine
Overall length189.0 in. (4800 mm)
Overall width75.0 in. (1905 mm)
Overall height *163.4 in. (1610 mm)
Wheelbase109.3 in. (2775 mm)
Tread
Front64.2 in. (1630 mm)
Rear64.4 in. (1635 mm)*2
64.2 in. (1630 mm)*3
Vehicle capacity weight
(Occupants + luggage)825 lb. (370 kg)
Towing
capacity
(Trailer
weight +
cargo
weight)With towing
package3500 lb. (1585 kg)*4
2500 lb. (1130 kg)*5
Without towing
package1000 lb. (450 kg)

603
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73007U)
Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.

604 6-1. Specifications
VENZA_U (OM73007U)■
Engine number
2GR-FE engine
The engine number is stamped
on the engine block as shown.
1AR-FE engine

605
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73007U)

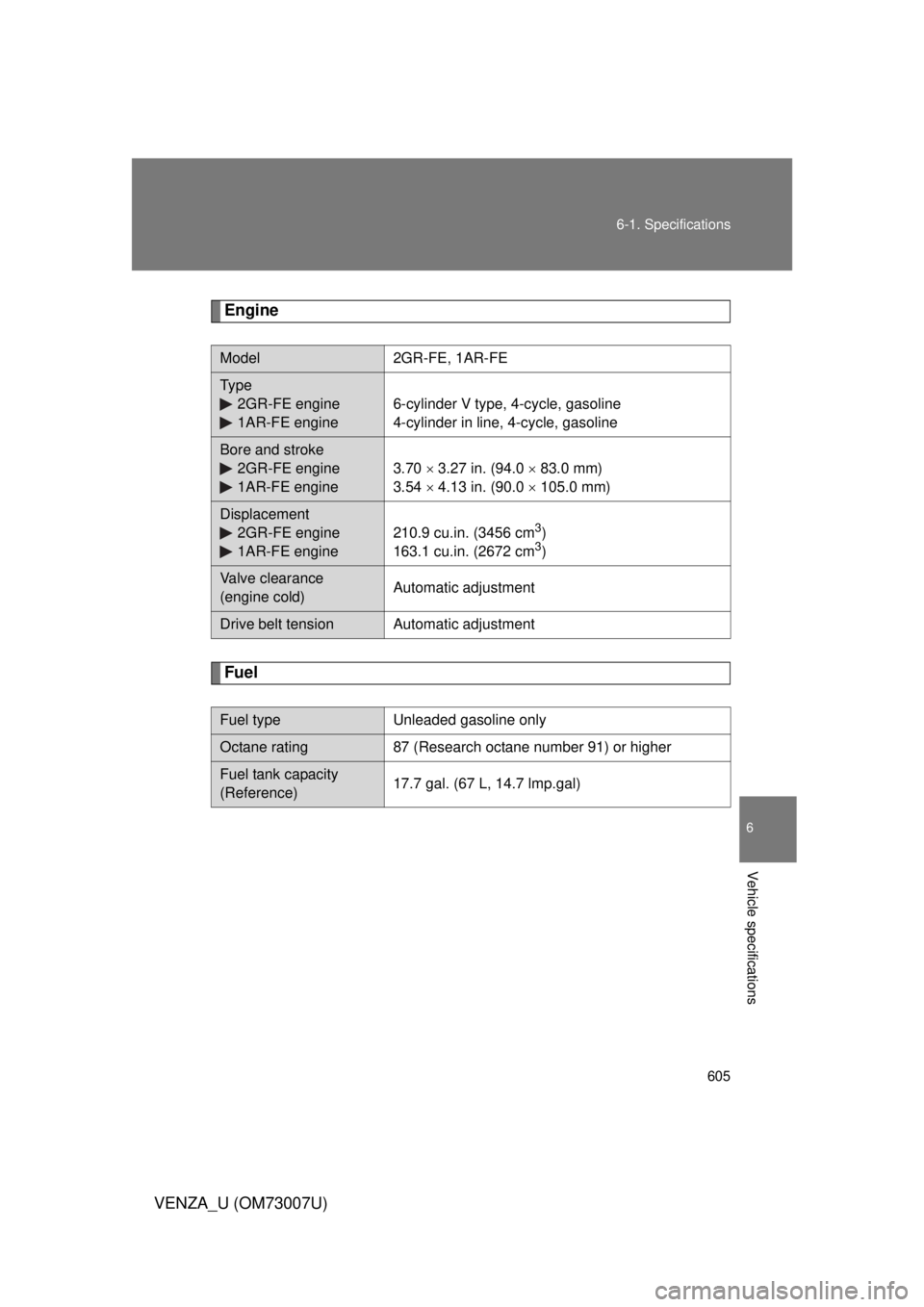

Engine
Fuel
Model2GR-FE, 1AR-FE
Ty p e
2GR-FE engine
1AR-FE engine
6-cylinder V type, 4-cycle, gasoline
4-cylinder in line, 4-cycle, gasoline
Bore and stroke2GR-FE engine
1AR-FE engine
3.70  3.27 in. (94.0  83.0 mm)
3.54  4.13 in. (90.0  105.0 mm)
Displacement
2GR-FE engine
1AR-FE engine
210.9 cu.in. (3456 cm3)
163.1 cu.in. (2672 cm3)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating87 (Research octane number 91) or higher
Fuel tank capacity
(Reference)17.7 gal. (67 L, 14.7 lmp.gal)

606 6-1. Specifications
VENZA_U (OM73007U)
Lubrication system
2GR-FE engine
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toy-
ota approved “Toyota Genuine Motor Oil” or equivalent to satisfy the
following grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 5W-30 is not available,
SAE 10W-30 oil may be used.
However, it should be replaced
with SAE 5W-30 at the next oil
change.
The 5W portion of the oil viscosity rating indicates the characteristic of the
oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
The 30 in 5W-30 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehi-
cle is operated at high speeds, or under extreme load conditions.
Oil capacity
(Drain and refill —
reference)
With filter
Without filter6.4 qt. (6.1 L, 5.4 lmp.qt.)
6.0 qt. (5.7 L, 5.0 lmp.qt.)
Outside temperature

607
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73007U)
How to read oil container label:
The ILSAC (International Lubric
ant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
1AR-FE engine ■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toy-
ota approved “Toyota Genuine Motor Oil” or equivalent to satisfy the
following grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 5W-20 or 0W-20
Oil capacity
Drain and refill
(Reference)
With filter
Without filter4.7 qt. (4.4 L, 3.9 lmp.qt.)
4.2 qt. (4.0 L, 3.5 lmp.qt.)

608 6-1. Specifications
VENZA_U (OM73007U)SAE 5W-20 or 0W-20 engine oil
may be used. However, SAE
0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
The 0W portion of the oil viscosity rating indicates the characteristic of the
oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehi-
cle is operated at high speeds, or under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is
added to some oil containers to help
you select the oil you should use.
Outside temperature

609
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73007U)

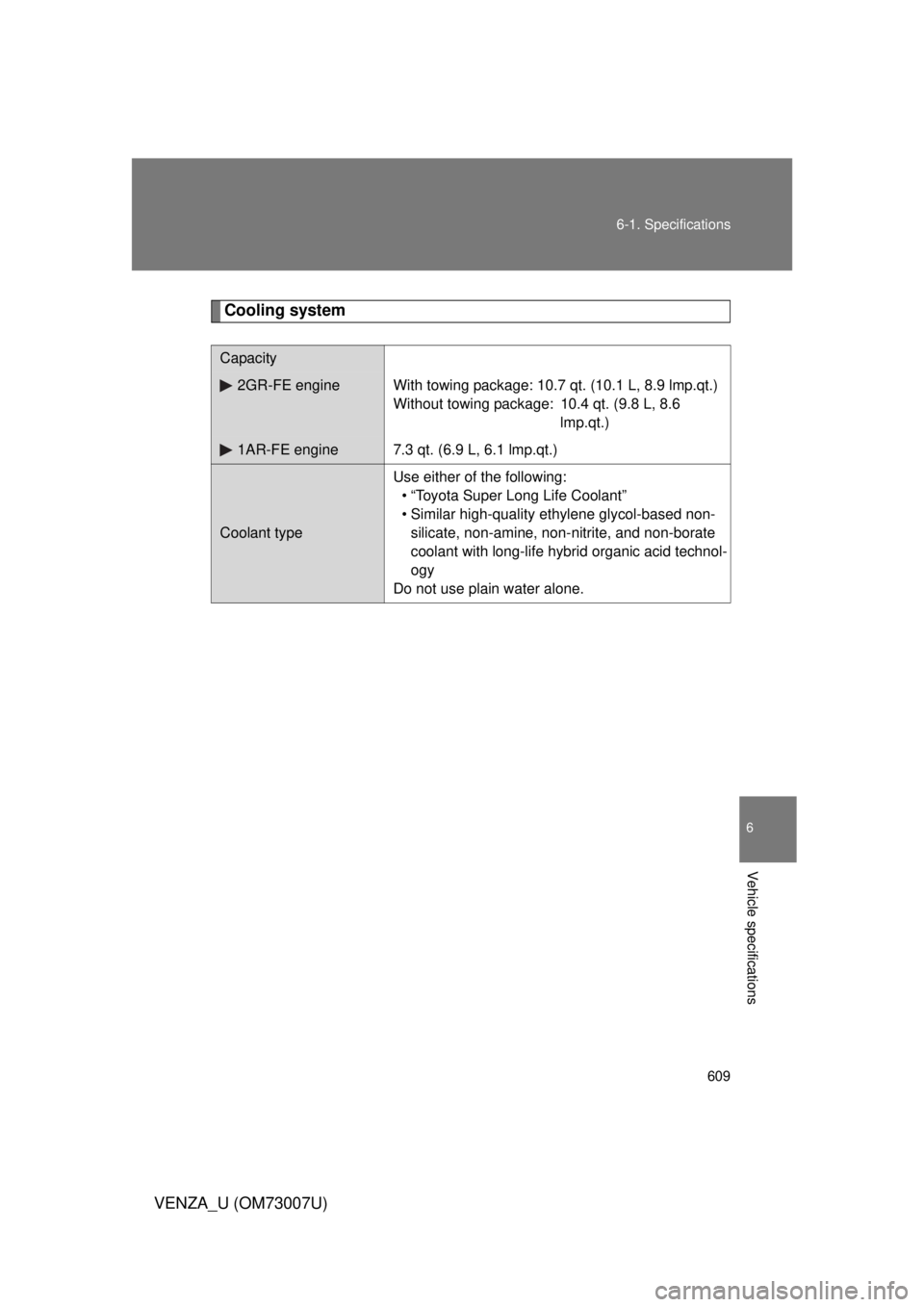

Cooling system
Capacity
2GR-FE engineWith towing package: 10.7 qt. (10.1 L, 8.9 lmp.qt.)
Without towing package: 10.4 qt. (9.8 L, 8.6
lmp.qt.)
1AR-FE engine7.3 qt. (6.9 L, 6.1 lmp.qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.

610 6-1. Specifications
VENZA_U (OM73007U)
Ignition system
Electrical system
Rear differential (AWD models)
Spark plug
Make DENSO2GR-FE engine
1AR-FE engine
Gap
FK20HR11
SK16HR11
0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Open voltage at
68 F (20 C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage is checked 20 minutes after the
engine and all the lights are turned off.)
Charging rates5 A max.
Oil capacity0.52 qt. (0.50 L, 0.44 lmp.qt.)
Oil typeHypoid gear oil API GL-5
Recommended oil viscosityAbove 0 F (-18 C): SAE 90
Below 0 F (-18 C): SAE 80W or 80W-90
