TOYOTA VENZA 2011 Accessories, Audio & Navigation (in English)

CUSTOMER EXPERIENCE CENTER
1-800-331-4331
00505-NAV11-VENPrinted in U.S.A. 9/1010 -TCS- 04056

NAVIGATION SYSTEM
QUICK REFERENCE GUIDE
VENZA
2011

1

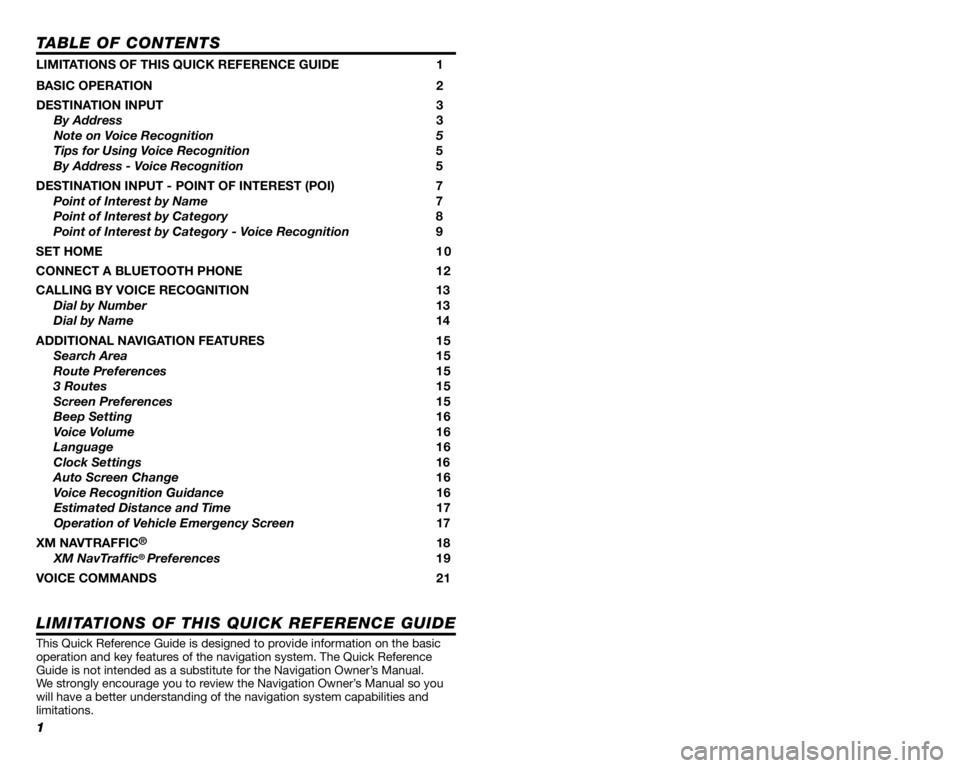

TABLE OF CONTENTS
LIMITATIONS OF THIS QUICK REFERENCE GUIDE 1
BASIC OPERATION 2
DESTINATION INPUT 3
By Address 3
Note on Voice Recognition 5
Tips for Using Voice Recognition 5
By Address - Voice Recognition 5
DESTINATION INPUT - POINT OF INTEREST (POI) 7
Point of Interest by Name 7
Point of Interest by Category 8
Point of Interest by Category - Voice Recognition 9
SET HOME 1 0
CONNECT A BLUETOOTH PHONE 12
CALLING BY VOICE RECOGNITION 13
Dial by Number 13
Dial by Name 14
ADDITIONAL NAVIGATION FEATURES 15
Search Area 15
Route Preferences 15
3 Routes 15
Screen Preferences 15
Beep Setting 16
Voice Volume 16
Language 16
Clock Settings 16
Auto Screen Change 16
Voice Recognition Guidance16
Estimated Distance and Time 17
Operation of Vehicle Emergency Screen 17
XM NAVTRAFFIC®18
XM NavTraf c®Preferences 19
VOICE COMMANDS 21
This Quick Reference Guide is designed to provide information on the basic operation and key features of the navigation system. The Quick Reference Guide is not intended as a substitute for the Navigation Owner’s Manual. We strongly encourage you to review the Navigation Owner’s Manual so you will have a better understanding of the navigation system capabilities a\
nd limitations.
LIMITATIONS OF THIS QUICK REFERENCE GUIDE

22
POI
Attractions
Attractions
Bowling Centers
Entertainment
Golf Courses
Health & Fitness Clubs
Horse Racing
Parks & Beaches
Marinas
Motor Sports
Nightlife
Performing Arts
Ski Resorts
Sports Complexes
Sports & Fitness
Automotive
Automobile Clubs
Auto Service & Maint.
Car Rental Agencies
Car Washes
Dealerships
Gas
Lexus
Parking
Parts Stores
Roadside Assistance
Toyota
Other Automotive
Banks
ATMs
Full-Service Banks
City Centers
City Centers
Government
Libraries
Post Of ces
Schools
Emergency/Medical
Fire Stations
Hospitals
Pharmacies
Police Stations
Other Med. Facilities
Food
Dining
American
Bakeries & Delis
Barbecue & Grill
Cajun/Caribbean
Chinese
Coffee Houses
Fast Food
French
Greek
Indian
Ice Cream & Candy
Italian
Japanese
Korean
Latin/S. American
Middle Eastern
Mexican
Pizza
Seafood
Spanish
Steak Houses
Thai
Vietnamese
Other Restaurants
Groceries
Convenience Stores
Groceries
Retail & Dept. Stores
Book Stores
Clothing & Shoes
Department Stores
Florists
Hobbies & Crafts
Jewelry
Retail & Dept. Stores
Shopping Malls
Sport Equipment
Other Retail Stores
Travel
Airports
Bus Stations
Hotels
Ports & Ferries
Recreational Vehicles
Rest Areas
Taxis & Shuttles
Tourist Information
Train Stations
Other
Dry Cleaners
Home Improvement
Personal Grooming
Shipping & Copies
Of ce & Electronics
Other Services
Clear All Icons
VOICE COMMANDS
NAVIGATION MODE
(POI must be entered via the destination screen, see page 9.)

2

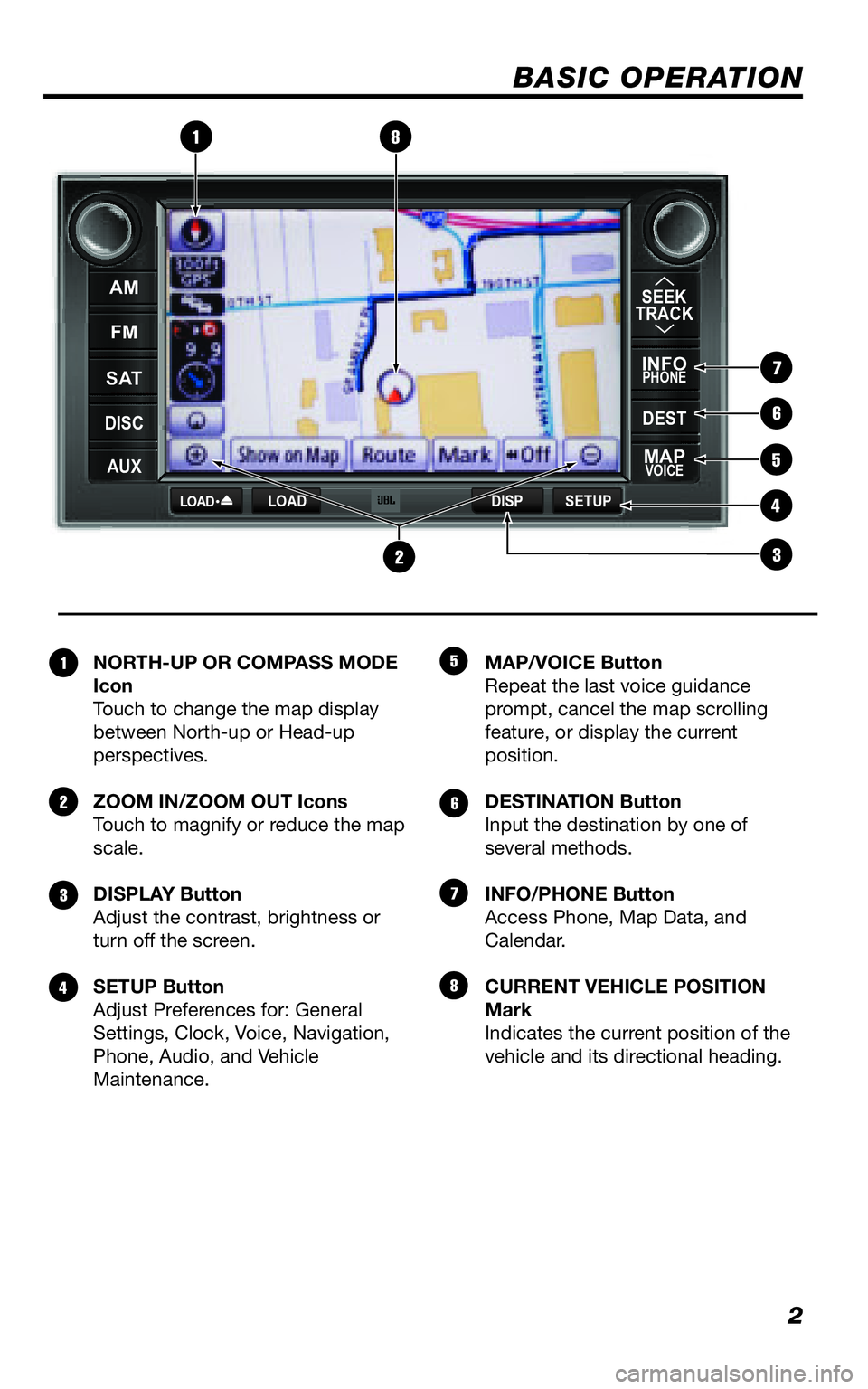

BASIC OPERATION
NORTH-UP OR COMPASS MODE IconTouch to change the map display between North-up or Head-up perspectives.
ZOOM IN/ZOOM OUT Icons Touch to magnify or reduce the map scale.
DISPLAY Button Adjust the contrast, brightness or turn off the screen.
SETUP Button Adjust Preferences for: General Settings, Clock, Voice, Navigation, Phone, Audio, and Vehicle Maintenance.
MAP/VOICE Button Repeat the last voice guidance prompt, cancel the map scrolling feature, or display the current position.
DESTINATION Button Input the destination by one of several methods.
INFO/PHONE Button Access Phone, Map Data, and Calendar.
CURRENT VEHICLE POSITION MarkIndicates the current position of the vehicle and its directional heading.
£
Ó
Î
{
x
È
Ç
n
LOAD DISP SETUPLOAD•
AM
FM
SAT
DISC
AUX
INFOPHONE
MAPVOICE
DEST
TRACKSEEK
1
23
8
6
7
5
4

3

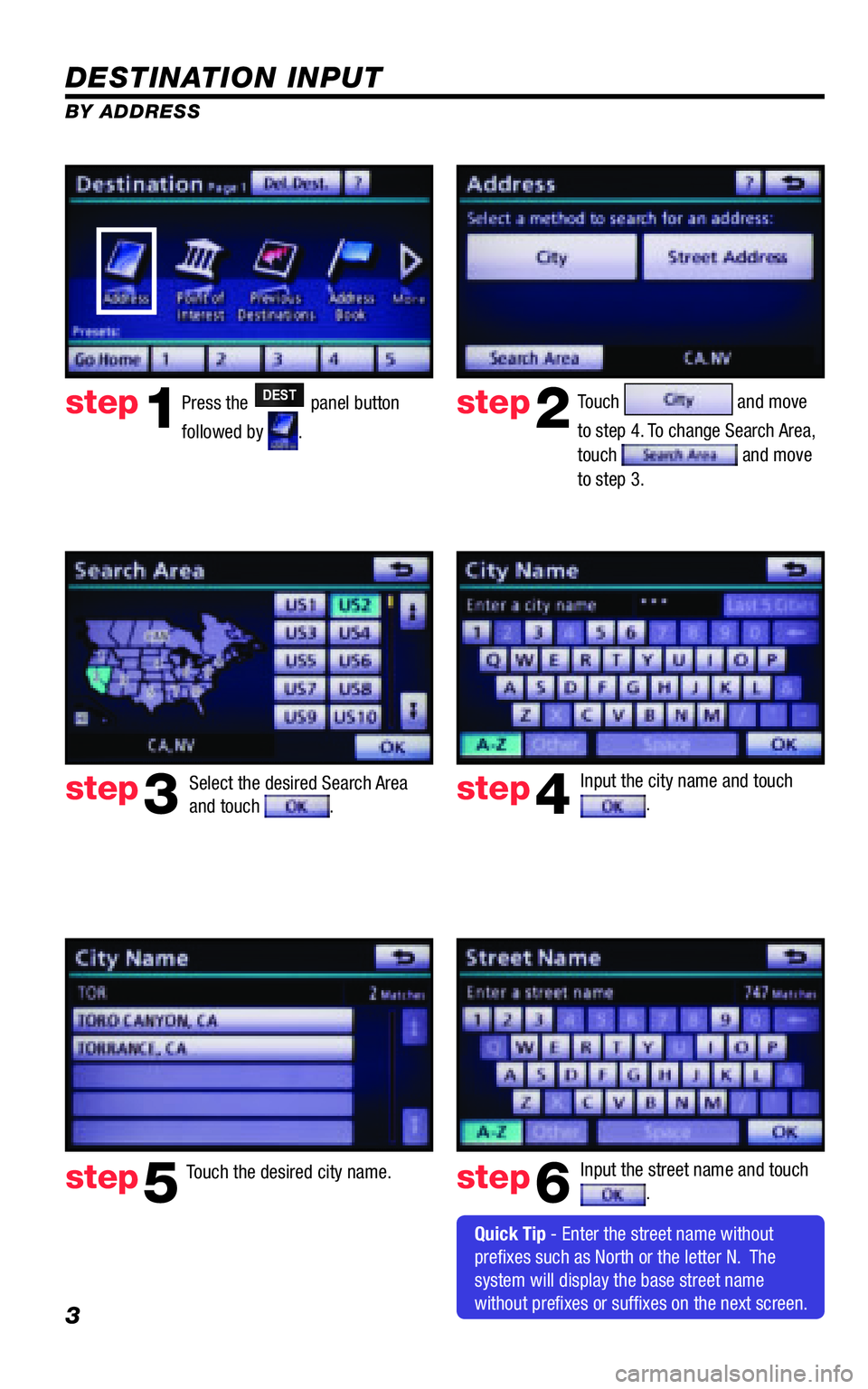

DESTINATION INPUT
BY ADDRESS
Press the DEST panel button
followed by .
Touch and move
to step 4. To change Search Area, touch and move to step 3.
Input the city name and touch .
Touch the desired city name. Input the street name and touch .
Select the desired Search Area and touch .
step1step2
step3step4
step5step6
Quick Tip - Enter the street name without prefi xes such as North or the letter N. The system will display the base street name without prefi xes or suffi xes on the next screen.

4

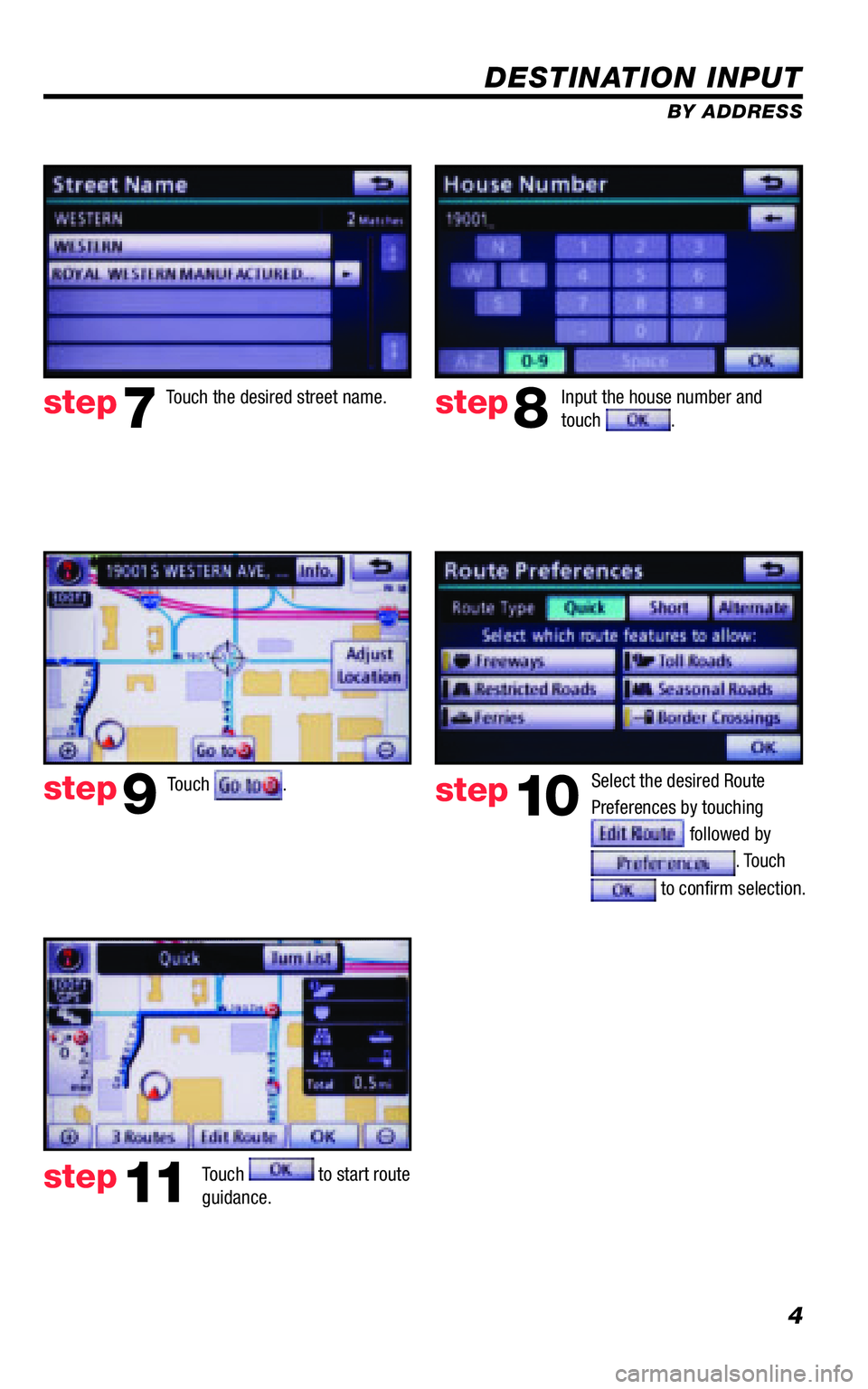

DESTINATION INPUT
BY ADDRESS
Touch .
Input the house number and touch . Touch the desired street name.
Select the desired Route
Preferences by touching
followed by
. Touch
to confi rm selection.
step7step8
step9step10
Touch to start route guidance. step11

5

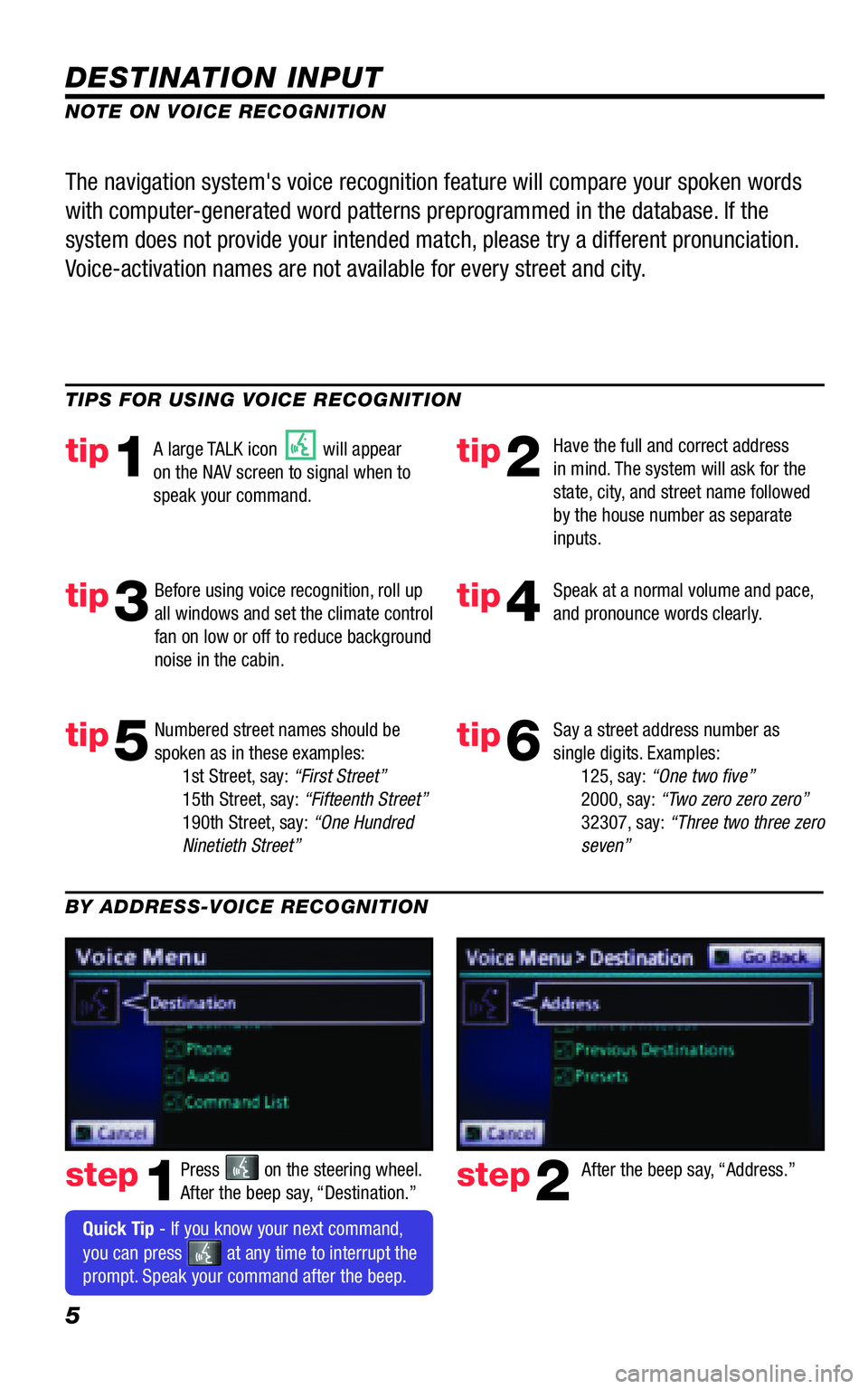

DESTINATION INPUT
step1step2Press on the steering wheel. After the beep say, “Destination.” After the beep say, “Address.”
TIPS FOR USING VOICE RECOGNITION
NOTE ON VOICE RECOGNITION
Say a street address number as single digits. Examples: 125, say: “One two ve” 2000, say: “Two zero zero zero” 32307, say: “Three two three zero seven”
tip1tip2
tip3tip4
tip5
Have the full and correct address in mind. The system will ask for the state, city, and street name followed by the house number as separate inputs.
Before using voice recognition, roll up all windows and set the climate control fan on low or off to reduce background noise in the cabin.
Speak at a normal volume and pace, and pronounce words clearly.
Numbered street names should be spoken as in these examples: 1st Street, say: “First Street” 15th Street, say: “Fifteenth Street” 190th Street, say: “One Hundred Ninetieth Street”
A large TALK icon will appear on the NAV screen to signal when to speak your command.
The navigation system's voice recognition feature will compare your spoken words
with computer-generated word patterns preprogrammed in the database. If the
system does not provide your intended match, please try a different pronunciation.
Voice-activation names are not available for every street and city.
BY ADDRESS-VOICE RECOGNITION
Quick Tip - If you know your next command,
you can press at any time to interrupt the prompt. Speak your command after the beep.
tip6

6

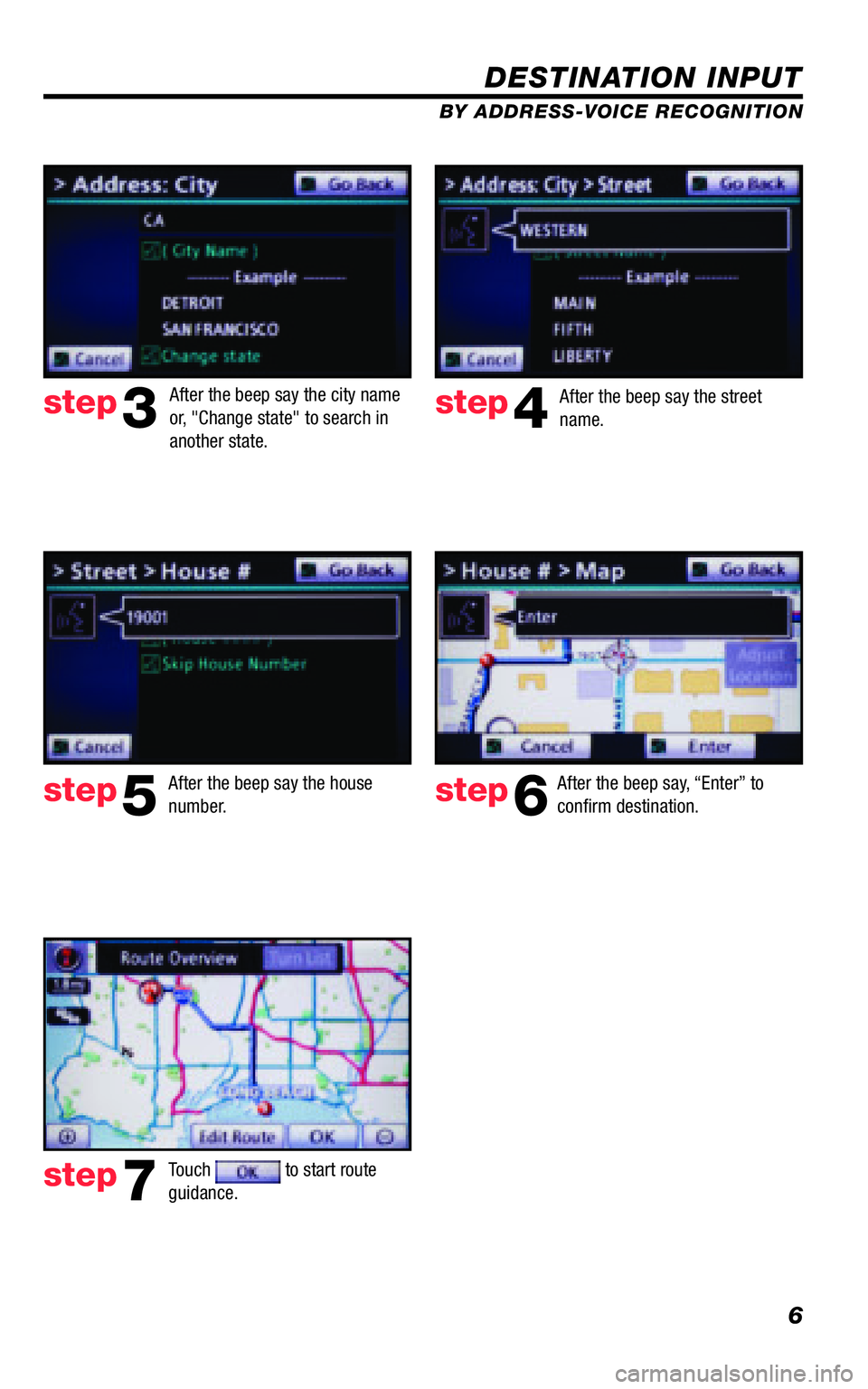

DESTINATION INPUT
BY ADDRESS-VOICE RECOGNITION
step3step4
step5step6
step7
After the beep say, “Enter” to confi rm destination.
Touch to start route guidance.
After the beep say the city name or, "Change state" to search in another state.
After the beep say the street name.
After the beep say the house number.

7

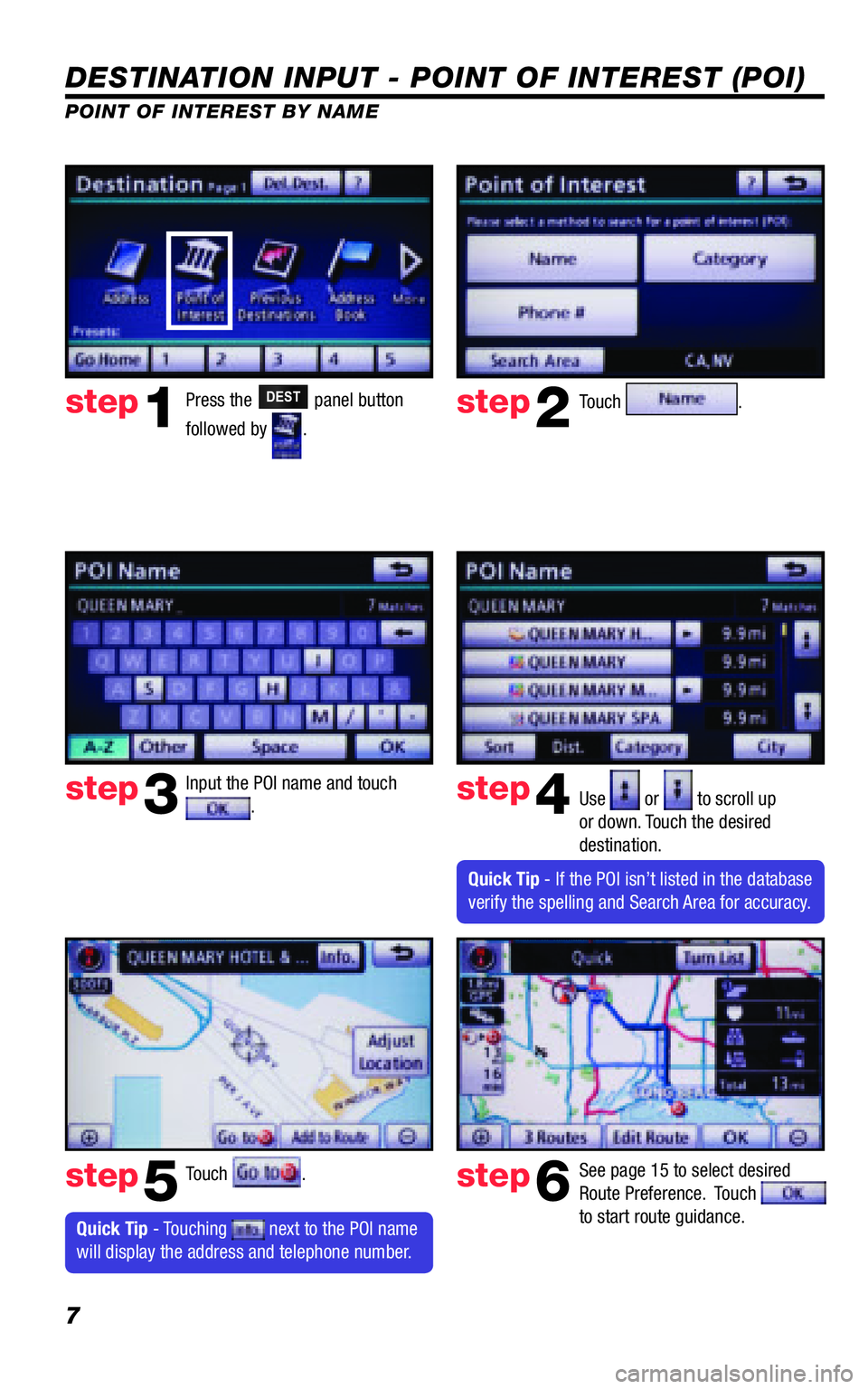

DESTINATION INPUT - POINT OF INTEREST (POI)
POINT OF INTEREST BY NAME
Quick Tip - Touching next to the POI name will display the address and telephone number.
Press the DEST panel button
followed by .
Touch .
Input the POI name and touch . Use or to scroll up or down. Touch the desired destination.
Touch .
step1step2
step3step4
step5
See page 15 to select desired Route Preference. Touch to start route guidance.
step6
Quick Tip - If the POI isn’t listed in the database verify the spelling and Search Area for accuracy.

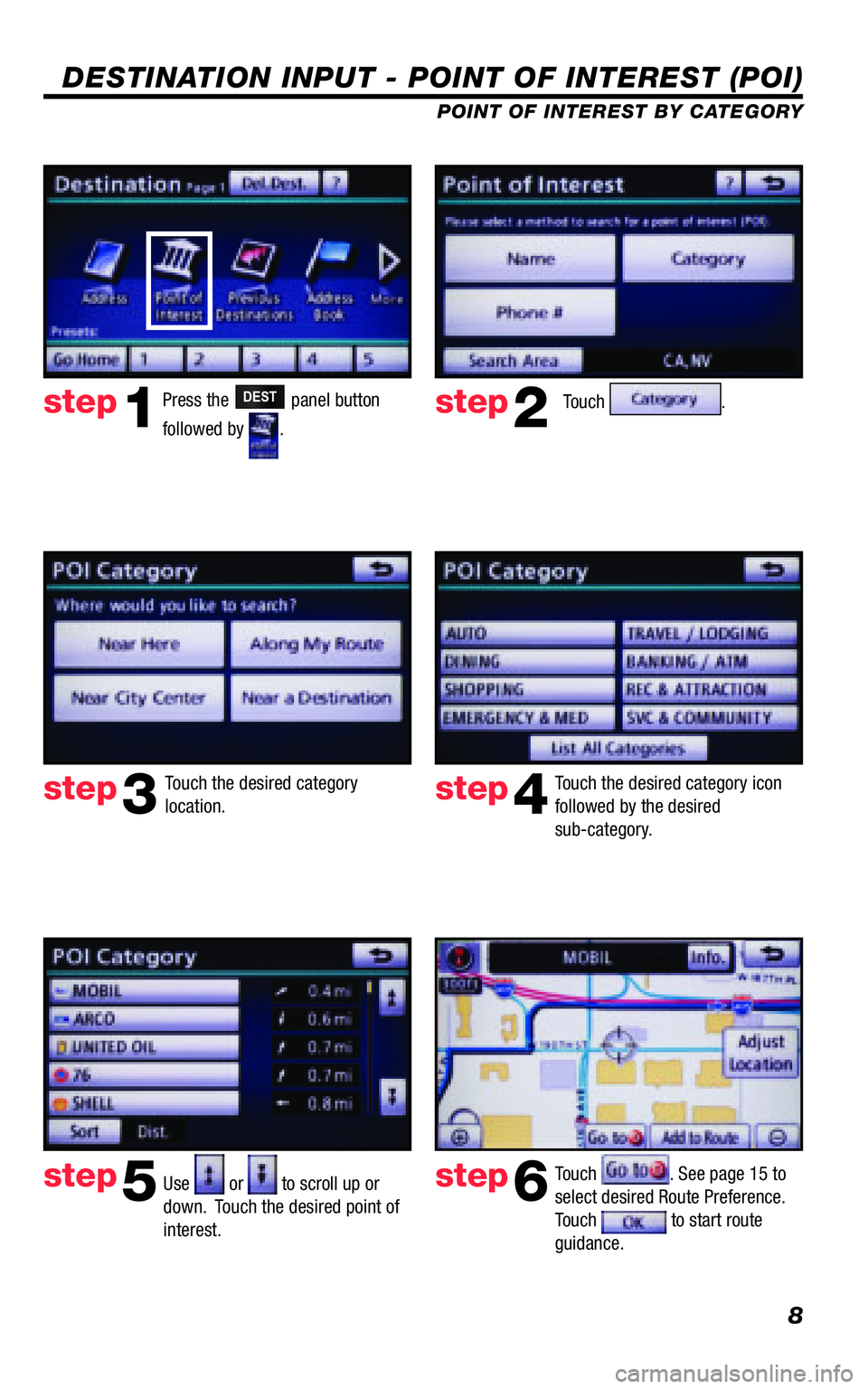

8
DESTINATION INPUT - POINT OF INTEREST (POI)
POINT OF INTEREST BY CATEGORY
Touch .
Touch the desired category location. Touch the desired category icon followed by the desired sub-category.
Use or to scroll up or down. Touch the desired point of interest.
step1step2
step3step4
step5Touch . See page 15 to select desired Route Preference. Touch to start route guidance.
step6
Press the DEST panel button
followed by .

9

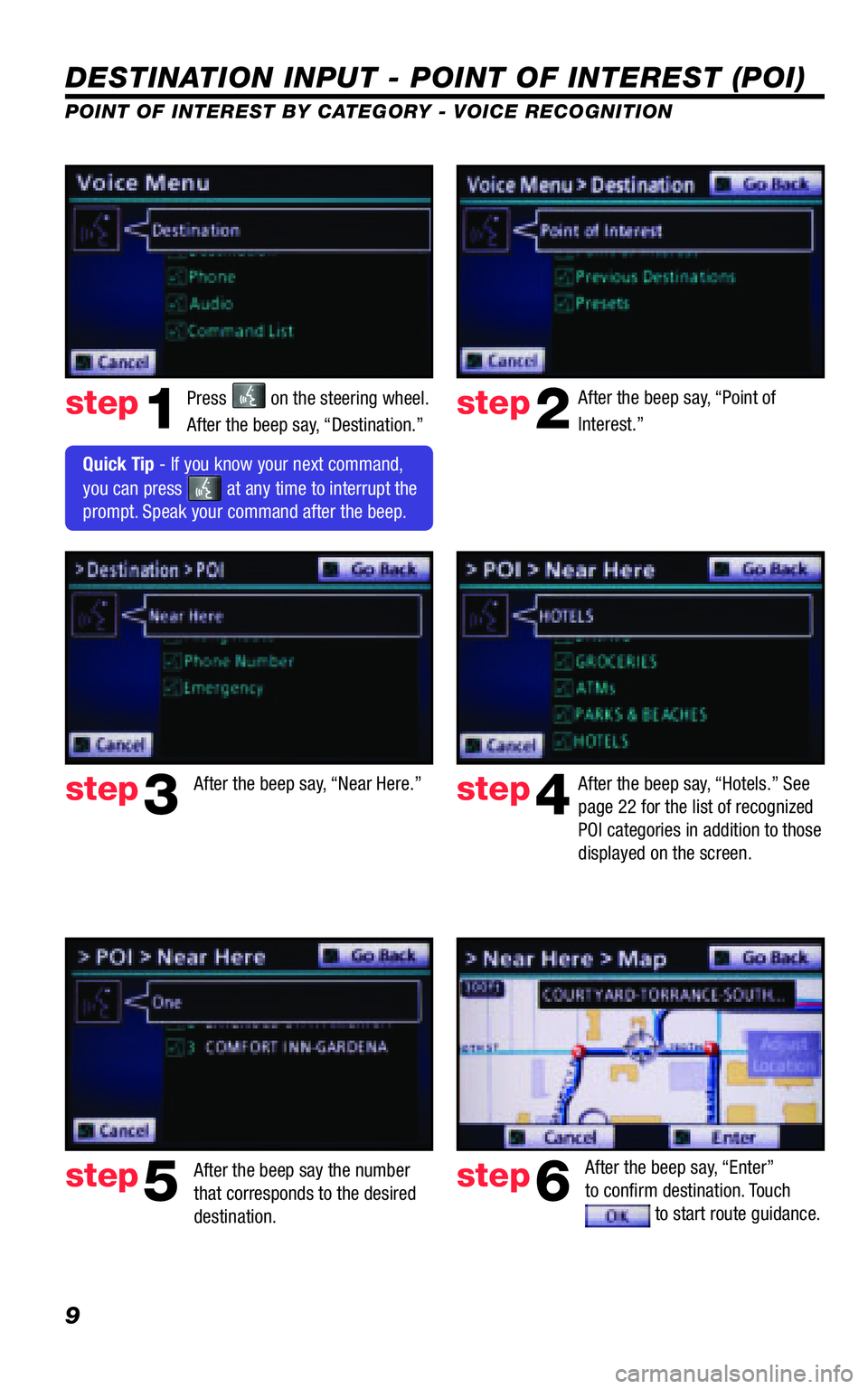

DESTINATION INPUT - POINT OF INTEREST (POI)
POINT OF INTEREST BY CATEGORY - VOICE RECOGNITION
Press on the steering wheel.
After the beep say, “Destination.”
After the beep say, “Point of
Interest.”
After the beep say, “Near Here.” After the beep say, “Hotels.” See page 22 for the list of recognized POI categories in addition to those displayed on the screen.
After the beep say the number that corresponds to the desired destination.
step1step2
step3step4
step5
After the beep say, “Enter” to confi rm destination. Touch to start route guidance.
step6
Quick Tip - If you know your next command,
you can press at any time to interrupt the prompt. Speak your command after the beep.
