TOYOTA VENZA 2011 Owners Manual (in English)

291
3-2. Using the audio system
3
Interior features
VENZA_U (OM73008U)
■
If the satellite radio does not operate normally
If a problem occurs with the XM
® tuner, a message will appear on the dis-
play. Refer to the table below to identify the problem, and take the suggested
corrective action.
CHECK
ANTENNA
The XM® antenna is not connected. Check
whether the XM® antenna cable is attached
securely.
There is a short-circuit in the antenna or the sur-
rounding antenna cable. See a Toyota certified
dealer.
CH
UNAUTHORIZED You have not subscribed to XM
® Satellite Radio.
The radio is being updated with the latest encryp-
tion code. Contact XM
® Satellite Radio for sub-
scription information. When a contract is canceled,
you can choose “CH000” and all free-to-air chan-
nels.
The premium channel you selected is not autho-
rized. Wait for about 2 seconds until the radio
returns to the previous channel or “CH001”. If it
does not change automatically, select another
channel. If you want to listen to the premium chan-
nel, contact XM
® Satellite Radio.
NO SIGNAL The XM
® signal is too weak at the current location.
Wait until your vehicle reaches a location with a
stronger signal.
LOADING The unit is acquiring audio or program information.
Wait until the unit has received the information.
OFF AIRThe channel you selected is not broadcasting any
programming. Select another channel.

292 3-2. Using the audio system
VENZA_U (OM73008U)
Contact the XM® Listener Care Center at 1-800-967-2346 (U.S.A.) or 1-877-
438-9677 (Canada).
■ Certifications for the radio tuner
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by trying one or more of
the following:
● Reorienting or relocating the receiving antenna.
● Increasing the separation between the equipment and receiver.
● Connecting the equipment into an outlet on a circuit different from that to
which the receiver is connected.
● Consulting the dealer or an experienc ed radio/TV technician for help.
-----There is no song/program title or artist name/fea-
ture associated with the channel at that time. No
action needed.
CH
UNAVAILABLE
The channel you selected is no longer available.
Wait for about 2 seconds until the radio returns to
the previous channel or “CH001”. If it does not
change automatically, select another channel.

293
3-2. Using the audio system
3
Interior features
VENZA_U (OM73008U)

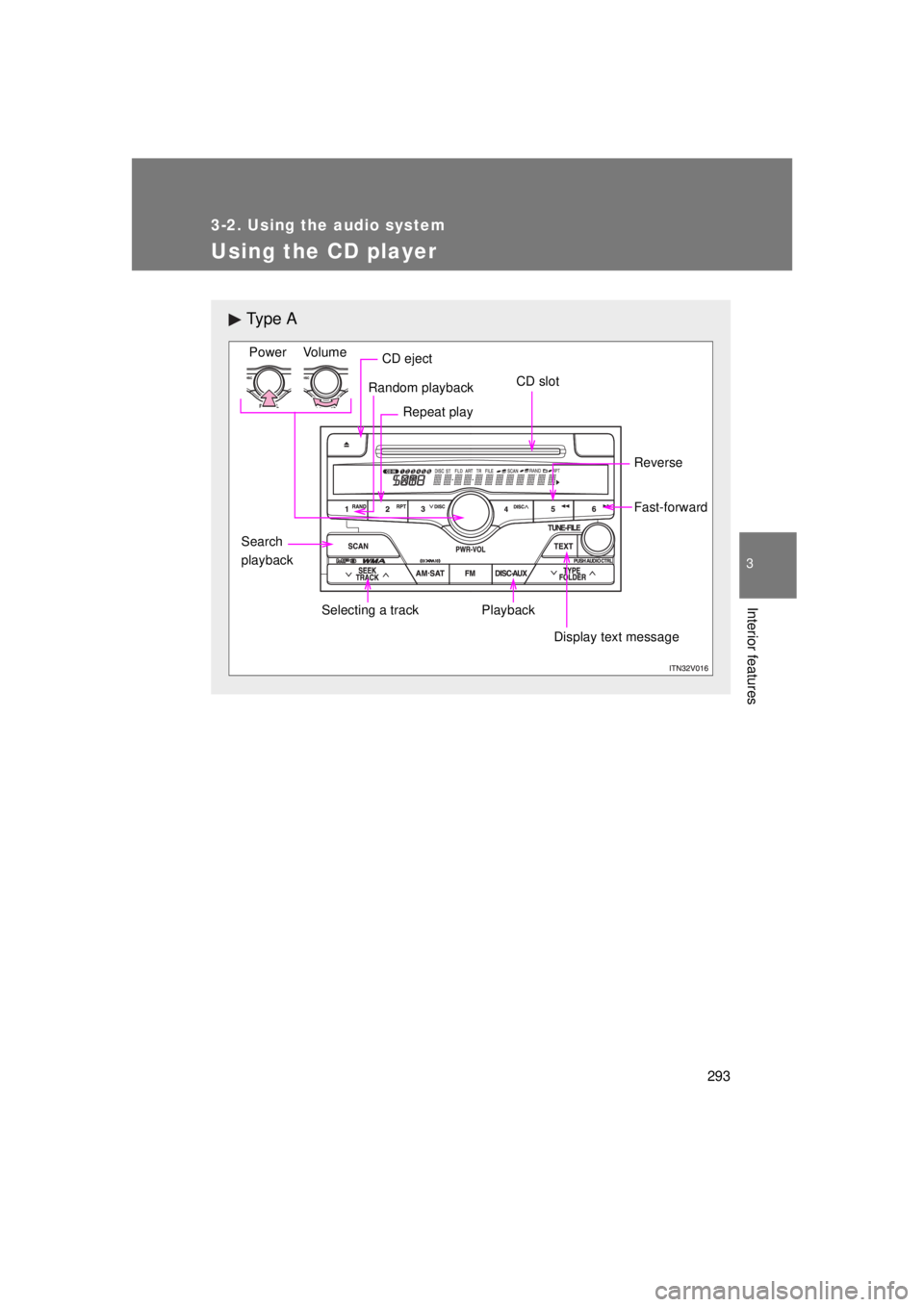

Using the CD player
Ty p e A
CD ejectPower Volume
Repeat play
Random playback
CD slot
Reverse
Fast-forward
Display text message
PlaybackSelecting a track
Search
playback

294 3-2. Using the audio system
VENZA_U (OM73008U)

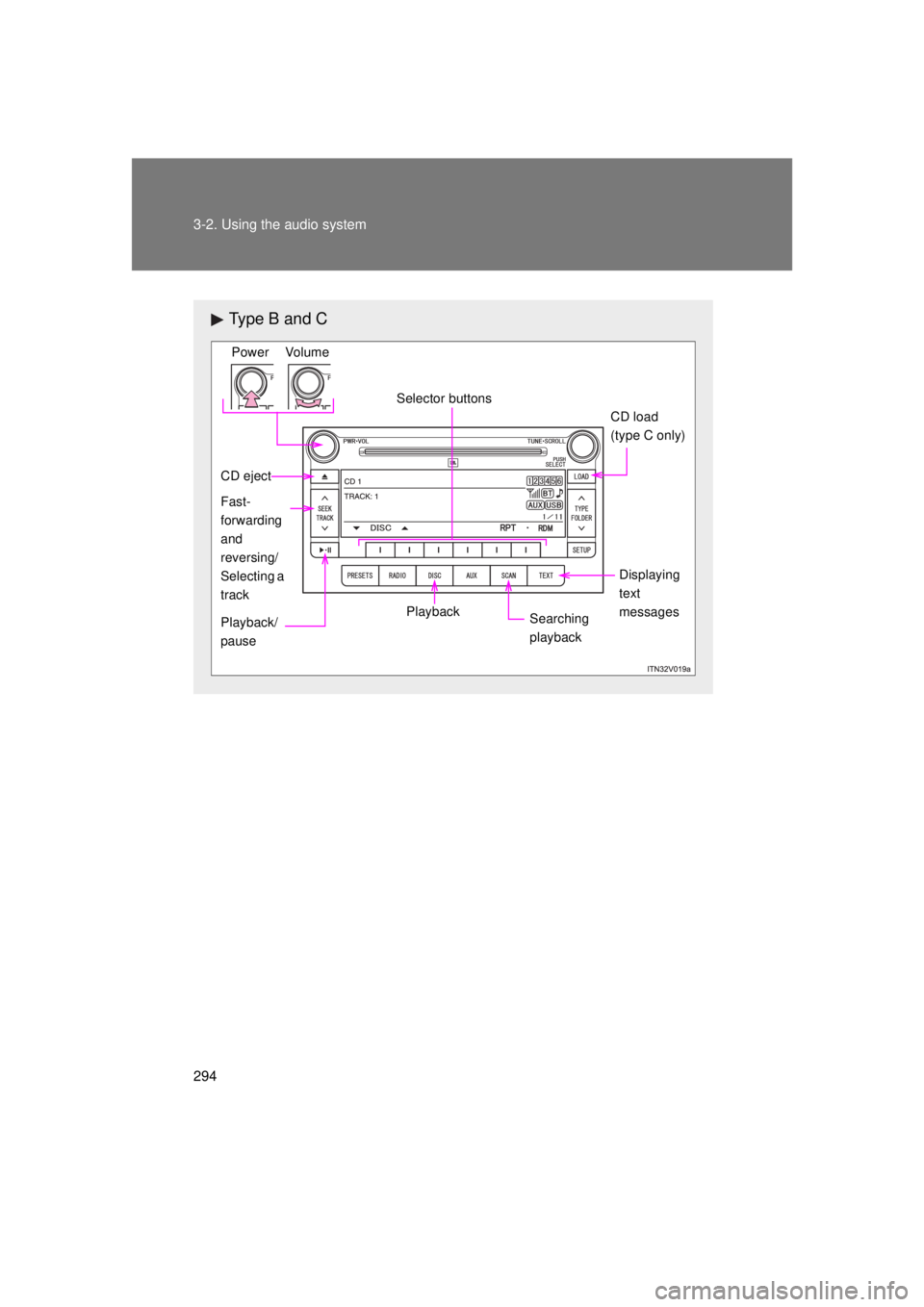

Type B and C
Power VolumeSelector buttons CD load
(type C only)
Displaying
text
messages
Searching
playback
PlaybackPlayback/
pause Fast-
forwarding
and
reversing/
Selecting a
track
CD eject

295
3-2. Using the audio system
3
Interior features
VENZA_U (OM73008U)
Loading a CDs
■ Loading a single CD
Type A and B
Insert a CD.
Type C
Press .
When the indicator on the slot turns from amber to green,
insert a CD.
■ Loading multiple CDs (type C only)
Press and hold until you hear a beep.
Insert a CD when the indicator on the slot turns from amber to
green.
The indicator on the slot turns to amber when the CD is inserted.
Insert the next CD when the indicator on the slot turns from
amber to green again.
Repeat the procedure for the remaining CDs.
To cancel the operation, press . If your do not insert a disc
within 15 seconds, loading will be canceled automatically.
STEP1
STEP2
STEP1
STEP2
STEP3

296 3-2. Using the audio system
VENZA_U (OM73008U)
Ejecting CDs■ Ejecting a CD
Type A and B
Press or and remove the CD.
Type C
To select the CD to be ejec ted, press that corresponds
to “” or “”.
The selected CD number is shown on the display.
Press and remove the CD.
■ Ejecting all CDs (type C only)
Press and hold until you hear a beep, then remove the
CDs.
Selecting a CD (with a CD changer)
■ To select a CD to play
Press that corresponds to “ ” or “ ”.
■ To scan loaded CDs
Press and hold until you hear a beep.
The first 10 seconds of the first track on each CD will be played.
To cancel, press again.
Press once again when the desired CD is reached.
STEP1
STEP2
STEP1
STEP2

297
3-2. Using the audio system
3
Interior features
VENZA_U (OM73008U)
Selecting a track
Press “ ” to move up or “ ” to move down using or
until the desired track number appears on the display.
Fast-forwarding and rewinding tracks Type A: Press and hold (rewind) or (fast forward).
Type B and C: Press and hold “ ” or “ ” on .
Scanning a CD
Press or .
The first 10 seconds of each track will be played.
To cancel, press again.
Press or once again when the desired track
is reached.
Playing and pausing tracks (type B and C)
Press .
STEP1
STEP2

298 3-2. Using the audio system
VENZA_U (OM73008U)
Random playback■ Current CD
Press (RAND) or that corresponds to “RDM”.
Songs are played in random order.
To cancel, press the button again.
■All CDs (with a CD changer)
Press that corresponds to “RDM” twice.
Tracks on all loaded CDs are played in random order.
To cancel, press the button again.
Repeating a track or a disc
■ Repeating a track
Press (RPT) or that corresponds to “RPT”.
To cancel, press the button again.
■Repeating a disc (with a CD changer)
Press that corresponds to “RPT” twice.
To cancel, press the button again.

299
3-2. Using the audio system
3
Interior features
VENZA_U (OM73008U)
Switching the display
Press or .
Type A: Each time is pressed, the display changes in the order of
Track no./Elapsed time CD title  Track name.
Type B and C: Each time is pressed, the display changes in the
order of Track title  Track name/Artist name  Track name/Elapsed
time.
■ Display (type A only)
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding for 1 second
or more will display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed for 1 second or more again or has not been pressed for 6
seconds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.

300 3-2. Using the audio system
VENZA_U (OM73008U)
■Error messages
“ERROR” or “READ ERROR”: This indica tes a trouble either in the CD or
inside the player. The CD may be dirty, dam-
aged or inserted up-side down.
“WAIT” or “PLEASE WAIT”: Operation has stopped due to a high tem- perature inside the player. Wait for a while
and then press or . Contact
your Toyota dealer if the CD still cannot be
played back.
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not play correctly.
■ CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected while the CD player is being used.
■ If CDs are left inside the CD player or in the ejected position for
extended periods
CDs may be damaged and may not play properly.
■ Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
