301
3-2. Using the audio system
3
Interior features
VENZA_U (OM73008U)
NOTICE
■
CDs and adapters that cannot be used
Do not use the following types of CDs, 3 in. (8 cm) CD adapters or Dual
Disc.
Doing so may damage the player and/or the CD insert/eject function.
●CDs that have a diameter that is not 4.7
in. (12 cm).
● Low-quality and deformed CDs.
● CDs with a transparent or translucent
recording area.
● CDs that have tape, stickers or CD-R
labels attached to them, or that have
the label peeled off.

302 3-2. Using the audio system
VENZA_U (OM73008U)
NOTICE
■Player precautions
Failure to follow the precautions below may result in damage to the CDs or
the player itself.
● Do not insert anything other than CDs into the CD slot.
● Do not apply oil to the player.
● Store CDs away from direct sunlight.
● Never try to disassemble any part of the player.
●Do not insert more than one CD at a
time.

303
3-2. Using the audio system
3
Interior features
VENZA_U (OM73008U)

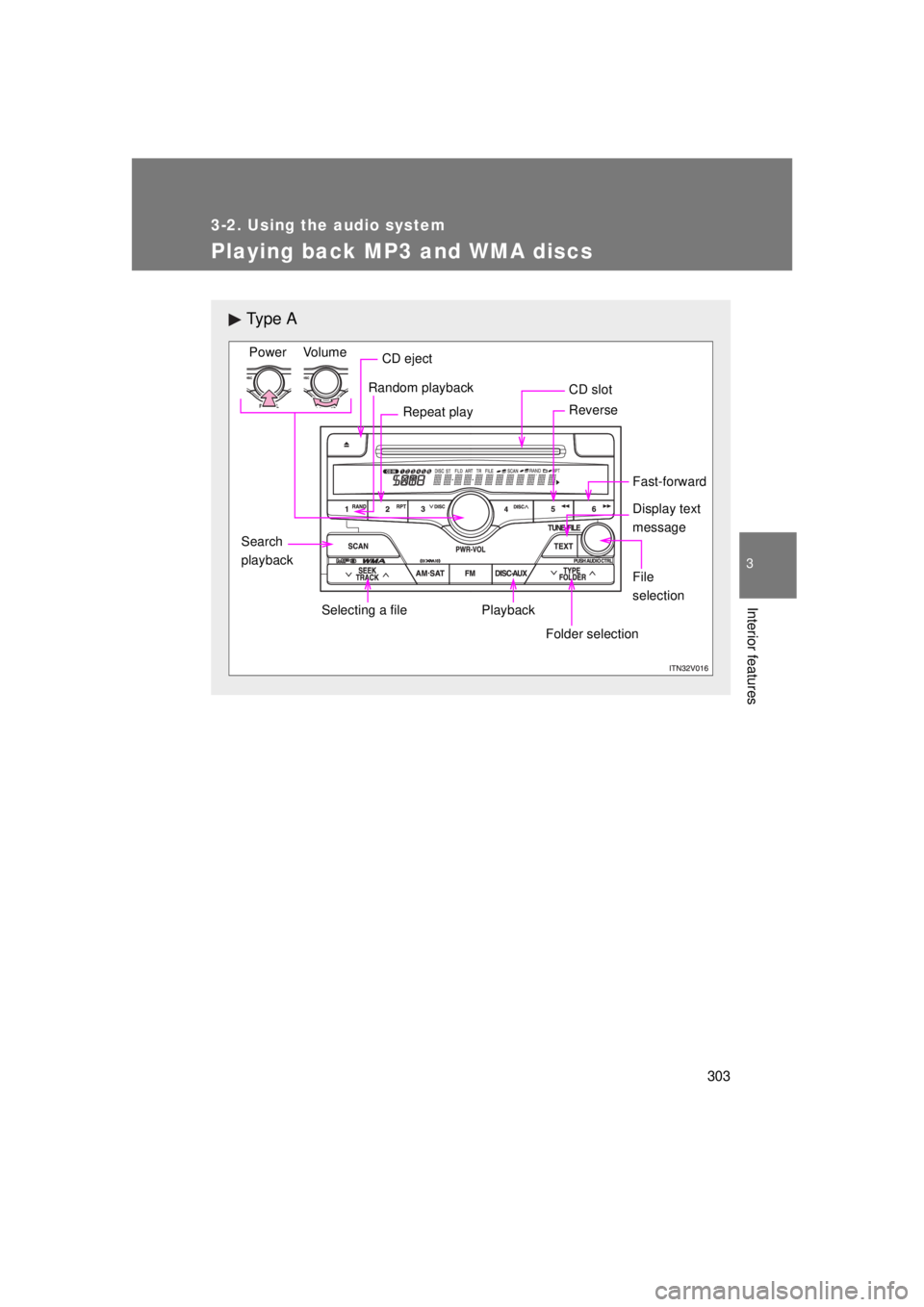

Playing back MP3 and WMA discs
Ty p e A
CD eject
Power Volume
Repeat play
Random playback
CD slot
Reverse
Fast-forward
Display text
message
PlaybackSelecting a file
Search
playback
Folder selection
File
selection

304 3-2. Using the audio system
VENZA_U (OM73008U)
Loading and ejecting MP3 and WMA discs P. 2 9 3
Selecting a CD (with a CD changer)
 P. 2 9 3

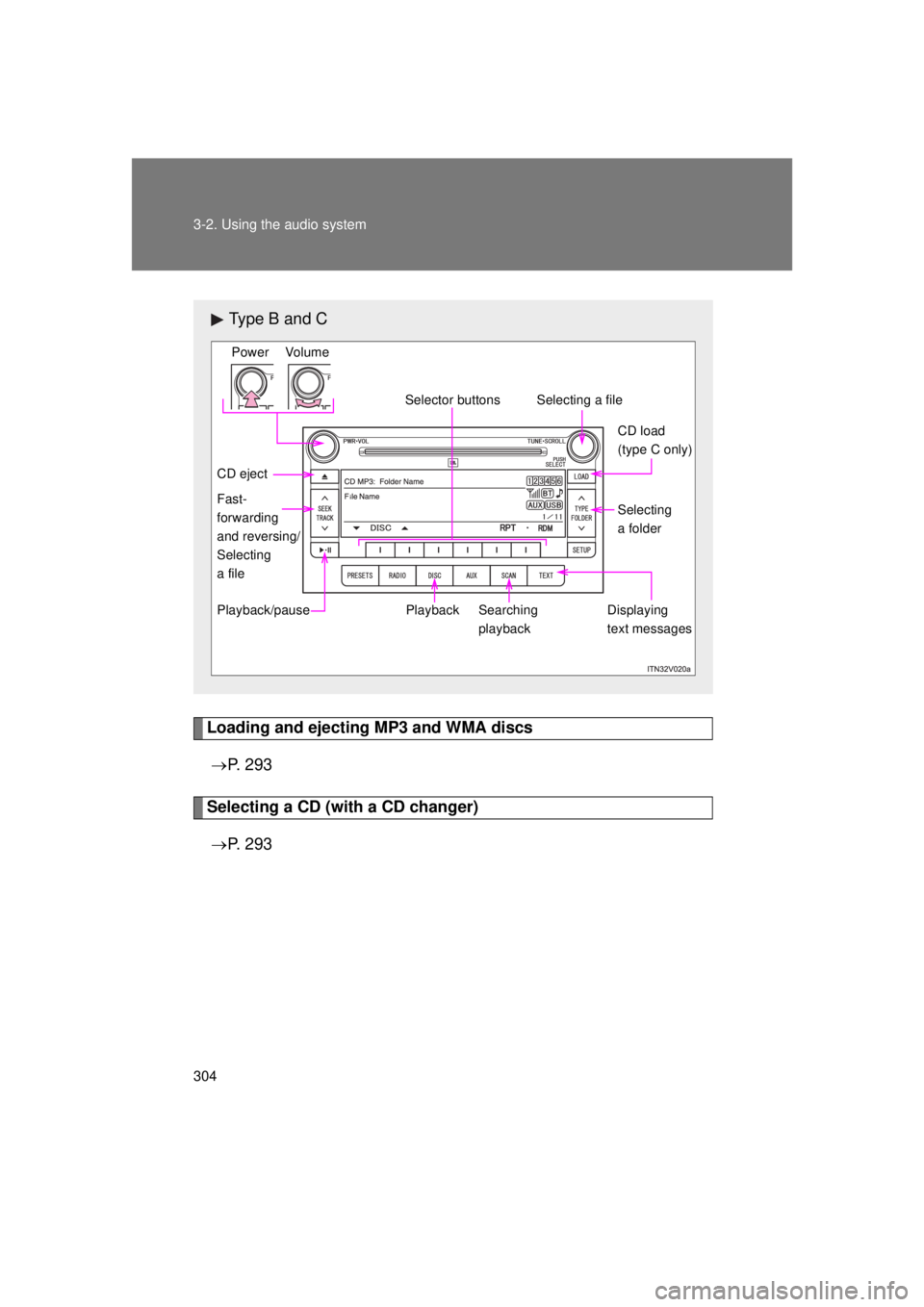

Type B and C
Power Volume
Playback
CD eject
Playback/pause Searching
playbackDisplaying
text messagesSelecting
a folder CD load
(type C only)
Selecting a file
Selector buttons
Fast-
forwarding
and reversing/
Selecting
a file

305
3-2. Using the audio system
3
Interior features
VENZA_U (OM73008U)
Selecting and scanning a folder
■ Selecting folders one at a time
Press “ ” or “ ” on or to select the desired
folder.
To return to the first folder, press and hold “ ” on or
until you hear a beep.
■ Selecting the desired folder by cueing the first file of each
folder
Press and hold or until you hear a beep.
When the desired folder is reached, press the switch once again.
Selecting and scanning a file
■ Selecting one file at a time
Turn or or press “ ” or “ ” on
or to select the desired file.
■ Selecting the desired file by cueing the files in the folder
Press or .
When the desired file is reached, press or once
again.

306 3-2. Using the audio system
VENZA_U (OM73008U)
Fast-forwarding and rewinding filesType A: Press and hold (reverse) or (fast forward).
Type B and C: Press and hold “ ” or “ ” on .
Playing and pausing files (type B and C)
Press .
Random playback■ To play files from a partic ular folder in random order
Press (RAND) or that corresponds to “RDM”.
To cancel, press the button again.
■ To play all of the files on a disc in random order (with a CD
changer)
Press that corresponds to “RDM” twice.
To cancel, press the button again.

307
3-2. Using the audio system
3
Interior features
VENZA_U (OM73008U)
Repeating a file or a folder
■ Repeating a file
Press (RPT) or that corresponds to “RPT”.
To cancel, press the button again.
■Repeating a folder
Type A
Press and hold (RPT) until you hear a beep.
To cancel, press the button again.
Type B and C
Press that corresponds to “RPT” twice.
To cancel, press the button again.
■Repeating a disc (type C only)
Press that corresponds to “RPT” three times.
To cancel, press the same button again.
Switching the display
Press or .
Type A: Each time is pressed, the display changes in the order of
Folder no./File no./Elapsed time Folder name File name Album title
(MP3 only) Track title Artist name.
Type B and C: Each time is pressed, the display changes in the
order of Track title Track title/Artist nameTrack title/Album
nameTrack title/Elapsed time.

308 3-2. Using the audio system
VENZA_U (OM73008U)
■Display
 P. 299
■ Error messages
“ERROR” or “READ ERROR”: This indica tes a trouble either in the CD or
inside the player. The CD may be dirty, dam-
aged or inserted up-side down.
“WAIT” or “PLEASE WAIT”: Operation has stopped due to a high tem- perature inside the player. Wait for a while
and then press or . Contact
your Toyota dealer if the CD still cannot be
played.
“NO MUSIC”: This indicates that the MP3/WMA file is not included in the CD.
■ Discs that can be used
 P. 300
■ CD player protection feature
 P. 300
■ If CDs are left inside the CD player or in the ejected position for
extended periods
 P. 300

309
3-2. Using the audio system
3
Interior features
VENZA_U (OM73008U)
■
Lens cleaners
 P. 300
■ MP3 and WMA files
MP3 (MPEG Audio LAYER3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by using
MP3 compression.
WMA (Windows Media Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3
format.
There is a limit to the MP3 and WMA file standards and to the media/formats
recorded by them that can be used.
● MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates MPEG1 LAYER3: 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 (kbps)
• MPEG2 LSF LAYER3: 64, 80, 96, 112, 128, 144, 160 (kbps)
* Compatible with VBR
• Compatible channel modes: stereo, joint stereo, dual channel and monaural

310 3-2. Using the audio system
VENZA_U (OM73008U)
●WMA file compatibility
• Compatible standards
WMA Ver. 7, 8, 9
• Compatible sampling frequencies 32, 44.1, 48 (kHz)
• Compatible bit rates (only compatible with 2-channel playback) Ver. 7, 8: CBR 48, 64, 80, 96, 128, 160, 192 (kbps)
Ver. 9: CBR 48, 64, 80, 96, 128, 160, 192, 256, 320 (kbps)
● Compatible media
Media that can be used for MP3 and WMA playback are CD-Rs and CD-
RWs.
Playback in some instances may not be possible, depending on the status
of the CD-R or CD-RW. Playback may not be possible or the audio may
jump if the disc is scratched or marked with fingerprints.
● Compatible disc formats
The following disc formats can be used.
• Disc formats: CD-ROM Mode 1 and Mode 2
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet) MP3 and WMA files written in any format other than those listed above
may not play correctly, and their file names and folder names may not
be displayed correctly.
Items related to standards and limitations are as follows.
• Maximum directory hierarchy: 8 levels
• Maximum length of folder names/file names: 32 characters
• Maximum number of folders: 192 (including the root)
• Maximum number of files per disc: 255
