TOYOTA VENZA 2011 Owners Manual (in English)

141
1-7. Safety information
1
Before driving
VENZA_U (OM73012U)
■
Booster seat
Place the booster seat on the
seat facing the front of the vehi-
cle.
Sit the child in the booster seat.
Fit the seat belt to the booster
seat according to the manufac-
turer’s instructions and insert the
plate into the buckle. Make sure
that the belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
( P. 72)
STEP1
STEP2

142 1-7. Safety information
VENZA_U (OM73012U)
Removing a child restraint installed with a seat beltPress the buckle release button
and fully retract the seat belt.
Child restraint systems with a top tether strapSecure the child restraint using a seat belt or lower anchors,
and do the following.
Outside
Adjust the head restraint to the
upmost position.
Center Lower the head restraint to the
lowest position.
STEP1
STEP1

143
1-7. Safety information
1
Before driving
VENZA_U (OM73012U)
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
Outside only: Adjust the head
restraint to the downmost posi-
tion.
STEP2
STEP3
■
Laws and regulations pertaining to anchors
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to the SAE J1819.
CAUTION
■When installing a booster seat
Do not fully extend the shoulder belt to prevent the belt from going to ALR
lock mode: ( P. 74)
ALR mode causes the belt to tighten only which could cause injury or dis-
comfort to the child.

144 1-7. Safety information
VENZA_U (OM73012U)
CAUTION
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat.
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
● Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint system on the front pas-
senger seat, move the seat as far back
as possible even if “AIR BAG OFF” indi-
cator light is illuminated. Failing to do
so may result in death or serious injury
if the airbags deploy (inflate).

145
1-7. Safety information
1
Before driving
VENZA_U (OM73012U)
CAUTION
■
When installing a child restraint system
● When installing a child restraint system in the rear center seat, adjust both
seatbacks at the same angle. Otherwise, the child restraint system cannot
be securely restrained and this may cause death or serious injuries in the
event of sudden braking, sudden swerving or an accident.
● When using the LATCH anchors for a child restraint system, adjust the
seatback as upright as possible.
● When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
● Ensure that the belt and tab are securely locked and the seat belt is not
twisted.
● Push and pull the child restraint system from side to side and forward to be
sure it is secure.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.

146 1-7. Safety information
VENZA_U (OM73012U)
CAUTION
■Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of sud-
den braking, sudden swerving or an accident.
■ To correctly attach a child r estraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint. Make sure the child restraint system is securely attached, or it may
cause death or serious injury to the child or other passengers in the event of
a sudden stop, sudden swerve or an accident.

When driving2
147
VENZA_U (OM73012U)
2-1. Driving proceduresDriving the vehicle............ 148
Engine (ignition) switch (vehicles with
smart key system).......... 159
Engine (ignition) switch (vehicles without
smart key system).......... 163
Automatic transmission................... 166
Turn signal lever .............. 171
Parking brake ................... 172
Horn ................................. 173
2-2. Instrument cluster Gauges and meters ......... 174
Indicators and warning lights ................. 177
Multi-information display (TFT type) .......... 180
Multi-information display (LCD type) ......... 194 2-3. Operating the lights and
wipers
Headlight switch ............... 198
Automatic High Beam (vehicles with discharge
headlights) ..................... 202
Fog light switch ................ 209
Windshield wipers and washer ........................... 210
Rear window wiper and washer ........................... 212
2-4. Using other driving systems Cruise control ................... 213
Rear view monitor system ........................... 217
Hill-start assist control ...... 222
Driving assist systems ..... 224
2-5. Driving information Utility vehicle precautions .................... 230
Cargo and luggage .......... 235
Vehicle load limits ............ 240
Winter driving tips ............ 242
Trailer towing ................... 247
Dinghy towing .................. 259

148
VENZA_U (OM73012U)

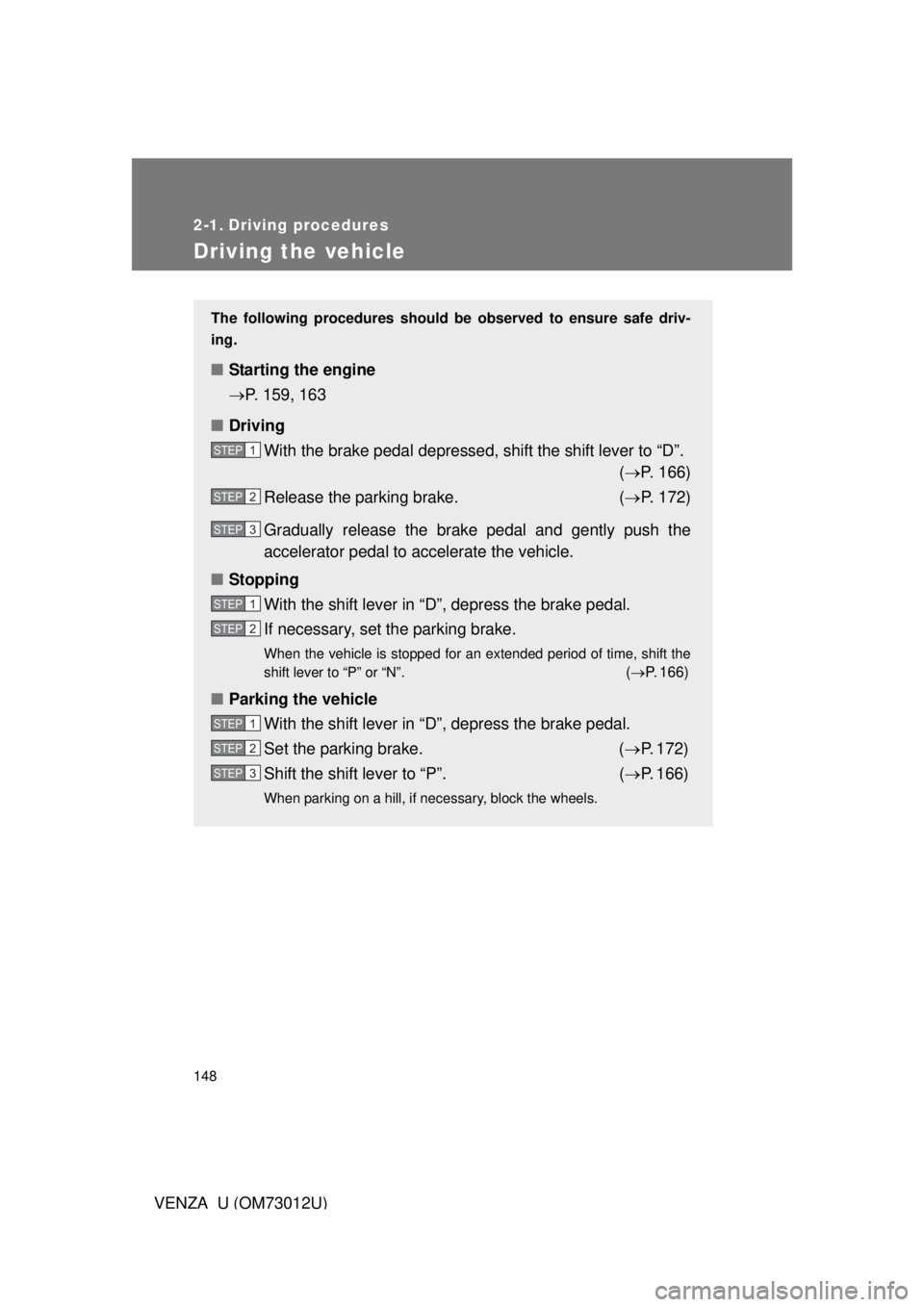

2-1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driv-
ing.
■ Starting the engine
P. 159, 163
■ Driving
With the brake pedal depressed, shift the shift lever to “D”. ( P. 166)
Release the parking brake. ( P. 172)
Gradually release the brake pedal and gently push the
accelerator pedal to accelerate the vehicle.
■ Stopping
With the shift lever in “D”, depress the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift the
shift lever to “P” or “N”.
(P. 166)
■ Parking the vehicle
With the shift lever in “D”, depress the brake pedal.
Set the parking brake. ( P. 172)
Shift the shift lever to “P”. ( P. 166)
When parking on a hill, if necessary, block the wheels.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP1
STEP2
STEP3

149
2-1. Driving procedures
2
When driving
VENZA_U (OM73012U)
Starting on a steep incline
Firmly set the parking brake and shift the shift lever to “D”.
Gently depress the accelerator pedal.
Release the parking brake.
■Starting off on a hill
Hill-start assist control will operate. ( P. 222)
■ Driving in the rain
● Drive carefully when it is raining, because visibility will be reduced, the
windows may become fogged-up, and the road will be slippery.
● Drive carefully when it starts to rain, because the road surface will be
especially slippery.
● Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road
surface, preventing the steering and brakes from operating properly.
Vehicles with smart key system:
Turn the “ENGINE START STOP” switch off and stop the
engine.
Vehicles without smart key system:
Turn the engine switch to the “LOCK” position and stop the
engine.
Lock the door, making sure that you have the key on your
person.STEP4
STEP5
STEP1
STEP2
STEP3

150 2-1. Driving procedures
VENZA_U (OM73012U)
■Breaking in your new Toyota
To extend the life of the vehicle, the following precautions are recommended
to observe:
● For the first 200 miles (300 km):
Avoid sudden stops.
● For the first 500 miles (800 km):
Do not tow a trailer.
● For the first 1000 miles (1600 km):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in the low gears.
• Do not drive at a constant speed for extended periods.
■ Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parking brake system.
This type of brake system needs bedding-down of the brake shoes periodi-
cally or whenever the parking brake shoes and/or drums are replaced.
Have your Toyota dealer perform the bedding-down.
■ Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. ( P. 611)
