TOYOTA VENZA 2011 Owners Manual (in English)

331
3-2. Using the audio system
3
Interior features
VENZA_U (OM73012U)
■
Adjusting the Automatic Sound Levelizer (ASL)
Type A
When “ASL” is selected, tu rning to the right changes
the ASL level in the order of “LOW”, “MID” and “HIGH”.
Turning to the left turns off the ASL.
ASL automatically adjusts the volume and tone quality according to vehi-
cle speed.
Type B and C Press .
Press that corresponds to “MORE”.
Press that corresponds to “ASL”.
Press that corresponds to the desired mode.
Type B: “LOW”, “MID”, “HIGH” or “OFF”
Type C: “ON” or “OFF”
ASL automatically adjusts the volume and tone quality according to vehi-
cle speed.
■ Changing the JBL Synthesis surround sound (Type B and C)
Press .
Press that corresponds to “MORE”.
Press that corresponds to “SYNTH”.
Press that corresponds to “ON” or “OFF”.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4

332 3-2. Using the audio system
VENZA_U (OM73012U)■
Setting the number of preset pages (type B and C)
The number of preset pages desired c an be set from 1 to 6. The initial
setting is 6 pages.
Press .
Press that corresponds to “MORE”.
Press that corresponds to “PRESET”.
Press that corresponds to the desired number of pre-
set pages.
This menu may also be reached directly by pressing and holding .
■ Language settings (type B and C)
P. 2 8 2
STEP1
STEP2
STEP3
STEP4

333
3-2. Using the audio system
3
Interior features
VENZA_U (OM73012U)

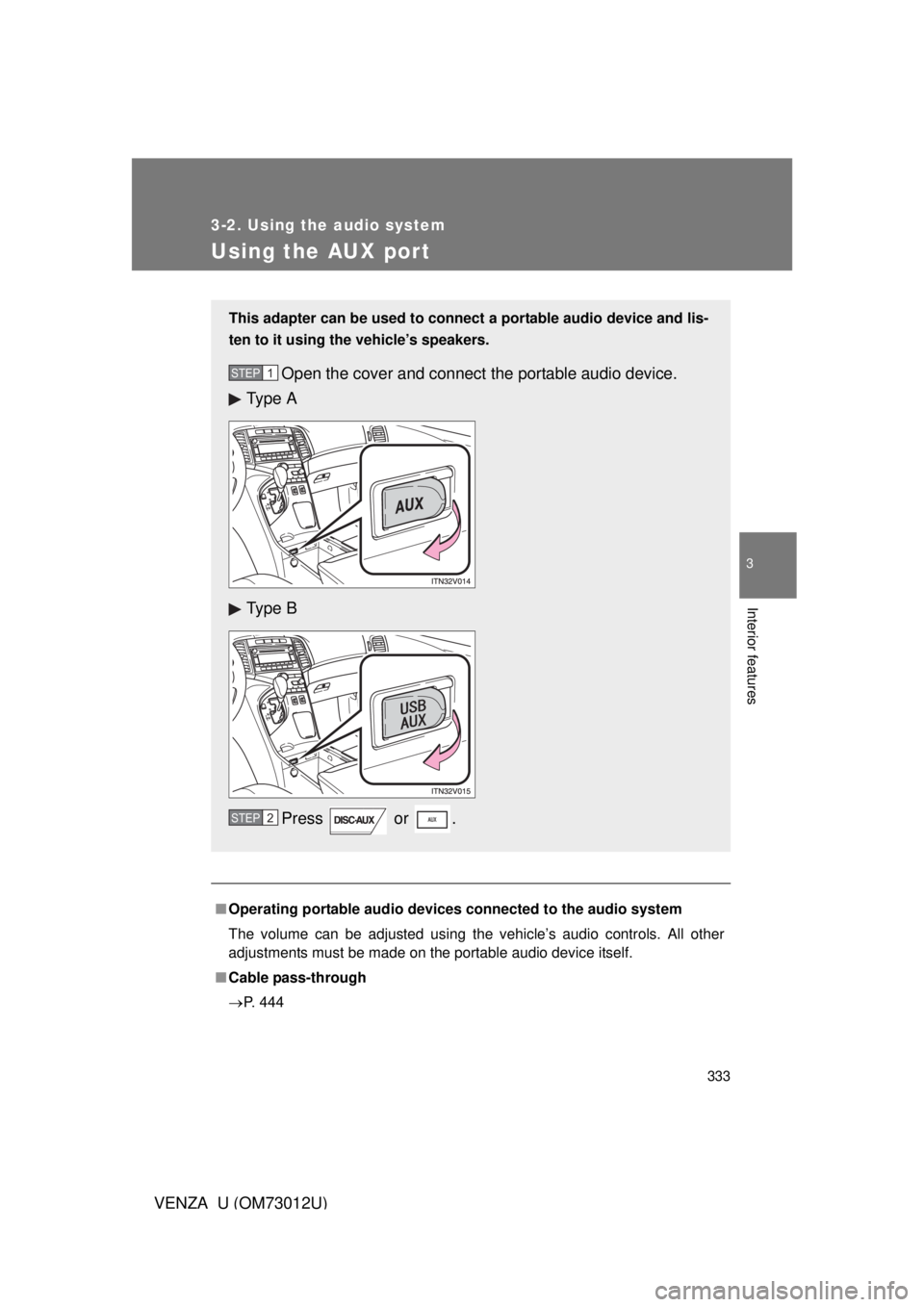

Using the AUX port
■Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
■ Cable pass-through
 P. 444
This adapter can be used to connect a portable audio device and lis-
ten to it using the vehicle’s speakers.
Open the cover and connect the portable audio device.
Ty p e A
Ty p e B
Press or .STEP1
STEP2

334
3-2. Using the audio system
VENZA_U (OM73012U)

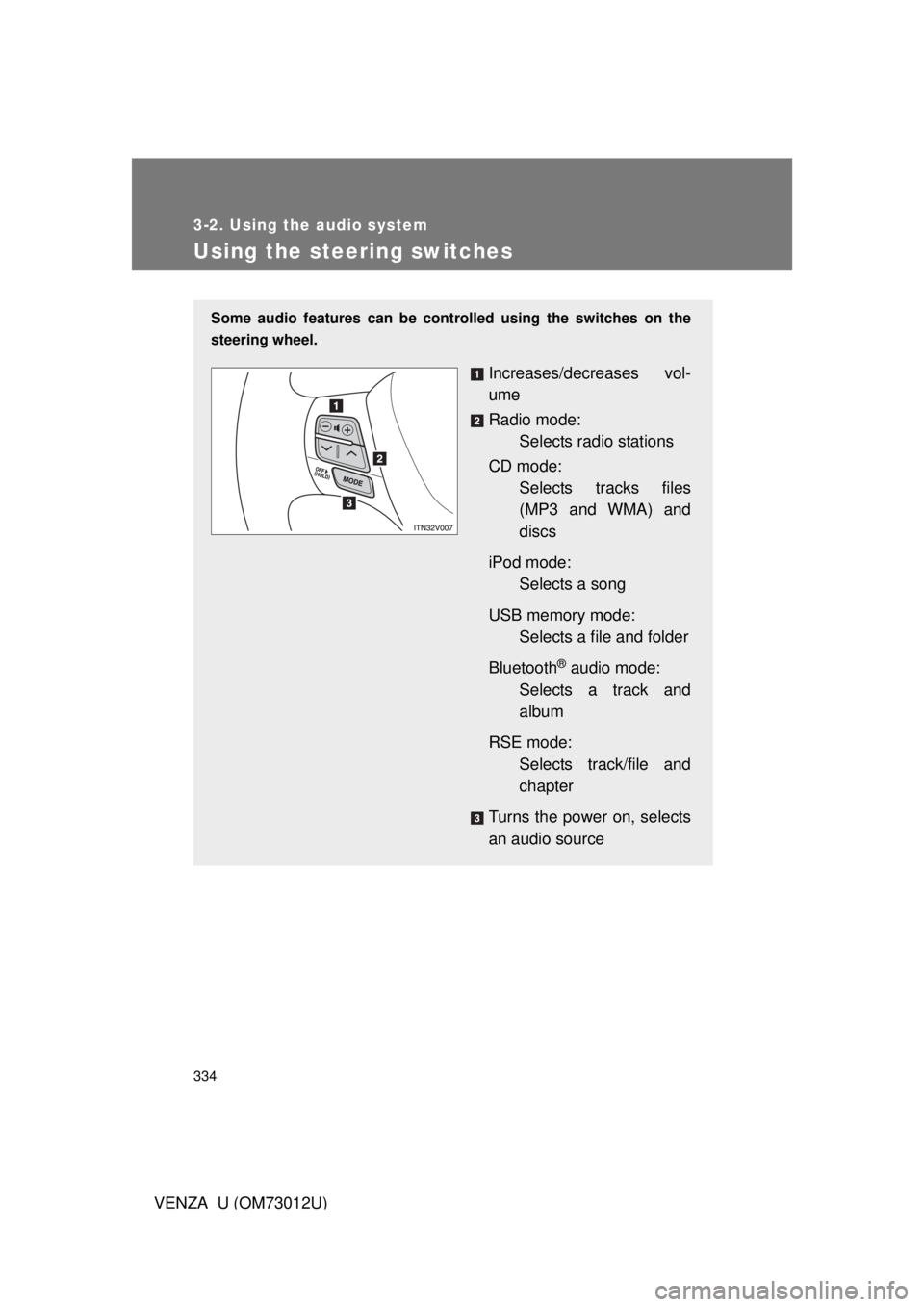

Using the steering switches
Some audio features can be controlled using the switches on the
steering wheel.
Increases/decreases vol-
ume
Radio mode:Selects radio stations
CD mode: Selects tracks files
(MP3 and WMA) and
discs
iPod mode: Selects a song
USB memory mode: Selects a file and folder
Bluetooth
® audio mode:
Selects a track and
album
RSE mode: Selects track/file and
chapter
Turns the power on, selects
an audio source

335
3-2. Using the audio system
3
Interior features
VENZA_U (OM73012U)
Turning on the power
Press when the audio system is turned off.
The audio system can be turned off by holding the switch down until you
hear a beep.
Changing the audio sourcePress when the audio system is turned on. The audio source
changes as follows each time the bu tton is pressed. If a CD is not
inserted, that mode will be skipped.
Type A
FM (1, 2)  CD player  RSE
*  AUX  AM  SAT (1, 2, 3)
Type B and C FM SATCD CD changer (type C only) RSE
*
USB/iPod AUX Bluetooth
® audio AM
*: If equipped
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the
volume.
Press and hold the switch to continue increasing or decreasing the vol-
ume.

336 3-2. Using the audio system
VENZA_U (OM73012U)
Selecting a radio stationPress to select the radio mode.
Press “” or “ ” on to select a preset station.
To scan for receivable stations, press and hold the switch until you
hear a beep.
Selecting a track/file or song
Press to select the CD, iPod, USB memory, Blue-
tooth
® audio or RSE mode.
Press “ ” or “ ” on to select the desired track/file or
folder.
Selecting a folder or album
Press to select the CD, USB memory or Bluetooth
®
audio mode.
Press and hold “ ” or “ ” on until you hear a beep.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2

337
3-2. Using the audio system
3
Interior features
VENZA_U (OM73012U)
Selecting a disc in the CD player (with a CD changer)
Press to select the CD mode.
Press and hold “ ” or “ ” on until you hear a beep.
Selecting a track/file or ch apter (vehicles with rear seat
entertainment system)
Press to select the RSE mode.
Press “” or “ ” on to select the desired track/file or
chapter.
CAUTION
■ To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
STEP1
STEP2
STEP1
STEP2

338
VENZA_U (OM73012U)

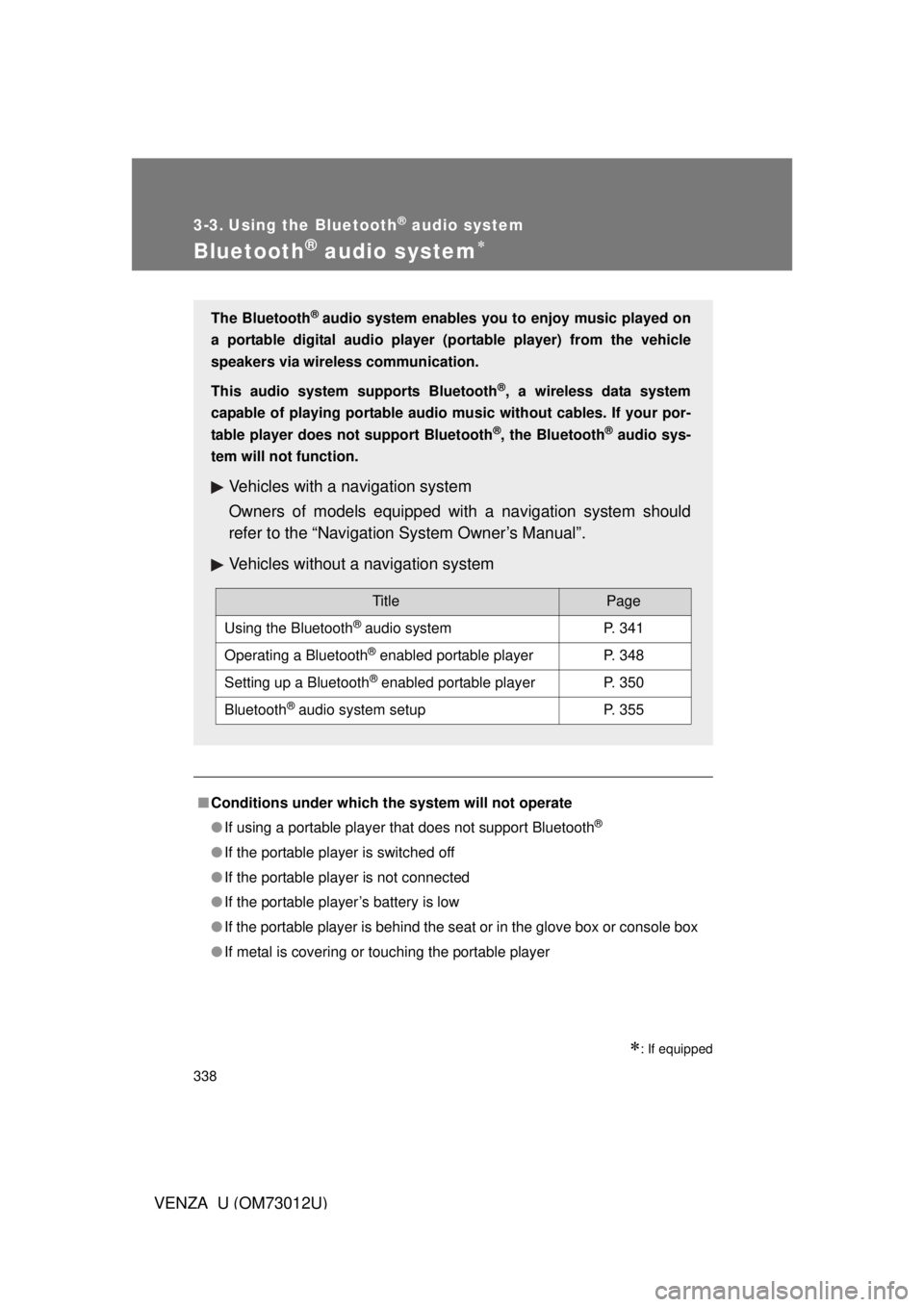

3-3. Using the Bluetooth® audio system
Bluetooth® audio system
: If equipped
■Conditions under which th e system will not operate
● If using a portable player that does not support Bluetooth
®
●If the portable player is switched off
● If the portable player is not connected
● If the portable player’s battery is low
● If the portable player is behind the seat or in the glove box or console box
● If metal is covering or touching the portable player
The Bluetooth® audio system enables you to enjoy music played on
a portable digital audio player (portable player) from the vehicle
speakers via wireless communication.
This audio system supports Bluetooth
®, a wireless data system
capable of playing portable audio music without cables. If your por-
table player does not support Bluetooth
®, the Bluetooth® audio sys-
tem will not function.
Vehicles with a navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Vehicles without a navigation system
TitlePage
Using the Bluetooth® audio systemP. 341
Operating a Bluetooth® enabled portable playerP. 348
Setting up a Bluetooth® enabled portable playerP. 350
Bluetooth® audio system setupP. 355

339
3-3. Using the Bluetooth
® audio system
3
Interior features
VENZA_U (OM73012U)
■
When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. ( P. 419)
■ About Bluetooth
®
■Compatible models
● Bluetooth
® specifications:
Ver. 1.2, or higher (Recommended: Ver. 2.0+EDR or higher)
● Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher
(Ver. 1.3 or higher recommended)
Portable players must correspond to the above specifications in order to be
connected to the Bluetooth
® audio system. However, please note that some
functions may be limited depending on the type of portable player.
■ Certification for the Bluetooth
® audio system
FCC ID: ACJ932C5ZZZ035
IC ID: 216J-C5ZZZ035
MADE IN MEXICO
This device complies with Part 15 of the FCC Rules and RSS-210 Rules.
Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any interfer-
ence received, including interference that may cause undesired operation.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

340 3-3. Using the Bluetooth
® audio system
VENZA_U (OM73012U)
CAUTION
■FCC WARNING
Changes or modifications in construction not expressly approved by the
party responsible for compliance could void the user’s authority to operate
the equipment.
Radio frequency exposure. This device is approved for Mobile Application
only and, to comply with applicable FCC radio frequency exposure regula-
tions, must be used with a distance of at least 7.9 in. (20 cm) between the
antenna and the body of any person at all time during use.
■ While driving
Do not connect portable players or operate the controls.
NOTICE
■To prevent damage to portable players
Do not leave portable players in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to the player.
