hood open TOYOTA VENZA 2011 Owners Manual (in English)

14
VENZA_U (OM73012U)
Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch

P. 198
P. 171
P. 209Windshield wipers and washer switch
Rear window wiper and washer switch P. 210
P. 212
Gauges and meters P. 174
Glove box P. 435
Fuel filler door opener P. 93
Hood opener P. 486
SRS knee airbag P. 107
Multi-information display P. 180
Bottle holder P. 441
Parking brake pedal P. 172
Horn P. 173
Engine (ignition) switch (vehicles with smart key system)
P. 159

100
1-6. Theft deterrent system
VENZA_U (OM73012U)

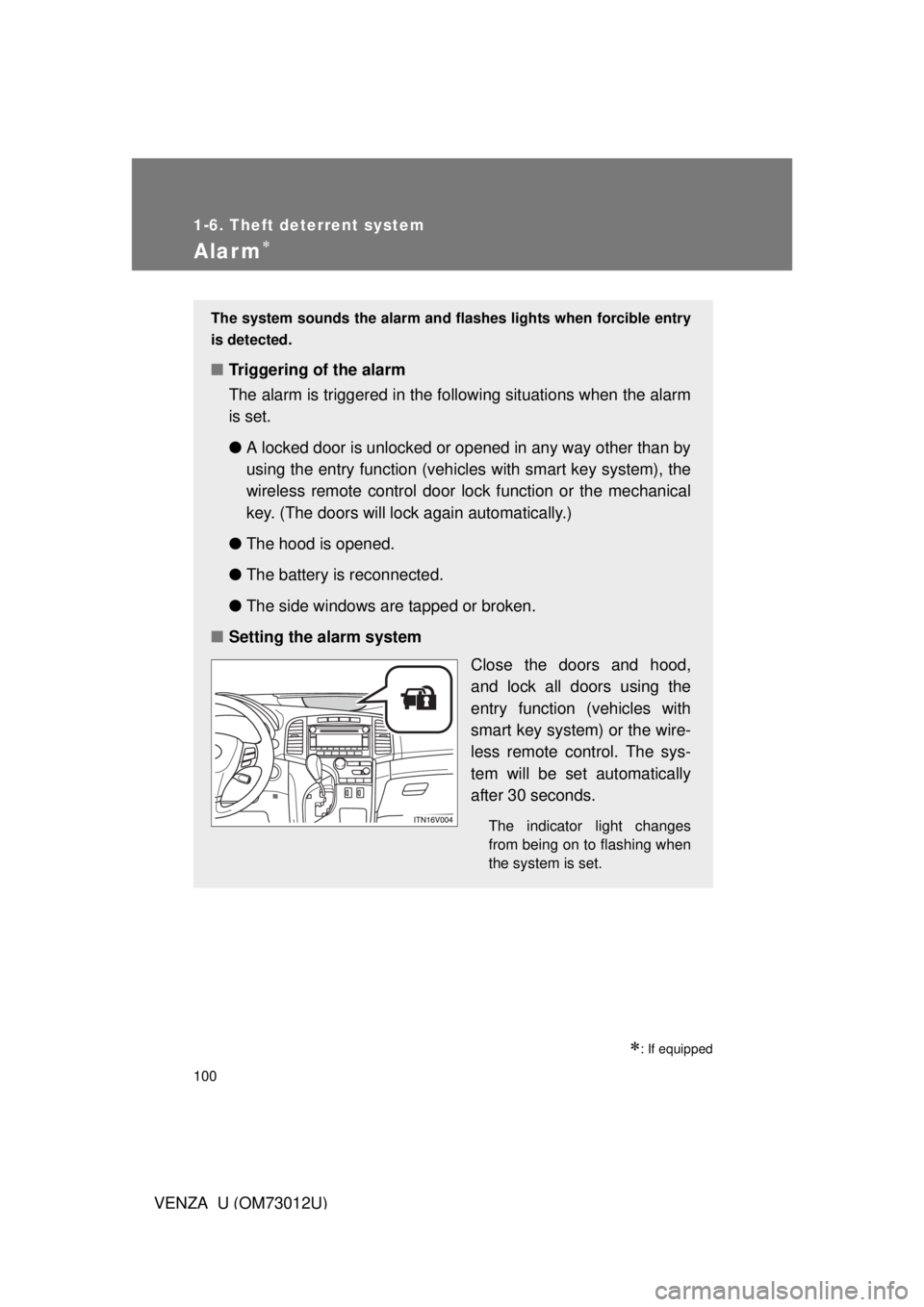

Alarm
: If equipped
The system sounds the alarm and flashes lights when forcible entry
is detected.
■ Triggering of the alarm
The alarm is triggered in the fo llowing situations when the alarm
is set.
● A locked door is unlocked or o pened in any way other than by
using the entry function (vehicles with smart key system), the
wireless remote control door lo ck function or the mechanical
key. (The doors will lock again automatically.)
● The hood is opened.
● The battery is reconnected.
● The side windows are tapped or broken.
■ Setting the alarm system
Close the doors and hood,
and lock all doors using the
entry function (vehicles with
smart key system) or the wire-
less remote control. The sys-
tem will be set automatically
after 30 seconds.
The indicator light changes
from being on to flashing when
the system is set.

102 1-6. Theft deterrent system
VENZA_U (OM73012U)
■Triggering of the alarm
The alarm may be triggered in the following situations.
(Stopping the alarm deactivates the alarm system.)
● The doors are unlocked using the
mechanical key.
● A person inside the vehicle opens a
door or hood.
● The battery is recharged or replaced
when the vehicle is locked.

486
4-3. Do-it-yourself maintenance
VENZA_U (OM73012U)

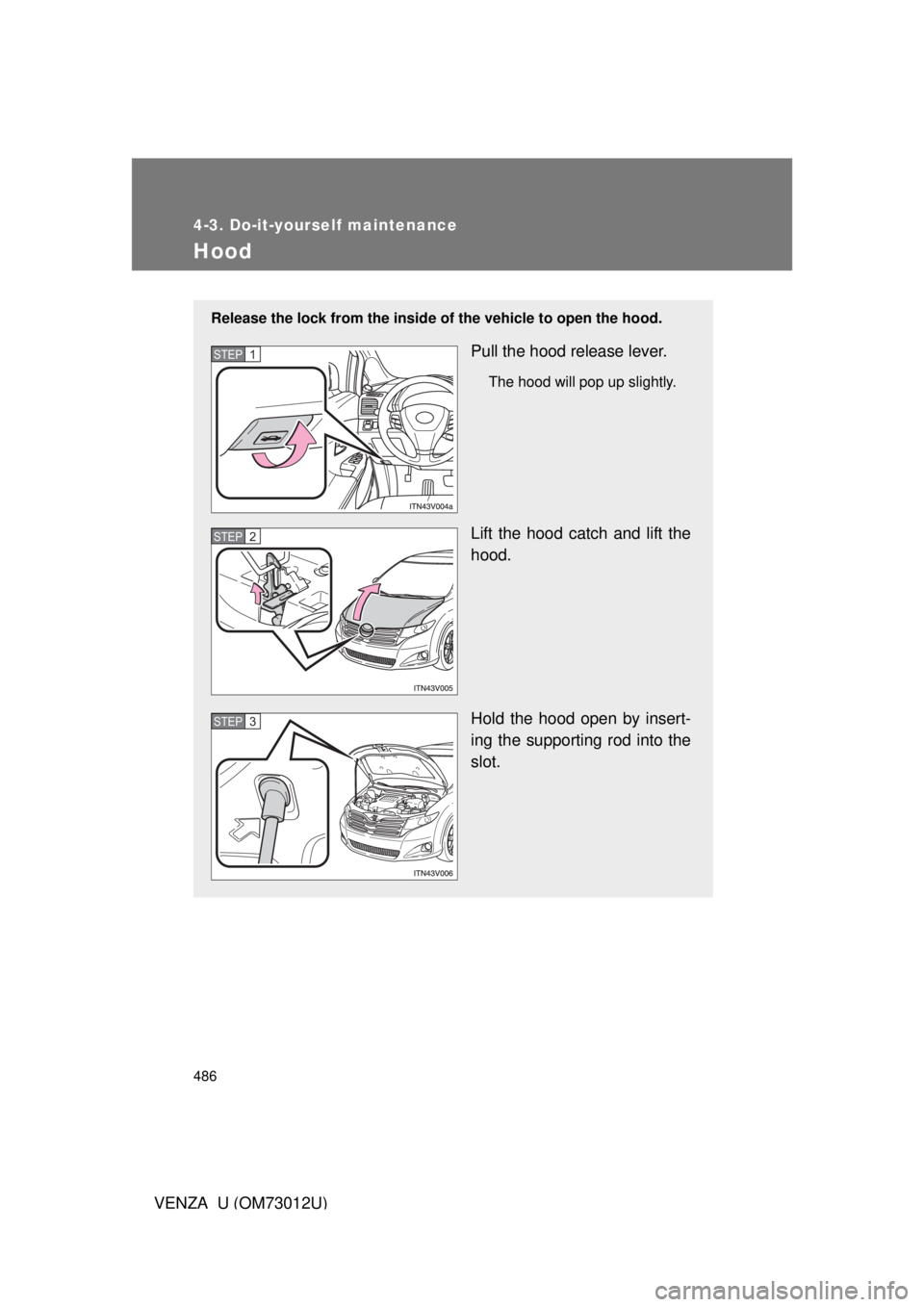

Hood
Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up slightly.
Lift the hood catch and lift the
hood.
Hold the hood open by insert-
ing the supporting rod into the
slot.
STEP1
STEP2
STEP3

487
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73012U)
CAUTION
■
Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
NOTICE
■When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod up could cause the hood to bend.

602 5-2. Steps to take in an emergency
VENZA_U (OM73012U)
CAUTION
■To prevent an accident or injury when inspecting under the hood of
your vehicle
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injury such as burns.
● Keep hands and clothing away from the fan and engine drive belt while the
engine is running.
● Do not loosen the radiator cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.

671
Alphabetical index
VENZA_U (OM73012U)
Floor mat .................................. 453
Fluid
Brake .................................... 500
Washer ................................. 505
Fog lights Replacing light bulbs ............ 537
Switch ................................... 209
Wattage ................................ 621
Four-wheel drive system ........ 224
Front fog lights
Replacing light bulbs ............ 537
Switch ................................... 209
Wattage ................................ 621
Front passenger occupant classification system............ 121
Front passenger’s seat belt reminder light ........................ 563
Front seats
Adjustment ............................. 64
Front side marker light Replacing light bulbs ............ 537
Wattage ................................ 621
Front turn signal lights Replacing light bulbs ............ 537
Wattage ................................ 621
Fuel Capacity ............................... 611
Fuel gauge ........................... 174
Fuel pump shut off system ... 557
Information ........................... 622
Refueling ................................ 93
Type ..................................... 622
Fuel door .................................... 93
Fuel filler door ........................... 93
Fuel pump shut off system ................................... 557
Fuses ........................................ 527
Garage door opener ................ 457
Gauges ..................................... 174
Glove box ................................. 435
Glove box light ........................ 435 Hands-free system
(for cellular phone) ................391
Head restraints
Adjusting .................................70
Headlights Replacing light bulbs .............537
Switch....................................198
Wattage .................................621
Heaters
Seat heaters ..........................450
Side mirror.............................278
Hill-start assist control ............222
Hood ..........................................486
Hooks Cargo hook............................455
Shopping bag hooks .............455
Horn...........................................173
I/M test.......................................481
Identification Engine ...................................609
Vehicle ..................................609
Ignition Engine switch ................159, 163
Keys ........................................26
Ignition switch................159, 163
Ignition switch ..................159, 163
Illuminated entry system .........430
Indicator lights .........................177
Initialization
Items to initialize....................647
Inside rear view mirror ..............80
Instrument panel light control ....................................175
Interior lights Interior lights..........................430
Switch....................................431
Wattage .................................621F
G
H
I

672 Alphabetical index
VENZA_U (OM73012U)
JackPositioning a floor jack .......... 488
Vehicle-equipped jack ...........576
Jack handle ..............................576
Keyless entry.............................. 28
Keys Electronic key ..........................26
If you lose your keys ............. 591
If your electronic key battery is discharged...523, 592
Ignition switch................159, 163
Keyless entry...........................28
Key number .............................26
Keys ........................................26
Mechanical key ....................... 26
Wireless remote control key .... 43
Knee airbag ..............................107
Language Multi-information display.........................180, 640
Licence plate lights
Replacing light bulbs ............. 537
Wattage .................................621
Light bulbs
Replacing ..............................537
Wattage .................................621
Lights
Door courtesy lights ..............430
Fog light switch ..................... 209
Headlights switch .................. 198
Interior light switch ................431
Personal light switch ............. 432
Replacing light bulbs ............. 537
Turn signal lever.................... 171
Vanity lights ...........................446
Wattage .................................621 Load capacity ........................... 240
Lock steering
column............................ 159, 163
Luggage compartment light Switch ................................... 432
Wattage................................. 621
Luggage cover ......................... 455
Maintenance Do-it-yourself maintenance ... 482
General maintenance............ 478
Maintenance data ................. 608
Maintenance requirements ... 476
Manual air conditioning
system .................................... 272
Meter Instrument panel light
control ................................. 175
Meters ................................... 174
Mirrors Inside rear view mirror ............ 80
Side mirror heater ................. 278
Side mirrors............................. 82
Vanity mirrors ........................ 446
Moon roof ................................... 89
MP3 disc ................................... 303
Multi-information display ............................ 180, 194
Noise from under vehicle ........ 556
Odometer .................................. 174
Oil Engine oil .............................. 492
Opener Back door ................................ 54
Fuel filler door ......................... 93
Hood ..................................... 486
Outside rear view mirrors Adjusting and folding............... 82
Outside temperature display ............................ 180, 194J
K
L
M
N
O

680
VENZA_U (OM73012U)

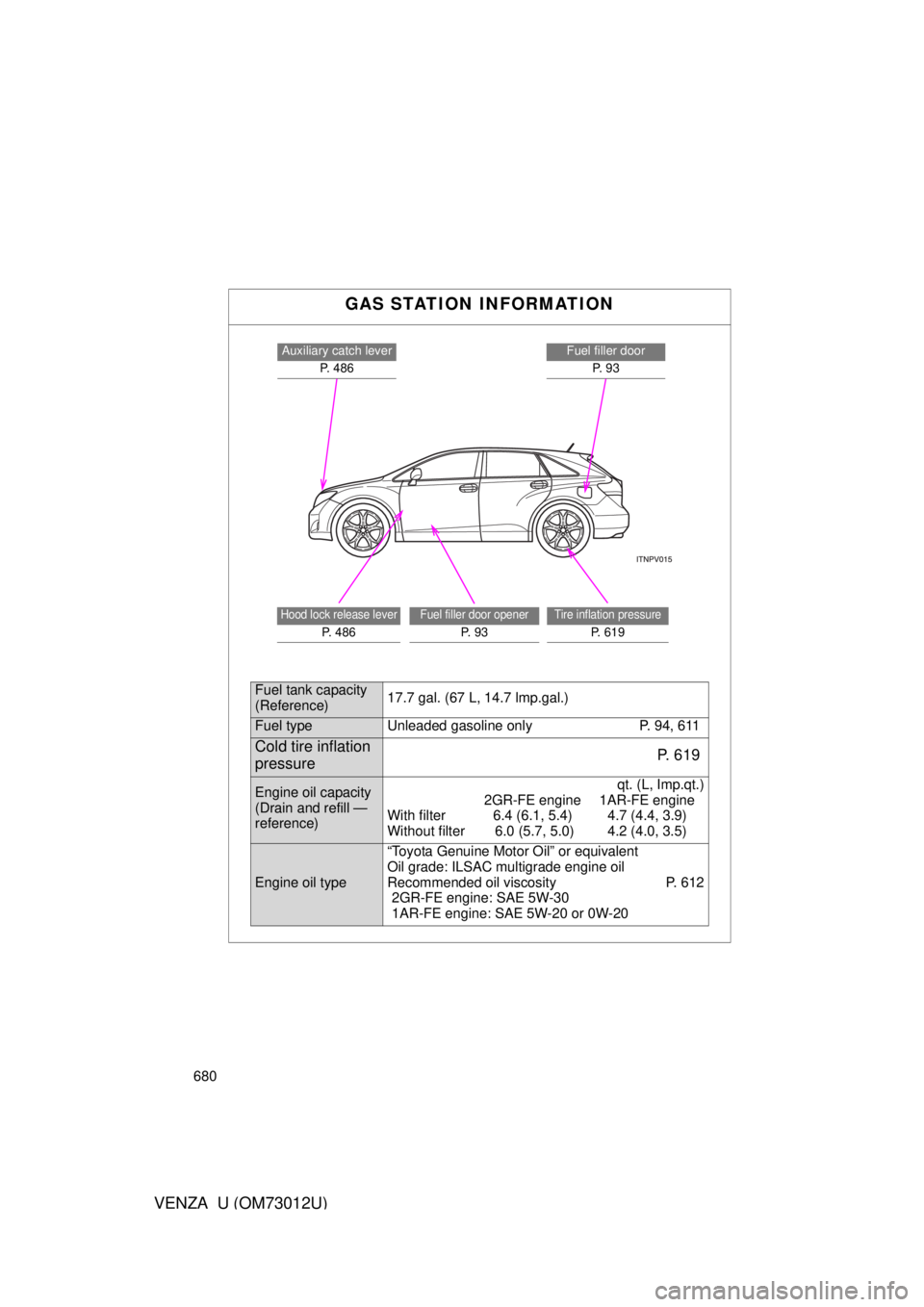

GAS STATION INFORMATION
Auxiliary catch leverP. 486Fuel filler doorP. 9 3
Hood lock release lever
P. 486
Fuel filler door opener
P. 9 3
Tire inflation pressure
P. 6 1 9
Fuel tank capacity
(Reference)17.7 gal. (67 L, 14.7 lmp.gal.)
Fuel typeUnleaded gasoline only P. 94, 611
Cold tire inflation
pressureP. 6 1 9
Engine oil capacity
(Drain and refill —
reference)qt. (L, Imp.qt.)
2GR-FE engine 1AR-FE engine
With filter 6.4 (6.1, 5.4) 4.7 (4.4, 3.9)
Without filter 6.0 (5.7, 5.0) 4.2 (4.0, 3.5)
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC multigrade engine oil
Recommended oil viscosity P. 612
2GR-FE engine: SAE 5W-30
1AR-FE engine: SAE 5W-20 or 0W-20
