TOYOTA VENZA 2012 Accessories, Audio & Navigation (in English)

11
No.NameFunctionPage
7Zoom out buttonTouch this button to reduce the map
scale.42
8“ Off”
Touch this button to obtain a broader
view. Some of the buttons on the
screen are not displayed. They are dis-
played again by touching “On ”.
247
9“DISP” buttonPush this button to display the “Display”
screen.31
10“Mark”
Touch th is button to register the current
position or the cursor position as a
memory point.
35
11“Route”Touch this button to change the route.84, 86
12“Show on Map”
Touch this button to browse information
about guidance route, to set the Points
of Interest to be displayed on the
screen, or to record the route.
92, 96, 97, 99
13Zoom in buttonTouch this button to magnify the map
scale.42
14Foot print map
buttonTouch this button to display the foot print
map and the building information.42
15
Screen
configuration
buttonTouch this button to change the screen
mode.39
16
Distance and
time to
destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
83
17XM NavTraffic
markThis mark is displayed when XM  Nav-
Traffic information is received.98
18
“GPS” mark
(Global
Positioning
System)Whenever the vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.
304

12

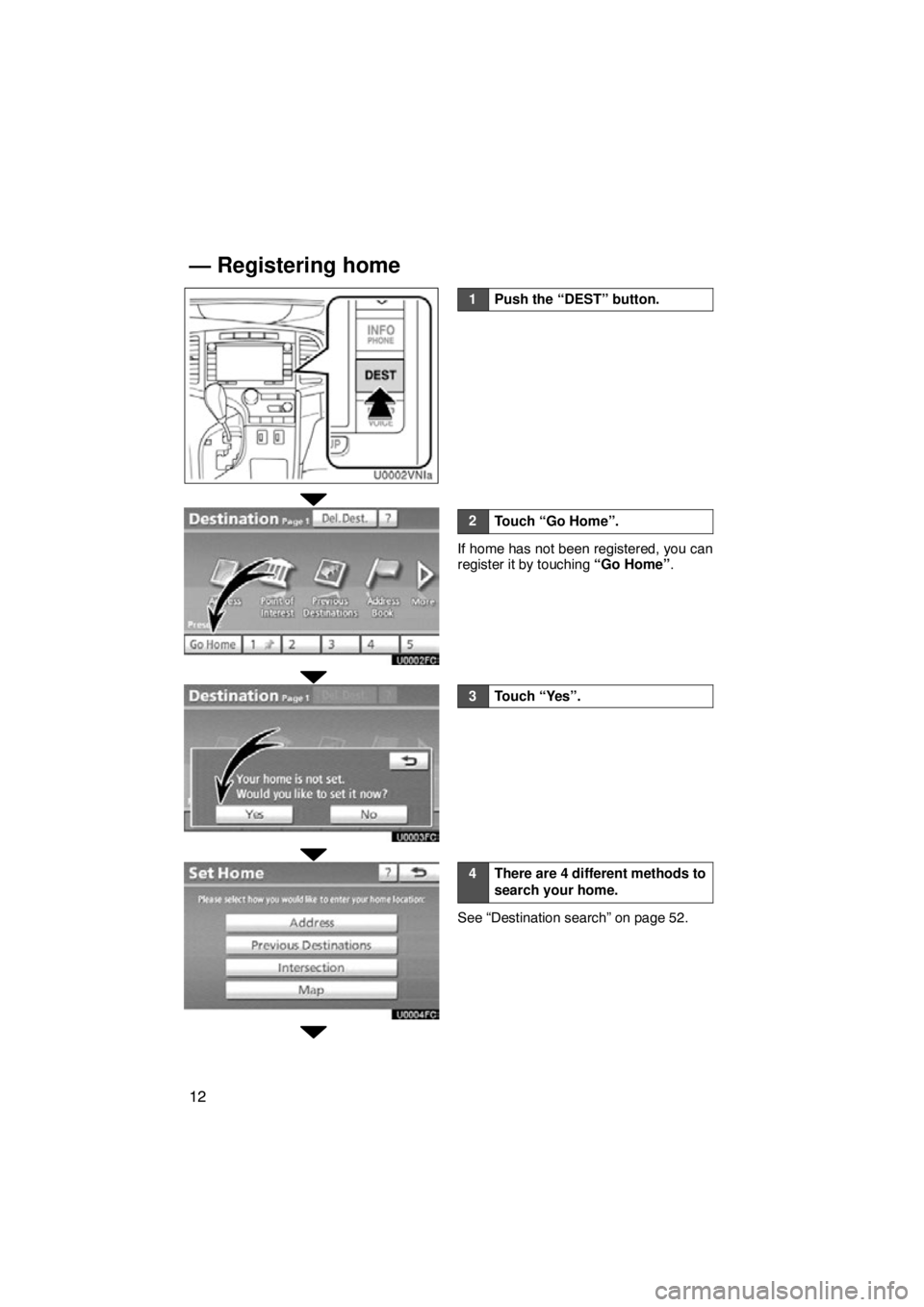

1Push the “DEST” button.
2Touch “Go Home”.
If home has not been registered, you can
register it by touching “Go Home”.
3Touch “Yes”.
4There are 4 different methods to
search your home.
See “Destination search” on page 52.
— Registering home

13

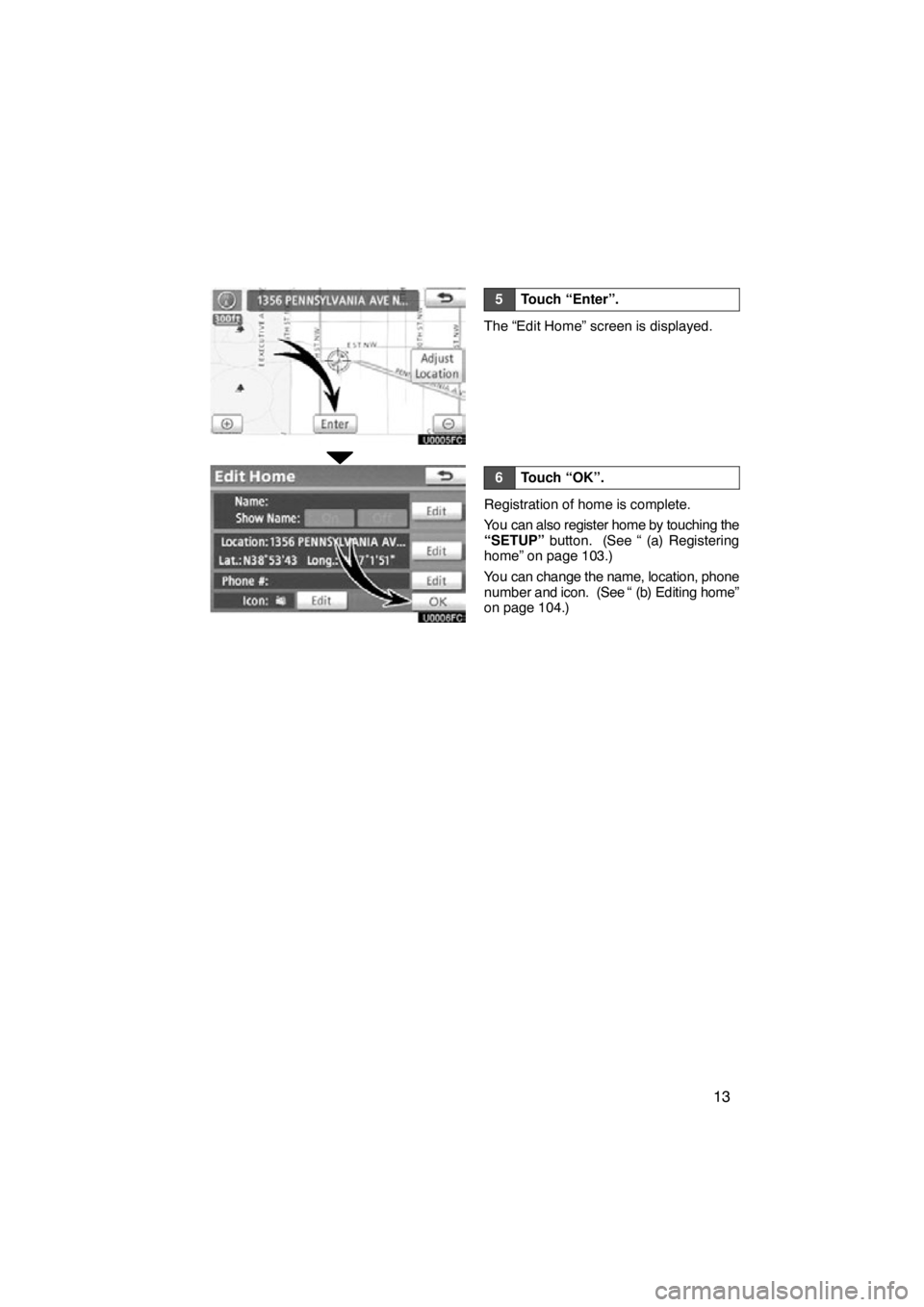

5Touch “Enter”.
The “Edit Home” screen is displayed.
6Touch “OK”.
Registration of home is complete.
You can also register home by touching the
“SETUP” button. (See “ (a) Registering
home” on page 103.)
You can change the name, location, phone
number and icon. (See
“ (b) Editing home”
on page 104.)

14
0U5112XU0002vnia

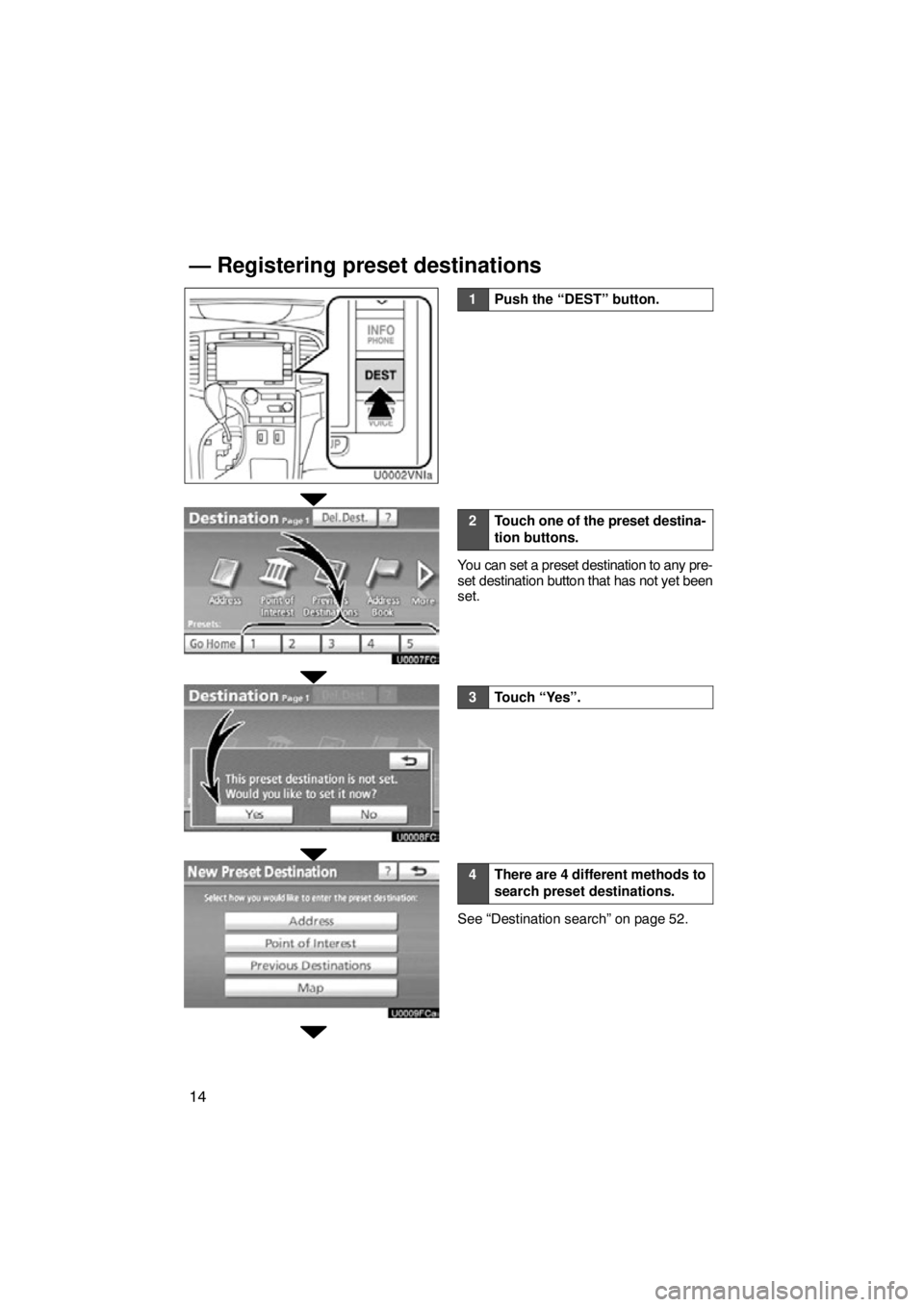

1Push the “DEST” button.
2Touch one of the preset destina-
tion buttons.
You can set a preset destination to any pre-
set destination button that has not yet been
set.
3Touch “Yes”.
4There are 4 different methods to
search preset destinations.
See “Destination search” on page 52.
— Registering preset destinations

15
5Touch “Enter”.
The “Edit Preset Destination” screen is
displayed.
6Touch “OK”.
Registration of preset destinations is com-
plete.
You can also register preset destinations
by touching the “SETUP” button.
(See “ (a) Registering preset destinations”
on page 106.)
You can change the name, location, phone
number and icon. (See
“ (b) Editing preset
destinations” on page 107.)
The registered points can be used on the
“Destination” screen. (See “ — Destina-
tion search by Preset destinations” on
page 54.)

16

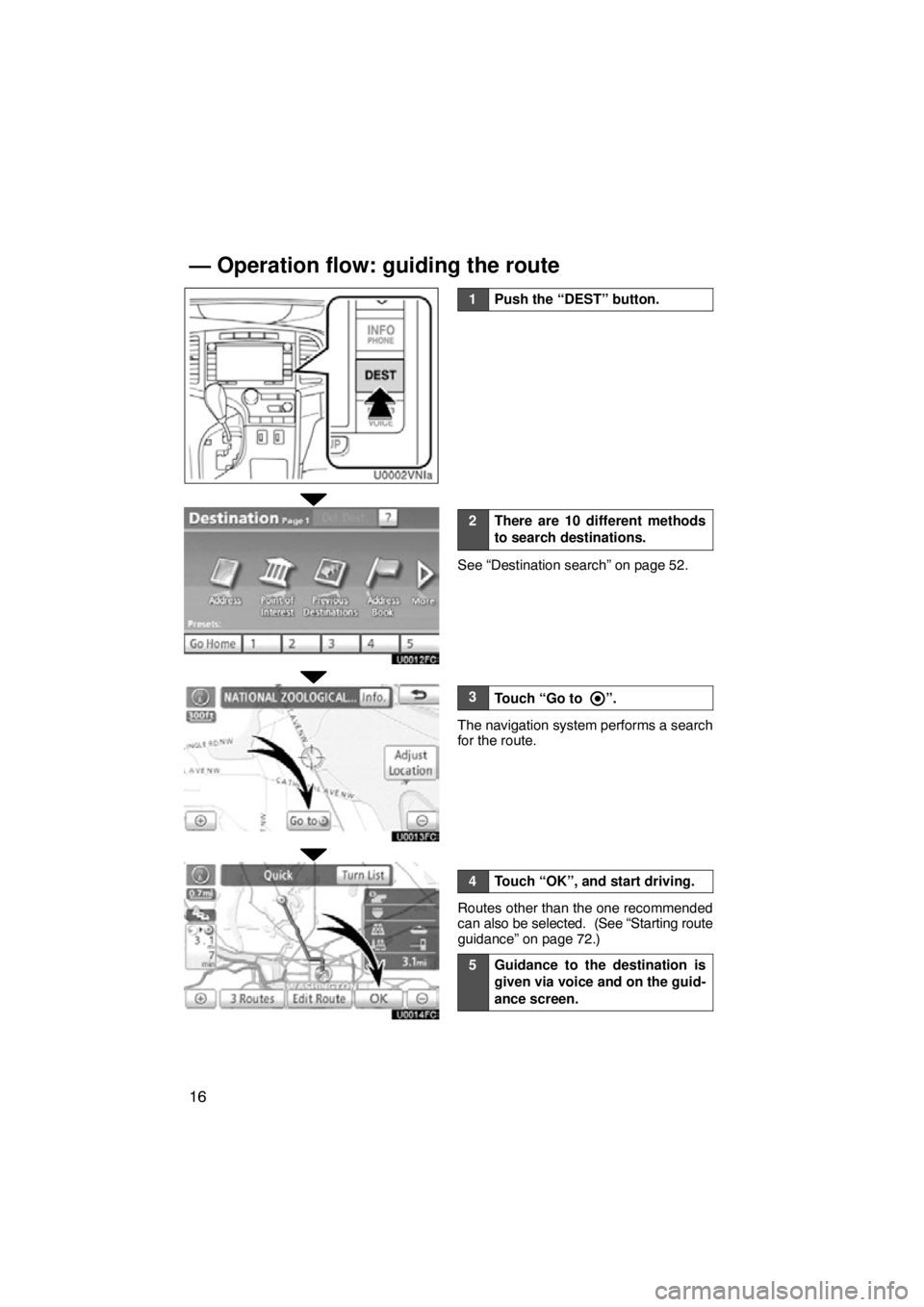

1Push the “DEST” button.
2There are 10 different methods
to search destinations.
See “Destination search” on page 52.
3Touch “Go to ”.
The navigation system performs a search
for the route.
4Touch “OK”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 72.)
5Guidance to the destination is
given via voice and on the guid-
ance screen.
— Operation flow: guiding the route

17
U0002vnia

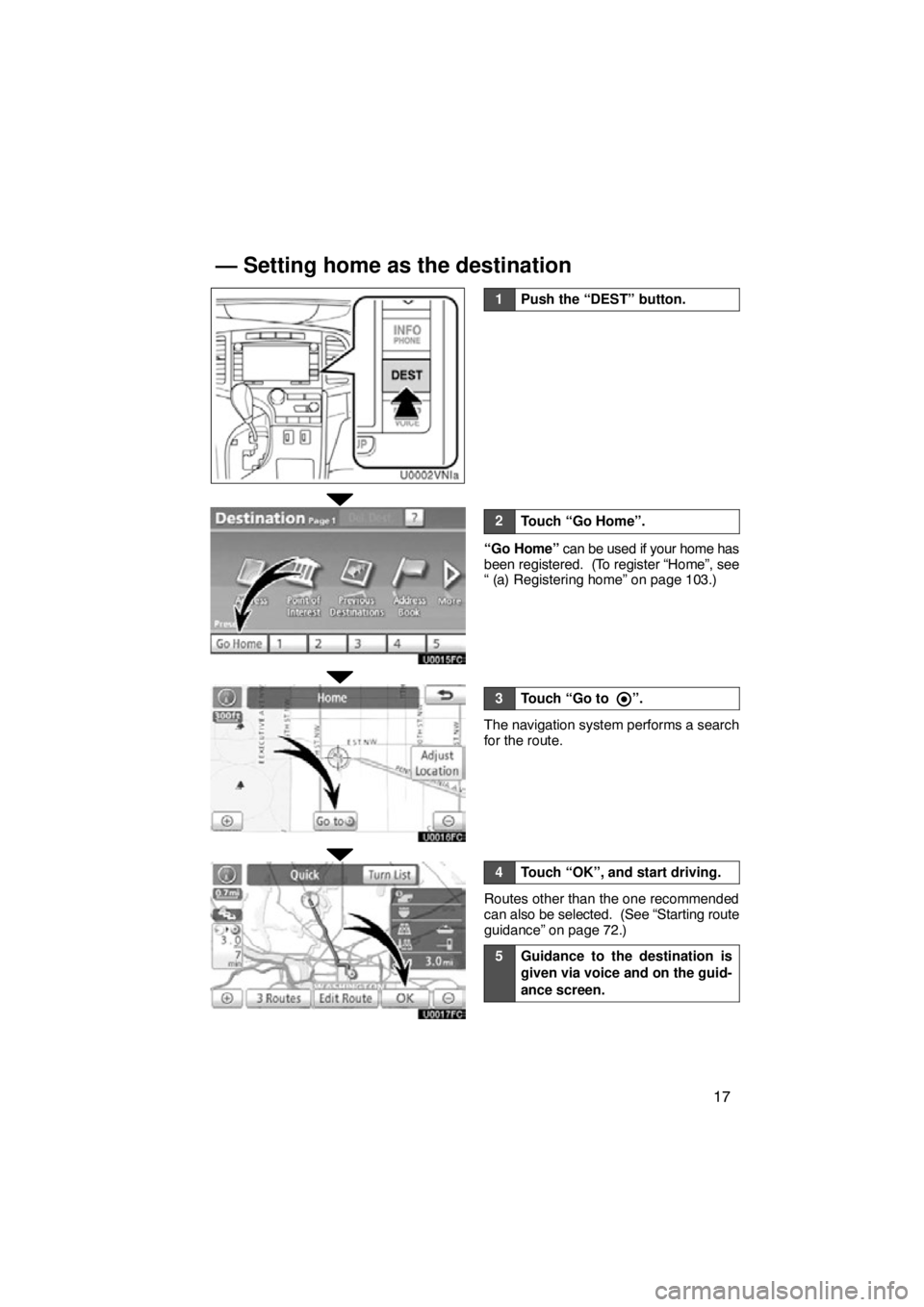

1Push the “DEST” button.
2Touch “Go Home”.
“Go Home” can be used if your home has
been registered. (To register “Home”, see
“ (a) Registering home” on page 103.)
3Touch “Go to ”.
The navigation system performs a search
for the route.
4Touch “OK”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 72.)
5Guidance to the destination is
given via voice and on the guid-
ance screen.
— Setting home as the destination

18
Map
Displaying mapsPage
Viewing the map screen10
Displaying the current vehicle position33
Viewing the current position vicinity map34
Changing the scale42
Changing the map orientation43
Displaying Point of Interest92
Displaying the estimated travel/arrival time to the destination83
Selecting the dual map screen39
Viewing foot print map42
Deleting map screen touch screen buttons247
Searching destinationPage
Searching the destination
(by home, Point of Interest, phone #, etc.)52
Changing the selected region52
Operating the map location of the selected destination72
Route guidance
Before starting route guidancePage
Setting the destination72
Viewing alternative routes72
Starting route guidance72
Before starting or during route guidancePage
Viewing the route72
Adding destinations84
Changing the route86
Displaying the estimated travel/arrival time to the destination83
Navigation system function index

19
During route guidancePage
Pausing route guidance91
Adjusting route guidance volume240
Deleting the destination71, 85
Displaying the entire route map87
Useful functions
Address bookPage
Registering your own address book entries108
Marking icons on the map11 0
InformationPage
Displaying vehicle maintenance296
Displaying the calendar143
Handsfree system (for cellular phone)Page
Initiating Bluetooth126
Making a call on the Bluetooth  phone132
Receiving a call on the Bluetooth  phone139
Speech command systemPage
Operating the system with your voice44

20

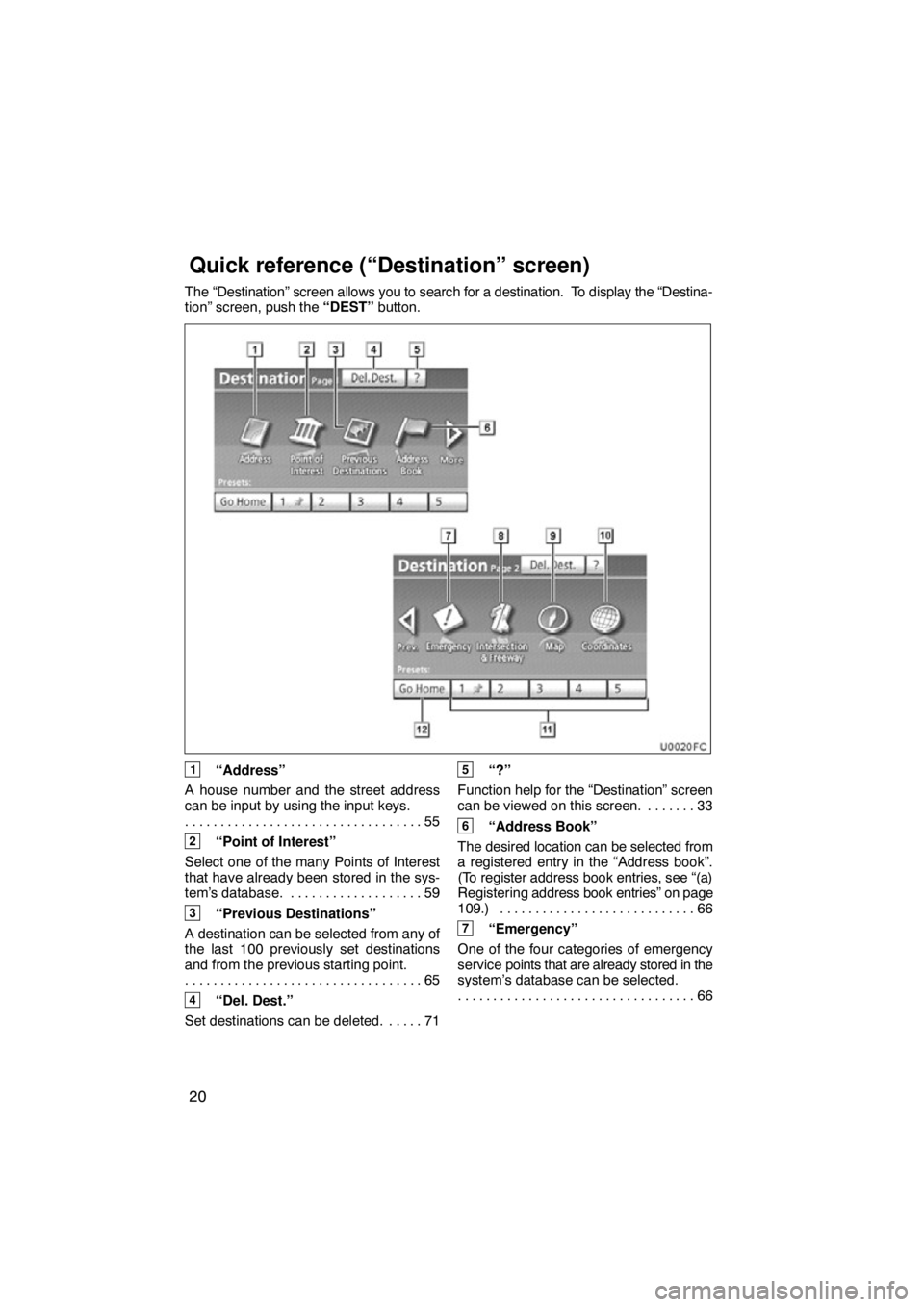

The “Destination” screen allows you to search for a destination. To display the “Destina-
tion” screen, push the “DEST” button.
1“Address”
A house number and the street address
can be input by using the input keys. 55
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2“Point of Interest”
Select one of the many Points of Interest
that have already been stored in the sys-
tem’s database. 59 . . . . . . . . . . . . . . . . . . .
3“Previous Destinations”
A destination can be selected from any of
the last 100 previously set destinations
and from the previous starting point. 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4“Del. Dest.”
Set destinations can be deleted. 71 . . . . .
5“?”
Function help for the “Destination” screen
can be viewed on this screen. 33 . . . . . . .
6“Address Book”
The desired location can be selected from
a registered entry in the “Address book”.
(To register address book entries, see “(a)
Registering address book entries” on page
109.) 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“Emergency”
One of the four categories of emergency
service points that are already stored in the
system’s database can be selected. 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Destination” screen)
