TOYOTA VENZA 2012 Accessories, Audio & Navigation (in English)

NAVIGATION SYSTEM
QUICK REFERENCE GUIDE
CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 31
00505-NAV12-VEN
Printed
in U.S.A. 11/11
11-TCS-05016
VENZA
201 2

1

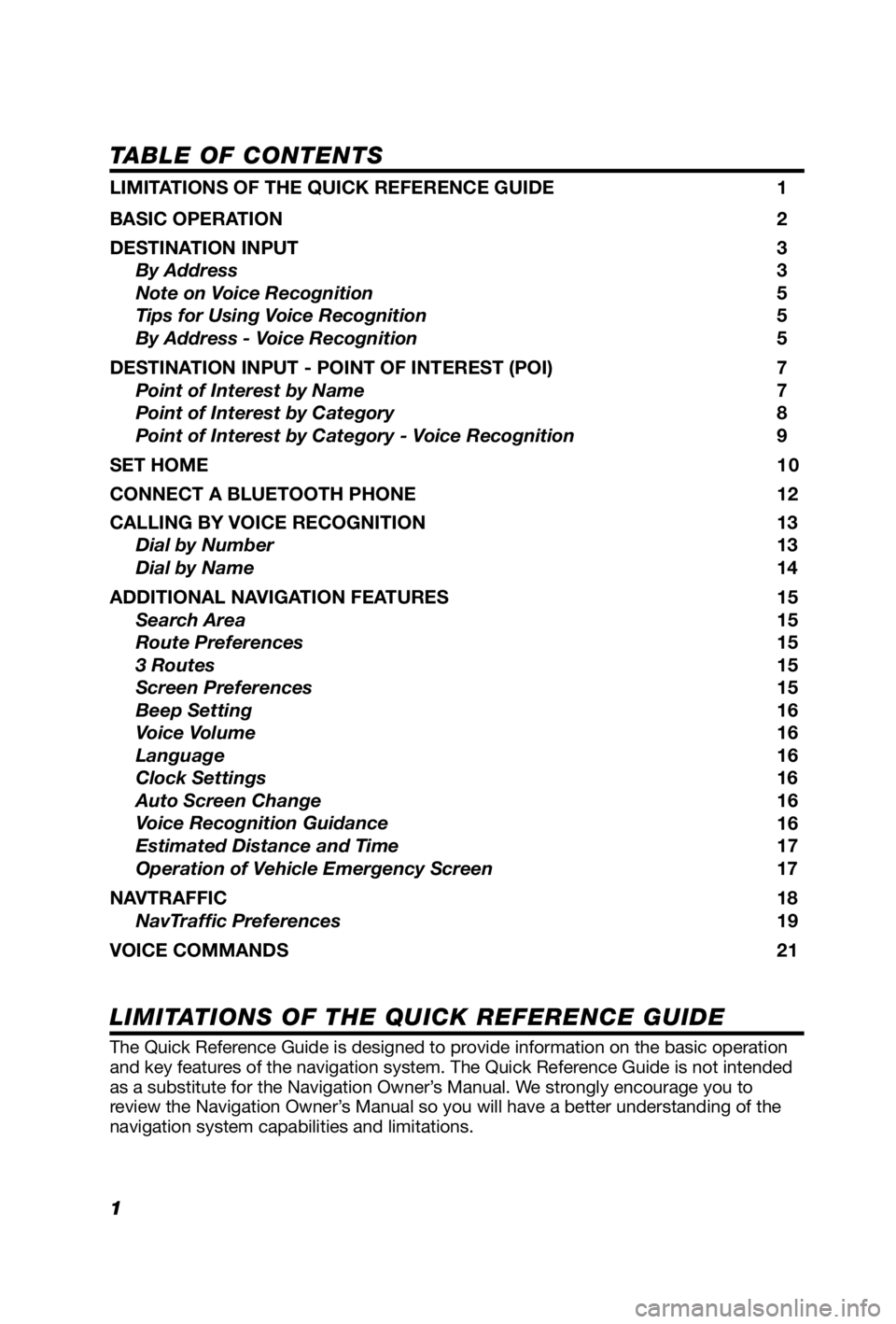

TABLE OF CONTENTS
LIMITATIONS OF THE QUICK REFERENCE GUIDE 1
BASIC OPERATION 2
DESTINATION INPUT 3
By Address 3
Note on Voice Recognition 5
Tips for Using Voice Recognition 5
By Address - Voice Recognition 5
DESTINATION INPUT - POINT OF INTEREST (POI) 7
Point of Interest by Name 7
Point of Interest by Category 8
Point of Interest by Category - Voice Recognition 9
SET HOME 1 0
CONNECT A BLUETOOTH PHONE 12
CALLING BY VOICE RECOGNITION 13
Dial by Number 13
Dial by Name 14
ADDITIONAL NAVIGATION FEATURES 15
Search Area 15
Route Preferences 15
3 Routes 15
Screen Preferences 15
Beep Setting 16
Voice Volume 16
Language 16
Clock Settings 16
Auto Screen Change 16
Voice Recognition Guidance
16
Estimated Distance and Time 17
Operation of Vehicle Emergency Screen 17
NAVTRAFFIC
18
NavTraffi c Preferences 19
VOICE COMMANDS 21
The Quick Reference Guide is designed to provide information on the basic operation
and key features of the navigation system. The Quick Reference Guide is not intended
as a substitute for the Navigation Owner’s Manual. We strongly encourage you to
review the Navigation Owner’s Manual so you will have a better understanding of the
navigation system capabilities and limitations.
LIMITATIONS OF THE QUICK REFERENCE GUIDE

2

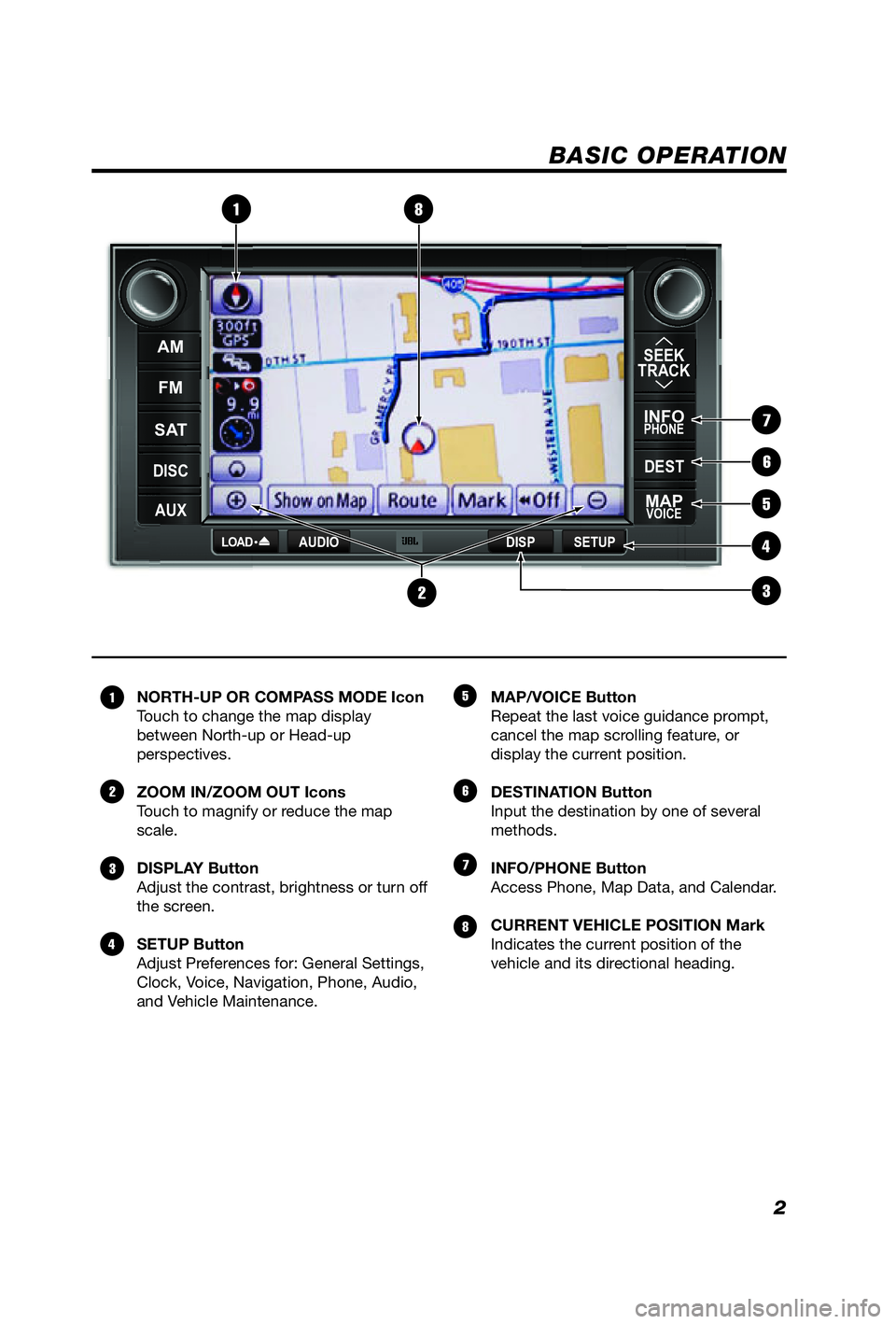

BASIC OPERATION
NORTH-UP OR COMPASS MODE Icon
Touch to change the map display
between North-up or Head-up
perspectives.
ZOOM IN/ZOOM OUT Icons
Touch to magnify or reduce the map
scale.
DISPLAY Button
Adjust the contrast, brightness or turn off
the screen.
SETUP Button
Adjust Preferences for: General Settings,
Clock, Voice, Navigation, Phone, Audio,
and Vehicle Maintenance. MAP/VOICE Button
Repeat the last voice guidance prompt,
cancel the map scrolling feature, or
display the current position.
DESTINATION Button
Input the destination by one of several
methods.
INFO/PHONE Button
Access Phone, Map Data, and Calendar.
CURRENT VEHICLE POSITION Mark
Indicates the current position of the
vehicle and its directional heading.£
Ó
Î
{
x
È
Ç
n
AUDIO
DISP SETUPLOAD‡
AM
FM
SAT
DISC AUX
INFOPHONE
MAPVOICE
DEST
TRACK
SEEK
1
23
8
6
7
5
4

3

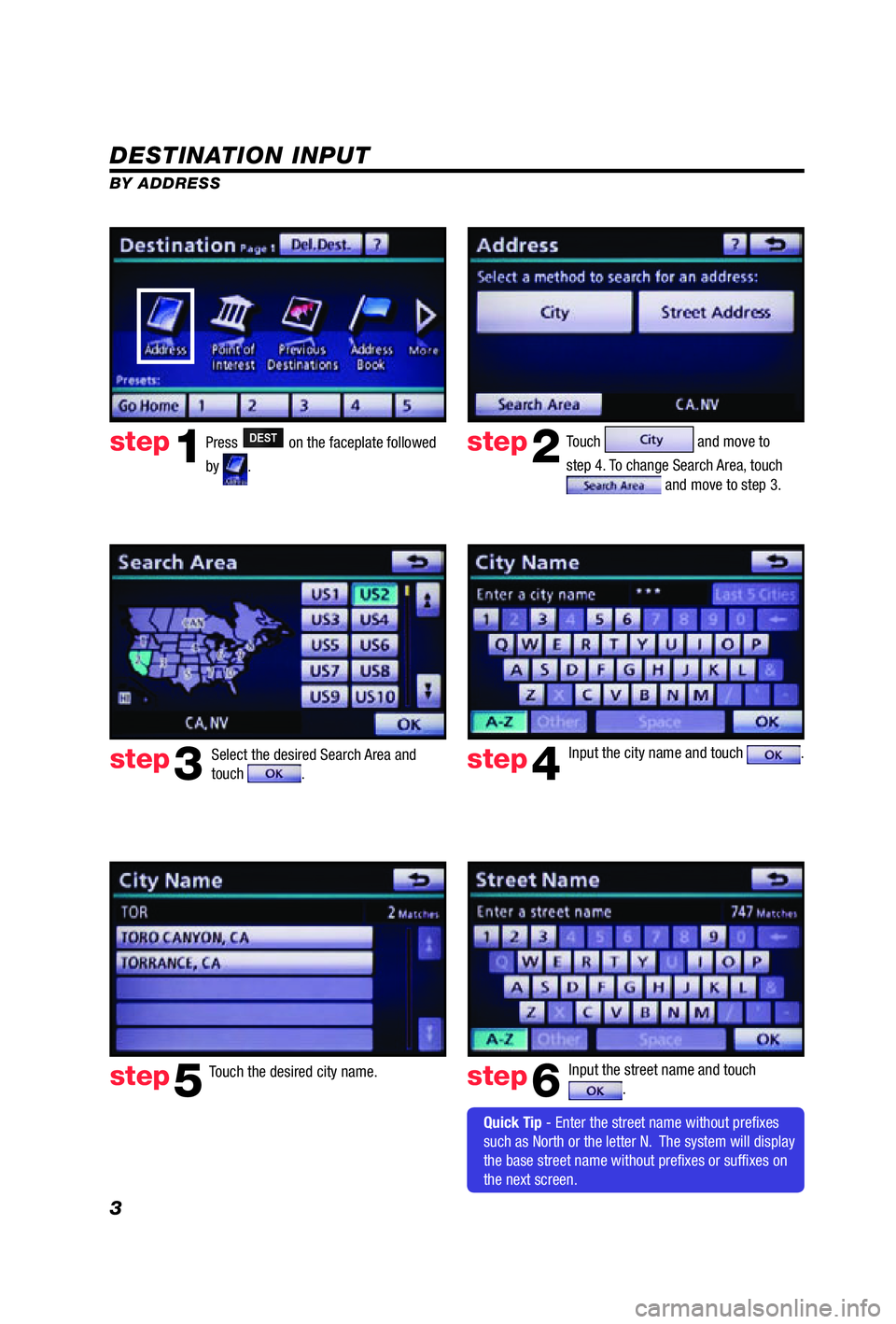

DESTINATION INPUT
BY ADDRESSPress
DEST on the faceplate followed
by
. Touch
and move to
step 4. To change Search Area, touch
and move to step 3.
Input the city name and touch
.
Touch the desired city name. Input the street name and touch
.
Select the desired Search Area and
touch
.
step1step2
step3step4
step5step6

Quick Tip - Enter the street name without prefi xes
such as North or the letter N. The system will display
the base street name without prefi xes or suffi xes on
the next screen.

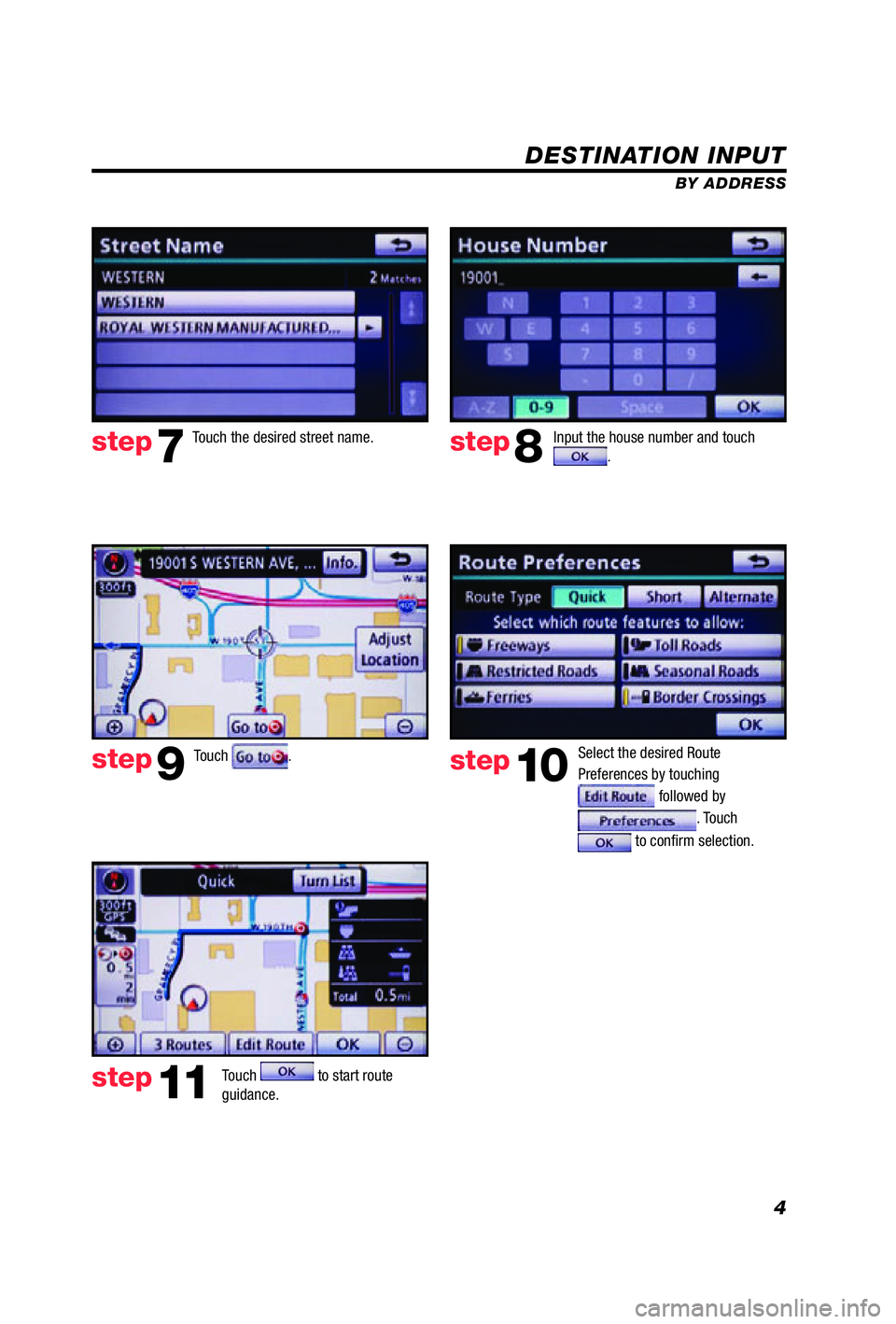

4
DESTINATION INPUT
BY ADDRESS
Touch .Input the house number and touch
.
Touch the desired street name.
Select the desired Route
Preferences by touching
followed by
. Touch
to confi rm selection.
step7step8
step9step10
Touch to start route
guidance. step11

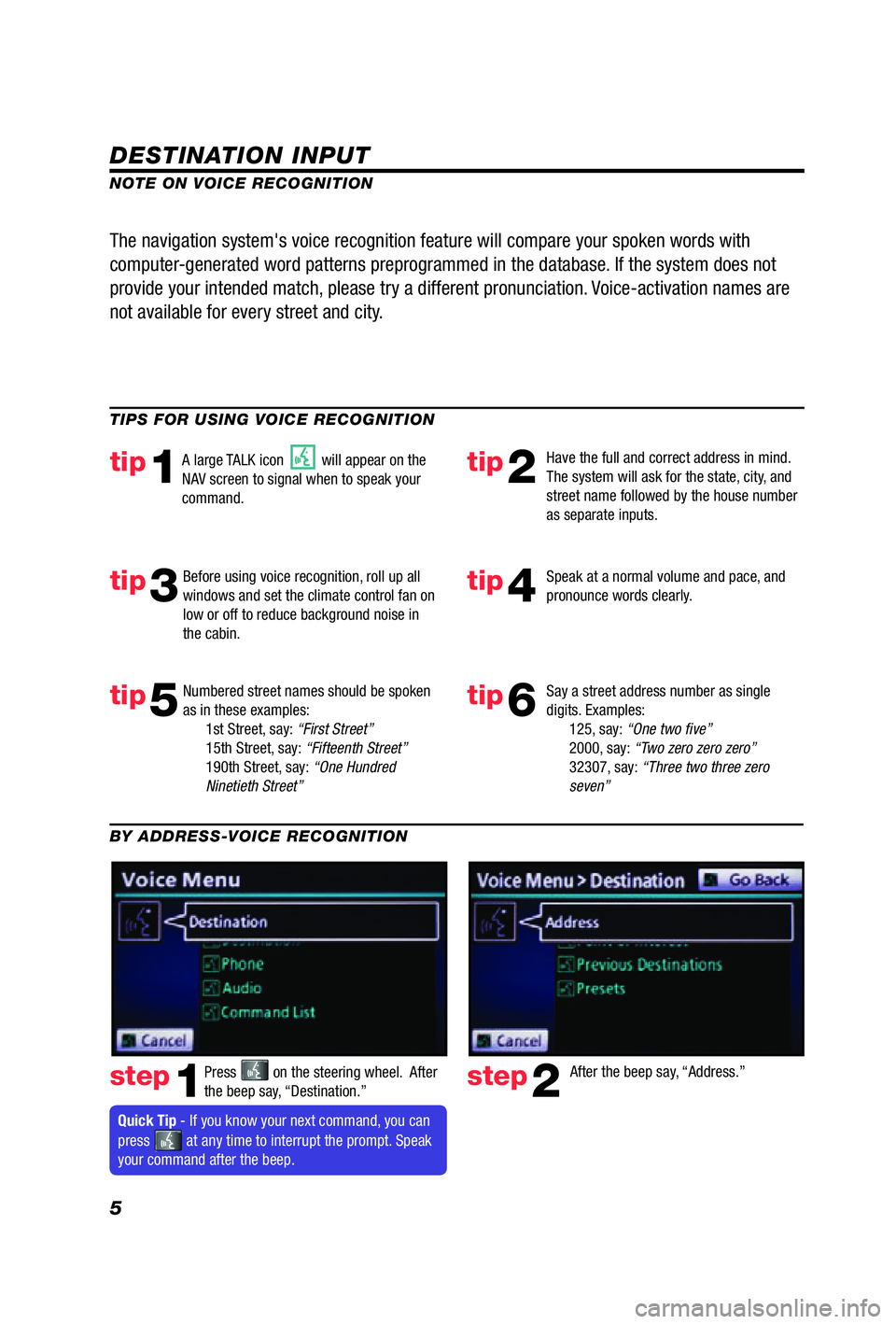

5
DESTINATION INPUT
step1step2Press on the steering wheel. After
the beep say, “Destination.” After the beep say, “Address.”
TIPS FOR USING VOICE RECOGNITION
NOTE ON VOICE RECOGNITION
Say a street address number as single
digits. Examples:
125, say: “One two ve”
2000, say: “Two zero zero zero”
32307, say: “Three two three zero
seven”
tip1tip2
tip3tip4
tip5
Have the full and correct address in mind.
The system will ask for the state, city, and
street name followed by the house number
as separate inputs.
Before using voice recognition, roll up all
windows and set the climate control fan on
low or off to reduce background noise in
the cabin. Speak at a normal volume and pace, and
pronounce words clearly.
Numbered street names should be spoken
as in these examples:
1st Street, say: “First Street”
15th Street, say: “Fifteenth Street”
190th Street, say: “One Hundred
Ninetieth Street”
A large TALK icon will appear on the
NAV screen to signal when to speak your
command.
The navigation system's voice recognition feature will compare your spoken words with
computer-generated word patterns preprogrammed in the database. If the system does not
provide your intended match, please try a different pronunciation. Voice-activation names are
not available for every street and city.
BY ADDRESS-VOICE RECOGNITION
Quick Tip - If you kno w your next command, you can
press
at any time to interrupt the prompt. Speak
your command after the beep.
tip6

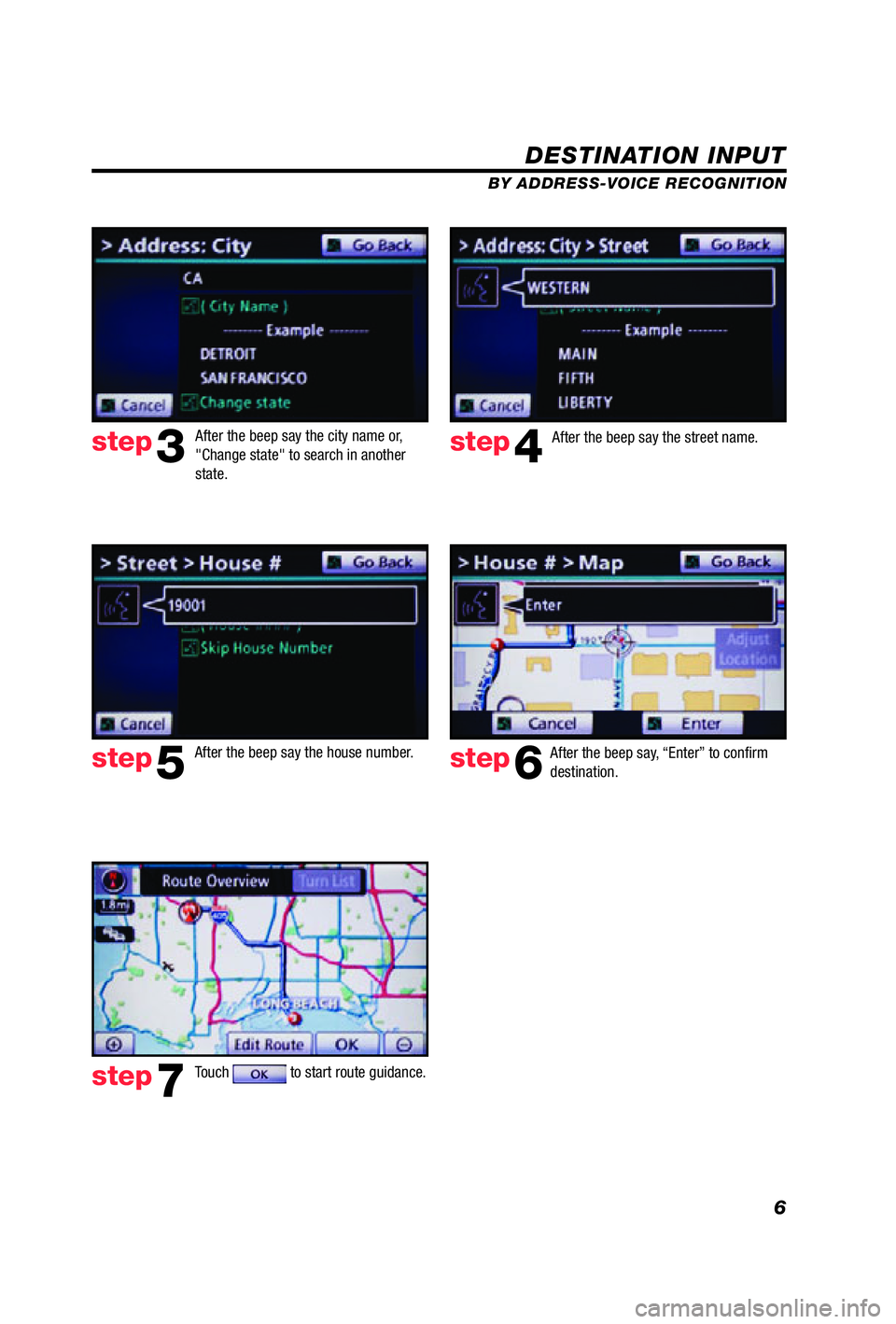

6
DESTINATION INPUT
BY ADDRESS-VOICE RECOGNITION
step3step4
step5step6
step7
After the beep say, “Enter” to confi rm
destination.
Touch
to start route guidance.
After the beep say the city name or,
"Change state" to search in another
state.
After the beep say the street name.
After the beep say the house number.

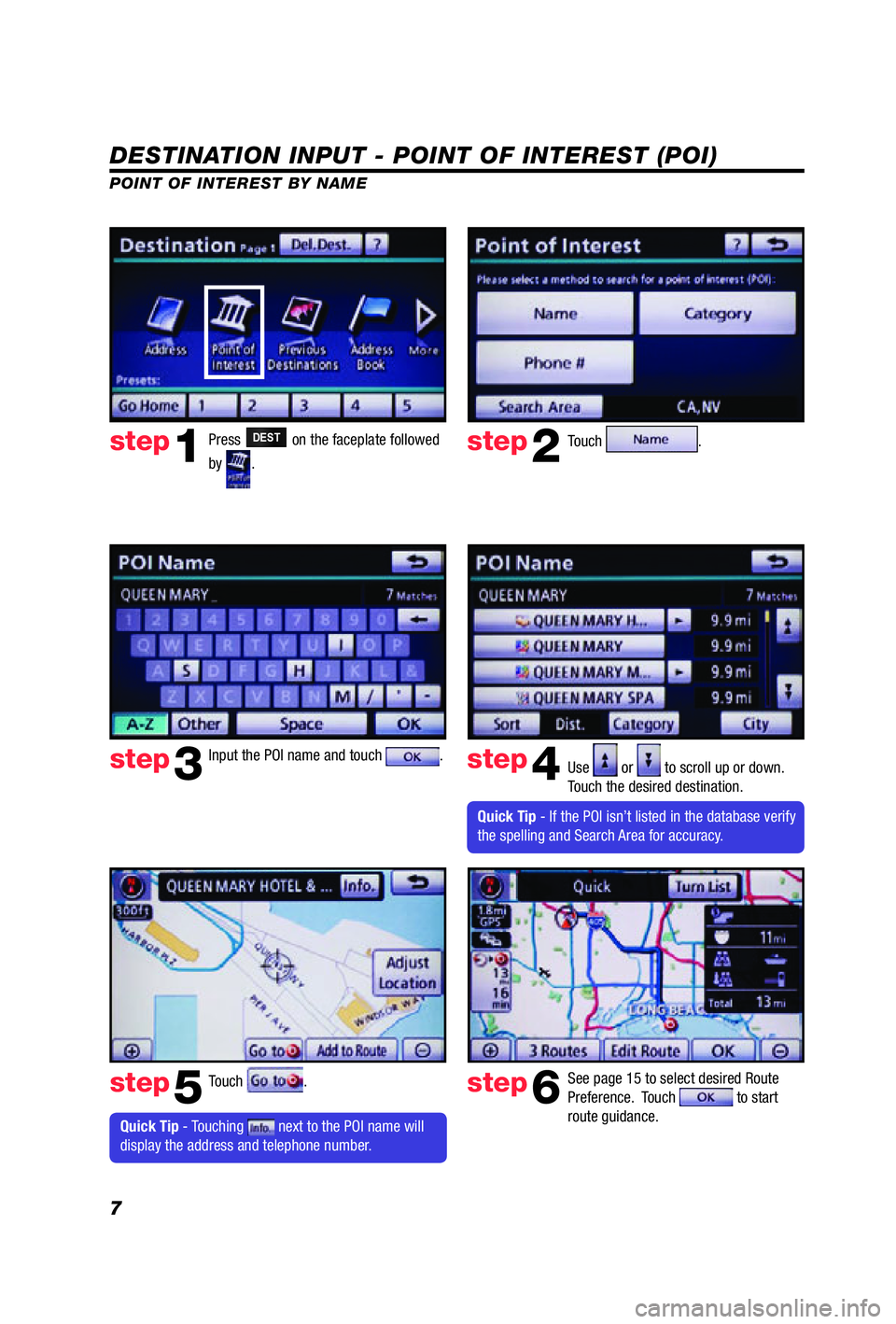

7
DESTINATION INPUT - POINT OF INTEREST (POI)
POINT OF INTEREST BY NAME
Quick Tip - Touching next to the POI name will
display the address and telephone number. Press
DEST on the faceplate followed
by
. Touch
.
Input the POI name and touch
. Use or to scroll up or down.
Touch the desired destination.
Touch
.
step1step2
step3step4
step5
See page 15 to select desired Route
Preference. Touch to start
route guidance. step6
Quick Tip - If the POI isn’t listed in the database verify
the spelling and Search Area for accuracy.

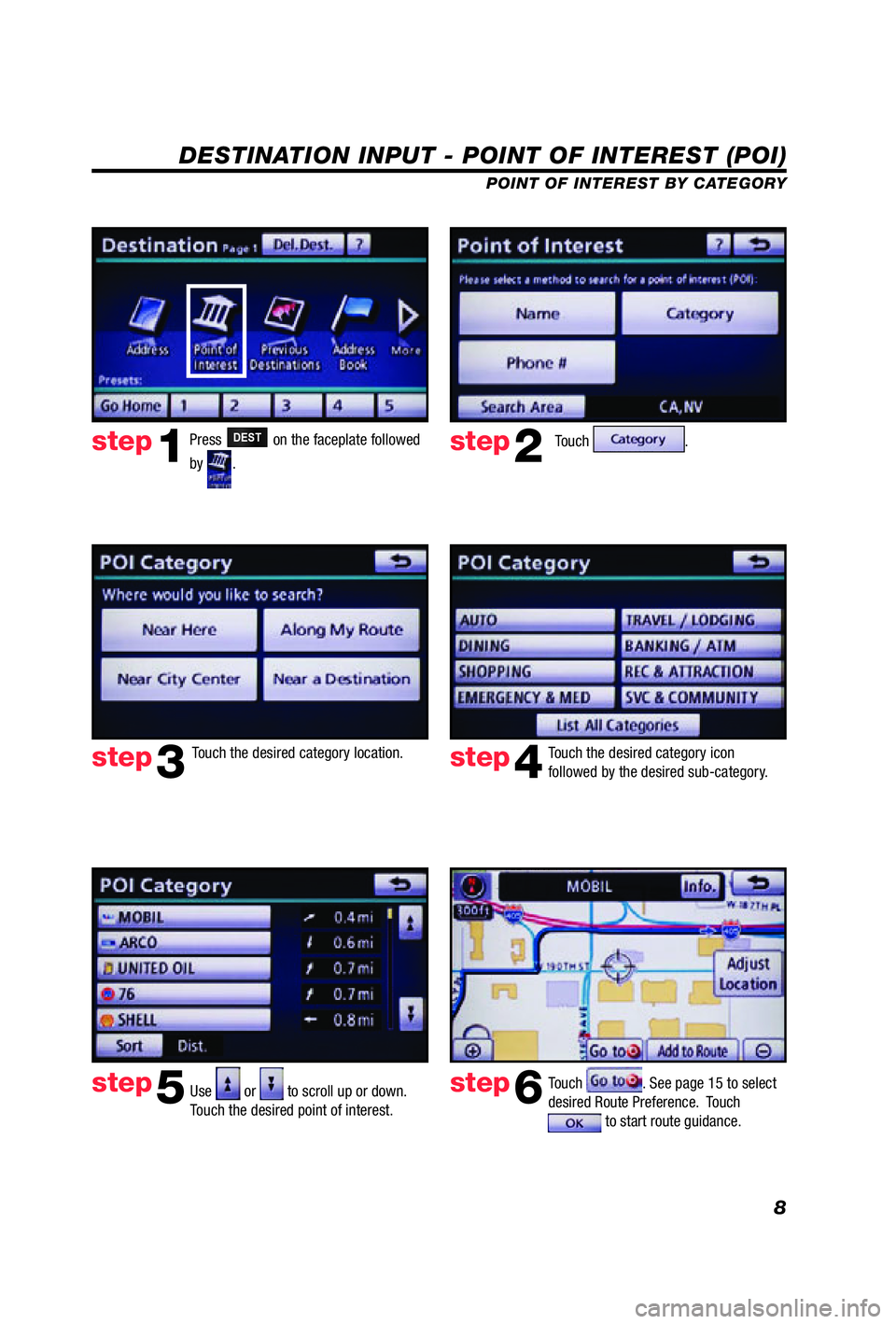

8
DESTINATION INPUT - POINT OF INTEREST (POI)
POINT OF INTEREST BY CATEGORY
Touch .
Touch the desired category location. Touch the desired category icon
followed by the desired sub-category.
Use
or to scroll up or down.
Touch the desired point of interest.
step1step2
step3step4
step5Touch . See page 15 to select
desired Route Preference. Touch
to start route guidance.
step6
Press DEST on the faceplate followed
by
.

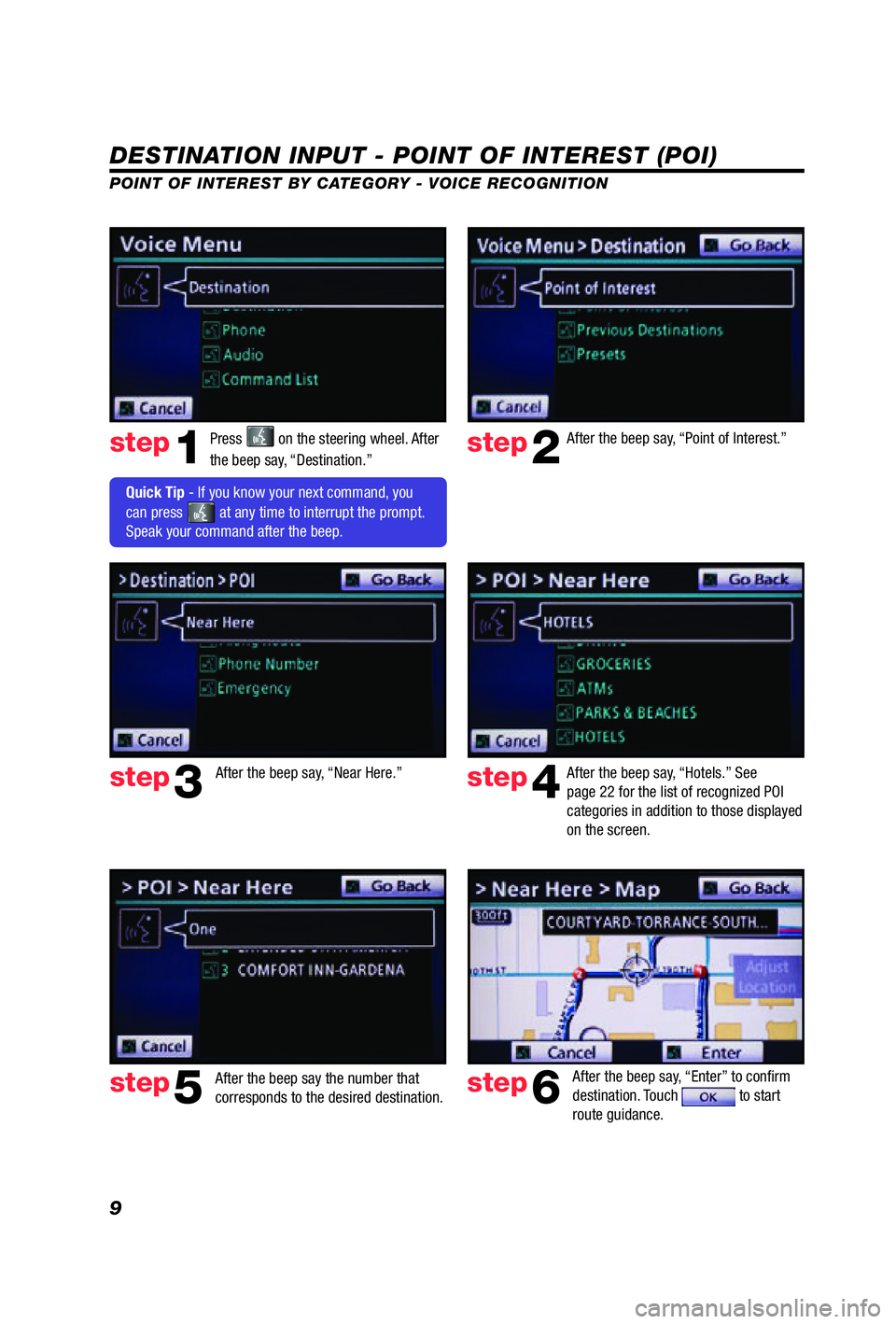

9
DESTINATION INPUT - POINT OF INTEREST (POI)
POINT OF INTEREST BY CATEGORY - VOICE RECOGNITIONPress
on the steering wheel. After
the beep say, “Destination.” After the beep say, “Point of Interest.”
After the beep say, “Near Here.” After the beep say, “Hotels.” See
page 22 for the list of recognized POI
categories in addition to those displayed
on the screen.
After the beep say the number that
corresponds to the desired destination. step1step2
step3step4
step5
After the beep say, “Enter” to confi rm
destination. Touch to start
route guidance. step6
Quick Tip - If you kno w your next command, you
can press
at any time to interrupt the prompt.
Speak your command after the beep.
