TOYOTA VENZA 2013 Accessories, Audio & Navigation (in English)

301
3. XM FUNCTION OPERATION
7
INFORMATION
VENZA (US) NAVI 73011U
12.02.17 09:43
5. XM NavTraffic®
The following operations can be per-
formed:
Show XM NavTraffic® Information: Traffic
information is displayed on the map
screen. (See page 302.)
 Auto Avoid Traffic: If any heavy conges-
tion or moderate traffic has been detected
on the guidance route, it may be possible
for you to select another route offered by
the system. (See page 115.)
 Traffic Incident Warning: Traffic conges-
tion information is provided using voice
guidance. (See page 54.)
 Show Free Flowing Traffic: Freely flowing
traffic is shown by the arrow on the map.
(See page 116.)
1Press the “INFO/APPS” button.
2Touch “Traffic Incidents” .
A list of current traffic incidents is dis-
played along with information on the inci-
dent’s distance and position relative to the
vehicle.
3Touch the desired traffic event.
“On Current Route” : Touch to display the
traffic congestion information for the se-
lected route, or the road which the current
vehicle is on. If a route has not been set,
“On Current Road” will be displayed.
The subscription-based XM NavTraffic®
service allows the navigation system to
display traffic information on the map
screen.
INFORMATION
●When the “Traffic Information” indica-
tor is dimmed, “Avoid Traffic”, “Traffic
Incident Warning” and “Show Free Flow-
ing Traffic” will not operate. (See page
302.)
SHOW TRAFFIC EVENT

302
3. XM FUNCTION OPERATION
VENZA (US) NAVI 73011U
12.02.17 09:43
4This screen is displayed.
Guidance route traffic information is dis-
played on the screen. Touch “Detail” to
display detailed traffic event information.
1Touch “Show on Map” .
2Touch “Traffic Information” .
The “Traffic Information” indicator is
highlighted.
3XM NavTraffic® information is dis-
played on the map screen.
 On the map screen
 On the freeway information screen
SHOW XM NavTraffic®
INFORMATION

303
3. XM FUNCTION OPERATION
7
INFORMATION
VENZA (US) NAVI 73011U
12.02.17 09:43
XM NavTraffic® icon
 When any traffic information is received,
the XM NavTraffic
® icon will appear on the
map screen. Touching the XM NavTraffic®
icon on the screen will start voice guid-
ance for the traffic information. (See page
37.)
 When the XM NavTraffic
® icon is selected,
voice guidance for the traffic information
will start even if “Off” for “Traffic Incident
Warning” is selected.
XM NavTraffic
® information arrow
 When any XM NavTraffic
® information is
received, the XM NavTraffic® information
arrow will appear on the map screen. The
color of the arrow changes depending on
the traffic information received. XM NavTraffic
® indicator
 When any XM NavTraffic
® information is
received, the XM NavTraffic® indicator will
appear on the screen. The color of the
indicator changes depending on the traffic
information received.
*: Touching the XM NavTraffic® indicator
will start voice guidance.
ColorFunction
RedHeavy congestion
Ye l l o wModerate traffic
GreenFreely flowing traffic
ColorFunction
WhiteTraffic information has been
received.
Ye l l o w
Traffic restriction informa-
tion on the guidance route
has been received (screen
button*).
Red
Congestion information on
the guidance route has
been received (screen but-
ton*).

304
VENZA (US) NAVI 73011U
12.02.17 09:43
4. SETUP

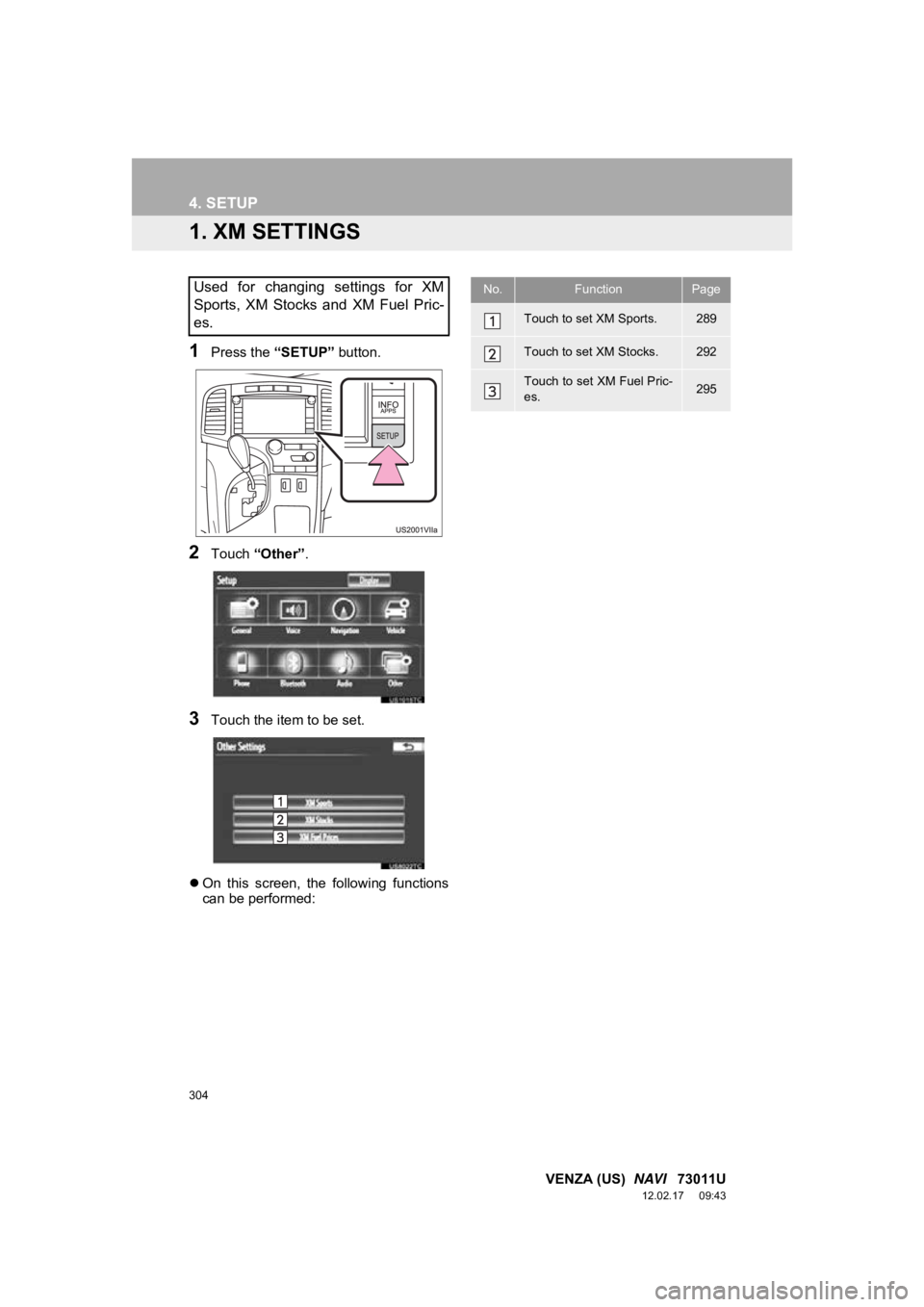

1. XM SETTINGS
1Press the “SETUP” button.
2Touch “Other” .
3Touch the item to be set.
 On this screen, the following functions
can be performed:
Used for changing settings for XM
Sports, XM Stocks and XM Fuel Pric-
es.No.FunctionPage
Touch to set XM Sports.289
Touch to set XM Stocks.292
Touch to set XM Fuel Pric-
es.295

8
305
1
2
3
4
5
6
7
8
9
VENZA (US) NAVI 73011U
12.02.16 15:41

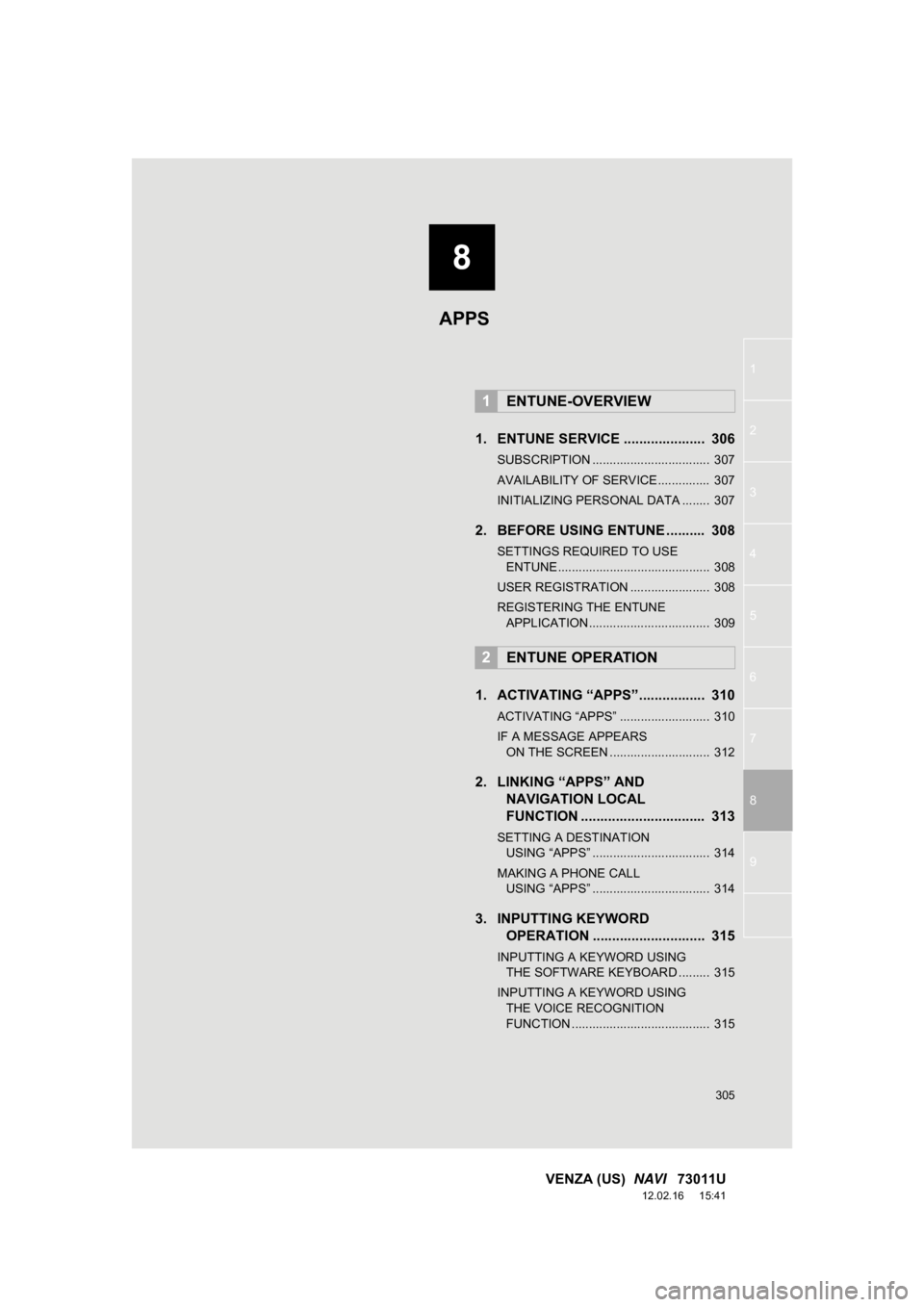

1. ENTUNE SERVICE ..................... 306
SUBSCRIPTION .................................. 307
AVAILABILITY OF SERVICE............... 307
INITIALIZING PERSONAL DATA ........ 307
2. BEFORE USING ENTUNE .......... 308
SETTINGS REQUIRED TO USE
ENTUNE ............................................ 308
USER REGISTRATION ....................... 308
REGISTERING THE ENTUNE APPLICATION ................................... 309
1. ACTIVATING “APPS”.. ............... 310
ACTIVATING “APPS” .......................... 310
IF A MESSAGE APPEARS
ON THE SCREEN ............................. 312
2. LINKING “APPS” AND NAVIGATION LOCAL
FUNCTION ...... ....................... ... 313
SETTING A DESTINATION
USING “APPS” .................................. 314
MAKING A PHONE CALL USING “APPS” .................................. 314
3. INPUTTING KEYWORD OPERATION ............................. 315
INPUTTING A KEYWORD USING
THE SOFTWARE KEYBOARD ......... 315
INPUTTING A KEYWORD USING THE VOICE RECOGNITION
FUNCTION ........................................ 315
1ENTUNE-OVERVIEW
2ENTUNE OPERATION
APPS

306
VENZA (US) NAVI 73011U
12.02.17 09:43

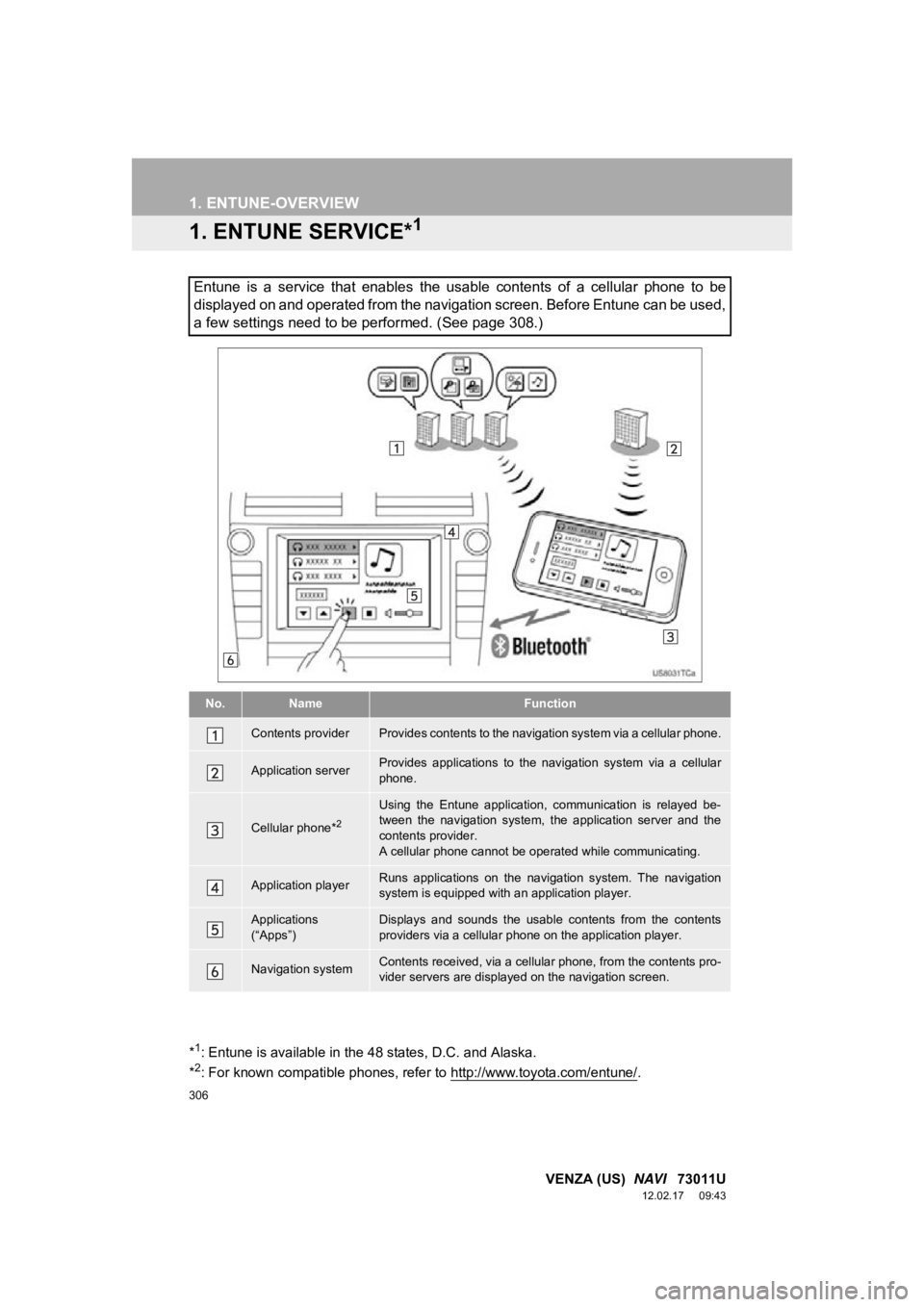

1. ENTUNE-OVERVIEW
1. ENTUNE SERVICE*1
Entune is a service that enables the usable contents of a cellular phone to be
displayed on and operated from the navigation screen. Before Entune can be used,
a few settings need to be performed. (See page 308.)
No.NameFunction
Contents providerProvides contents to the navigation system via a cellular phone.
Application serverProvides applications to the nav igation system via a cellular
phone.
Cellular phone*2
Using the Entune application, communication is relayed be-
tween the navigation system, the application server and the
contents provider.
A cellular phone cannot be operated while communicating.
Application playerRuns applications on the navigation system. The navigation
system is equipped with an application player.
Applications
(“Apps”)Displays and sounds the usabl e contents from the contents
providers via a cellular p hone on the application player.
Navigation systemContents received, via a cellular phone, from the contents pro-
vider servers are display ed on the navigation screen.
*1: Entune is available in the 48 states, D.C. and Alaska.
*2: For known compatible phones, refer to http://www.toyota.com/entune/.

8
APPS
307
1. ENTUNE-OVERVIEW
VENZA (US) NAVI 73011U
12.02.17 09:43
Entune will be available on a 3 year trial
period included upon purchase of a new
vehicle. User registration is required to
start using the service. (See page 309.)
 When 3 years have elapsed after purchas-
ing a new vehicle, a fee will be charged to
renew the contract.*
 Services requiring a separate contract can
also be used.*
*: For details, refer to http://
www.toyota.com/entune/ or call 1-800-
331-4331.
 Entune is available in the 48 states, D.C.
and Alaska. 
The following personal data can be
deleted and returned to their default set-
tings:
• Downloaded contents
• Radio stations that were listened to
• Input history
SUBSCRIPTION
AVAILABILITY OF SERVICE
INFORMATION
●When using Entune, depending on the
details of your cellular phone contract,
data usage fees may apply. Confirm
data usage fees before using this ser-
vice.
● In this section, the required operations
to activate “Apps”, connect a cellular
phone to the navigation system and reg-
istration steps for Entune are explained.
For details regarding Entune operations
and each of the “Apps”, refer to http://
www.toyota.com/entune/.
INITIALIZING PERSONAL
DATA
The personal data used in “Apps” can
be reset. (See “DELETING PERSON-
AL DATA” on page 52.)
INFORMATION
● Once initialized, data will be erased. Pay
close attention when initializing the data.

308
1. ENTUNE-OVERVIEW
VENZA (US) NAVI 73011U
12.02.17 09:43
2. BEFORE USING ENTUNE
Perform the settings in the following order.
In order to use Entune, the following set-
tings must first be performed:
User registration with the service contract
(See page 308.)
 Download the Entune application onto
your cellular phone, and login to the appli-
cation. (See page 309.)
 Register the cellular phone that the
Entune application was downloaded to
with the navigation system. (See page
309.)
 Register a Bluetooth
® phone with the
hands-free system. (For detailed informa-
tion about registration and settings, see
“Bluetooth
® SETTINGS” on page 178.)
1Perform user registration from the des-
ignated web address.
SETTINGS REQUIRED TO
USE ENTUNE
1User registration
2Download the Entune application to
your cellular phone.
3Register the cellular phone with the
navigation system.
USER REGISTRATION
When purchasing the vehicle, an email
address is registered at your Toyota
dealer. If your email address was not
registered at your Toyota dealer, your
email address can be registered at the
Entune website. A user registration
guidance email containing a web ad-
dress will be sent.

8
APPS
309
1. ENTUNE-OVERVIEW
VENZA (US) NAVI 73011U
12.02.17 09:43
1Download the Entune application using
your cellular phone.
2Run the Entune application on your
cellular phone.
3Enter a user name and password into
the Entune application. Login to the ap-
plication.
REGISTERING THE ENTUNE
APPLICATION
INFORMATION
●“Apps” can only be used when the
Entune application has been down-
loaded to your cellular phone and the
application is running.
● If your email address was not registered
at your Toyota dealer when the vehicle
was purchased, an email address can
be registered at http://www.toyota.com/
entune/.
● Entune operational procedures can also
be confirmed by visiting http://
www.toyota.com/entune/.
● In order to use “Apps”, it is necessary to
run the Entune application, enter your
user name and password and display
the main menu on the cellular phone.
● An iPhone cannot be connected via
Bluetooth
® and USB connection at the
same time. However, it is possible to
recharge an iPhone while using Entune
by connecting via USB. The system
uses the connection method that was
used last. Therefore, if connected via
USB after Bluetooth
® connection, it is
necessary to reconnect the iPhone via
Bluetooth
®.

310
VENZA (US) NAVI 73011U
12.02.17 09:43

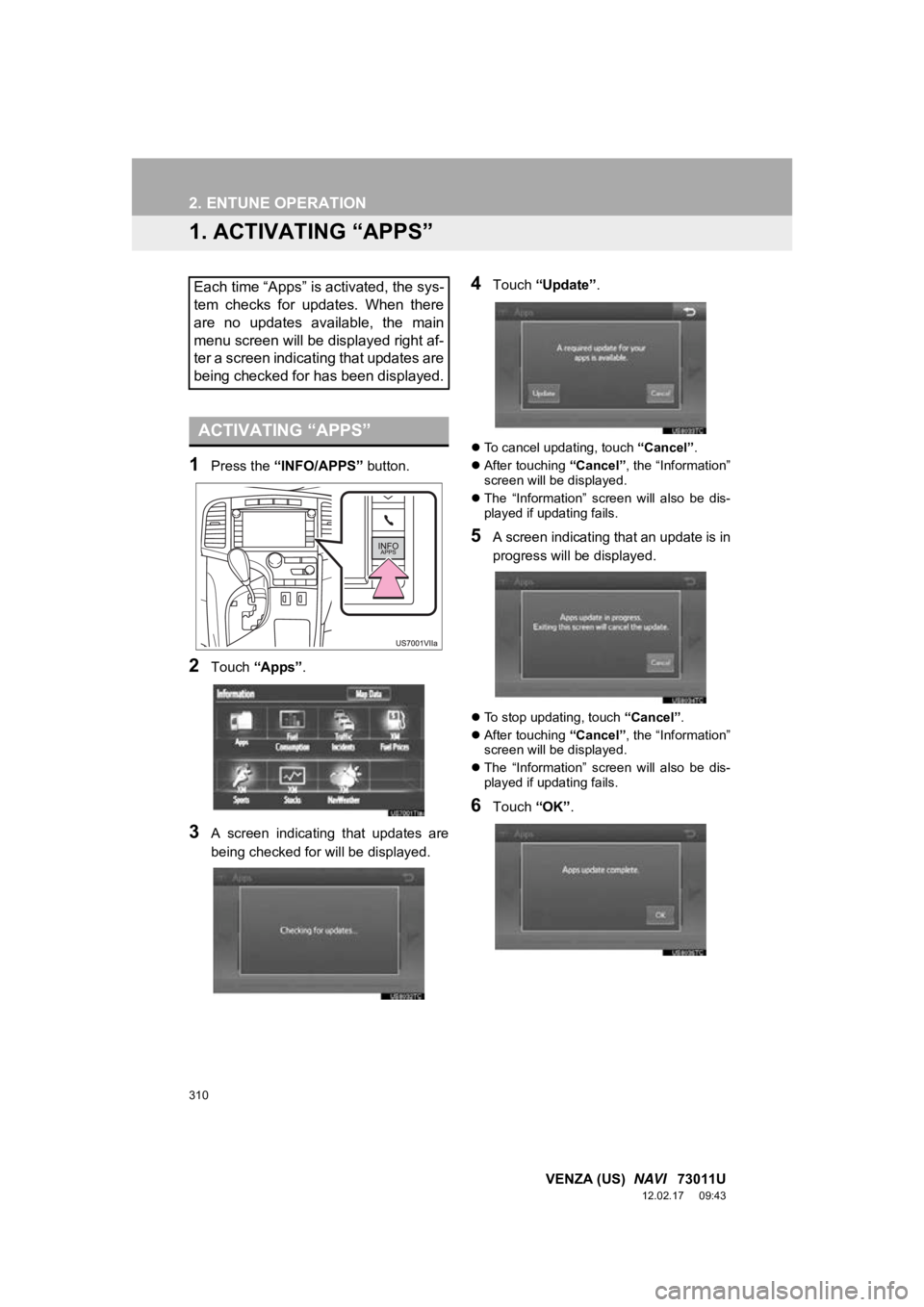

2. ENTUNE OPERATION
1. ACTIVATING “APPS”
1Press the “INFO/APPS” button.
2Touch “Apps” .
3A screen indicating that updates are
being checked for will be displayed.
4Touch “Update” .
To cancel updating, touch “Cancel”.
 After touching “Cancel”, the “Information”
screen will be displayed.
 The “Information” screen will also be dis-
played if updating fails.
5A screen indicating that an update is in
progress will be displayed.
To stop updating, touch “Cancel”.
 After touching “Cancel”, the “Information”
screen will be displayed.
 The “Information” screen will also be dis-
played if updating fails.
6Touch “OK”.
Each time “Apps” is activated, the sys-
tem checks for updates. When there
are no updates available, the main
menu screen will be displayed right af-
ter a screen indicating that updates are
being checked for has been displayed.
ACTIVATING “APPS”
