TOYOTA VENZA 2013 Owners Manual (in English)

221
2-3. Operating the lights and wipers
2
When driving
VENZA_OM_OM73010U_(U)

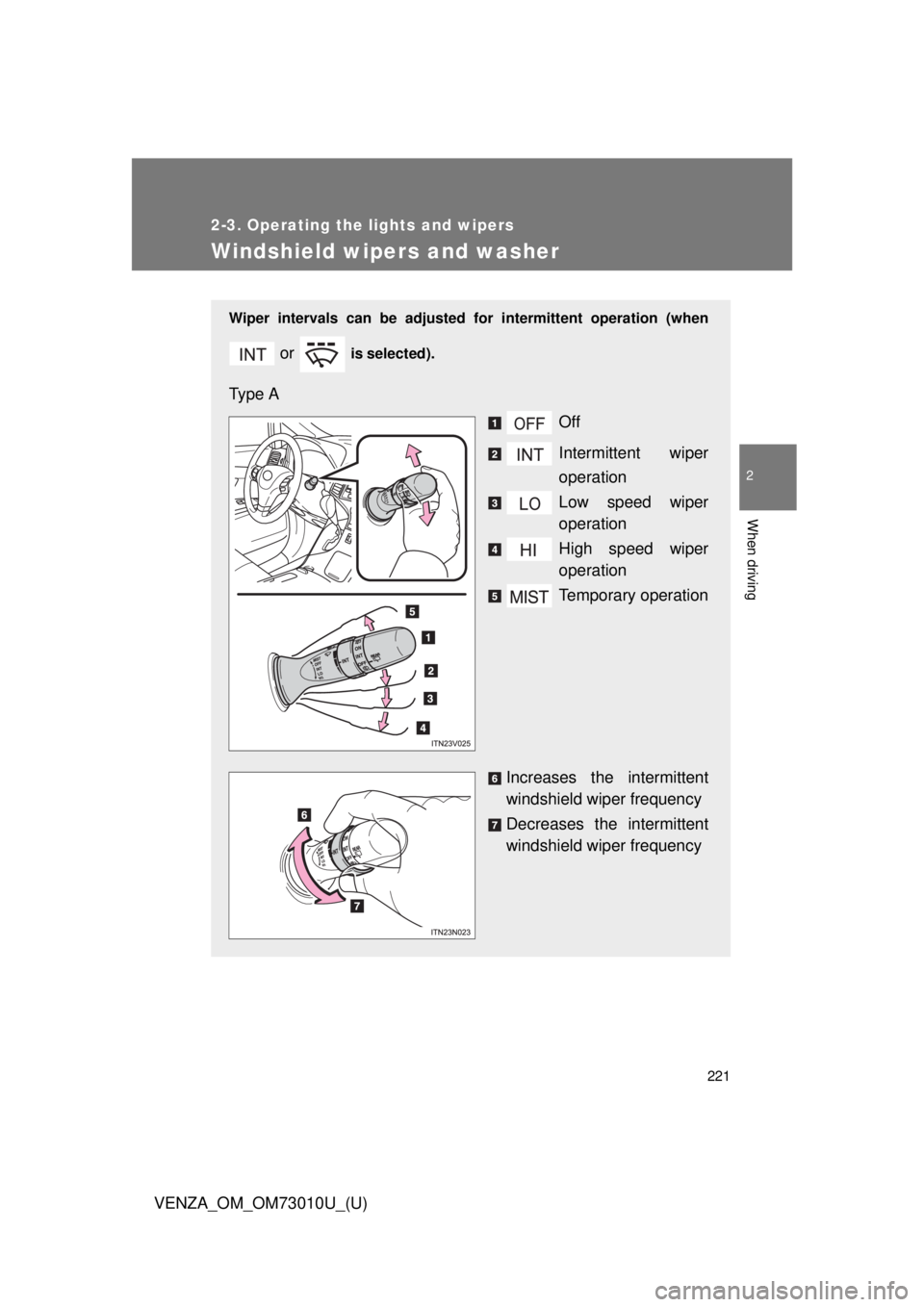

Windshield wipers and washer
Wiper intervals can be adjusted for intermittent operation (when
or is selected).
Type A
Off
Intermittent wiper
operation
Low speed wiper
operation
High speed wiper
operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency

222 2-3. Operating the lights and wipers
VENZA_OM_OM73010U_(U)
Wash/wipe operation
Wipers operate automatically.
Type BOff
Intermittent wiper
operation
Low speed wiper
operation
High speed wiper
operation
Temporary operation

223
2-3. Operating the lights and wipers
2
When driving
VENZA_OM_OM73010U_(U)

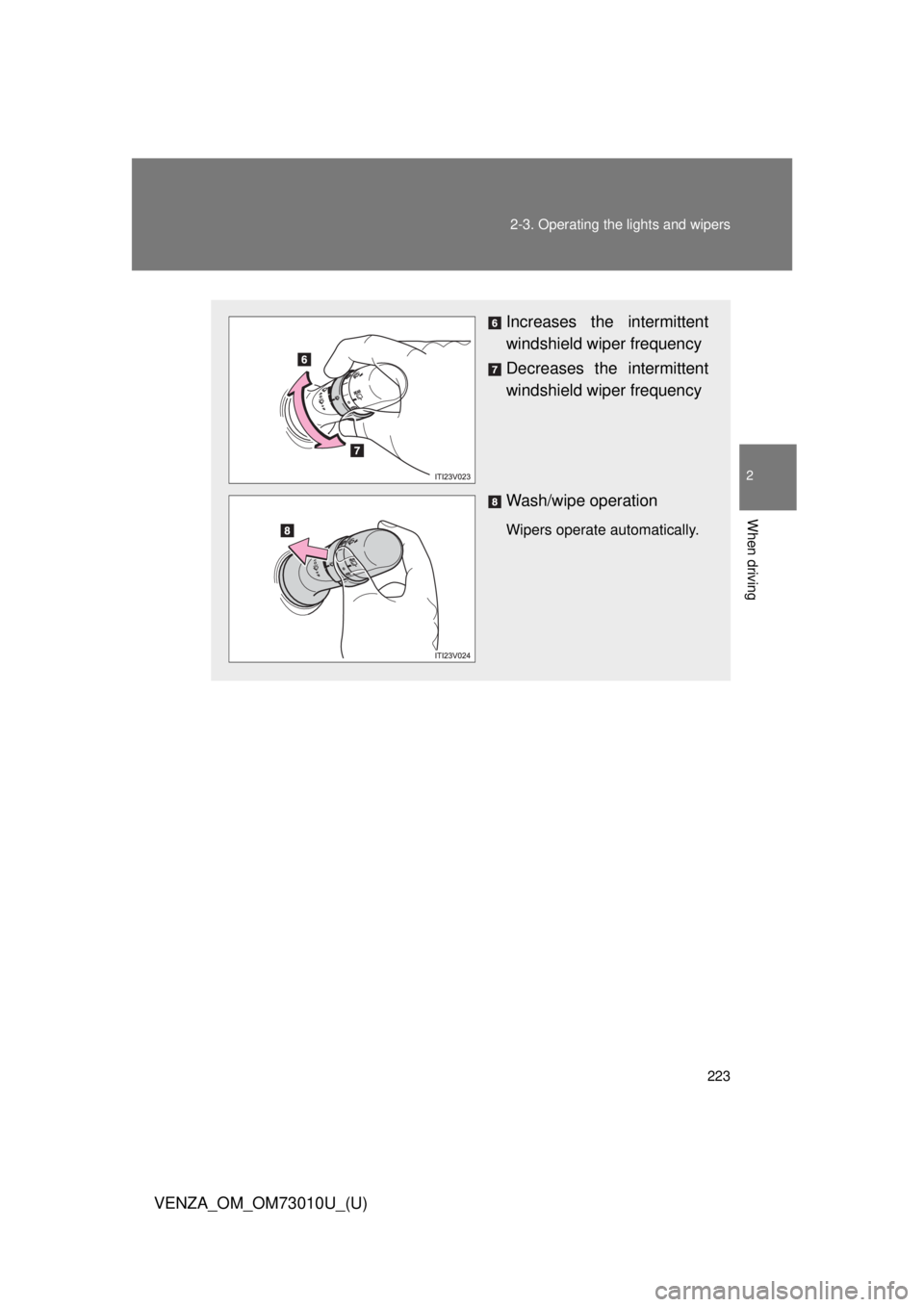

Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
Wash/wipe operation
Wipers operate automatically.

224 2-3. Operating the lights and wipers
VENZA_OM_OM73010U_(U)
■The windshield wiper and washer can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
CAUTION
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■ When a nozzle becomes blocked
Do not try to clear it with a pin or other object. The nozzle will be damaged.

225
2-3. Operating the lights and wipers
2
When driving
VENZA_OM_OM73010U_(U)

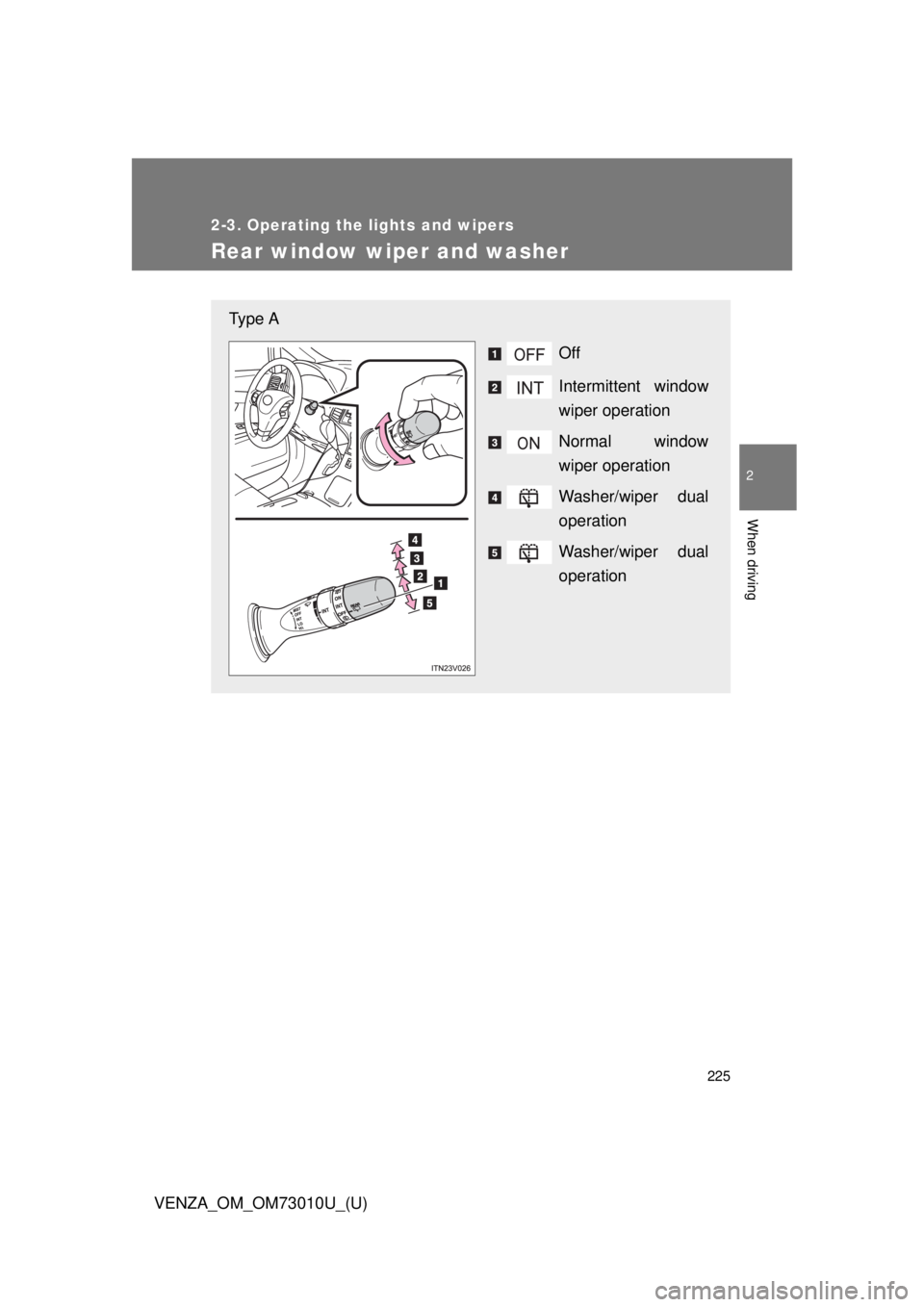

Rear window wiper and washer
Type AOff
Intermittent window
wiper operation
Normal window
wiper operation
Washer/wiper dual
operation
Washer/wiper dual
operation

226 2-3. Operating the lights and wipers
VENZA_OM_OM73010U_(U)
■The rear window wiper and w asher can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
NOTICE
■ When the rear window is dry
Do not use the wipers, as they may damage the rear window.
Type B
Off
Intermittent window
wiper operation
Normal window
wiper operation
Washer/wiper dual
operation
Washer/wiper dual
operation

227
2
When driving
VENZA_OM_OM73010U_(U)
2-4. Using other driving systems

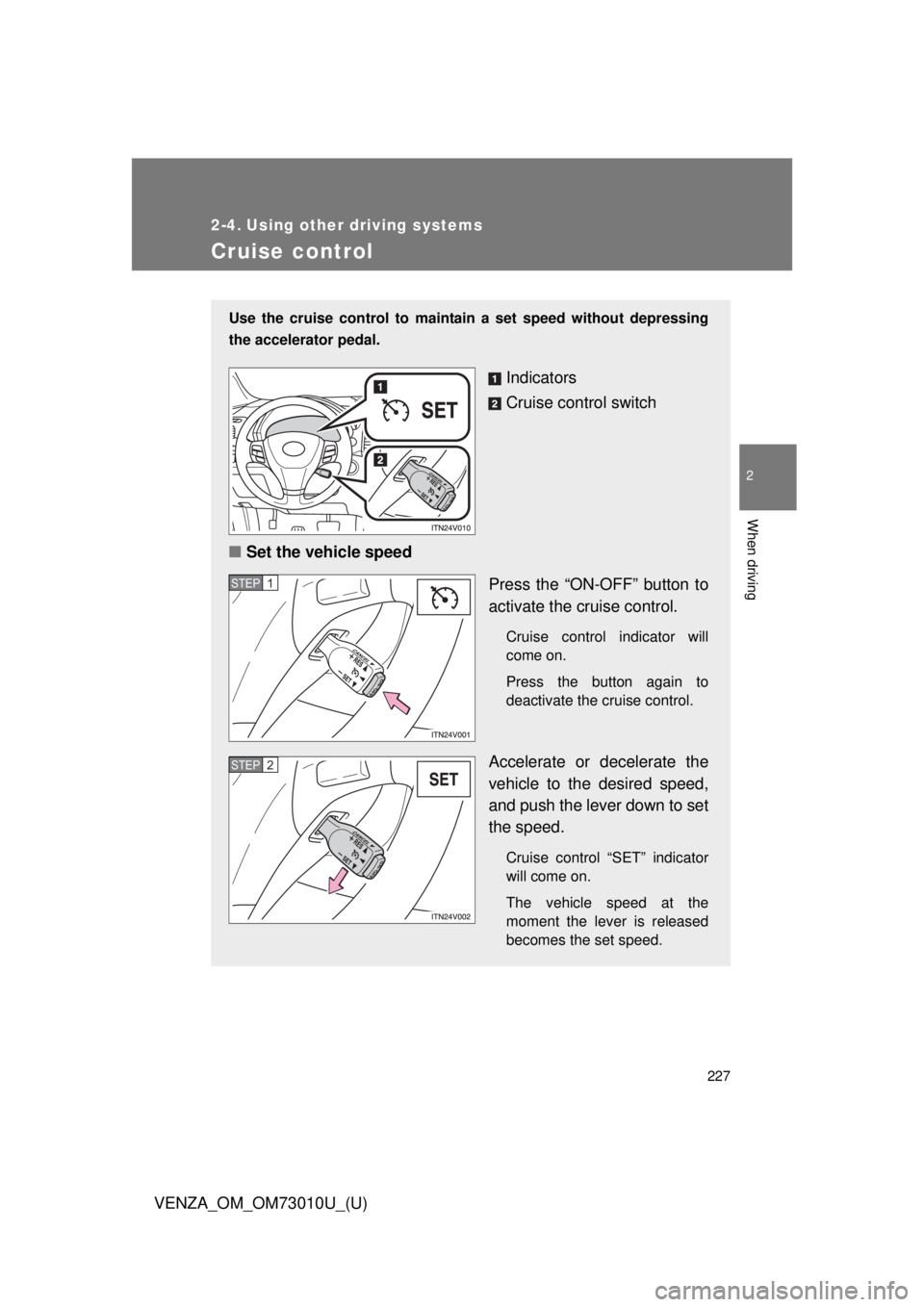

Cruise control
Use the cruise control to maintain a set speed without depressing
the accelerator pedal.
Indicators
Cruise control switch
■ Set the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will
come on.
Press the button again to
deactivate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
Cruise control “SET” indicator
will come on.
The vehicle speed at the
moment the lever is released
becomes the set speed.
STEP1
STEP2

228 2-4. Using other driving systems
VENZA_OM_OM73010U_(U)

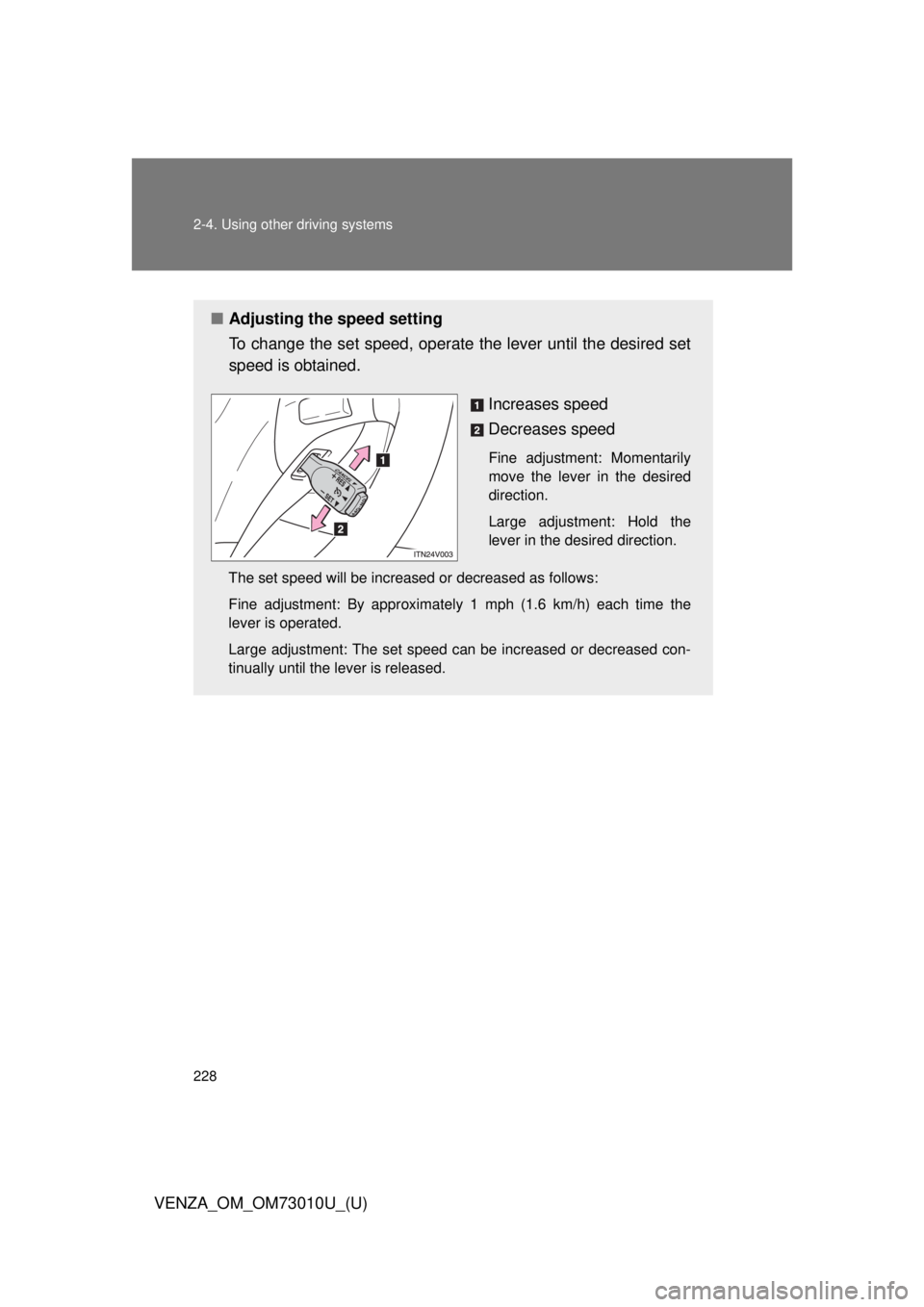

■Adjusting the speed setting
To change the set speed, operate the lever until the desired set
speed is obtained.
Increases speed
Decreases speed
Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the
lever in the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1 mph (1.6 km/h) each time the
lever is operated.
Large adjustment: The set speed can be increased or decreased con-
tinually until the lever is released.

229
2-4. Using other
driving systems
2
When driving
VENZA_OM_OM73010U_(U)
■Cruise control can be set when
● The shift lever is in D or more than range 4 of S has been selected.
● Vehicle speed is above approximately 25 mph (40 km/h).
■ Accelerating after setting the vehicle speed
● The vehicle can be accelerated normally. After acceleration, the set
speed resumes.
● Even without canceling the cruise control, the set speed can be
increased by first accelerating the vehicle to the desired speed and then
pushing the lever down to set the new speed.
■ Canceling and resuming the constant speed control
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also can-
celed when the brakes are
applied.
Pushing the lever up
resumes the constant
speed control.
Resuming is available when the
vehicle speed is more than
approximately 25 mph (40 km/h).

230 2-4. Using other driving systems
VENZA_OM_OM73010U_(U)
■Automatic cruise control cancelation
Cruise control will stop maintaining the vehicle speed in any of the following
situations.
● Actual vehicle speed falls more than approximately 10 mph (16 km/h)
below the preset vehicle speed.
At this time, the memorized set speed is not retained.
● Actual vehicle speed is below approximately 25 mph (40 km/h).
● VSC is activated.
■ If the cruise control indicator light flashes
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Have the vehicle inspected by your Toyota dealer.
CAUTION
■To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
■ Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
● In heavy traffic
● On roads with sharp bends
● On winding roads
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
● When your vehicle is towing a trailer or during emergency towing
