6-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73010U_(U)
Vehicle identification

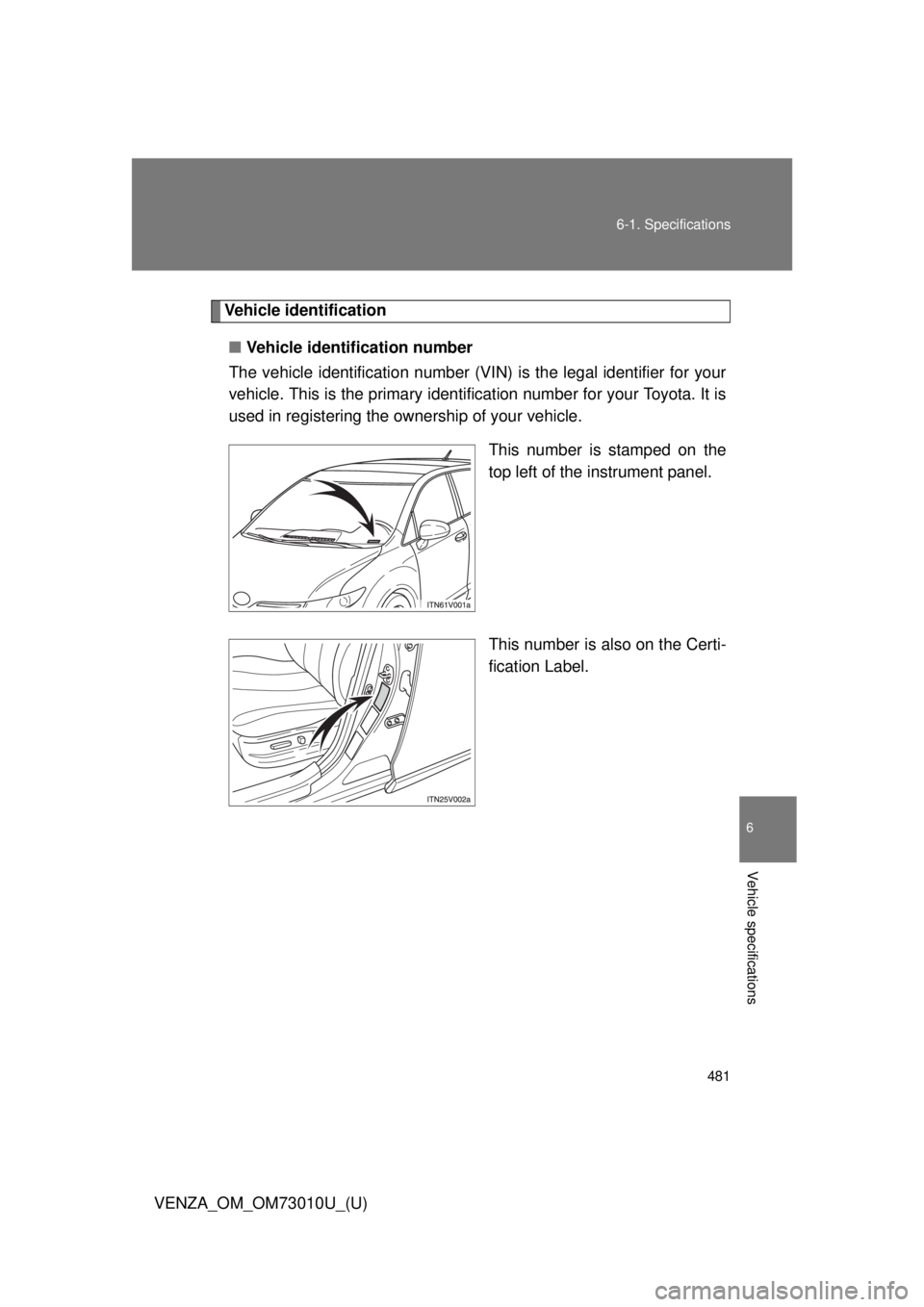

■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.

482 6-1. Specifications
VENZA_OM_OM73010U_(U)■

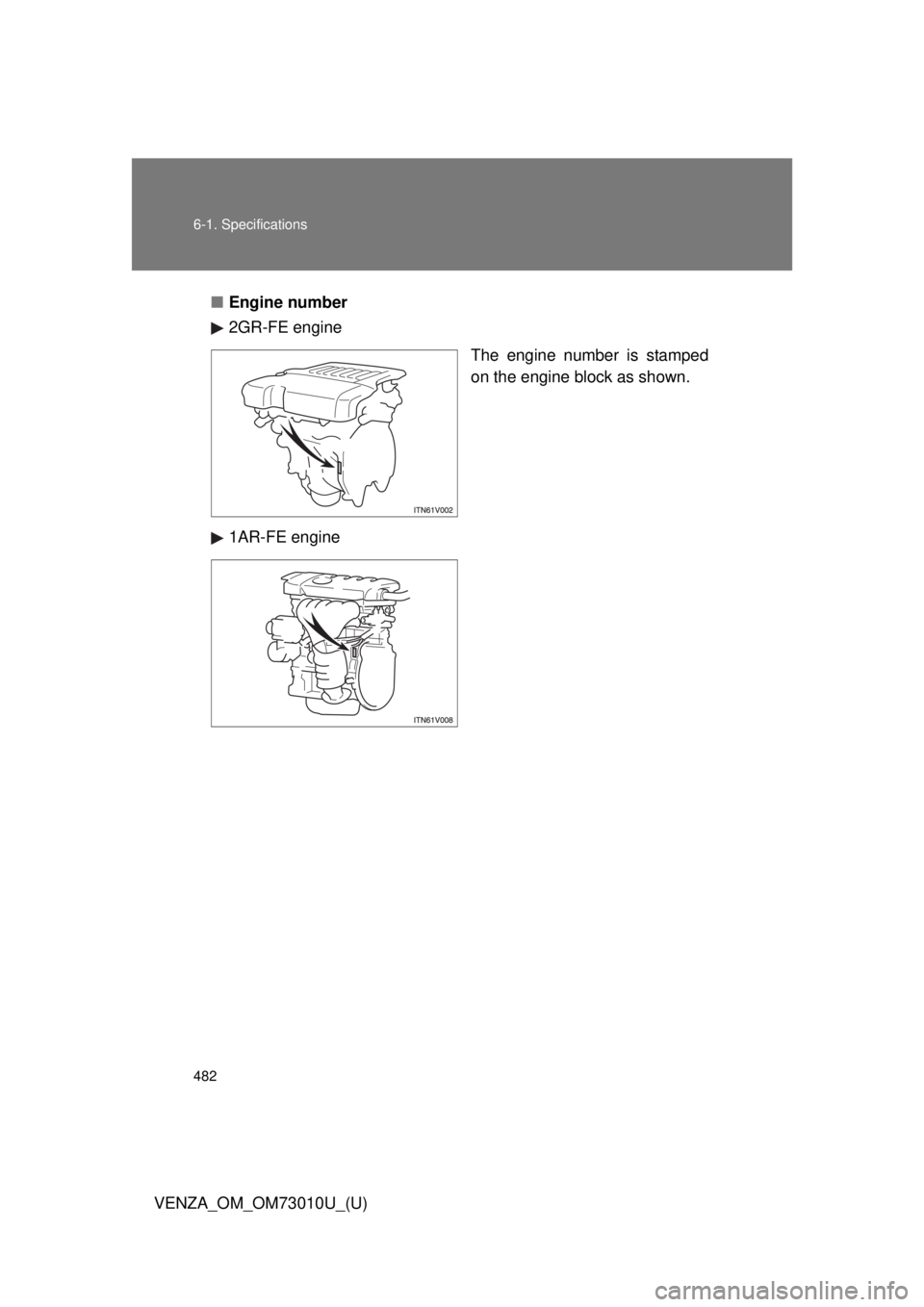

Engine number
2GR-FE engine
The engine number is stamped
on the engine block as shown.
1AR-FE engine

483
6-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73010U_(U)

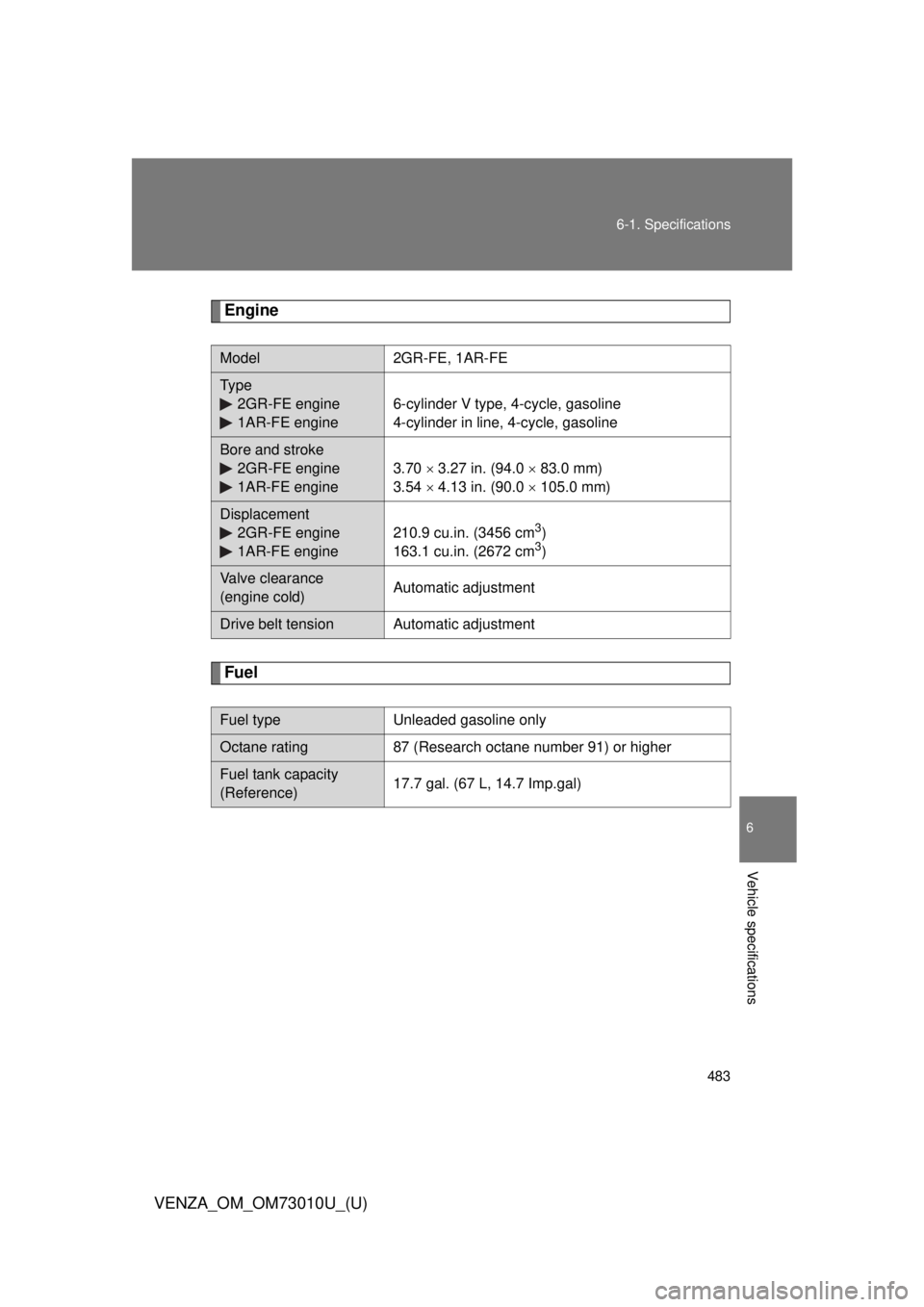

Engine
Fuel
Model2GR-FE, 1AR-FE
Ty p e
2GR-FE engine
1AR-FE engine
6-cylinder V type, 4-cycle, gasoline
4-cylinder in line, 4-cycle, gasoline
Bore and stroke2GR-FE engine
1AR-FE engine
3.70  3.27 in. (94.0  83.0 mm)
3.54  4.13 in. (90.0  105.0 mm)
Displacement
2GR-FE engine
1AR-FE engine
210.9 cu.in. (3456 cm3)
163.1 cu.in. (2672 cm3)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating87 (Research octane number 91) or higher
Fuel tank capacity
(Reference)17.7 gal. (67 L, 14.7 Imp.gal)

484 6-1. Specifications
VENZA_OM_OM73010U_(U)
Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing theengine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade:
2GR-FE engine
ILSAC multigrade engine oil
1AR-FE engine
ILSAC GF-5 multigrade engine oil
Oil capacity
(Drain and refill 
reference
*)
1AR-FE engine
2GR-FE engine Without filter: 4.2 qt. (4.0 L, 3.5 Imp.qt.)
With filter: 4.6 qt. (4.4 L, 3.9 Imp.qt.)
Without filter: 6.0 qt. (5.7 L, 5.0 Imp.qt.)
With filter: 6.4 qt. (6.1 L, 5.4 Imp.qt.)

485
6-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73010U_(U)
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.

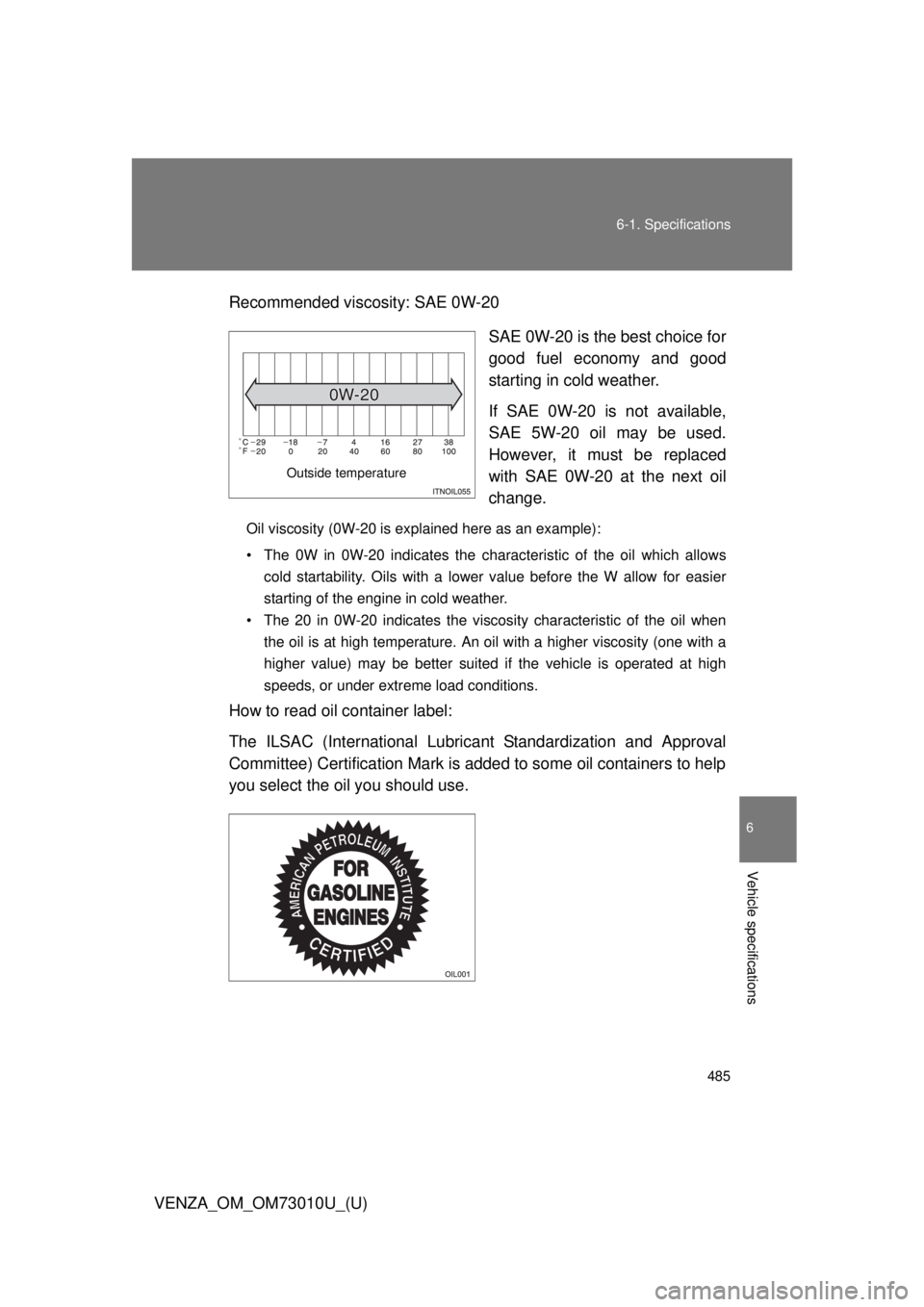

Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allowscold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubric ant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
Outside temperature

486 6-1. Specifications
VENZA_OM_OM73010U_(U)
Cooling system
Capacity
2GR-FE engineWith towing package: 10.9 qt. (10.3 L, 9.1 Imp.qt.)
Without towing package: 10.7 qt. (10.1 L, 8.9 Imp.qt.)
1AR-FE engine7.5 qt. (7.1 L, 6.2 Imp.qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.

487
6-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73010U_(U)
Ignition system
Electrical system
Rear differential (AWD models)

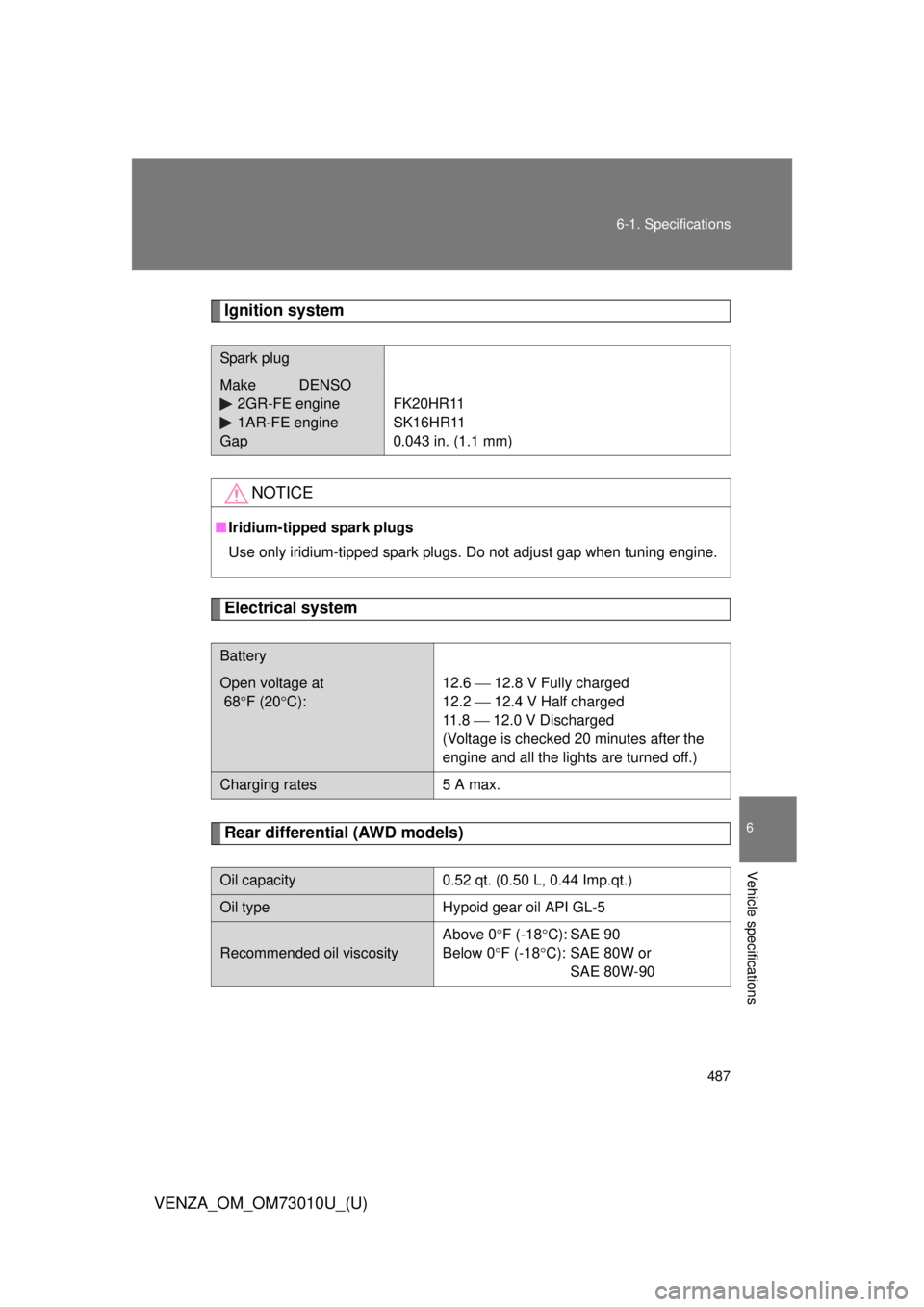

Spark plug
Make DENSO
2GR-FE engine
1AR-FE engine
Gap
FK20HR11
SK16HR11
0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Open voltage at
68 F (20 C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage is checked 20 minutes after the
engine and all the lights are turned off.)
Charging rates5 A max.
Oil capacity0.52 qt. (0.50 L, 0.44 Imp.qt.)
Oil typeHypoid gear oil API GL-5
Recommended oil viscosity
Above 0 F (-18 C): SAE 90
Below 0 F (-18 C): SAE 80W or
SAE 80W-90

488 6-1. Specifications
VENZA_OM_OM73010U_(U)
Automatic transaxle
*: The fluid capacity is a reference quantity. If replacement is necessary, con-tact your Toyota dealer.
Transfer (AWD models)
Fluid capacity*
2GR-FE engine
1AR-FE engine2WD models: 6.9 qt. (6.5 L, 5.7 Imp.qt.)
AWD models: 7.1 qt. (6.7 L, 5.9 Imp.qt.)
6.9 qt. (6.5 L, 5.7 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Automatic transaxle fluid type
Using transaxle fluid other than “Toyota Genuine ATF WS” may cause dete-
rioration in shift quality, locking up of your transaxle accompanied by vibra-
tion, and ultimately damage the transaxle of your vehicle.
Oil capacity0.84 qt. (0.80 L, 0.70 Imp.qt.)
Oil typeHypoid gear oil API GL-5
Recommended oil viscosityAbove 0 F (-18 C): SAE 90
Below 0 F (-18 C): SAE 80W or 80W-90

489
6-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73010U_(U)

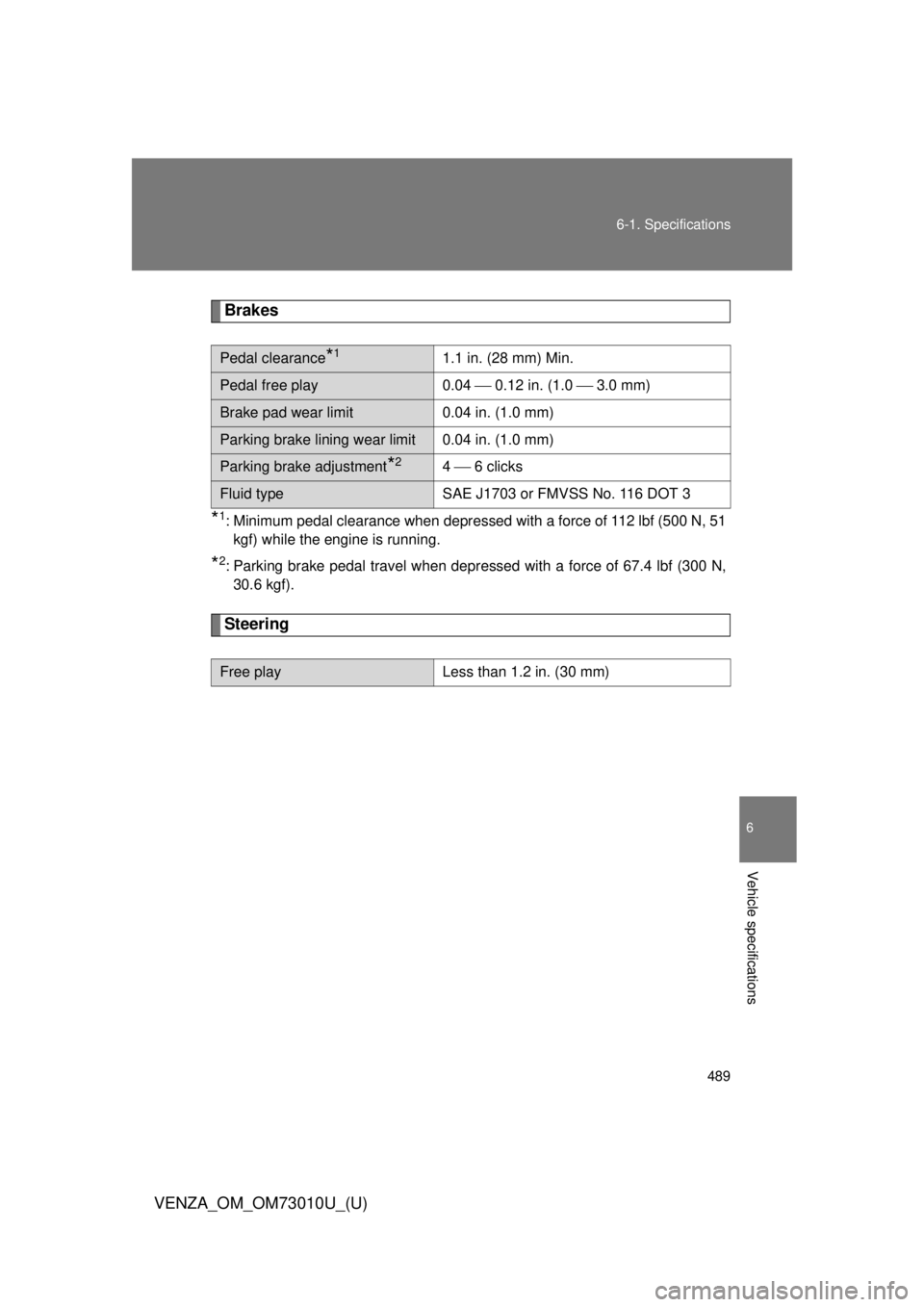

Brakes
*1: Minimum pedal clearance when depressed with a force of 112 lbf (500 N, 51
kgf) while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,30.6 kgf).
Steering
Pedal clearance*11.1 in. (28 mm) Min.
Pedal free play0.04  0.12 in. (1.0  3.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake adjustment*24  6 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Free playLess than 1.2 in. (30 mm)

490 6-1. Specifications
VENZA_OM_OM73010U_(U)

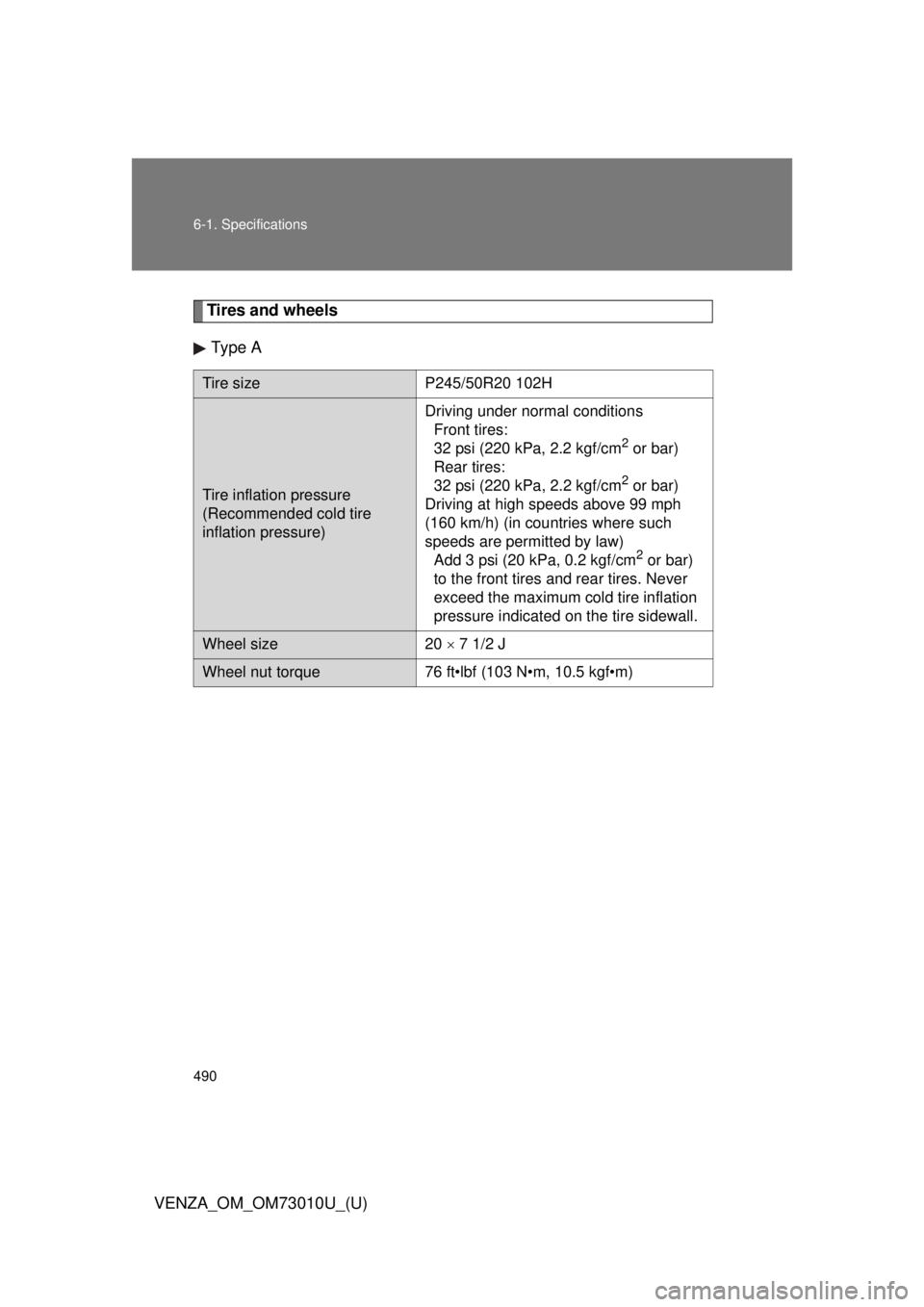

Tires and wheelsType A
Tire sizeP245/50R20 102H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Driving under normal conditions Front tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Rear tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Driving at high speeds above 99 mph
(160 km/h) (in countries where such
speeds are permitted by law) Add 3 psi (20 kPa, 0.2 kgf/cm
2 or bar)
to the front tires and rear tires. Never
exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size20  7 1/2 J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
