TOYOTA VENZA 2014 Owners Manual (in English)

91
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
VENZA_OM_OM73019U_(U)
■To prevent sensor error
CAUTION
■While driving
Do not adjust the position of the mirror.
Doing so may lead to mishandling of the vehicle and an accident, or result-
ing in death or serious injury.
To ensure correct functioning of the sen-
sors, do not touch or cover the sensors.

92
1-3. Adjustable components (seats, mirrors, steering wheel)
VENZA_OM_OM73019U_(U)
Outside rear view mirrors
Folding back the mirrors (power type)Press the switch to fold the mir-
rors.
Press it again to extend them to
the original position.
Mirror angle can be adjusted using the switch.
Select a mirror to adjust.
Left
Right
Adjust the mirror. Up
Right
Down
LeftSTEP1
STEP2

93
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
VENZA_OM_OM73019U_(U)
Folding back the mirrors (manual type)
Push backward to fold the mir-
rors.
Blind Spot Mirrors
The Blind Spot Mirrors increase
the view of surrounding area to
assist the driver when checking
surrounding area before chang-
ing lanes.
Blind Spot Mirror field of view
Main mirror field of view

94 1-3. Adjustable components (seats, mirrors, steering wheel)
VENZA_OM_OM73019U_(U)
■Mirror angle can be adjusted when
Vehicles with smart key system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
Vehicles without smart key system
The engine switch is in the “ACC” or “ON” position.
■ Linked mirror function when reversing (if equipped)
When the mirror select switch is in the “L” or “R” position,\
the outside rear
view mirrors will automatically angle downwards when the vehicle is revers-
ing in order to give a better view of the ground. To disable this function, move
the mirror select switch to the neutral position (between “L” and “R”).
■ When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers.
Turn on the rear window defogger to turn on the outside rear view mirror
defoggers. ( P. 296)
■ Automatic adjustment of the mirror angle (if equipped)
The mirror adjustment can be entered into memory and recalled automati-
cally by the driving position memory. (P. 73)

95
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
VENZA_OM_OM73019U_(U)
CAUTION
■While driving
Observe the following precautions.
Failing to do so may result in losing control of the vehicle and cause an acci-
dent, resulting in death or serious injury.
●Do not adjust the mirrors.
● Do not drive with the mirrors folded back.
● Before driving, be sure to extend mirrors and make an adjustment prop-
erly.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
NOTICE
■If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to
free the mirror.

96
VENZA_OM_OM73019U_(U)
1-4. Opening and closing the windows and moon roof

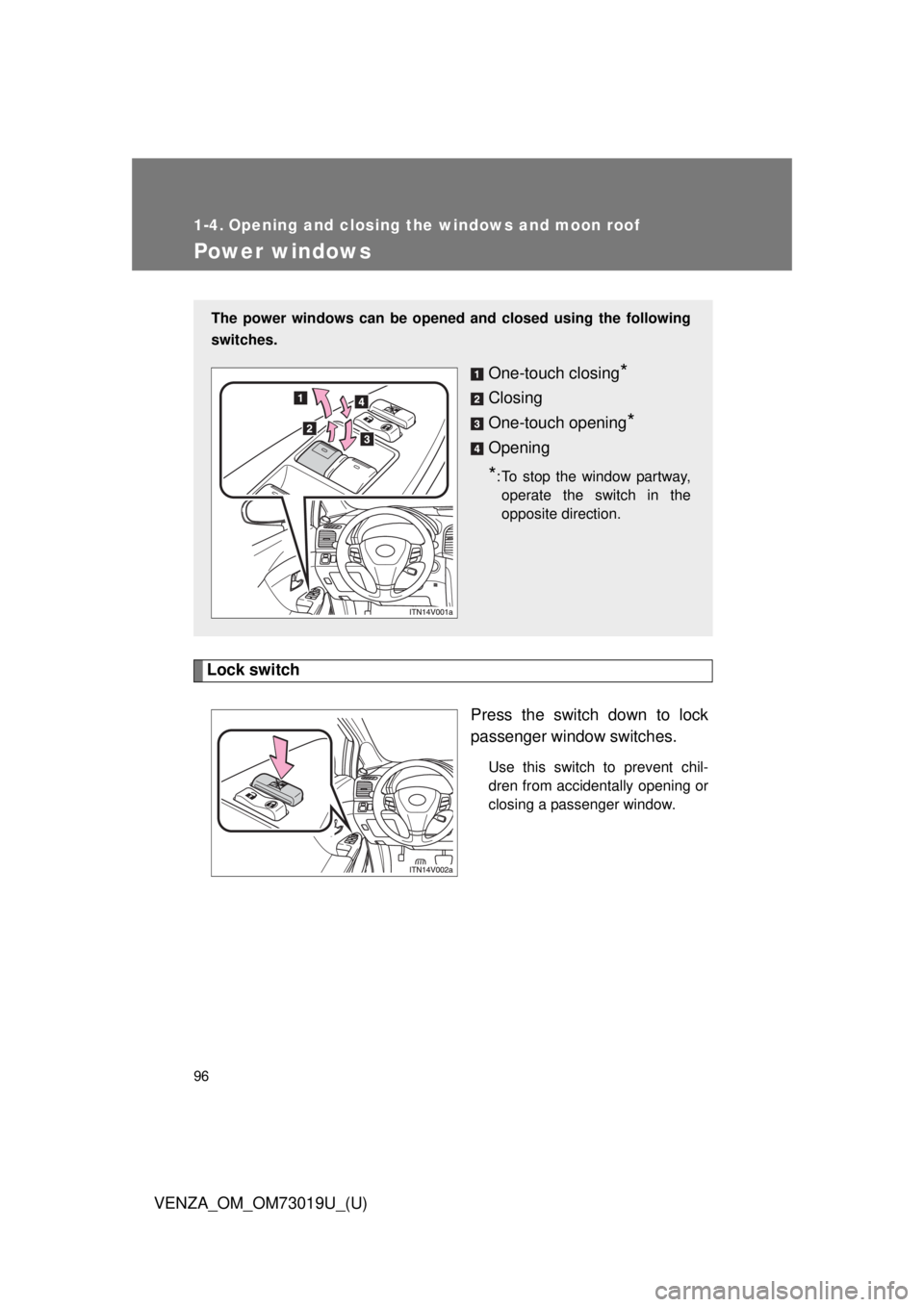

Power windows
Lock switchPress the switch down to lock
passenger window switches.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.
The power windows can be opened and closed using the following
switches.
One-touch closing*
Closing
One-touch opening
*
Opening
*: To stop the window partway, operate the switch in the
opposite direction.

97
1-4. Opening and closing the windows and moon roof
1
Before driving
VENZA_OM_OM73019U_(U)
■
The power windows can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
■ Operating the power windows after turning the engine off
Vehicles with smart key system
The power windows can be operated for approximately 45 seconds even
after the “ENGINE START STOP” switch is turned to ACCESSORY mode
or turned off. They cannot, however, be operated once either front door is
opened.
Vehicles without smart key system
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They
cannot, however, be operated once either front door is opened.
■ Jam protection function
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.

98 1-4. Opening and closing the windows and moon roof
VENZA_OM_OM73019U_(U)
■When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot
be closed, perform the following operations using the power window switch
on the relevant door.
●After stopping the vehicle, the window can be closed by holding the
power window switch in the one-touch closing position while the
“ENGINE START STOP” switch is turned to IGNITION ON mode (vehi-
cles with smart key system) or the engine switch is turned to the “ON”
position (vehicles without smart key system).
● If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position.
Continue holding the switch for a further 6 seconds after the win-
dow has closed.
Hold the power window switch in the one-touch opening position.
Continue holding the switch for a further 2 seconds after the win-
dow has opened completely.
Hold the power window switch in the one-touch closing position
once again. Continue holding the switch for a further 2 seconds
after the window has closed.
If you release the switch while the window is moving, start again from the
beginning. If the window continues to close but then re-open slightly even
after performing the above procedure correctly, have the vehicle inspected
by your Toyota dealer.
■ Customization
Settings (e.g. Rear window Auto Up/Down) can be changed.
(Customizable features P. 519)
STEP1
STEP2
STEP3

99
1-4. Opening and closing the windows and moon roof
1
Before driving
VENZA_OM_OM73019U_(U)
CAUTION
■
Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
■ Jam protection function
●Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the window fully closes.

100
1-4. Opening and closing the windows and moon roof
VENZA_OM_OM73019U_(U)

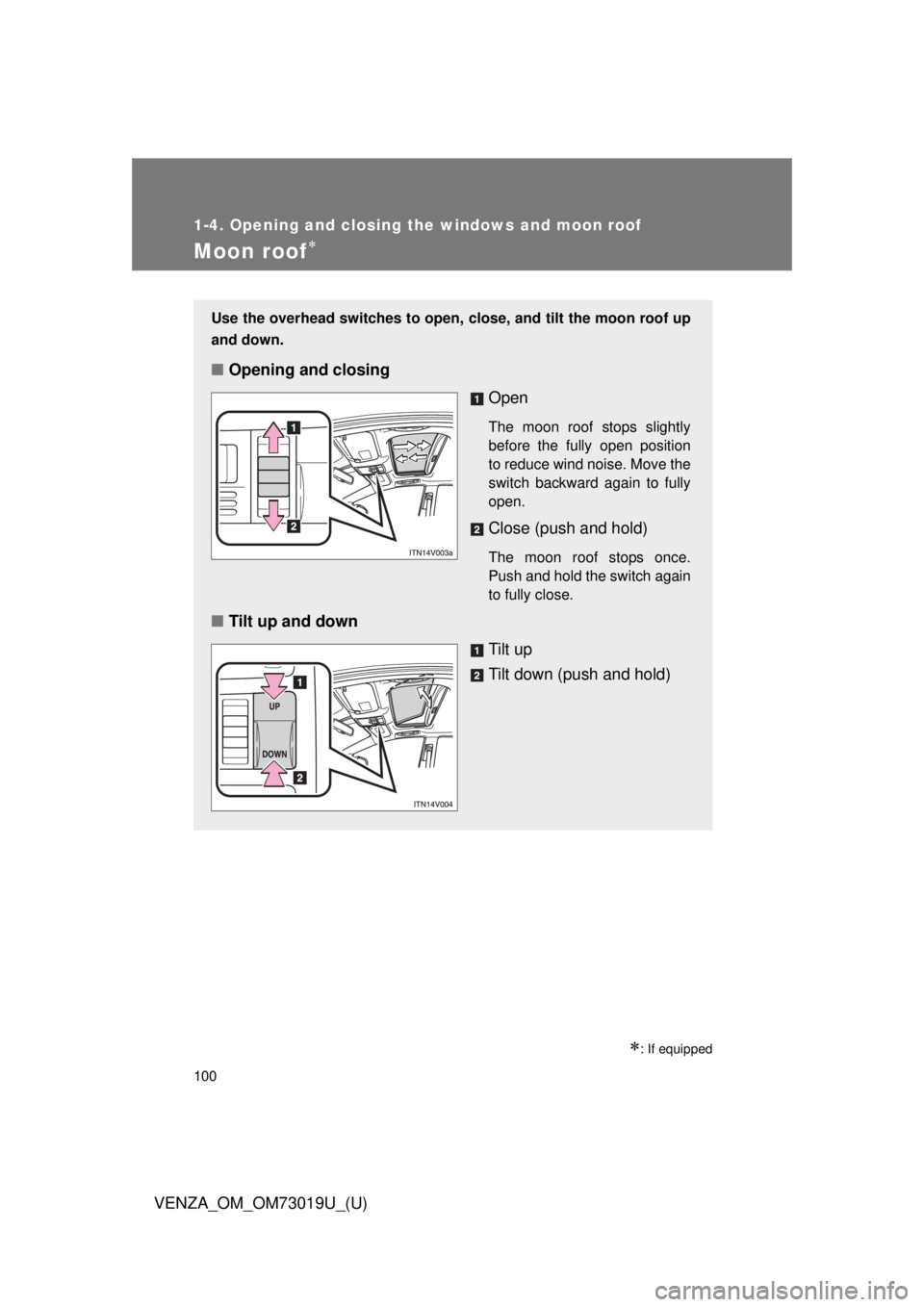

Moon roof
: If equipped
Use the overhead switches to open, close, and tilt the moon roof up
and down.
■Opening and closing
Open
The moon roof stops slightly
before the fully open position
to reduce wind noise. Move the
switch backward again to fully
open.
Close (push and hold)
The moon roof stops once.
Push and hold the switch again
to fully close.
■Tilt up and down
Tilt up
Tilt down (push and hold)
