VENZA_OM_OM73019U_(U)
4-1. Maintenance and careCleaning and protecting the vehicle exterior............ 346
Cleaning and protecting the vehicle interior............. 349
4-2. Maintenance Maintenance requirements ..................... 352
General maintenance.......... 355
Emission inspection and maintenance (I/M)
programs........................... 358
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ....................... 359
Hood ................................... 363
Positioning a floor jack ........ 365
Engine compartment ........... 367
Tires .................................... 382
Tire inflation pressure ......... 389
Wheels ................................ 393
Air conditioning filter............ 396
Key battery .......................... 399
Checking and replacing fuses ................................. 403
Light bulbs........................... 413 5-1. Essential information
Emergency flashers............ 430
If your vehicle needs to be towed....................... 431
If you think something is wrong ............................ 435
If noise can be heard from under vehicle............ 436
Fuel pump shut off system .............................. 437
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer
sounds.............................. 438
If a warning message is displayed .......................... 452
If you have a flat tire ........... 453
If the engine will not start ............................ 464
If the shift lever cannot be shifted from “P”................. 467
If you lose your keys........... 468
If the electronic key does not operate properly
(vehicles with smart key
system)............................. 469
If the battery is discharged........................ 472
If your vehicle overheats ......................... 477
If the vehicle becomes stuck ................................. 480
If your vehicle has to be stopped in an
emergency ....................... 482
4Maintenance and care5When trouble arises

9
VENZA_OM_OM73019U_(U)
Tires
●Rotation
● Replacement
● Inflation pressure
● Information
P. 382
P. 453
P. 389
P. 504
Rear window defogger P. 296
Rear window wiper
P. 225
Tail lights P. 208
Side doors P. 50
Rear turn signal lights P. 183
License plate
light
P. 208
Back door
P. 56
Fuel filler door P. 104
Rear side marker lights P. 208
Rear view monitor system camera
*
: If equipped
*: Refer to “Navigation System Owner’s Manual” or “Display Audio System Owner’s Manual”.

261
2-5. Driving information
2
When driving
VENZA_OM_OM73019U_(U)
CAUTION
■
Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
●Use tires of the size specified for your vehicle.
● Maintain the recommended level of tire inflation pressure.
● Do not drive in excess of 75 mph (120 km/h), regardless of the type of
snow tires being used.
● Snow tires should be installed on all wheels.
■ Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains being
used, or 30 mph (50 km/h), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
● Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.

Maintenance and care4
345
VENZA_OM_OM73019U_(U)

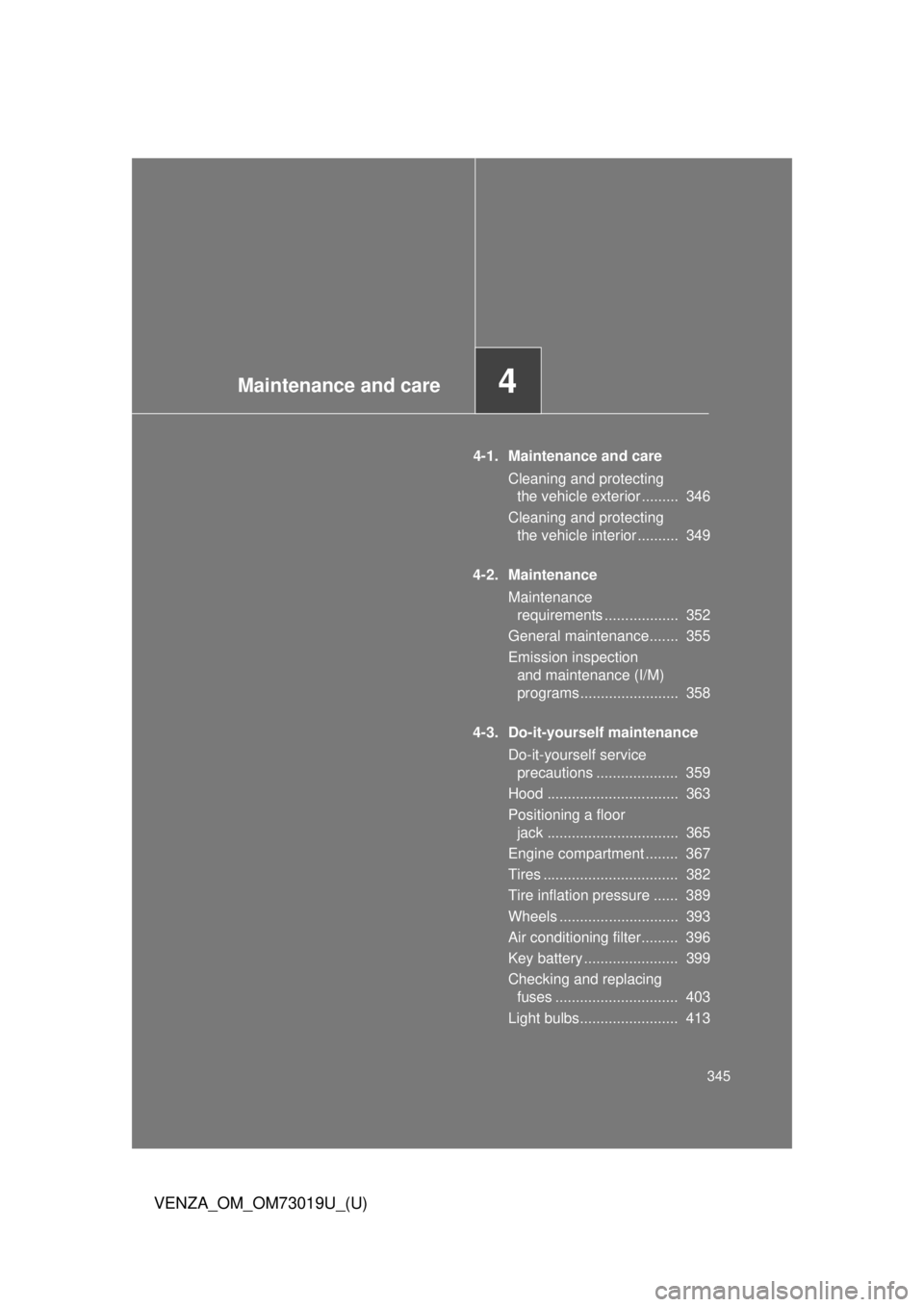

4-1. Maintenance and careCleaning and protecting the vehicle exterior ......... 346
Cleaning and protecting the vehicle interior .......... 349
4-2. Maintenance Maintenance requirements .................. 352
General maintenance....... 355
Emission inspection and maintenance (I/M)
programs........................ 358
4-3. Do-it-yourself maintenance Do-it-yourself service precautions .................... 359
Hood ................................ 363
Positioning a floor jack ................................ 365
Engine compartment ........ 367
Tires ................................. 382
Tire inflation pressure ...... 389
Wheels ............................. 393
Air conditioning filter......... 396
Key battery ....................... 399
Checking and replacing fuses .............................. 403
Light bulbs........................ 413

357
4-2. Maintenance
4
Maintenance and care
VENZA_OM_OM73019U_(U)
Vehicle exterior
ItemsCheck points
Doors • Operate smoothly?
Engine hood • The lock system works properly?
Fluid leaks • Is there any leakage after parking?
Tire• Inflation pressure is correct?
• Tire surfaces not worn or damaged?
• Tires rotated according to the mainte-
nance schedule?
• Wheel nuts are not loose?
Windshield wipers/rear
window wiper • The wiper blades should not show any
signs of cracking, splitting, wear, con-
tamination or deformation.
• The wiper blades should clear the windshield/rear window without streak-
ing or skipping.
CAUTION
■ If the engine is running
Turn off the engine and ensure that there is adequate ventilation before per-
forming maintenance checks.

360 4-3. Do-it-yourself maintenance
VENZA_OM_OM73019U_(U)

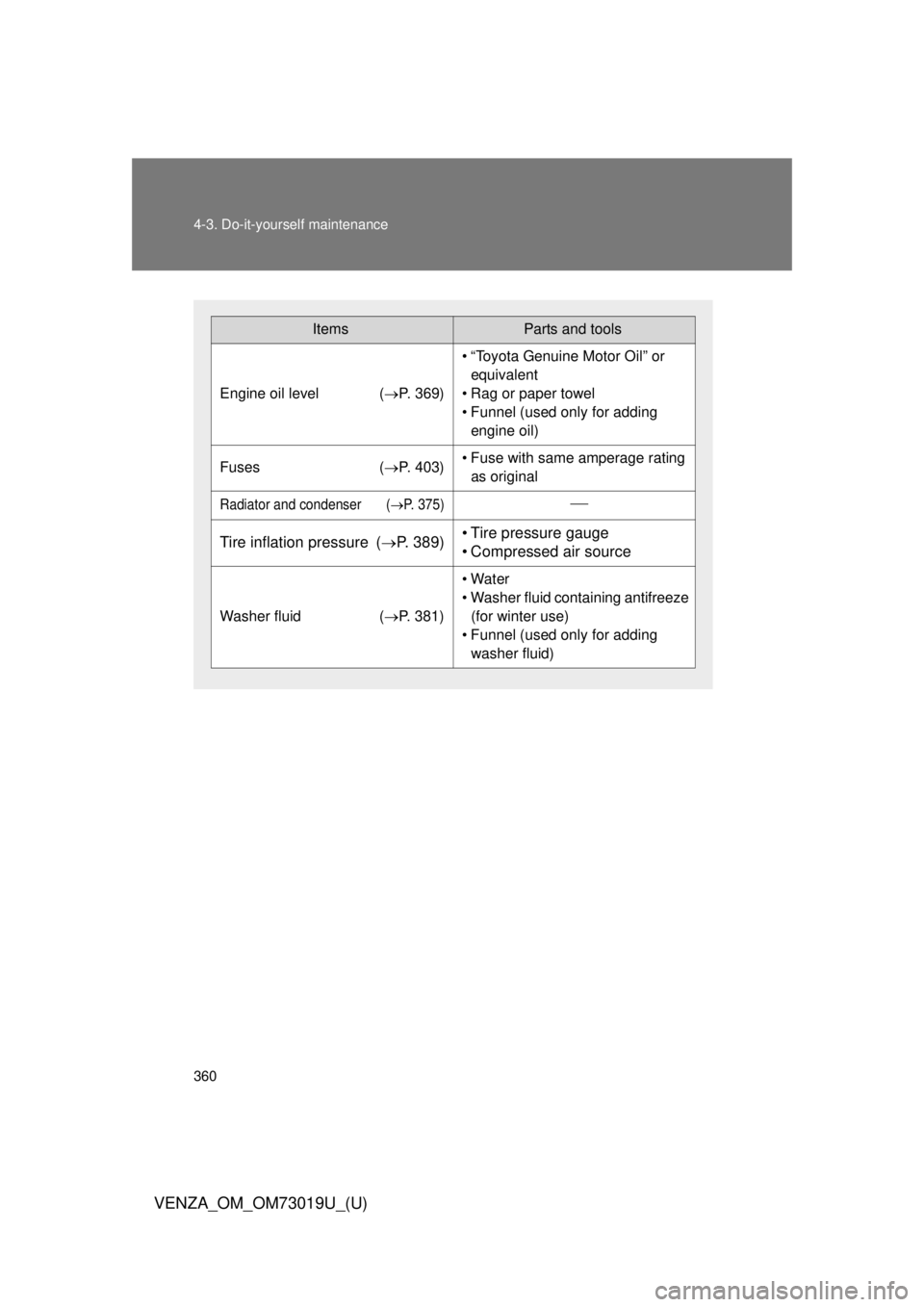

ItemsParts and tools
Engine oil level (P. 369)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses ( P. 403)• Fuse with same amperage rating
as original
Radiator and condenser (P. 375)
Tire inflation pressure ( P. 389)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 381)
• Water
• Washer fluid containing antifreeze
(for winter use)
• Funnel (used only for adding washer fluid)

382
4-3. Do-it-yourself maintenance
VENZA_OM_OM73019U_(U)

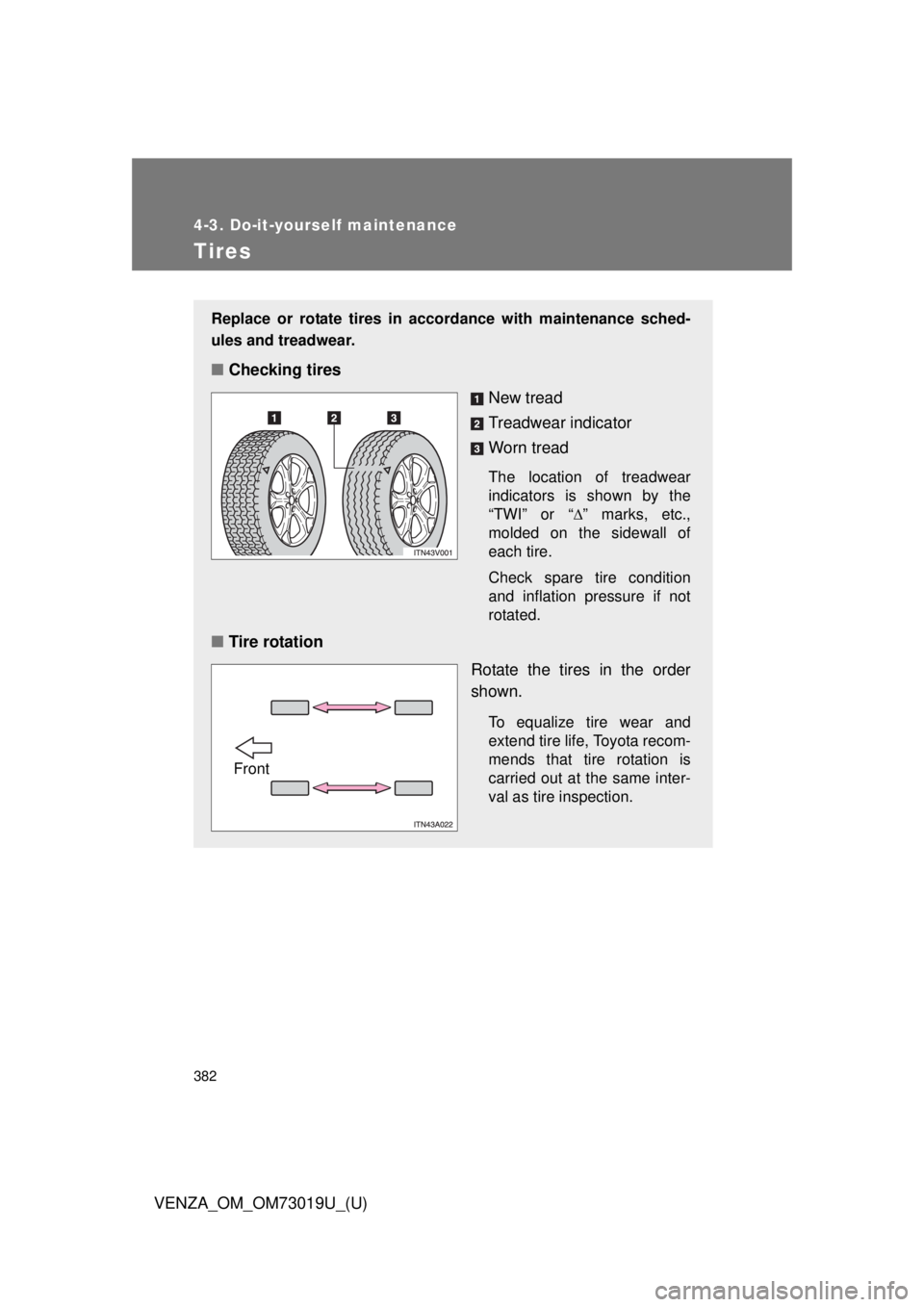

Tires
Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.
■Checking tires
New tread
Treadwear indicator
Worn tread
The location of treadwear
indicators is shown by the
“TWI” or “” marks, etc.,
molded on the sidewall of
each tire.
Check spare tire condition
and inflation pressure if not
rotated.
■ Tire rotation
Rotate the tires in the order
shown.
To equalize tire wear and
extend tire life, Toyota recom-
mends that tire rotation is
carried out at the same inter-
val as tire inspection.
Front

383
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73019U_(U)
Installing tire pressure warning valves and transmitters
When replacing tires or wheels, tire pressure warning valves and
transmitters must also be installed.
When new tire pressure warning valves and transmitters are
installed, new tire pressure warning valve and transmitter ID codes
must be registered in the tire pre ssure warning computer and the tire
pressure warning system must be initialized. Have tire pressure
warning valve and transmitter ID codes registered by your Toyota
dealer.
Registering ID codes
The tire pressure warning valve and transmitter is equipped with a
unique ID code. When replacing a tire pressure warning valve and
transmitter, it is necessary to regi ster the ID code of tire pressure
warning valve and transmitter. Have the ID code registered by your
Toyota dealer.
■ The tire pressure warning system
Your Toyota is equipped with a tire pressure warning system that
uses tire pressure warning valves and transmitters to detect low
tire inflation pressure before serious problems arise. (P. 441)
The compact spare tire is not equipped with a tire pressure
warning valve and transmitter.

384 4-3. Do-it-yourself maintenance
VENZA_OM_OM73019U_(U)
■When to replace your vehicle’s tires
Tires should be replaced if:
●You have tire damage such as cuts, splits, cracks deep enough to
expose the fabric or bulges indicating internal damage
●A tire goes flat repeatedly or cannot be properly repaired due to the
size or location of a cut or other damage
If you are not sure, consult with your Toyota dealer.
■Replacing tires and wheels
If the ID code of the tire pressure warning valve and transmitter is not
registered, the tire pre ssure warning system will not work properly. After
driving for about 20 minutes, the ti re pressure warning light comes on
after blinking for 1 minute to indicate a system malfunction.
■Tire life
Any tire over 6 years old must be checked by a qualified technician even
if they have seldom or never been used or damage is not obvious.
■If the tread wears down below 0.16 in. (4 mm) on snow tires
The effectiveness of snow tires is lost.
■Maximum load of tire
Check that the number given by di viding the maximum load by 1.10 of
the replacement tire is greater than 1/2 of the Gross Axle Weight Ratings
(GAWR) of either the front axle or the rear axle, whichever is greater.
For the GAWR, see the Certification
Label. For the maximum load of the
tire, see the load limit at maximum cold
tire inflation pressure mentioned on the
sidewall of the tire. (P. 504)

386 4-3. Do-it-yourself maintenance
VENZA_OM_OM73019U_(U)
■Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation
pressure checks. Make sure to check tire inflation pressure as part of
your routine of daily vehicle checks.
■Tire pressure warning system certification
For vehicles sold in the U.S.A.
FCC ID: PAXPMV107J
FCC ID: HYQ13BCX
This device complies with part 15 of the FCC Rules. Operation is sub-
ject to the following two condition s: (1) This device may not cause
harmful interference, and (2) this de vice must accept any interference
received, including interference that may cause undesired operation.
FCC WARNING
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
For vehicles sold in Canada Operation is subject to the followin g two conditions: (1) this device
may not cause interference, and (2) this device must accept any inter-
ference, including interference that may cause undesired operation of
the device.
