2015
Venza
Quick Reference Guide
Page 2 of 23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Venza.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Venza
operations. Every Venza owner should review the Owner’s Manual
that accompanies this vehicle.
Pay special attention to the boxed
information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2015
Venza
INDEX
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES
Engine maintenance 9
Fuel tank door release and cap
8
Hood release
8
Indicator
symbols
4-5
Instrument
cluster
4
Instrument
panel
2-3
Keyless entry1,2 6
Light
control-Instrument panel
8
Smart Key system1,2 7
Air Conditioning/Heating
16
Audio
18-19
Auto lock/unlock
1 11
Automatic
Transmission
10
Bluetooth® Device Pairing for Android 30
Bluetooth® Device Pairing for iPhone 33
Bluetooth® Device Pairing for Windows Phone 36
Cruise
control
20
Customizable
features
23
Door P
ower back (liftgate)
23
Enhanced
VSC OFF button
17
Garage
door opener (HomeLink®)
3 21
Hill-start
Assist Control (HAC)
20
Lights1,2 & turn signals 14-15
Moonroof
13
Multi-Information Display (clock)2 22
P
arking brake
10
P
ower outlets-12V DC
17
Seat
adjustments-Front
11
Seat
adjustments-Rear
12
Seat
heaters
16
Seats-Head
restraints
13
Seats-Folding
rear row seats
12
T
ilt and telescopic steering wheel
23
W
indows-Power
13
Windshield wipers & washers
15
Door loc
ks
1,2 24
Doors-Child safety locks
25
Floor
mat installation
27
Seat
belts
24
Seat
belts-Shoulder belt anchor
24
Spare
tire & tools
25
Star
Safety System
TM 26-27
T
ire Pressure Monitoring (warning) System
24
Page 3 of 23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
23
OVERVIEW
Instrument panel
Steering wheel audio controls1,2,3
Telephone controls1,2,3
Voice command button1,2,3
Cruise control
Ignition switch (standard key)1
Headlight, turn signal and front fog light controls
Wiper and washer controls
“ENGINE START STOP” button (Smart Key)
1
Multi-Information Display
Emergency flasher button
Multi-Information Display switches
Navigation system
1,2/Display Audio system1,3
Air Conditioning controls
Outside rearview mirror defoggers/Rear window defogger button/
Windshield wiper de-icer
Power back door switch
1
Intuitive parking assist switch
Enhanced VSC/TRAC OFF switch
Power back door main switch
1
Power outside rearview mirror controls
1 If equipped2 For details, refer to the “Navigation System Owner’s Manual .”3
For details, refer to the “Display Audio System Owner’s Manual .”
Steering wheel controls
Page 4 of 23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
45
OVERVIEW
Indicator symbols
Instrument cluster
Tachometer
Service indicators and reminders
Speedometer
Fuel gauge
Engine coolant temperature
Odometer/Trip meter and trip meter reset button/Instrument panel light
control
Odometer and two trip meters
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator/Hill-start Assist Control indicator
1
Cruise control/Cruise control SET indicator2
Low Tire Pressure Warning1
Smart Key system warning
Open door warning
Airbag SRS warning1
Master warning
Low windshield washer fluid level warning1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph) Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Active torque control All-Wheel Drive system warning1
Low fuel level warning
Electric power steering system warning1
Fog light indicator
For details, refer to “Indicators and warning lights,” Section 2-2, 2014 Owner’s
Manual .
3
For details, refer to “Headlight switch,” Section 2-3, 2014 Owner’s Manual.1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2 If this light flashes, refer to “Cruise control,” Section 2-4, 2014 Owner’s Manual.
Vehicle Stability Control OFF indicator1
Low Engine oil pressure warning1
Automatic headlight leveling system warning1
Engine oil replacement reminder1
Security indicator
Traction Control OFF indicator
Automatic high beam indicator3
Page 5 of 23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
67
OVERVIEW
Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedal
Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP” button
will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Push
Unlock
Push
Lock
Locking operationUnlocking operation
Carry remote to lockCarry remote to unlock
Touch
Front door lockFront door unlock*
Grasp
Carry remote to lock/unlock
Panic button
Push and hold
Back door lock/unlock
Keyless entry
Locking operation
Unlocking operation
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Push ONCE: Driver door
TWICE: All doors
Push
Without Smart Key systemWith Smart Key system
Without Smart Key systemWith Smart Key system
Page 6 of 23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
89
Hood release
Fuel tank door release and cap
NOTE: Tighten until one click is heard.
If the cap is not tightened enough,
Check Engine “
” indicator may
illuminate.
Pull
Turn to open
Store
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
Pull
OVERVIEW
Pull up latch and raise hood
Engage support rod
+
2.7 L 4-cylinder (1AR-FE) engine
3.5 L V6 (2GR-FE) engine
Page 7 of 23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
10
FEATURES/OPERATIONS
Automatic Transmission
* The “ENGINE START STOP”/ignition switch must be “ON” and the brake pedal
depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+ : Upshift (push and release)
- : Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
“S” (Sequential) mode
Park*
Reverse
Neutral
Drive
“S” mode
“S”
“D”
Parking brake
Set: Depress
Release: Depress again
Seat adjustments-Front
Manual seat
Seat back angle
Seat position (forward/backward)
Seat position; cushion angle and height (driver side only)
Lumbar support
Power seat (if equipped)
Driving position memory
To set driver seat and outside rearview mirror positions:
(1) The “ENGINE START STOP”/ignition switch must be “ON” and the shift lever in the “P” position.
(2) Adjust driver seat and outside reariew mirrors to desired positions.
(3) While pressing “SET” button, press button “1” or “2” until a beep sounds.
Press button “1” or “2” to recall set position.
Auto lock/unlock
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the
“ENGINE START STOP” or ignition switch OFF.
Refer to the Owner’s Manual for more details.
Page 8 of 23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1213
FEATURES/OPERATIONS

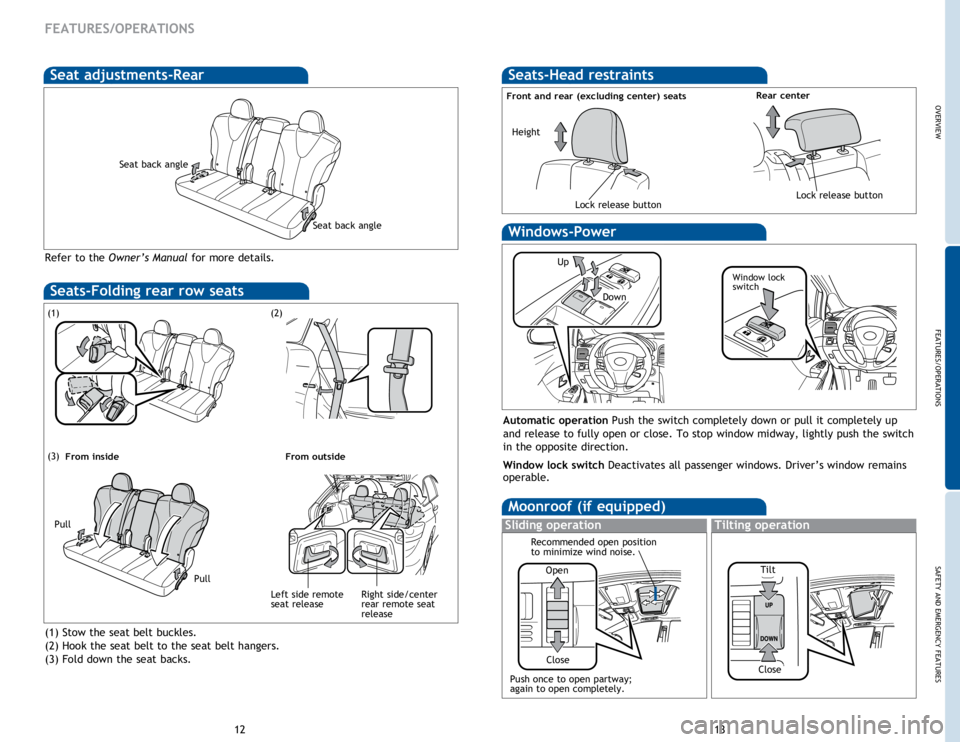

Seats-Head restraints
Front and rear (excluding center) seatsRear center
Lock release buttonLock release button
Height
(1)
Stow the seat belt buckles.
(2) Hook the seat belt to the seat belt hangers.
(3) Fold down the seat backs.
(1)
(3)
(2)
Seats-Folding rear row seats
Pull
Pull
From inside
From outside
Right side/center
rear remote seat
release
Left side remote
seat release
Moonroof (if equipped)
Sliding operationTilting operation
Open
Close
Recommended open position
to minimize wind noise.
Windows-Power
Up
Down
Window lock
switch
Automatic operation Push the switch completely down or pull it completely up
and release to fully open or close. To stop window midway, lightly push the switch
in the opposite direction.
Window lock switch
Deactivates all passenger windows. Driver’s window remains
operable.
Push once to open partway;
again to open completely. TiltClose
Seat adjustments-Rear
Refer to the
Owner’s Manual for more details.
Seat back angle
Seat back angle
Page 9 of 23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1415
FEATURES/OPERATIONS

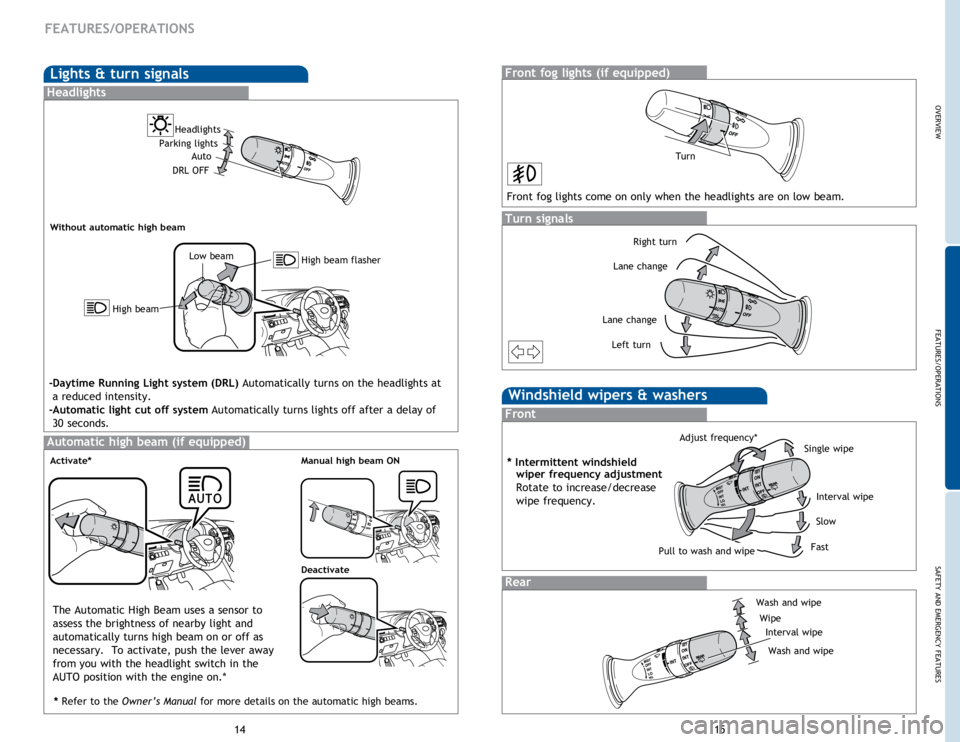

Lights & turn signals
Turn signals
Front fog lights (if equipped)
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change Left turn
Turn
Headlights
Headlights
-Daytime Running Light system (DRL) Automatically turns on the headlights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a delay of 30 seconds.
Parking lights
Auto
DRL OFF
Without automatic high beam
Low beam
High beam
High beam flasher
Automatic high beam (if equipped)
Manual high beam ON
Deactivate
Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast
Front
Rear
Wash and wipe Wipe Interval wipe
Wash and wipe
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease
wipe frequency.
Adjust frequency*
* Refer to the Owner’s Manual for more details on the automatic high beams.
Pull to wash and wipe
The Automatic High Beam uses a sensor to
assess the brightness of nearby light and
automatically turns high beam on or off as
necessary. To activate, push the lever away
from you with the headlight switch in the
AUTO position with the engine on.*
Activate*
Page 10 of 23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1617
FEATURES/OPERATIONS
Air Conditioning/Heating
Push: Automatic climate control ON
Adjusting
the temperature setting will cause the airflow vents, air
int
ake and fan to adjust automatically.
Turn:
Tempera
ture selector (driver side)
Fan speed
Airflow vent
In “
” mode, use fresh air (“” indicator OFF) to reduce window
fogging. “
” mode uses fresh air only.
Push:
Du
al operation ON/OFF
Separate temperature setting or synchronized temperature setting for
driver and
passenger.
Turn:
Temperature
selector (front passenger side)
Air Conditioning ON/OFF
Recirculate cabin air (fresh air when OFF)
Outside rearview mirror/Rear window defogger/Windshield wiper
de-icer
Windshield defogger
Climate control OFF
Seat heaters (if equipped)
Driver’s seatFront passenger’s seat
Turn
On
The Enhanced VSC OFF button is used to switch between modes related to the
TRAC and Enhanced VSC functions.
Refer to Section 2-4 of the Owner’s Manual for more information.
Enhanced VSC
OFF button
Enhanced VSC OFF button
Power outlets-12V DC
Instrument panelInside center console
NOTE: Designed for car accessories. The “ENGINE START STOP”/ignition switch must
be in the ACCESSORY or ON position to be used.
Luggage compartment
