TOYOTA VENZA 2015 Owners Manual (in English)

521
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73023U_(U)

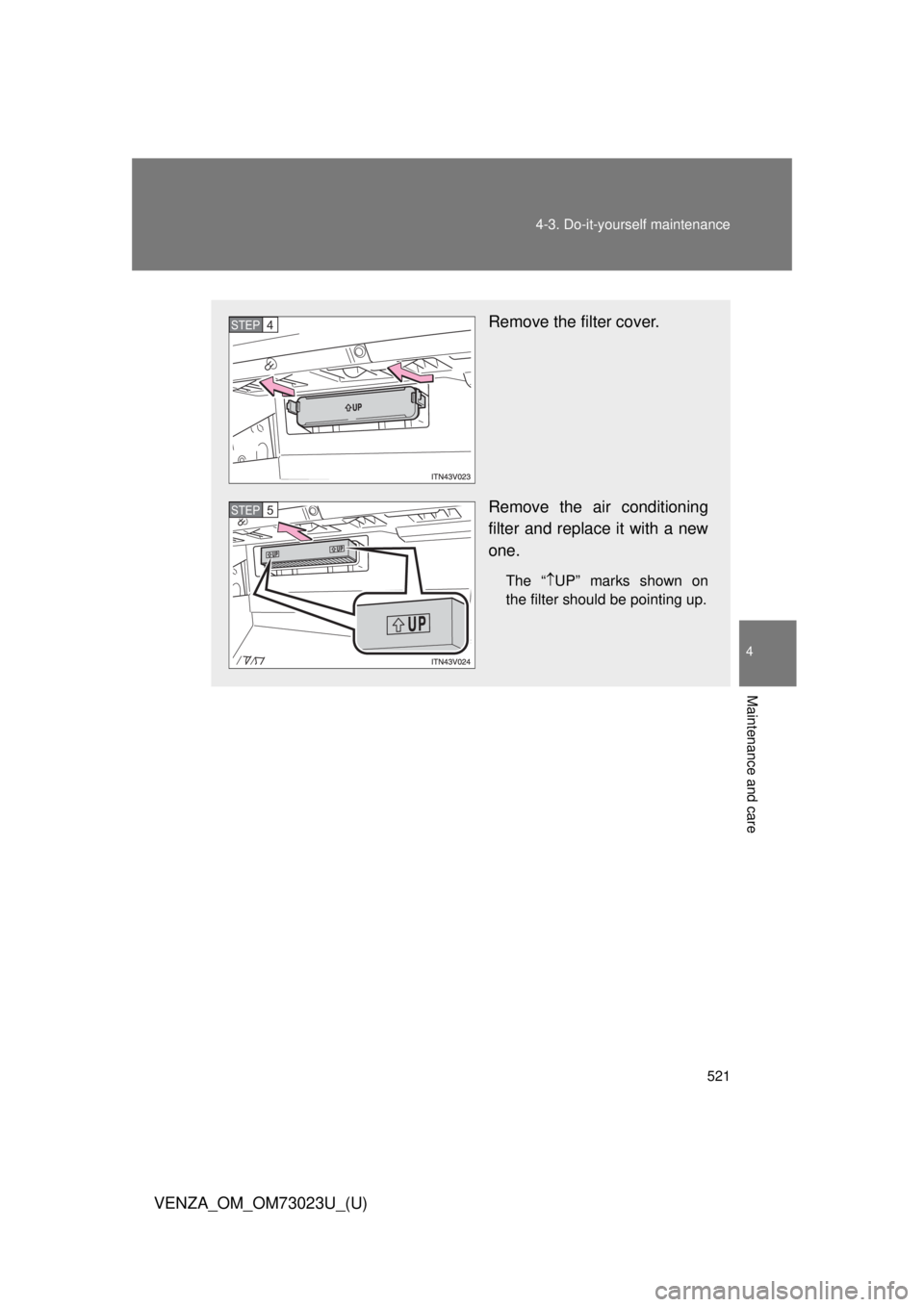

Remove the filter cover.
Remove the air conditioning
filter and replace it with a new
one.
The “
UP” marks shown on
the filter should be pointing up.
STEP4
STEP5

522 4-3. Do-it-yourself maintenance
VENZA_OM_OM73023U_(U)
■Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow early replacement
may be required. (For scheduled maintenance information, refer to the
“Scheduled Maintenance Guide”, “Owner’s Manual Supplement”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
■To prevent damage to the system
When using the air conditioning system, make sure that a filter is always
installed.

523
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73023U_(U)

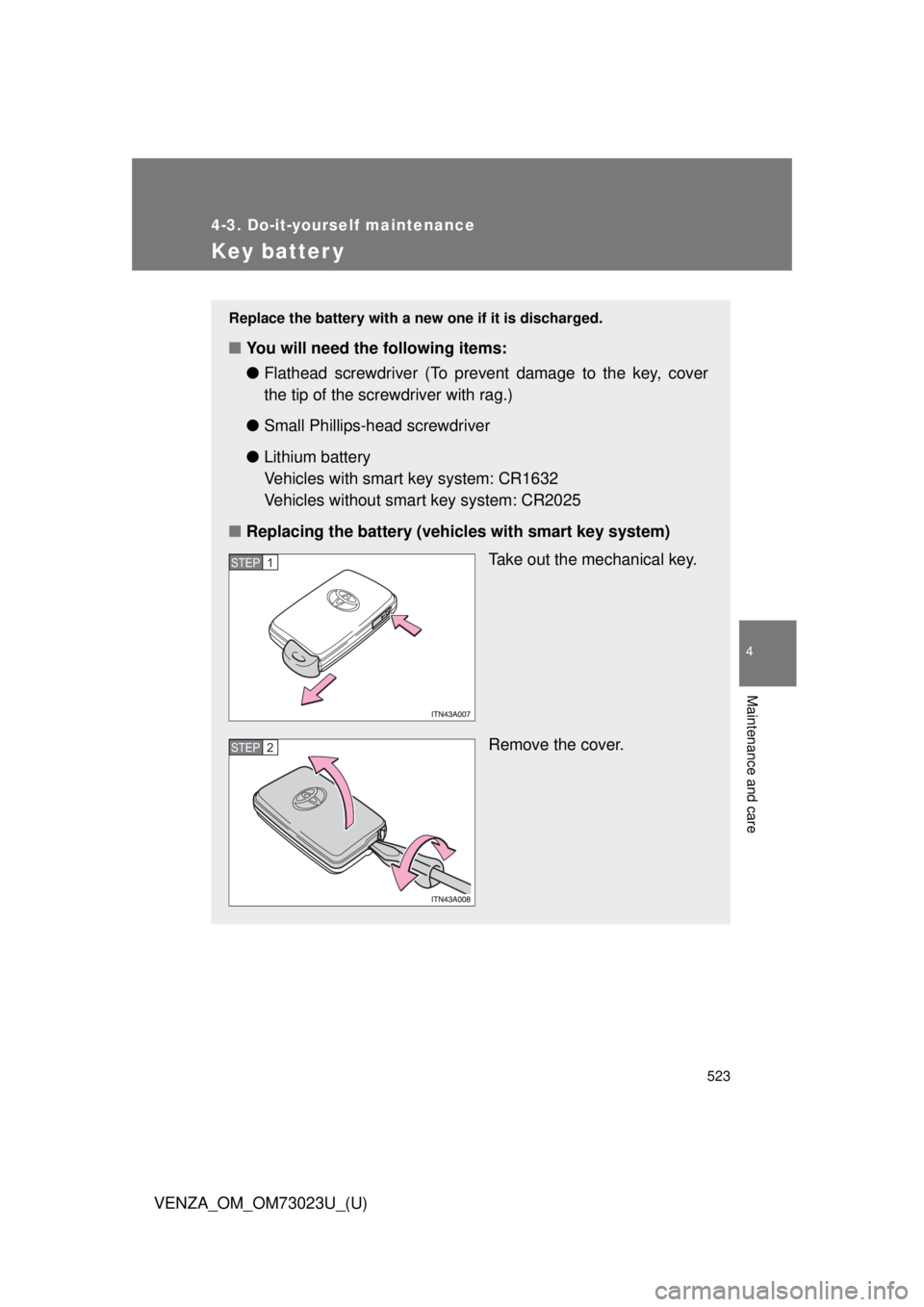

Key batter y
Replace the battery with a new one if it is discharged.
■You will need the following items:
●Flathead screwdriver (To prevent damage to the key, cover
the tip of the screwdriver with rag.)
● Small Phillips-hea d screwdriver
● Lithium battery
Vehicles with smart key system: CR1632
Vehicles without smar t key system: CR2025
■ Replacing the battery (vehicles with smart key system)
Take out the mechanical key.
Remove the cover.
STEP1
STEP2

524 4-3. Do-it-yourself maintenance
VENZA_OM_OM73023U_(U)

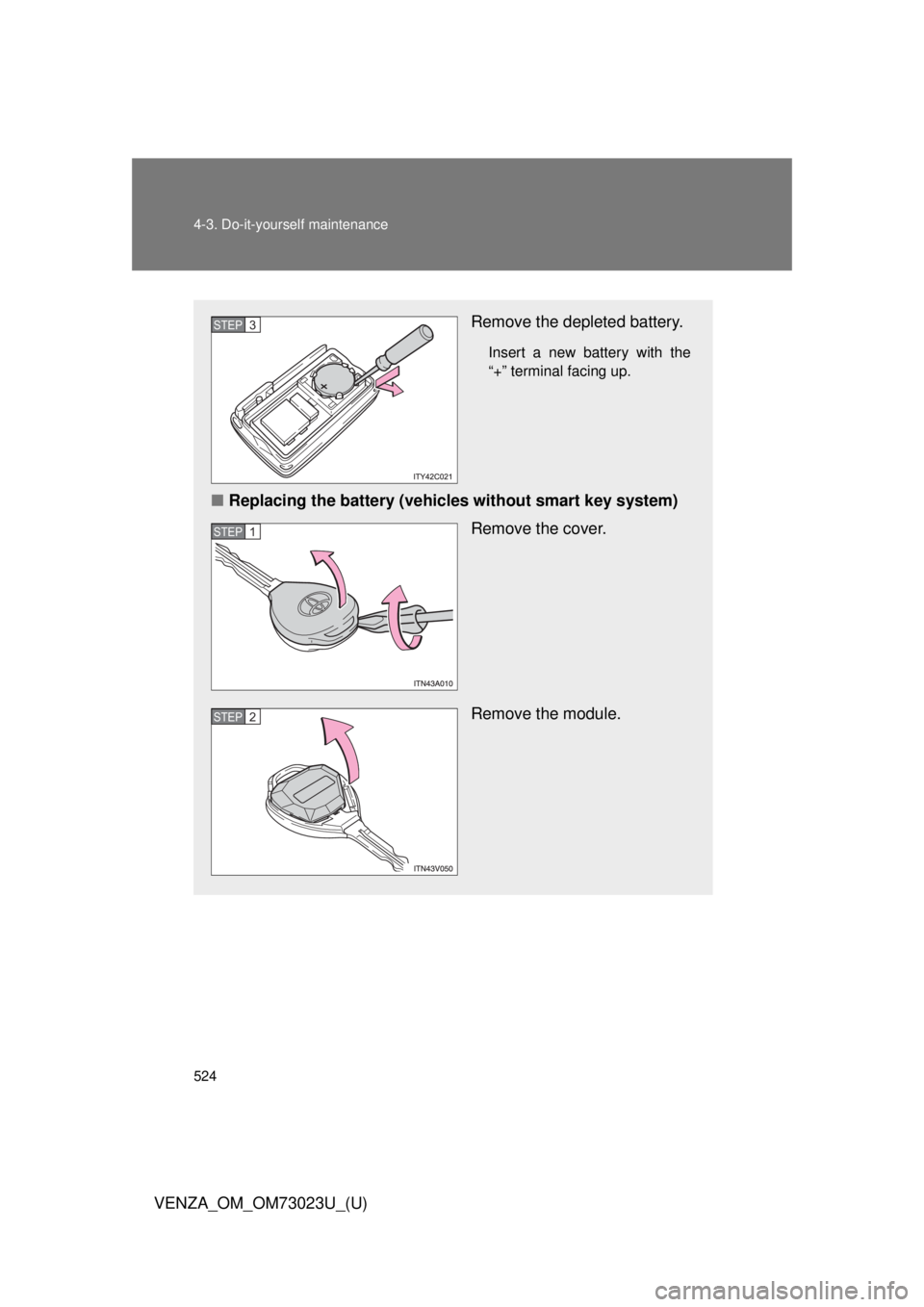

Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
■Replacing the battery (vehicles without smart key system)
Remove the cover.
Remove the module.
STEP3
STEP1
STEP2

525
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73023U_(U)
■
If the electronic key battery is discharged
The following symptoms may occur.
●The smart key system and wireless remote control will not function prop-
erly.
● The operational range is reduced.
■ Use a CR1632 (vehicles with smar t key system), or CR2025 (vehicles
without smart key system) lithium battery
● Batteries can be purchased at your Toyota dealer, jewelers, or camera
stores.
● Replace only with the same or equivalent type recommended by a
Toyota dealer.
● Dispose of used batteries according to the local laws.

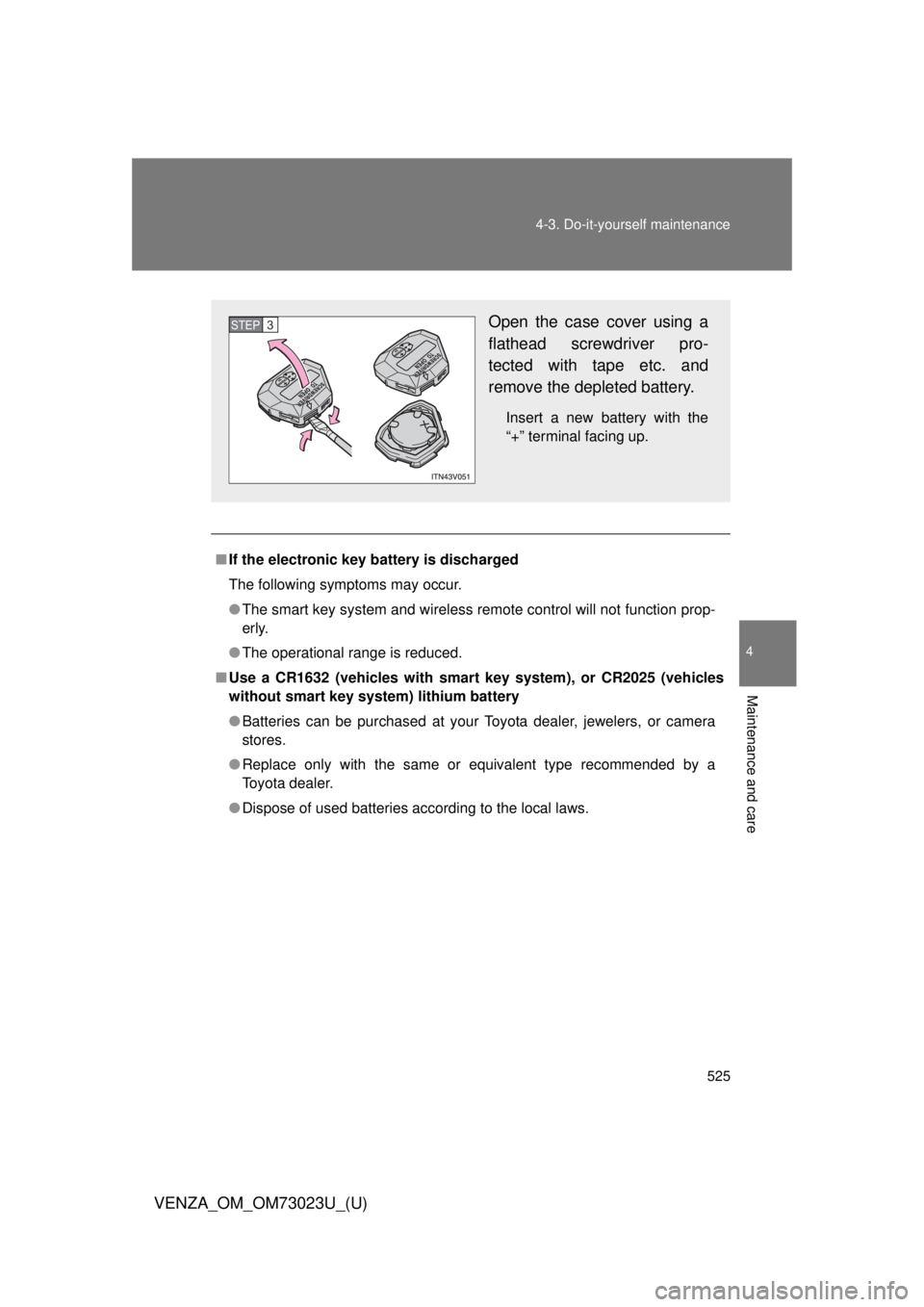

Open the case cover using a
flathead screwdriver pro-
tected with tape etc. and
remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP3

526 4-3. Do-it-yourself maintenance
VENZA_OM_OM73023U_(U)
CAUTION
■Removed battery and other parts
These parts are small and if swallowed by a child they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the electronic key.
● Do not bend the battery terminals.

527
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73023U_(U)

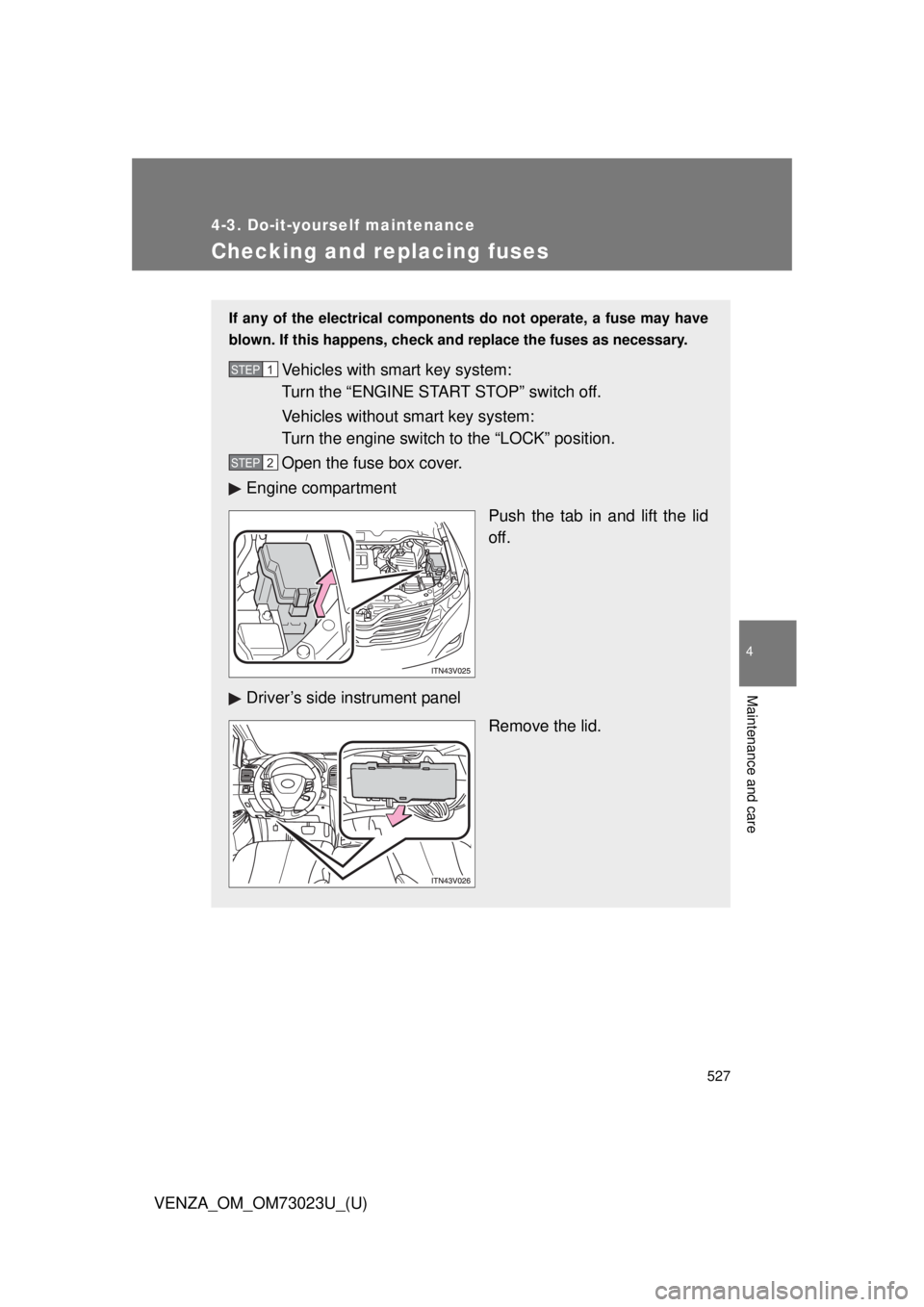

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles with smart key system:
Turn the “ENGINE START STOP” switch off.
Vehicles without smart key system:
Turn the engine switch to the “LOCK” position.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Driver’s side instrument panel Remove the lid.STEP1
STEP2

528 4-3. Do-it-yourself maintenance
VENZA_OM_OM73023U_(U)

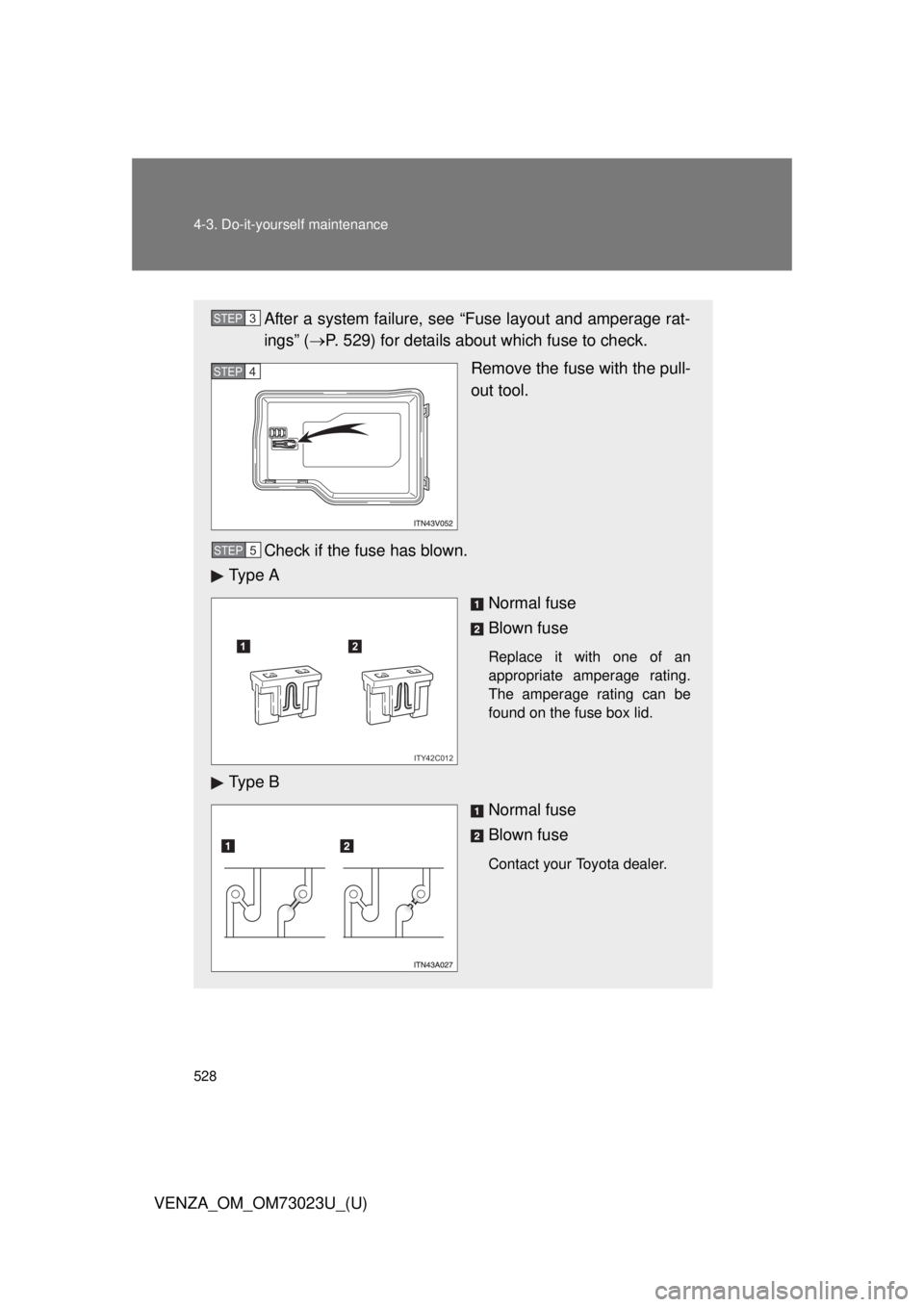

After a system failure, see “Fuse layout and amperage rat-
ings” (P. 529) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Contact your Toyota dealer.
STEP3
STEP4
STEP5
12
ITY42C012

529
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73023U_(U)

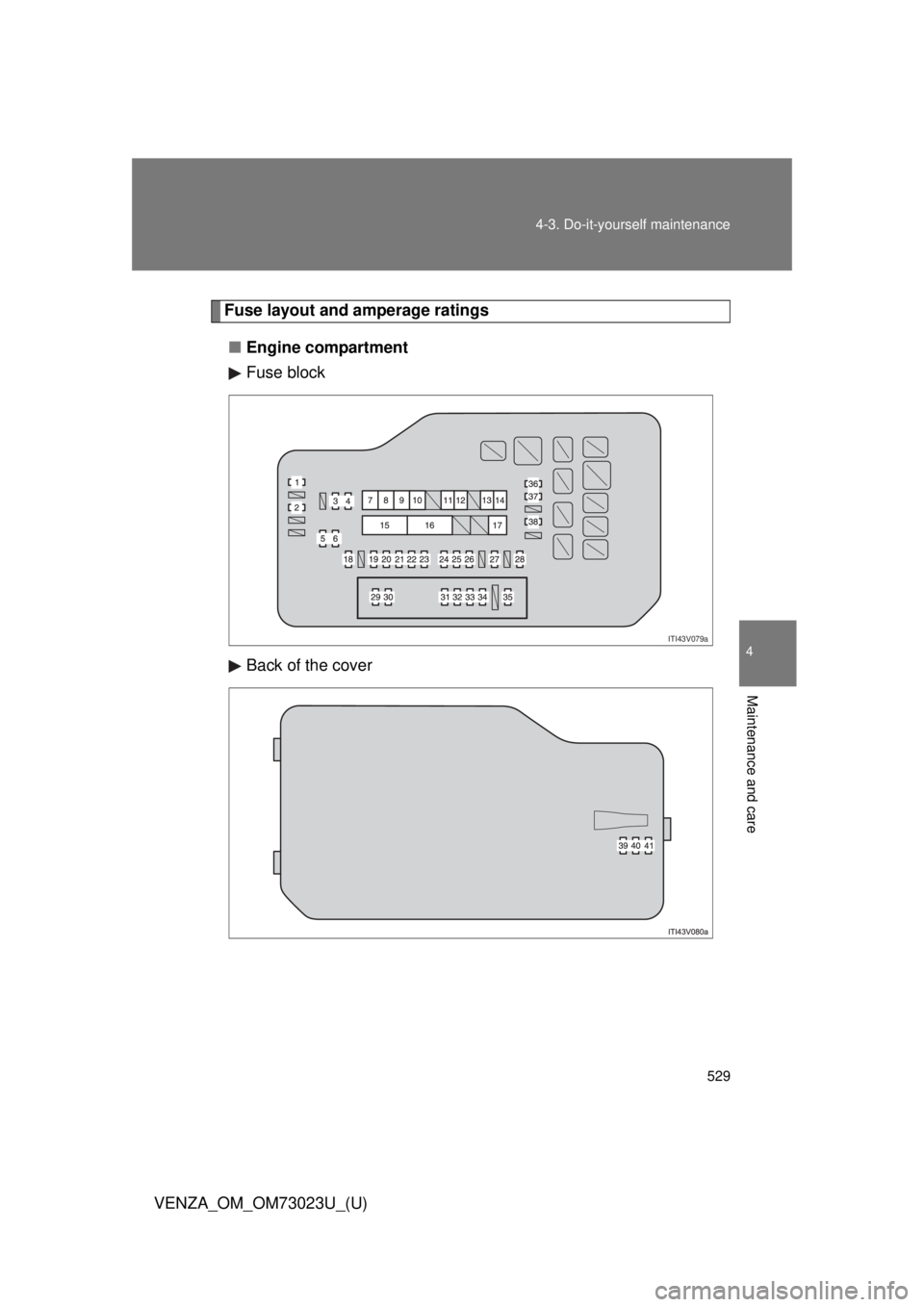

Fuse layout and amperage ratings
■ Engine compartment
Fuse block
Back of the cover
ITI43V079a

530 4-3. Do-it-yourself maintenance
VENZA_OM_OM73023U_(U)
FuseAmpereCircuit
1MIRROR10 AOutside rear view mirrors
(driving position memory)
2DEICER20 AWindshield wiper de-icer
3INJ NO.115 A
Multiport fuel injection system/
sequential multiport fuel injection
system
4INJ NO.215 AIgniter system
5EFI NO.215 A
Multiport fuel injection system/
sequential multiport fuel injection
system
6EFI NO.310 A
Multiport fuel injection system/
sequential multiport fuel injection
system
7HEATER50 AAir conditioning system
8VSC NO.150 AAnti-lock brake system, vehicle
stability control system
9FA N M A I N*150 AElectric cooling fan
10VSC NO.230 AAnti-lock brake system, vehicle
stability control system
11CDS FAN*230 AElectric cooling fan
12RDI FAN*230 AElectric cooling fan
13LG/CLOSER30 APower back door
14RR DEF30 ARear window defogger
15ALT
140 A*3
or
120 A
*3
Charging system, HEATER,
ABS NO.1, FAN MAIN, ABS
NO.2, PBD, RR DEF, MIR HTR,
DEICER
16EPS80 AElectric power steering
17ST30 AStarting system
18BI-XENON10 ADischarge headlights
(high beam control)
19DOOR NO.120 APower door lock system
20STRG LOCK20 ASteering lock system
21SEC HORN7.5 ASEC HORN
22AM27.5 AMultiplex communication sys-
tem, starting system
23ALT-S7.5 ACharging system
