heater TOYOTA VENZA 2015 Owners Manual (in English)

1
2
3
4
5
6
7
5
VENZA_OM_OM73023U_(U)
3-3. Using the interior lightsInterior lights list .................. 430
• Personal/interior light main switch ................................ 431
• Personal/interior lights and luggage compartment
light ................................... 432
3-4. Using the storage features List of storage features ....... 434
• Glove box.......................... 435
• Console boxes .................. 436
• Overhead console............. 438
• Cup holders ...................... 439
• Bottle holders .................... 441
• Auxiliary boxes.................. 442
3-5. Other interior features Sun visors ........................... 445
Vanity mirror........................ 446
Power outlets ...................... 447
Seat heaters........................ 449
Armrest ............................... 451
Assist grips (folding type) .... 452
Floor mats ........................... 453
Luggage compartment features ............................. 455
Garage door opener............ 457
Compass ............................. 464 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior ................. 470
Cleaning and protecting the vehicle interior .................. 473
4-2. Maintenance Maintenance requirements .................... 476
General maintenance ......... 479
Emission inspection and maintenance (I/M)
programs .......................... 482
4-3. Do-it-yourself maintenance Do-it-yourself service precautions....................... 483
Hood ................................... 487
Positioning a floor jack ....... 489
Engine compartment .......... 491
Tires ................................... 506
Tire inflation pressure ......... 513
Wheels ............................... 517
Air conditioning filter ........... 520
Key battery ......................... 523
Checking and replacing fuses ................. 527
Light bulbs .......................... 537
4Maintenance and care

13
VENZA_OM_OM73023U_(U)
Shift lock override
button
P. 593
Seat heater switches P. 449
C
Shift lever P. 180
Auxiliary box P. 442
Console box
P. 436
Cup holders
P. 439
Auxiliary box
P. 442
AUX port/USB port*
P. 325
Power outlet P. 447
: If equipped
*: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

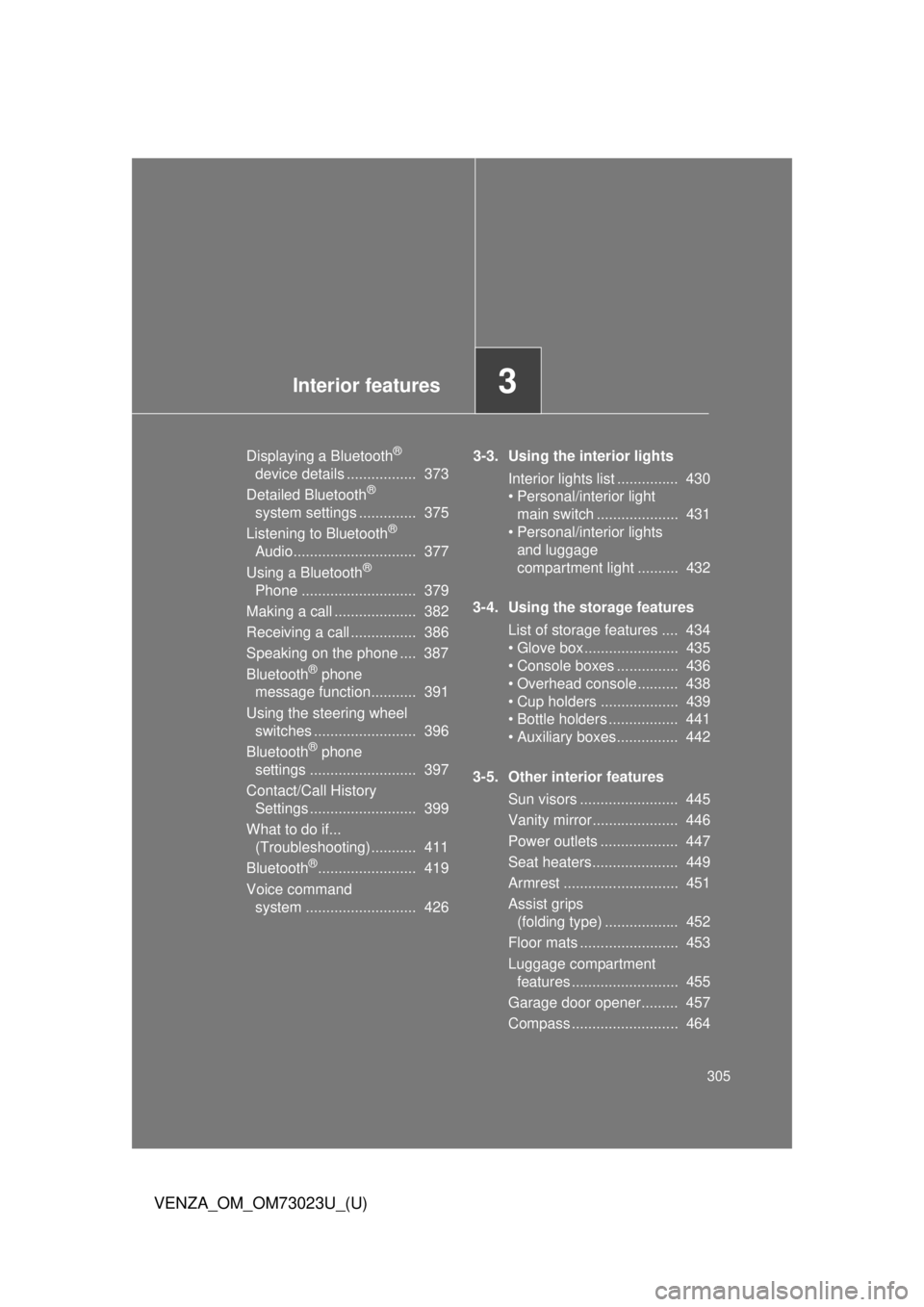

Interior features3
305
VENZA_OM_OM73023U_(U)
Displaying a Bluetooth®
device details ................. 373
Detailed Bluetooth
®
system settings .............. 375
Listening to Bluetooth
®
Audio.............................. 377
Using a Bluetooth
®
Phone ............................ 379
Making a call .................... 382
Receiving a call ................ 386
Speaking on the phone .... 387
Bluetooth
® phone
message function........... 391
Using the steering wheel switches ......................... 396
Bluetooth
® phone
settings .......................... 397
Contact/Call History Settings .......................... 399
What to do if... (Troubleshooting)........... 411
Bluetooth
®........................ 419
Voice command system ........................... 426 3-3. Using the interior lights
Interior lights list ............... 430
• Personal/interio
r light
main sw
itch .................... 431
• Personal/interio
r lights
and luggage
compartment light
.......... 432
3-4. Using the storage features List of storage features .... 434
• Glove box....................... 435
• Console boxes ............... 436
• Overhead console .......... 438
• Cup holders ................... 439
• Bottle holders ................. 441
• Auxiliary boxes ............... 442
3-5. Other interior features Sun visors ........................ 445
Vanity mirror..................... 446
Power outlets ................... 447
Seat heaters..................... 449
Armrest ............................ 451
Assist grips (folding type) .................. 452
Floor mats ........................ 453
Luggage compartment features .......................... 455
Garage door opener......... 457
Compass .......................... 464

314 3-1. Using the air conditioning system and defogger
VENZA_OM_OM73023U_(U)
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature set-
ting and ambient conditions. As a result, the following may occur.
●Immediately after is pressed, the fan may stop for a while
until warm or cool air is ready to flow.
● Cool air may flow to the area around the upper body when the heater is
on.
■ Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ Switching between outside air and recirculated air modes
Recirculated air mode or outside air mode may be automatically switched in
accordance with the temperature setting and the inside temperature.
■ When the outside temperature exceed s 75°F (24°C) and the air condi-
tioning system is on
● In order to reduce the air conditioning power consumption, the air condi-
tioning system may switch to recirculated air mode automatically. This
may help to improve fuel consumption.
● Vehicles with smart key system:
Recirculated air mode is selected as a default mode when the “ENGINE
START STOP” switch is turned to IGNITION ON mode.
Vehicles without smart key system:
Recirculated air mode is selected as a default mode when the engine
switch is turned to the “ON” position.
● It is possible to switch to outside air mode at any time by pressing .
■ Window defogger feature
Recirculated air mode may automatically switch to outside air mode in situa-
tions where the windows need to be defogged.

449
3-5. Other interior features
3
Interior features
VENZA_OM_OM73023U_(U)
Seat heaters
: If equipped
■The seat heaters can be used when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
For driver’s seat
For front passenger’s seat
On
The indicator light comes on.
Adjusts the seat tempera-
ture
The further you turn the dial
upward, the warmer the seat
becomes.

450 3-5. Other interior features
VENZA_OM_OM73023U_(U)
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
NOTICE
■To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the switches off when the engine is not running.

475
4-1. Maintenance and care
4
Maintenance and care
VENZA_OM_OM73023U_(U)
NOTICE
■
Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces.
• Non-seat portions: Organic substances such as benzene or gasoline,
alkaline or acidic solutions, dye, or bleach.
• Seats: Acidic solutions, such as thinner, benzene, or alcohol.
● Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.
■ Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration o\
f
leather surfaces.
●Remove any dust or dirt on leather surfaces immediately.
● Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
● Do not place items made of vinyl, plastic, or that contain wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
■ Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components under the floor of the vehicle, and
may also cause the body to rust.
■ Cleaning the inside of the rear window
●Be careful not to scratch or damage the heater wires or antenna.
● Do not use glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires or antenna. Use a cloth
dampened with lukewarm water to gently wipe the window clean. Wipe the
window in strokes running parallel to the heater wires or antenna.

530 4-3. Do-it-yourself maintenance
VENZA_OM_OM73023U_(U)
FuseAmpereCircuit
1MIRROR10 AOutside rear view mirrors
(driving position memory)
2DEICER20 AWindshield wiper de-icer
3INJ NO.115 A
Multiport fuel injection system/
sequential multiport fuel injection
system
4INJ NO.215 AIgniter system
5EFI NO.215 A
Multiport fuel injection system/
sequential multiport fuel injection
system
6EFI NO.310 A
Multiport fuel injection system/
sequential multiport fuel injection
system
7HEATER50 AAir conditioning system
8VSC NO.150 AAnti-lock brake system, vehicle
stability control system
9FA N M A I N*150 AElectric cooling fan
10VSC NO.230 AAnti-lock brake system, vehicle
stability control system
11CDS FAN*230 AElectric cooling fan
12RDI FAN*230 AElectric cooling fan
13LG/CLOSER30 APower back door
14RR DEF30 ARear window defogger
15ALT
140 A*3
or
120 A
*3
Charging system, HEATER,
ABS NO.1, FAN MAIN, ABS
NO.2, PBD, RR DEF, MIR HTR,
DEICER
16EPS80 AElectric power steering
17ST30 AStarting system
18BI-XENON10 ADischarge headlights
(high beam control)
19DOOR NO.120 APower door lock system
20STRG LOCK20 ASteering lock system
21SEC HORN7.5 ASEC HORN
22AM27.5 AMultiplex communication sys-
tem, starting system
23ALT-S7.5 ACharging system

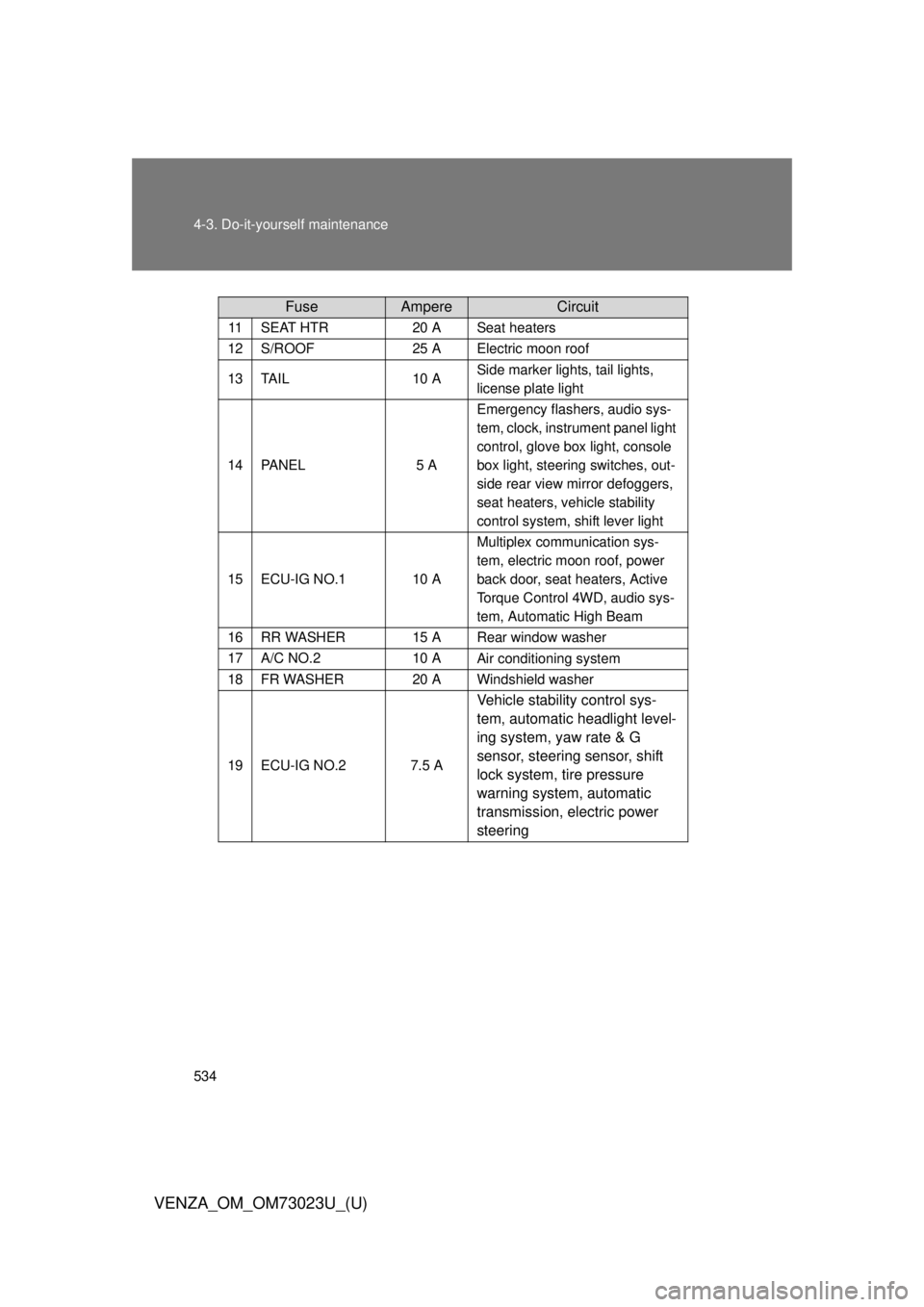

534 4-3. Do-it-yourself maintenance
VENZA_OM_OM73023U_(U)
11SEAT HTR20 ASeat heaters
12S/ROOF25 AElectric moon roof
13TA I L10 ASide marker lights, tail lights,
license plate light
14PA N E L5 A
Emergency flashers, audio sys-
tem, clock, instrument panel light
control, glove box light, console
box light, steering switches, out-
side rear view mirror defoggers,
seat heaters, vehicle stability
control system, shift lever light
15ECU-IG NO.110 A
Multiplex communication sys-
tem, electric moon roof, power
back door, seat heaters, Active
Torque Control 4WD, audio sys-
tem, Automatic High Beam
16RR WASHER15 ARear window washer
17A/C NO.210 AAir conditioning system
18FR WASHER20 AWindshield washer
19ECU-IG NO.27.5 A
Vehicle stability control sys-
tem, automatic headlight level-
ing system, yaw rate & G
sensor, steering sensor, shift
lock system, tire pressure
warning system, automatic
transmission, electric power
steering
FuseAmpereCircuit

637
6-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73023U_(U)
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation
pressure Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressure The maximum cold inflated
pressure to which a
tire may be inflated, s hown on the sidewall of
the tire
Recommended
inflation pressure Cold tire inflation pressure recommended by a
manufacturer
Accessory weight The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded
vehicle weight The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
