TOYOTA VENZA 2015 Warranties & Maintenance Guides (in English)

REPLACEMENT PARTS
Warranty coverage is not dependent upon
the use of any particular brand of
replacement parts. However, Toyota
recommends using only Genuine Toyota
Parts when you need to replace a part on
your vehicle. Like all Toyota products,
Genuine Toyota Parts are built to the
highest standards of quality, durability and
performance. They are also designed to fit
your vehicle’s exact specifications.
Your Toyota dealership maintains an
extensive inventory of Genuine Toyota
Parts to meet your vehicle service needs.
And because it is linked electronically to
Toyota’s Parts Distribution Centers, the
dealership has quick access to any parts it
may not have in stock.Genuine Toyota Parts are covered by their
own warranty (see your dealer for details)
or the remainder of any applicable New
Vehicle Limited Warranty, whichever is
longer.Non-Genuine Toyota Parts, or any
damage or failures resulting from their
use, are not covered by any Toyota
warranty.
Operation and Maintenance
WARRANTY
Your Responsibilities31

BY GEOGRAPHIC REGION
In the United States, U.S.
Territories, Canada and Mexico
To obtain warranty service in the United
States, U.S. territories, Canada or Mexico,
take your vehicle to an authorized Toyota
dealership. If your vehicle cannot be
driven, contact your nearest Toyota
dealership for towing assistance. You do
not have to pay for towing to the nearest
Toyota dealership if your vehicle is
inoperable due to failure of a warranted
part.
Outside the United States, U.S.
Territories, Canada and Mexico
If you are using your vehicle outside the
United States, U.S. territories, Canada and
Mexico and need warranty service, contact
a local Toyota dealership. Please note,
however, that your vehicle may not be
repaired free of charge because the local
Toyota distributor may have no obligation
to provide warranty service for your
vehicle, and/or your vehicle may not
comply with local regulatory or
environmental requirements.
EMERGENCY REPAIRS
If your vehicle is inoperable or unsafe to
drive and there is no Toyota dealership
reasonably available to make repairs, you
may perform the repairs yourself or have
them performed by another automotive
service provider. Toyota will reimburse you
for any of the repairs that are covered by
warranty. To receive reimbursement,
present to an authorized Toyota dealership
your paid repair invoices and any parts
that were removed from the vehicle. You
will be reimbursed for warranted parts at
the manufacturer’s suggested retail price
and warranted labor at a geographically
appropriate hourly rate multiplied by
Toyota’s recommended time allowance for
the repair.
If your vehicle requires emergency repair,
Toyota assumes no liability for subsequent
failures caused by improper repairs or the
use of non-Genuine Toyota Parts unless
you have the vehicle properly repaired in a
timely manner. To ensure that warranty
coverage remains intact, have your vehicle
inspected by an authorized Toyota
dealership as soon as possible after an
emergency repair.
Obtaining Warranty Service
WARRANTY
32Your Responsibilities

Notes
WARRANTY
Your Responsibilities33

R
egular maintenance is essential to
obtaining the highest level of
performance, safety and reliability
from your Toyota. It can also increase
your vehicle’s resale value. The following
pages are designed to help you make sure
your vehicle receives proper and timely
maintenance. Along with other important
information related to vehicle service,
you’ll find factory-recommended
maintenance guidelines and a log in which
to document your vehicle’s maintenance
history.In addition to scheduled maintenance,
your vehicle requires ongoing general
maintenance such as fluid checks and
visual inspections. These procedures are
explained in the “Vehicle Maintenance and
Care” section of the Owner’s Manual. Be
sure to perform these procedures regularly
to ensure the most trouble-free operation
of your vehicle.
With proper maintenance and care, your
vehicle will last longer and deliver more
dependable, economical performance.
Follow this booklet’s recommendations
and you’ll enjoy maximum reliability and
peace of mind from your Toyota for many
years to come.
The Importance of Scheduled Maintenance
34Maintenance Log
MAINTENANCE

IMPORTANT MAINTENANCE
INFORMATION
It is especially important to both
routinely check your vehicle’s engine oil
level (once a month) and regularly
replace the engine oil and oil filter (see
the Maintenance Log section of this
booklet to determine how often you
should change your vehicle’s oil and
filter). Failure to do so can cause oil
starvation and or oil gelling, which can
result in severe damage to your vehicle
and require costly repairs that are not
covered by the New Vehicle Limited
Warranty.
Maintenance Records
Maintaining your vehicle according to the
recommendations in this booklet is
required to ensure that your warranty
coverage remains intact. You should keep
detailed records of vehicle maintenance,
including date of service, mileage at time
of service and a description of service
and/or parts installation performed. The
scheduled maintenance log in this booklet
can help you document this information. If
you sell your vehicle, be sure to give your
maintenance records to the new owner.
Toyota will not deny a warranty claim
solely because you do not have records to
show that you maintained your vehicle.
However, damage or failure caused by lack
of proper maintenance are not covered
under warranty.
Maintenance Providers
Maintenance and repair services may be
performed by you or by any automotive
service provider you choose. Toyota will
not deny a warranty claim solely because
you used a service provider other than a
Toyota dealership for maintenance and
repairs. However, damage or failure
caused by improper maintenance or
repairs are not covered under warranty.
Dealer-Recommended
Maintenance
Your dealer may recommend more
frequent maintenance intervals or more
maintenance services than those listed in
the scheduled maintenance log. These
additional services are not required to
maintain your warranty coverage. Ask your
dealer to explain any recommended
maintenance not included in the scheduled
maintenance log.
For a complete description of Toyota
warranty coverages, see the Warranty
Information portion of this booklet.
Maintaining Your Warranty
Maintenance Log35
MAINTENANCE

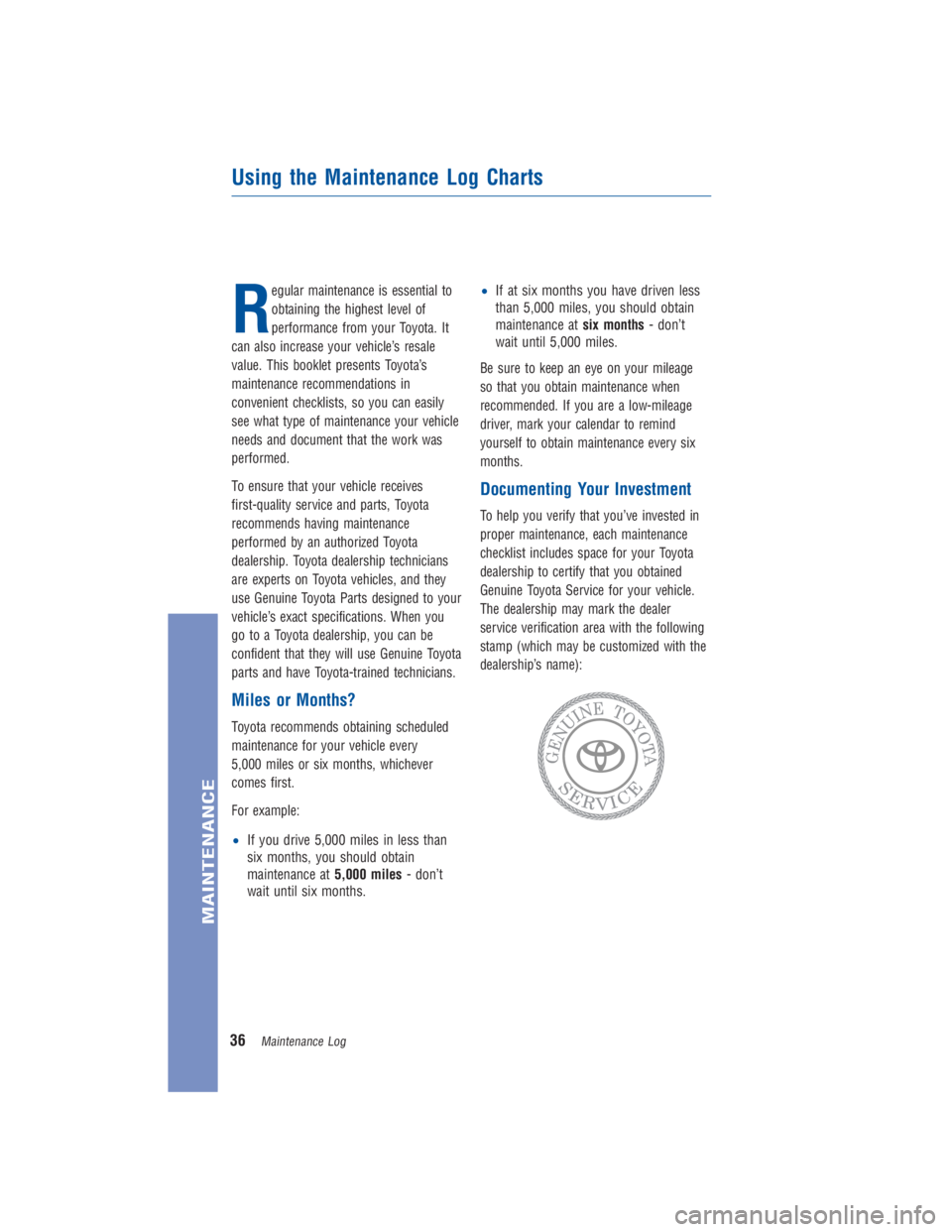

R
egular maintenance is essential to
obtaining the highest level of
performance from your Toyota. It
can also increase your vehicle’s resale
value. This booklet presents Toyota’s
maintenance recommendations in
convenient checklists, so you can easily
see what type of maintenance your vehicle
needs and document that the work was
performed.
To ensure that your vehicle receives
first-quality service and parts, Toyota
recommends having maintenance
performed by an authorized Toyota
dealership. Toyota dealership technicians
are experts on Toyota vehicles, and they
use Genuine Toyota Parts designed to your
vehicle’s exact specifications. When you
go to a Toyota dealership, you can be
confident that they will use Genuine Toyota
parts and have Toyota-trained technicians.
Miles or Months?
Toyota recommends obtaining scheduled
maintenance for your vehicle every
5,000 miles or six months, whichever
comes first.
For example:
•If you drive 5,000 miles in less than
six months, you should obtain
maintenance at5,000 miles- don’t
wait until six months.
•If at six months you have driven less
than 5,000 miles, you should obtain
maintenance atsix months- don’t
wait until 5,000 miles.
Be sure to keep an eye on your mileage
so that you obtain maintenance when
recommended. If you are a low-mileage
driver, mark your calendar to remind
yourself to obtain maintenance every six
months.
Documenting Your Investment
To help you verify that you’ve invested in
proper maintenance, each maintenance
checklist includes space for your Toyota
dealership to certify that you obtained
Genuine Toyota Service for your vehicle.
The dealership may mark the dealer
service verification area with the following
stamp (which may be customized with the
dealership’s name):
Using the Maintenance Log Charts
36Maintenance Log
MAINTENANCE

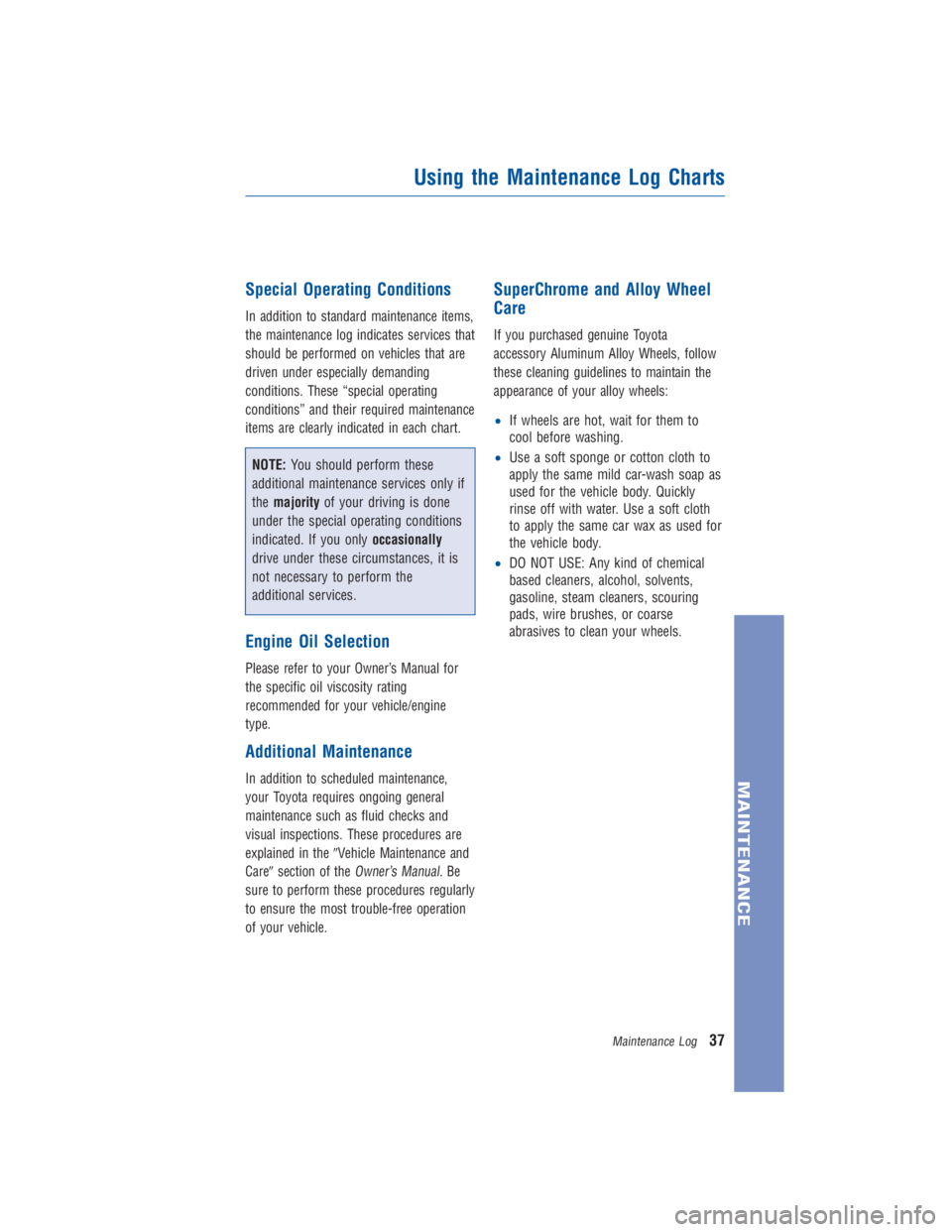

Special Operating Conditions
In addition to standard maintenance items,
the maintenance log indicates services that
should be performed on vehicles that are
driven under especially demanding
conditions. These “special operating
conditions” and their required maintenance
items are clearly indicated in each chart.
NOTE:You should perform these
additional maintenance services only if
themajorityof your driving is done
under the special operating conditions
indicated. If you onlyoccasionally
drive under these circumstances, it is
not necessary to perform the
additional services.
Engine Oil Selection
Please refer to your Owner’s Manual for
the specific oil viscosity rating
recommended for your vehicle/engine
type.
Additional Maintenance
In addition to scheduled maintenance,
your Toyota requires ongoing general
maintenance such as fluid checks and
visual inspections. These procedures are
explained in theVehicle Maintenance and
Caresection of the
Owner’s Manual.Be
sure to perform these procedures regularly
to ensure the most trouble-free operation
of your vehicle.
SuperChrome and Alloy Wheel
Care
If you purchased genuine Toyota
accessory Aluminum Alloy Wheels, follow
these cleaning guidelines to maintain the
appearance of your alloy wheels:
•If wheels are hot, wait for them to
cool before washing.
•Use a soft sponge or cotton cloth to
apply the same mild car-wash soap as
used for the vehicle body. Quickly
rinse off with water. Use a soft cloth
to apply the same car wax as used for
the vehicle body.
•DO NOT USE: Any kind of chemical
based cleaners, alcohol, solvents,
gasoline, steam cleaners, scouring
pads, wire brushes, or coarse
abrasives to clean your wheels.
Using the Maintenance Log Charts
Maintenance Log37
MAINTENANCE

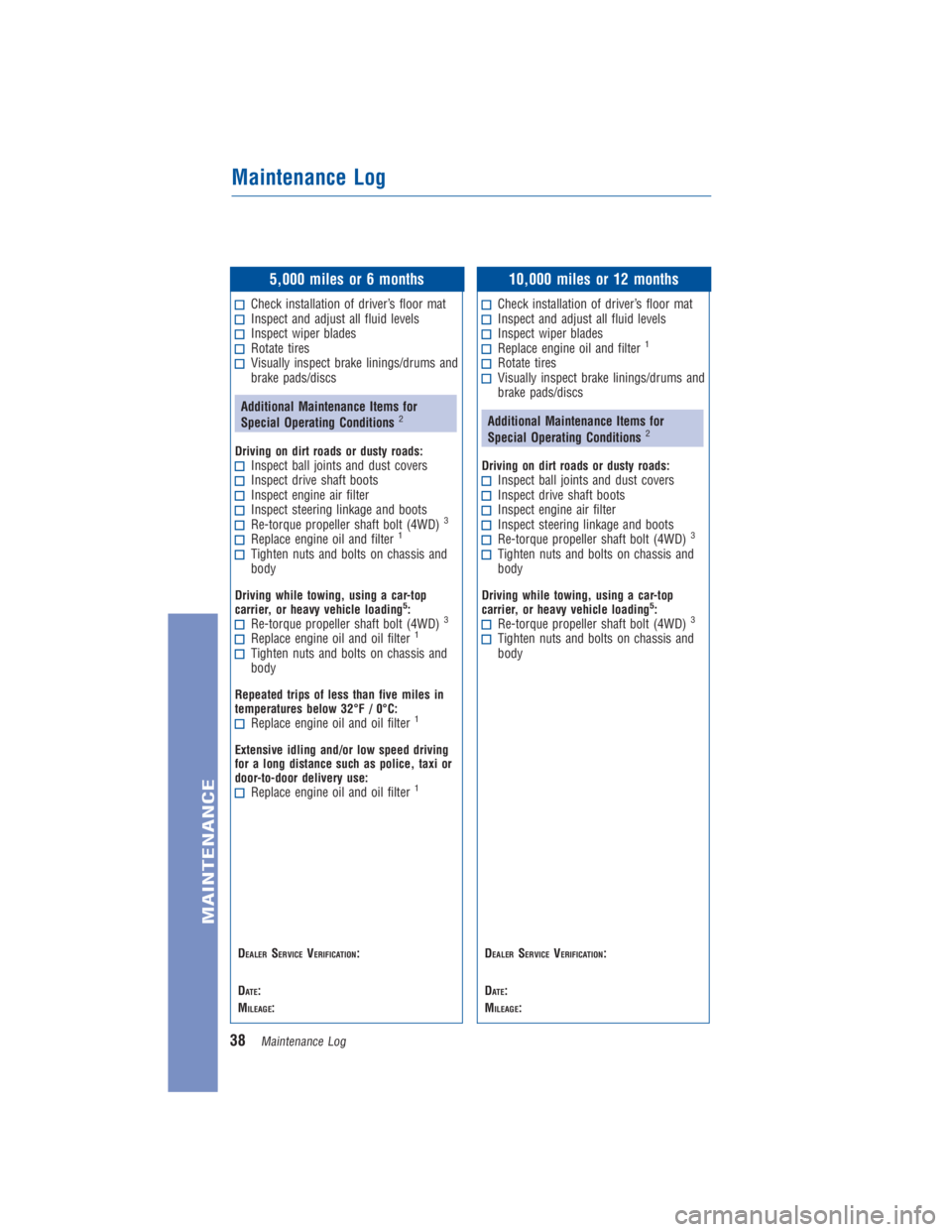

5,000 miles or 6 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt (4WD)3
Replace engine oil and filter1
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading5:Re-torque propeller shaft bolt (4WD)3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis and
body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter1
Extensive idling and/or low speed driving
for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
10,000 miles or 12 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt (4WD)3
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading5:Re-torque propeller shaft bolt (4WD)3
Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
38Maintenance Log

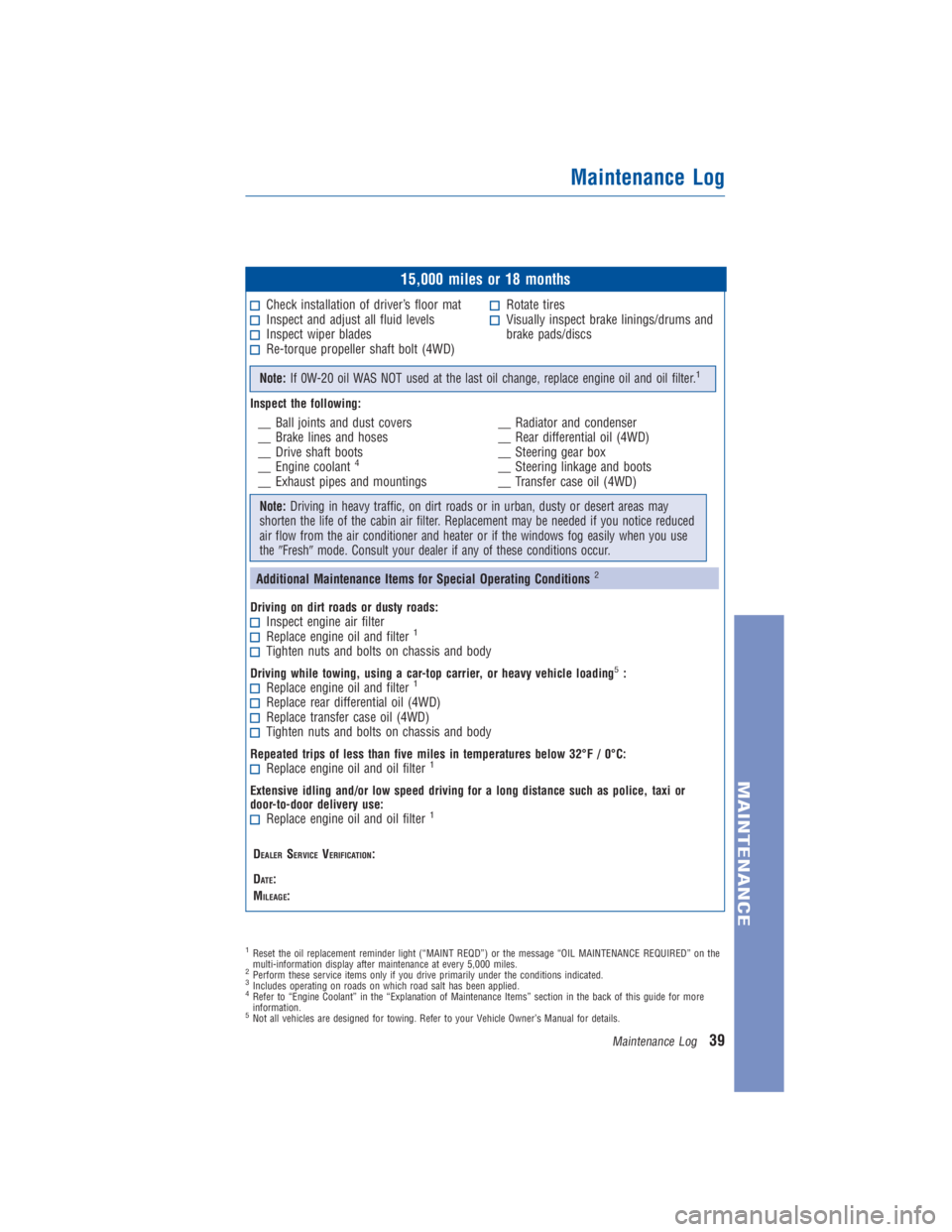

15,000 miles or 18 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRe-torque propeller shaft bolt (4WD)
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Note:If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.1
Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
__ Engine coolant
4
__ Exhaust pipes and mountings__ Radiator and condenser
__ Rear differential oil (4WD)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD)
Note:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice reduced
air flow from the air conditioner and heater or if the windows fog easily when you use
theFreshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect engine air filterReplace engine oil and filter1
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading5:Replace engine oil and filter1
Replace rear differential oil (4WD)Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:Replace engine oil and oil filter1
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads on which road salt has been applied.4Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
5Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log39

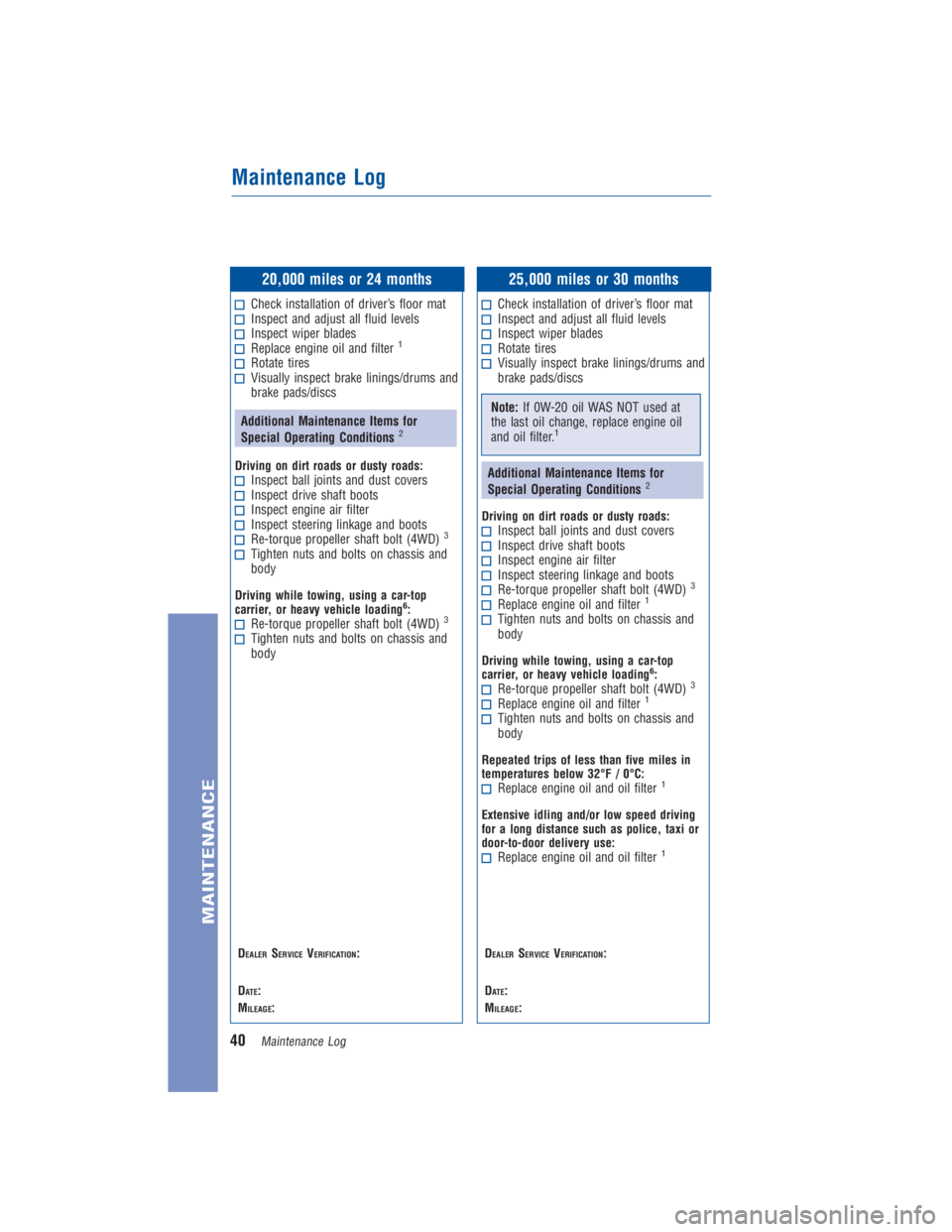

20,000 miles or 24 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt (4WD)3
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Re-torque propeller shaft bolt (4WD)3
Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
25,000 miles or 30 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Note:If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
1
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt (4WD)3
Replace engine oil and filter1
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Re-torque propeller shaft bolt (4WD)3
Replace engine oil and filter1
Tighten nuts and bolts on chassis and
body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter1
Extensive idling and/or low speed driving
for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
40Maintenance Log
