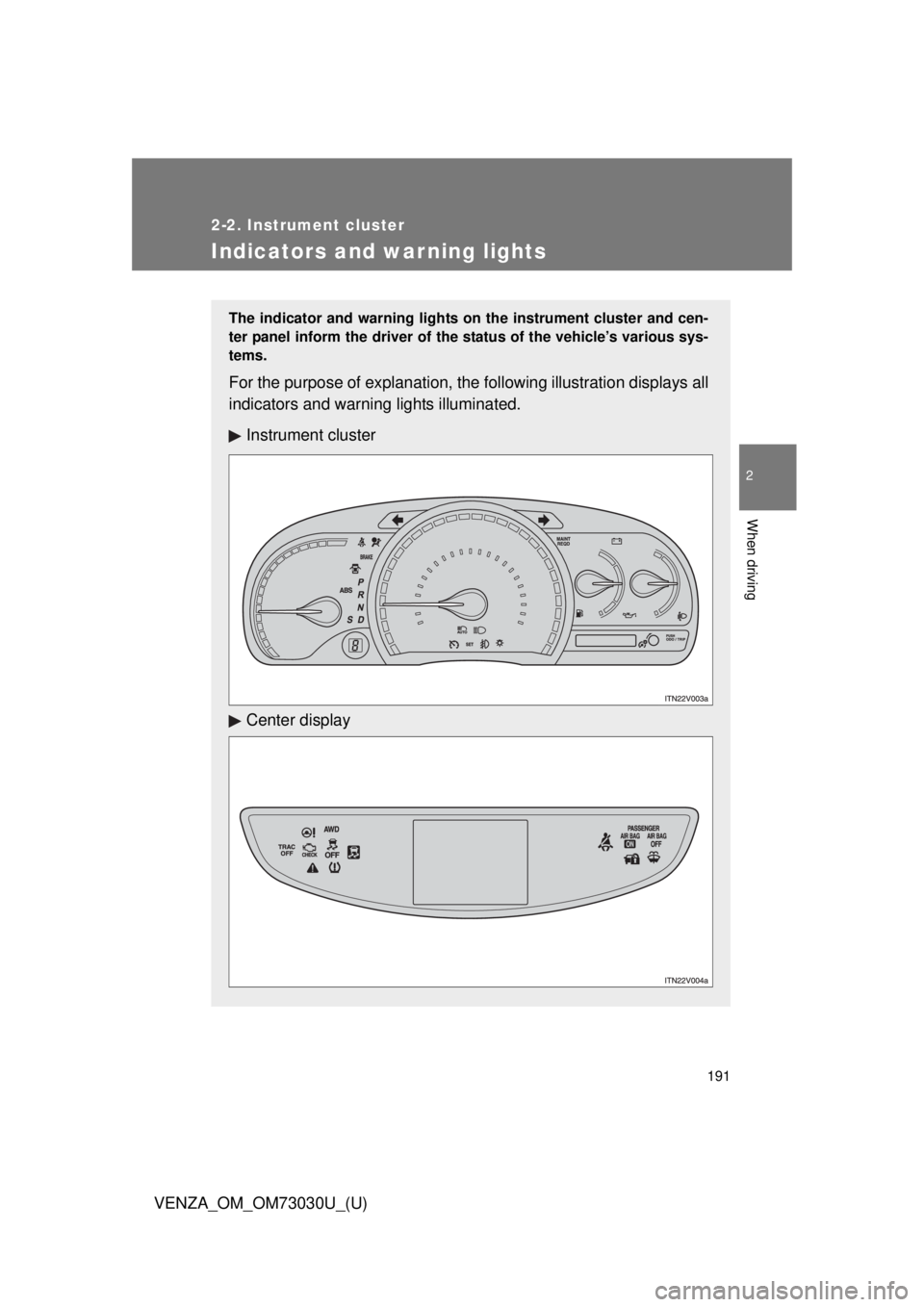

VENZA_OM_OM73030U_(U) Indicators and warning lights The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
For the purpose of explanation, the following illustrati on displays all
indicators and warn ing lights illuminated.
Instrument cluster
Center display

1922-2. Instrument cluster

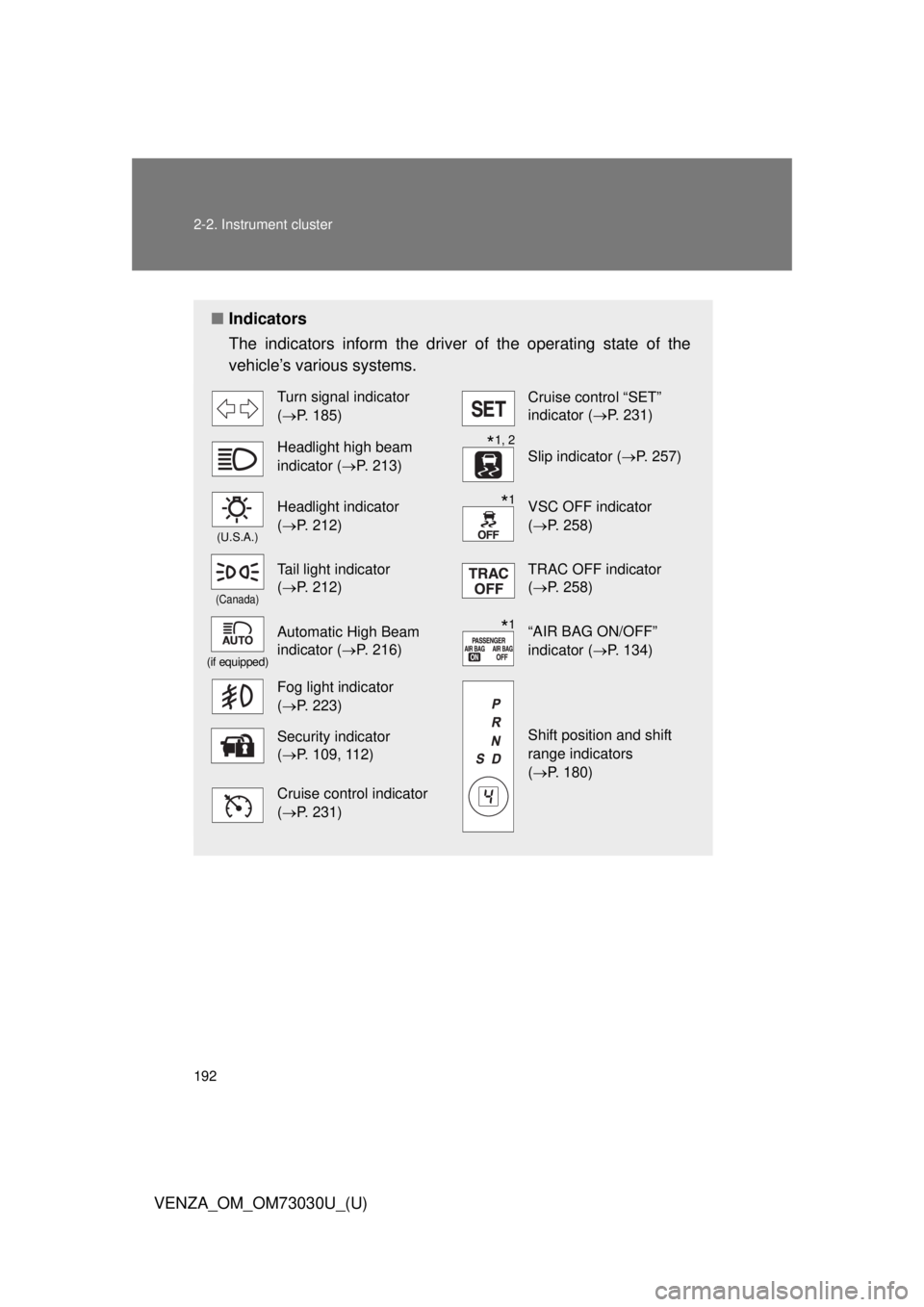

VENZA_OM_OM73030U_(U) ■ Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems. Turn signal indicator
(  P. 185) Cruise control “SET”
indicator (  P. 231)
Headlight high beam
indicator (  P. 213) Slip indicator (  P. 257)(U.S.A.)
Headlight indicator
(  P. 212) VSC OFF indicator
(  P. 258)(Canada)
Tail light indicator
(  P. 212) TRAC OFF indicator
(  P. 258)(if equipped)
Automatic High Beam
indicator (  P. 216) “AIR BAG ON/OFF”
indicator (  P. 134)
Fog light indicator
(  P. 223)
Shift position and shift
range indicators
(  P. 180)Security indicator
(  P. 109, 112)
Cruise control indicator
(  P. 231) * 1, 2
* 1
* 1

1932-2. Instrument cluster
2
When driving
VENZA_OM_OM73030U_(U) CAUTION■ If a safety system warning light does not come on
Should a safety system light such as the ABS and the SRS airbag warning
lights not come on when you start the engine, this could mean that these
systems are not available to help protect you in an accident, which could
result in death or serious injury. Have the vehicle inspected by your Toyota

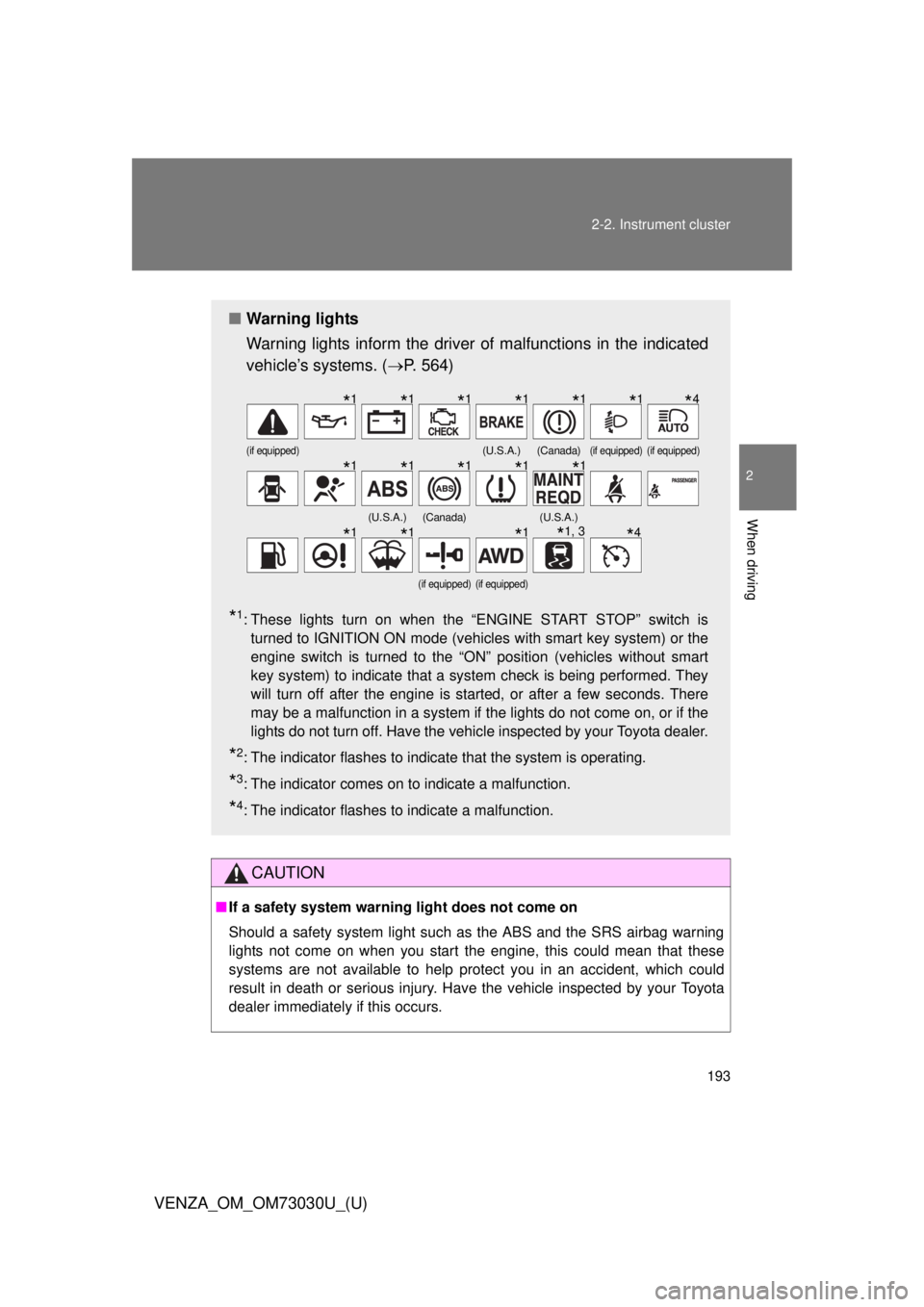

dealer immediately if this occurs.■ Warning lights
Warning lights inform the driver of malfunctions in the indicated
vehicle’s systems. (  P. 564)
* 1
: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode (vehicles with smart key system) or the
engine switch is turned to the “ON” position (vehicles without smart
key system) to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if the lights do not come on, or if the
lights do not turn off. Have the vehicle inspected by your Toyota dealer.
* 2
: The indicator flashes to indicate that the system is operating.
* 3
: The indicator comes on to indicate a malfunction.
* 4
: The indicator flashes to indicate a malfunction. (if equipped) (U.S.A.) (Canada) (if equipped) (if equipped)
(U.S.A.) (Canada) (U.S.A.)
(if equipped) (if equipped)
* 1
* 1
* 1
* 1
* 1
* 1
* 4
* 1
* 1
* 1
* 1
* 1
* 1
* 1
* 1
* 1, 3
* 4

1942-2. Instrument cluster

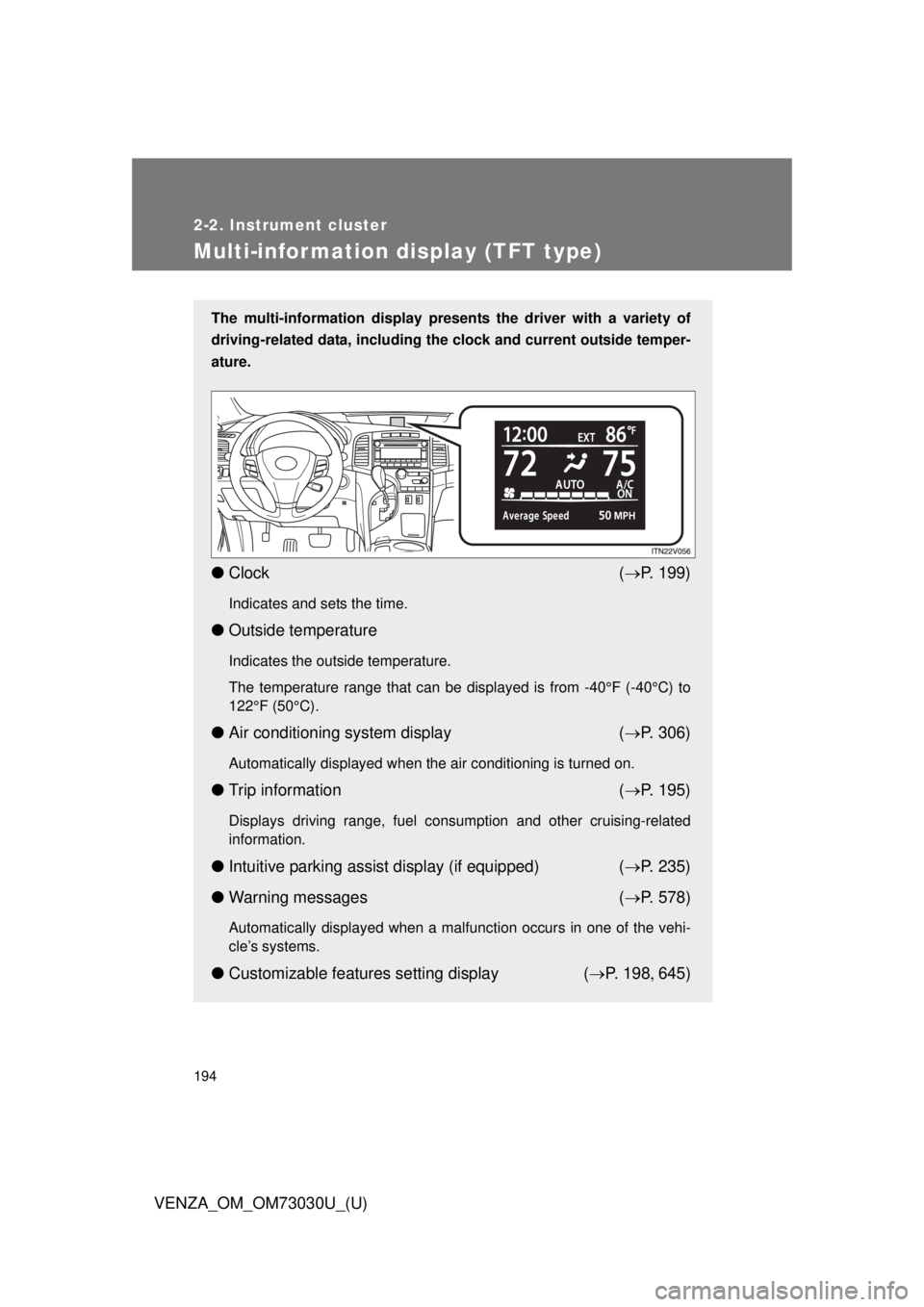

VENZA_OM_OM73030U_(U)Multi-information display (TFT type) The multi-information display presen ts the driver with a variety of
driving-related data, including the clock and current outside temper-
ature.
● Clock (  P. 199)Indicates and sets the time.
● Outside temperature Indicates the outside temperature.
The temperature range that can be displayed is from -40°F (-40°C) to
122°F (50°C).
● Air conditioning system display (  P. 306)Automatically displayed when the air conditioning is turned on.
● Trip information (  P. 195)Displays driving range, fuel consumption and other cruising-related
information.
● Intuitive parking assist display (if equipped) (  P. 235)
● Warning messages (  P. 578)Automatically displayed when a malfunction occurs in one of the vehi-
cle’s systems.
● Customizable features setting display (  P. 1 9 8  645)

1952-2. Instrument cluster
2
When driving
VENZA_OM_OM73030U_(U) Switching the display
“INFO” button
“SELECT RESET” button To reset the functions below,
press the “SELECT RESET” but-
ton.
• Average Fuel Economy
• Average Speed
• Trip Timer
“SETUP” button
Trip information
Display items can be switched by pressing the “INFO” button.
■ Average Fuel Economy
Displays the average fuel cons umption since the function was
reset. ● The function can be reset by pressing and holding the “SELECT
RESET” button when the average fuel economy is displayed.
● Use the displayed average fuel consumption as a reference.
■ Current Fuel Economy
Displays the current rate of fuel consumption.

1962-2. Instrument cluster
VENZA_OM_OM73030U_(U) ■ Distance to Empty
Displays the estimated maximum di stance that can be driven with
the quantity of fuel remaining. ● This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
● When only a small amount of fuel is added to the tank, the display may
not be updated. When refueling, turn the “ENGINE START STOP”
switch off. If the vehicle is refueled without turning the “ENGINE START
STOP” switch off, the display may not be update.
■ Average Speed
Displays the average vehicle sp eed since the function was reset.The function can be reset by pressing and holding the “SELECT RESET”
button when the average speed is displayed.

1972-2. Instrument cluster
2
When driving
VENZA_OM_OM73030U_(U) ■ Tr i p Ti m e r
Displays the elapsed time since the timer was reset. The timer only functions when the engine is running. The timer can be
started and paused by pressing the “SELECT RESET” button, and reset
by pressing and holding the “SELECT RESET” button when the trip timer
is displayed.
The display layout may be customized to show 1 line of trip informa-
tion in the normal font size, 2 lines in the normal font size, or 1 line in
a larger font size. (  P. 200)
When 2 lines of trip information are displayed, it is possible for both of
them to be reset.
Press the “SELECT RESET” button. The first display item that may be reset will be highlighted yellow.
Press the “SELECT RESET” button to select or reset each
display item as described above.
Press the “SETUP” button to change which display items to
reset by highlighting it in yellow. This function only applies if both lines can be adjusted.
Press the “INFO” button to exit the adjusting mode.Press the “INFO” button a second time to switch the display items. STEP 1
STEP 2
STEP 3
STEP 4

1982-2. Instrument cluster

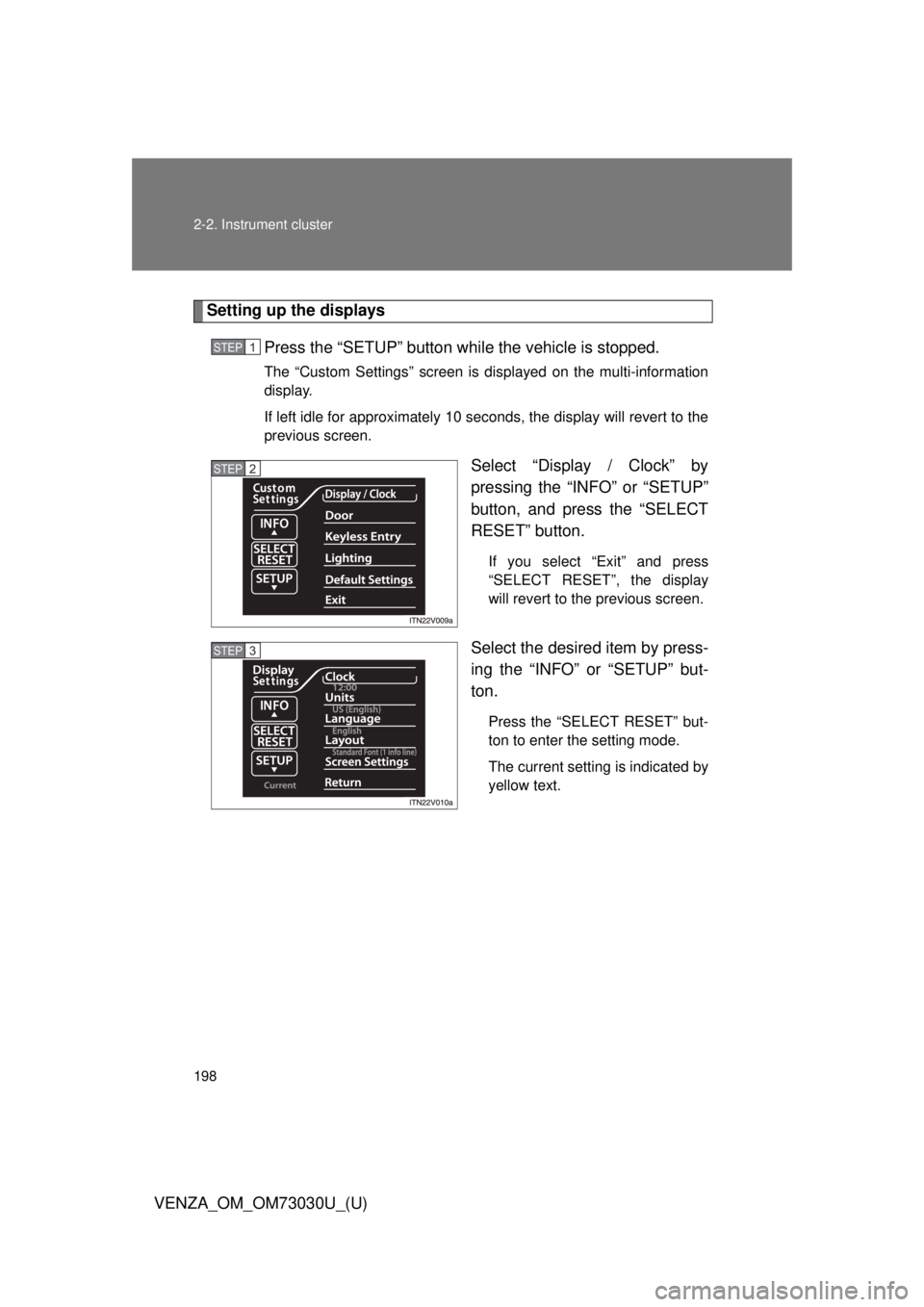

VENZA_OM_OM73030U_(U) Setting up the displays
Press the “SETUP” button wh ile the vehicle is stopped.The “Custom Settings” screen is displayed on the multi-information
display.
If left idle for approximately 10 seconds, the display will revert to the
previous screen.
Select “Display / Clock” by
pressing the “INFO” or “SETUP”
button, and press the “SELECT
RESET” button. If you select “Exit” and press
“SELECT RESET”, the display
will revert to the previous screen.
Select the desired item by press-
ing the “INFO” or “SETUP” but-
ton. Press the “SELECT RESET” but-
ton to enter the setting mode.
The current setting is indicated by
yellow text.STEP 1
STEP 2
STEP 3

1992-2. Instrument cluster
2
When driving

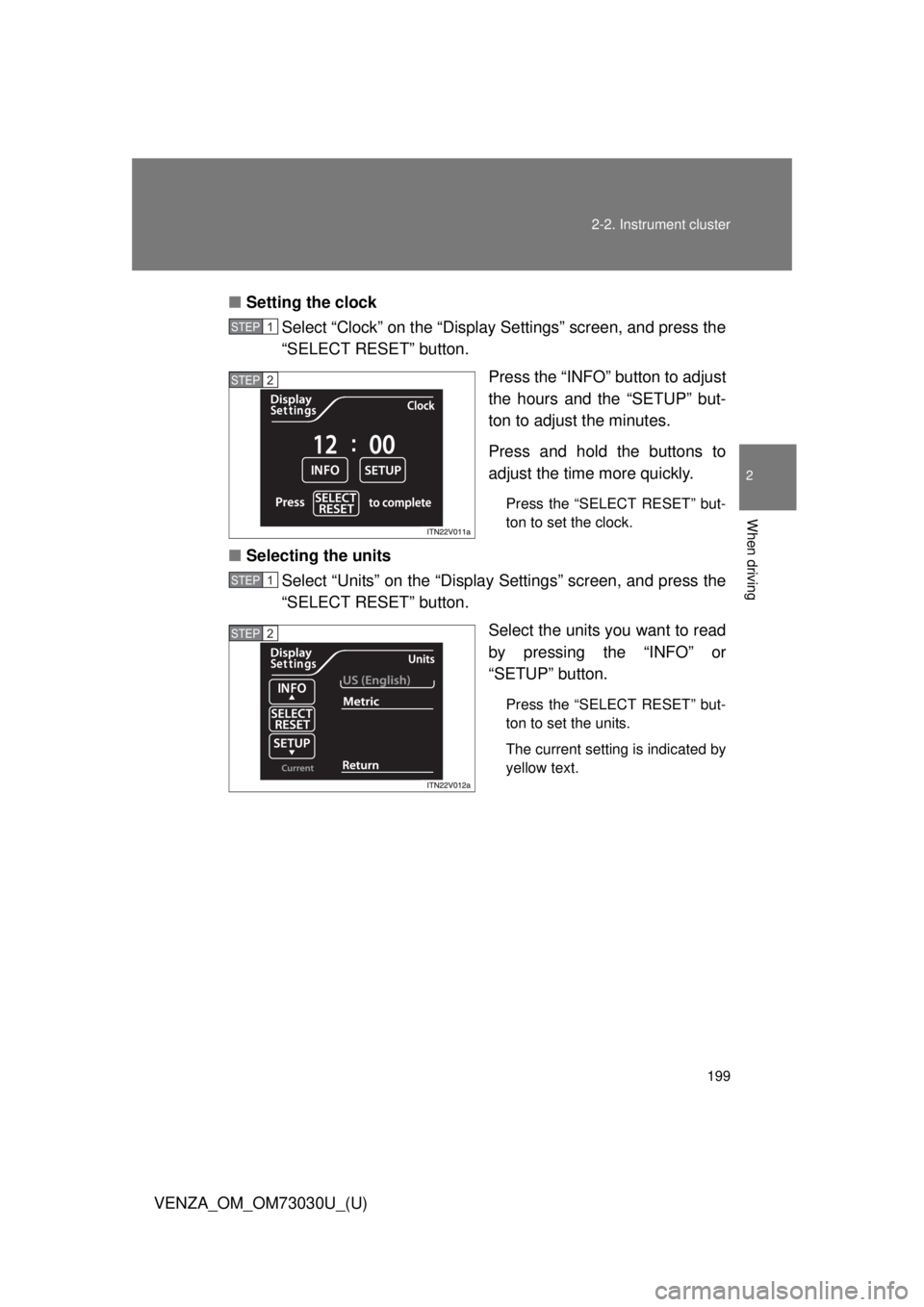

VENZA_OM_OM73030U_(U) ■ Setting the clock
Select “Clock” on the “Display Settings” screen, and press the
“SELECT RESET” button.
Press the “INFO” button to adjust
the hours and the “SETUP” but-
ton to adjust the minutes.
Press and hold the buttons to
adjust the time more quickly. Press the “SELECT RESET” but-
ton to set the clock.
■ Selecting the units
Select “Units” on the “Display Settings” screen, and press the
“SELECT RESET” button.
Select the units you want to read
by pressing the “INFO” or
“SETUP” button. Press the “SELECT RESET” but-
ton to set the units.
The current setting is indicated by
yellow text.STEP 1
STEP 2
STEP 1
STEP 2

2002-2. Instrument cluster

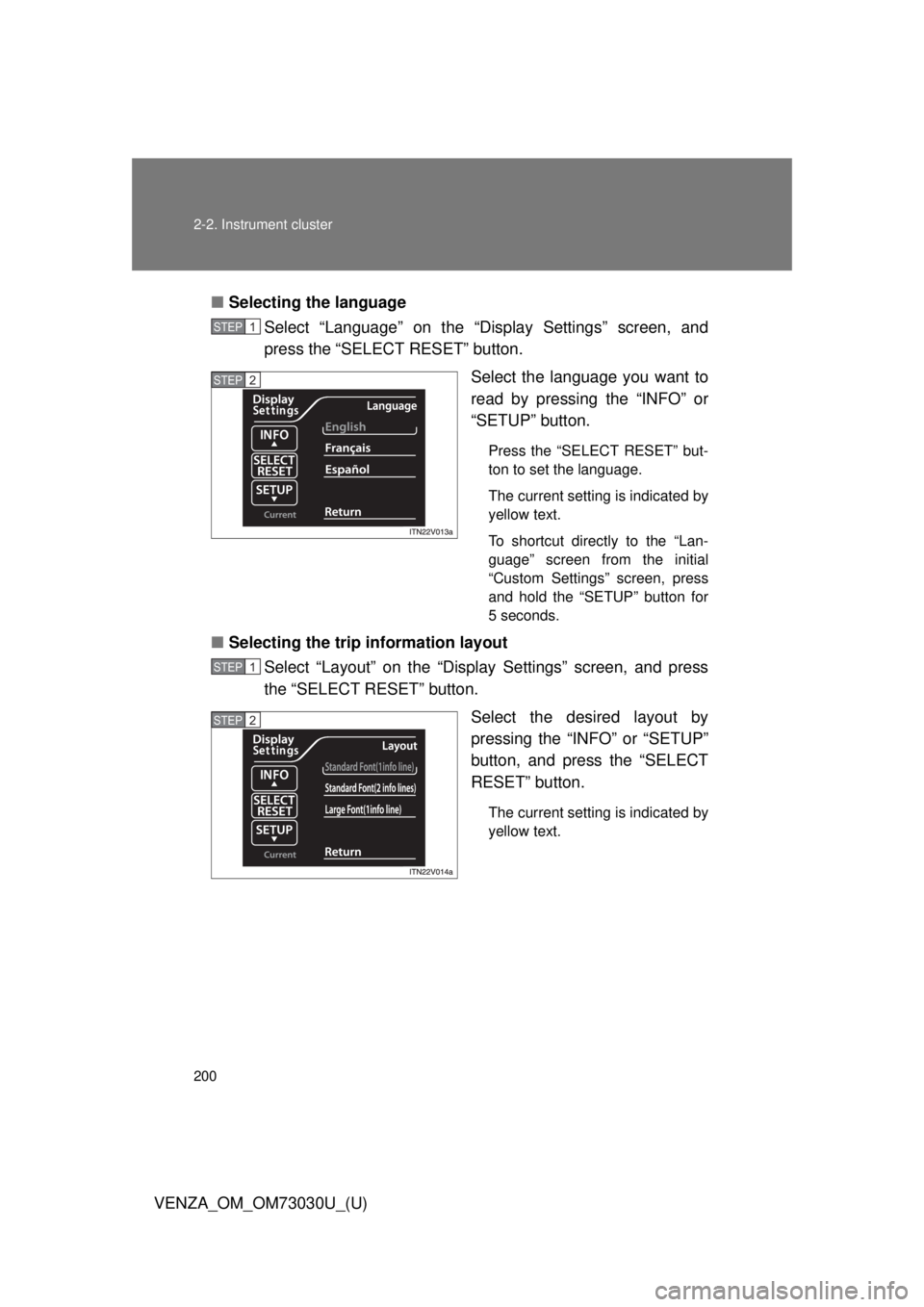

VENZA_OM_OM73030U_(U) ■ Selecting the language
Select “Language” on the “Display Settings” screen, and
press the “SELECT RESET” button.
Select the language you want to
read by pressing the “INFO” or
“SETUP” button. Press the “SELECT RESET” but-
ton to set the language.
The current setting is indicated by
yellow text.
To shortcut directly to the “Lan-
guage” screen from the initial
“Custom Settings” screen, press
and hold the “SETUP” button for
5 seconds.
■ Selecting the trip information layout
Select “Layout” on the “Display Settings” screen, and press
the “SELECT RESET” button.
Select the desired layout by
pressing the “INFO” or “SETUP”
button, and press the “SELECT
RESET” button. The current setting is indicated by
yellow text.STEP 1
STEP 2
STEP 1
