811-5. Theft deterrent system
1
For safety and security

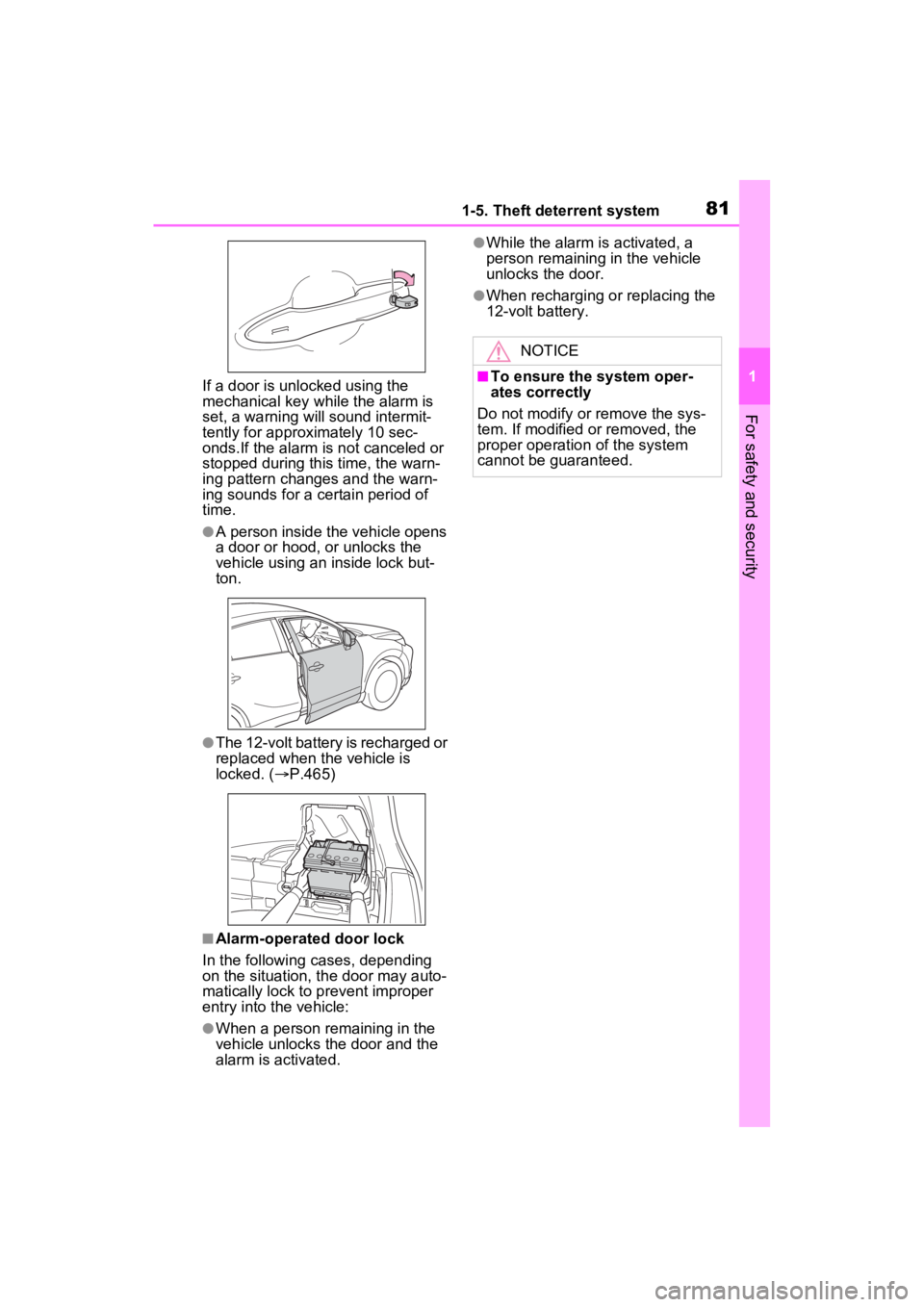

If a door is unlocked using the
mechanical key while the alarm is
set, a warning will sound intermit-
tently for approximately 10 sec-
onds.If the alarm is not canceled or
stopped during this time, the warn-
ing pattern change s and the warn-
ing sounds for a certain period of
time.
●A person inside the vehicle opens
a door or hood, or unlocks the
vehicle using an inside lock but-
ton.
●The 12-volt battery is recharged or
replaced when the vehicle is
locked. ( P.465)
■Alarm-operated door lock
In the following cases, depending
on the situation, th e door may auto-
matically lock to p revent improper
entry into the vehicle:
●When a person remaining in the
vehicle unlocks the door and the
alarm is activated.
●While the alarm i s activated, a
person remaining in the vehicle
unlocks the door.
●When recharging or replacing the
12-volt battery.
NOTICE
■To ensure the system oper-
ates correctly
Do not modify or remove the sys-
tem. If modified or removed, the
proper operation of the system
cannot be guaranteed.

821-5. Theft deterrent system

83
2
2
Vehicle status information and indicators
Vehicle status informa-tion and indicators
2-1. Instrument cluster
Warning lights and indica-tors ............................... 84
Gauges and meters (Vehi- cles with 4.2-inch display)..................................... 89
Gauges and meters (Vehi- cles with 7-inch display)..................................... 93
Multi-information display (4.2-inch display) .......... 96
Multi-information display (7- inch display) .............. 107
Head-up display .......... 118
Energy monitor/consump- tion screen................. 123

842-1. Instrument cluster
2-1.Instrument cluster
For the purpose of explanation, the following illustrations display all
warning lights and indicators illuminated.
■Vehicles with 4.2-inch display
The units used on the meters and some indicators may differ dep ending on
the target region.
■Vehicles with 7-inch display

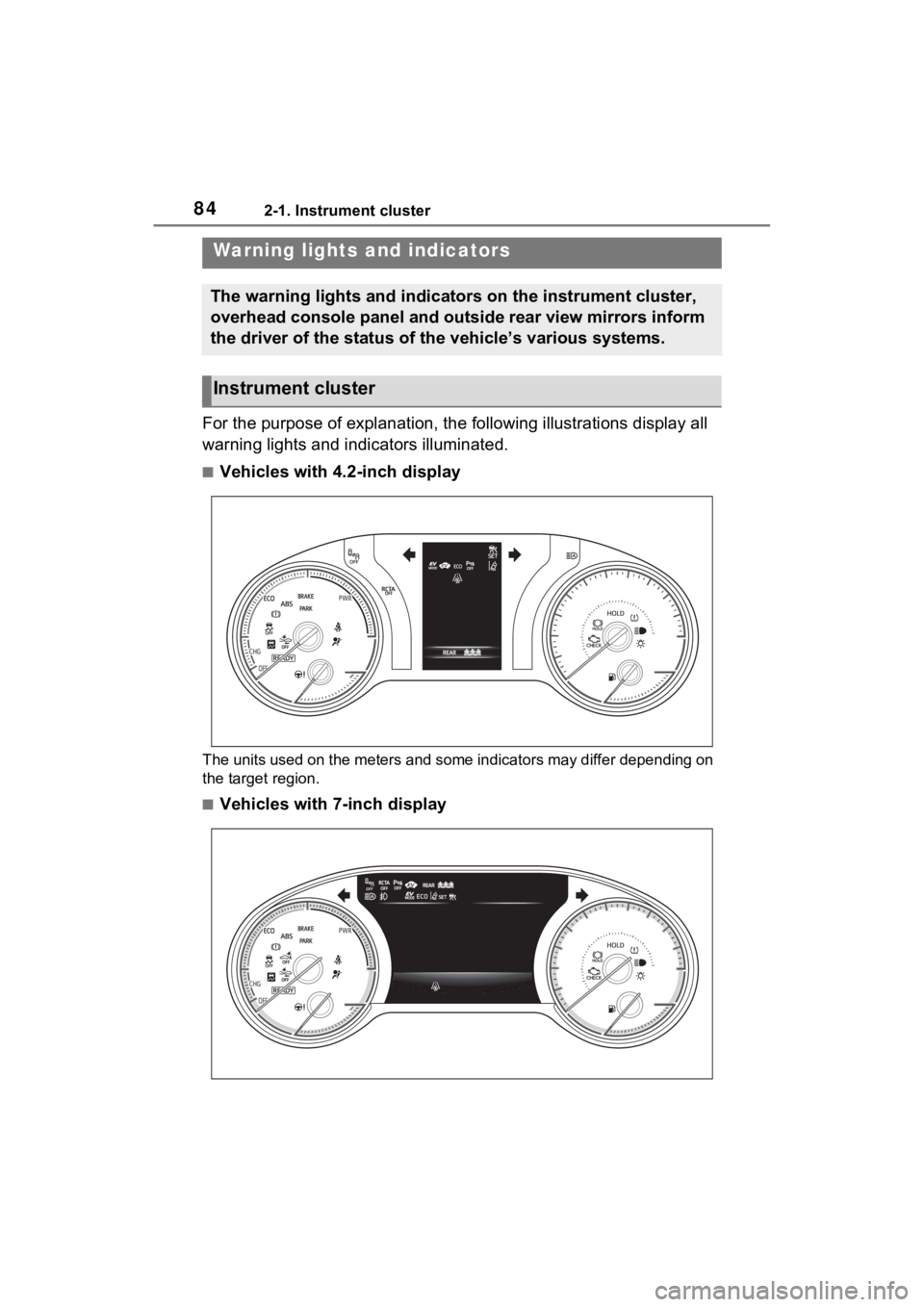

Warning lights and indicators
The warning lights and indicators on the instrument cluster,
overhead console panel and outside rear view mirrors inform
the driver of the status of the vehicle’s various systems.
Instrument cluster

852-1. Instrument cluster
2
Vehicle status information and indicators
The units used on the meters and some indicators may differ depending on
the target region.
Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.
Warning lights
(U.S.A.)
Brake system warn-
ing light
*1 (  P.438)
(Canada)
(Red)
Brake system warn-
ing light
*1 ( P.438)
(Yellow)
Brake system warn-
ing light
*1 ( P.438)
Charging system
warning light
*2
(  P.438)
High coolant tempera-
ture warning light
*2
(  P.439)
Low engine oil pres-
sure warning light
*2
(  P.439)
(U.S.A.)
Malfunction indicator
lamp
*1 ( P.439)
(Canada)
Malfunction indicator
lamp
*1 ( P.439)
SRS warning light
*1
(  P.439)
(U.S.A.)
ABS warning light*1
(  P.440)
(Canada)
ABS warning light*1
(  P.440)
(Red/yellow)
Electric power steer-
ing system warning
light
*1 ( P.440)
(Flashes or
illuminates)
PCS warning light*1
(  P.440)
(Orange)
LTA indicator
( P.441)
Intuitive parking assist
OFF indicator
*3 (if
equipped) ( P.441)
PKSB OFF indica-
tor
*1 (if equipped)
(  P.441)
RCTA OFF indica-
tor
*1 (  P.442)
Slip indicator light
*1
(  P.442)
Brake Override Sys-
tem/Drive-Start Con-
trol/PKSB (if
equipped) warning
light
*2 (  P.443)
(Flashes)
Brake hold operated
indicator
*1 ( P.443)
(U.S.A.)
(Flashes)
Parking brake indica-
tor ( P.444)

862-1. Instrument cluster
*1: These lights turn on when the power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybr id system is on,
or after a few seconds. There
may be a malfunction in a sys-
tem if the light does not come on,
or turn off. Have the vehicle
inspected by your Toyota dealer.
*2: This light illuminates on the multi-informatio n display with a
message.
*3: Intuitive parking assist OFF indi- cator turns on when the power
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.
(Canada)
(Flashes)
Parking brake indica-
tor ( P.444)
Tire pressure warning
light
*1 (  P.444)
Low fuel level warn-
ing light ( P.444)
Driver’s and front pas-
senger’s seat belt
reminder light
(  P.445)
Rear passengers’ seat
belt reminder light
(  P.445)

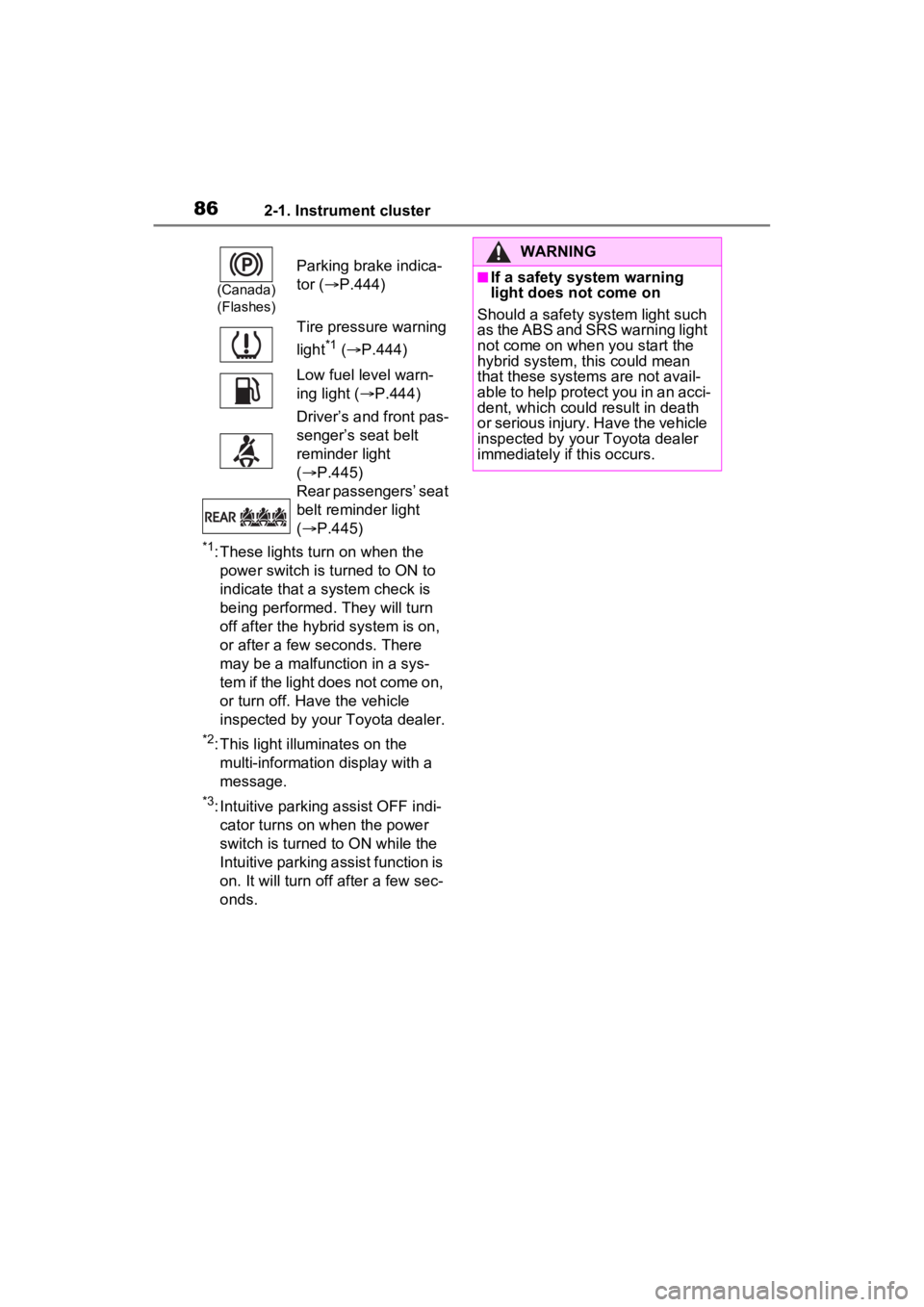

WARNING
■If a safety system warning
light does not come on
Should a safety system light such
as the ABS and SRS warning light
not come on when you start the
hybrid system, this could mean
that these system s are not avail-
able to help protect you in an acci-
dent, which could result in death
or serious injury. Have the vehicle
inspected by your Toyota dealer
immediately if this occurs.

872-1. Instrument cluster
2
Vehicle status information and indicators
The indicators inform the driver
of the operating state of the
vehicle’s various systems.

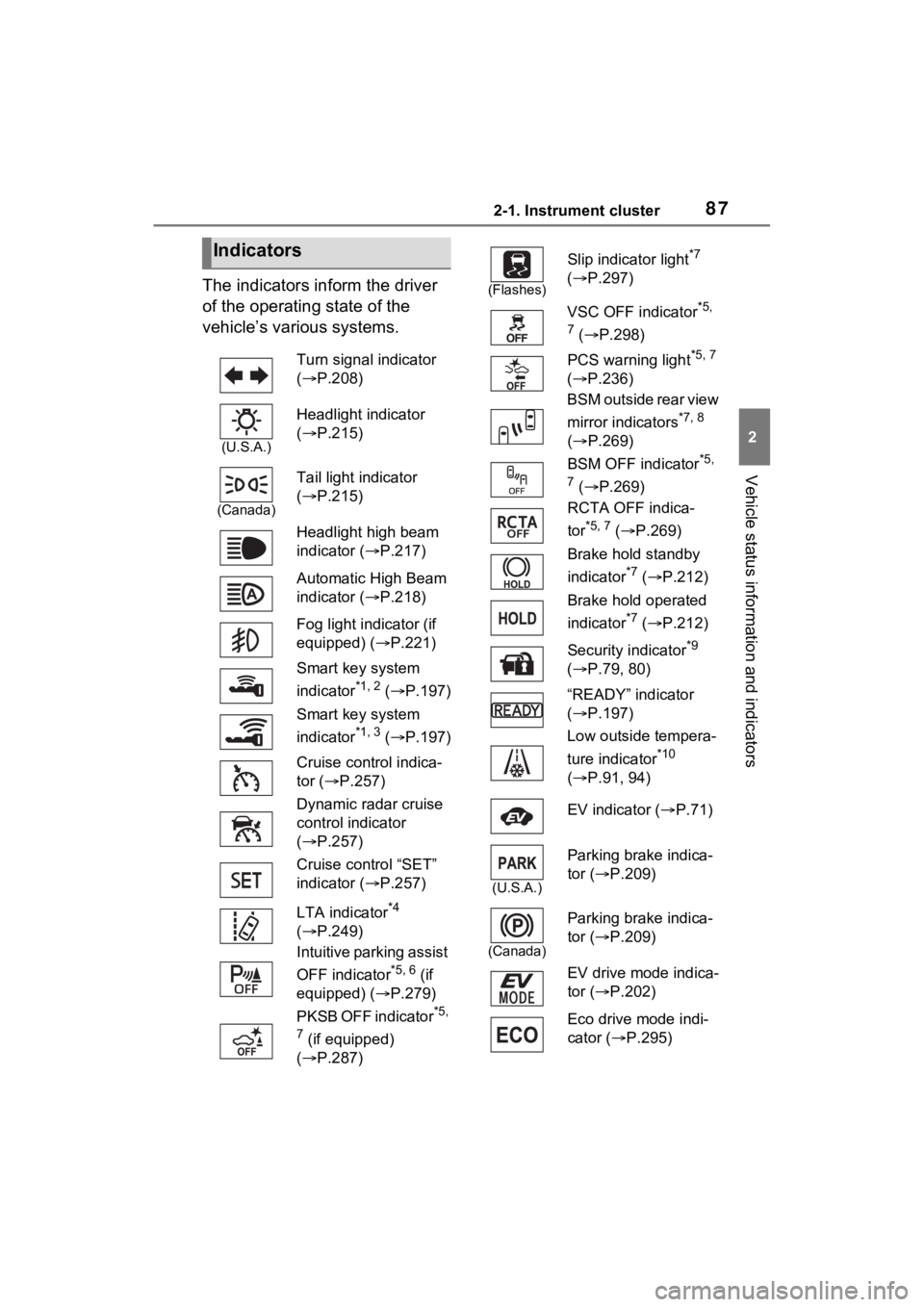

Indicators
Turn signal indicator
( P.208)
(U.S.A.)
Headlight indicator
( P.215)
(Canada)
Tail light indicator
( P.215)
Headlight high beam
indicator ( P.217)
Automatic High Beam
indicator ( P.218)
Fog light indicator (if
equipped) (P.221)
Smart key system
indicator
*1, 2 (  P.197)
Smart key system
indicator
*1, 3 (  P.197)
Cruise control indica-
tor ( P.257)
Dynamic radar cruise
control indicator
(  P.257)
Cruise control “SET”
indicator ( P.257)
LTA indicator
*4
(  P.249)
Intuitive parking assist
OFF indicator
*5, 6 (if
equipped) (P.279)
PKSB OFF indicator
*5,
7
(if equipped)
(  P.287)
(Flashes)
Slip indicator light*7
(  P.297)
VSC OFF indicator
*5,
7
(  P.298)
PCS warning light
*5, 7
(  P.236)
BSM outside rear view
mirror indicators
*7, 8
(  P.269)
BSM OFF indicator
*5,
7
(  P.269)
RCTA OFF indica-
tor
*5, 7 (  P.269)
Brake hold standby
indicator
*7 (  P.212)
Brake hold operated
indicator
*7 (  P.212)
Security indicator
*9
(  P.79, 80)
“READY” indicator
(  P.197)
Low outside tempera-
ture indicator
*10
(  P.91, 94)
EV indicator ( P.71)
(U.S.A.)
Parking brake indica-
tor ( P.209)
(Canada)
Parking brake indica-
tor ( P.209)
EV drive mode indica-
tor ( P.202)
Eco drive mode indi-
cator ( P.295)

882-1. Instrument cluster
*1: This light illuminates on the multi-informatio n display with a
message.
*2: Vehicles with 4.2-inch display
*3: Vehicles with 7-inch display
*4: Depending on the operating con- dition, the color and illuminat-
ing/flashing state of the light
change.
*5: The light comes on when the system is turned off.
*6: Intuitive parking assist OFF indi-cator turns on when the power
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.
*7: These lights turn on when the power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybr id system is on,
or after a few seconds. There
may be a malfunction in a sys-
tem if the lights do not turn on, or
turn off. Have the vehicle
inspected by your Toyota dealer.
*8: This light illumi nates on the out-
side rear view mirrors.
*9: This light illuminates on the over- head console panel.
*10: When the outside temperature is approximately 37°F (3°C) or
lower, the indicator will flash for
approximately 10 seconds, then
stay on.
■BSM (Blind Spot Monitor) out-
side rear view mirror indicators
In order to confirm operation, the
BSM outside rear view mirror indica-
tors illuminate in the turning the
BSM function/RCTA function on
(  P.269).
If the system is functioning correctly,
the BSM outside rear view mirror
indicators will turn off after a few
seconds.
If the BSM outside rear view mirror
indicators do not illuminate or do not
turn off, there may be a malfunction
in the system. If this occurs, have
the vehicle inspected by your
Toyota dealer.
Sport mode indicator
(
 P.295)
“AIR BAG ON/OFF”
indicator
*7,9 (  P.43)

892-1. Instrument cluster
2
Vehicle status information and indicators
The units used on the meter and display may differ depending on the target
region.
Hybrid System Indicator
Displays hybrid system output or regeneration level ( P.90)
Outside temperature ( P.91)
Clock
The GPS clock’s time is automatically adjus ted by utilizing GPS time infor-
mation.
For details, refer to the “NAV IGATION AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
Multi-information display
Presents the driver with a variety of driving-related data ( P.96)
Displays warning messages if a malfunction occurs (P.449)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fu el remaining in the tank

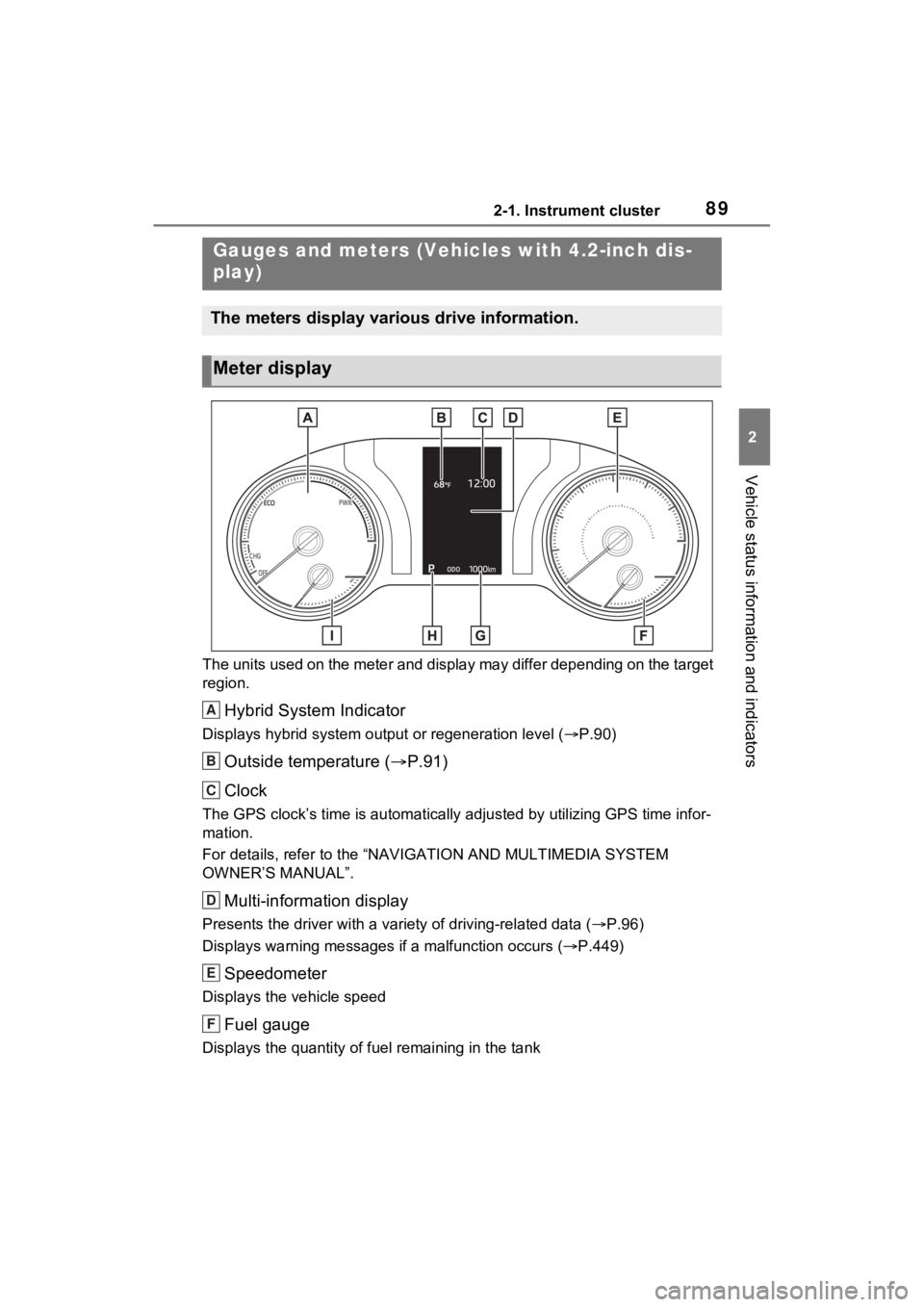

Gauges and meters (Vehicles with 4.2-inch dis-
play)
The meters display various drive information.
Meter display
A
B
C
D
E
F

902-1. Instrument cluster
Odometer, trip meter and oil maintenance
Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” c an be used to record and display different
distances independently.
Oil maintenance:
Displays the distance until the next engine oil change.
Shift position and shift range indicator
Displays the selected shift posit ion or selected shift range (P.204)
Engine coolant temperature gauge
Displays the engine c oolant temperature
■The meters and display illumi-
nate when
The power swit ch is in ON.■Hybrid System Indicator
READY OFF area
Shows that the hybrid system is not
operating.
Charge area
Shows regeneration
* status.
Regenerated e nergy will be used to
charge the hybrid battery (traction
battery). Hybrid Eco area
Shows that gasoline engine power
is not being used very often.
The gasoline engi ne will automati-
cally stop and restart under various
conditions.
Eco area
Shows that the vehicle is being
driven in an Eco-friendly manner.
G
H
I
A
B
C
D
