TOYOTA VENZA HYBRID 2023 Owners Manual

5118-2. Customization
8
Vehicle specifications
■LTA (Lane Tracing Assist) (P.250)
■RSA (Road Sign Assist)* ( P.262)
*: If equipped
■Dynamic radar cruise control with full-speed range ( P.265)
■BSM (Blind Spot Monitor) ( P.277)
FunctionCustomized setting
Lane centering functionOn, Off–O–
AlertSteering wheel vibration,
Buzzer–O–
Alert sensitivityHigh, Standard–O–
Vehicle sway warning func-
tionOn, Off–O–
Vehicle sway warning sensi-
tivityHigh, Standard, Low–O–
FunctionCustomized setting
RSA (Road Sign Assist)On, Off–O–
Excess speed notification
methodDisplay only, Display and buzzer, No notification–O–
Excess speed notification
level1 mph (2 km/h), 3 mph (5 km/h), 5 mph (10 km/h)–O–
Other notifications method
(No-entry notification)Display only, Display and buzzer, No notification–O–
FunctionCustomized setting
Curve speed r eduction func-
tionHigh/Low/Off–O–
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)OnOff–O–
Outside rear view mirror indi-
cator brightnessBrightDim–O–
ABC
ABC
ABC
ABC

5128-2. Customization
■RCTA (Rear Cross Traffic Alert) function*1 ( P.277)
*1: If equipped
*2: This setting is linked with the buzzer volume of the intuitive parking
assist.
■Intuitive parking assist*1 (  P.287)
*1: If equipped
*2: This setting is linked with the buzzer volume of the RCTA (Rear cross
traffic alert) function.
■PKSB (Parking Support Brake)* (  P.295)
Alert timing for presence of
approaching vehicle (sensi-
tivity)
Intermediate
Early
–O–
Late
Only when
vehicle
detected in blind spot
FunctionDefault settingCustomized setting
RCTA (Rear Cross Traffic
Alert) functionOnOff–O–
Buzzer volume*2Level 2Level 1–O–Level 3
FunctionDefault settingCustomized setting
Intuitive parking assistOnOff–OO
Buzzer volume*221–OO3
FunctionDefault settingCustomized setting
PKSB (Parking Support
Brake) functionOnOff–O–
FunctionDefault settingCustomized settingABC
ABC
ABC
ABC

5138-2. Customization
8
Vehicle specifications
*: If equipped

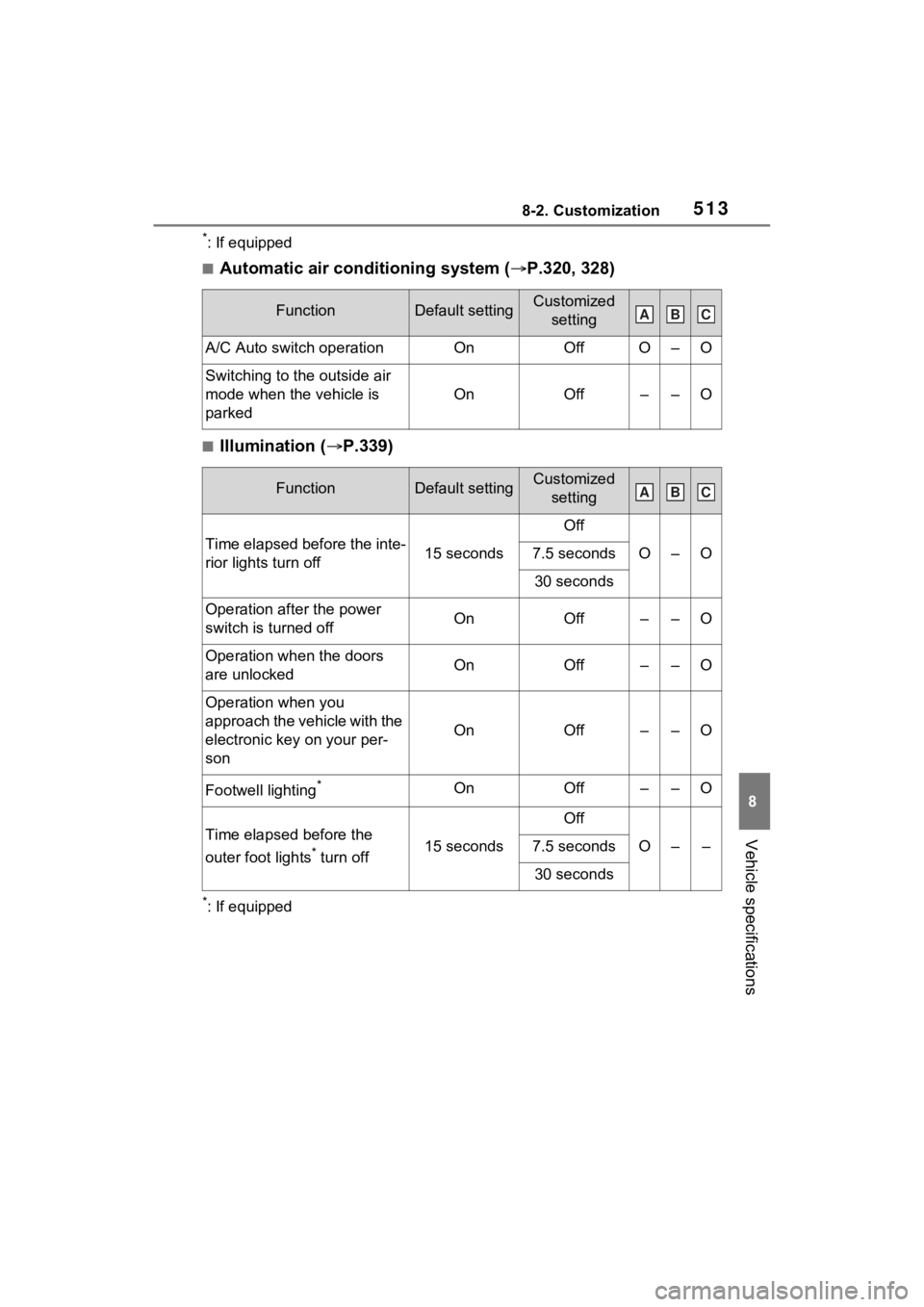

■Automatic air conditioning system (P.320, 328)
■Illumination ( P.339)
*: If equipped
FunctionDefault settingCustomized
setting
A/C Auto switch operationOnOffO–O
Switching to t he outside air
mode when the vehicle is
parked
OnOff––O
FunctionDefault settingCustomized setting
Time elapsed before the inte-
rior lights turn off15 seconds
Off
O–O7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff––O
Operation when the doors
are unlockedOnOff––O
Operation when you
approach the vehicle with the
electronic key on your per-
son
OnOff––O
Footwell lighting*OnOff––O
Time elapsed before the
outer foot lights
* turn off15 seconds
Off
O––7.5 seconds
30 seconds
ABC
ABC

5148-2. Customization
■Panoramic fixed moon roof with one-touch frosted glass con-
trol
* ( P.350)
*: If equipped
■Vehicle customization
●When the speed linked door locking function and shift position linked door
locking function are both on, th e door lock operates as follows .
• If the vehicle is started with a ll the doors locked, the speed linked door
locking function would not operate.
• If the vehicle is started with any door unlocked, the speed li nked door lock-
ing function will operate.
• When shifting the shift lever to any position other than P, all the doors will
be locked.
●When the smart key system is o ff, the selecting door to unlock cannot be
customized.
●When the doors remain closed after unlocking the doors and the auto-
matic door lock function is ac tivated, the signals will be gene rated in
accordance with the Operation si gnal (buzzer) and the Operation signal
(emergency flashers) settings.
FunctionDefault settingCustomized
setting
Opaque/transparent state
memory function when the
power switch is turned to
OFF
OffOn––O
ABC

5158-3. Initialization
8
Vehicle specifications
8-3.Initialization
*: If equipped

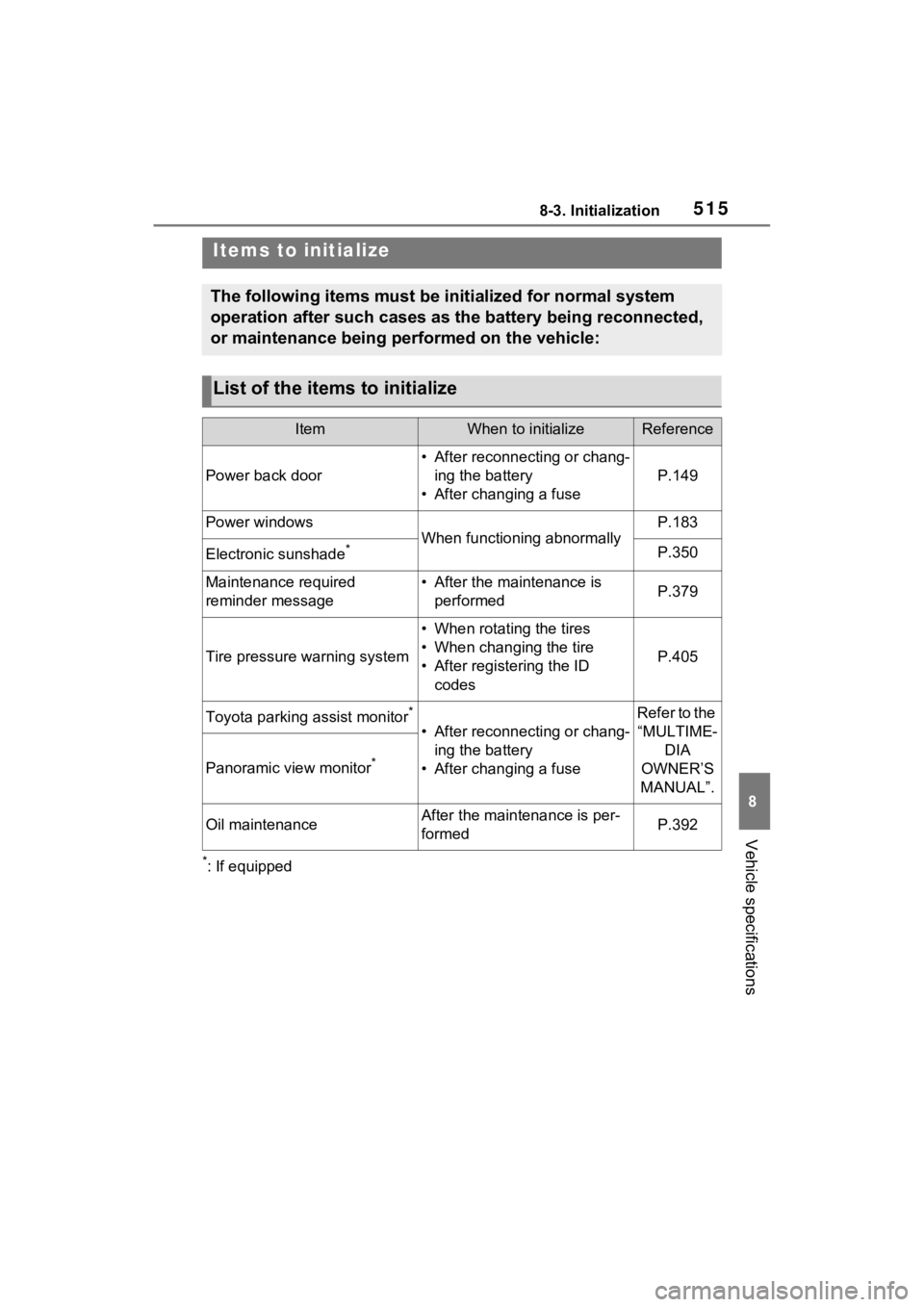

Items to initialize
The following items must be initialized for normal system
operation after such cases as the battery being reconnected,
or maintenance being performed on the vehicle:
List of the items to initialize
ItemWhen to initializeReference
Power back door
• After reconnecting or chang-ing the battery
• After changing a fuse
P.149
Power windows
When functioning abnormally
P.183
Electronic sunshade*P.350
Maintenance required
reminder message• After the maintenance is performedP.379
Tire pressure warning system
• When rotating the tires
• When changing the tire
• After registering the ID
codes
P.405
Toyota parking assist monitor*
• After reconnecting or chang-ing the battery
• After changing a fuse
Refer to the “MULTIME- DIA
OWNER’S
MANUAL”.
Panoramic view monitor*
Oil maintenanceAfter the maintenance is per-
formedP.392

5168-3. Initialization

517
9
9
For owners
For owners
9-1. For ownersReporting safety defects for
U.S. owners............... 518
Reporting safety defects for
Canadian owners ...... 519
Seat belt instructions for Canadian owners (in
French) ...................... 519
SRS airbag instructions for Canadian owners (in
French) ...................... 521
Headlight aim instructions for Canadian owners (in
French) ...................... 528

5189-1. For owners
9-1.For owners

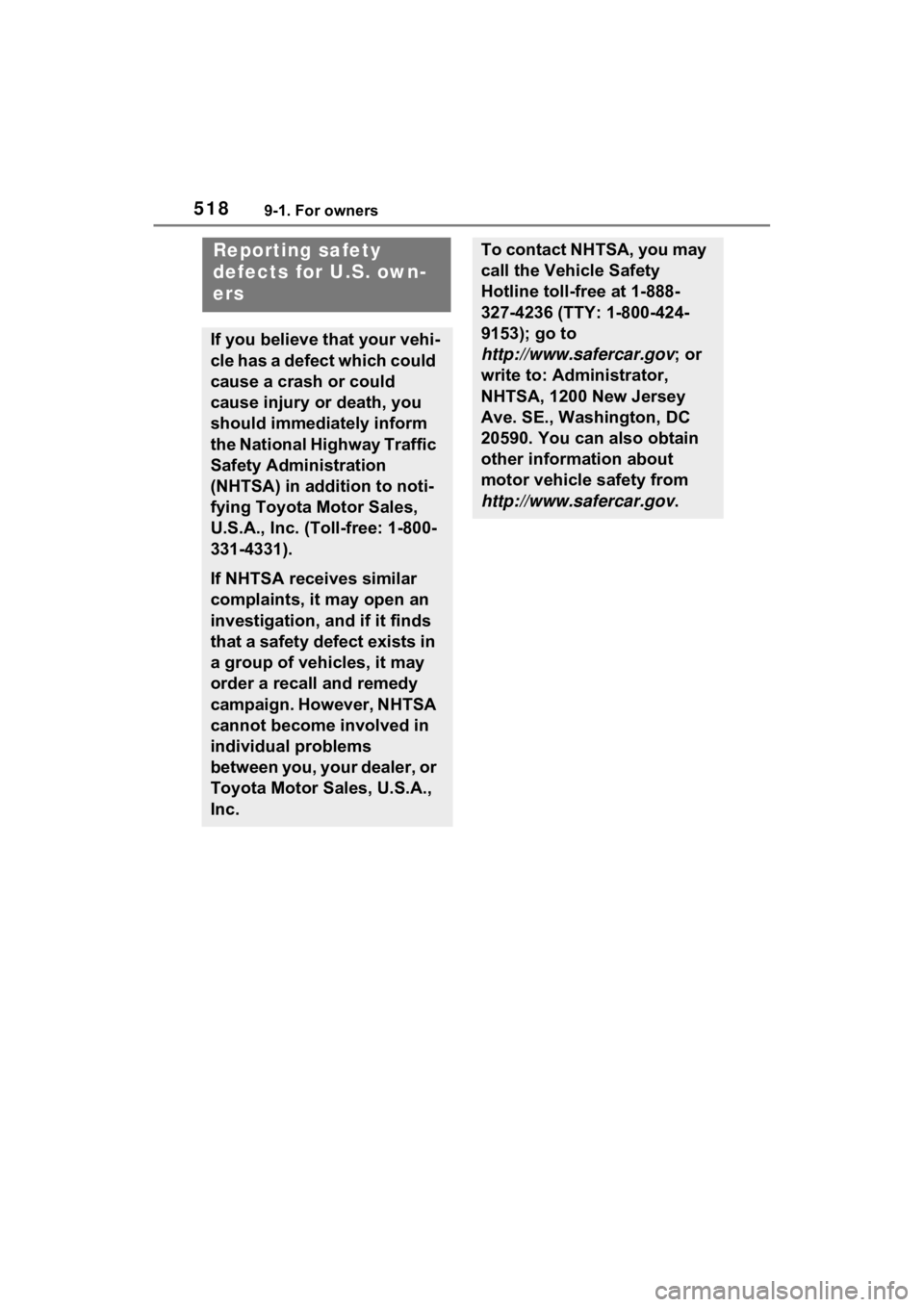

Reporting safety
defects for U.S. own-
ers
If you believe that your vehi-
cle has a defect which could
cause a crash or could
cause injury or death, you
should immediately inform
the National Highway Traffic
Safety Administration
(NHTSA) in addition to noti-
fying Toyota Motor Sales,
U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives similar
complaints, it may open an
investigation, and if it finds
that a safety defect exists in
a group of vehicles, it may
order a recall and remedy
campaign. However, NHTSA
cannot become involved in
individual problems
between you, your dealer, or
Toyota Motor Sales, U.S.A.,
Inc.
To contact NHTSA, you may
call the Vehicle Safety
Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-
9153); go to
http://www.safercar.gov; or
write to: Administrator,
NHTSA, 1200 New Jersey
Ave. SE., Washington, DC
20590. You can also obtain
other information about
motor vehicle safety from
http://www.safercar.gov .

5199-1. For owners
9
For owners
Tirez sur la ceinture épau-
lière jusqu’à ce qu’elle recou-
vre entièrement l’épaule; elle
ne doit cependant pas
toucher le cou ni glisser de
l’épaule.
 Placez la ceinture abdominale
le plus bas possible sur les
hanches.
 Réglez la position du dossier.
Tenez-vous assis bien au
fond du siège, le dos droit.
 Ne vrillez pas la ceinture de
sécurité.
Reporting safety
defects for Canadian
owners
Canadian customers who
wish to report a safety-
related defect to Transport
Canada, Defects Investiga-
tions and Recalls, may tele-
phone the toll-free hotline 1-
800-333-0510, mail Trans-
port Canada - ASFAD, 330
Sparks Street, Ottawa, ON,
K1A 0N5, or complete the
online form at
https://www.tc.gc.ca/recalls .
Seat belt instructions
for Canadian owners
(in French)
The following is a French
explanation of seat belt
instructions extracted from
the seat belt section in this
manual.
See the seat belt section for
more detailed seat belt
instructions in English.
Utilisation adéquate des
ceintures de sécurité

5209-1. For owners
■Manipulation des ceintures
de sécurité
Avec un chiffon ou une éponge,
nettoyez à l’aide d’un savon
doux et de l’eau tiède. Vérifiez
aussi les ceintures régulière-
ment pour vous assurer qu’elles
ne présentent pas d’usure
excessive, d’effilochage ou de
coupures.
Entretien et soin
AVERTISSEMENT
■Dommages et usure de la
ceinture de sécurité
Vérifiez périodiquement le sys-
tème de ceintures de sécurité.
Vérifiez qu’il n’y a pas de cou-
pures, d’effilochures ni de pièces
desserrées. N’utilisez pas une
ceinture de sécurité endommagée
avant qu’elle ne soit remplacée.
Les ceintures de sécurité endom-
magées ne peuvent pas protéger
les occupants contre les bless-
ures graves, voire mortelles.
