Page 351 of 588

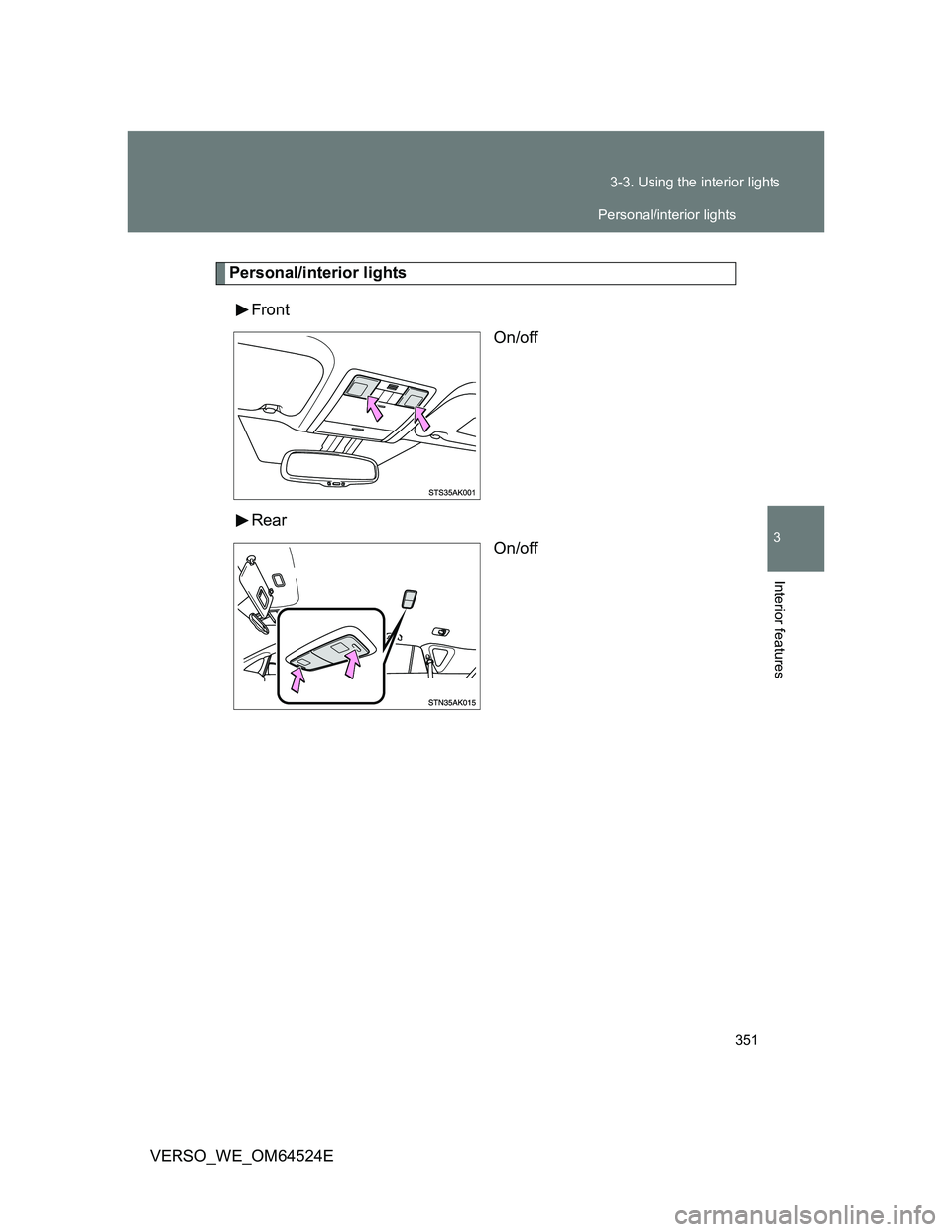

351 3-3. Using the interior lights
3
Interior features
VERSO_WE_OM64524E
Personal/interior lights
Front
On/off
Rear
On/off
Personal/interior lights
Page 352 of 588
352
VERSO_WE_OM64524E
3-4. Using the storage features
List of storage features
CAUTION
Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Overhead console
Auxiliary boxes
Glove box
Bottle holders
Cup holders
Console box
Page 353 of 588
353 3-4. Using the storage features
3
Interior features
VERSO_WE_OM64524E
Glove box
Unlock with the master key or
mechanical key
Lock with the master key or
mechanical key
Pull the lever up.
Glove box light
The glove box light turns on when the tail lights are on.
CAUTION
Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box
Page 354 of 588

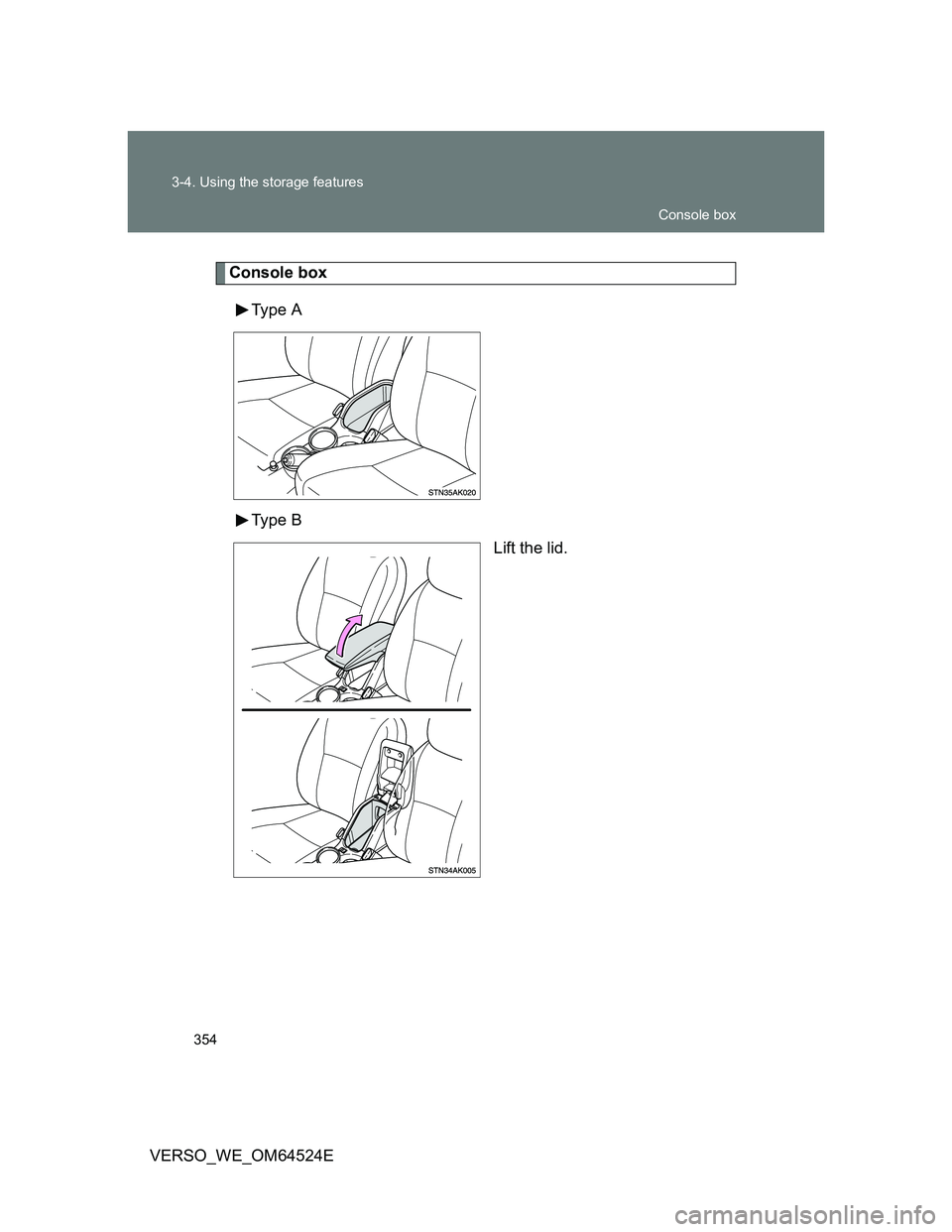

354 3-4. Using the storage features
VERSO_WE_OM64524E
Console box
Type A
Type B
Lift the lid.
Console box
Page 355 of 588

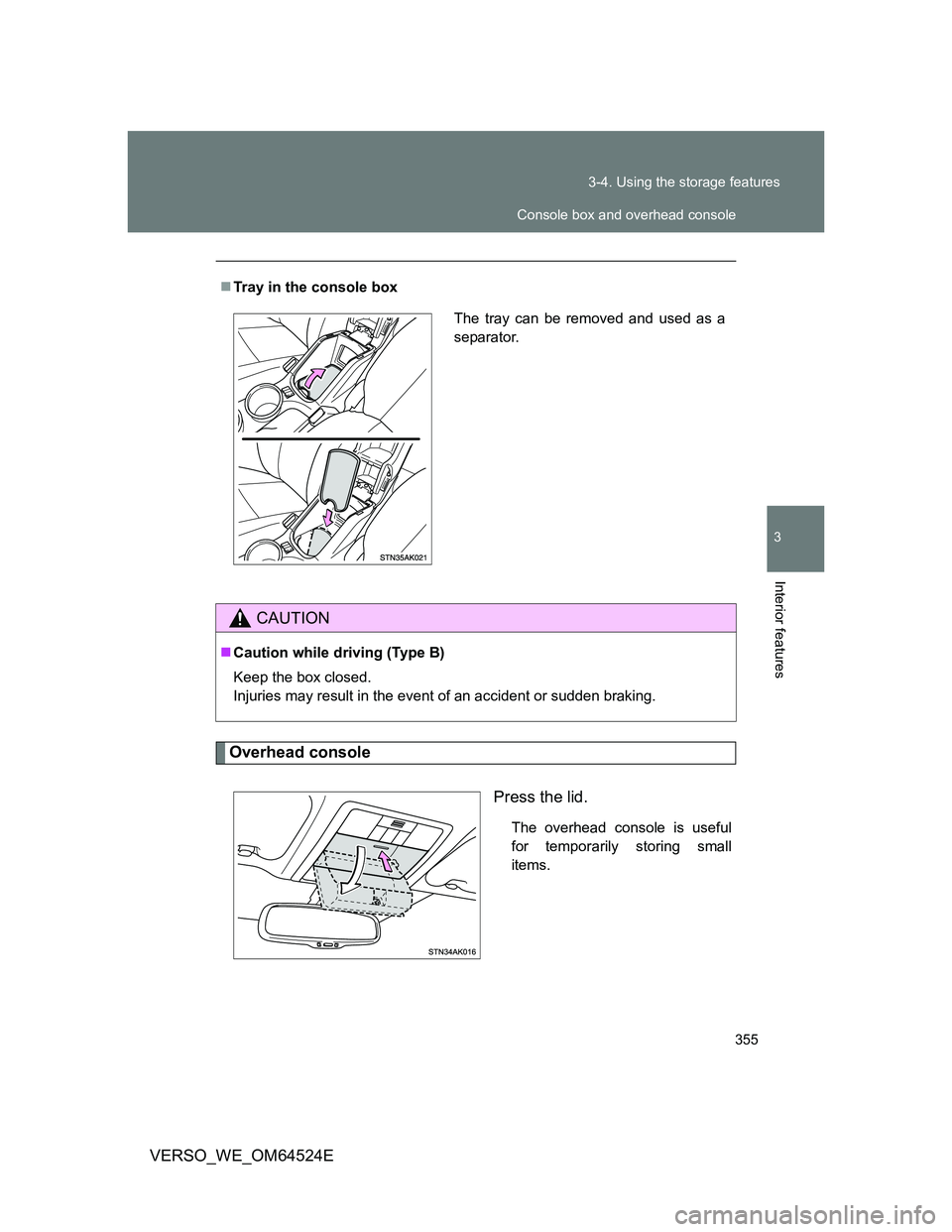

355 3-4. Using the storage features
3
Interior features
VERSO_WE_OM64524E
Overhead console
Press the lid.
The overhead console is useful
for temporarily storing small
items. Tray in the console box
CAUTION
Caution while driving (Type B)
Keep the box closed.
Injuries may result in the event of an accident or sudden braking.
The tray can be removed and used as a
separator.
Console box and overhead console
Page 356 of 588

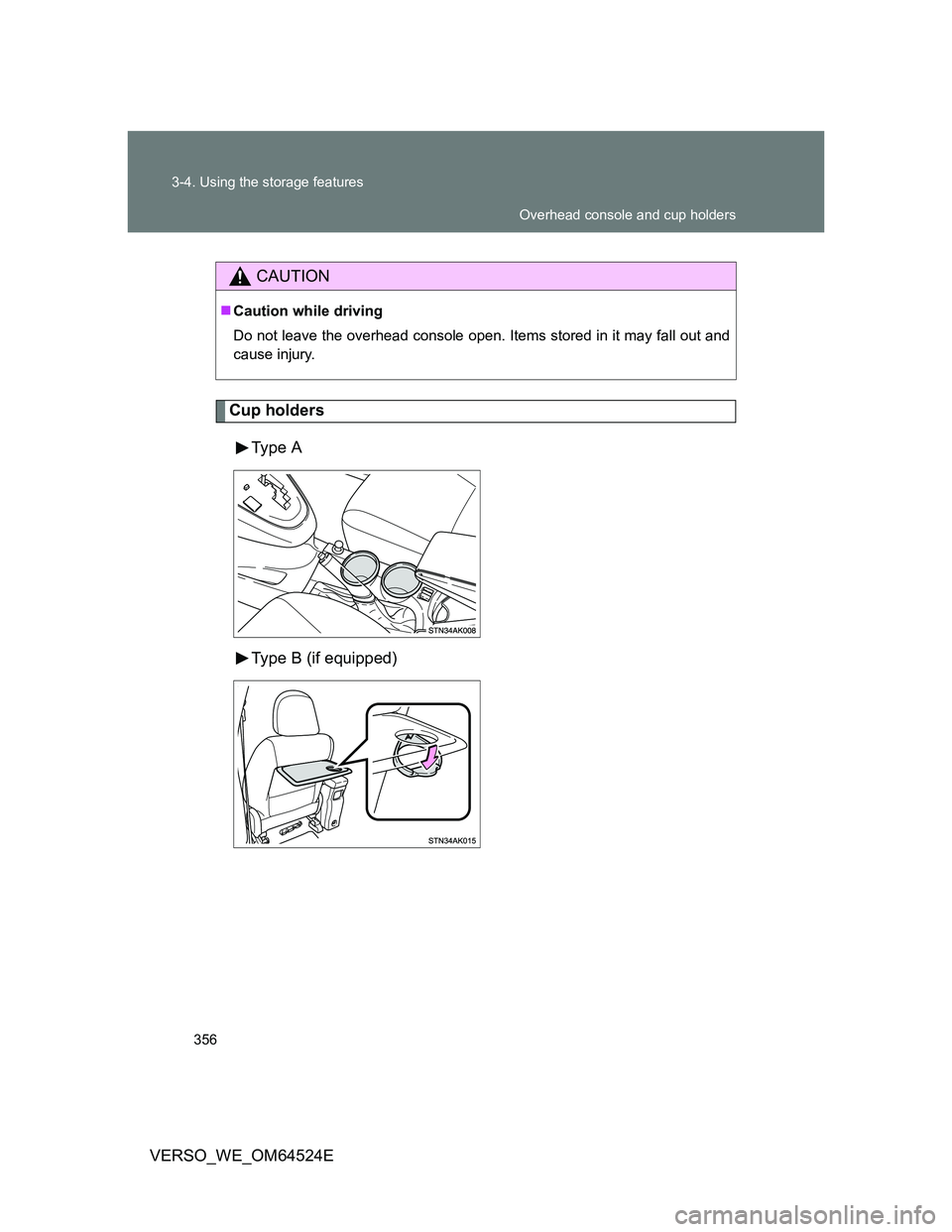

356 3-4. Using the storage features
VERSO_WE_OM64524E
Cup holders
Type A
Type B (if equipped)
CAUTION
Caution while driving
Do not leave the overhead console open. Items stored in it may fall out and
cause injury.
Overhead console and cup holders
Page 357 of 588

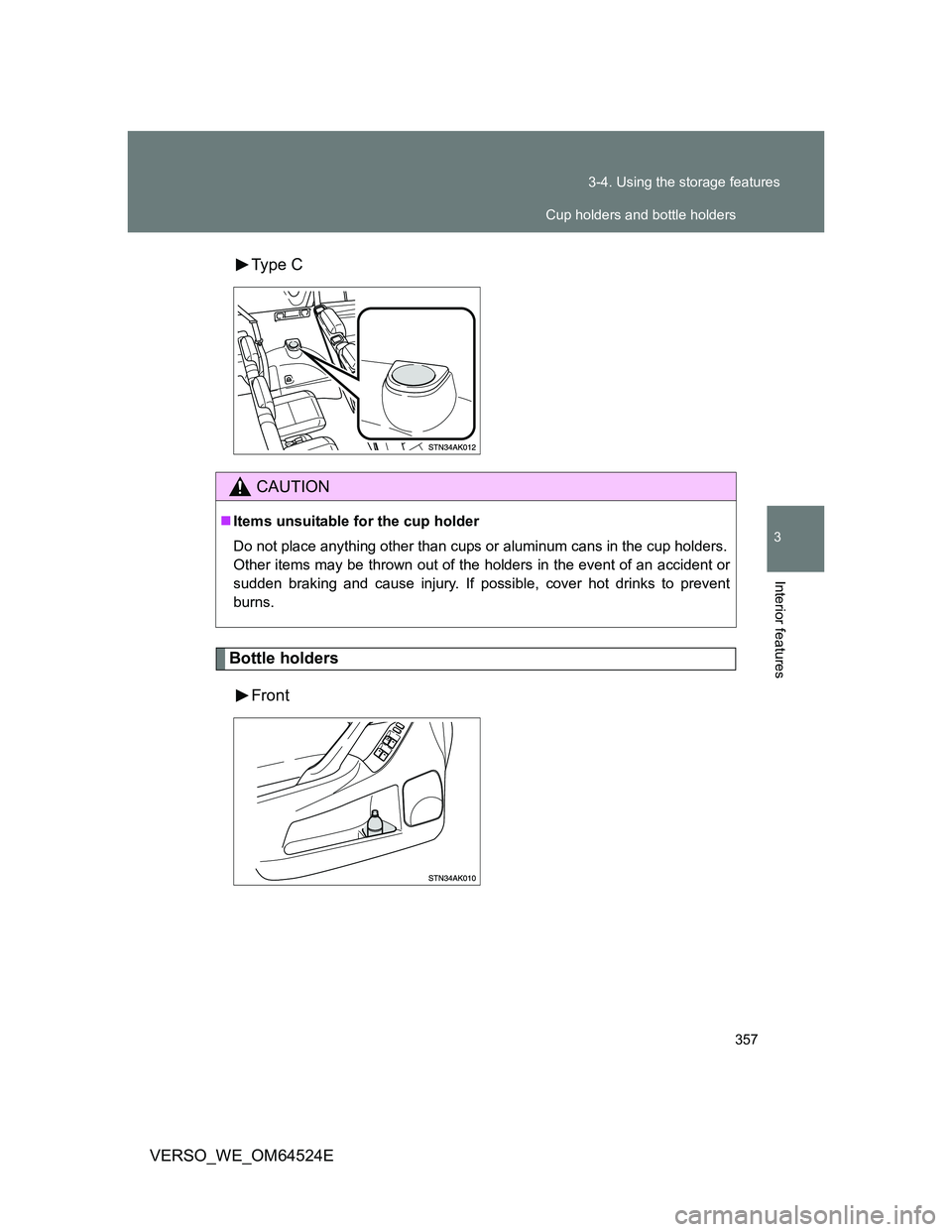

357 3-4. Using the storage features
3
Interior features
VERSO_WE_OM64524EType C
Bottle holders
Front
CAUTION
Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
Cup holders and bottle holders
Page 358 of 588
358 3-4. Using the storage features
VERSO_WE_OM64524ERear
Auxiliary boxes
Type A
Press the button.
NOTICE
Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders and auxiliary boxes
Page 359 of 588

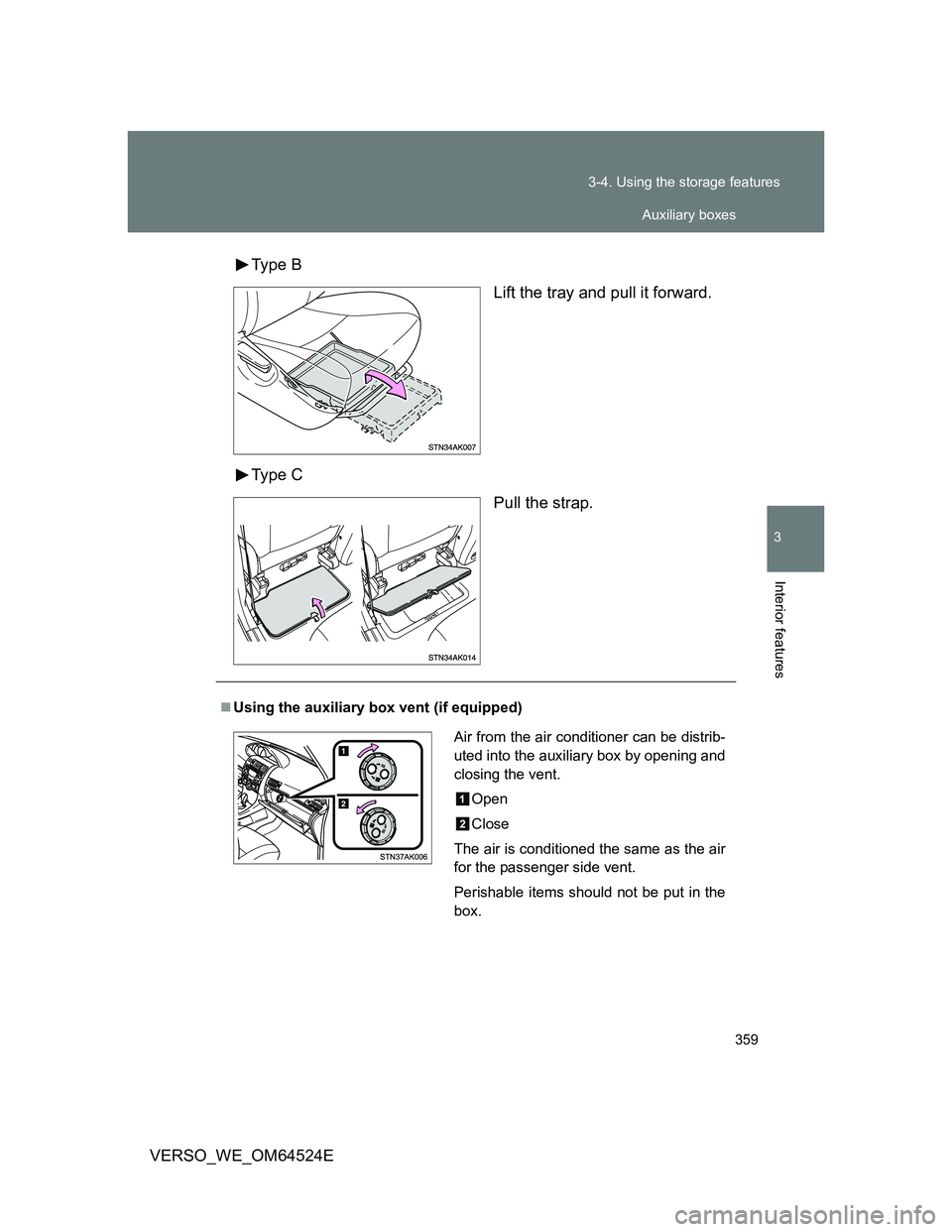

359 3-4. Using the storage features
3
Interior features
VERSO_WE_OM64524EType B
Lift the tray and pull it forward.
Type C
Pull the strap.
Using the auxiliary box vent (if equipped)
Air from the air conditioner can be distrib-
uted into the auxiliary box by opening and
closing the vent.
Open
Close
The air is conditioned the same as the air
for the passenger side vent.
Perishable items should not be put in the
box.
Auxiliary boxes
Page 360 of 588

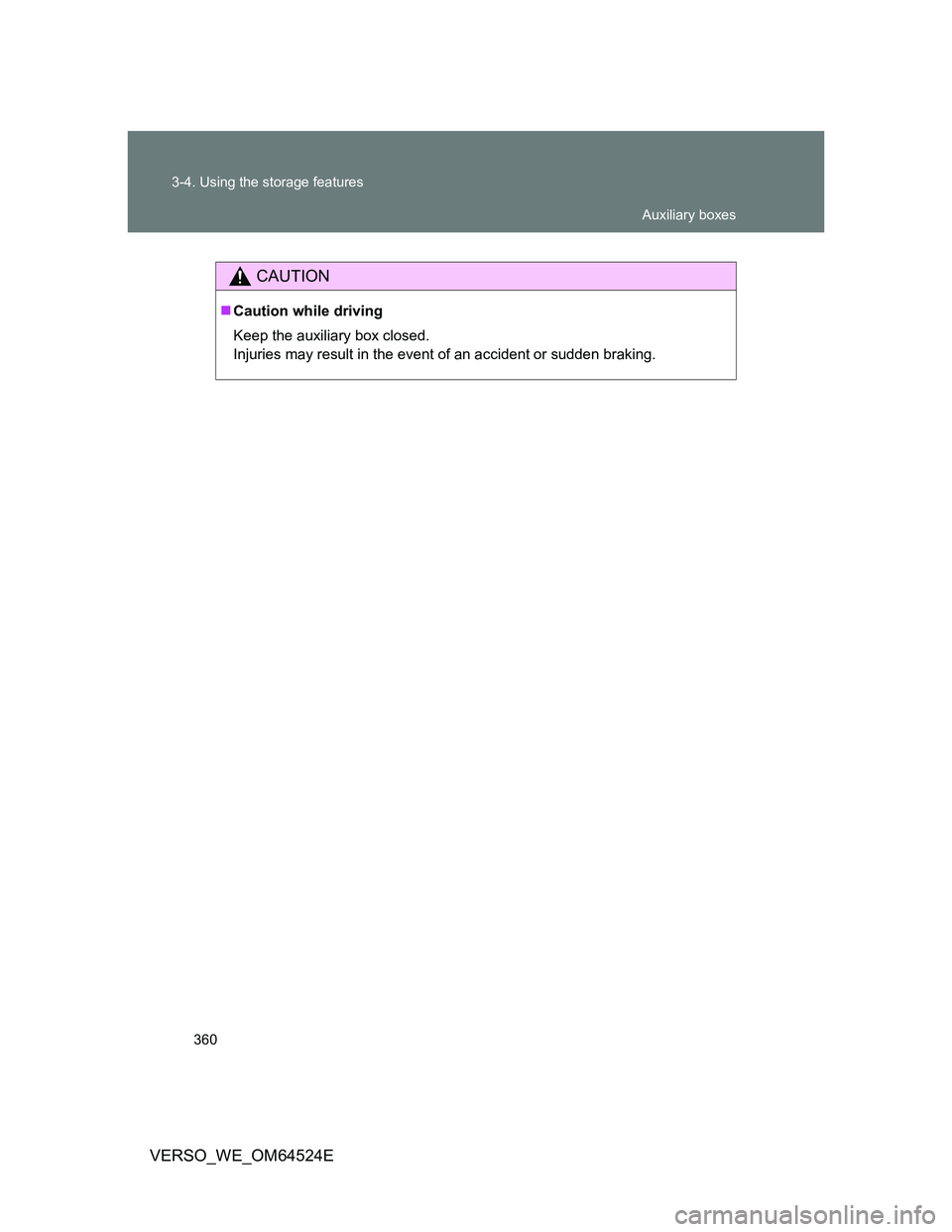

360 3-4. Using the storage features
VERSO_WE_OM64524E
CAUTION
Caution while driving
Keep the auxiliary box closed.
Injuries may result in the event of an accident or sudden braking.
Auxiliary boxes
