TOYOTA VERSO 2012 Owners Manual

371
3-5. Other interior features
3
Interior features
VERSO_WE_OM64524E

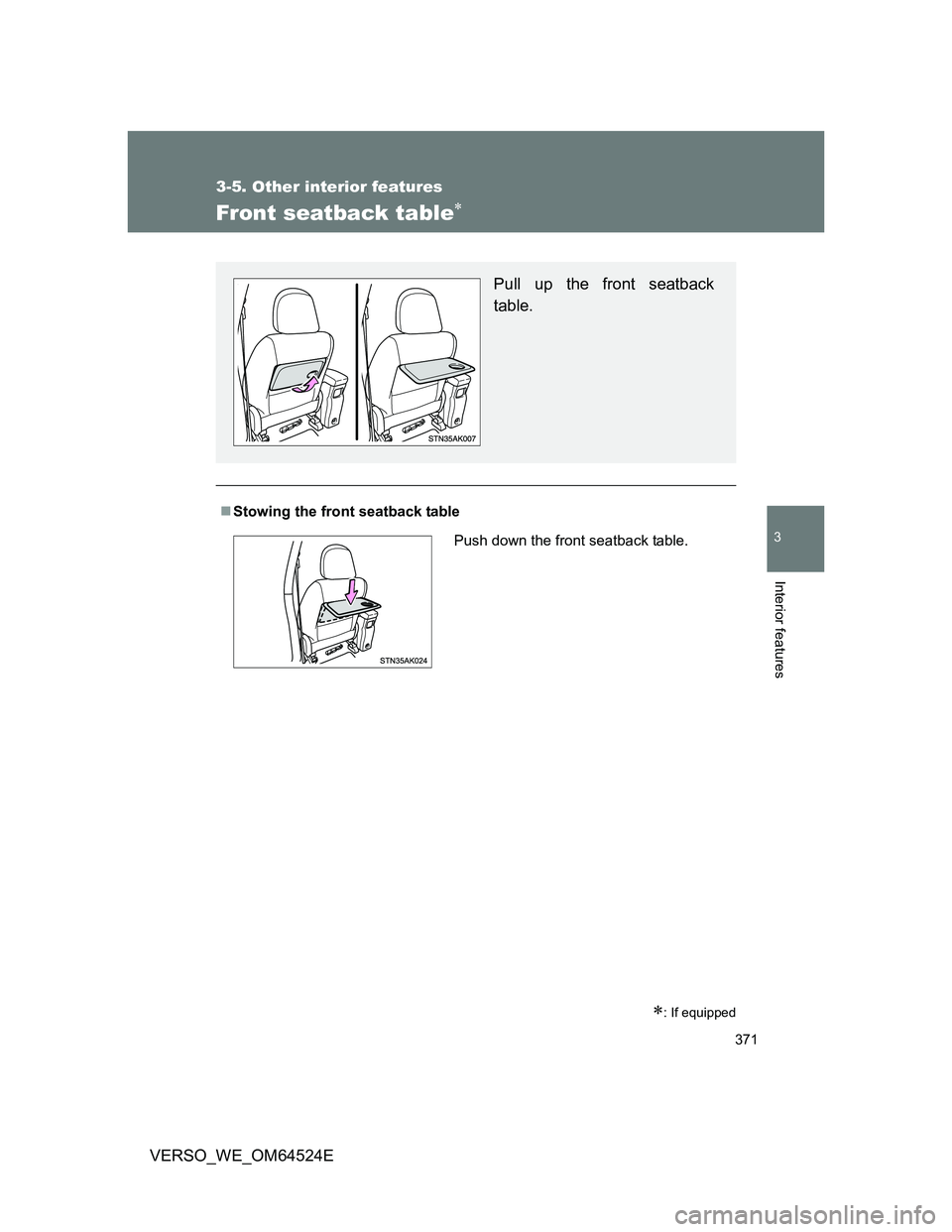

Front seatback table
: If equipped
Stowing the front seatback table
Pull up the front seatback
table.
Push down the front seatback table.

372 3-5. Other interior features
VERSO_WE_OM64524E
CAUTION
Front seatback table precautions
Failure to follow the precautions below may cause death or serious injury.
Be careful not to get your hands caught in the front seatback table.
Do not use the front seatback table while the vehicle is moving.
Make sure the front seatback table is folded down and locked securely
when not in use.
Do not use the front seatback table while using a child restraint system on
the second seat.
Do not move the front seats.
Do not lean on the front seatback table or put your hands or elbow on it.
NOTICE
To prevent damage to the front seatback table
Do not place more than 2 kg (4.4 lb.) of weight on the front seatback table.
The table could retract unexpectedly, possibly damaging the front seatback
table.

373
3-5. Other interior features
3
Interior features
VERSO_WE_OM64524E

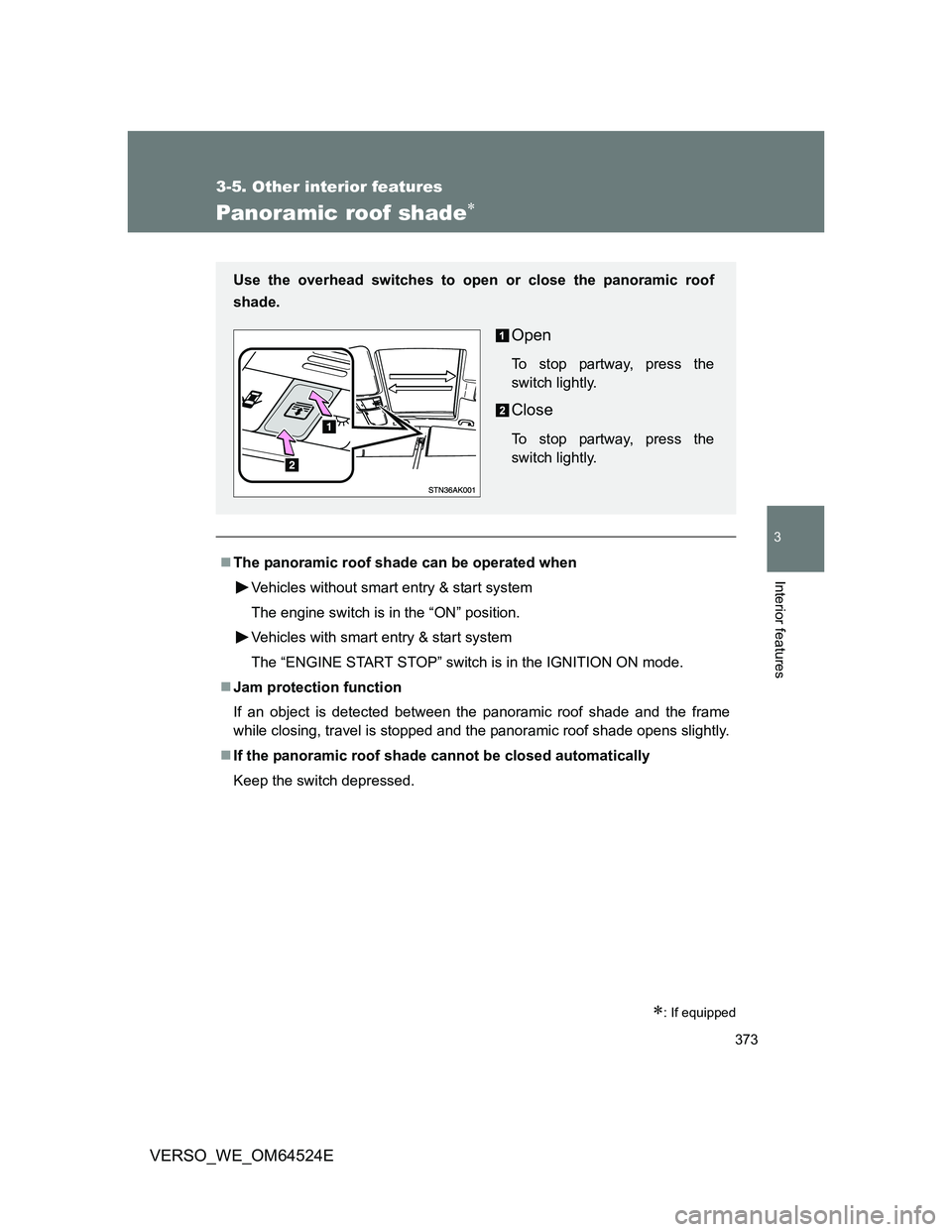

Panoramic roof shade
: If equipped
The panoramic roof shade can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the IGNITION ON mode.
Jam protection function
If an object is detected between the panoramic roof shade and the frame
while closing, travel is stopped and the panoramic roof shade opens slightly.
If the panoramic roof shade cannot be closed automatically
Keep the switch depressed.
Use the overhead switches to open or close the panoramic roof
shade.
Open
To stop partway, press the
switch lightly.
Close
To stop partway, press the
switch lightly.

374 3-5. Other interior features
VERSO_WE_OM64524E

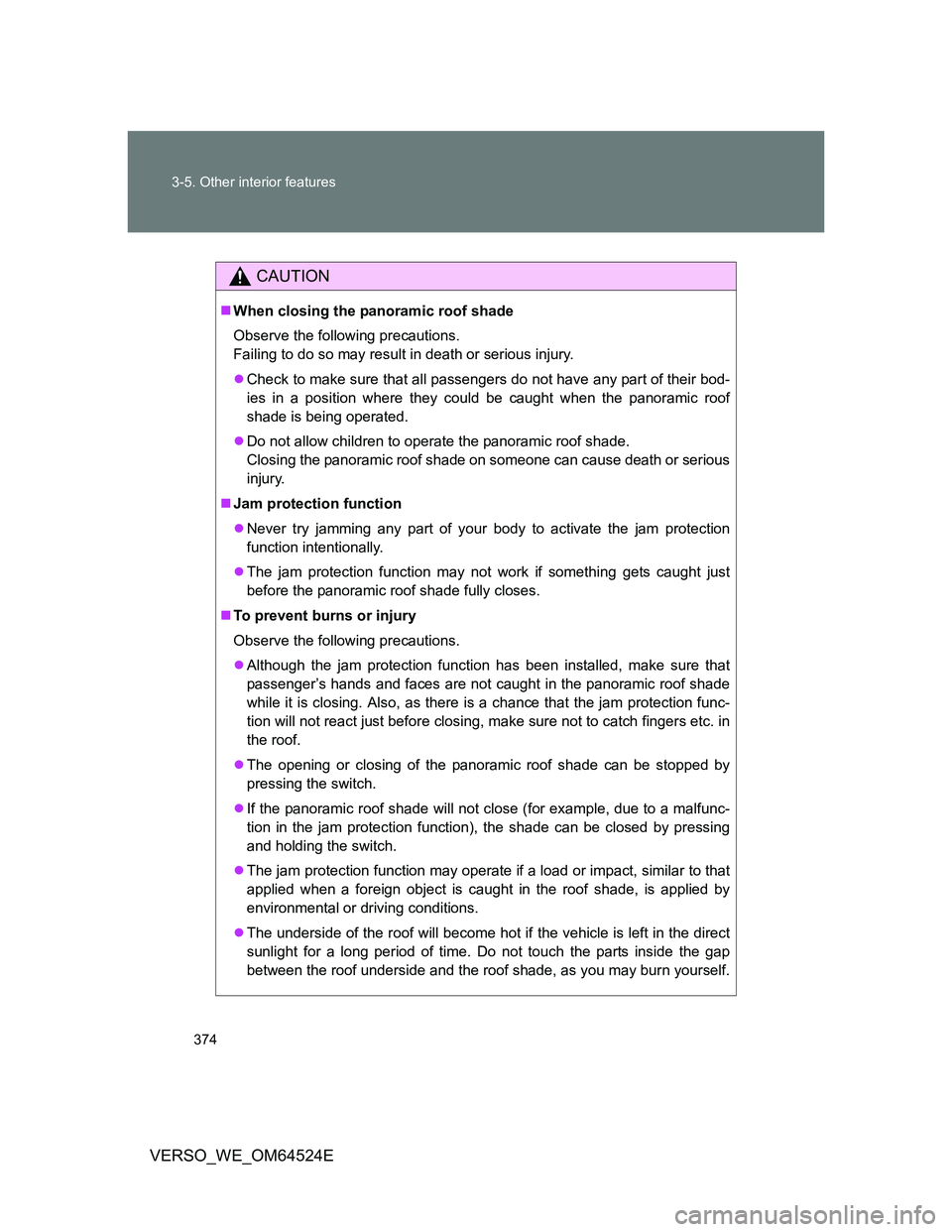

CAUTION
When closing the panoramic roof shade
Observe the following precautions.
Failing to do so may result in death or serious injury.
Check to make sure that all passengers do not have any part of their bod-
ies in a position where they could be caught when the panoramic roof
shade is being operated.
Do not allow children to operate the panoramic roof shade.
Closing the panoramic roof shade on someone can cause death or serious
injury.
Jam protection function
Never try jamming any part of your body to activate the jam protection
function intentionally.
The jam protection function may not work if something gets caught just
before the panoramic roof shade fully closes.
To prevent burns or injury
Observe the following precautions.
Although the jam protection function has been installed, make sure that
passenger’s hands and faces are not caught in the panoramic roof shade
while it is closing. Also, as there is a chance that the jam protection func-
tion will not react just before closing, make sure not to catch fingers etc. in
the roof.
The opening or closing of the panoramic roof shade can be stopped by
pressing the switch.
If the panoramic roof shade will not close (for example, due to a malfunc-
tion in the jam protection function), the shade can be closed by pressing
and holding the switch.
The jam protection function may operate if a load or impact, similar to that
applied when a foreign object is caught in the roof shade, is applied by
environmental or driving conditions.
The underside of the roof will become hot if the vehicle is left in the direct
sunlight for a long period of time. Do not touch the parts inside the gap
between the roof underside and the roof shade, as you may burn yourself.

375 3-5. Other interior features
3
Interior features
VERSO_WE_OM64524E

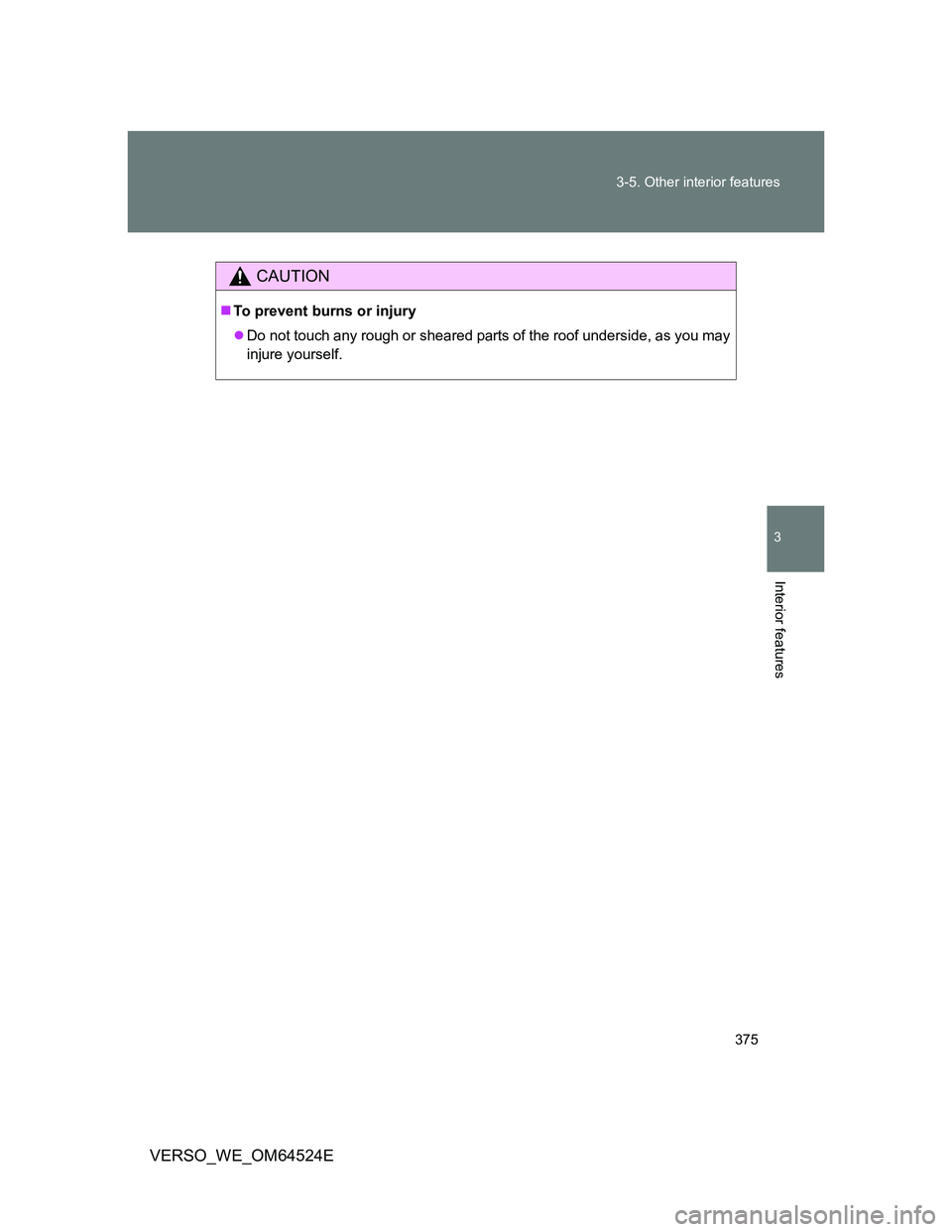

CAUTION
To prevent burns or injury
Do not touch any rough or sheared parts of the roof underside, as you may
injure yourself.

376
3-5. Other interior features
VERSO_WE_OM64524E

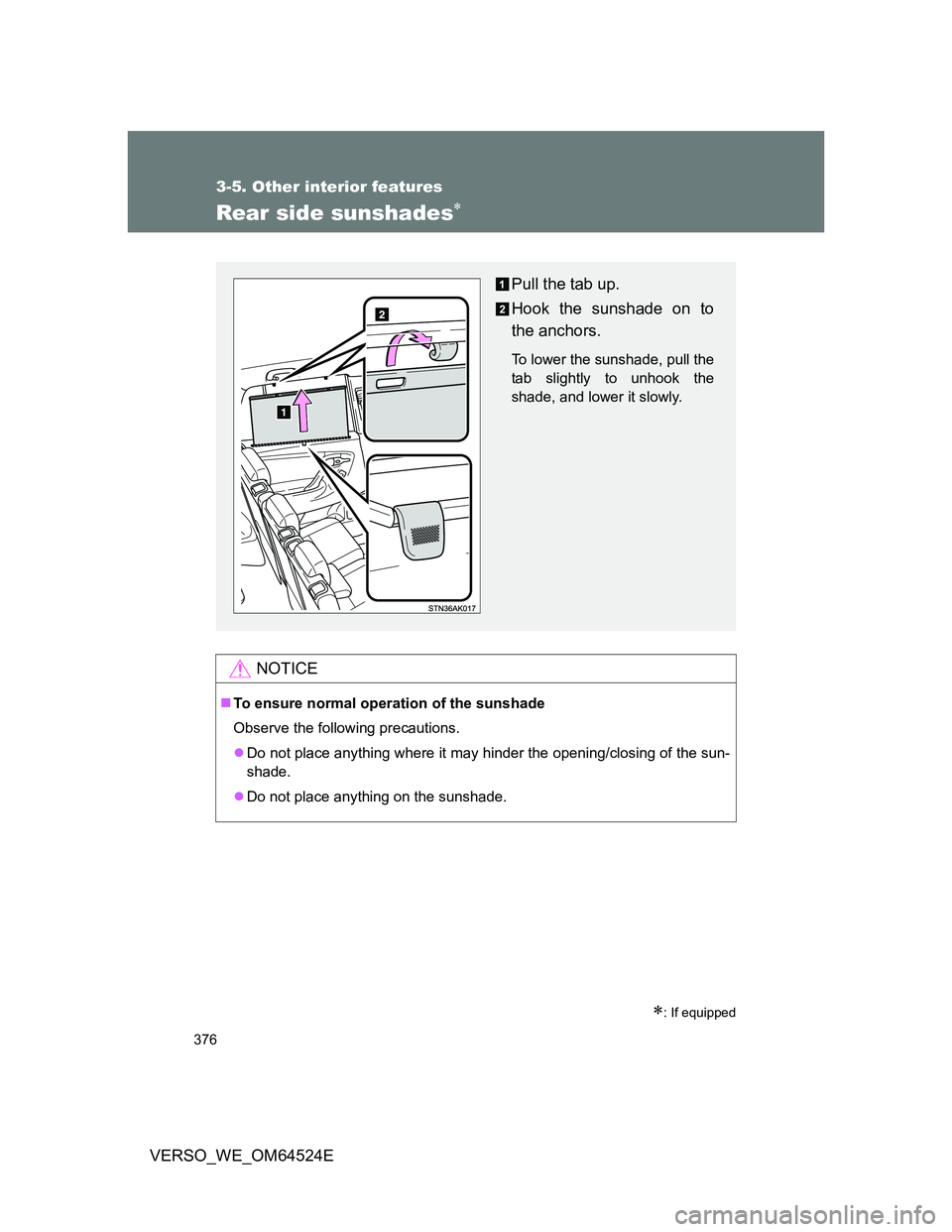

Rear side sunshades
: If equipped
NOTICE
To ensure normal operation of the sunshade
Observe the following precautions.
Do not place anything where it may hinder the opening/closing of the sun-
shade.
Do not place anything on the sunshade.
Pull the tab up.
Hook the sunshade on to
the anchors.
To lower the sunshade, pull the
tab slightly to unhook the
shade, and lower it slowly.

377
3-5. Other interior features
3
Interior features
VERSO_WE_OM64524E

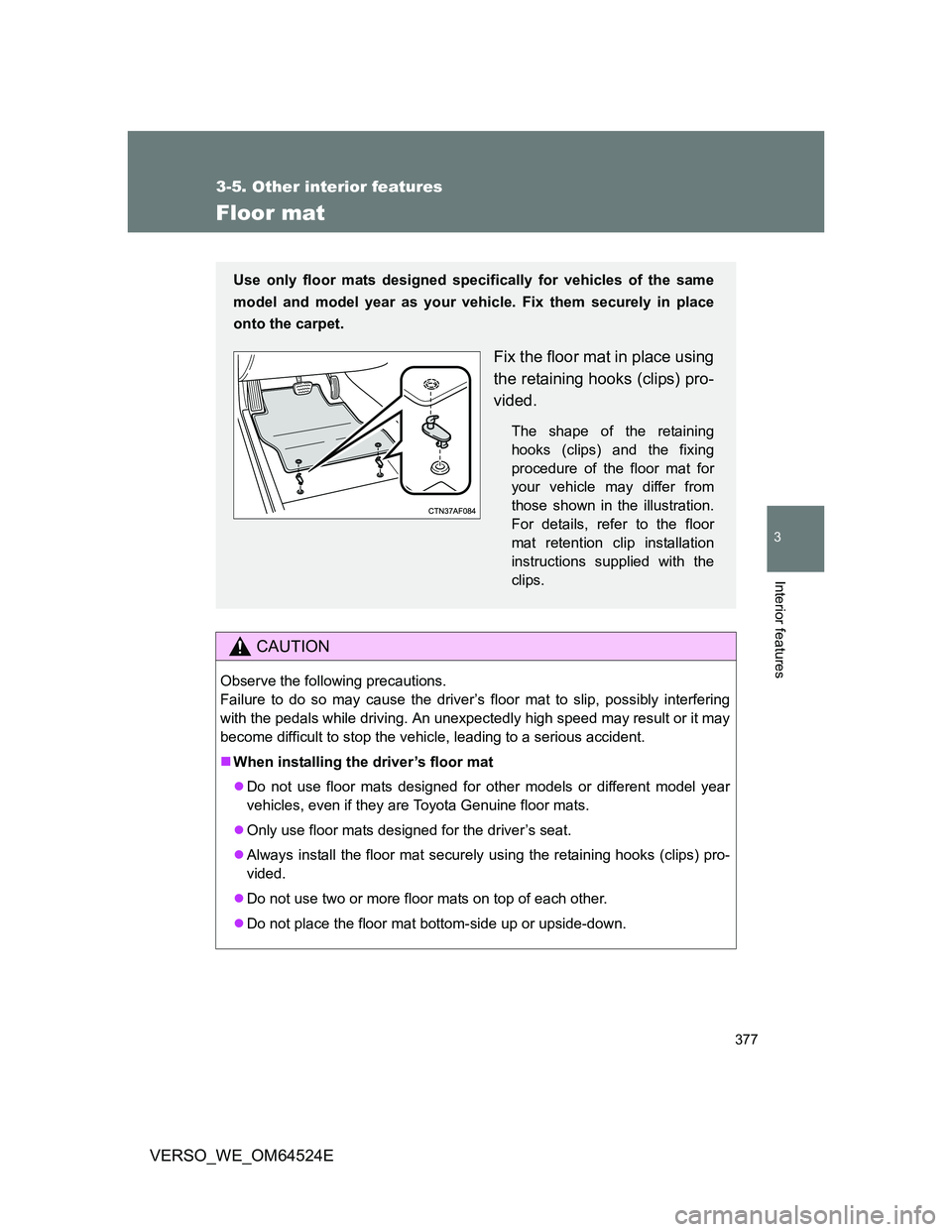

Floor mat
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Fix the floor mat in place using
the retaining hooks (clips) pro-
vided.
The shape of the retaining
hooks (clips) and the fixing
procedure of the floor mat for
your vehicle may differ from
those shown in the illustration.
For details, refer to the floor
mat retention clip installation
instructions supplied with the
clips.

378 3-5. Other interior features
VERSO_WE_OM64524E

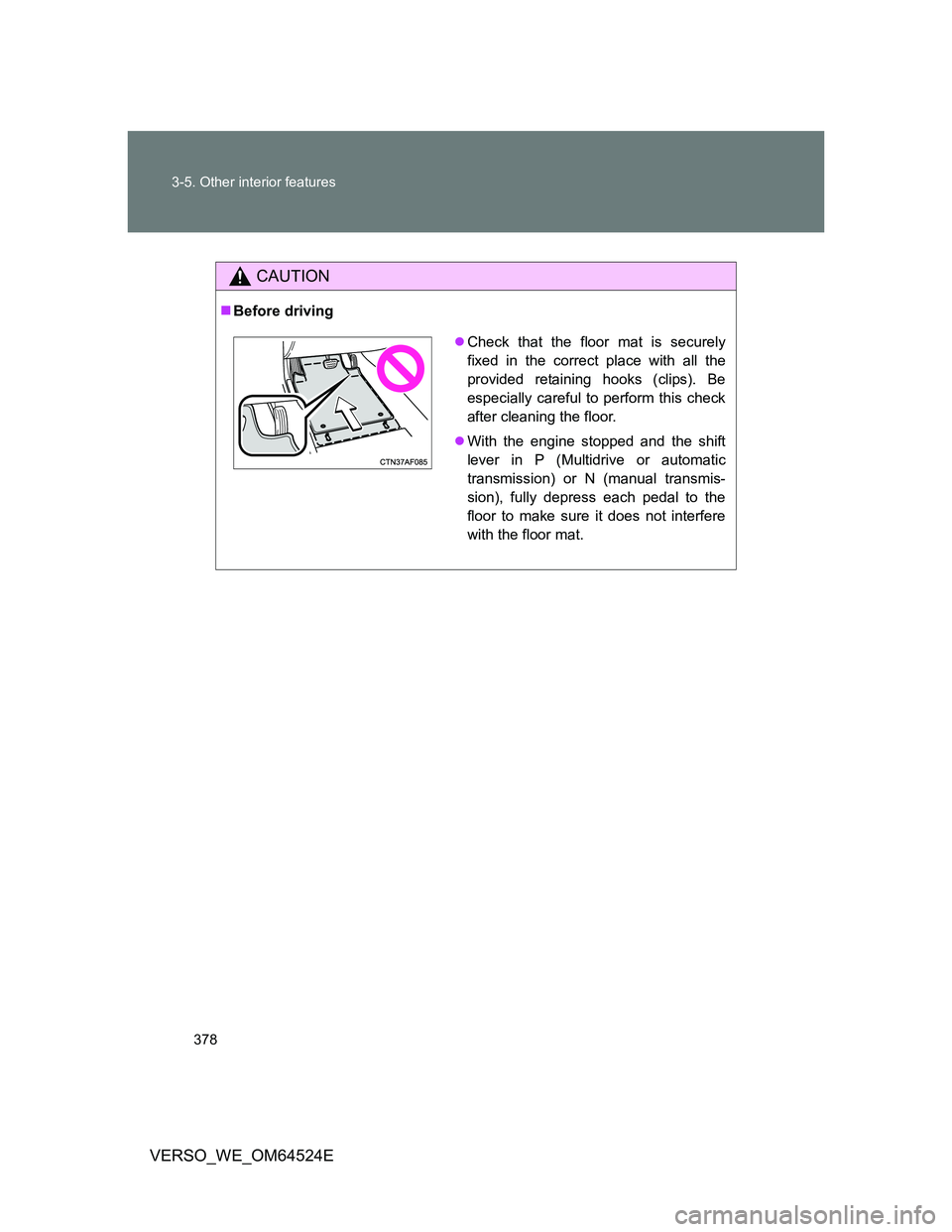

CAUTION
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the engine stopped and the shift
lever in P (Multidrive or automatic
transmission) or N (manual transmis-
sion), fully depress each pedal to the
floor to make sure it does not interfere
with the floor mat.

379
3-5. Other interior features
3
Interior features
VERSO_WE_OM64524E

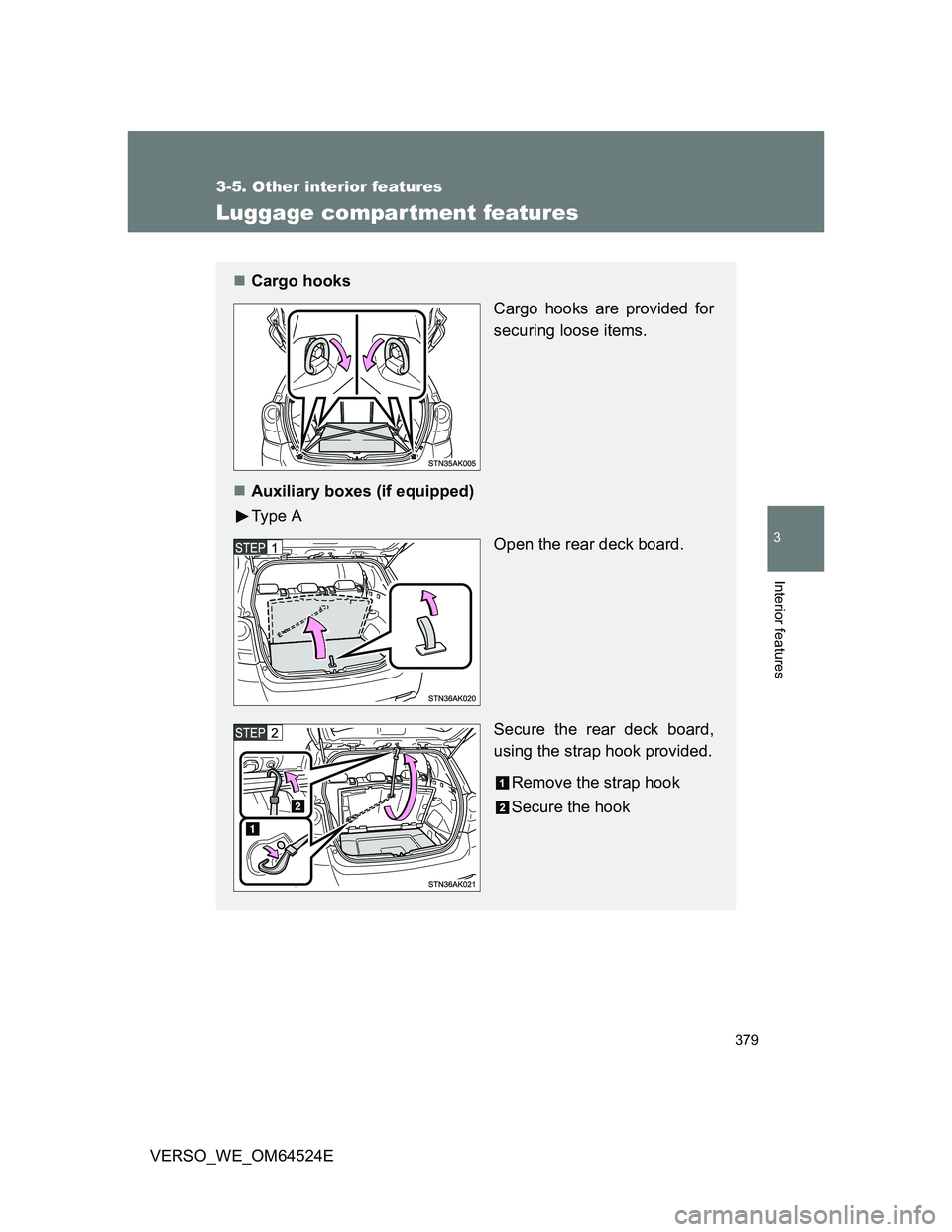

Luggage compar tment features
Cargo hooks
Cargo hooks are provided for
securing loose items.
Auxiliary boxes (if equipped)
Ty p e A
Open the rear deck board.
Secure the rear deck board,
using the strap hook provided.
Remove the strap hook
Secure the hook

380 3-5. Other interior features
VERSO_WE_OM64524E

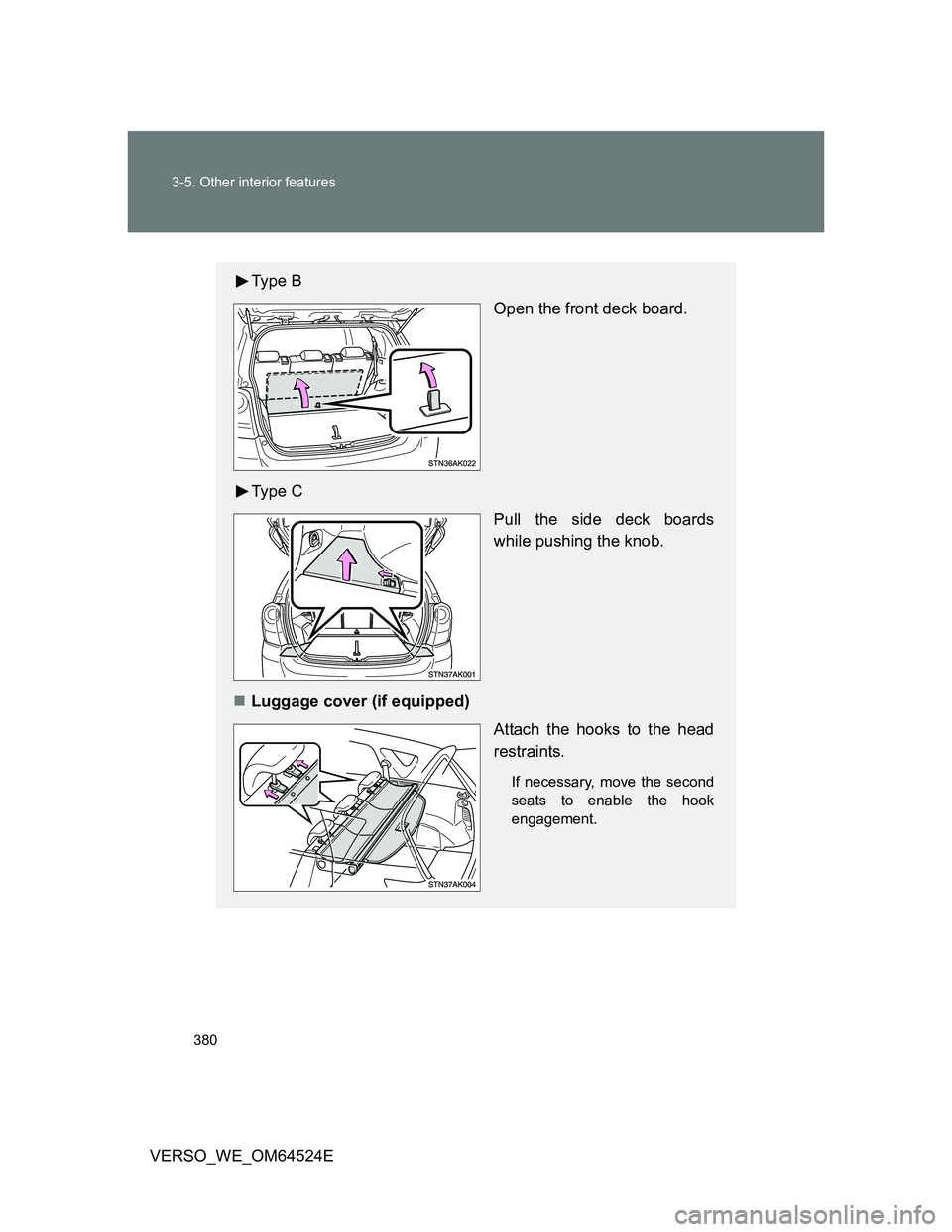

Ty p e B
Open the front deck board.
Ty p e C
Pull the side deck boards
while pushing the knob.
Luggage cover (if equipped)
Attach the hooks to the head
restraints.
If necessary, move the second
seats to enable the hook
engagement.
