Page 301 of 616

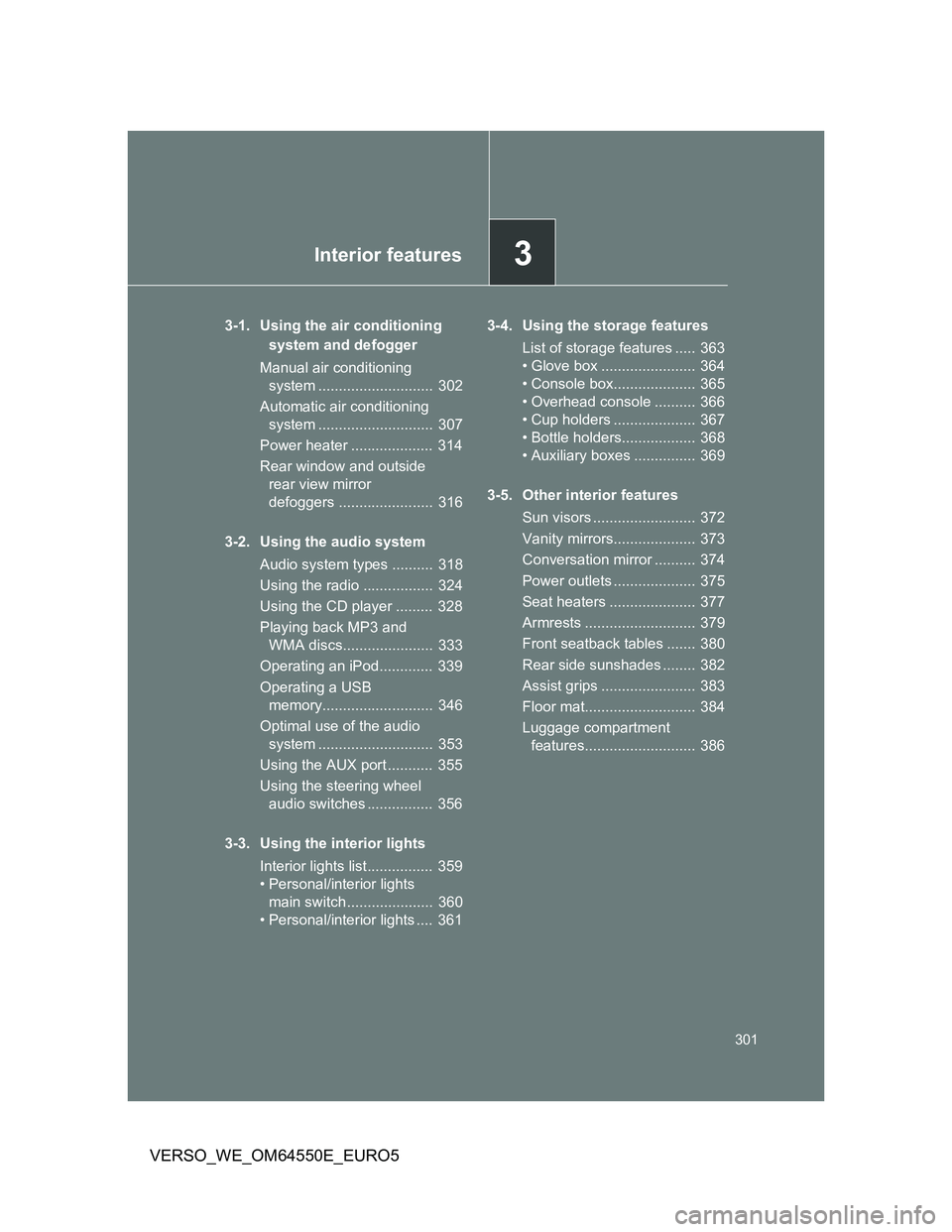

3Interior features
301
VERSO_WE_OM64550E_EURO5
3-1. Using the air conditioning
system and defogger
Manual air conditioning
system ............................ 302
Automatic air conditioning
system ............................ 307
Power heater .................... 314
Rear window and outside
rear view mirror
defoggers ....................... 316
3-2. Using the audio system
Audio system types .......... 318
Using the radio ................. 324
Using the CD player ......... 328
Playing back MP3 and
WMA discs...................... 333
Operating an iPod............. 339
Operating a USB
memory........................... 346
Optimal use of the audio
system ............................ 353
Using the AUX port ........... 355
Using the steering wheel
audio switches ................ 356
3-3. Using the interior lights
Interior lights list................ 359
• Personal/interior lights
main switch ..................... 360
• Personal/interior lights .... 3613-4. Using the storage features
List of storage features ..... 363
• Glove box ....................... 364
• Console box.................... 365
• Overhead console .......... 366
• Cup holders .................... 367
• Bottle holders.................. 368
• Auxiliary boxes ............... 369
3-5. Other interior features
Sun visors ......................... 372
Vanity mirrors.................... 373
Conversation mirror .......... 374
Power outlets .................... 375
Seat heaters ..................... 377
Armrests ........................... 379
Front seatback tables ....... 380
Rear side sunshades ........ 382
Assist grips ....................... 383
Floor mat........................... 384
Luggage compartment
features........................... 386
Page 302 of 616

302
VERSO_WE_OM64550E_EURO5
3-1. Using the air conditioning system and defogger

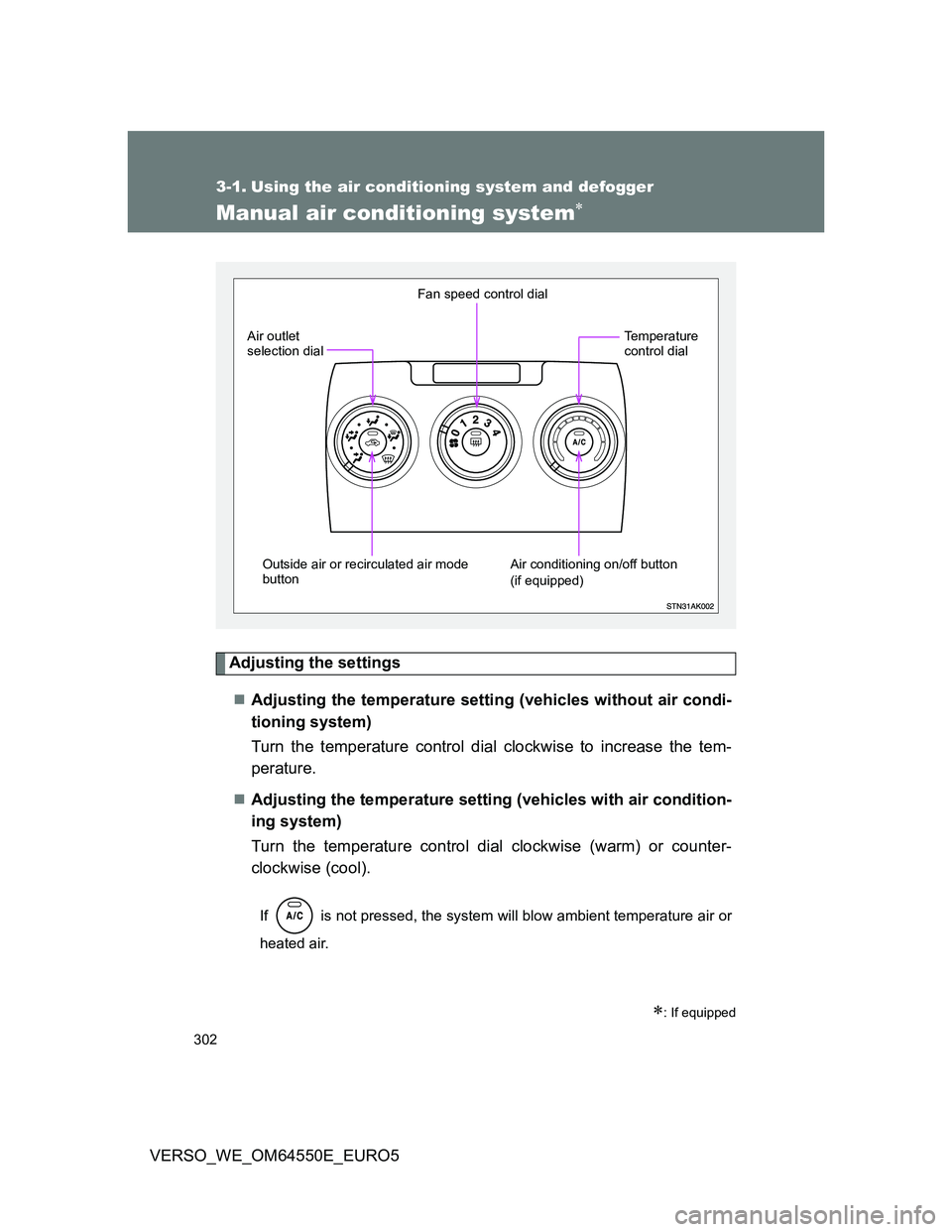

Manual air conditioning system
Adjusting the settings
Adjusting the temperature setting (vehicles without air condi-
tioning system)
Turn the temperature control dial clockwise to increase the tem-
perature.
Adjusting the temperature setting (vehicles with air condition-
ing system)
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
If is not pressed, the system will blow ambient temperature air or
heated air.
: If equipped
Fan speed control dial
Outside air or recirculated air mode
button Air outlet
selection dial
Air conditioning on/off button
(if equipped)Temperature
control dial
Page 303 of 616

303 3-1. Using the air conditioning system and defogger
3
Interior features

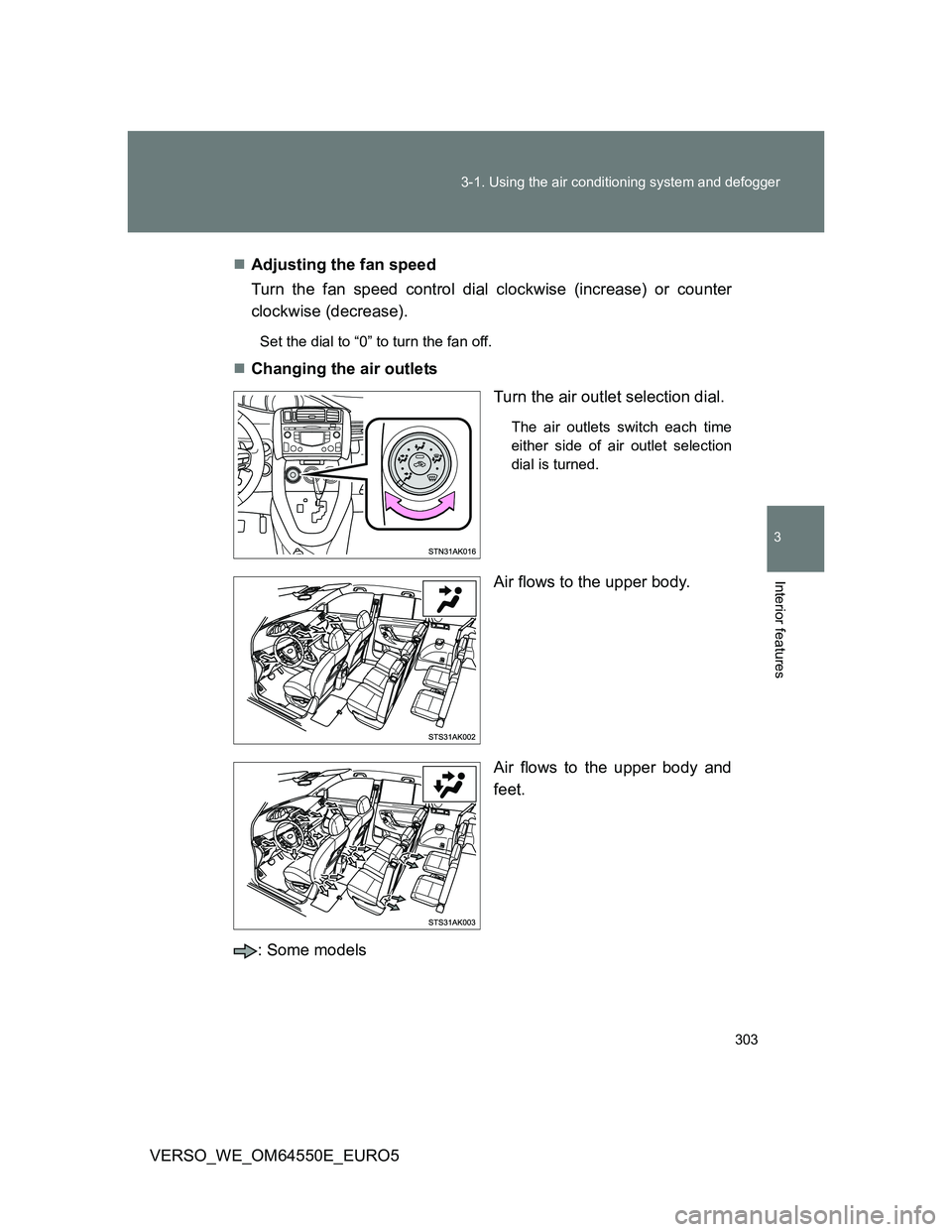

VERSO_WE_OM64550E_EURO5Adjusting the fan speed
Turn the fan speed control dial clockwise (increase) or counter
clockwise (decrease).
Set the dial to “0” to turn the fan off.
Changing the air outlets
Turn the air outlet selection dial.
The air outlets switch each time
either side of air outlet selection
dial is turned.
Air flows to the upper body.
Air flows to the upper body and
feet.
: Some models
Page 304 of 616

304 3-1. Using the air conditioning system and defogger

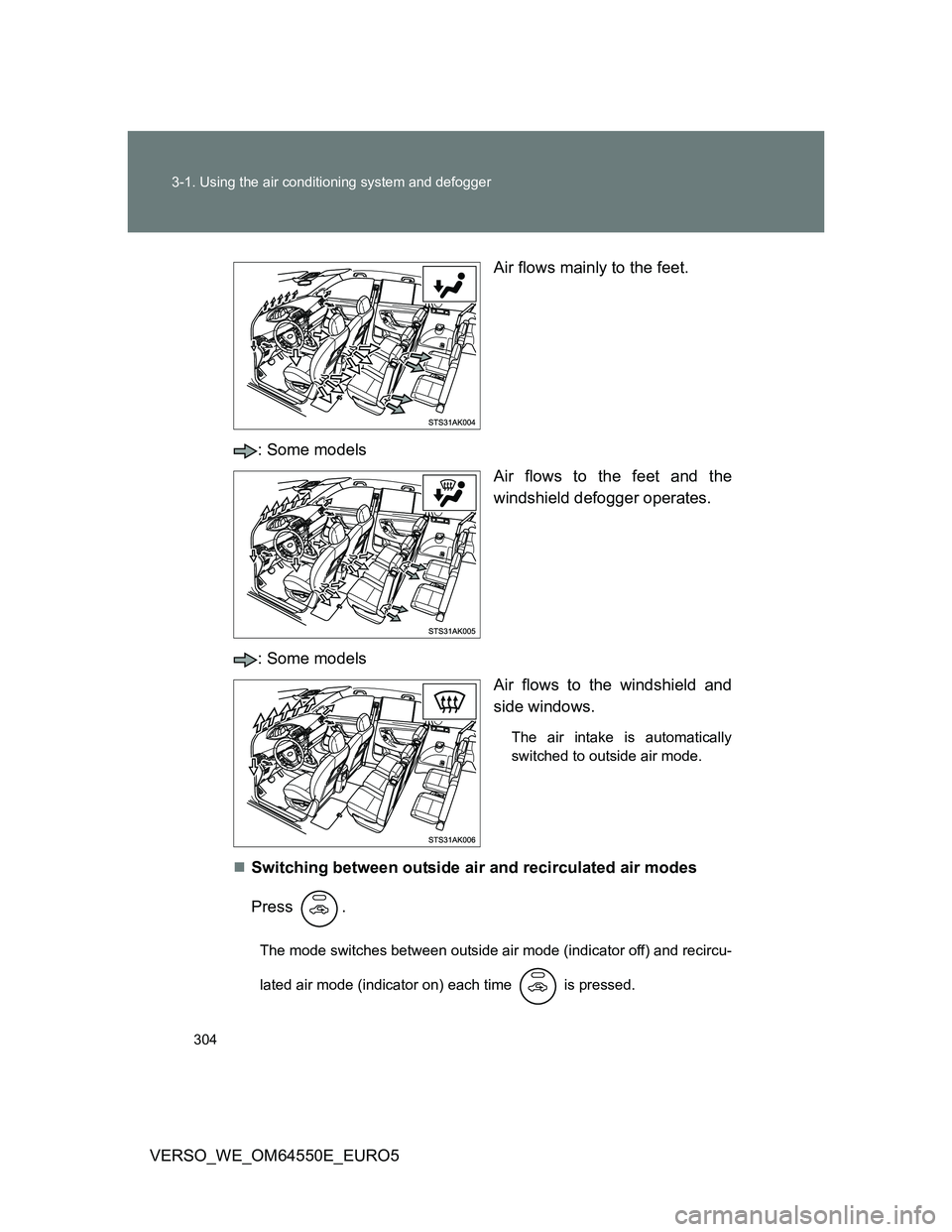

VERSO_WE_OM64550E_EURO5Air flows mainly to the feet.
: Some models
Air flows to the feet and the
windshield defogger operates.
: Some models
Air flows to the windshield and
side windows.
The air intake is automatically
switched to outside air mode.
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) each time is pressed.
Page 305 of 616

305 3-1. Using the air conditioning system and defogger
3
Interior features
VERSO_WE_OM64550E_EURO5

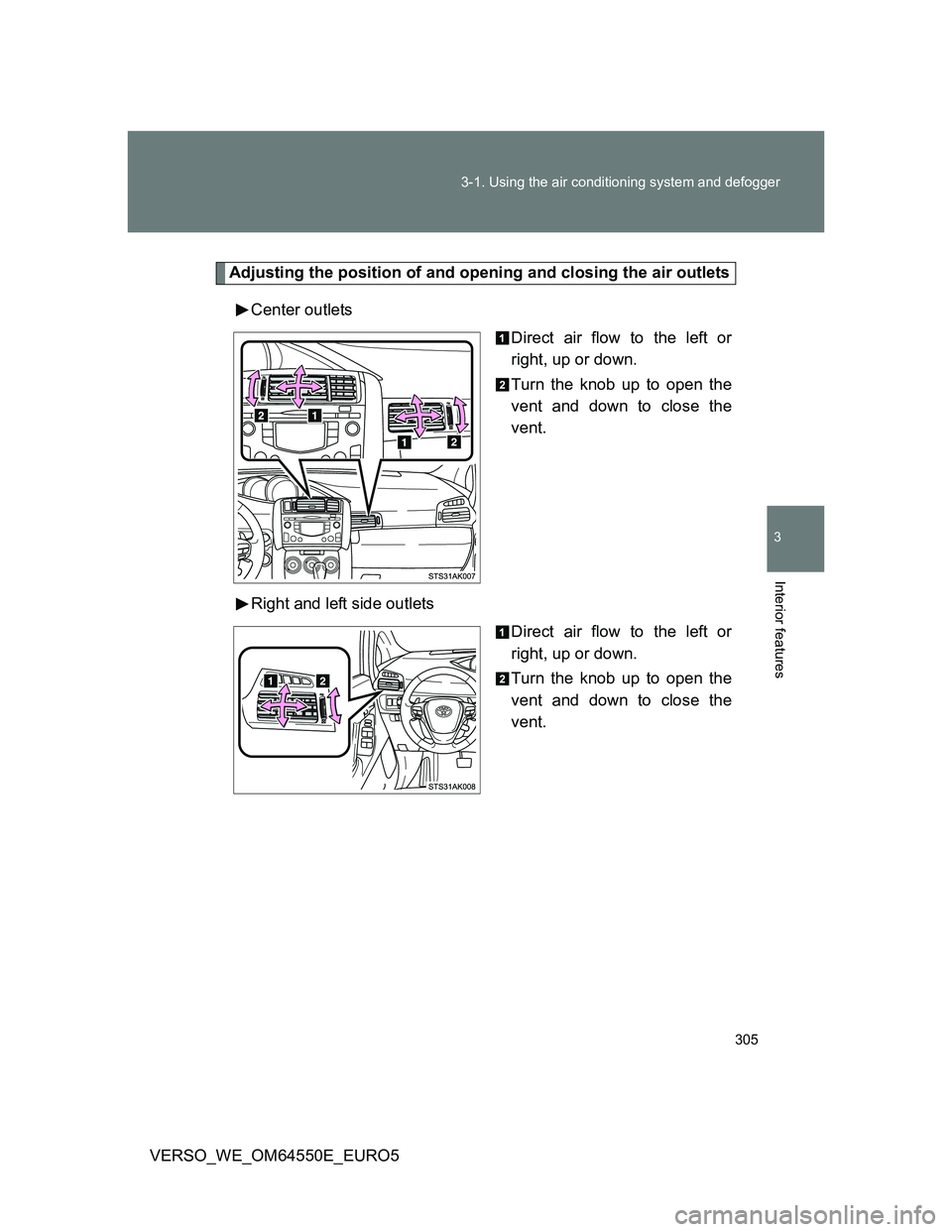

Adjusting the position of and opening and closing the air outlets
Center outlets
Direct air flow to the left or
right, up or down.
Turn the knob up to open the
vent and down to close the
vent.
Right and left side outlets
Direct air flow to the left or
right, up or down.
Turn the knob up to open the
vent and down to close the
vent.
Page 306 of 616

306 3-1. Using the air conditioning system and defogger
VERSO_WE_OM64550E_EURO5

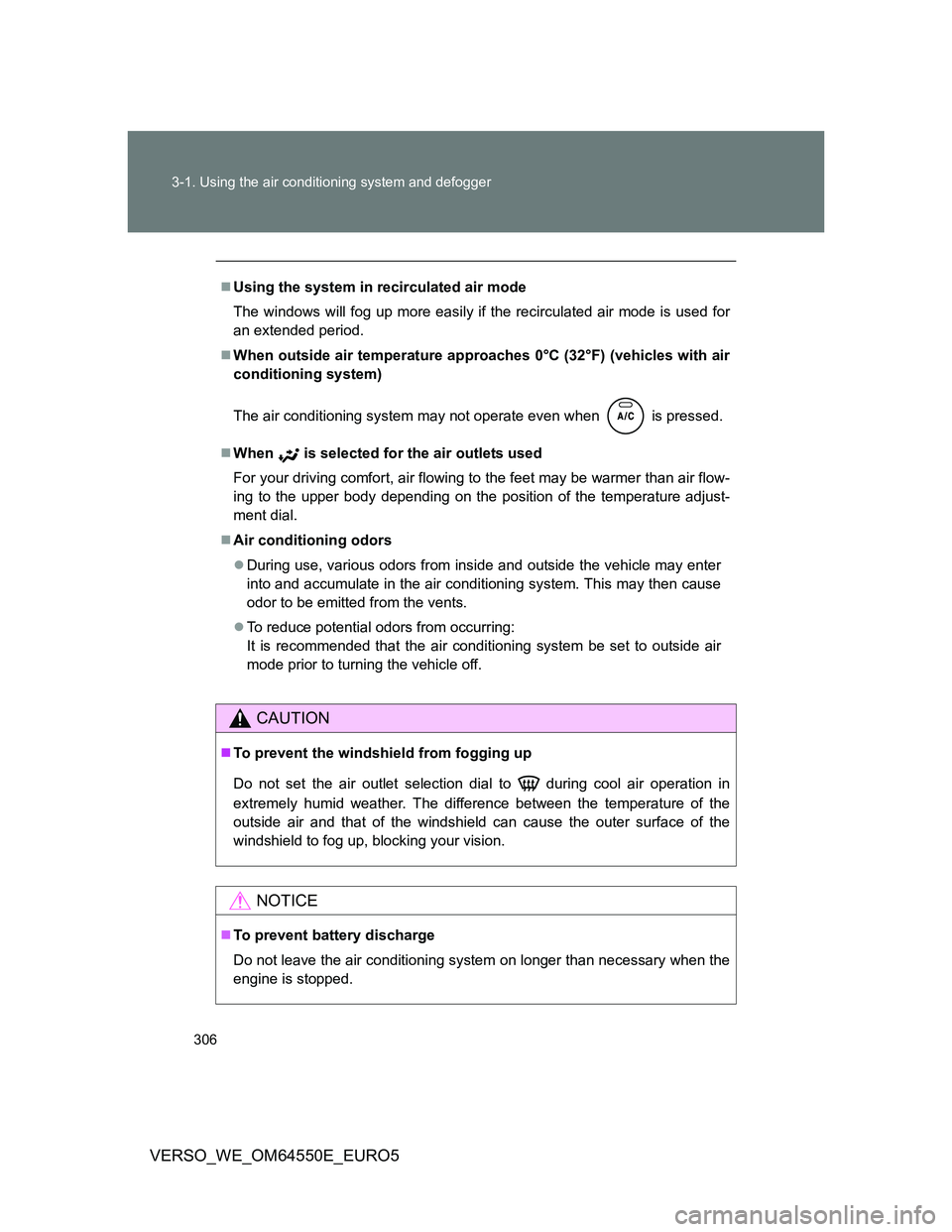

Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
When outside air temperature approaches 0°C (32°F) (vehicles with air
conditioning system)
The air conditioning system may not operate even when is pressed.
When is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow-
ing to the upper body depending on the position of the temperature adjust-
ment dial.
Air conditioning odors
During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
CAUTION
To prevent the windshield from fogging up
Do not set the air outlet selection dial to during cool air operation in
extremely humid weather. The difference between the temperature of the
outside air and that of the windshield can cause the outer surface of the
windshield to fog up, blocking your vision.
NOTICE
To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
Page 307 of 616

307
3-1. Using the air conditioning system and defogger
3
Interior features
VERSO_WE_OM64550E_EURO5

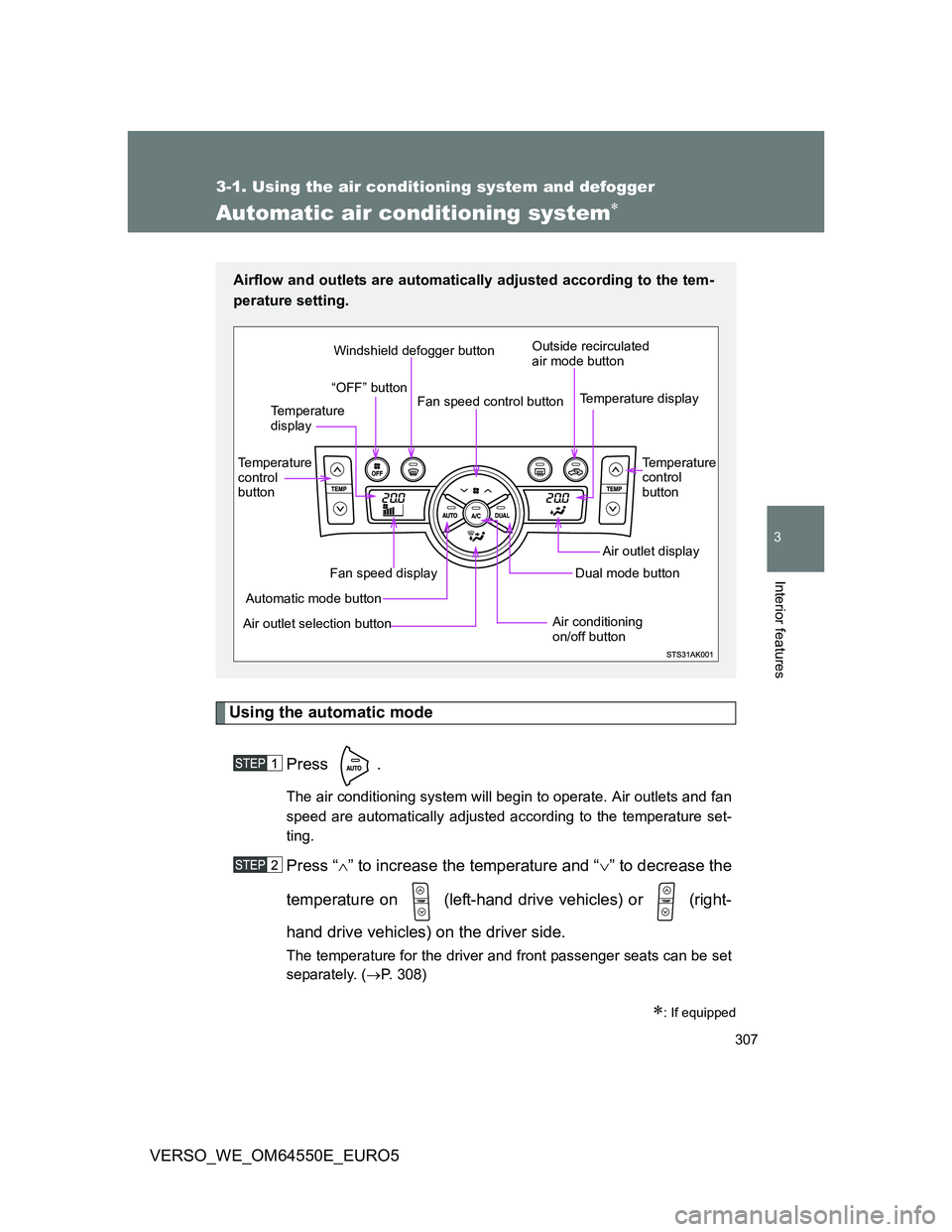

Automatic air conditioning system
Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Press “” to increase the temperature and “” to decrease the
temperature on (left-hand drive vehicles) or (right-
hand drive vehicles) on the driver side.
The temperature for the driver and front passenger seats can be set
separately. (P. 308)
: If equipped
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
Outside recirculated
air mode button
Temperature display
Temperature
control
button
Air outlet display
Dual mode button
Air conditioning
on/off button Air outlet selection buttonAutomatic mode buttonFan speed display Temperature
control
buttonTemperature
displayFan speed control button “OFF” buttonWindshield defogger button
Page 308 of 616

308 3-1. Using the air conditioning system and defogger
VERSO_WE_OM64550E_EURO5
Adjusting the settings
Adjusting the temperature setting
Press “” to increase the temperature and “” to decrease the tem-
perature on (left-hand drive vehicles) or (right-hand
drive vehicles) on the driver side.
Press “” (increase) or “” (decrease) on (left-hand drive vehicles)
or (right-hand drive vehicles) on the passenger side to separately
adjust the temperature for the passenger and driver sides (individual
mode). Press
to return the driver and passenger side tempera-
tures to the same setting (simultaneous mode).
The air conditioning system switches between individual and simultane-
ous modes each time
is pressed.
Adjusting the fan speed
Press “” (decrease) or “” (increase) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
Page 309 of 616

309 3-1. Using the air conditioning system and defogger
3
Interior features

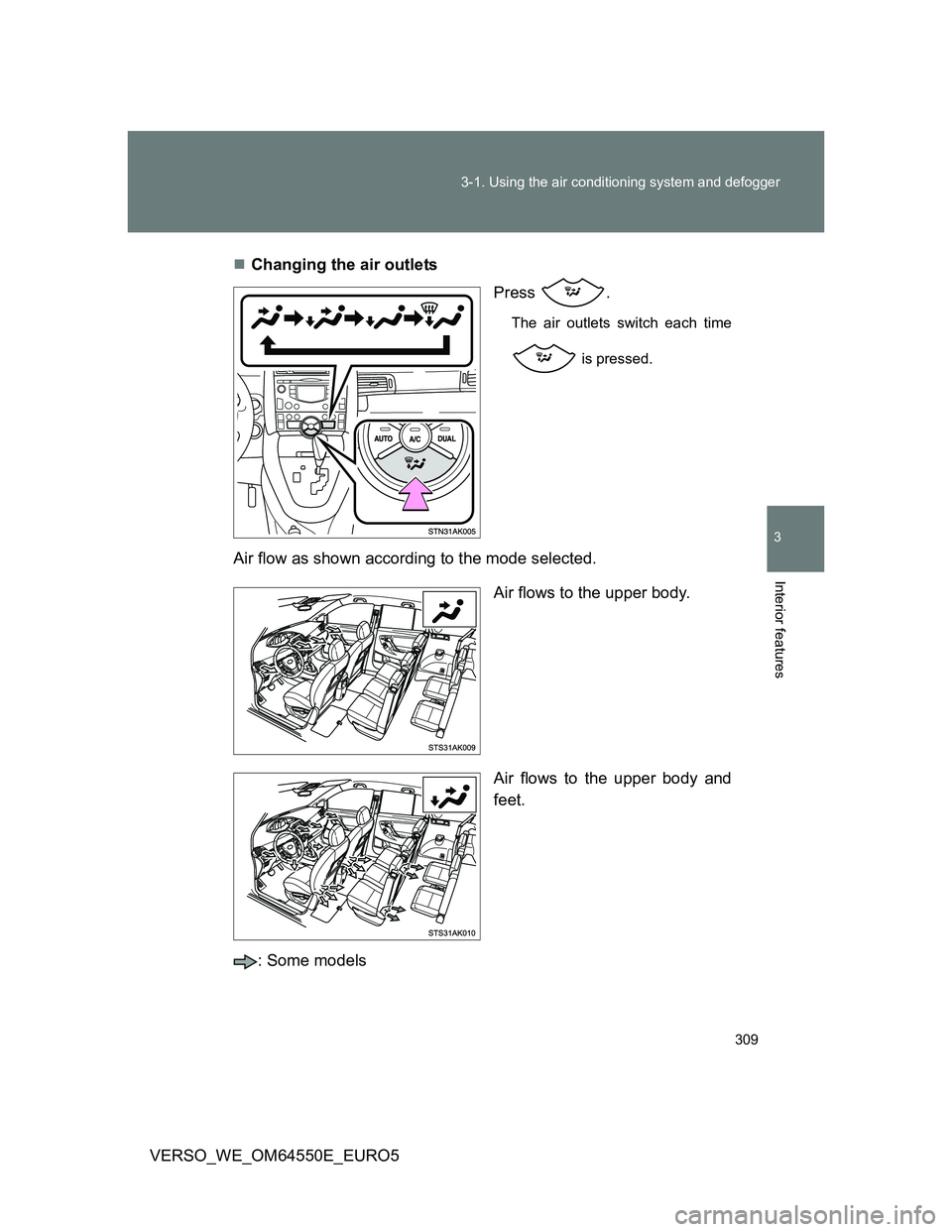

VERSO_WE_OM64550E_EURO5Changing the air outlets
Press .
The air outlets switch each time
is pressed.
Air flow as shown according to the mode selected.
Air flows to the upper body.
Air flows to the upper body and
feet.
: Some models
Page 310 of 616

310 3-1. Using the air conditioning system and defogger

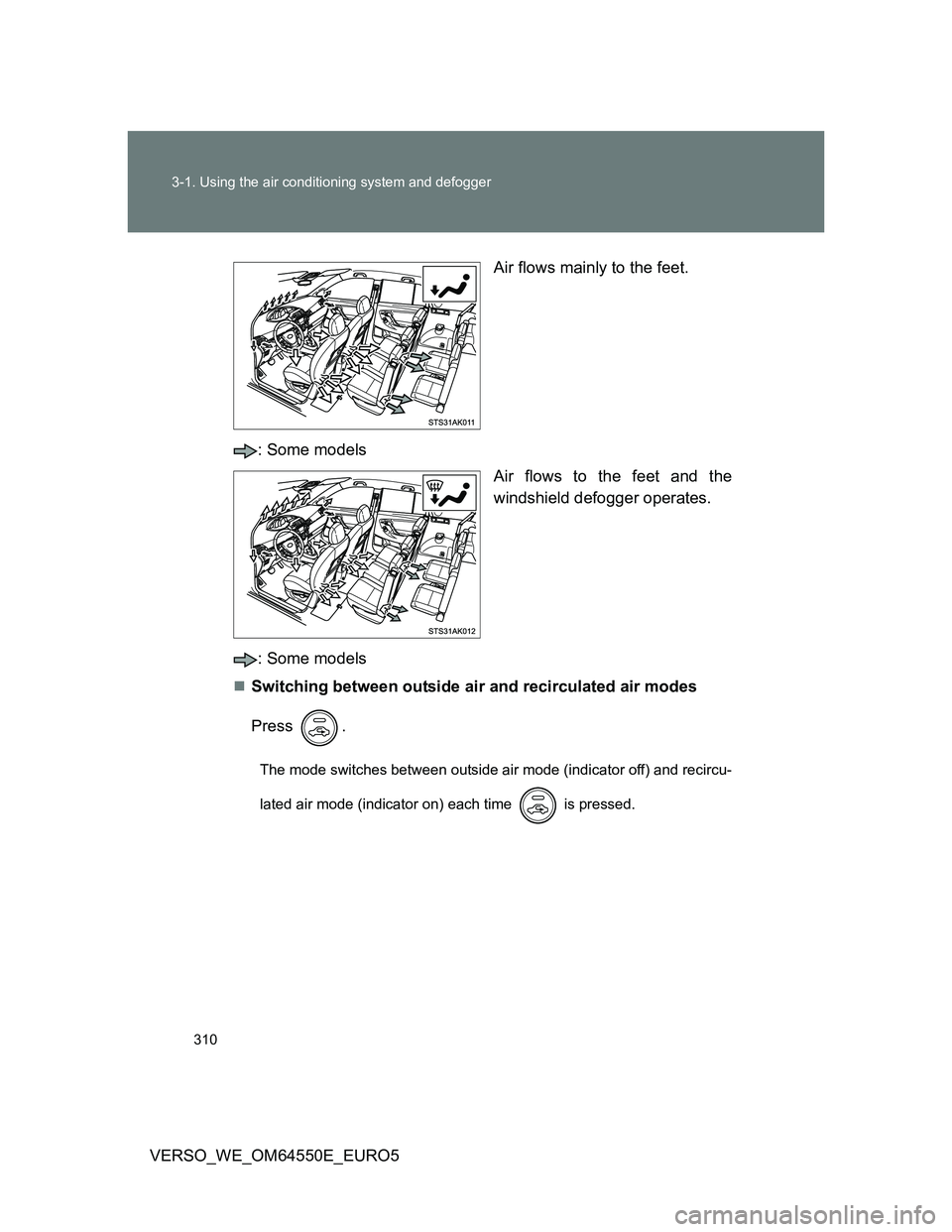

VERSO_WE_OM64550E_EURO5Air flows mainly to the feet.
: Some models
Air flows to the feet and the
windshield defogger operates.
: Some models
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) each time is pressed.
