TOYOTA VERSO 2013 Owner's Guide

33
VERSO_WE_OM64550E_EURO5
: If equipped

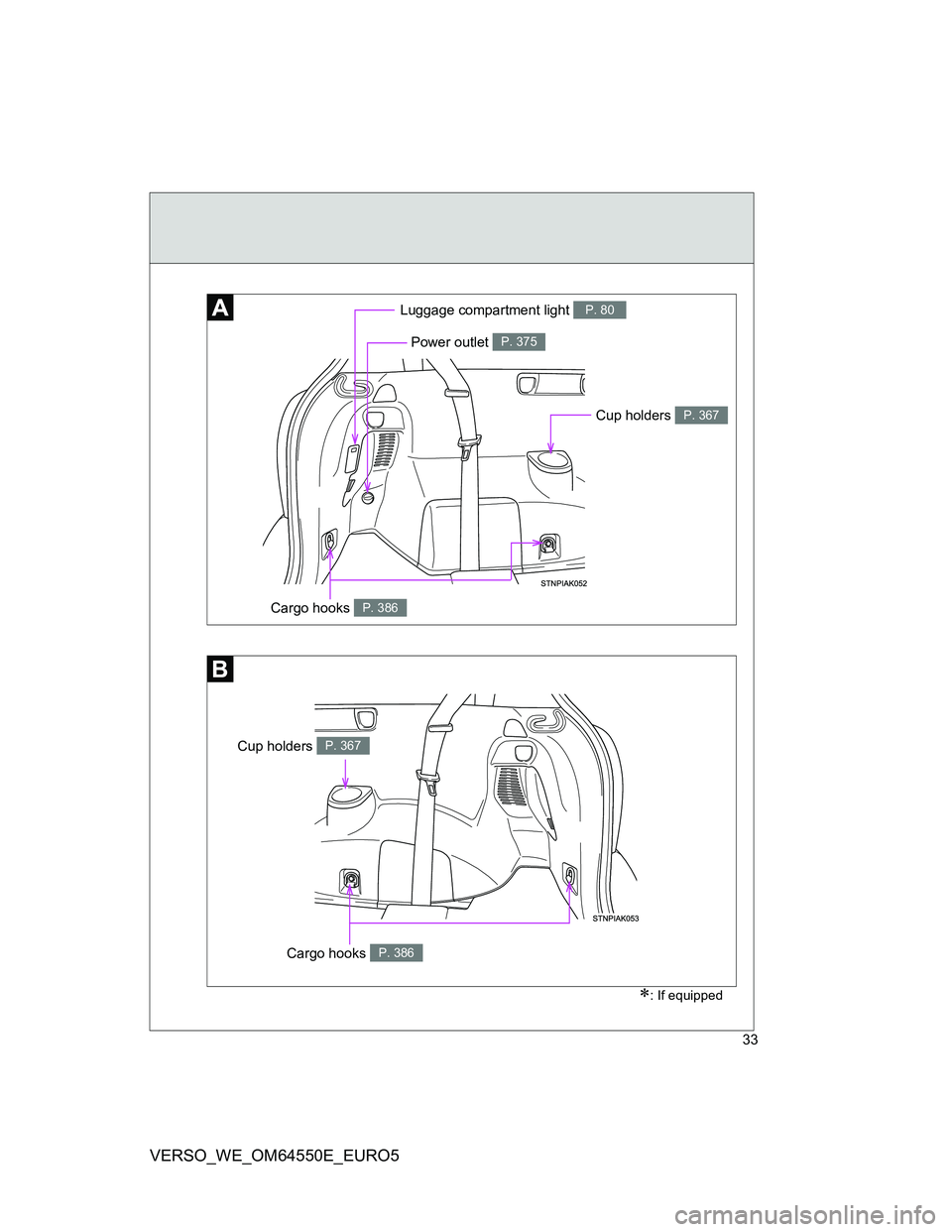

Luggage compartment light P. 80
Cargo hooks P. 386
Power outlet P. 375
Cargo hooks P. 386
Cup holders P. 367
Cup holders P. 367

34
VERSO_WE_OM64550E_EURO5

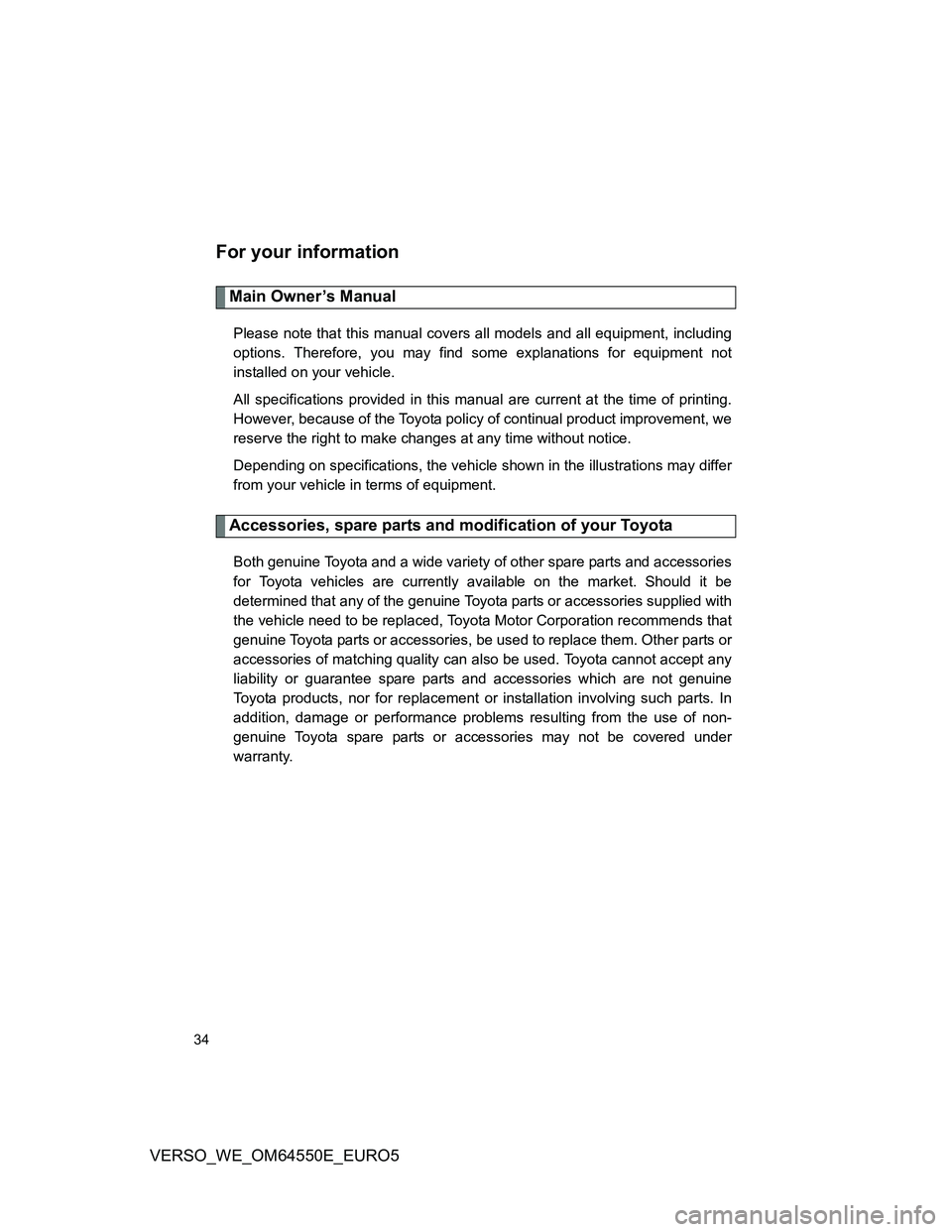

For your information
Main Owner’s Manual
Please note that this manual covers all models and all equipment, including
options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
Both genuine Toyota and a wide variety of other spare parts and accessories
for Toyota vehicles are currently available on the market. Should it be
determined that any of the genuine Toyota parts or accessories supplied with
the vehicle need to be replaced, Toyota Motor Corporation recommends that
genuine Toyota parts or accessories, be used to replace them. Other parts or
accessories of matching quality can also be used. Toyota cannot accept any
liability or guarantee spare parts and accessories which are not genuine
Toyota products, nor for replacement or installation involving such parts. In
addition, damage or performance problems resulting from the use of non-
genuine Toyota spare parts or accessories may not be covered under
warranty.

35
VERSO_WE_OM64550E_EURO5

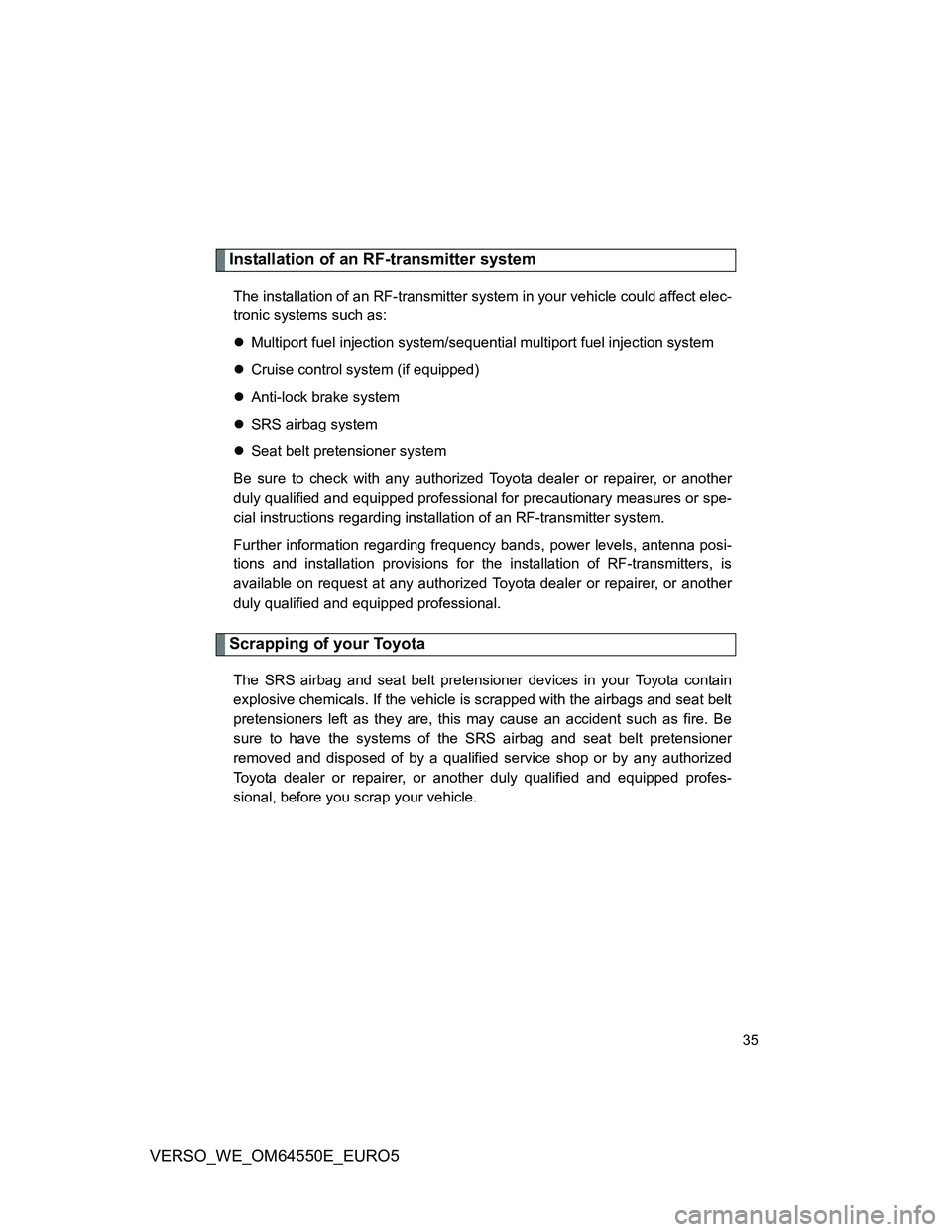

Installation of an RF-transmitter system
The installation of an RF-transmitter system in your vehicle could affect elec-
tronic systems such as:
Multiport fuel injection system/sequential multiport fuel injection system
Cruise control system (if equipped)
Anti-lock brake system
SRS airbag system
Seat belt pretensioner system
Be sure to check with any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional for precautionary measures or spe-
cial instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters, is
available on request at any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional, before you scrap your vehicle.

36
VERSO_WE_OM64550E_EURO5

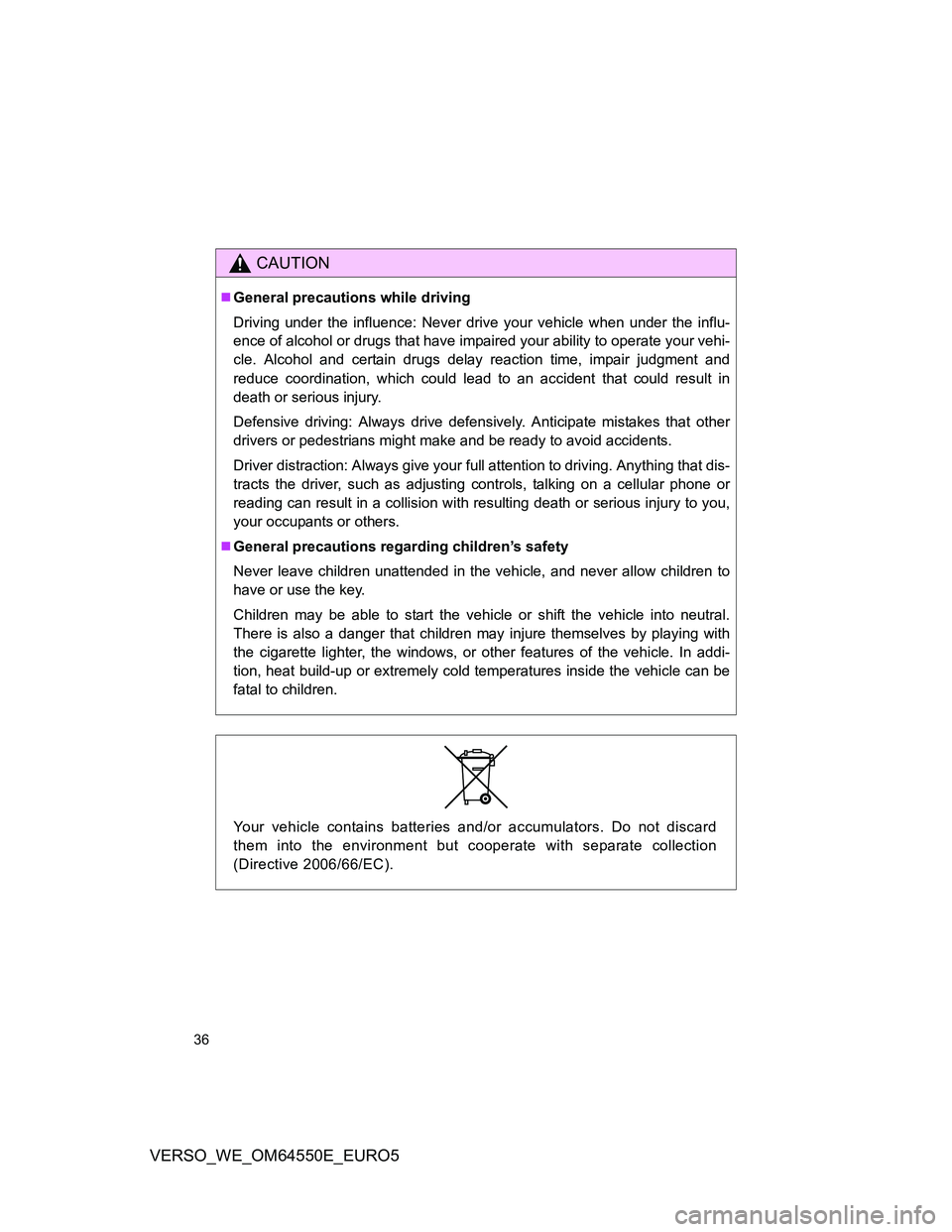

CAUTION
General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
General precautions regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, or other features of the vehicle. In addi-
tion, heat build-up or extremely cold temperatures inside the vehicle can be
fatal to children.
Your vehicle contains batteries and/or accumulators. Do not discard
them into the environment but cooperate with separate collection
(Directive 2006/66/EC).

37
VERSO_WE_OM64550E_EURO5
Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against anything which may cause injury to people if the
warning is ignored. You are informed about what you must or must not do in
order to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or
its equipment if the warning is ignored. You are informed about what you must
or must not do in order to avoid or reduce the risk of damage to your Toyota
and its equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turning,
etc.) used to operate switches and other
devices.
Indicates the outcome of an operation
(e.g. a lid opens).

38
VERSO_WE_OM64550E_EURO5

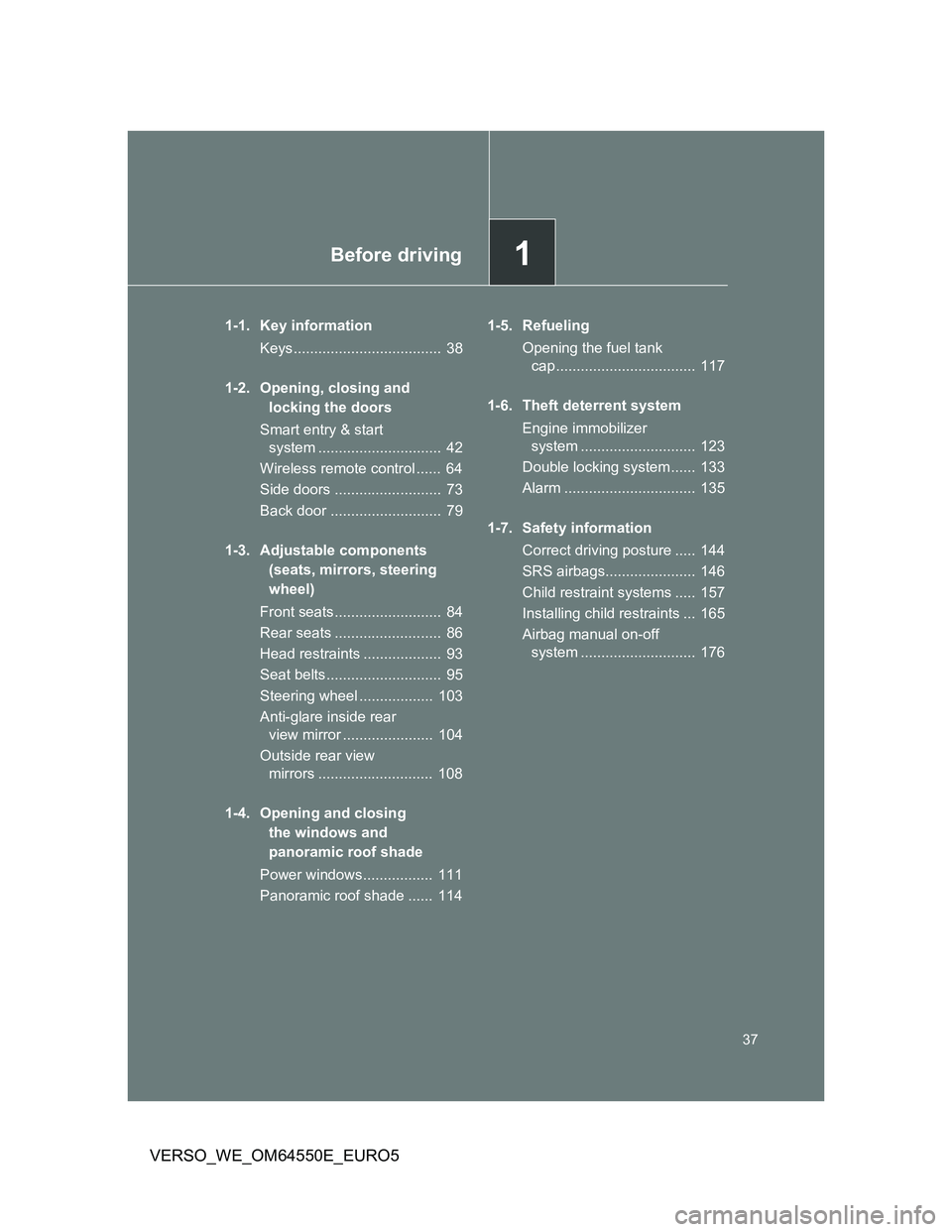

1Before driving
37
VERSO_WE_OM64550E_EURO5
1-1. Key information
Keys.................................... 38
1-2. Opening, closing and
locking the doors
Smart entry & start
system .............................. 42
Wireless remote control ...... 64
Side doors .......................... 73
Back door ........................... 79
1-3. Adjustable components
(seats, mirrors, steering
wheel)
Front seats.......................... 84
Rear seats .......................... 86
Head restraints ................... 93
Seat belts............................ 95
Steering wheel .................. 103
Anti-glare inside rear
view mirror ...................... 104
Outside rear view
mirrors ............................ 108
1-4. Opening and closing
the windows and
panoramic roof shade
Power windows................. 111
Panoramic roof shade ...... 1141-5. Refueling
Opening the fuel tank
cap .................................. 117
1-6. Theft deterrent system
Engine immobilizer
system ............................ 123
Double locking system ...... 133
Alarm ................................ 135
1-7. Safety information
Correct driving posture ..... 144
SRS airbags...................... 146
Child restraint systems ..... 157
Installing child restraints ... 165
Airbag manual on-off
system ............................ 176

38
VERSO_WE_OM64550E_EURO5
1-1. Key information

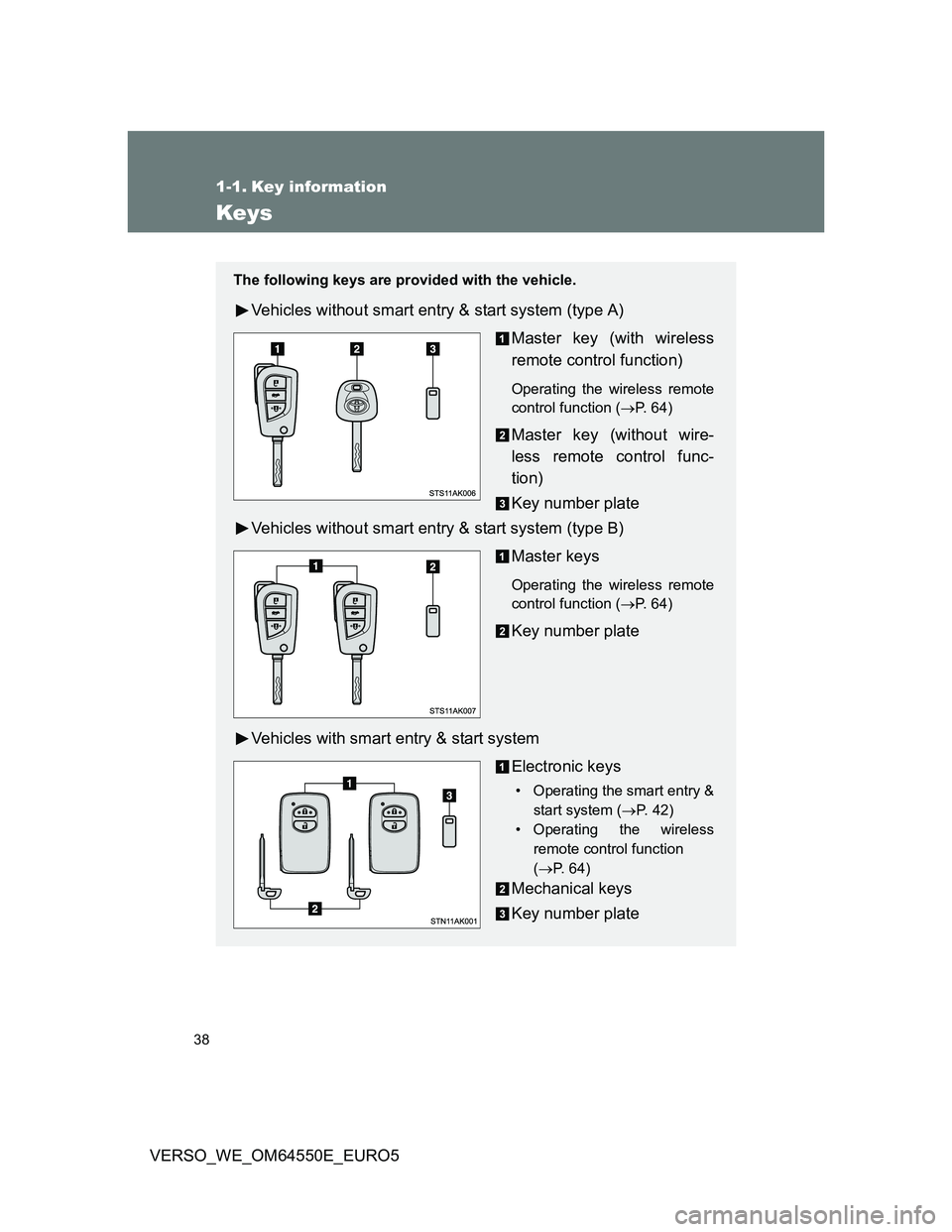

Keys
The following keys are provided with the vehicle.
Vehicles without smart entry & start system (type A)
Master key (with wireless
remote control function)
Operating the wireless remote
control function (P. 64)
Master key (without wire-
less remote control func-
tion)
Key number plate
Vehicles without smart entry & start system (type B)
Master keys
Operating the wireless remote
control function (P. 64)
Key number plate
Vehicles with smart entry & start system
Electronic keys
• Operating the smart entry &
start system (P. 42)
• Operating the wireless
remote control function
(P. 64)
Mechanical keys
Key number plate

39 1-1. Key information
1
Before driving
VERSO_WE_OM64550E_EURO5

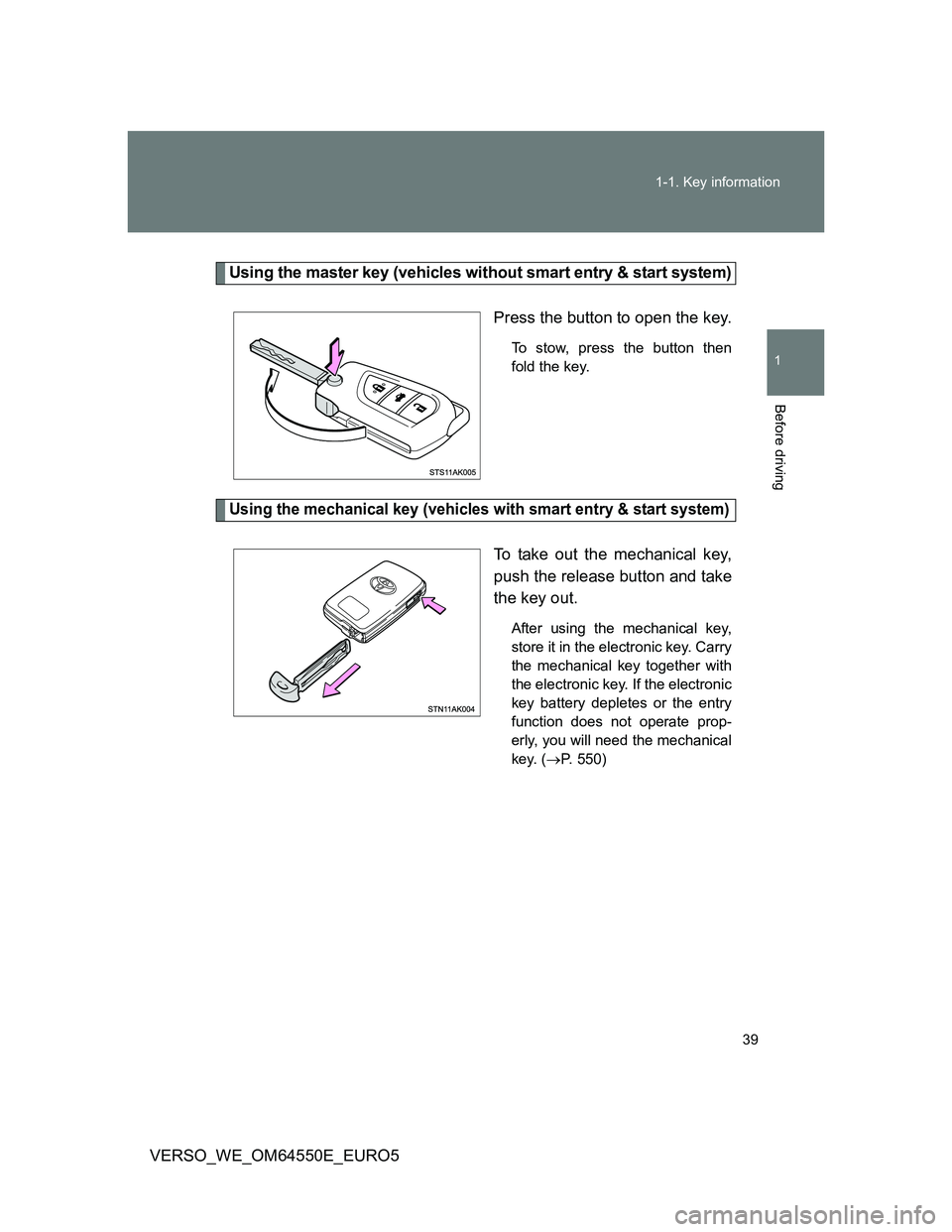

Using the master key (vehicles without smart entry & start system)
Press the button to open the key.
To stow, press the button then
fold the key.
Using the mechanical key (vehicles with smart entry & start system)
To take out the mechanical key,
push the release button and take
the key out.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery depletes or the entry
function does not operate prop-
erly, you will need the mechanical
key. (P. 550)

40 1-1. Key information
VERSO_WE_OM64550E_EURO5

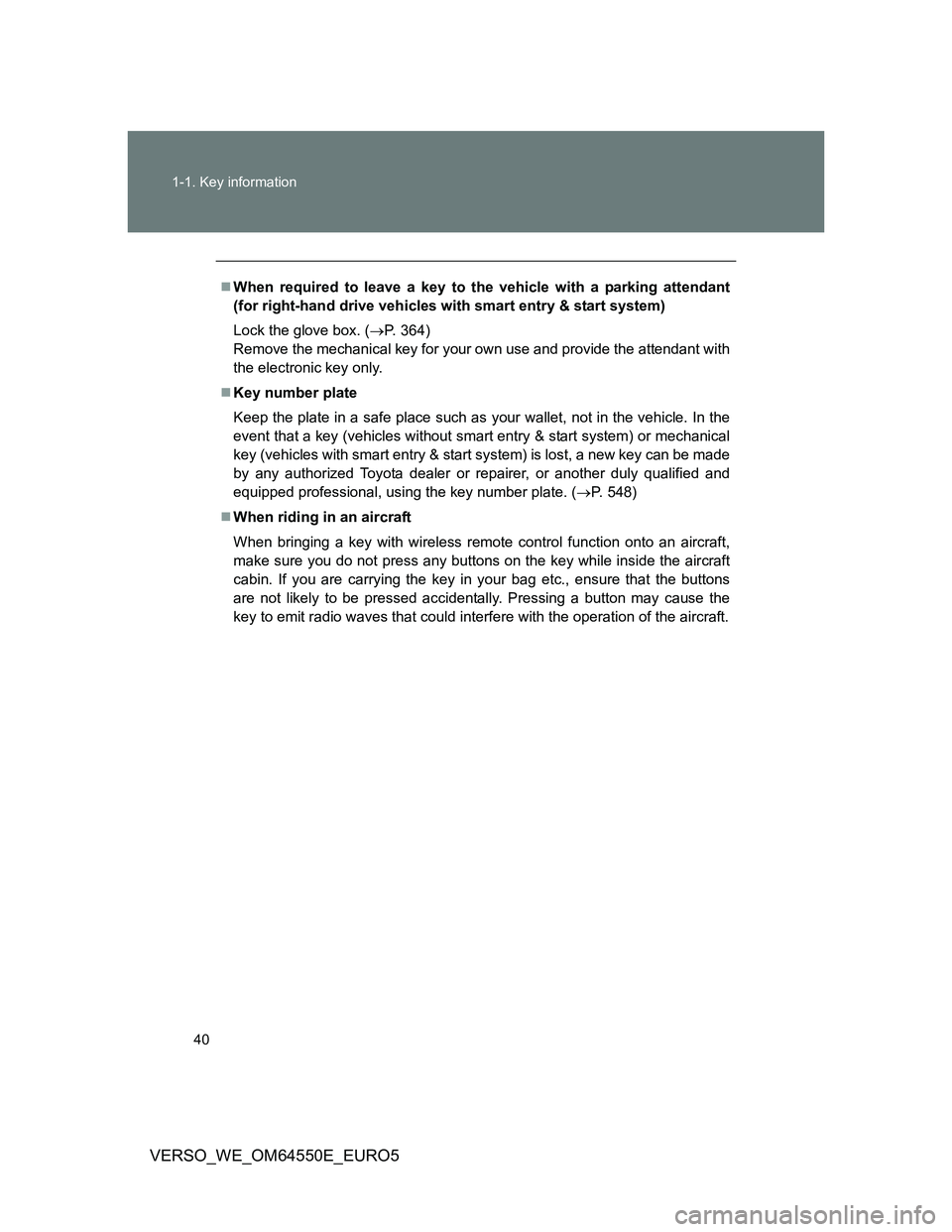

When required to leave a key to the vehicle with a parking attendant
(for right-hand drive vehicles with smart entry & start system)
Lock the glove box. (P. 364)
Remove the mechanical key for your own use and provide the attendant with
the electronic key only.
Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key (vehicles without smart entry & start system) or mechanical
key (vehicles with smart entry & start system) is lost, a new key can be made
by any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional, using the key number plate. (P. 548)
When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons
are not likely to be pressed accidentally. Pressing a button may cause the
key to emit radio waves that could interfere with the operation of the aircraft.
