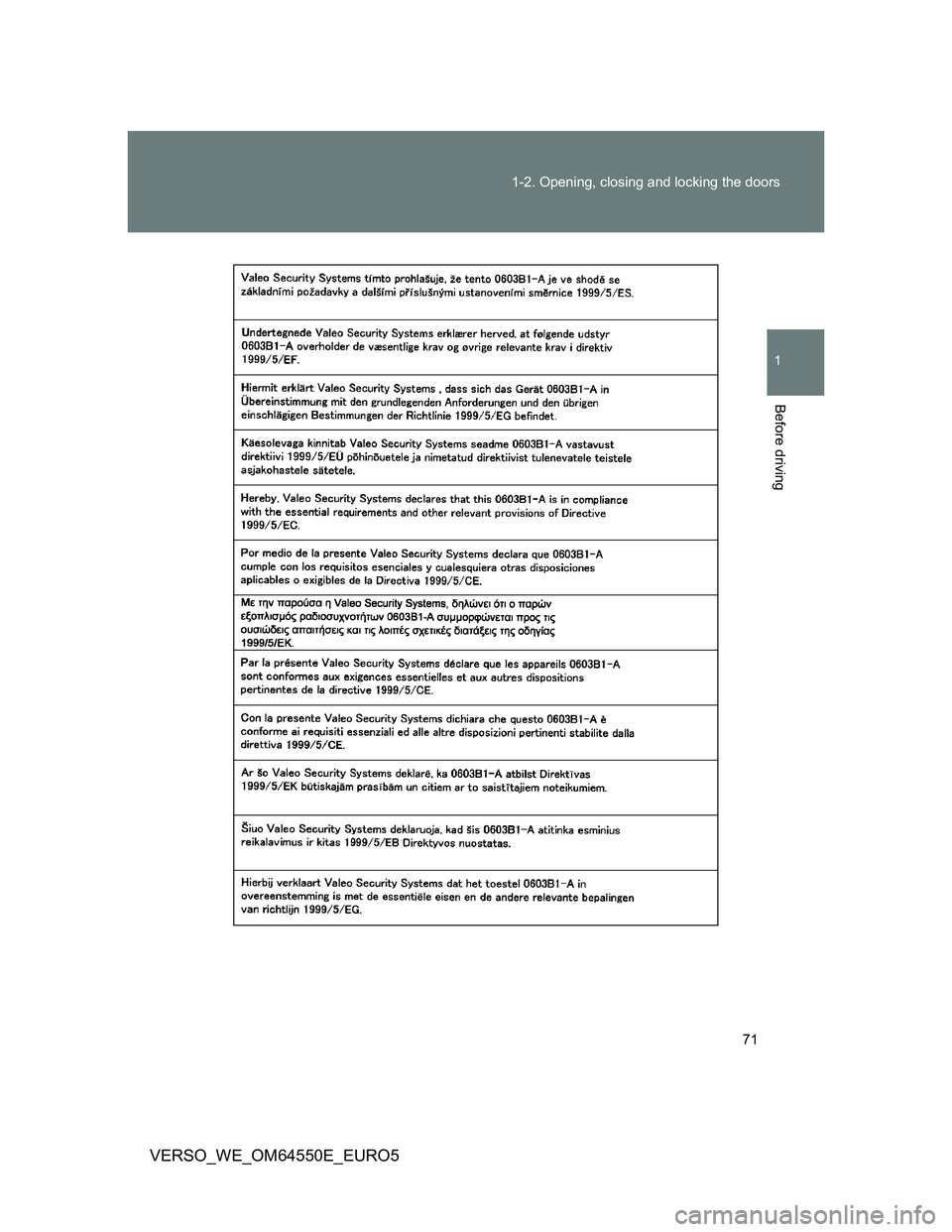

71 1-2. Opening, closing and locking the doors
1
Before driving
VERSO_WE_OM64550E_EURO5

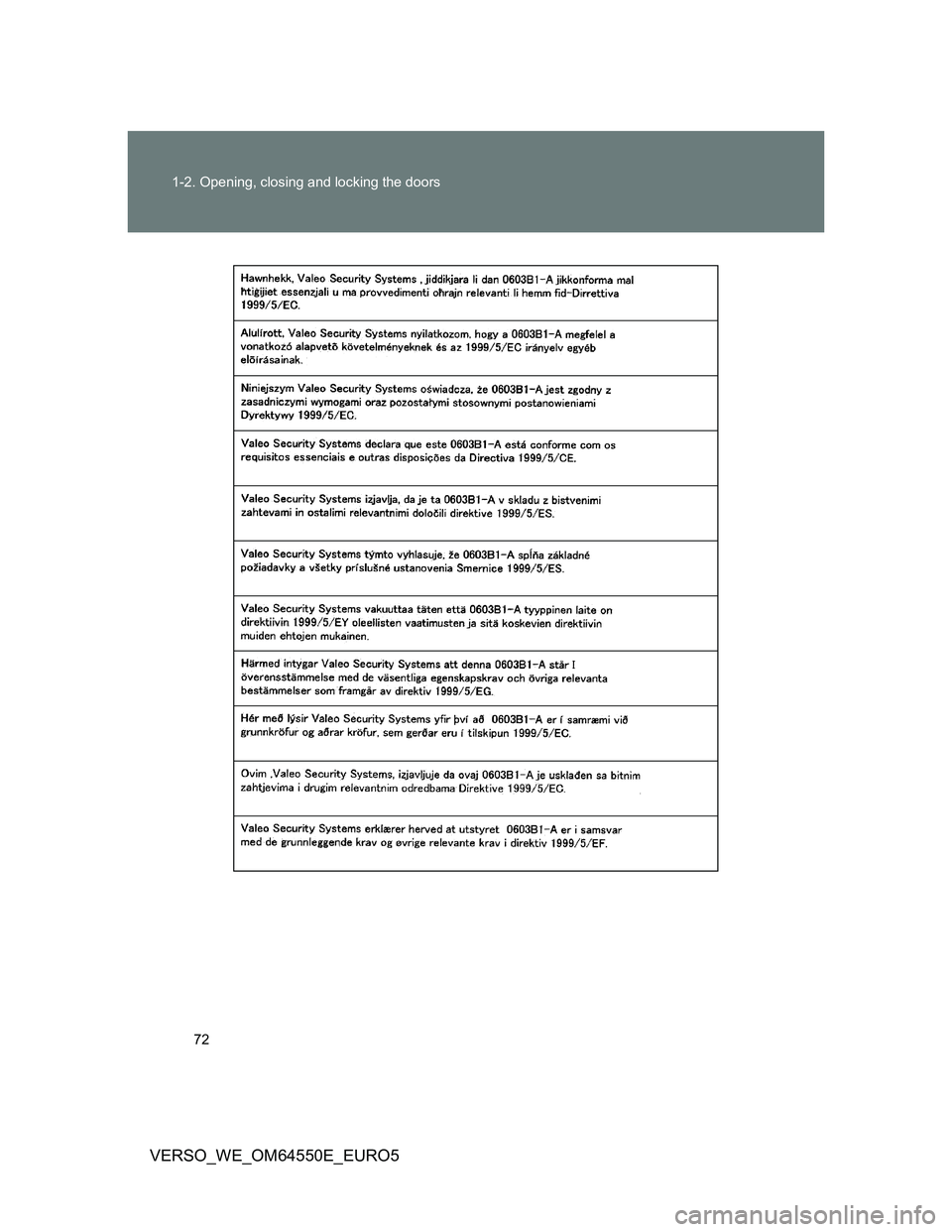

72 1-2. Opening, closing and locking the doors
VERSO_WE_OM64550E_EURO5

73
1
1-2. Opening, closing and locking the doors
Before driving
VERSO_WE_OM64550E_EURO5

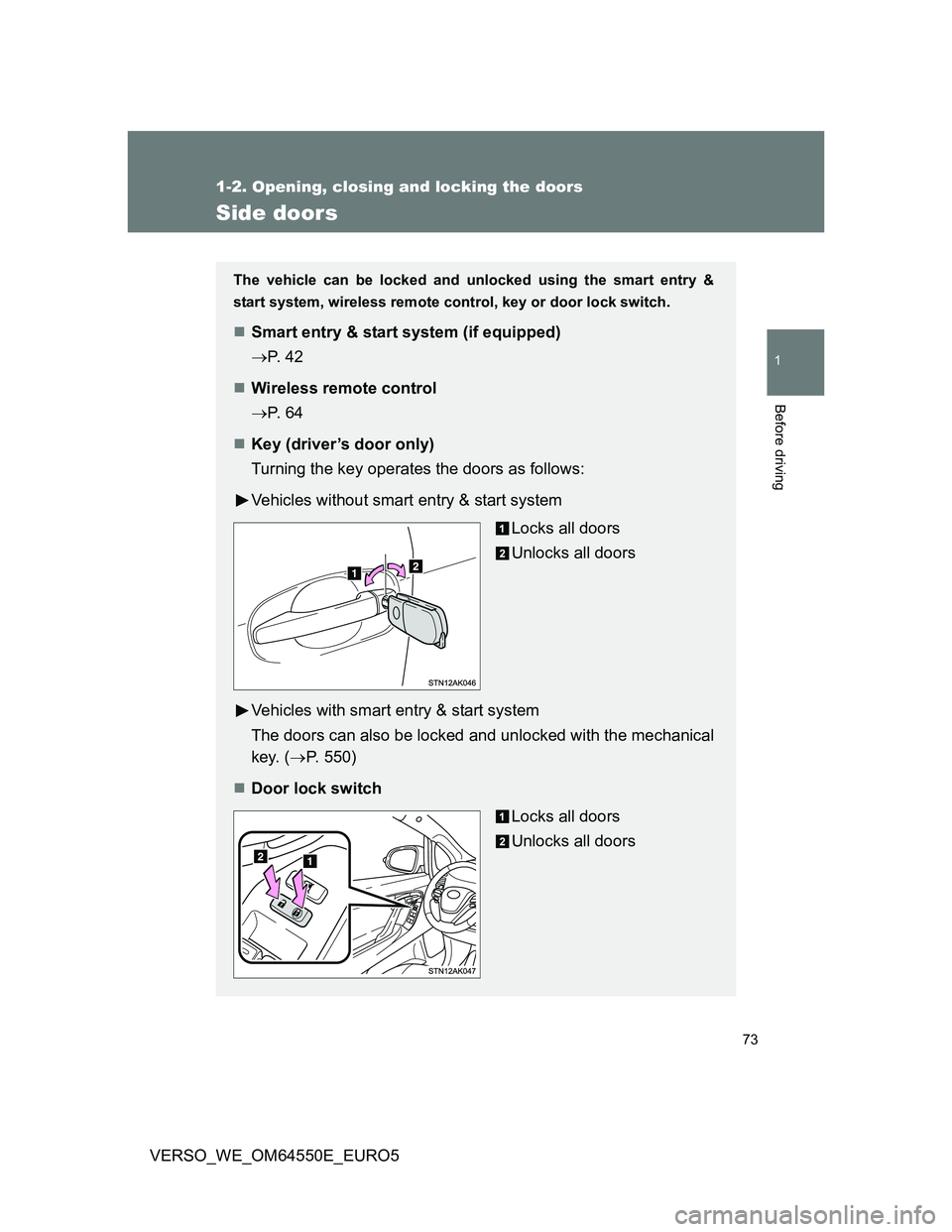

Side doors
The vehicle can be locked and unlocked using the smart entry &
start system, wireless remote control, key or door lock switch.
Smart entry & start system (if equipped)
P. 4 2
Wireless remote control
P. 6 4
Key (driver’s door only)
Turning the key operates the doors as follows:
Vehicles without smart entry & start system
Locks all doors
Unlocks all doors
Vehicles with smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. (P. 550)
Door lock switch
Locks all doors
Unlocks all doors

74 1-2. Opening, closing and locking the doors
VERSO_WE_OM64550E_EURO5

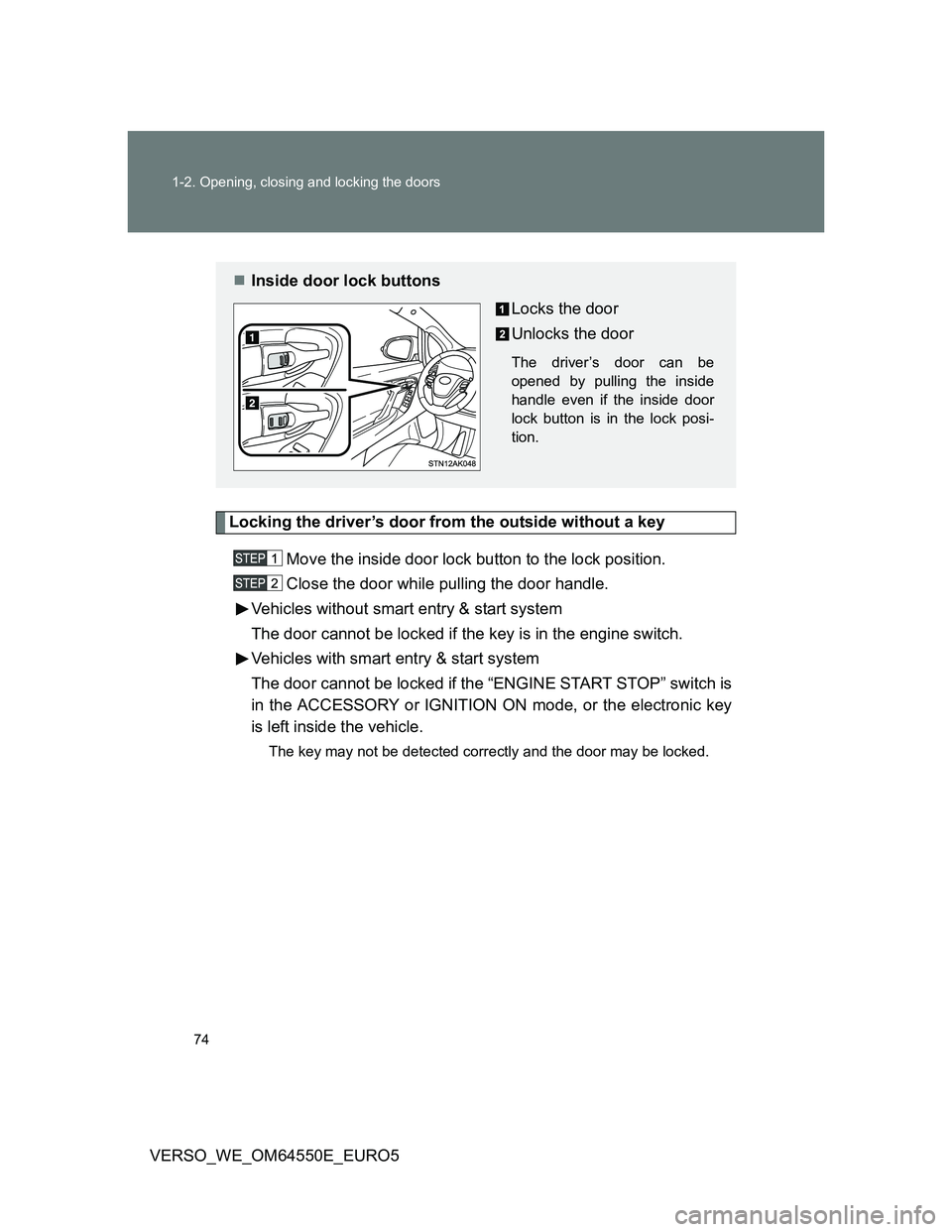

Locking the driver’s door from the outside without a key
Move the inside door lock button to the lock position.
Close the door while pulling the door handle.
Vehicles without smart entry & start system
The door cannot be locked if the key is in the engine switch.
Vehicles with smart entry & start system
The door cannot be locked if the “ENGINE START STOP” switch is
in the ACCESSORY or IGNITION ON mode, or the electronic key
is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
Inside door lock buttons
Locks the door
Unlocks the door
The driver’s door can be
opened by pulling the inside
handle even if the inside door
lock button is in the lock posi-
tion.

75 1-2. Opening, closing and locking the doors
1
Before driving
VERSO_WE_OM64550E_EURO5

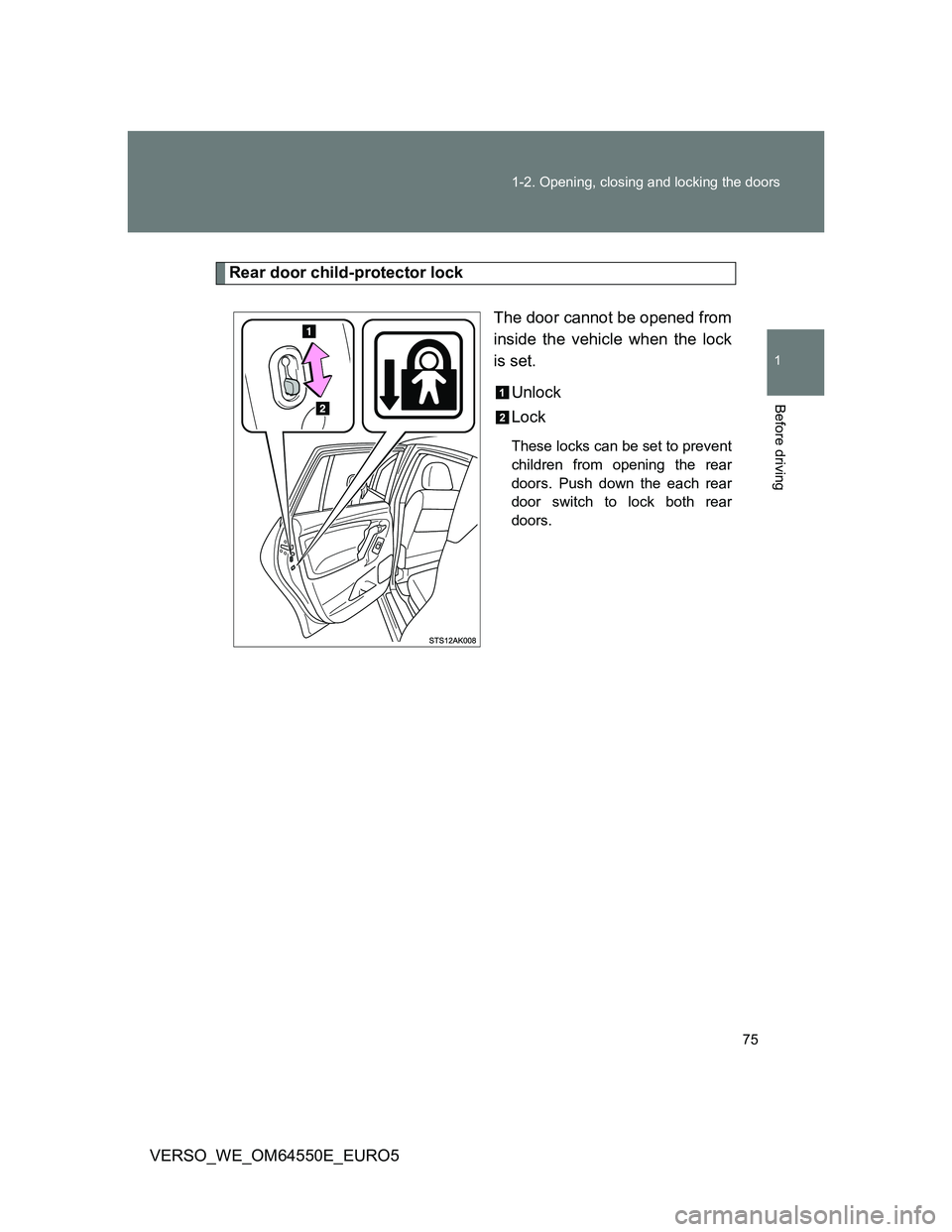

Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the lock
is set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down the each rear
door switch to lock both rear
doors.

76 1-2. Opening, closing and locking the doors
VERSO_WE_OM64550E_EURO5

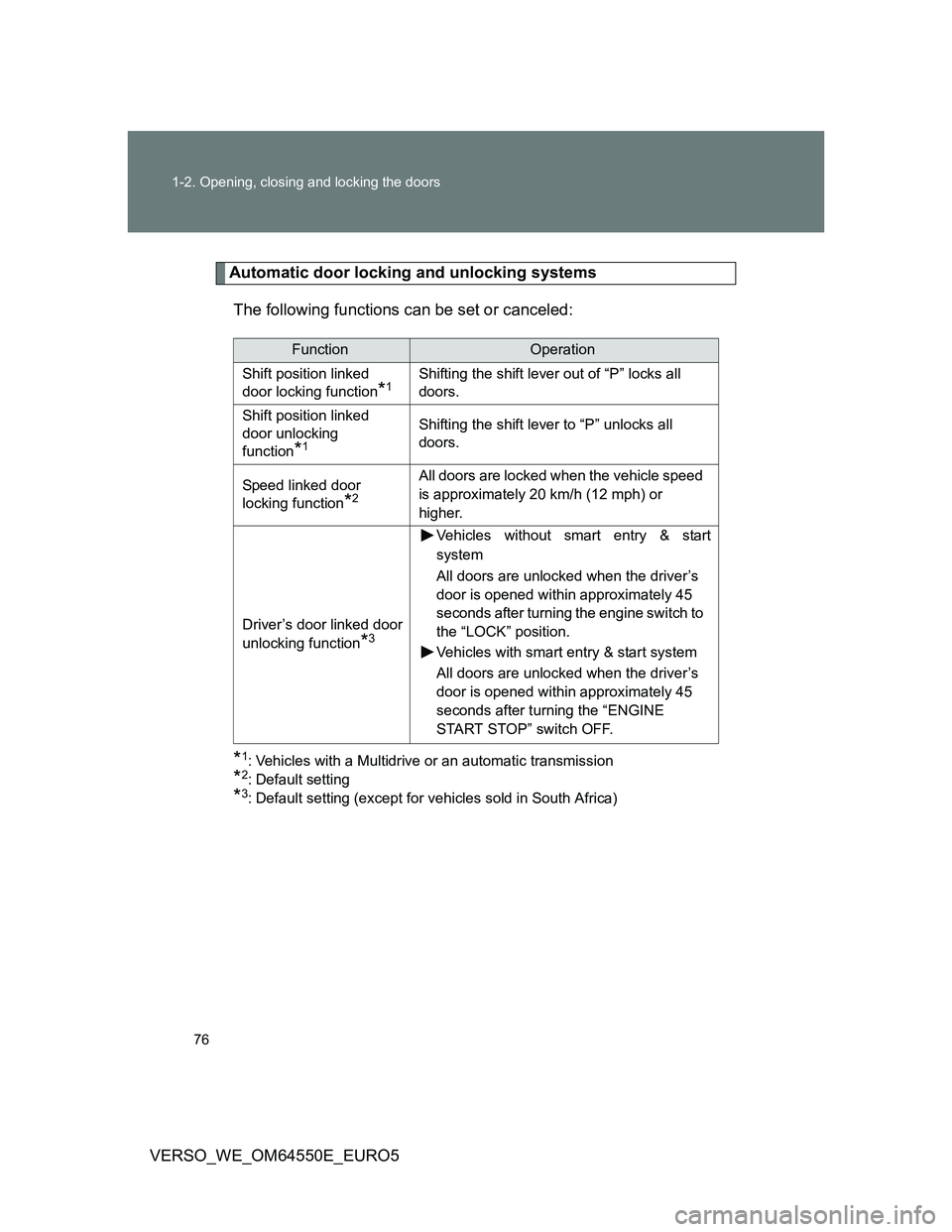

Automatic door locking and unlocking systems
The following functions can be set or canceled:
*1: Vehicles with a Multidrive or an automatic transmission
*2: Default setting
*3: Default setting (except for vehicles sold in South Africa)
FunctionOperation
Shift position linked
door locking function
*1Shifting the shift lever out of “P” locks all
doors.
Shift position linked
door unlocking
function
*1
Shifting the shift lever to “P” unlocks all
doors.
Speed linked door
locking function
*2
All doors are locked when the vehicle speed
is approximately 20 km/h (12 mph) or
higher.
Driver’s door linked door
unlocking function
*3
Vehicles without smart entry & start
system
All doors are unlocked when the driver’s
door is opened within approximately 45
seconds after turning the engine switch to
the “LOCK” position.
Vehicles with smart entry & start system
All doors are unlocked when the driver’s
door is opened within approximately 45
seconds after turning the “ENGINE
START STOP” switch OFF.

77 1-2. Opening, closing and locking the doors
1
Before driving
VERSO_WE_OM64550E_EURO5Setting and canceling the functions
Vehicles without “touch screen”
To switch between setting and canceling, follow the procedure
below:
Vehicles without smart entry & start system: Close all the
doors and turn the engine switch to the “ON” position. (Per-
form within 10 seconds.)
Vehicles with smart entry & start system: Close all the doors
and turn the “ENGINE START STOP” switch to IGNITION ON
mode. (Perform within 10 seconds.)
Shift the shift lever to “P” or “N”,
press and hold the door lock
switch (
or ) for about 5
seconds then release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set are
shown as follows.
Use the same procedure to can-
cel the function.
*: Vehicles with a Multidrive or an automatic transmission
FunctionShift lever
positionDoor lock switch
position
Shift position linked door
locking function
*“P”
Shift position linked door
unlocking function
*
Speed linked door locking
function
“N”
Driver’s door linked door
unlocking function

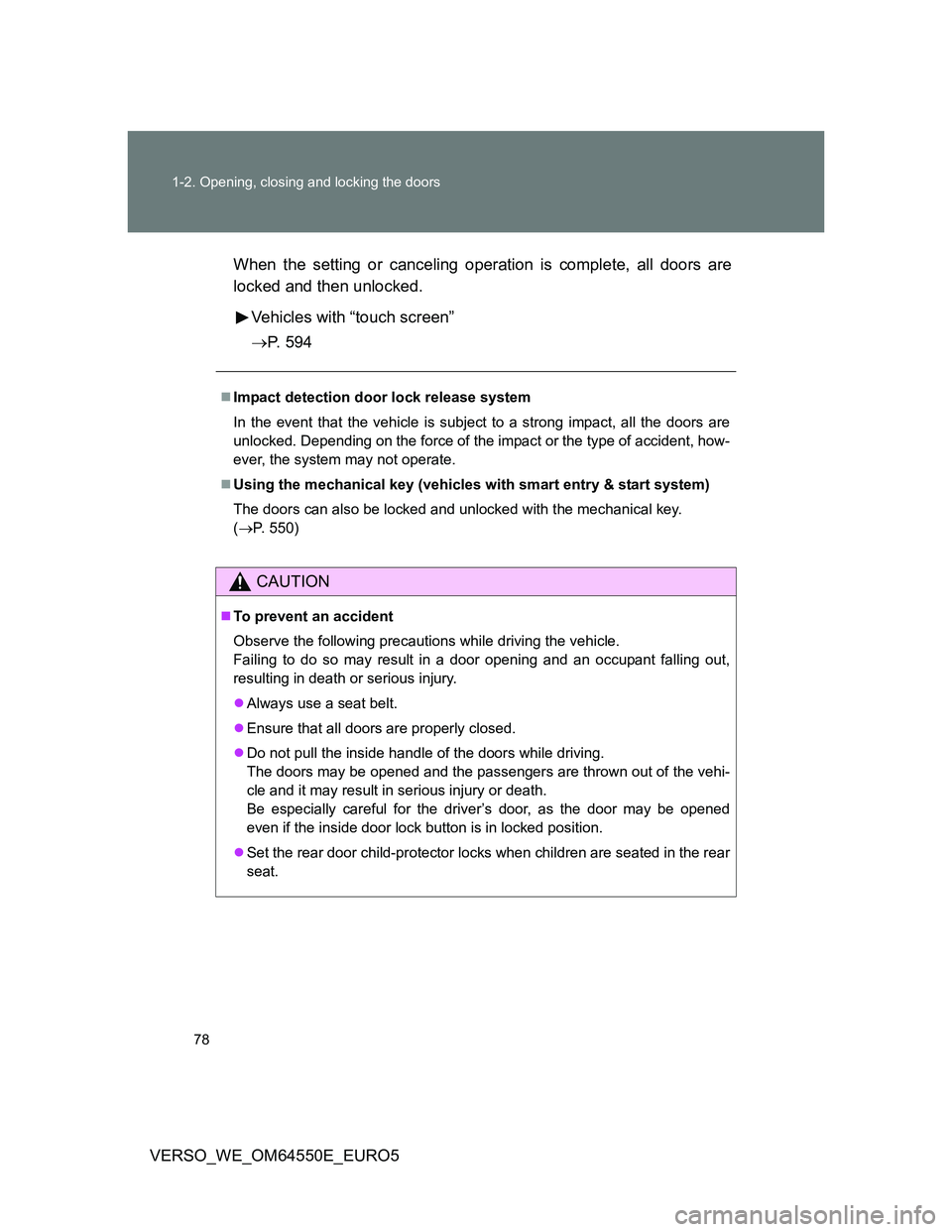

78 1-2. Opening, closing and locking the doors
VERSO_WE_OM64550E_EURO5When the setting or canceling operation is complete, all doors are
locked and then unlocked.
Vehicles with “touch screen”
P. 594
Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of accident, how-
ever, the system may not operate.
Using the mechanical key (vehicles with smart entry & start system)
The doors can also be locked and unlocked with the mechanical key.
(P. 550)
CAUTION
To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
Always use a seat belt.
Ensure that all doors are properly closed.
Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the driver’s door, as the door may be opened
even if the inside door lock button is in locked position.
Set the rear door child-protector locks when children are seated in the rear
seat.

79
1
1-2. Opening, closing and locking the doors
Before driving
VERSO_WE_OM64550E_EURO5

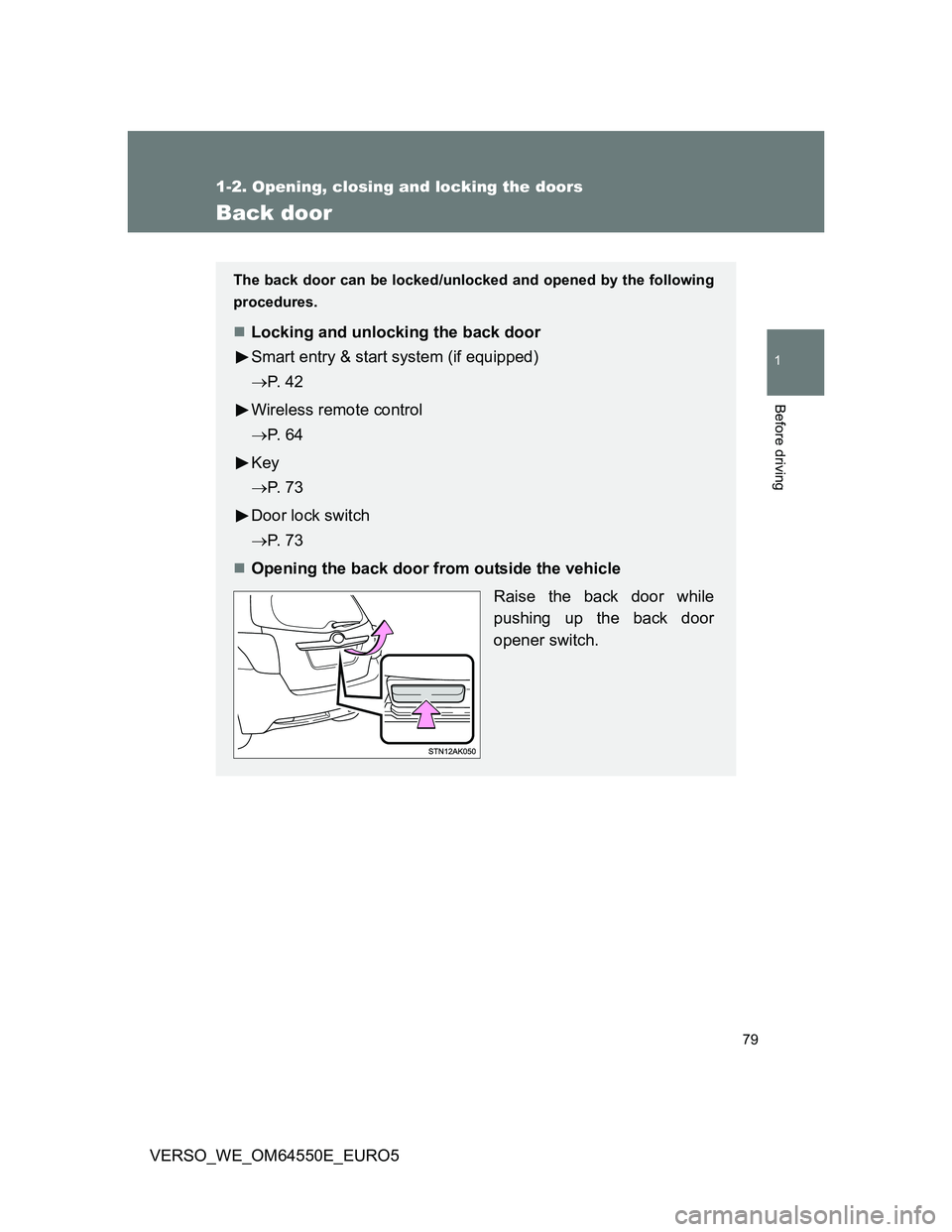

Back door
The back door can be locked/unlocked and opened by the following
procedures.
Locking and unlocking the back door
Smart entry & start system (if equipped)
P. 4 2
Wireless remote control
P. 6 4
Key
P. 7 3
Door lock switch
P. 7 3
Opening the back door from outside the vehicle
Raise the back door while
pushing up the back door
opener switch.

80 1-2. Opening, closing and locking the doors
VERSO_WE_OM64550E_EURO5

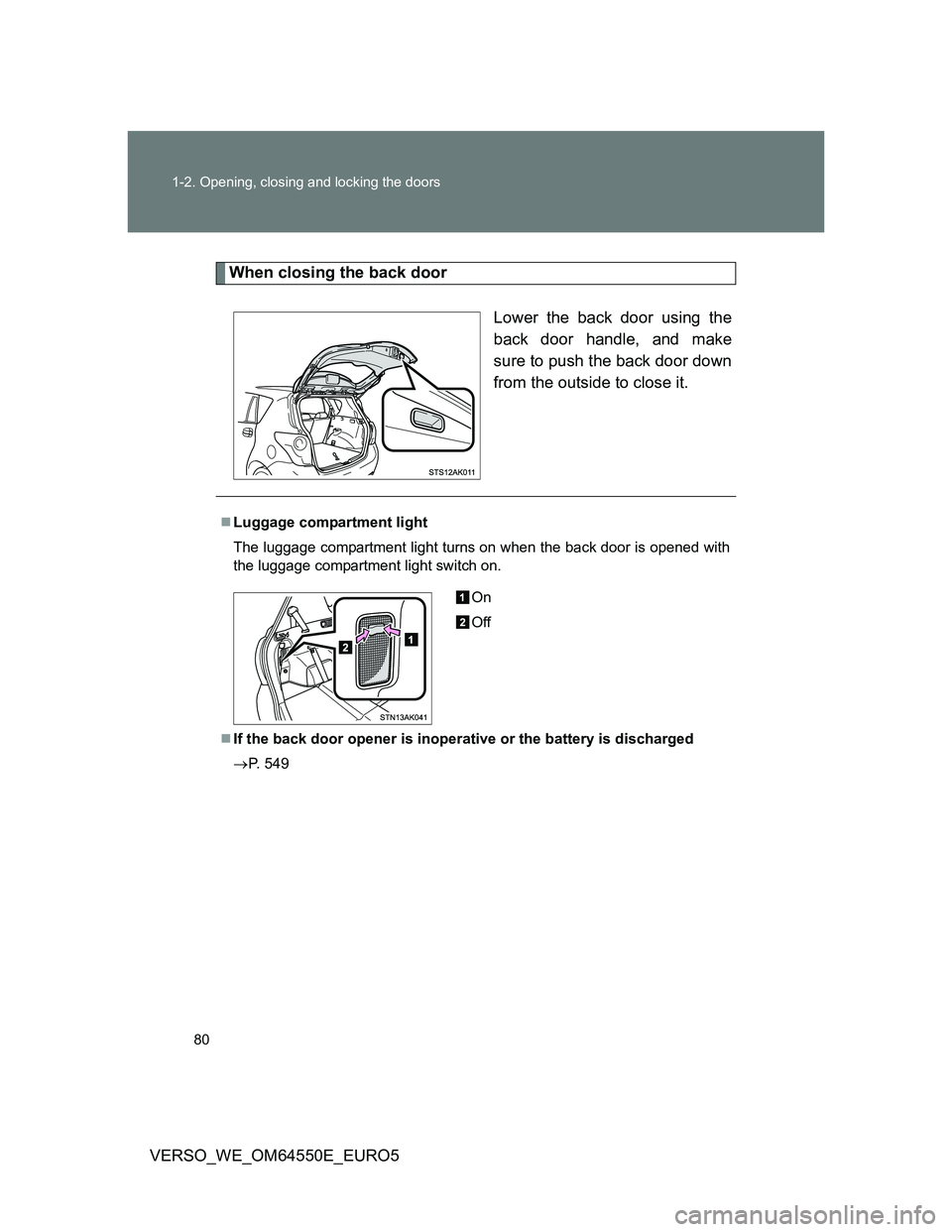

When closing the back door
Lower the back door using the
back door handle, and make
sure to push the back door down
from the outside to close it.
Luggage compartment light
The luggage compartment light turns on when the back door is opened with
the luggage compartment light switch on.
If the back door opener is inoperative or the battery is discharged
P. 549
On
Off
