TOYOTA VERSO S 2012 Owners Manual

331
3-5. Other interior features
3
Interior features
VERSO-S_EE

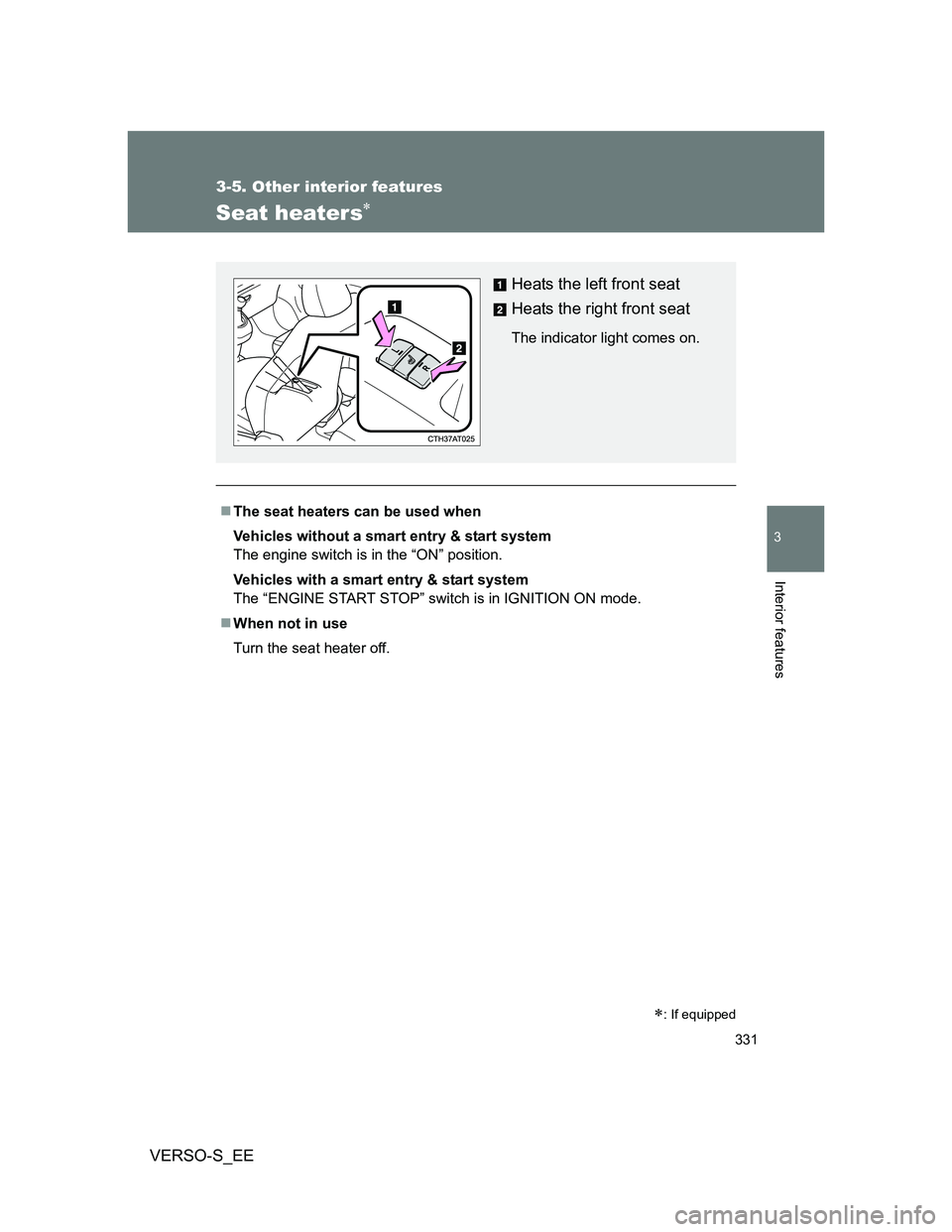

Seat heaters
The seat heaters can be used when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
When not in use
Turn the seat heater off.
: If equipped
Heats the left front seat
Heats the right front seat
The indicator light comes on.

332 3-5. Other interior features
VERSO-S_EE

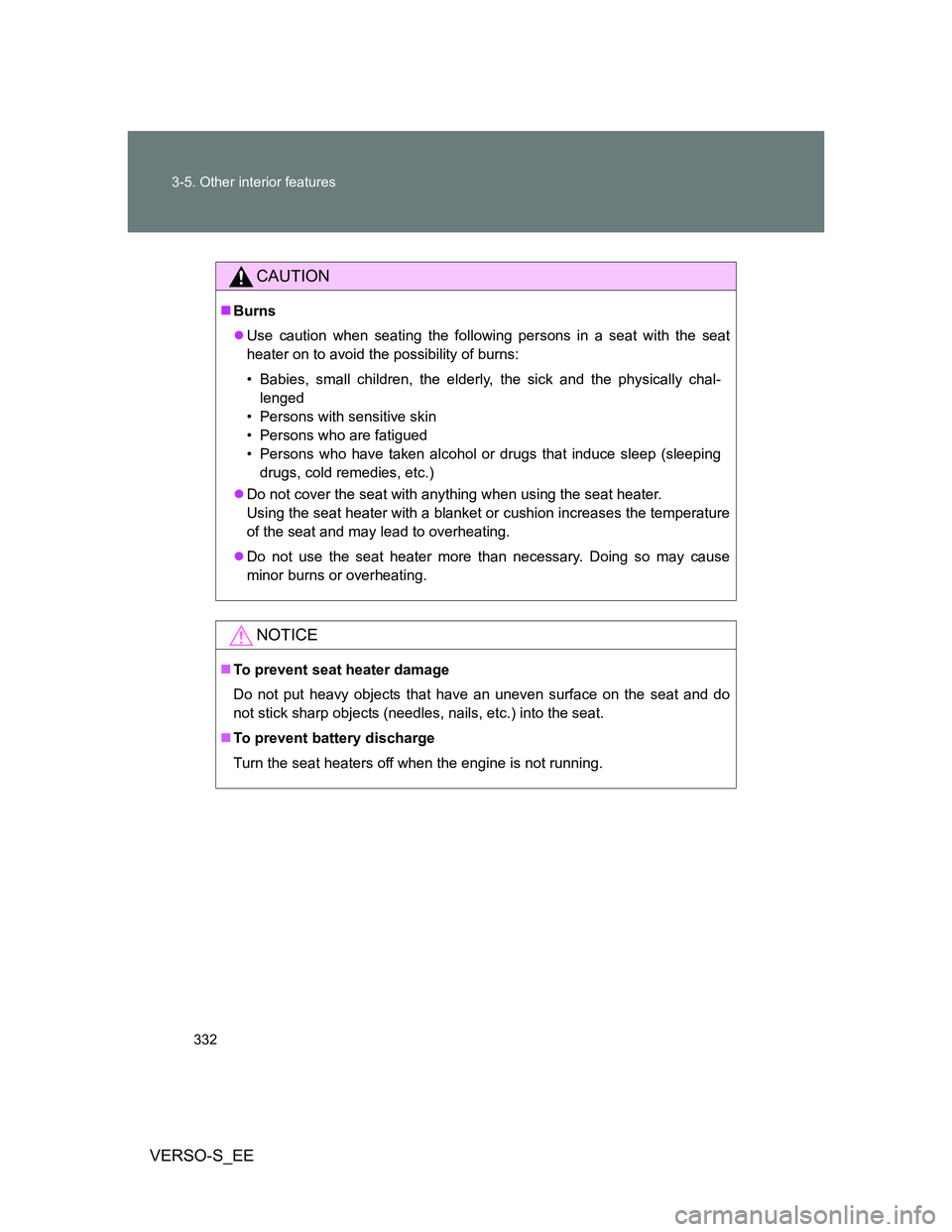

CAUTION
Burns
Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
NOTICE
To prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
To prevent battery discharge
Turn the seat heaters off when the engine is not running.

333
3-5. Other interior features
3
Interior features
VERSO-S_EE

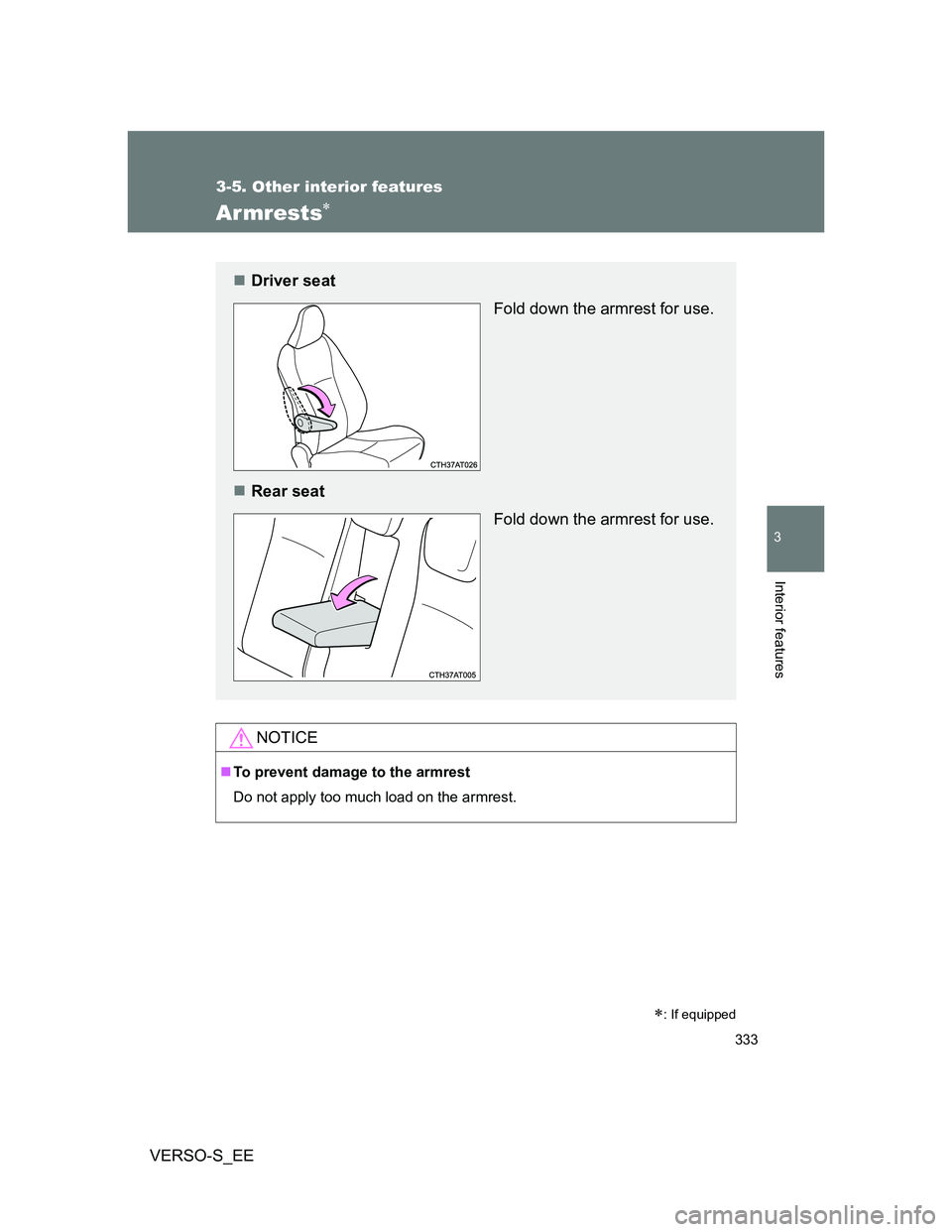

Armrests
NOTICE
To prevent damage to the armrest
Do not apply too much load on the armrest.
: If equipped
Driver seat
Fold down the armrest for use.
Rear seat
Fold down the armrest for use.

334
3-5. Other interior features
VERSO-S_EE
Panoramic roof shade
The panoramic roof shade can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Jam protection function
If an object is detected between the panoramic roof shade and the frame
while closing, travel is stopped and the panoramic roof shade opens slightly.
: If equipped
Use the overhead switches to open or close the panoramic roof
shade.
Opening
Automatic full-opening
(press and hold)*
Closing
Automatic full-closing
(press and hold)*
*: Pressing either side of the
switch will stop the panoramic
roof shade travel partway.

335 3-5. Other interior features
3
Interior features
VERSO-S_EE

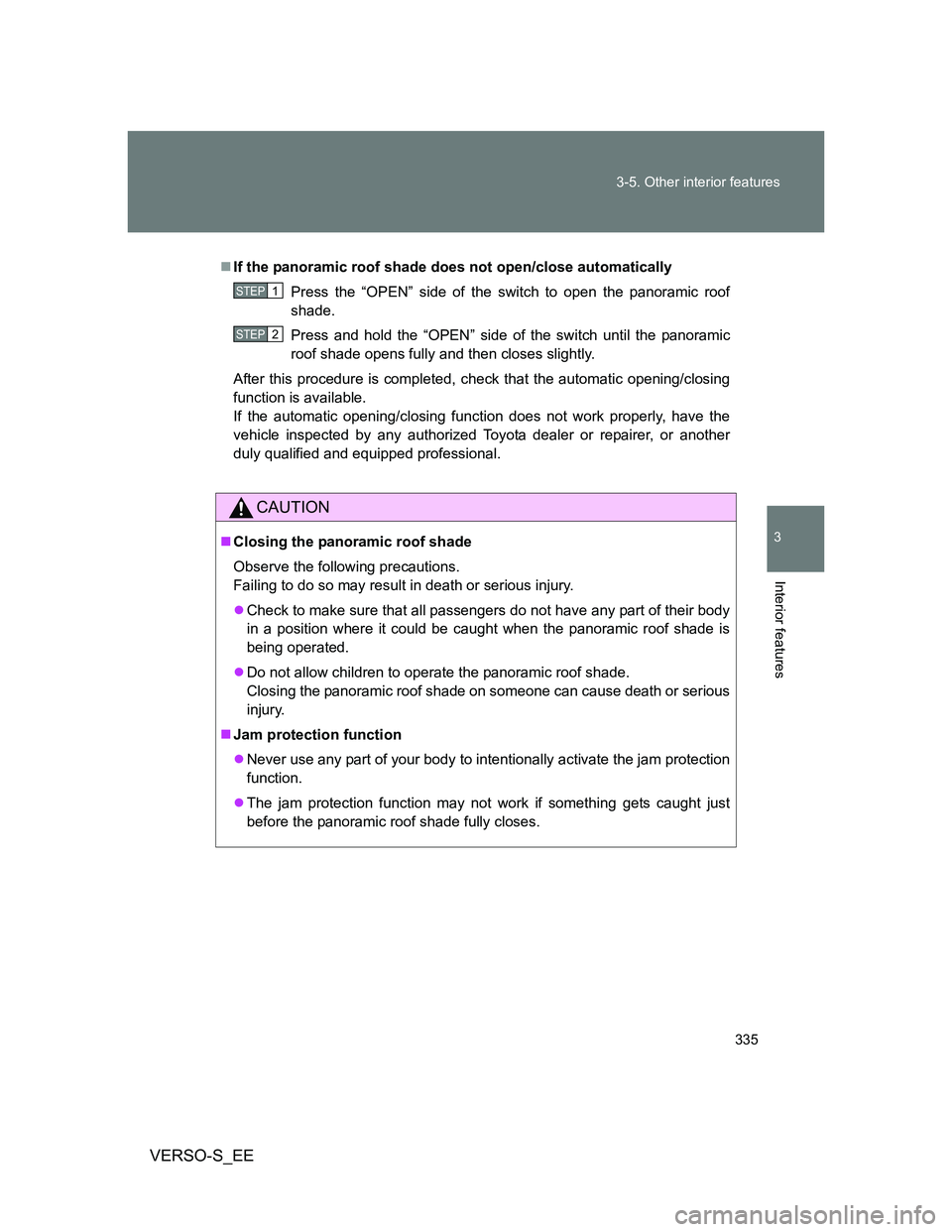

If the panoramic roof shade does not open/close automatically
Press the “OPEN” side of the switch to open the panoramic roof
shade.
Press and hold the “OPEN” side of the switch until the panoramic
roof shade opens fully and then closes slightly.
After this procedure is completed, check that the automatic opening/closing
function is available.
If the automatic opening/closing function does not work properly, have the
vehicle inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
CAUTION
Closing the panoramic roof shade
Observe the following precautions.
Failing to do so may result in death or serious injury.
Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when the panoramic roof shade is
being operated.
Do not allow children to operate the panoramic roof shade.
Closing the panoramic roof shade on someone can cause death or serious
injury.
Jam protection function
Never use any part of your body to intentionally activate the jam protection
function.
The jam protection function may not work if something gets caught just
before the panoramic roof shade fully closes.
STEP1
STEP2

336 3-5. Other interior features
VERSO-S_EE

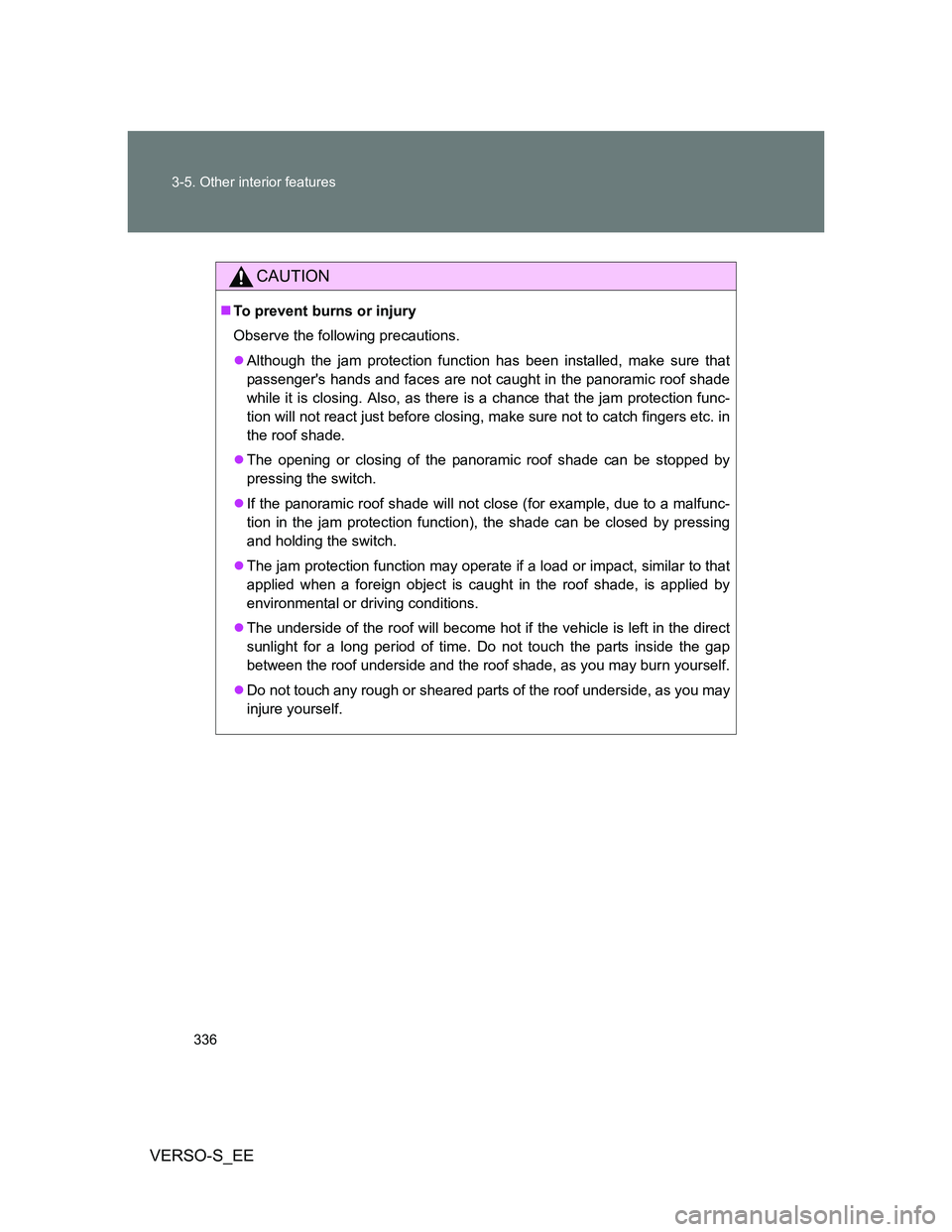

CAUTION
To prevent burns or injury
Observe the following precautions.
Although the jam protection function has been installed, make sure that
passenger's hands and faces are not caught in the panoramic roof shade
while it is closing. Also, as there is a chance that the jam protection func-
tion will not react just before closing, make sure not to catch fingers etc. in
the roof shade.
The opening or closing of the panoramic roof shade can be stopped by
pressing the switch.
If the panoramic roof shade will not close (for example, due to a malfunc-
tion in the jam protection function), the shade can be closed by pressing
and holding the switch.
The jam protection function may operate if a load or impact, similar to that
applied when a foreign object is caught in the roof shade, is applied by
environmental or driving conditions.
The underside of the roof will become hot if the vehicle is left in the direct
sunlight for a long period of time. Do not touch the parts inside the gap
between the roof underside and the roof shade, as you may burn yourself.
Do not touch any rough or sheared parts of the roof underside, as you may
injure yourself.

337
3-5. Other interior features
3
Interior features
VERSO-S_EE

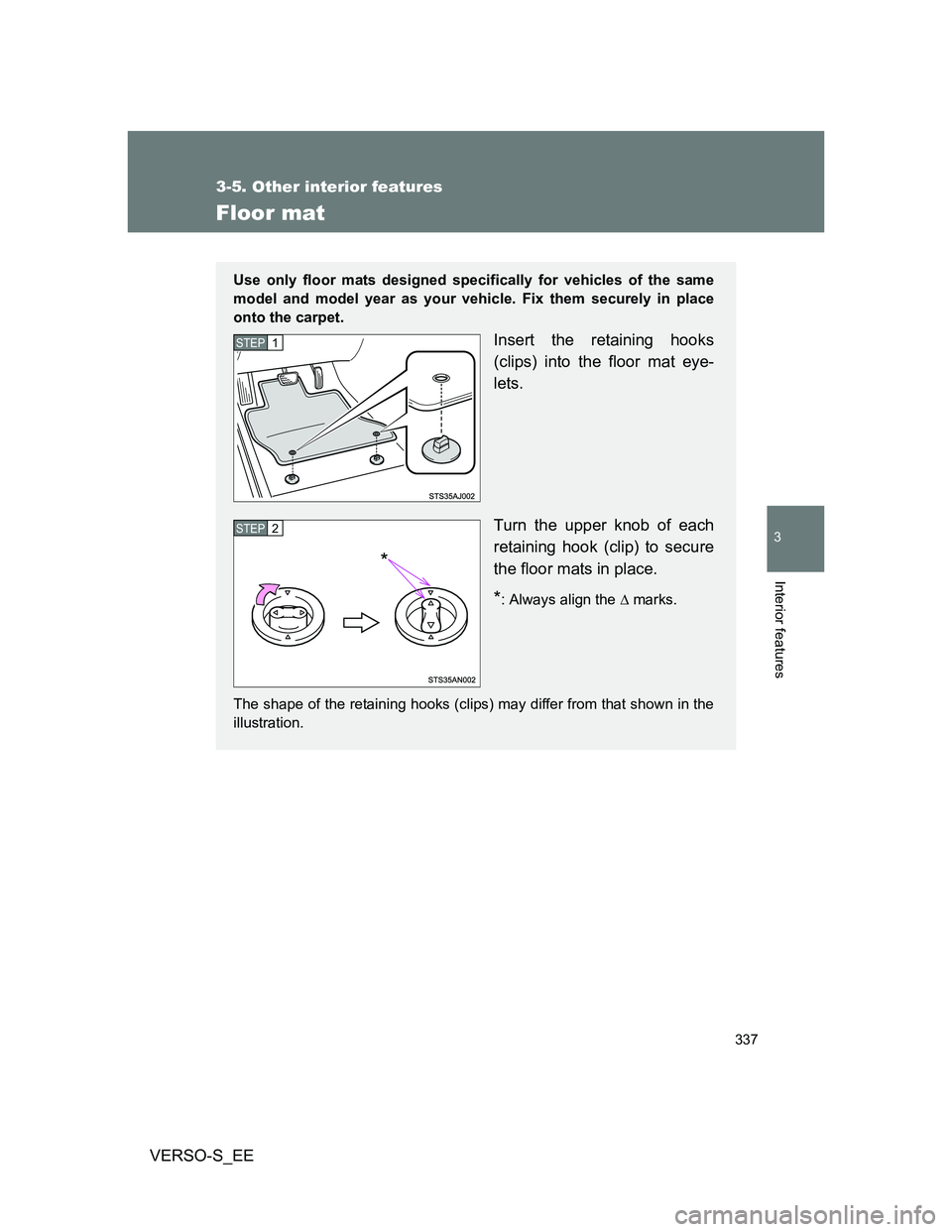

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the  marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
STEP1
STEP2
*

338 3-5. Other interior features
VERSO-S_EE

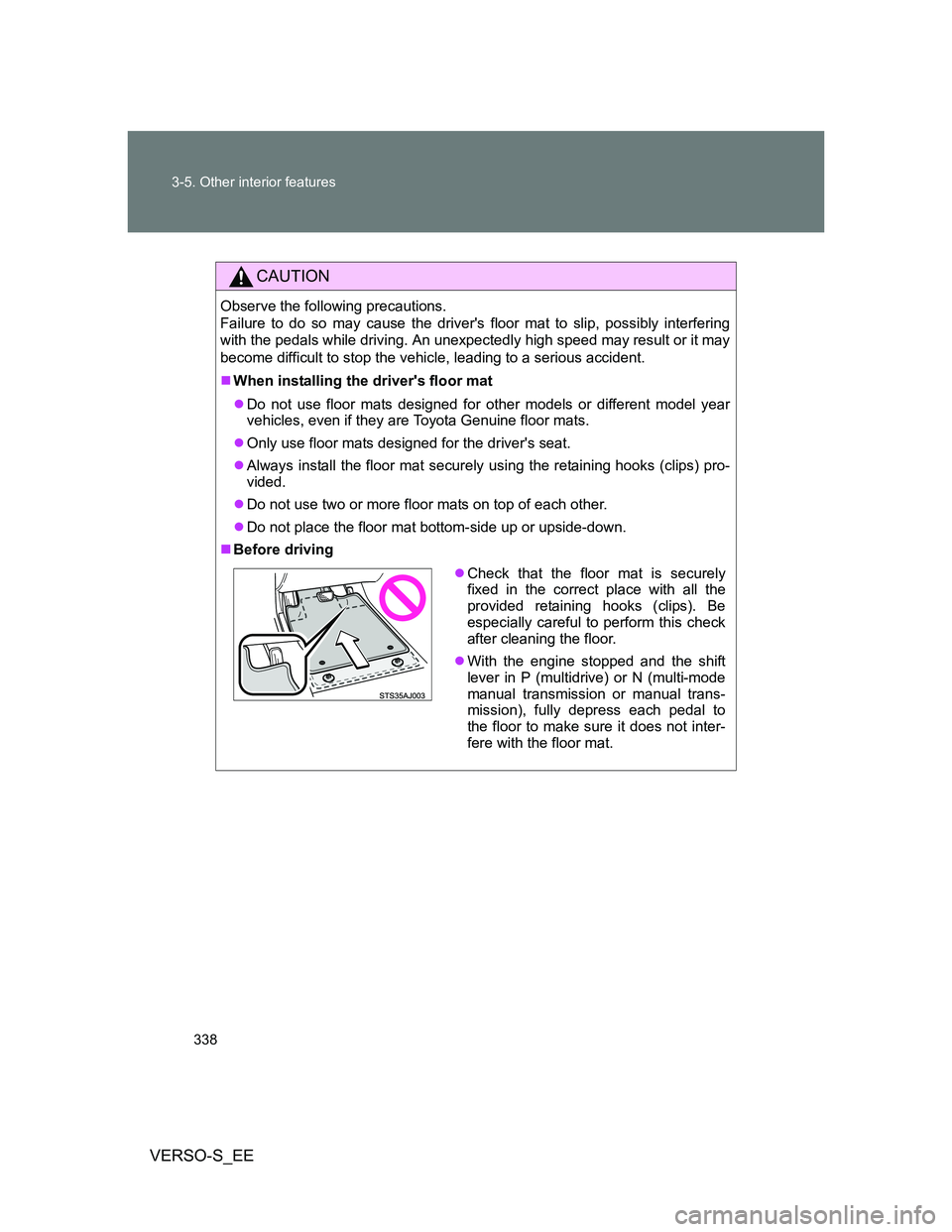

CAUTION
Observe the following precautions.
Failure to do so may cause the driver's floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
When installing the driver's floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver's seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the engine stopped and the shift
lever in P (multidrive) or N (multi-mode
manual transmission or manual trans-
mission), fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.

339
3-5. Other interior features
3
Interior features
VERSO-S_EE

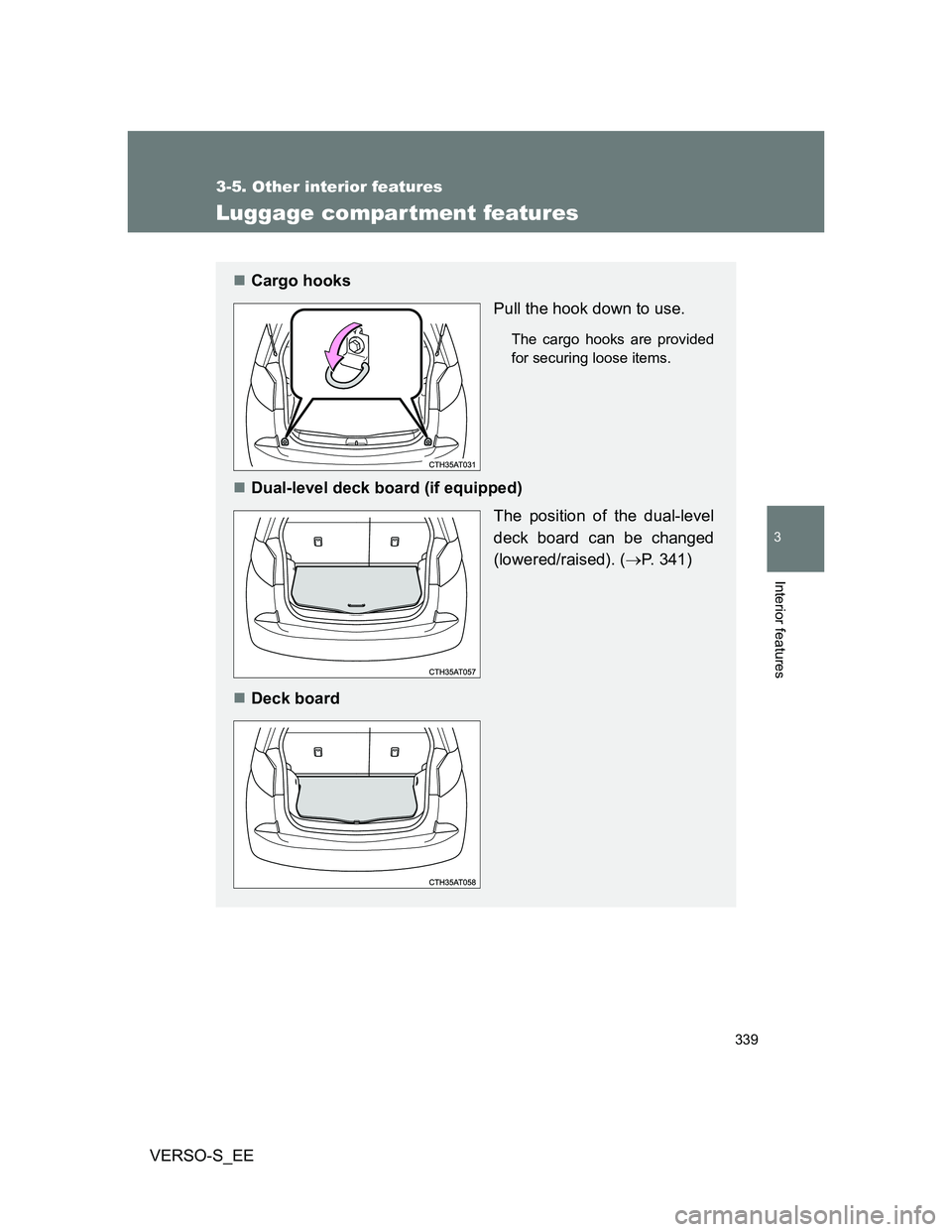

Luggage compar tment features
Cargo hooks
Pull the hook down to use.
The cargo hooks are provided
for securing loose items.
Dual-level deck board (if equipped)
The position of the dual-level
deck board can be changed
(lowered/raised). (P. 341)
Deck board

340 3-5. Other interior features
VERSO-S_EE

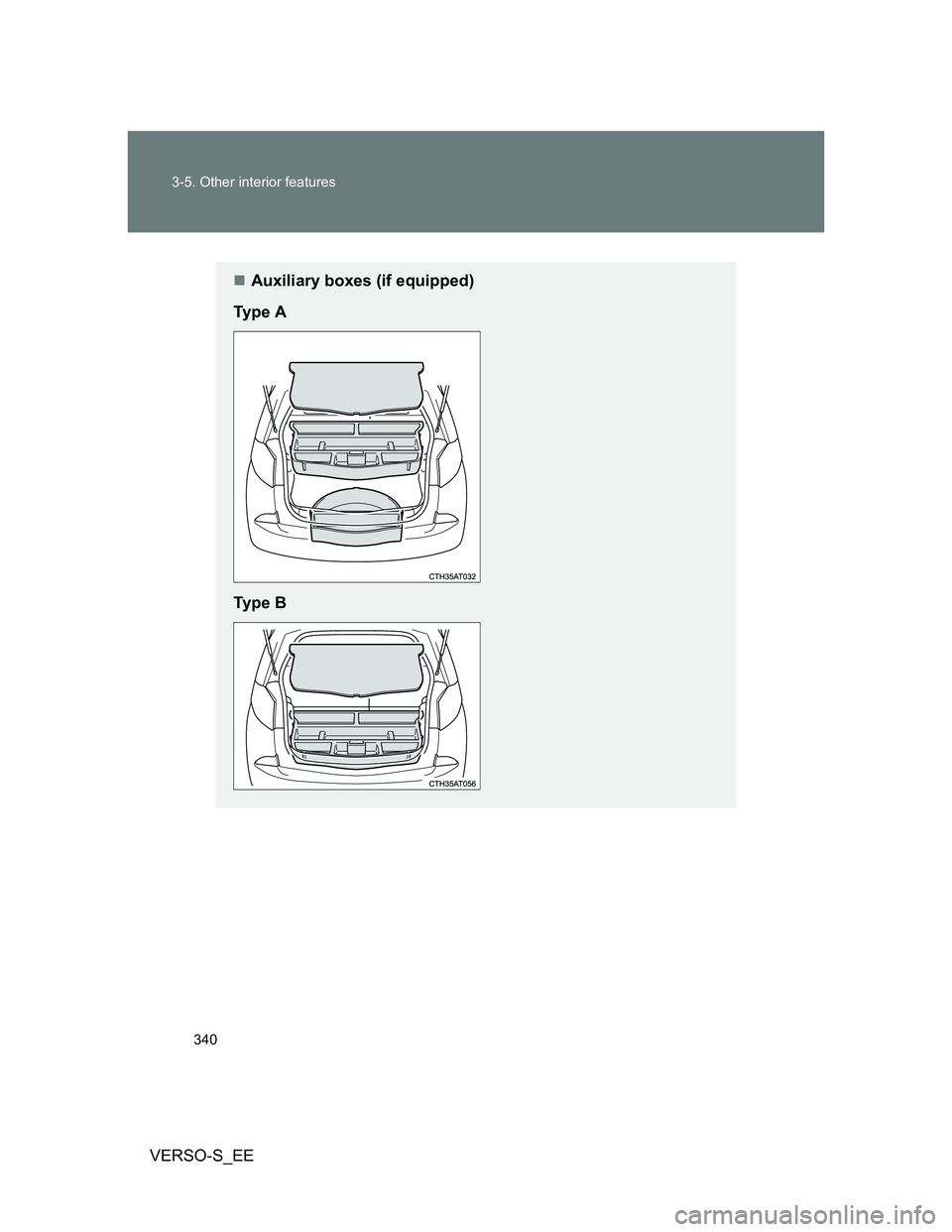

Auxiliary boxes (if equipped)
Ty p e A
Ty p e B
