TOYOTA VERSO S 2013 Owner's Manual

VERSO-S_EE
21
B

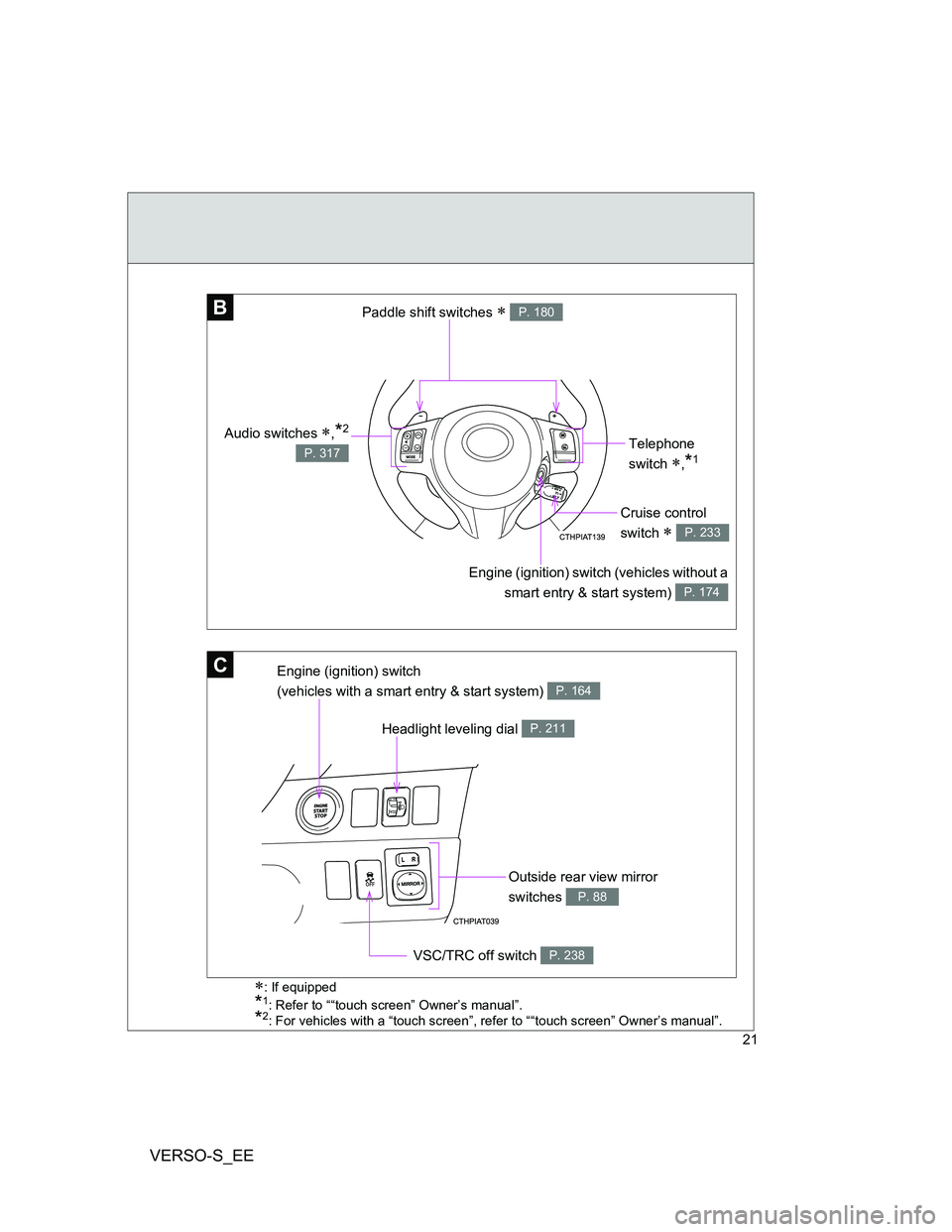

Telephone
switch
,*1
Engine (ignition) switch (vehicles without a
smart entry & start system)
P. 174
Paddle shift switches  P. 180
Audio switches ,*2
P. 317
C
Headlight leveling dial P. 211
Outside rear view mirror
switches
P. 88
VSC/TRC off switch P. 238
Engine (ignition) switch
(vehicles with a smart entry & start system)
P. 164
: If equipped
*1: Refer to ““touch screen” Owner’s manual”.
*2: For vehicles with a “touch screen”, refer to ““touch screen” Owner’s manual”.
Cruise control
switch
 P. 233

VERSO-S_EE
22

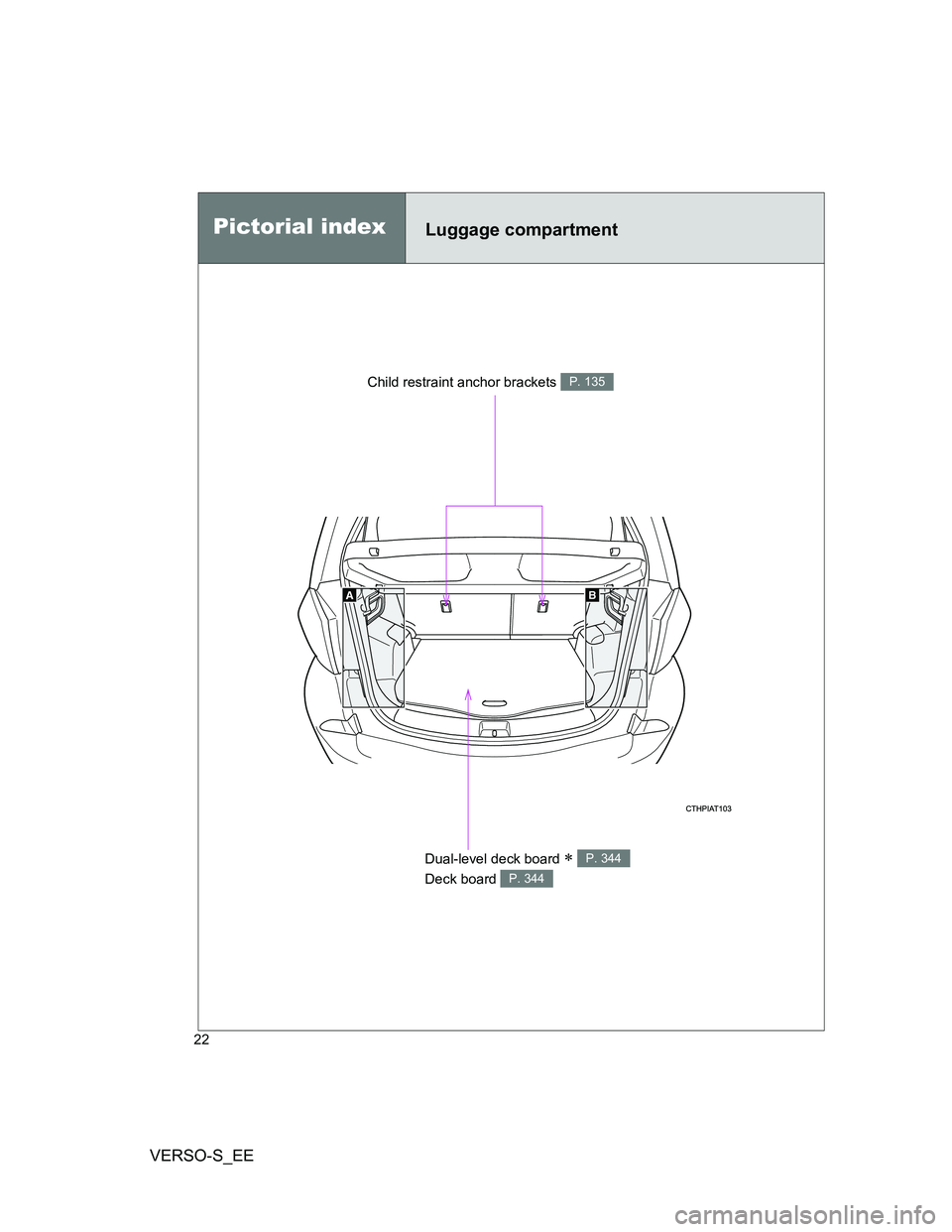

Pictorial indexLuggage compartment
Child restraint anchor brackets P. 135
Dual-level deck board 
Deck board P. 344
P. 344

VERSO-S_EE
23
A
B

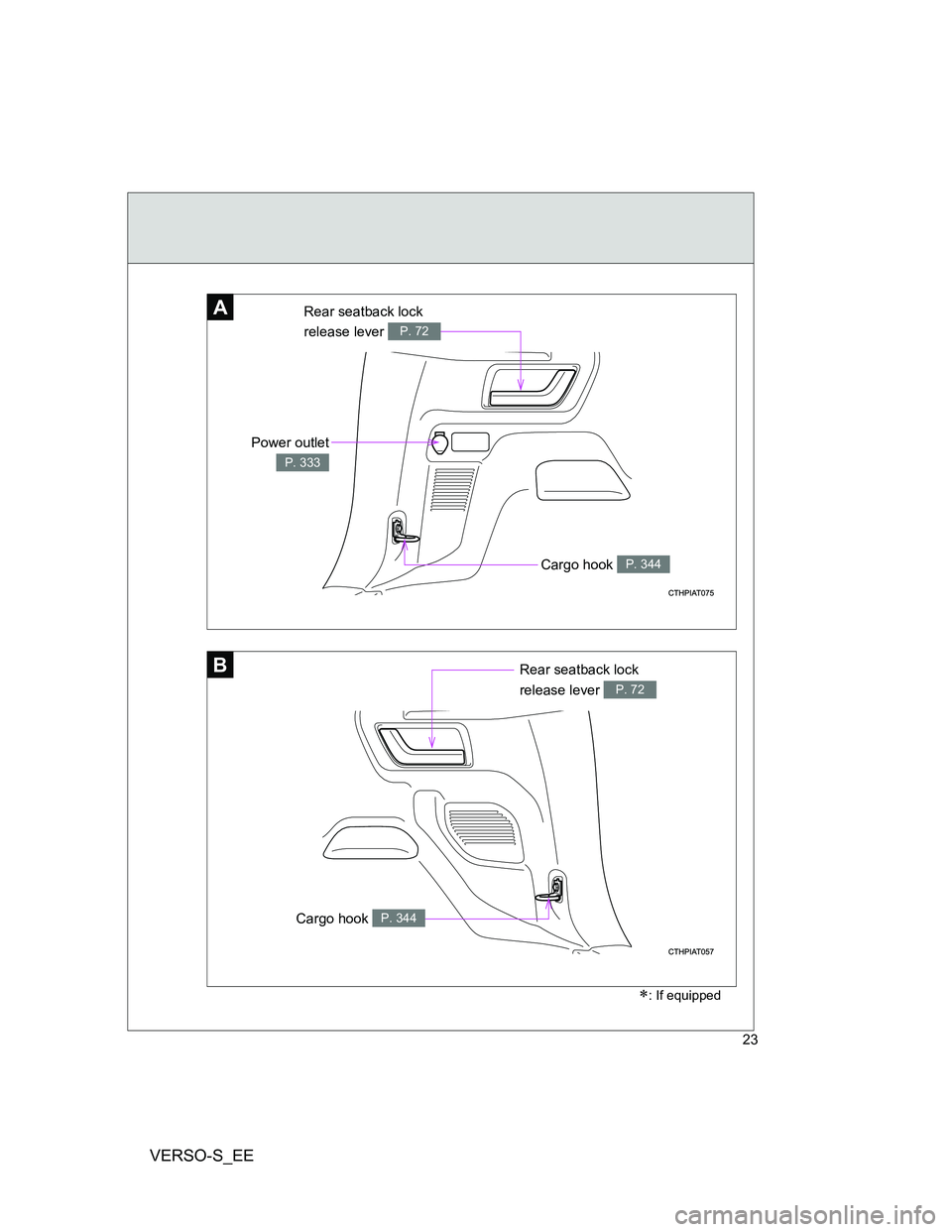

Cargo hook P. 344
Power outlet
P. 333
Cargo hook P. 344
Rear seatback lock
release lever
P. 72
Rear seatback lock
release lever
P. 72
: If equipped

VERSO-S_EE
24

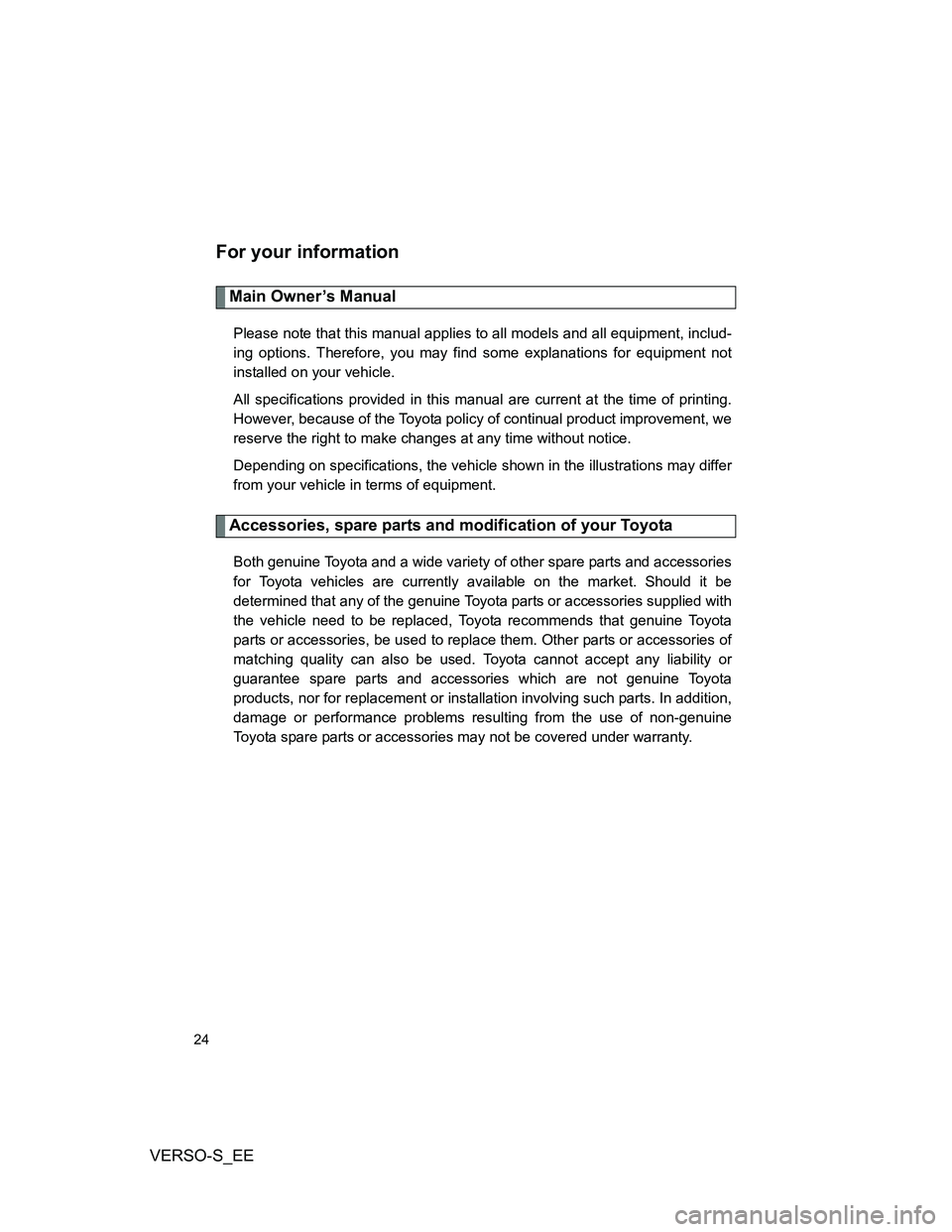

For your information
Main Owner’s Manual
Please note that this manual applies to all models and all equipment, includ-
ing options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
Both genuine Toyota and a wide variety of other spare parts and accessories
for Toyota vehicles are currently available on the market. Should it be
determined that any of the genuine Toyota parts or accessories supplied with
the vehicle need to be replaced, Toyota recommends that genuine Toyota
parts or accessories, be used to replace them. Other parts or accessories of
matching quality can also be used. Toyota cannot accept any liability or
guarantee spare parts and accessories which are not genuine Toyota
products, nor for replacement or installation involving such parts. In addition,
damage or performance problems resulting from the use of non-genuine
Toyota spare parts or accessories may not be covered under warranty.

VERSO-S_EE
25

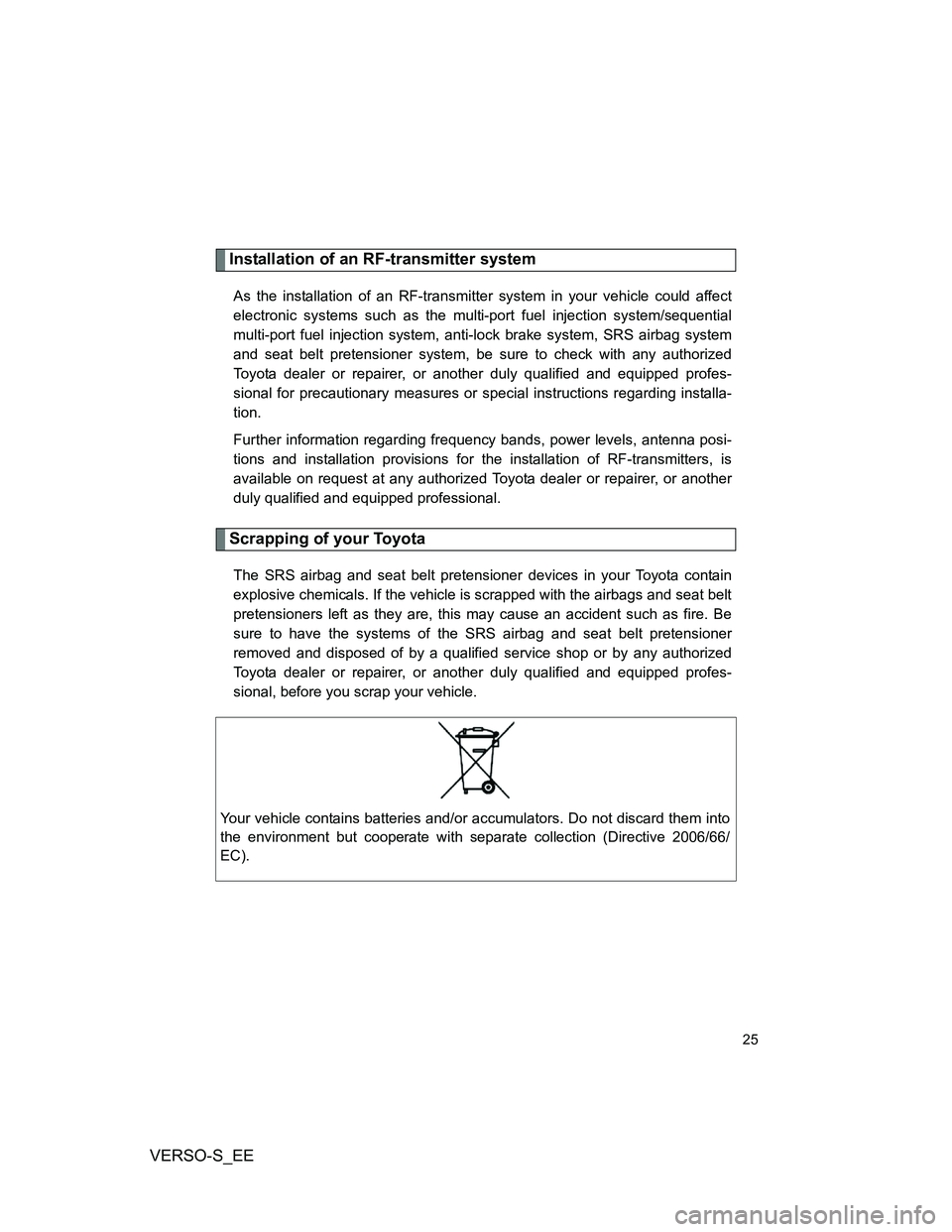

Installation of an RF-transmitter system
As the installation of an RF-transmitter system in your vehicle could affect
electronic systems such as the multi-port fuel injection system/sequential
multi-port fuel injection system, anti-lock brake system, SRS airbag system
and seat belt pretensioner system, be sure to check with any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional for precautionary measures or special instructions regarding installa-
tion.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters, is
available on request at any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional, before you scrap your vehicle.
Your vehicle contains batteries and/or accumulators. Do not discard them into
the environment but cooperate with separate collection (Directive 2006/66/
EC).

VERSO-S_EE
26
CAUTION
General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the panoramic roof shade, or other features of the vehicle. In
addition, heat build-up or extremely cold temperatures inside the vehicle can
be fatal to children.

VERSO-S_EE
27

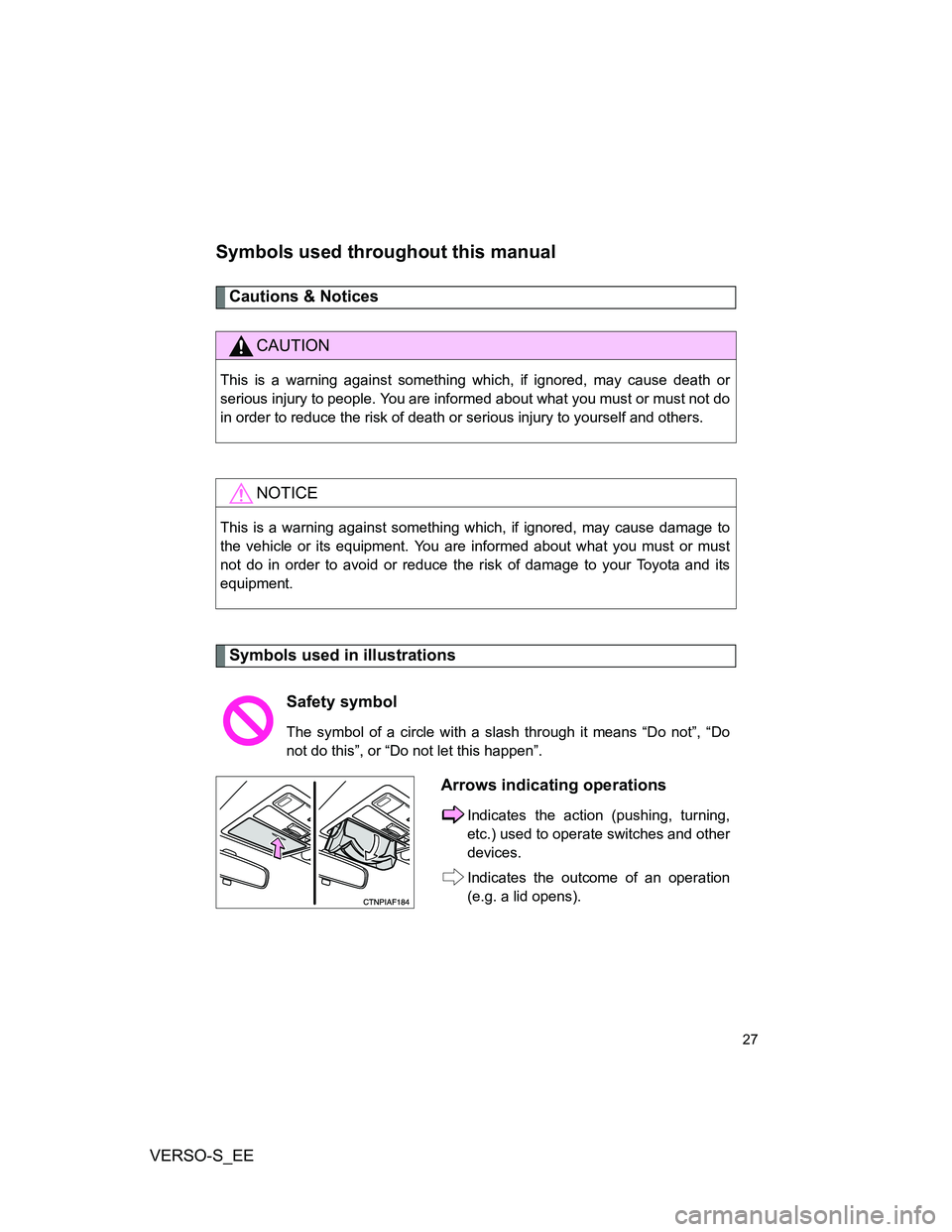

Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against something which, if ignored, may cause death or
serious injury to people. You are informed about what you must or must not do
in order to reduce the risk of death or serious injury to yourself and others.
NOTICE
This is a warning against something which, if ignored, may cause damage to
the vehicle or its equipment. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your Toyota and its
equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turning,
etc.) used to operate switches and other
devices.
Indicates the outcome of an operation
(e.g. a lid opens).

VERSO-S_EE
28

1Before driving
29
VERSO-S_EE
1-1. Key information
Keys.................................... 30
1-2. Opening, closing and
locking the doors
Smart entry & start
system .............................. 33
Wireless remote control ...... 53
Side doors .......................... 58
Back door ........................... 64
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats.......................... 69
Rear seats .......................... 70
Head restraints ................... 75
Seat belts............................ 77
Steering wheel .................... 84
Anti-glare inside rear
view mirror ........................ 86
Outside rear view mirrors ... 88
1-4. Opening and closing the
windows
Power windows................... 901-5. Refueling
Opening the fuel tank
cap .................................... 93
1-6. Theft deterrent system
Engine immobilizer
system .............................. 97
Double locking system ...... 105
Alarm ................................ 107
1-7. Safety information
Correct driving posture ..... 110
SRS airbags...................... 112
Airbag manual on-off
system ............................ 123
Child restraint systems ..... 126
Installing child
restraints ......................... 135

30
VERSO-S_EE
1-1. Key information

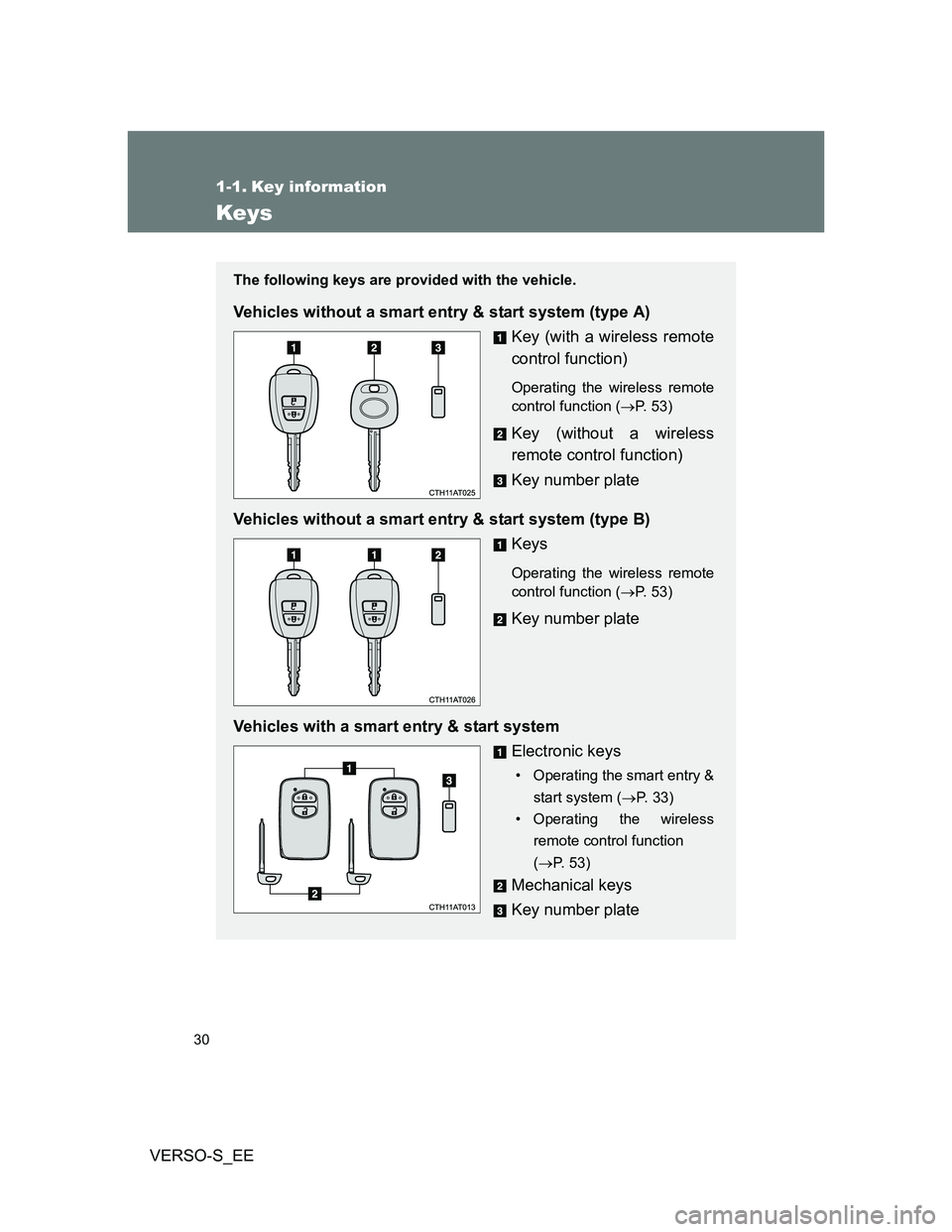

Keys
The following keys are provided with the vehicle.
Vehicles without a smart entry & start system (type A)
Key (with a wireless remote
control function)
Operating the wireless remote
control function (P. 53)
Key (without a wireless
remote control function)
Key number plate
Vehicles without a smart entry & start system (type B)
Keys
Operating the wireless remote
control function (P. 53)
Key number plate
Vehicles with a smart entry & start system
Electronic keys
• Operating the smart entry &
start system (P. 33)
• Operating the wireless
remote control function
(P. 53)
Mechanical keys
Key number plate
