TOYOTA VERSO S 2013 Owners Manual

341
3-5. Other interior features
3
Interior features
VERSO-S_EE

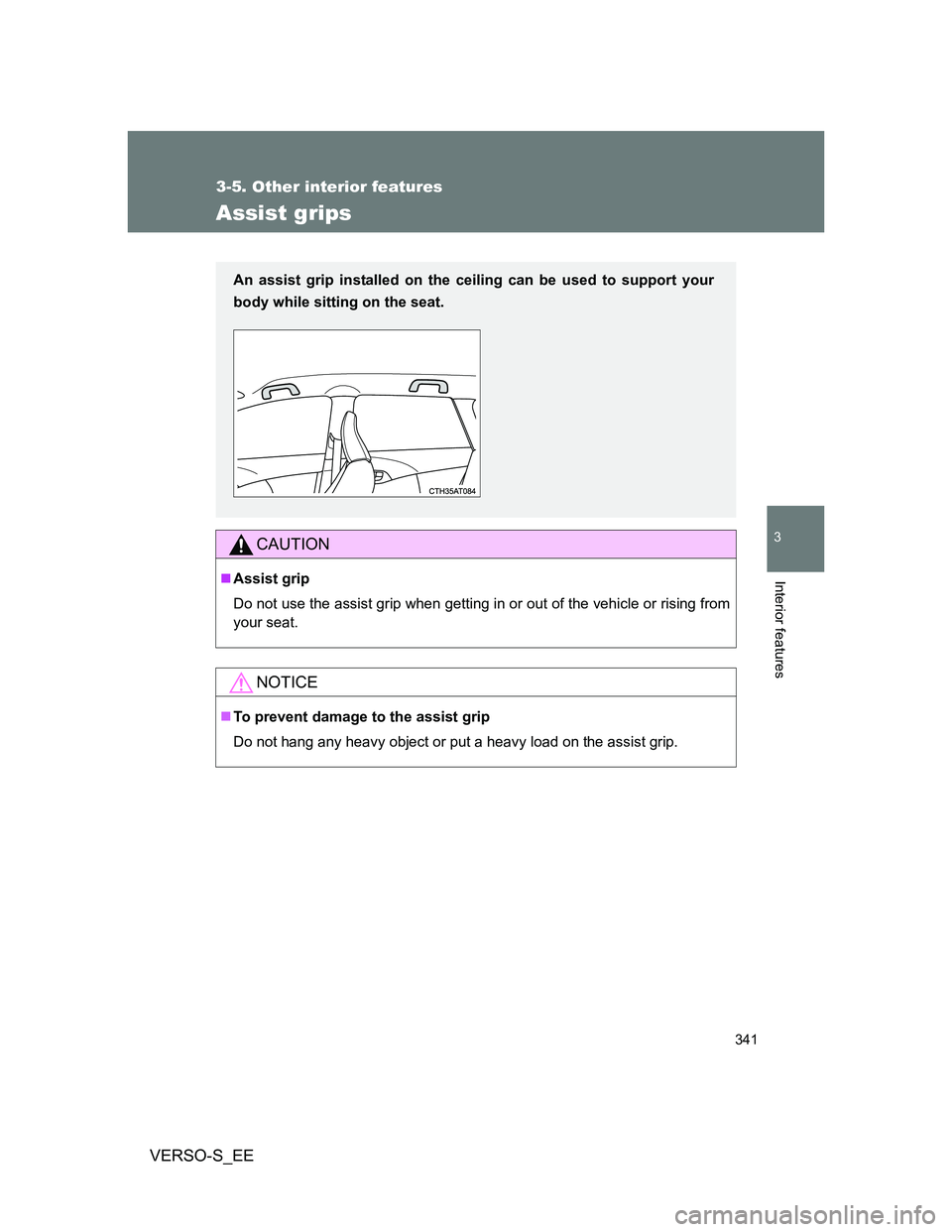

Assist grips
CAUTION
Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip installed on the ceiling can be used to support your
body while sitting on the seat.

342
3-5. Other interior features
VERSO-S_EE

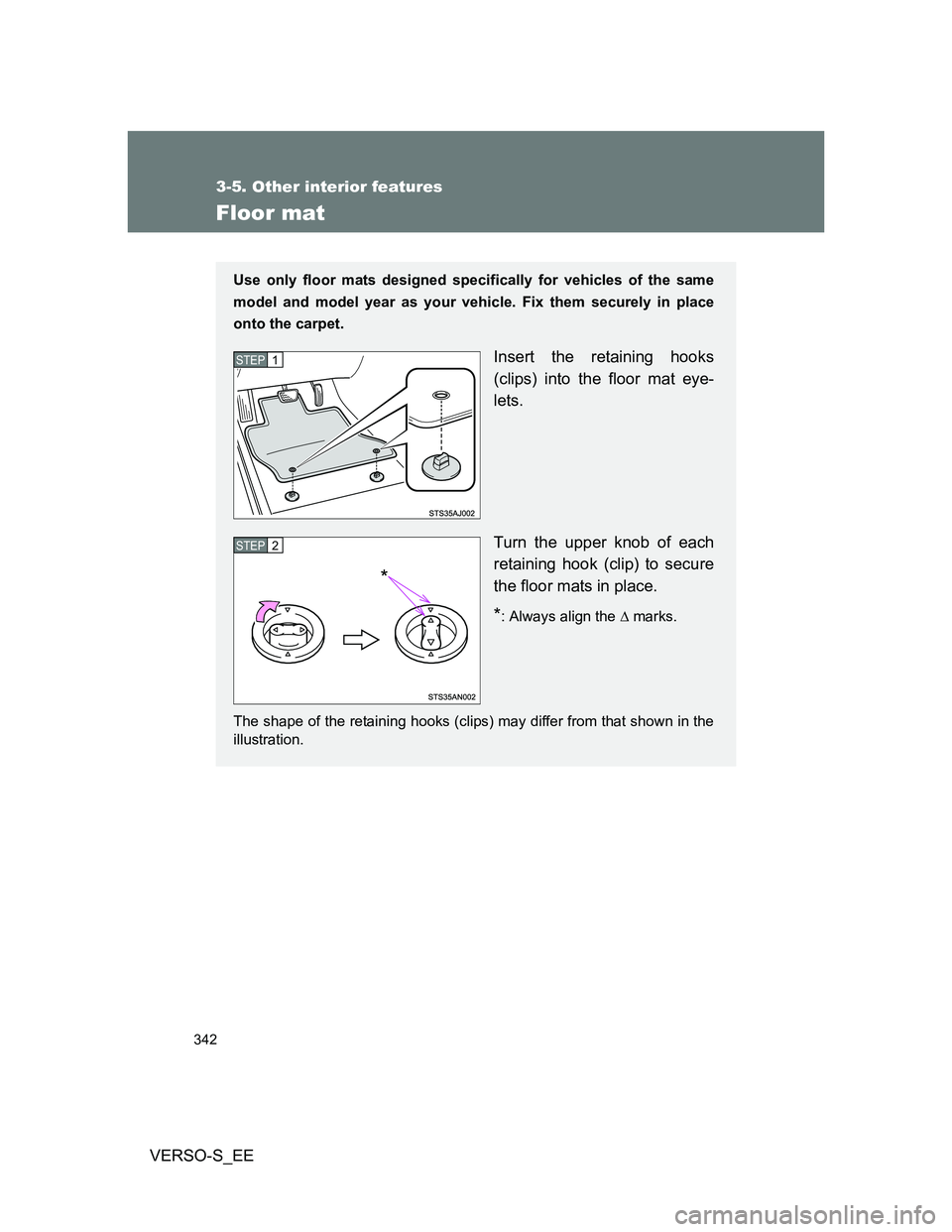

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the  marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
STEP1
STEP2
*

343 3-5. Other interior features
3
Interior features
VERSO-S_EE

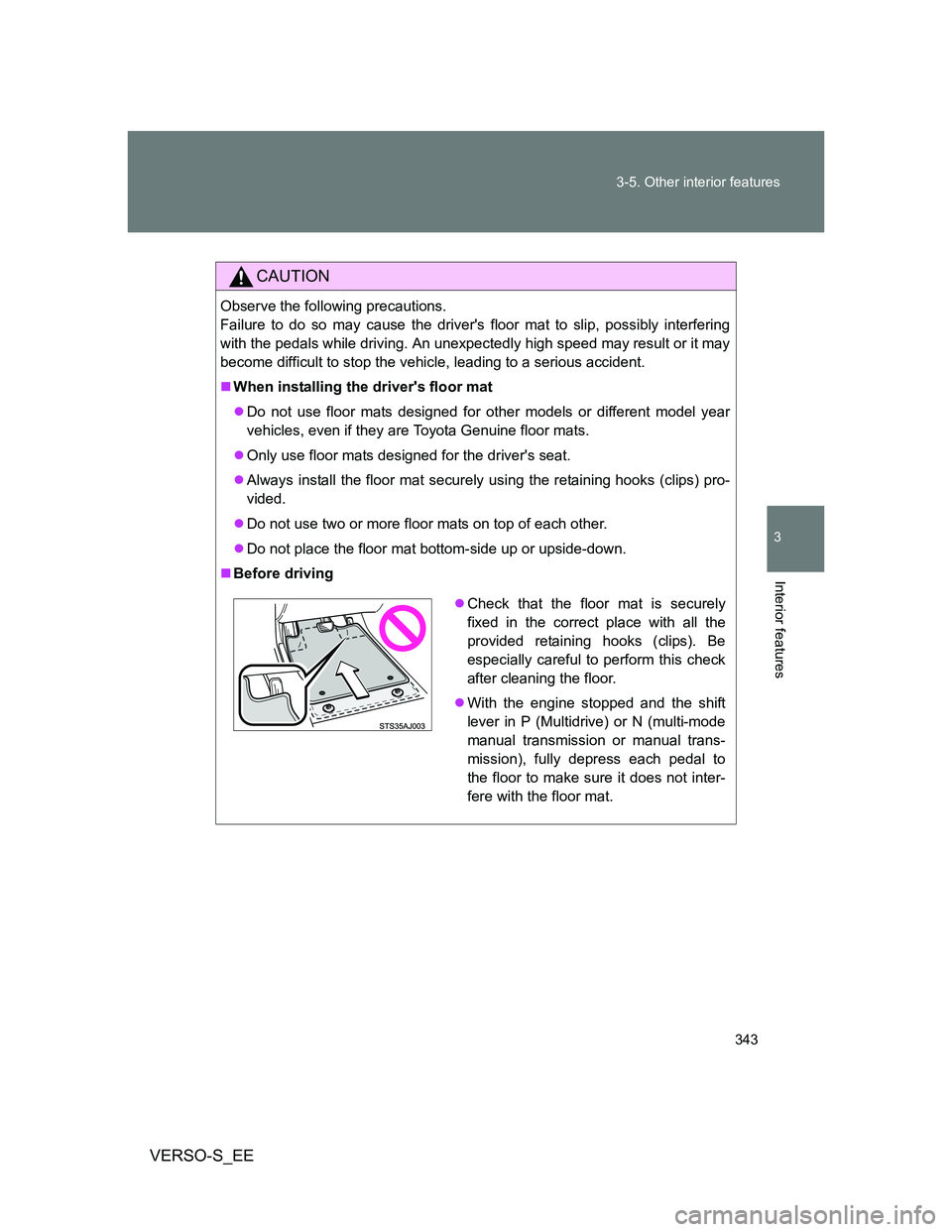

CAUTION
Observe the following precautions.
Failure to do so may cause the driver's floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
When installing the driver's floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver's seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the engine stopped and the shift
lever in P (Multidrive) or N (multi-mode
manual transmission or manual trans-
mission), fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.

344
3-5. Other interior features
VERSO-S_EE

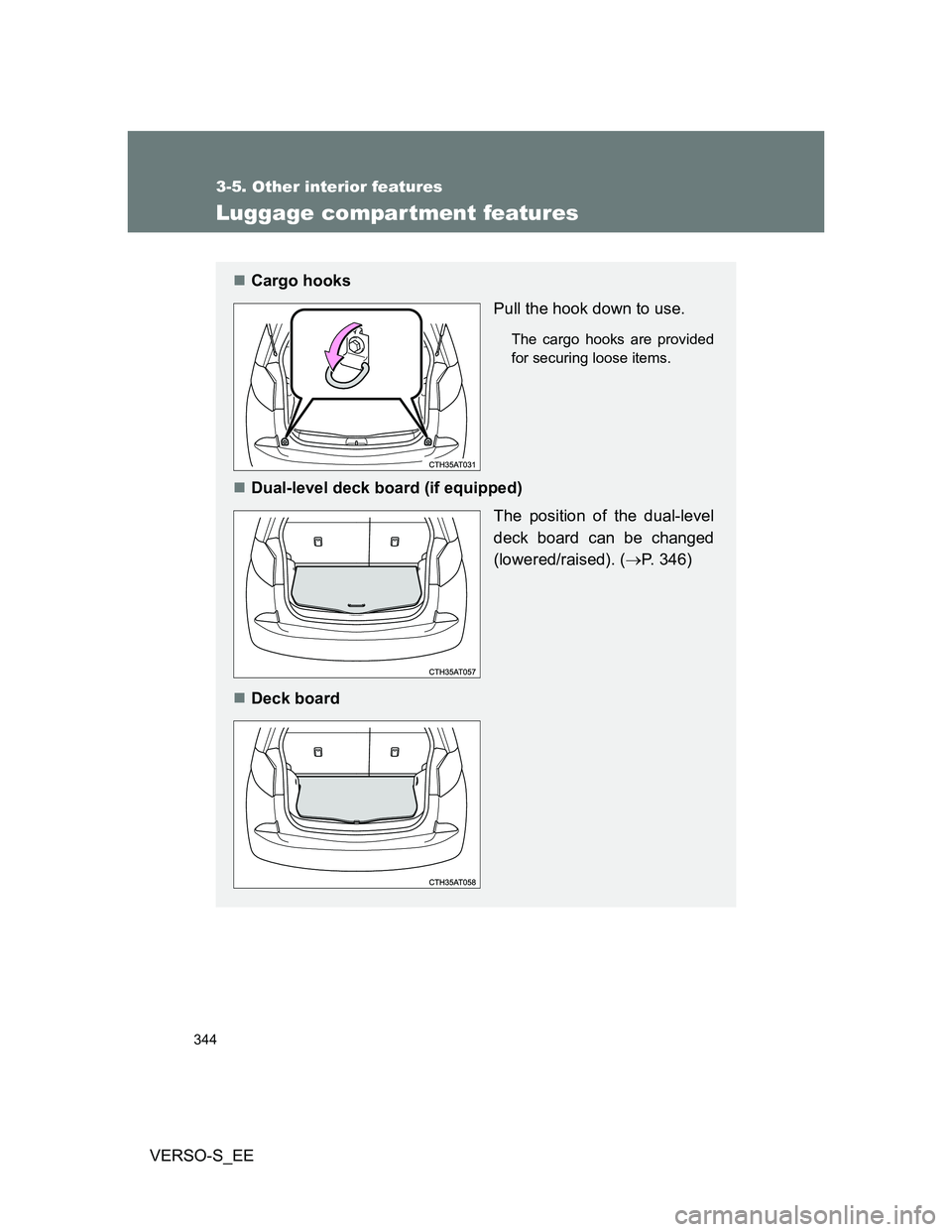

Luggage compar tment features
Cargo hooks
Pull the hook down to use.
The cargo hooks are provided
for securing loose items.
Dual-level deck board (if equipped)
The position of the dual-level
deck board can be changed
(lowered/raised). (P. 346)
Deck board

345 3-5. Other interior features
3
Interior features
VERSO-S_EE
Auxiliary boxes (if equipped)
Ty p e A
Ty p e B

346 3-5. Other interior features
VERSO-S_EE

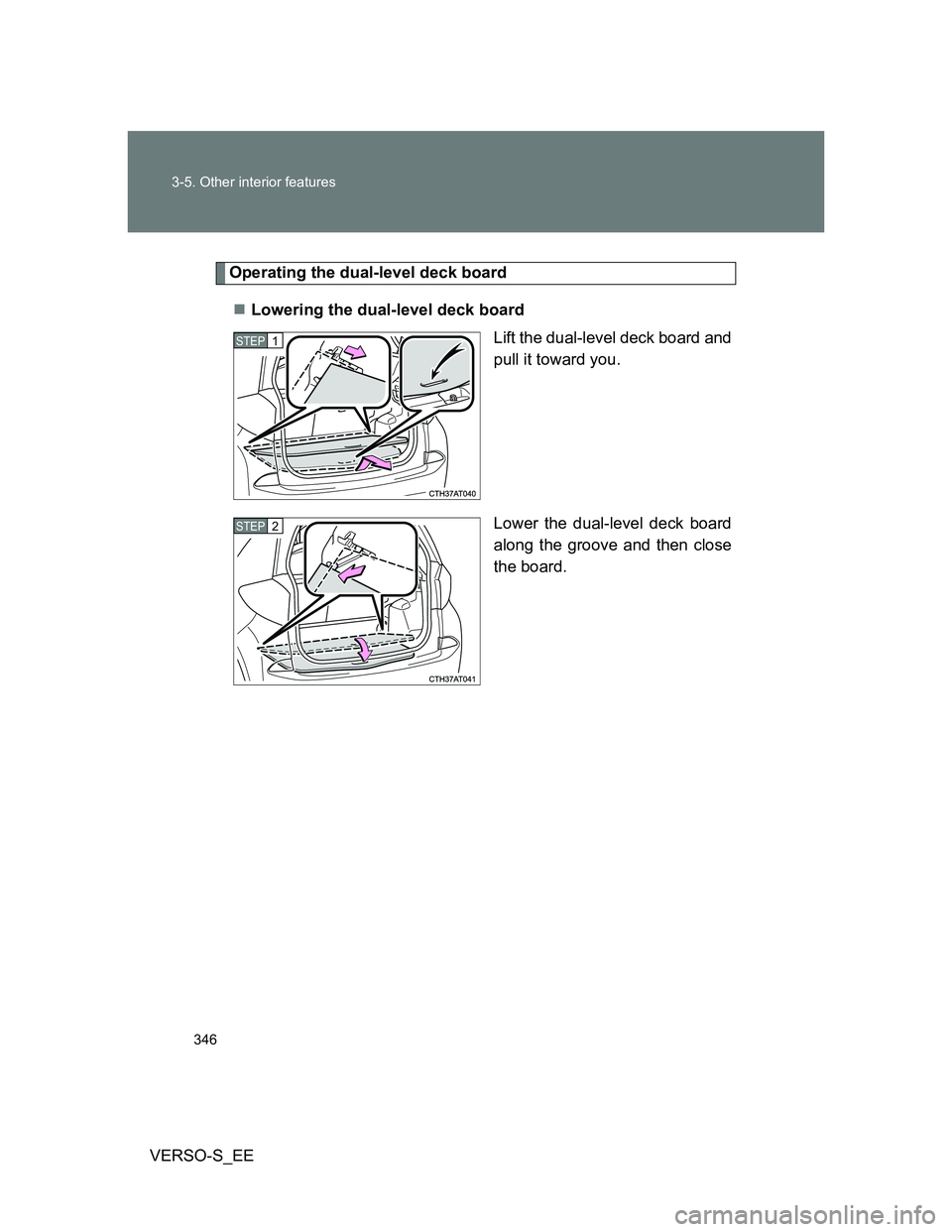

Operating the dual-level deck board
Lowering the dual-level deck board
Lift the dual-level deck board and
pull it toward you.
Lower the dual-level deck board
along the groove and then close
the board.
STEP1
STEP2

347 3-5. Other interior features
3
Interior features
VERSO-S_EERemoving the dual-level deck board
Before removing, raise the dual-level deck board to the upper posi-
tion. If it is in the lower position, the board cannot be removed.
Lift the dual-level deck board up.
Lift the dual-level deck board fur-
ther upward through the portion
“A” in the illustration.
Securing the dual-level deck board
Lift the dual-level deck board up.
STEP1
STEP2
A
STEP1

348 3-5. Other interior features

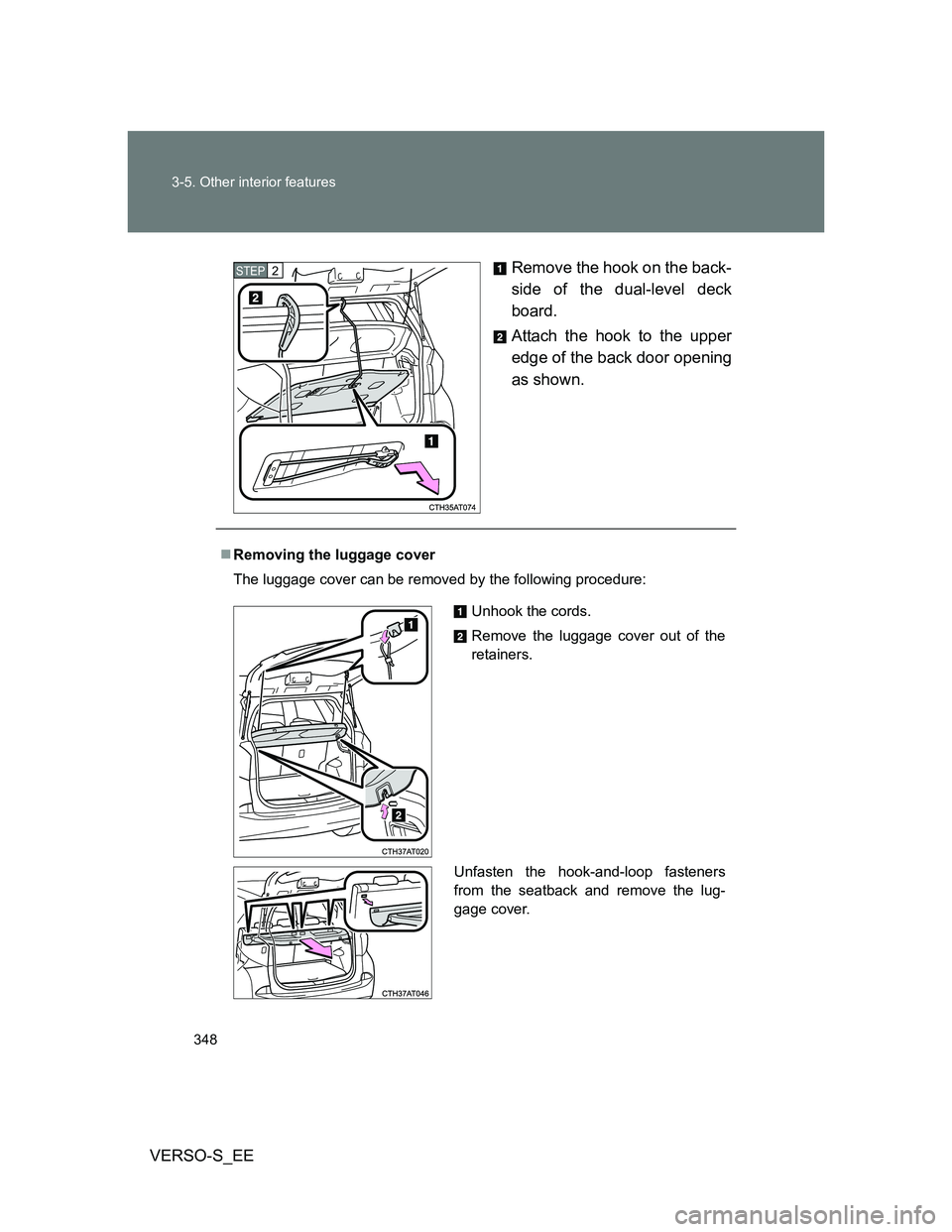

VERSO-S_EERemove the hook on the back-
side of the dual-level deck
board.
Attach the hook to the upper
edge of the back door opening
as shown.
STEP2
Removing the luggage cover
The luggage cover can be removed by the following procedure:
Unhook the cords.
Remove the luggage cover out of the
retainers.
Unfasten the hook-and-loop fasteners
from the seatback and remove the lug-
gage cover.

349 3-5. Other interior features
3
Interior features
VERSO-S_EE

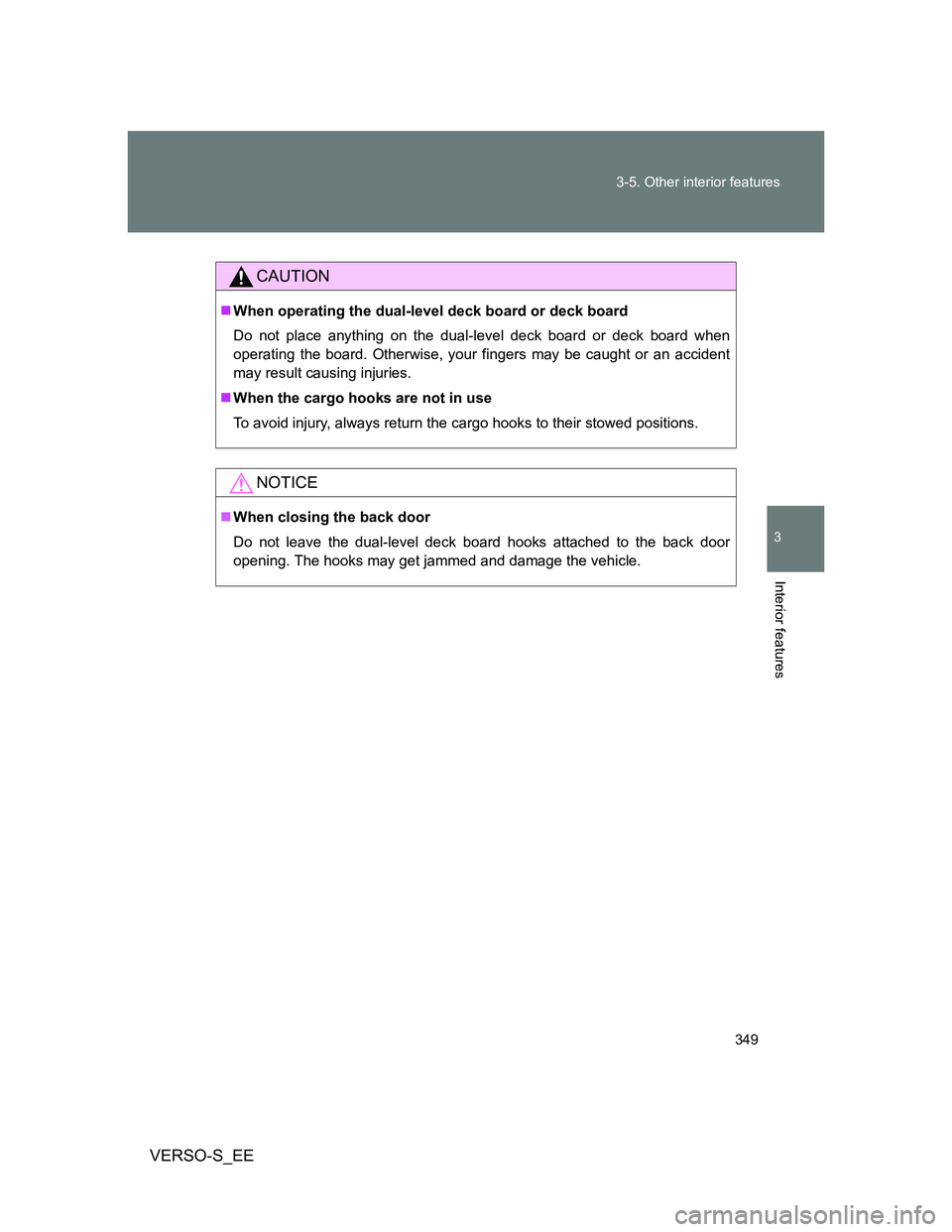

CAUTION
When operating the dual-level deck board or deck board
Do not place anything on the dual-level deck board or deck board when
operating the board. Otherwise, your fingers may be caught or an accident
may result causing injuries.
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
NOTICE
When closing the back door
Do not leave the dual-level deck board hooks attached to the back door
opening. The hooks may get jammed and damage the vehicle.

350 3-5. Other interior features
VERSO-S_EE
