TOYOTA VERSO S 2013 Owners Manual

321 3-3. Using the interior lights
3
Interior features
VERSO-S_EE

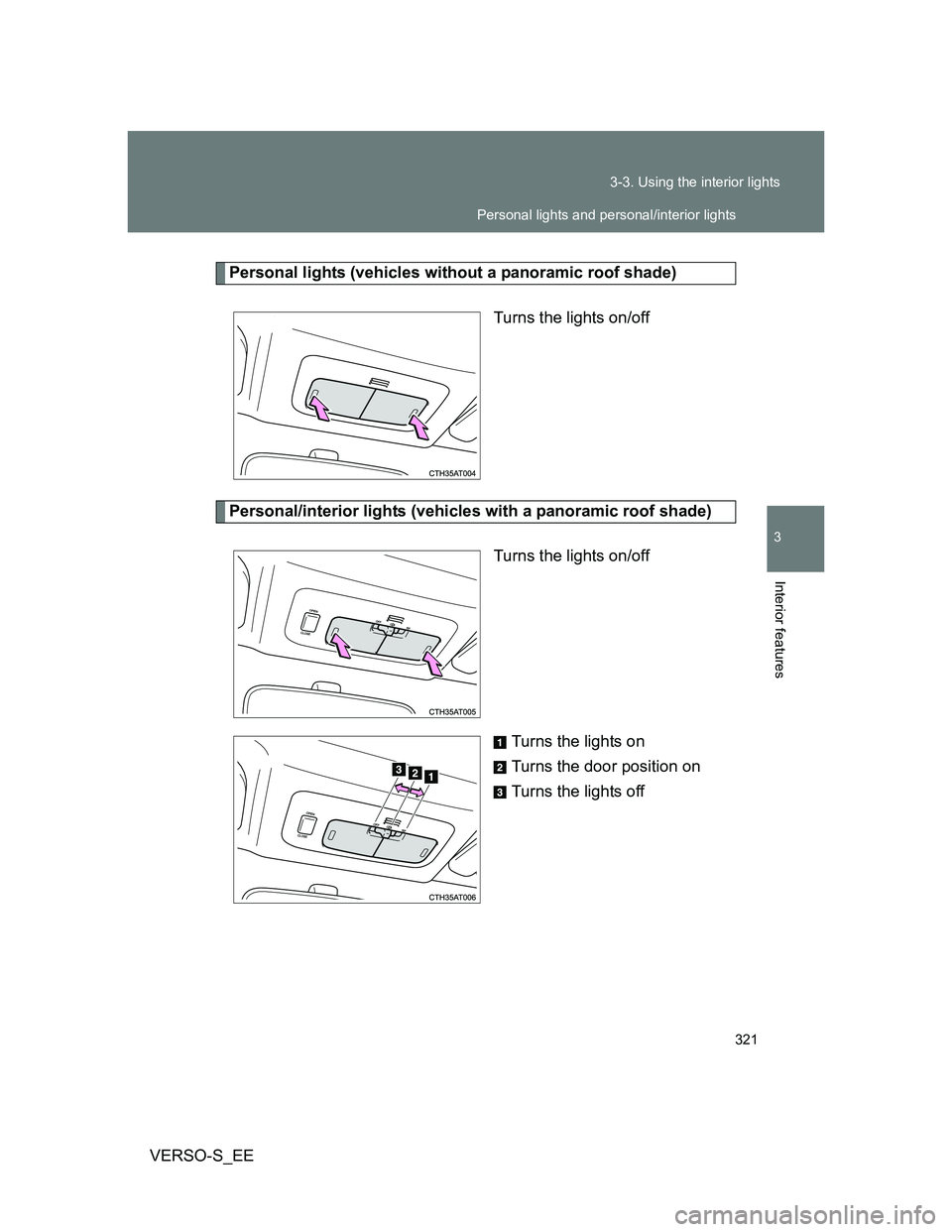

Personal lights (vehicles without a panoramic roof shade)
Turns the lights on/off
Personal/interior lights (vehicles with a panoramic roof shade)
Turns the lights on/off
Turns the lights on
Turns the door position on
Turns the lights off
Personal lights and personal/interior lights

322 3-3. Using the interior lights
VERSO-S_EE
Interior light
Turn the light off
Turn the door position on
Turn the light on
Illuminated entry system
Vehicles without a smart entry & start system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are open/
closed.
Vehicles with a smart entry & start system
The lights automatically turn on/off according to “ENGINE START STOP”
switch mode, the presence of the electronic key, whether the doors are
locked/unlocked, and whether the doors are open/closed.
To prevent battery discharge
If the following lights remain on when the door is not fully closed, the lights
will go off automatically after 20 minutes:
Personal/interior lights (when the switch is in the door position)
Interior light (when the switch is in the door position)
“ENGINE START STOP” switch light
Footwell lights
Customization that can be configured at any authorized Toyota dealer
or repair, or another duly qualified and equipped professional
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features P. 528)
Interior light

323
3
Interior features
VERSO-S_EE
3-4. Using the storage features
List of storage features
CAUTION
Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Auxiliary box
Glove box
Bottle holders
Tray (if equipped)
Cup holders

324 3-4. Using the storage features
VERSO-S_EE
Auxiliary box
Pull up the lid.
Glove box
Pull up the lever to open the
glove box.
CAUTION
Caution while driving
Keep the auxiliary box closed. In the event of sudden braking, an accident
may occur due to an occupant being struck by an open auxiliary box or the
items stored inside.
Auxiliary box and glove box

325 3-4. Using the storage features
3
Interior features
VERSO-S_EE

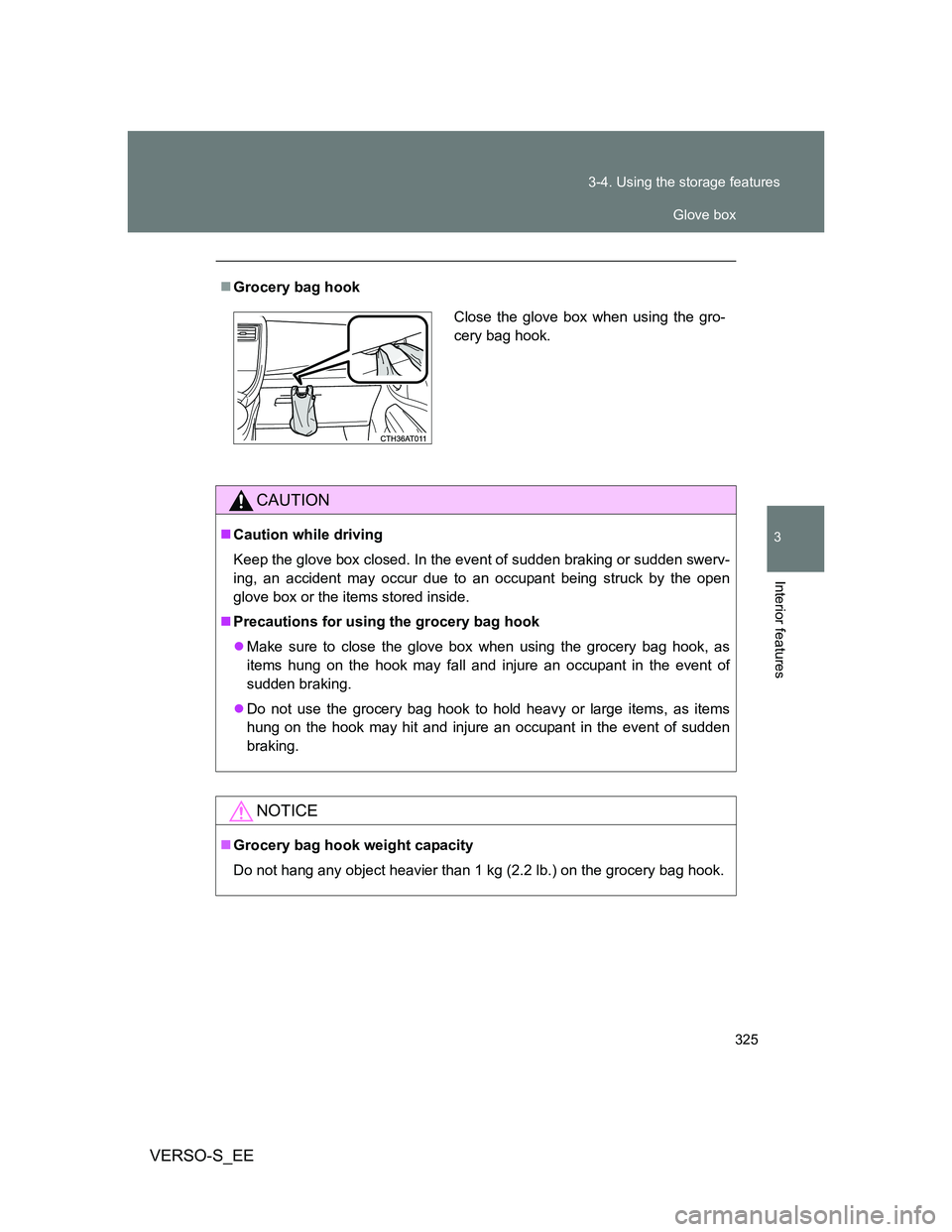

Grocery bag hook
CAUTION
Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
glove box or the items stored inside.
Precautions for using the grocery bag hook
Make sure to close the glove box when using the grocery bag hook, as
items hung on the hook may fall and injure an occupant in the event of
sudden braking.
Do not use the grocery bag hook to hold heavy or large items, as items
hung on the hook may hit and injure an occupant in the event of sudden
braking.
NOTICE
Grocery bag hook weight capacity
Do not hang any object heavier than 1 kg (2.2 lb.) on the grocery bag hook.
Close the glove box when using the gro-
cery bag hook.
Glove box

326 3-4. Using the storage features
VERSO-S_EE

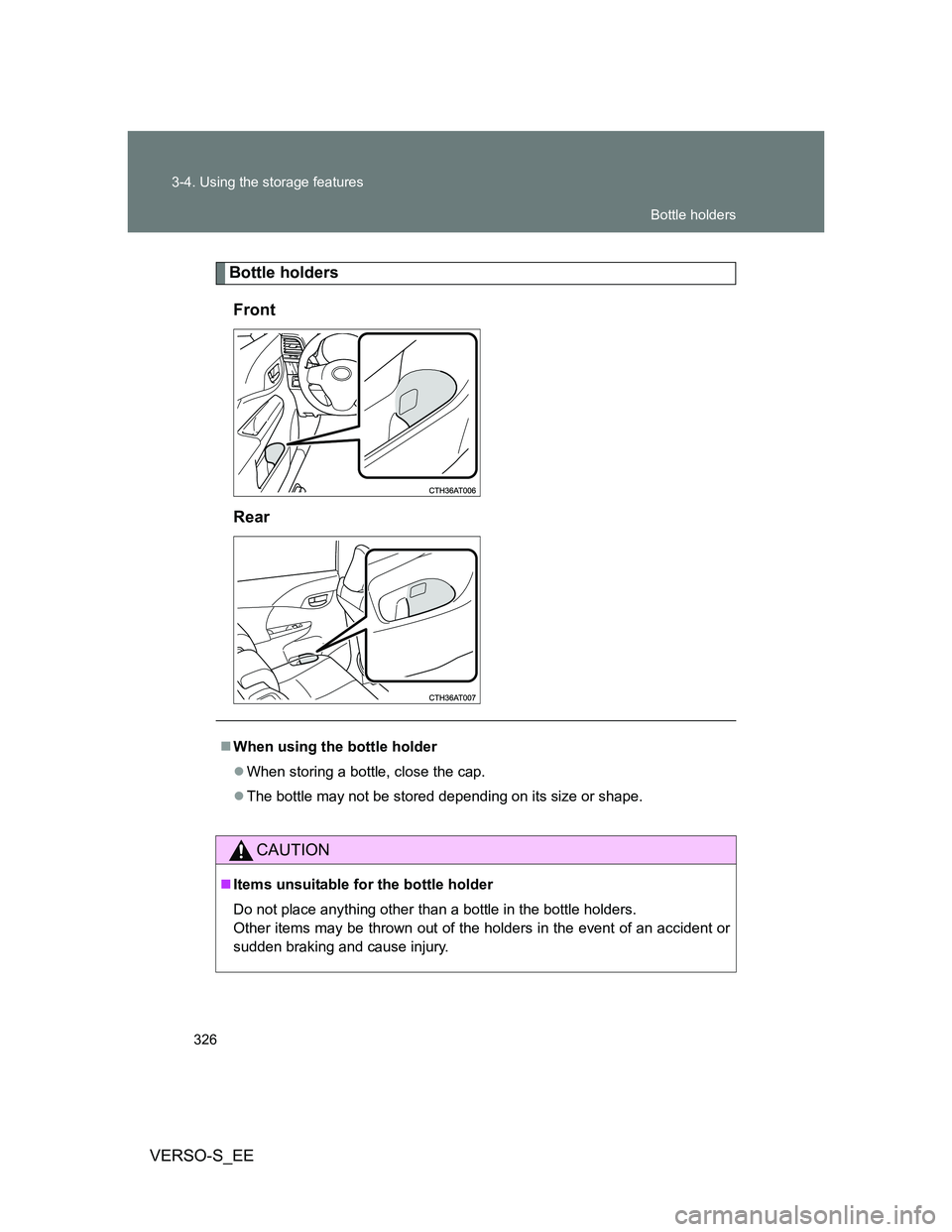

Bottle holders
Front
Rear
When using the bottle holder
When storing a bottle, close the cap.
The bottle may not be stored depending on its size or shape.
CAUTION
Items unsuitable for the bottle holder
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
Bottle holders

327 3-4. Using the storage features
3
Interior features
VERSO-S_EE
Tray (if equipped)
Lift the tray and pull it forward.
NOTICE
Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
CAUTION
Caution while driving
Keep the tray to its stowed position. In the event of sudden braking, an acci-
dent may occur due to an occupant being struck by an open tray or the items
stored inside.
Bottle holders and tray

328 3-4. Using the storage features
VERSO-S_EE

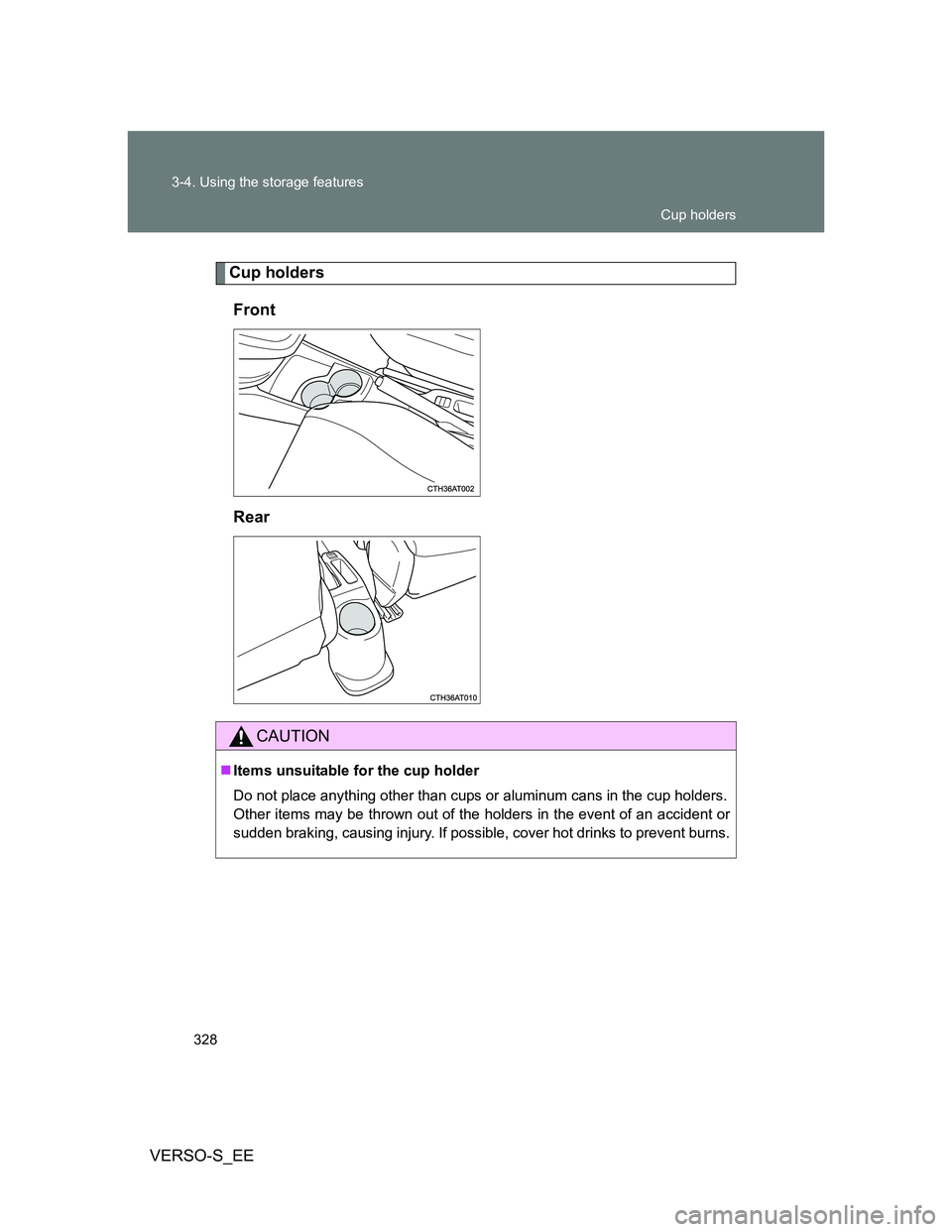

Cup holders
Front
Rear
CAUTION
Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent burns.
Cup holders

329
3
Interior features
VERSO-S_EE
3-5. Other interior features
Sun visors
To set the visor in the for-
ward position, flip it down.
To set the visor in the side
position, flip down, unhook,
and swing it to the side.

330
3-5. Other interior features
VERSO-S_EE
Vanity mirrors
Slide the cover to open.
