3-3. Using the interior lights

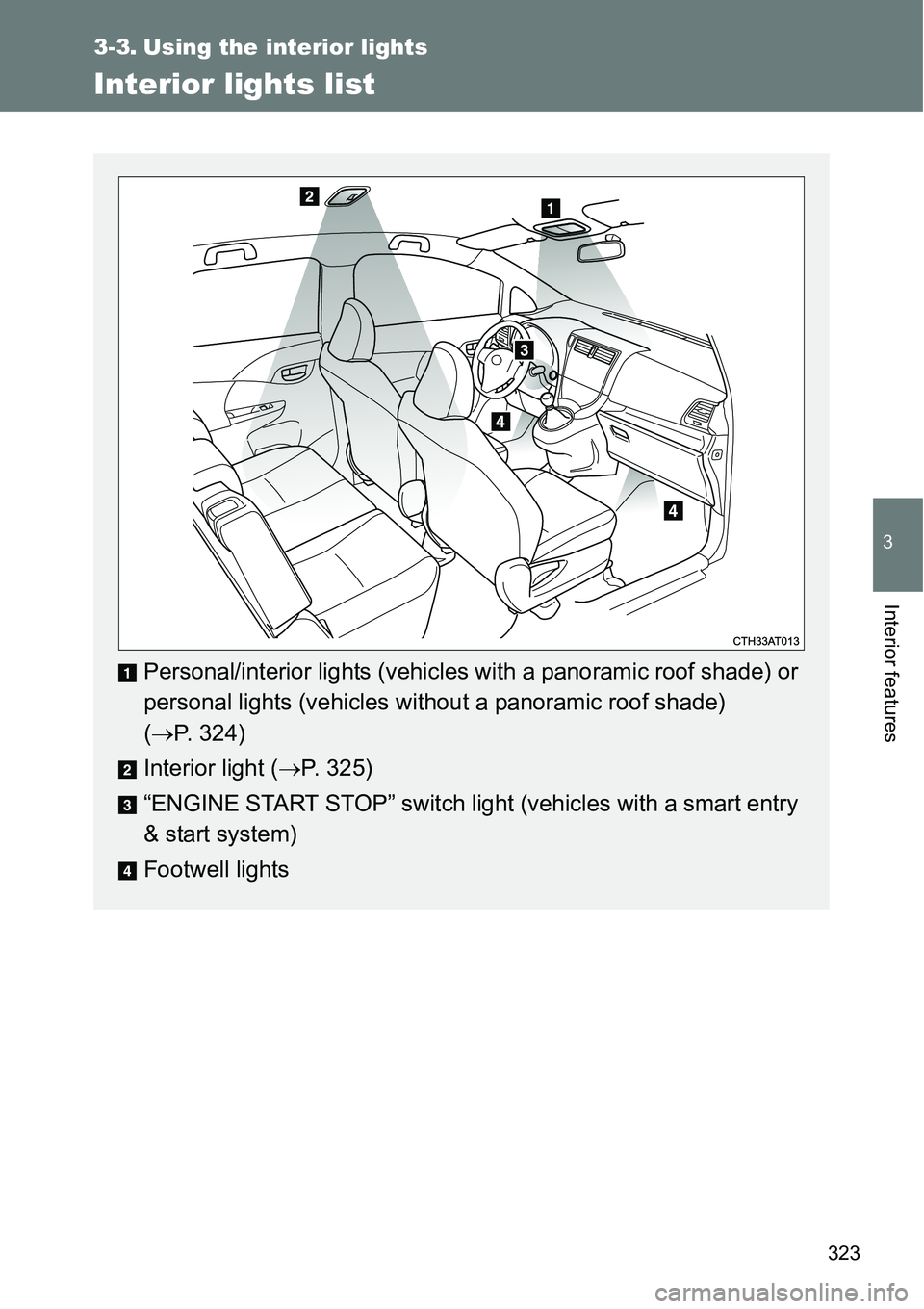

Interior lights list
Personal/interior lights (vehicles with a panoramic roof shade) or
personal lights (vehicles without a panoramic roof shade)
(P. 324)
Interior light (P. 325)
“ENGINE START STOP” switch light (vehicles with a smart entry
& start system)
Footwell lights

324 3-3. Using the interior lights

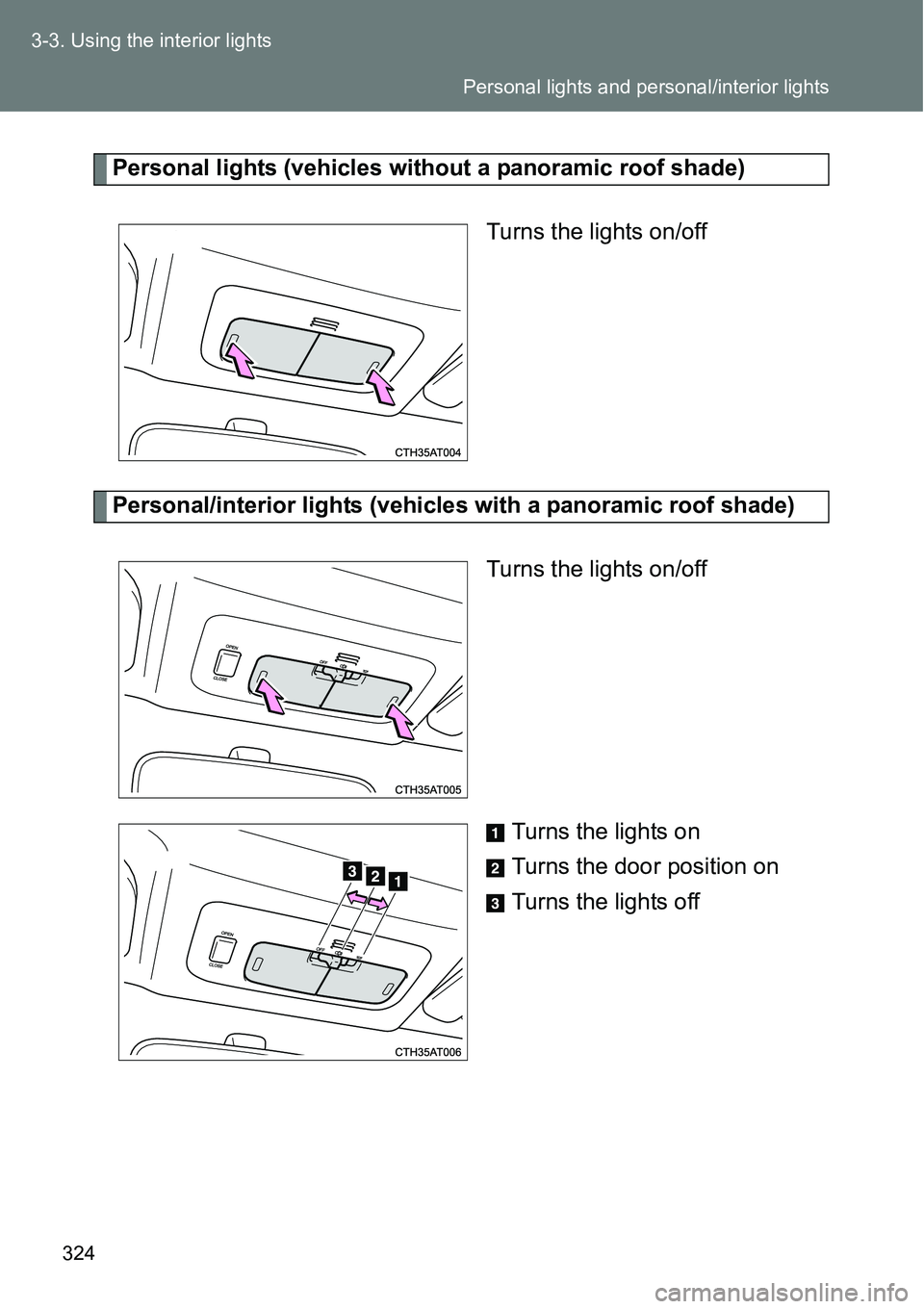

Personal lights (vehicles without a panoramic roof shade)
Turns the lights on/off
Personal/interior lights (vehicles with a panoramic roof shade)
Turns the lights on/off
Turns the lights on
Turns the door position on
Turns the lights off
Personal lights and personal/interior lights

325 3-3. Using the interior lights
3
Interior features

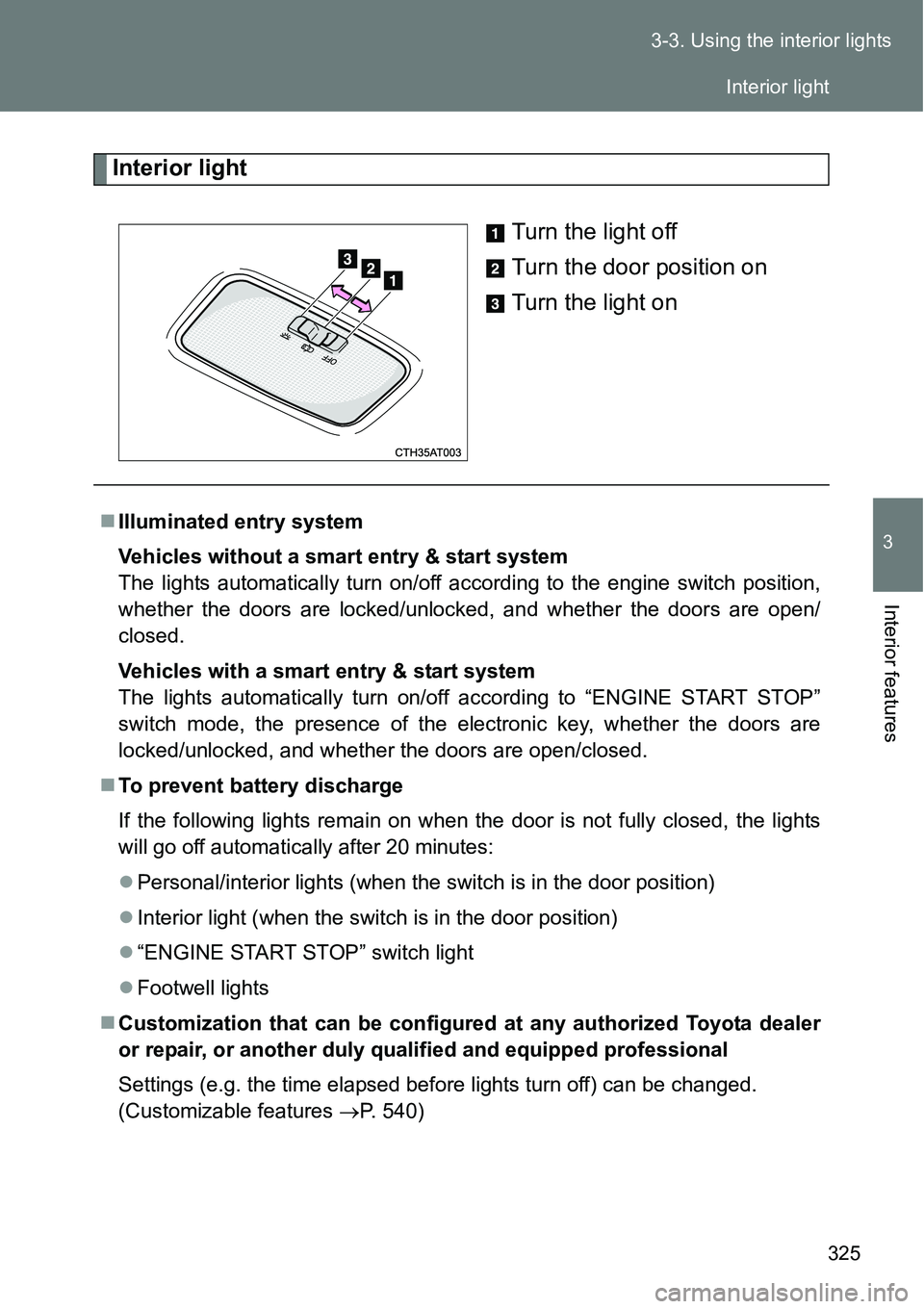

Interior light
Turn the light off
Turn the door position on
Turn the light on
Illuminated entry system
Vehicles without a smart entry & start system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are open/
closed.
Vehicles with a smart entry & start system
The lights automatically turn on/off according to “ENGINE START STOP”
switch mode, the presence of the electronic key, whether the doors are
locked/unlocked, and whether the doors are open/closed.
To prevent battery discharge
If the following lights remain on when the door is not fully closed, the lights
will go off automatically after 20 minutes:
Personal/interior lights (when the switch is in the door position)
Interior light (when the switch is in the door position)
“ENGINE START STOP” switch light
Footwell lights
Customization that can be configured at any authorized Toyota dealer
or repair, or another duly qualified and equipped professional
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features P. 540)
Interior light
