83
CAUTION
Since the mirror surfaces can get hot,
do not touch them when the defogger
switch is on.
Make sure you turn the defoggers off
when the surfaces are clear. Leaving the
defoggers on for a long time could cause
the battery to discharge, especially during
stop−and− go driving. The defoggers are
not designed for drying rain water or for
melting snow.
NOTICE
 To prevent the battery from being
discharged, turn the switch off
when the engine is not running.
 When cleaning the inside of the
rear window, be careful not to
scratch or damage the heater wires
or connectors.

84

85
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Engine coolant temperature indicator and warning light 86
. . . . . . . . . .
Tachometer 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Odometer and two trip meters 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 89
. . . . . . . . . . . . . . .
SECTION 1 6

86
Fuel gauge
15A006
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is on.
Nearly full—Needle at “1/1”
Nearly empty—Needle at “R”
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, acceler-
ating or making turns. This is caused by
the movement of the fuel in the tank.
On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.If the fuel level approaches “R” or the low
fuel level warning light flashes, fill the fuel
tank as soon as possible.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Scion dealer as
soon as possible.
Low engine coolant
temperature indicator
light in blue High engine
coolant
temperature
warning light
in red
The indicator and warning light indi-
cates the engine coolant temperature
when the ignition switch is on. The en-
gine operating temperature will vary
with changes in weather and engine
load.
When the ignition key is turned to the
“ON” position, the engine coolant tempera-
ture warning light (red) will come on for
a few seconds. If the engine coolant tem-
perature is low, the warning light will then
change from red to blue, and turn off
when the engine is fully warmed. If it
stays on even after the engine is fully
warmed, contact your Scion dealer as
soon as possible to service the vehicle.
Engine coolant temperature
indicator and warning light

87
If the engine coolant temperature warning
light (red) flashes, the engine is too hot.
If your vehicle overheats, stop your ve-
hicle and allow the engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop−and− go traffic.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your
vehicle overheats” on page 163.
Tachometer
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
Odometer and two trip meters
This meter displays the odometer and
two trip meters.
1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data are cancelled if the
electrical power source is discon-
nected.

88
3. Trip meter reset knob—It can reset thetwo trip meters to zero, and also
change the meter display.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.

89
Service reminder indicators and warning buzzers
If the indicator or buzzer comes on...Do this.
(a)If parking brake is off, stop immediately and contact Scion dealer.
(b)
(Indicator and buzzer)
Fasten driver ’s seat belt.
(c)Fasten front passenger ’s seat belt.
(d)Replace engine oil.
(e)Stop immediately and contact Scion dealer.
(f)Take vehicle to Scion dealer.
(g)Fill up tank.

90
If the indicator or buzzer comes on...Do this.
(h)Stop and check.
(i)Take vehicle to Scion dealer. If brake system warning light is also on, stop immediate-
ly and contact Scion dealer.
(j)Close all side doors and back door.
(k)Take vehicle to Scion dealer immediately.
(l)
(in red)
Stop and check.
(m)Key reminder
buzzerRemove key.
(n)Light reminder
buzzerTurn off lights.

91
(a) Brake System Warning Light
This light comes on in the following cases
when the ignition key is in the “ON” posi-
tion.
When the parking brake is applied...
The light comes on for a few seconds
when the ignition key is turned to the
“ON” position even after the parking brake
is released.
When the brake fluid level is low...

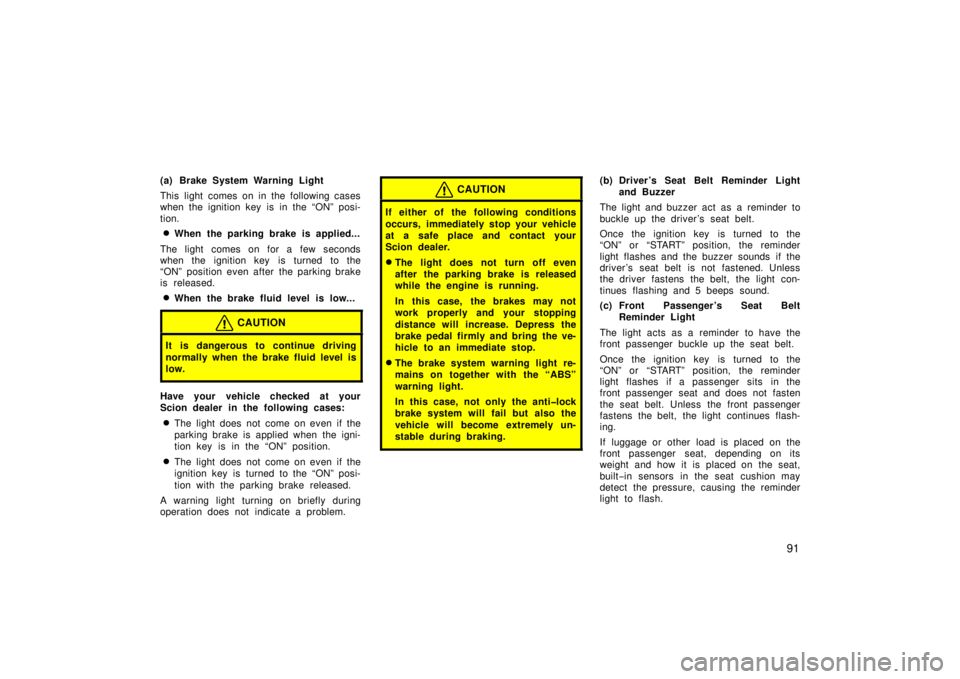

CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Scion dealer in the following cases:
The light does not come on even if the
parking brake is applied when the igni-
tion key is in the “ON” position.
The light does not come on even if the
ignition key is turned to the “ON” posi-
tion with the parking brake released.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Scion dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will increase. Depress the
brake pedal firmly and bring the ve-
hicle to an immediate stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
(b) Driver’s Seat Belt Reminder Light and Buzzer
The light and buzzer act as a reminder to
buckle up the driver’s seat belt.
Once the ignition key is turned to the
“ON” or “START” position, the reminder
light flashes and the buzzer sounds if the
driver ’s seat belt is not fastened. Unless
the driver fastens the belt, the light con-
tinues flashing and 5 beeps sound.
(c) Front Passenger ’s Seat Belt Reminder Light
The light acts as a reminder to have the
front passenger buckle up the seat belt.
Once the ignition key is turned to the
“ON” or “START” position, the reminder
light flashes if a passenger sits in the
front passenger seat and does not fasten
the seat belt. Unless the front passenger
fastens the belt, the light continues flash-
ing.
If luggage or other load is placed on the
front passenger seat, depending on its
weight and how it is placed on the seat,
built −in sensors in the seat cushion may
detect the pressure, causing the reminder
light to flash.

92
(d) Engine Oil Replacement ReminderLight
This light acts as a reminder to replace
the engine oil.
This light will come on when the ignition
key is turned to the “ON” position, and
will go off after a few seconds.
When you drive for about 7200 km (4500
miles) after the engine oil replacement,
this light illuminates for about 3 seconds
and then flashes for about 12 seconds
after the ignition key is turned to the “ON”
position. If you continue driving without
engine oil replacement, and if the driving
range exceeds 8000 km (5000 miles), the
light will come on when the ignition key
is turned to the “ON” position. The light
will remain on thereafter.
If the light is flashing, we recommend that
you replace the engine oil at an early
opportunity depending on the driving and
road conditions. If the light comes on,
replace it as soon as possible.
The system must be reset after the en-
gine oil replacement. Reset the system by
following the procedure below: 1. Turn the ignition key to the “OFF” posi- tion with the odometer reading shown.
(For details, see “Odometer and two
trip meters” on page 87.) 2. Turn the ignition key to the “ON” posi-
tion while holding down the trip meter
reset knob.
Hold down the knob for at least 5 sec-
onds. The light goes off, and the display
shows zero for 1 second and changes to
the odometer reading.
If the system fails to reset, the light will
remain on or keep flashing.
(e) Charging System Warning Light
This warning light comes on when the
ignition switch is turned to the “ON” posi-
tion, and goes off when the engine is
started.
When there are problems in the charging
system while the engine is r unning, the
warning light comes on.
NOTICE
When the charging system warning
light comes on while the engine is
running, malfunctions such as the en-
gine drive belt being broken may have
occurred. If the warning light comes
on, immediately stop the vehicle in a
safe place and contact your Scion
dealer.
(f) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on, first check the
following.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp does not go off even after
several trips, contact your Scion dealer as
soon as possible.
If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, auto-
matic transmission electrical system or
warning light system itself.
Contact your Scion dealer as soon as
possible to service the vehicle.
