TOYOTA xB 2004 Owners Manual (in English)

i
Foreword
Welcome to the growing group of value−conscious people who drive Scions. We are proud of the advanced engineering and
quality construction of each vehicle we build.
This Owner ’s Manual explains the operation of your new Scion. Please read it thoroughly and have all the occupants
follow the instructions carefully. Doing so will help you enjoy many years of safe and troublefree motoring. For
important information about this manual and your Scion, read the following pages carefully.
When it comes to service, remember that your Scion dealer knows your vehicle best and is interested in your complete
satisfaction. He will provide quality maintenance and any other assistance you may require.
If there is not a Scion dealer near you, or you need emergency assistance for any reason, please call the following number:
U.S. OWNERS:Scion Customer Experience Tollfree:186670SCION or 18667072466
Please leave this Owner ’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of Scion’s policy of
continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may
find some explanations for equipment not installed on your vehicle.
©2003 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota
Motor Corporation.

ii
Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle
damage warnings. You must follow these warnings carefully
to avoid possible injury or damage.
The types of warnings, what they look like, and how they
are used in this manual are explained as follows.
CAUTION
This is a warning against anything which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to reduce the risk of injury to yourself and
others.
NOTICE
This is a warning against anything which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed about what you must or
must not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
Safety symbol
When you see the safety symbol
shown above, it means: “Do not...”;
“Do not do this”; or “Do not let this
happen”.

iii
Important information about your Scion
Occupant restraint systems
Scion encourages you and your family to take the time
to read Section 1−3 of this Owner ’s Manual carefully. In
terms of helping you understand how you can receive
the maximum benefit of the occupant restraint systems
this vehicle provides, Section 1−3 of this Owner’s Manu-
al is the most important section for you and your family
to read.
Section 1−3 describes the function and operation con-
cerning seats, seat belts, SRS airbags and child re-
straint systems of this vehicle and some potential haz-
ards you should be aware of. These systems work to-
gether along with the overall structure of this vehicle in
order to provide occupant restraint in the event of a
crash. The effect of each system is enhanced when it is
used properly and together with other systems. No
single occupant restraint system can, by itself, provide
you or your family with the equal level of restraint which
these systems can provide when used together. That is
why it is important for you and your family to under-
stand the purpose and proper use of each of these
systems and how they relate to each other.
The purpose of all occupant restraint systems is to help
reduce the possibility of death or serious injury in the
event of a collision. None of these systems, either indi-
vidually or together, can ensure that there is no injury in
the event of collision. However, the more you know
about these systems and how to use them properly, the
greater your chances become of surviving an accident
without death or serious injury.
Seat belts provide the primary restraint to all occupants
of the vehicle, and every occupant of the vehicle should
wear seat belts properly at all times. Children should
always be secured in child restraint systems that are
appropriate for their age and size. SRS (Supplemental
Restraint System) airbags are, as their names imply,
designed to work with, and be supplemental to, seat
belts and are not substitutes for them. SRS airbags can
be very effective in reducing the risk of head and chest
injuries by preventing contact of the head and chest with
interior portions of the vehicle.

iv
In order to be effective, the SRS airbags must deploy
with tremendous speed. The rapid deployment of the
SRS airbags makes the SRS airbags themselves poten-
tial sources of injury if an occupant is too close to an
airbag, or if an object or some part of his or her body
has been placed between the occupant and the airbag
at the time of deployment. This is just one example of
how the instructions in Section 1−3 of this Owner’s
Manual will help ensure proper use of the occupant
restraint systems, and increase the safety they can pro-
vide to you and your family in the event of an accident.
Scion recommends you to read the provisions in Section
1−3 carefully and refer to them from time to time during
your time of ownership of this vehicle.New vehicle warranty
Your new vehicle is covered by the following Scion lim-
ited warranties:
 New vehicle warranty
 Emission control systems warranty
 Others
For further information, please refer to the “Owner’s
Warranty Information Booklet”.
Your responsibility for
maintenance
It is the owner ’s responsibility to make sure the speci-
fied maintenance is performed. Section 6 gives details
of these maintenance requirements. Also included in
Section 6 is general maintenance. For scheduled mainte-
nance information, please refer to the “Scheduled Main-
tenance Guide”.

v
Important health and safety
information about your Scion
CAUTION

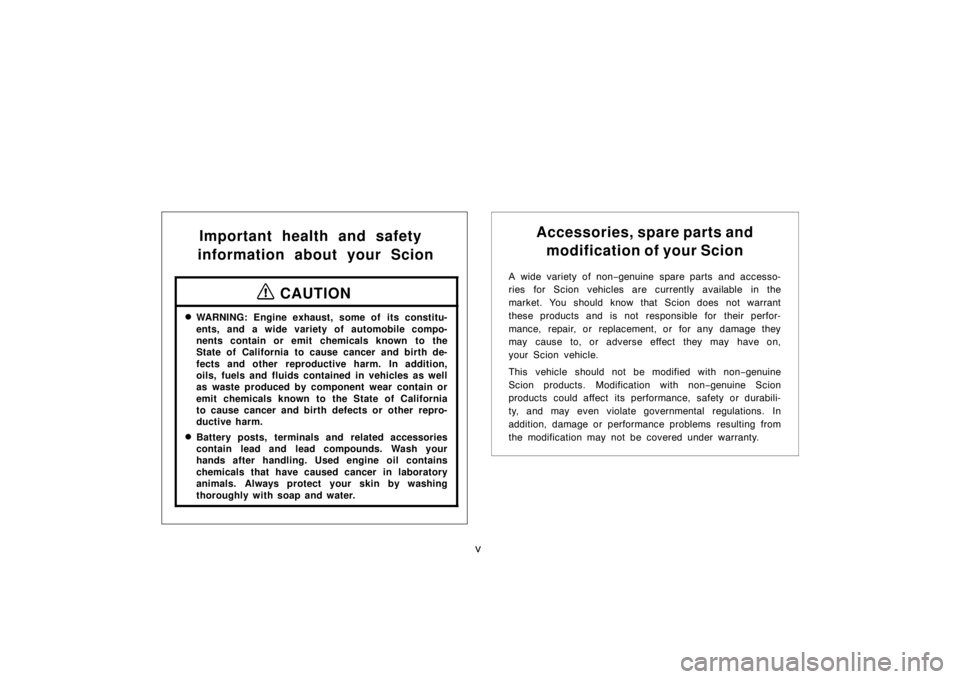

WARNING: Engine exhaust, some of its constitu-
ents, and a wide variety of automobile compo-
nents contain or emit chemicals known to the
State of California to cause cancer and birth de-
fects and other reproductive harm. In addition,
oils, fuels and fluids contained in vehicles as well
as waste produced by component wear contain or
emit chemicals known to the State of California
to cause cancer and birth defects or other repro-
ductive harm.
Battery posts, terminals and related accessories
contain lead and lead compounds. Wash your
hands after handling. Used engine oil contains
chemicals that have caused cancer in laboratory
animals. Always protect your skin by washing
thoroughly with soap and water.
Accessories, spare parts and
modification of your Scion
A wide variety of non−genuine spare parts and accesso-
ries for Scion vehicles are currently available in the
market. You should know that Scion does not warrant
these products and is not responsible for their perfor-
mance, repair, or replacement, or for any damage they
may cause to, or adverse effect they may have on,
your Scion vehicle.
This vehicle should not be modified with non−genuine
Scion products. Modification with non−genuine Scion
products could affect its performance, safety or durabili-
ty, and may even violate governmental regulations. In
addition, damage or performance problems resulting from
the modification may not be covered under warranty.

vi
Installation of a mobile
twoway radio system
As the installation of a mobile two−way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, anti−lock brake system, traction control
system, vehicle stability control system, SRS airbag sys-
tem and seat belt pretensioner system, be sure to
check with your Scion dealer for precautionary measures
or special instructions regarding installation.
Tires and loading on your Scion
Underinflated or overinflated tire pressure and the
excess load may result in the deterioration of
steering ability and braking ability, leading to an
accident. Check the tire inflation pressure periodi-
cally and be sure to keep the load limits given in
this Owner ’s Manual. For details about tire inflation
pressure and load limits, see page 195 and pages
133 through 134.
Scrapping of your Scion
The SRS airbag and seat belt pretensioner devices in
your Scion contain explosive chemicals. If the vehicle is
scrapped with the airbags and pretensioners left as they
are, this may cause an accident such as a fire. Be sure
to have the systems of the SRS airbag and seat belt
pretensioner removed and disposed of by a qualified
service shop or by your Scion dealer before you dis-
pose of your vehicle.

1
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel5 . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1

2

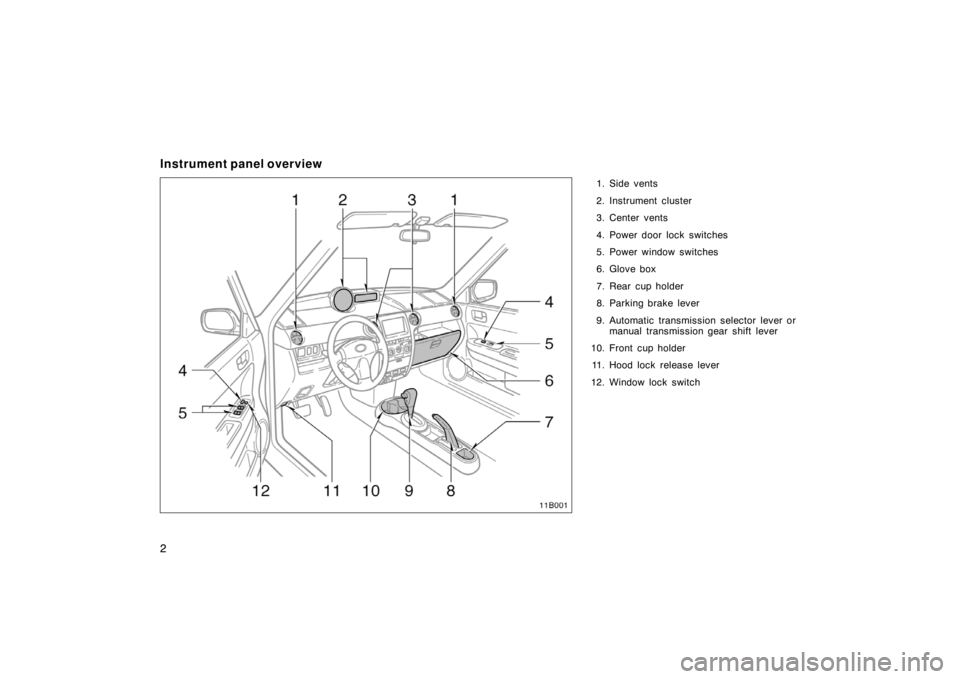

Instrument panel overview
1. Side vents
2. Instrument cluster
3. Center vents
4. Power door lock switches
5. Power window switches
6. Glove box
7. Rear cup holder
8. Parking brake lever
9. Automatic transmission selector lever or
manual transmission gear shift lever
10. Front cup holder
11. Hood lock release lever
12. Window lock switch
11B001

3

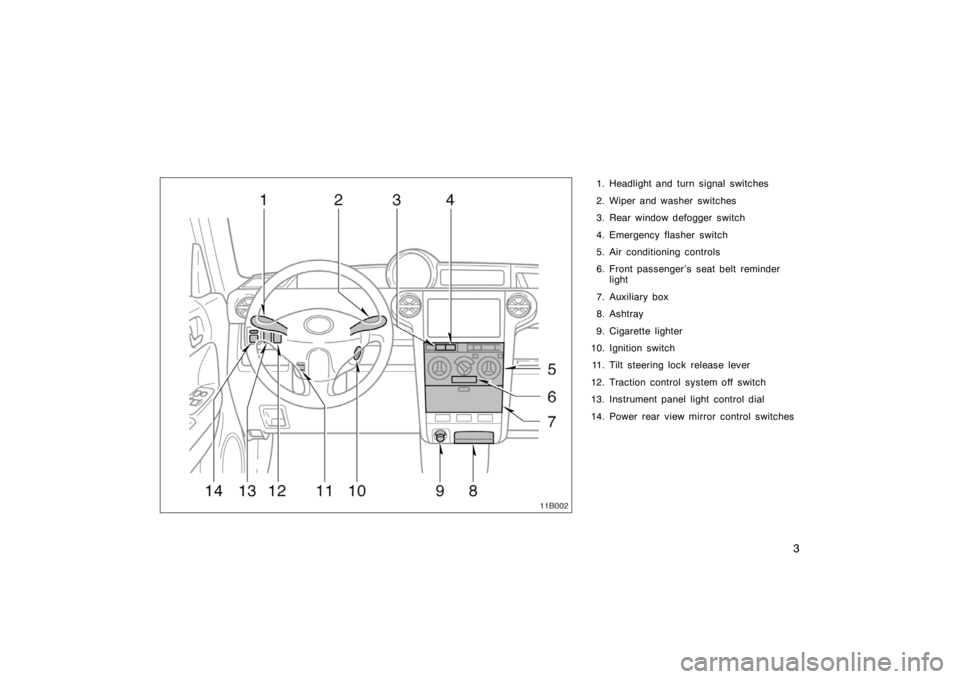

1. Headlight and turn signal switches
2. Wiper and washer switches
3. Rear window defogger switch
4. Emergency flasher switch
5. Air conditioning controls
6. Front passenger ’s seat belt reminder
light
7. Auxiliary box
8. Ashtray
9. Cigarette lighter
10. Ignition switch
11. Tilt steering lock release lever
12. Traction control system off switch
13. Instrument panel light control dial
14. Power rear view mirror control switches
11B002

4

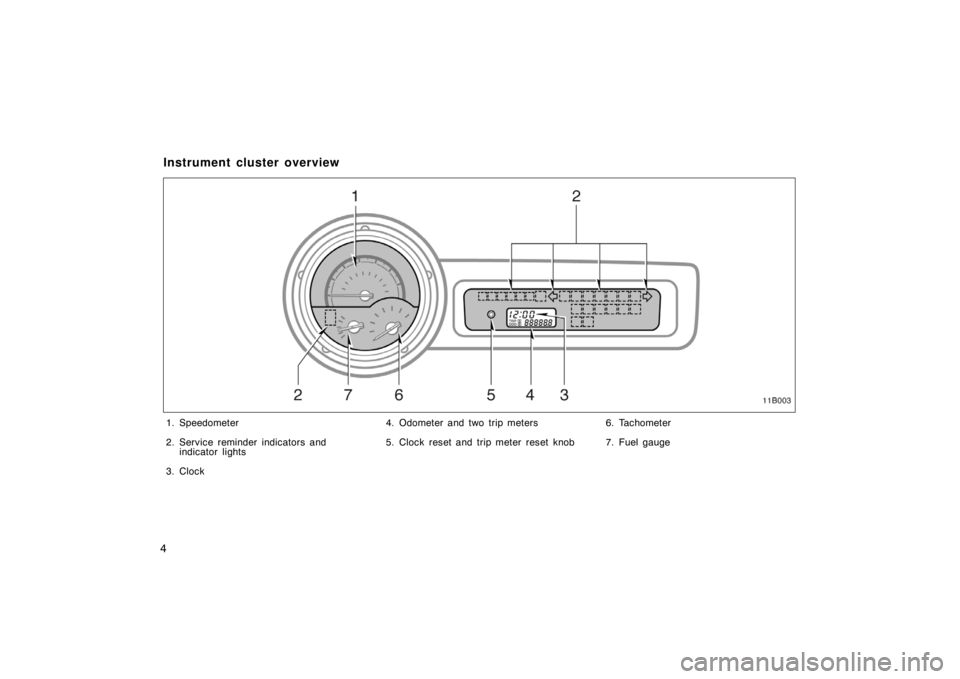

11B003
1. Speedometer
2. Service reminder indicators and
indicator lights
3. Clock4. Odometer and two trip meters
5. Clock reset and trip meter reset knob6. Tachometer
7. Fuel gauge
Instrument cluster overview
