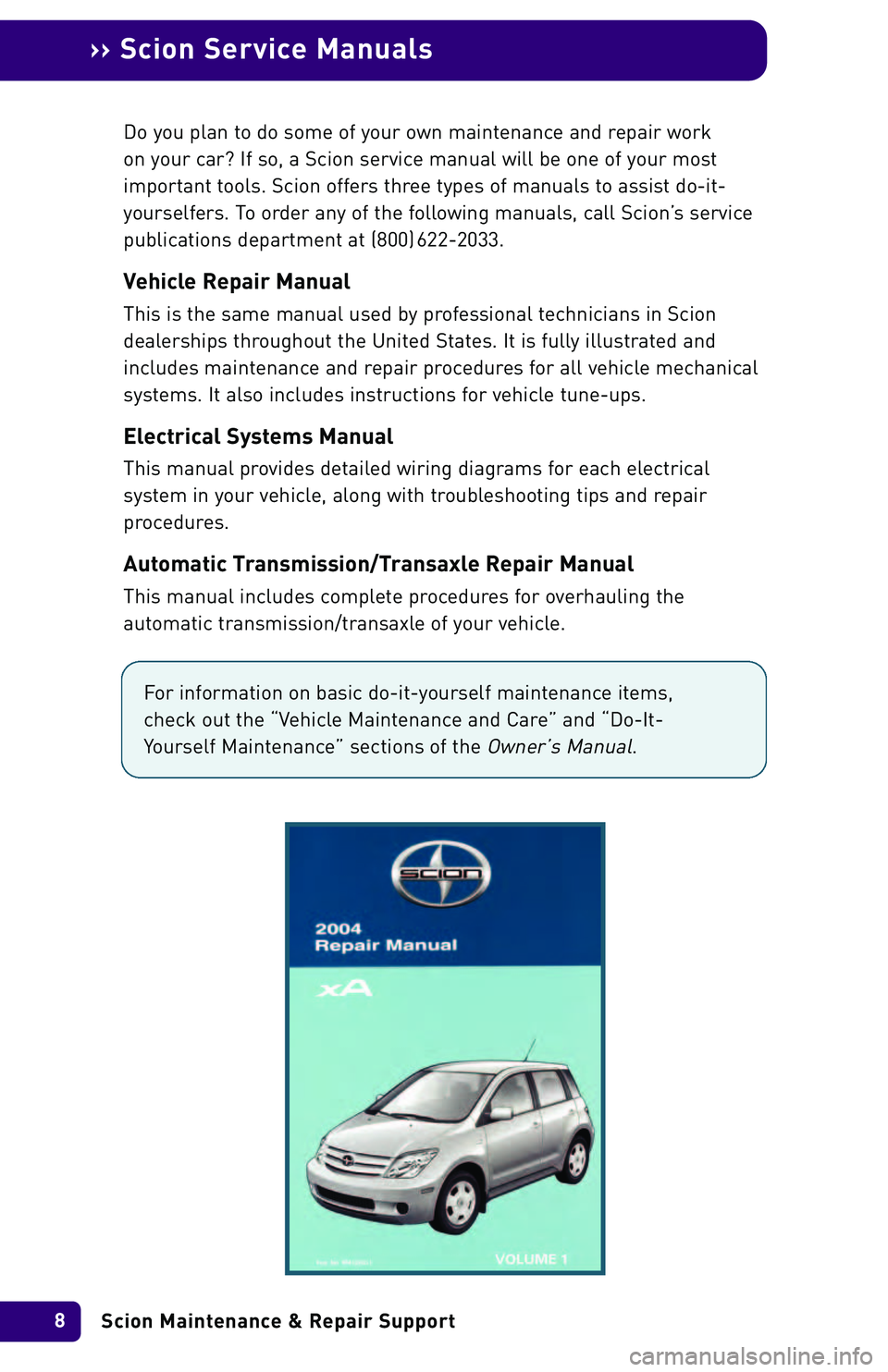

Scion Maintenance & Repair Support 8
›› Scion Service Manuals
Do you plan to do some of your own maintenance and repair work
on your car? If so, a Scion service manual will be one of your most
important tools. Scion offers three types of manuals to assist do-it-
yourselfers. To order any of the following manuals, call Scion’s service
publications department at (800) 622-2033.
Vehicle Repair Manual
This is the same manual used by professional technicians in Scion
dealerships throughout the United States. It is fully illustrated and
includes maintenance and repair procedures for all vehicle mechanical
systems. It also includes instructions for vehicle tune-ups.
Electrical Systems Manual
This manual provides detailed wiring diagrams for each electrical
system in your vehicle, along with troubleshooting tips and repair
procedures.
Automatic Transmission/Transaxle Repair Manual
This manual includes complete procedures for overhauling the
automatic transmission/transaxle of your vehicle.
For information on basic do-it-yourself maintenance items,
check out the “Vehicle Maintenance and Care” and “Do-It-
Yourself Maintenance” sections of the
Owner’s Manual.

Toyota Extra Care Vehicle Service Agreements enhance the scope
and/or length of coverage of your vehicle’s factory warranty, or provide
protection if the original warranty has expired.
1Toyota Extra Care
provides for the repair or replacement of covered components that
have mechanical failures and protects you from rising repair costs in
the future. In addition, many plans include benefits such as towing,
substitute transportation and travel protection with lodging and meals.
Toyota Extra Care Vehicle Service Agreements are accepted at all
participating Scion and Toyota dealerships in the United States. That
means repairs are made only by factory-trained service technicians
using Scion Authorized Parts.
Toyota Financial Services offers several Toyota Extra Care Vehicle
Service Agreement plans, each with a variety of time and mileage
options.
2Your Scion dealer can help you select the plan that best
meets your needs.
Scion Maintenance & Repair Support9
Service Agreements ‹‹
1 Vehicle service agreements are offered by Toyota Motor Insurance Services, Inc.,
administered by Toyota Motor Services Company in certain states. In Florida,
offered by Toyota Motor Insurance Company.
2 Toyota Financial Services is a service mark of Toyota Motor Insurance Services, Inc.

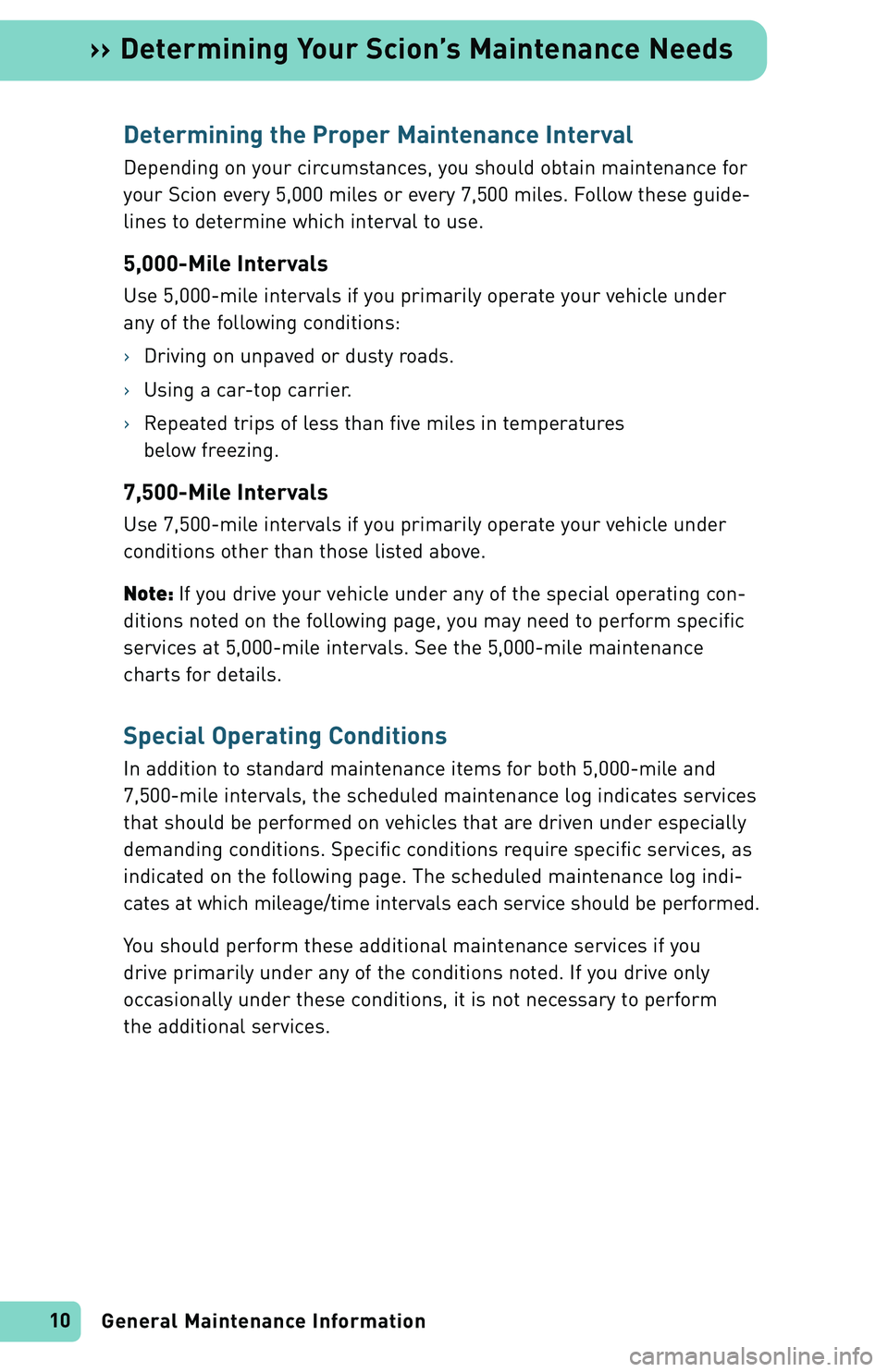

General Maintenance Information 10
›› Determining Your Scion’s Maintenance Needs
Determining the Proper Maintenance Interval
Depending on your circumstances, you should obtain maintenance for
your Scion every 5,000 miles or every 7,500 miles. Follow these guide-
lines to determine which interval to use.
5,000-Mile Intervals
Use 5,000-mile intervals if you primarily operate your vehicle under
any of the following conditions:
›Driving on unpaved or dusty roads.
›Using a car-top carrier.
›Repeated trips of less than five miles in temperatures
below freezing.
7,500-Mile Intervals
Use 7,500-mile intervals if you primarily operate your vehicle under
conditions other than those listed above.
Note: If you drive your vehicle under any of the special operating con-
ditions noted on the following page, you may need to perform specific
services at 5,000-mile intervals. See the 5,000-mile maintenance
charts for details.
Special Operating Conditions
In addition to standard maintenance items for both 5,000-mile and
7,500-mile intervals, the scheduled maintenance log indicates services
that should be performed on vehicles that are driven under especially
demanding conditions. Specific conditions require specific services, as
indicated on the following page. The scheduled maintenance log indi-
cates at which mileage/time intervals each service should be performed.
You should perform these additional maintenance services if you
drive primarily under any of the conditions noted. If you drive only
occasionally under these conditions, it is not necessary to perform
the additional services.

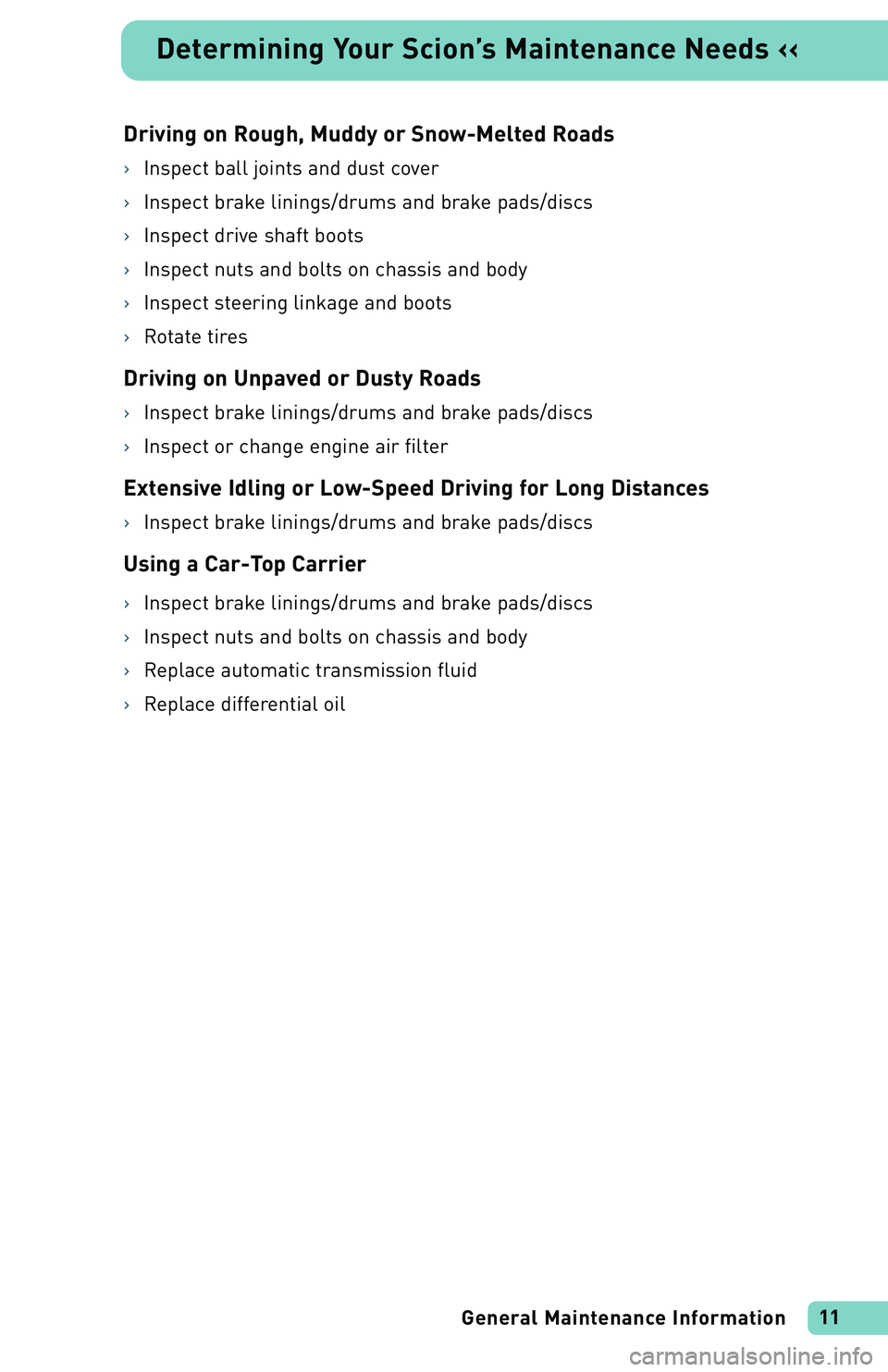

Driving on Rough, Muddy or Snow-Melted Roads
›Inspect ball joints and dust cover
›Inspect brake linings/drums and brake pads/discs
›Inspect drive shaft boots
›Inspect nuts and bolts on chassis and body
›Inspect steering linkage and boots
›Rotate tires
Driving on Unpaved or Dusty Roads
›Inspect brake linings/drums and brake pads/discs
›Inspect or change engine air filter
Extensive Idling or Low-Speed Driving for Long Distances
›Inspect brake linings/drums and brake pads/discs
Using a Car-Top Carrier
›Inspect brake linings/drums and brake pads/discs
›Inspect nuts and bolts on chassis and body
›Replace automatic transmission fluid
›Replace differential oil
General Maintenance Information11
Determining Your Scion’s Maintenance Needs ‹‹

General Maintenance Information 12

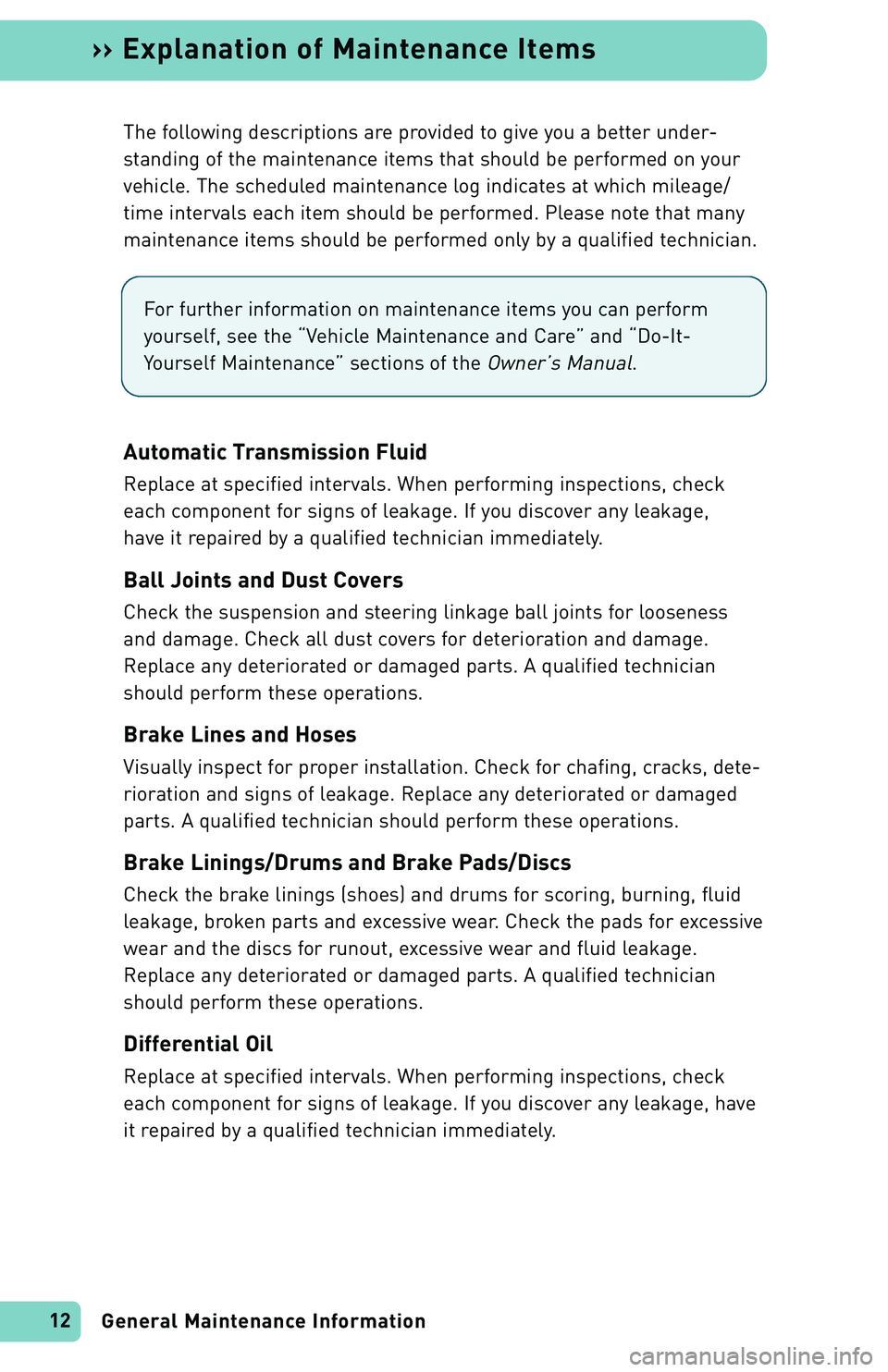

›› Explanation of Maintenance Items
The following descriptions are provided to give you a better under-
standing of the maintenance items that should be performed on your
vehicle. The scheduled maintenance log indicates at which mileage/
time intervals each item should be performed. Please note that many
maintenance items should be performed only by a qualified technician.
For further information on maintenance items you can perform
yourself, see the “Vehicle Maintenance and Care” and “Do-It-
Yourself Maintenance” sections of the
Owner’s Manual.
Automatic Transmission Fluid
Replace at specified intervals. When performing inspections, check
each component for signs of leakage. If you discover any leakage,
have it repaired by a qualified technician immediately.
Ball Joints and Dust Covers
Check the suspension and steering linkage ball joints for looseness
and damage. Check all dust covers for deterioration and damage.
Replace any deteriorated or damaged parts. A qualified technician
should perform these operations.
Brake Lines and Hoses
Visually inspect for proper installation. Check for chafing, cracks, dete-
rioration and signs of leakage. Replace any deteriorated or damaged
parts. A qualified technician should perform these operations.
Brake Linings/Drums and Brake Pads/Discs
Check the brake linings (shoes) and drums for scoring, burning, fluid
leakage, broken parts and excessive wear. Check the pads for excessive
wear and the discs for runout, excessive wear and fluid leakage.
Replace any deteriorated or damaged parts. A qualified technician
should perform these operations.
Differential Oil
Replace at specified intervals. When performing inspections, check
each component for signs of leakage. If you discover any leakage, have
it repaired by a qualified technician immediately.

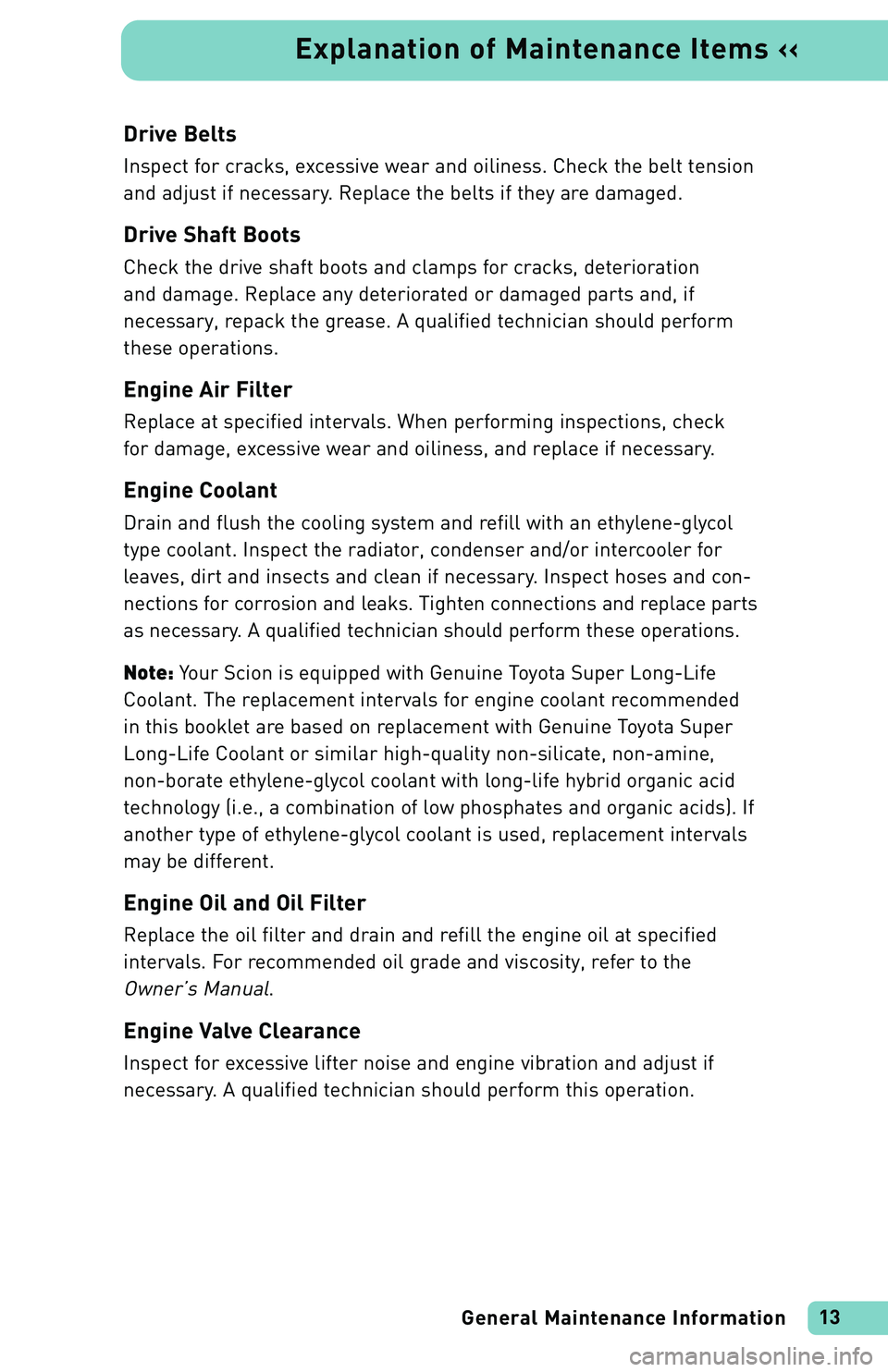

Drive Belts
Inspect for cracks, excessive wear and oiliness. Check the belt tension
and adjust if necessary. Replace the belts if they are damaged.
Drive Shaft Boots
Check the drive shaft boots and clamps for cracks, deterioration
and damage. Replace any deteriorated or damaged parts and, if
necessary, repack the grease. A qualified technician should perform
these operations.
Engine Air Filter
Replace at specified intervals. When performing inspections, check
for damage, excessive wear and oiliness, and replace if necessary.
Engine Coolant
Drain and flush the cooling system and refill with an ethylene-glycol
type coolant. Inspect the radiator, condenser and/or intercooler for
leaves, dirt and insects and clean if necessary. Inspect hoses and con-
nections for corrosion and leaks. Tighten connections and replace parts
as necessary. A qualified technician should perform these operations.
Note:Your Scion is equipped with Genuine Toyota Super Long-Life
Coolant. The replacement intervals for engine coolant recommended
in this booklet are based on replacement with Genuine Toyota Super
Long-Life Coolant or similar high-quality non-silicate, non-amine,
non-borate ethylene-glycol coolant with long-life hybrid organic acid
technology (i.e., a combination of low phosphates and organic acids). If
another type of ethylene-glycol coolant is used, replacement intervals
may be different.
Engine Oil and Oil Filter
Replace the oil filter and drain and refill the engine oil at specified
intervals. For recommended oil grade and viscosity, refer to the
Owner’s Manual.
Engine Valve Clearance
Inspect for excessive lifter noise and engine vibration and adjust if
necessary. A qualified technician should perform this operation.
General Maintenance Information13
Explanation of Maintenance Items ‹‹

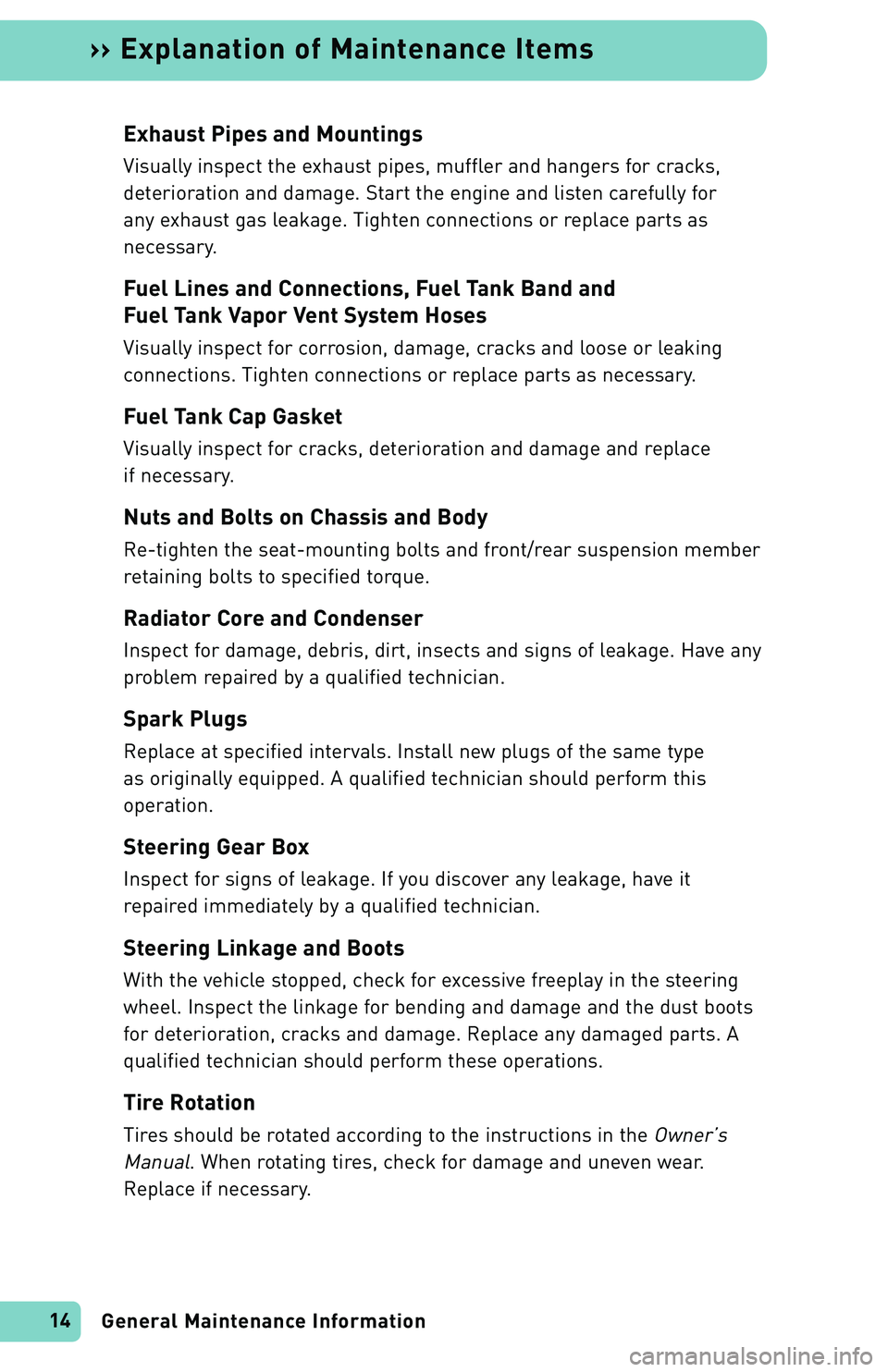

General Maintenance Information 14
›› Explanation of Maintenance Items
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler and hangers for cracks,
deterioration and damage. Start the engine and listen carefully for
any exhaust gas leakage. Tighten connections or replace parts as
necessary.
Fuel Lines and Connections, Fuel Tank Band and
Fuel Tank Vapor Vent System Hoses
Visually inspect for corrosion, damage, cracks and loose or leaking
connections. Tighten connections or replace parts as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration and damage and replace
if necessary.
Nuts and Bolts on Chassis and Body
Re-tighten the seat-mounting bolts and front/rear suspension member
retaining bolts to specified torque.
Radiator Core and Condenser
Inspect for damage, debris, dirt, insects and signs of leakage. Have any
problem repaired by a qualified technician.
Spark Plugs
Replace at specified intervals. Install new plugs of the same type
as originally equipped. A qualified technician should perform this
operation.
Steering Gear Box
Inspect for signs of leakage. If you discover any leakage, have it
repaired immediately by a qualified technician.
Steering Linkage and Boots
With the vehicle stopped, check for excessive freeplay in the steering
wheel. Inspect the linkage for bending and damage and the dust boots
for deterioration, cracks and damage. Replace any damaged parts. A
qualified technician should perform these operations.
Tire Rotation
Tires should be rotated according to the instructions in the Owner’s
Manual
. When rotating tires, check for damage and uneven wear.
Replace if necessary.

General Maintenance Information15
Vehicle Identification ‹‹
Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identification Number

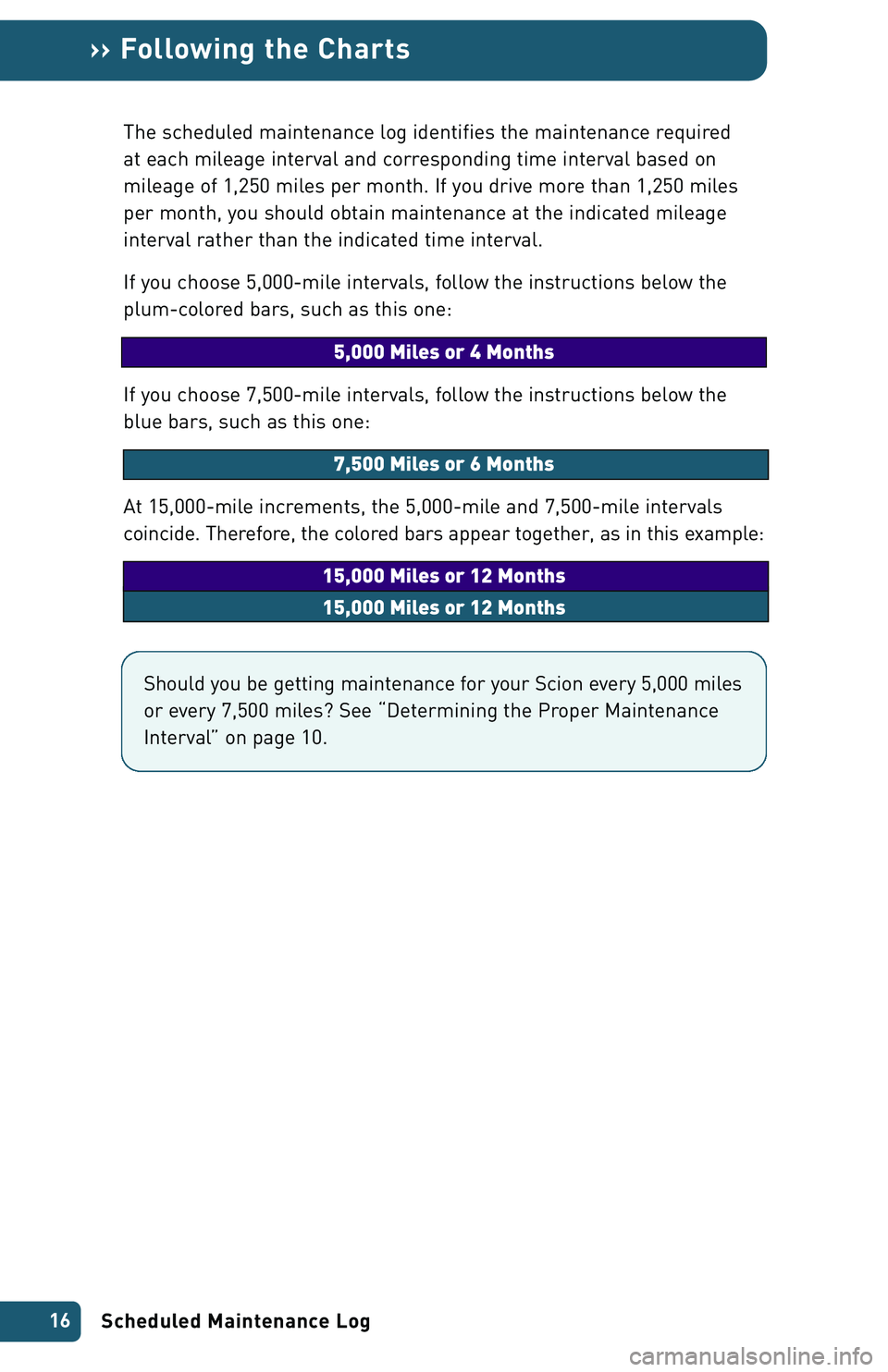

Scheduled Maintenance Log 16
›› Following the Charts
The scheduled maintenance log identifies the maintenance required
at each mileage interval and corresponding time interval based on
mileage of 1,250 miles per month. If you drive more than 1,250 miles
per month, you should obtain maintenance at the indicated mileage
interval rather than the indicated time interval.
If you choose 5,000-mile intervals, follow the instructions below the
plum-colored bars, such as this one:
5,000 Miles or 4 Months
If you choose 7,500-mile intervals, follow the instructions below the
blue bars, such as this one:
7,500 Miles or 6 Months
At 15,000-mile increments, the 5,000-mile and 7,500-mile intervals
coincide. Therefore, the colored bars appear together, as in this example:
15,000 Miles or 12 Months
15,000 Miles or 12 Months
Should you be getting maintenance for your Scion every 5,000 miles
or every 7,500 miles? See “Determining the Proper Maintenance
Interval” on page 10.

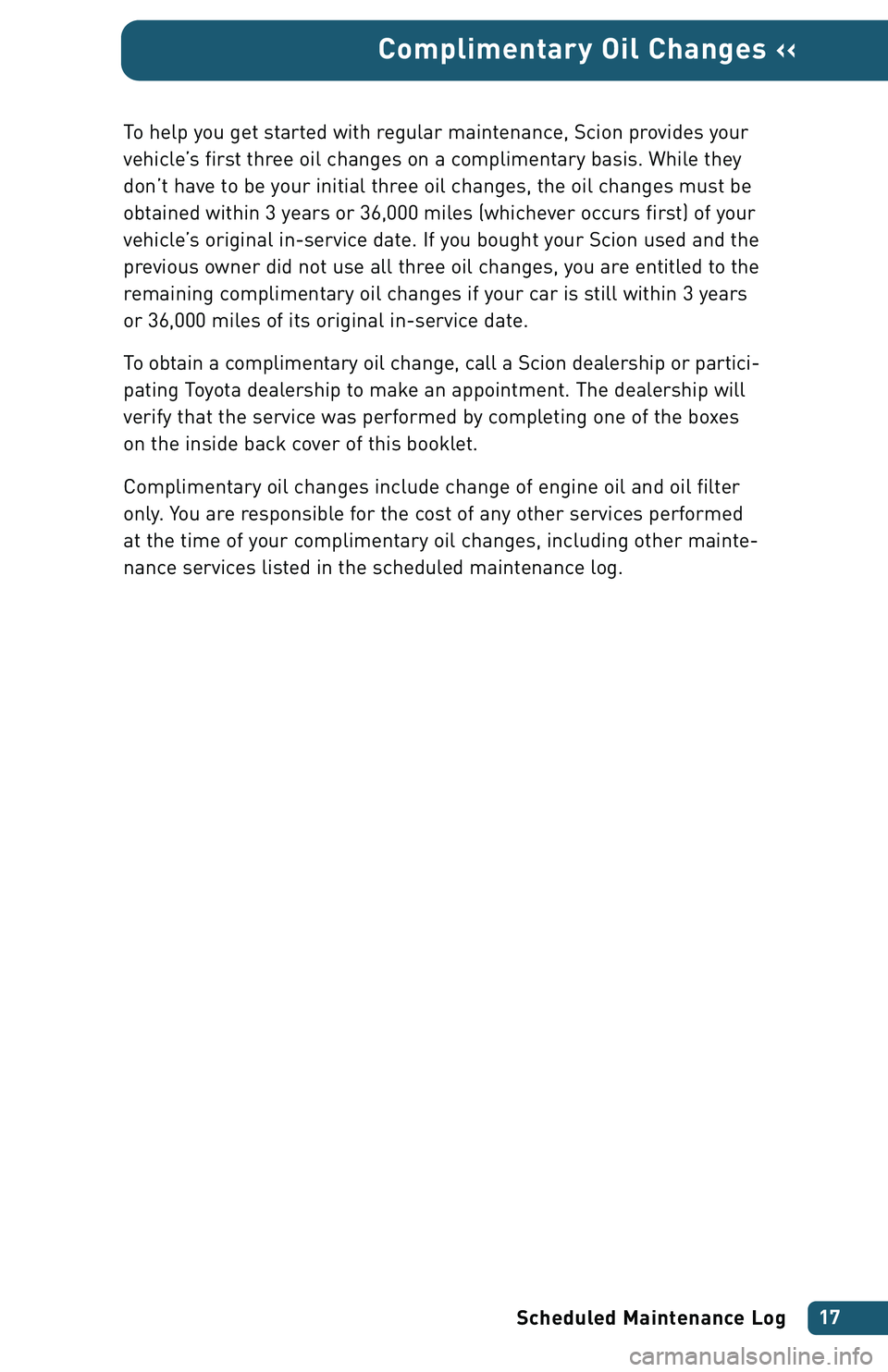

To help you get started with regular maintenance, Scion provides your
vehicle’s first three oil changes on a complimentary basis. While they
don’t have to be your initial three oil changes, the oil changes must be
obtained within 3 years or 36,000 miles (whichever occurs first) of your
vehicle’s original in-service date. If you bought your Scion used and the
previous owner did not use all three oil changes, you are entitled to the
remaining complimentary oil changes if your car is still within 3 years
or 36,000 miles of its original in-service date.
To obtain a complimentary oil change, call a Scion dealership or partici-
pating Toyota dealership to make an appointment. The dealership will
verify that the service was performed by completing one of the boxes
on the inside back cover of this booklet.
Complimentary oil changes include change of engine oil and oil filter
only. You are responsible for the cost of any other services performed
at the time of your complimentary oil changes, including other mainte-
nance services listed in the scheduled maintenance log.
Scheduled Maintenance Log17
Complimentary Oil Changes ‹‹
