Page 11 of 284
3

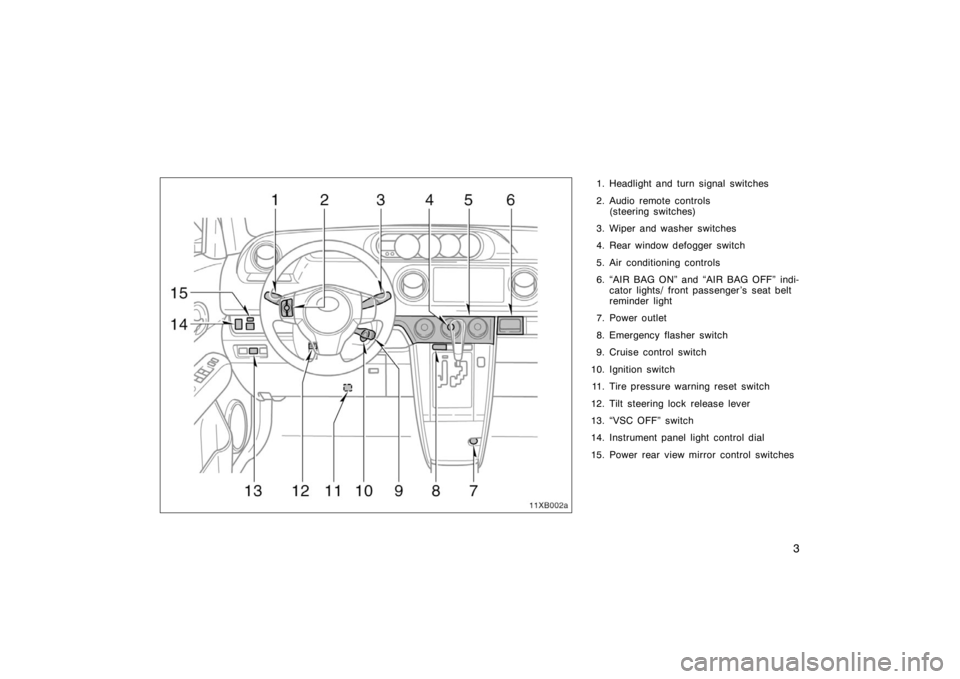

1. Headlight and turn signal switches
2. Audio remote controls (steering switches)
3. Wiper and washer switches
4. Rear window defogger switch
5. Air conditioning controls
6. “AIR BAG ON” and “AIR BAG OFF” indi- cator lights/ front passenger ’s seat belt
reminder light
7. Power outlet
8. Emergency flasher switch
9. Cruise control switch
10. Ignition switch 11. Tire pressure warning reset switch
12. Tilt steering lock release lever
13. “VSC OFF” switch
14. Instrument panel light control dial
15. Power rear view mirror control switches
11XB002a
Page 12 of 284
4

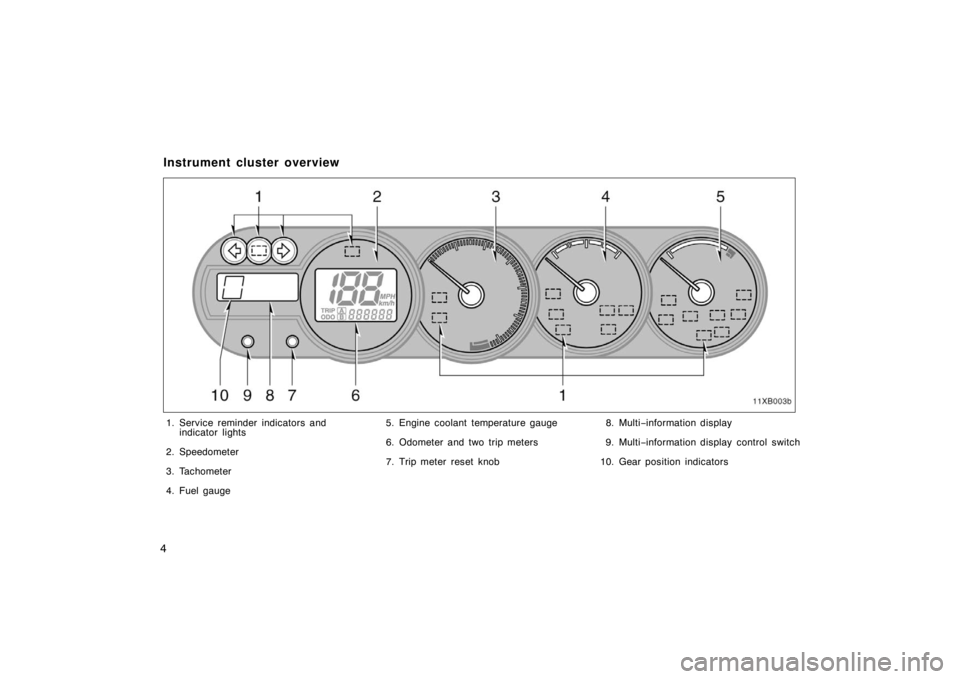

11 XB003b
1. Service reminder indicators and
indicator lights
2. Speedometer
3. Tachometer
4. Fuel gauge 5. Engine coolant temperature gauge
6. Odometer and two trip meters
7. Trip meter reset knob
8. Multi
−information display
9. Multi −information display control switch
10. Gear position indicators
Instrument cluster overview
Page 13 of 284
5

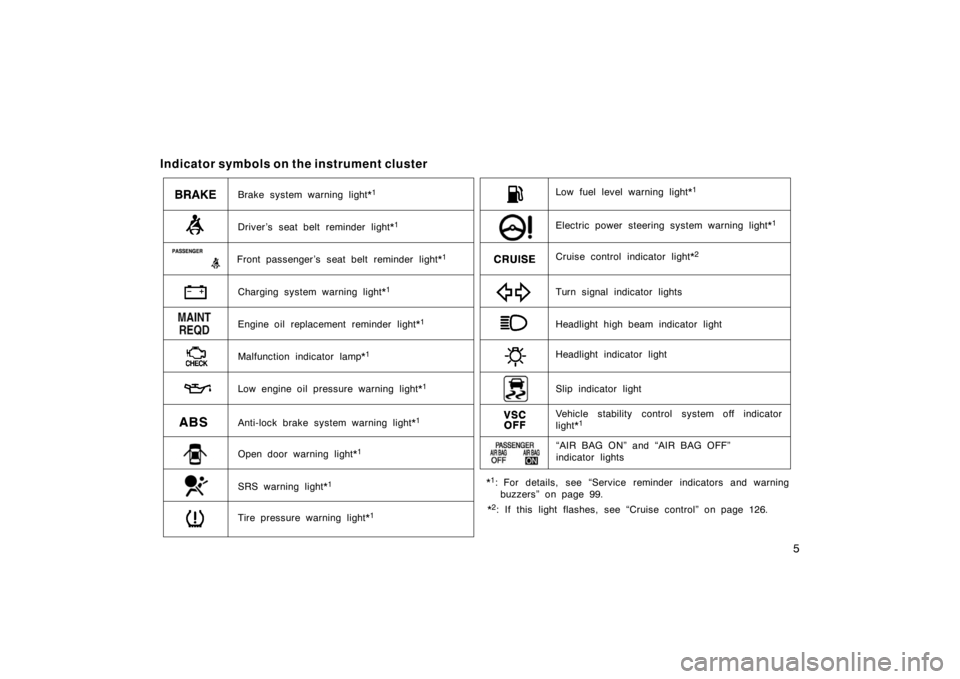

Indicator symbols on the instrument cluster
Brake system warning light*1
Driver ’s seat belt reminder light*1
Charging system warning light*1
Malfunction indicator lamp*1
Low engine oil pressure warning light*1
Anti-lock brake system warning light*1
SRS warning light*1
Low fuel level warning light*1
Turn signal indicator lights
Headlight high beam indicator light
Front passenger ’s seat belt reminder light*
1
Open door warning light*1
*1: For details, see “Service reminder indicators and warningbuzzers” on page 99.
*
2: If this light flashes, see “Cruise control” on page 126.
Engine oil replacement reminder light*1
Slip indicator light
Vehicle stability control system off indicator
light*
1
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
Electric power steering system warning light*1
Cruise control indicator light*2
Tire pressure warning light*1
Headlight indicator light
Page 14 of 284
6
Page 15 of 284
7
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . .
Wireless remote control 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Side doors 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Back door 20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel tank cap 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2
Page 16 of 284
8

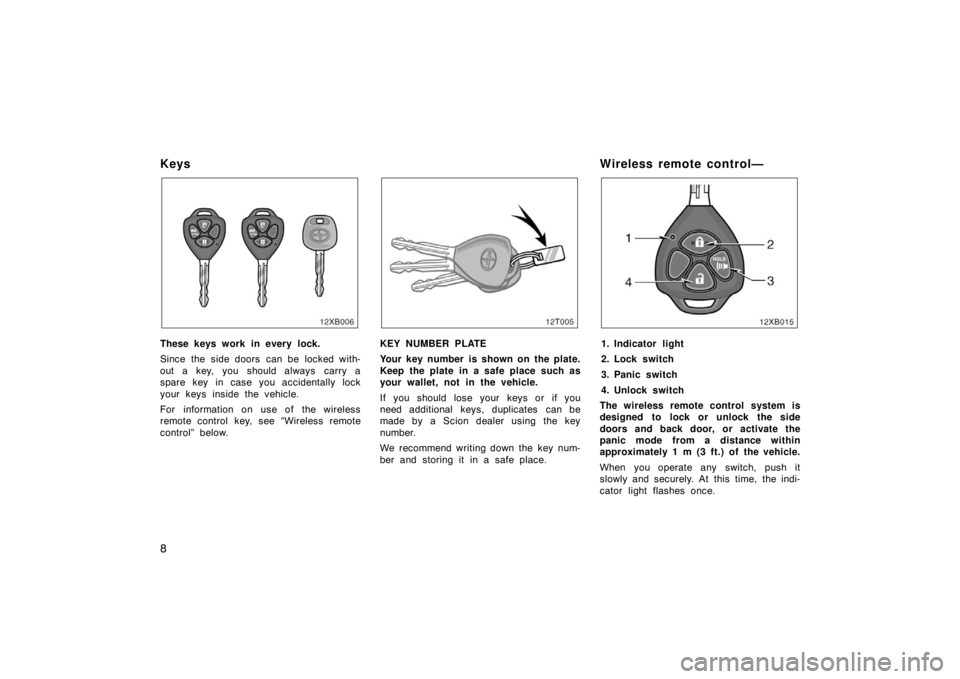

Keys
These keys work in every lock.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
For information on use of the wireless
remote control key, see “Wireless remote
control” below.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Scion dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
Wireless remote control—
1. Indicator light
2. Lock switch
3. Panic switch
4. Unlock switch
The wireless remote control system is
designed to lock or unlock the side
doors and back door, or activate the
panic mode from a distance within
approximately 1 m (3 ft.) of the vehicle.
When you operate any switch, push it
slowly and securely. At this time, the indi-
cator light flashes once.
Page 17 of 284
9
The wireless remote control key is an
electronic component. Observe the follow-
ing instructions in order not to cause dam-
age to the key.
Do not leave the key in places where
the temperature becomes high such as
on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 6 wireless remote con-
trol keys for the same vehicle. Contact
your Scion dealer for detailed information.
If the wireless remote control key does
not actuate the doors or operate from a
normal distance, or the indicator light on
the key is dimmed or does not come on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the key.
The battery may have been consumed.
Check the battery in the key. To re-
place the battery, see “—Replacing bat-
tery” on page 12. If you lose your wireless remote control
key, contact your Scion dealer as soon as
possible to avoid the possibility of theft,
or an accident. (See “If you lose your
keys” on page 218.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:
Page 18 of 284
10
Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio / TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.

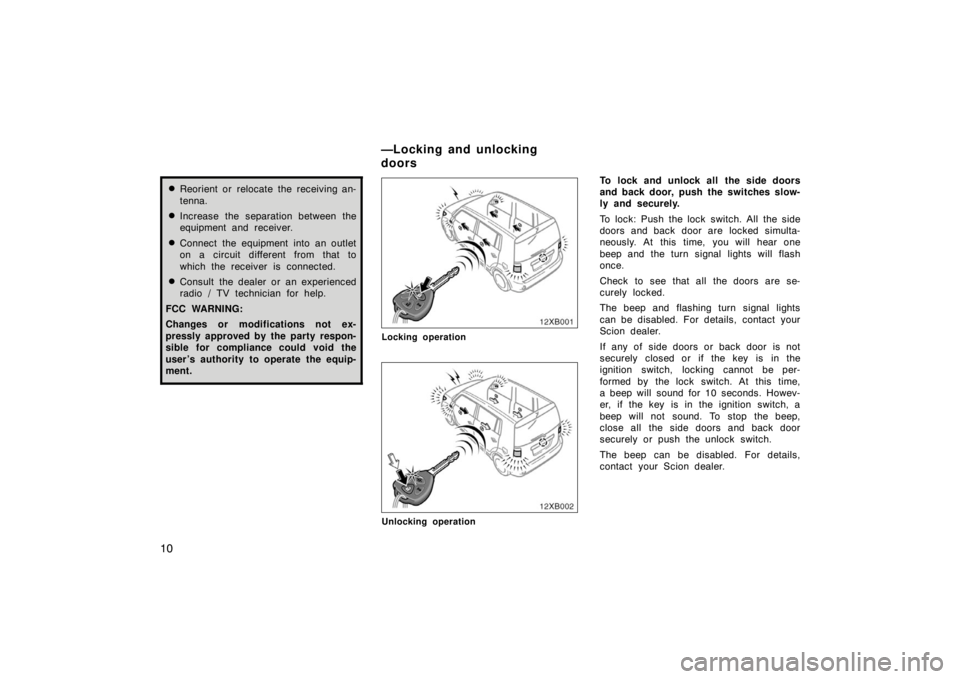

Locking operation
Unlocking operation
To lock and unlock all the side doors
and back door, push the switches slow-
ly and securely.
To lock: Push the lock switch. All the side
doors and back door are locked simulta-
neously. At this time, you will hear one
beep and the turn signal lights will flash
once.
Check to see that all the doors are se-
curely locked.
The beep and flashing turn signal lights
can be disabled. For details, contact your
Scion dealer.
If any of side doors or back door is not
securely closed or if the key is in the
ignition switch, locking cannot be per-
formed by the lock switch. At this time,
a beep will sound for 10 seconds. Howev-
er, if the key is in the ignition switch, a
beep will not sound. To stop the beep,
close all the side doors and back door
securely or push the unlock switch.
The beep can be disabled. For details,
contact your Scion dealer.
—Locking and unlocking
doors
Page 19 of 284
11
To unlock: Push the unlock switch once to
unlock the driver ’s door alone. Pushing
the switch twice within 3 seconds unlocks
all the side doors and back door simulta-
neously. Each time the unlock switch is
pushed, you will hear two beeps and the
turn signal lights will flash twice.
This double switch operation to unlock all
the side doors and back door can be
changed to a single switch operation. For
details, contact your Scion dealer.
When the unlock switch is pressed, the
interior lights come on. The light remain
on for about 15 seconds unless any of the
doors is opened and then closed. (For
further information, see “Interior light” on
page 90.)
You have 60 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automati-
cally locked again.
The timing for the automatic door lock
function can be changed. For details, con-
tact your Scion dealer.
If the lock or unlock switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push it again.

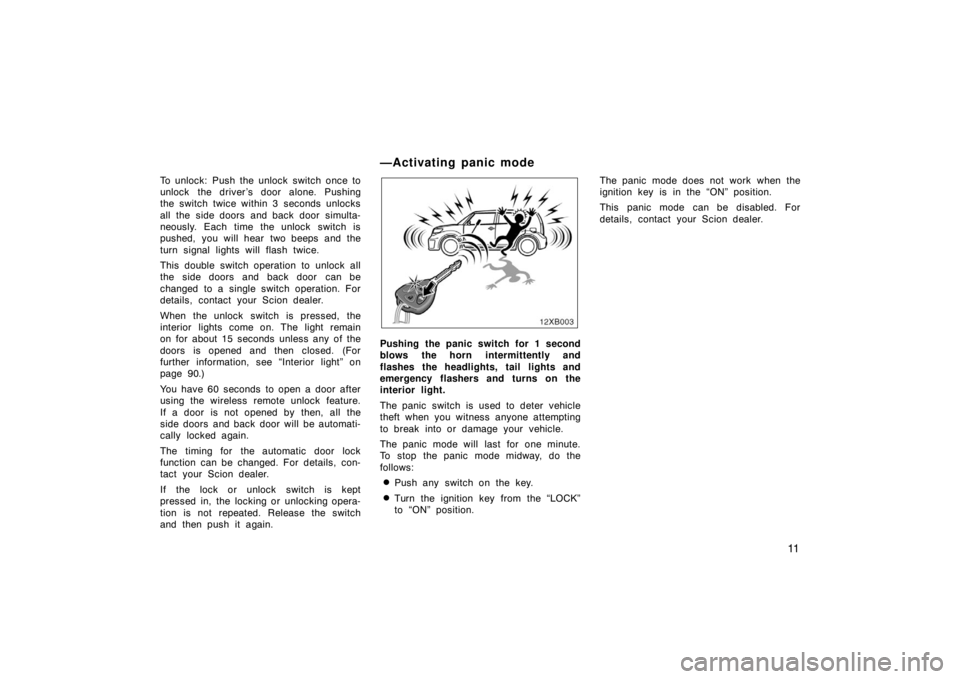

Pushing the panic switch for 1 second
blows the horn intermittently and
flashes the headlights, tail lights and
emergency flashers and turns on the
interior light.
The panic switch is used to deter vehicle
theft when you witness anyone attempting
to break into or damage your vehicle.
The panic mode will last for one minute.
To stop the panic mode midway, do the
follows:
Push any switch on the key.
Turn the ignition key from the “LOCK”
to “ON” position.The panic mode does not work when the
ignition key is in the “ON” position.
This panic mode can be disabled. For
details, contact your Scion dealer.
—Activating panic mode
Page 20 of 284
12
For replacement, use a CR2016 lithium
battery or equivalent and a flathead
screwdriver or equivalent.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed battery or components.
NOTICE
When replacing the battery, be care-
ful not to lose the components.
Replace only with the same or
equivalent type recommended by a
Scion dealer.
Dispose of used batteries according
to the local laws.

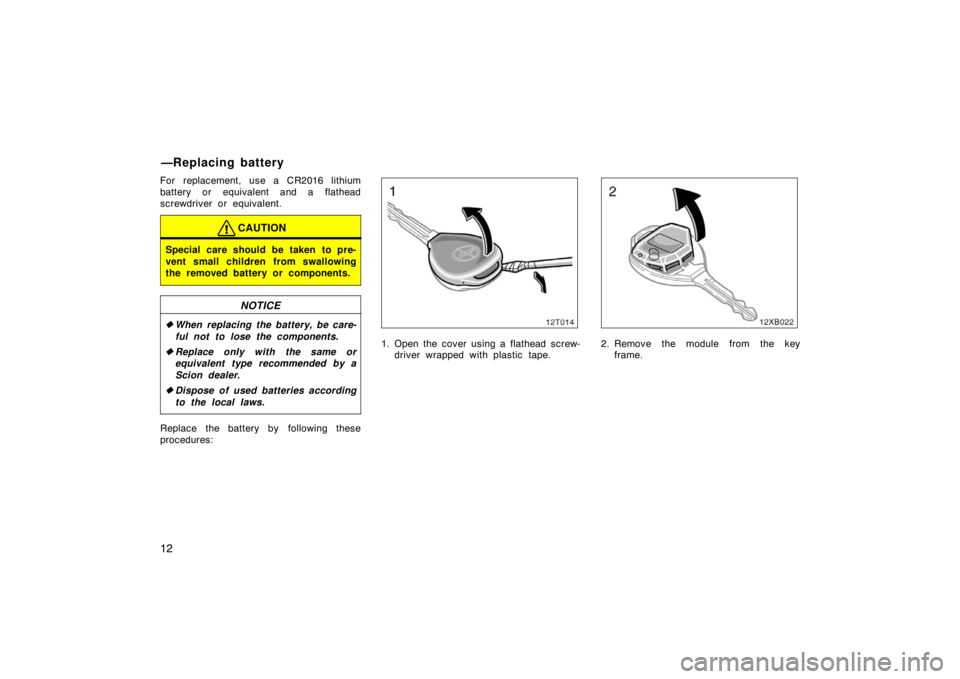

Replace the battery by following these
procedures:
12T014
1. Open the cover using a flathead screw-
driver wrapped with plastic tape.2. Remove the module from the keyframe.
—Replacing battery
