for AM/FM/CD Player with iPod Control
Audio System

Features
CD playback
Music CD/CD-R/CD-RW playback is
possible.
MP3 file playback
You can play back MP3 files
recorded on CD-ROM/CD-R/CD-RW
(ISO9660 Level 1/Level 2 standard
recordings).
• Supply of this product only con-
veys a license for private, non-
commercial use and does not
convey a license nor imply any
right to use this product in any
commercial(i.e. revenue-generat-
ing) real time broadcasting (ter-
restrial, satellite, cable and/or any
other media), broadcasting/
streaming via internet, intranets
and/or other networks or in other
electronic content distribution
systems, such as pay-audio or
audio-on-demand applications.
An independent license for such
use is required. For details,
please visit
http://www.mp3licensing.com.WMA file playback
You can play back WMA files
recorded on CD-ROM/CD-R/CD-RW
(ISO9660 Level 1/Level 2 standard
recordings).
AAC file playback
You can play back AAC files
recorded on CD-ROM/CD-R/CD-RW
(ISO9660 Level 1/Level 2 standard
recordings).
iPod
compatibility
When you use this unit with an
iPod adapter, you can control an
iPod, iPod mini, iPod Photo, iPod
nano.
• iPod is a trademark of Apple
Computer, Inc., registered in the
U.S. and other countries.
About WMA
The Windows MediaTMlogo printed
on the box indicates that this unit
can play back WMA data.
2

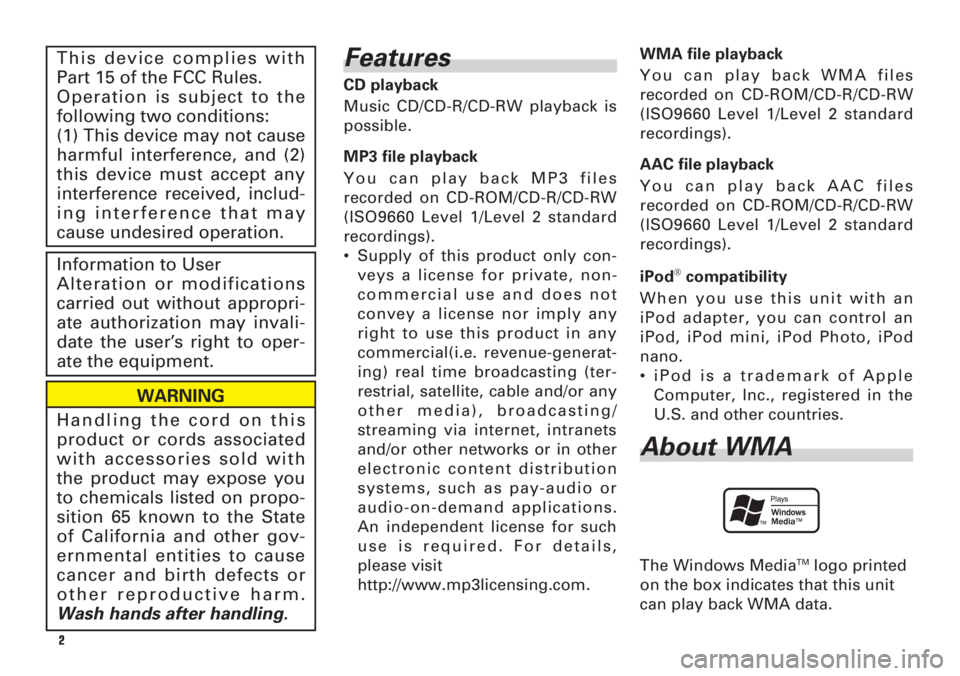

This device complies with
Part 15 of the FCC Rules.
Operation is subject to the
following two conditions:
(1) This device may not cause
harmful interference, and (2)
this device must accept any
interference received, includ-
ing interference that may
cause undesired operation.
Information to User
Alteration or modifications
carried out without appropri-
ate authorization may invali-
date the user’s right to oper-
ate the equipment.
WARNING
Handling the cord on this
product or cords associated
with accessories sold with
the product may expose you
to chemicals listed on propo-
sition 65 known to the State
of California and other gov-
ernmental entities to cause
cancer and birth defects or
other reproductive harm.
Wash hands after handling.

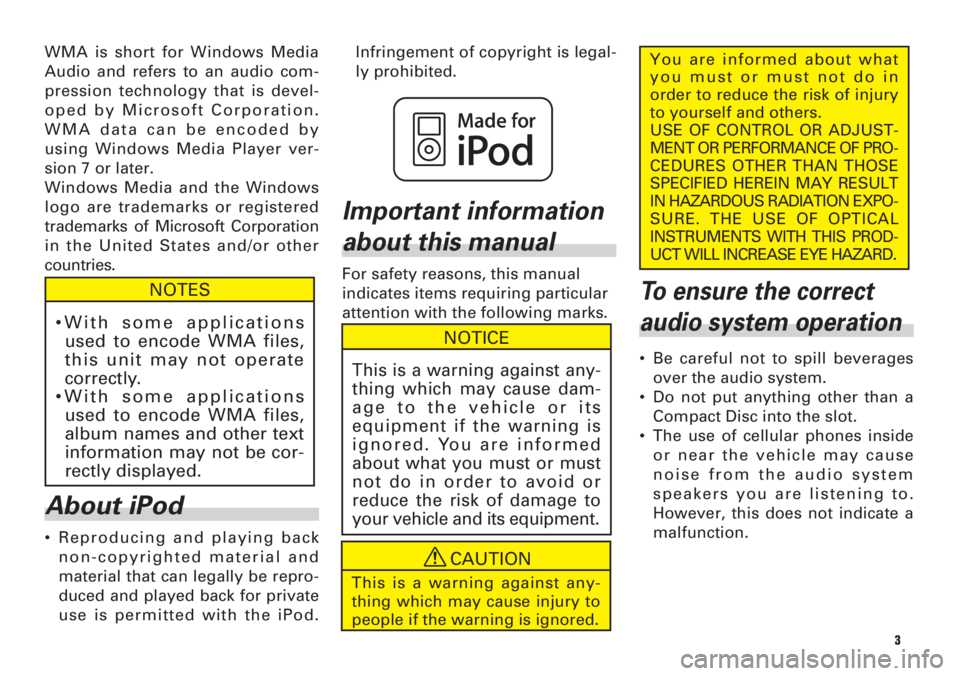

WMA is short for Windows Media
Audio and refers to an audio com-
pression technology that is devel-
oped by Microsoft Corporation.
WMA data can be encoded by
using Windows Media Player ver-
sion 7 or later.
Windows Media and the Windows
logo are trademarks or registered
trademarks of Microsoft Corporation
in the United States and/or other
countries.
About iPod
• Reproducing and playing back
non-copyrighted material and
material that can legally be repro-
duced and played back for private
use is permitted with the iPod.Infringement of copyright is legal-
ly prohibited.
Important information
about this manual
For safety reasons, this manual
indicates items requiring particular
attention with the following marks.
To ensure the correct
audio system operation
• Be careful not to spill beverages
over the audio system.
• Do not put anything other than a
Compact Disc into the slot.
• The use of cellular phones inside
or near the vehicle may cause
noise from the audio system
speakers you are listening to.
However, this does not indicate a
malfunction.
3
NOTES
• With some applications
used to encode WMA files,
this unit may not operate
correctly.
• With some applications
used to encode WMA files,
album names and other text
information may not be cor-
rectly displayed.
NOTICE
This is a warning against any-
thing which may cause dam-
age to the vehicle or its
equipment if the warning is
ignored. You are informed
about what you must or must
not do in order to avoid or
reduce the risk of damage to
your vehicle and its equipment.
CAUTION
This is a warning against any-
thing which may cause injury to
people if the warning is ignored.
You are informed about what
you must or must not do in
order to reduce the risk of injury
to yourself and others.
USE OF CONTROL OR ADJUST-
MENT OR PERFORMANCE OF PRO-
CEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPO-
SURE. THE USE OF OPTICAL
INSTRUMENTS WITH THIS PROD-
UCT WILL INCREASE EYE HAZARD.

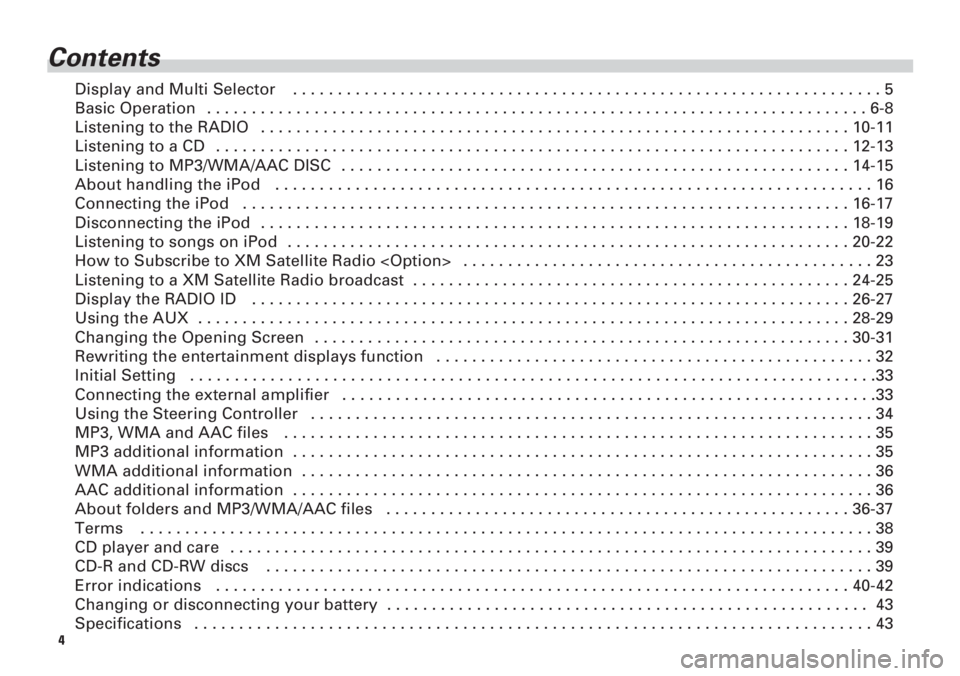

Contents
Display and Multi Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Listening to the RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11
Listening to a CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
Listening to MP3/WMA/AAC DISC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15
About handling the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connecting the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-17
Disconnecting the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19
Listening to songs on iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-22
How to Subscribe to XM Satellite Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Listening to a XM Satellite Radio broadcast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25
Display the RADIO ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27
Using the AUX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-29
Changing the Opening Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-31
Rewriting the entertainment displays function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Initial Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Connecting the external amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Using the Steering Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
MP3, WMA and AAC files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
MP3 additional information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
WMA additional information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
AAC additional information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
About folders and MP3/WMA/AAC files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36-37
Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
CD player and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
CD-R and CD-RW discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Error indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40-42
Changing or disconnecting your battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
4

5

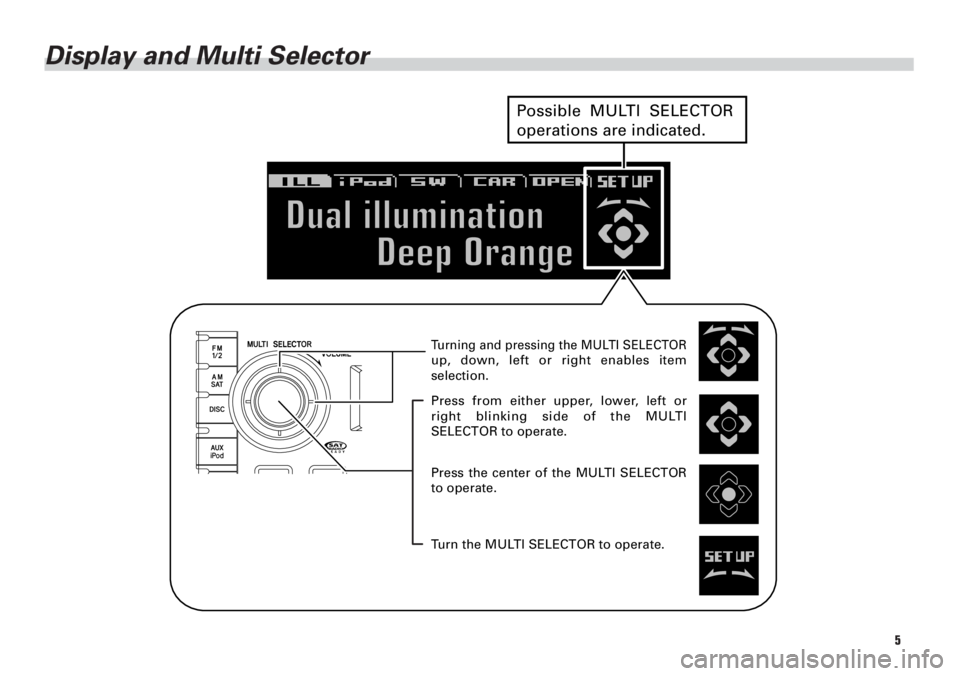

Display and Multi Selector
Turning and pressing the MULTI SELECTOR up, down, left or right enables item
selection.
Press from either upper, lower, left or
right blinking side of the MULTI
SELECTOR to operate.
Press the center of the MULTI SELECTOR
to operate.
Turn the MULTI SELECTOR to operate.
Possible MULTI SELECTOR
operations are indicated.

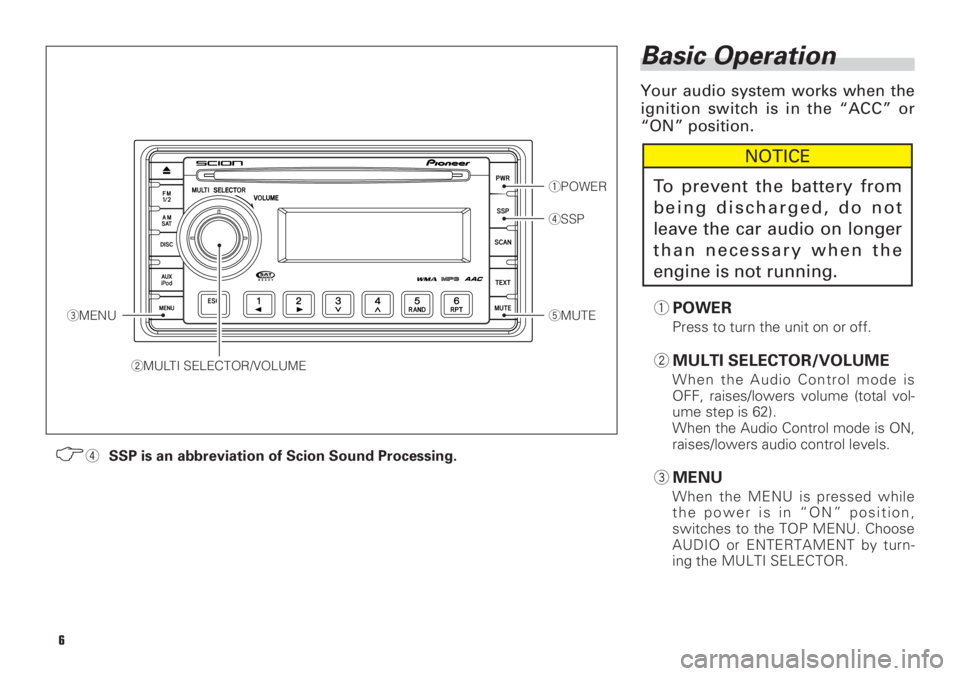

Basic Operation
Your audio system works when the
ignition switch is in the “ACC” or
“ON” position.
1POWER
Press to turn the unit on or off.
2MULTI SELECTOR/VOLUME
When the Audio Control mode is
OFF, raises/lowers volume (total vol-
ume step is 62).
When the Audio Control mode is ON,
raises/lowers audio control levels.
3MENU
When the MENU is pressed while
the power is in “ON” position,
switches to the TOP MENU. Choose
AUDIO or ENTERTAMENT by turn-
ing the MULTI SELECTOR.
NOTICE
To prevent the battery from
being discharged, do not
leave the car audio on longer
than necessary when the
engine is not running.
2MULTI SELECTOR/VOLUME
1POWER
4SSP
5MUTE3MENU
6
4SSP is an abbreviation of Scion Sound Processing.

7

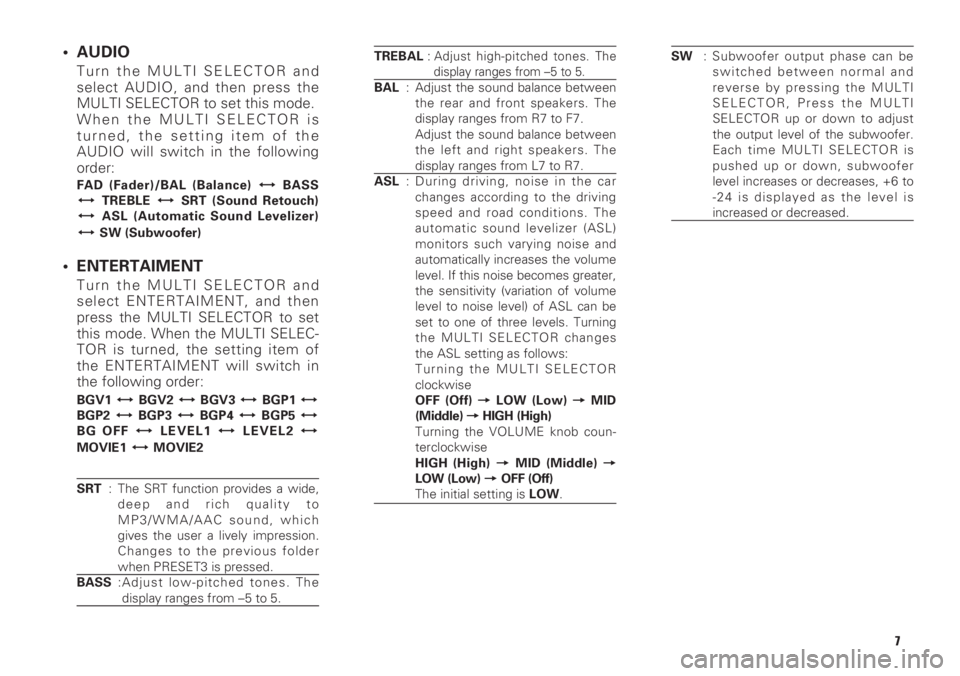

• AUDIO
Turn the MULTI SELECTOR and
select AUDIO, and then press the
MULTI SELECTOR to set this mode.
When the MULTI SELECTOR is
turned, the setting item of the
AUDIO will switch in the following
order:
FAD (Fader)/BAL (Balance) BASS
TREBLE SRT (Sound Retouch)
ASL (Automatic Sound Levelizer)
SW (Subwoofer)
• ENTERTAIMENT
Turn the MULTI SELECTOR and
select ENTERTAIMENT, and then
press the MULTI SELECTOR to set
this mode. When the MULTI SELEC-
TOR is turned, the setting item of
the ENTERTAIMENT will switch in
the following order:
BGV1 BGV2 BGV3 BGP1
BGP2 BGP3 BGP4 BGP5
BG OFF LEVEL1 LEVEL2
MOVIE1 MOVIE2
SRT: The SRT function provides a wide,
deep and rich quality to
MP3/WMA/AAC sound, which
gives the user a lively impression.
Changes to the previous folder
when PRESET3 is pressed.
BASS:Adjust low-pitched tones. The
display ranges from –5 to 5.
TREBAL :Adjust high-pitched tones. Thedisplay ranges from –5 to 5.BAL: Adjust the sound balance between
the rear and front speakers. The
display ranges from R7 to F7.
Adjust the sound balance between
the left and right speakers. The
display ranges from L7 to R7.
ASL: During driving, noise in the car
changes according to the driving
speed and road conditions. The
automatic sound levelizer (ASL)
monitors such varying noise and
automatically increases the volume
level. If this noise becomes greater,
the sensitivity (variation of volume
level to noise level) of ASL can be
set to one of three levels. Turning
the MULTI SELECTOR changes
the ASL setting as follows:
Turning the MULTI SELECTOR
clockwise
OFF (Off) =LOW (Low) =MID
(Middle) =HIGH (High)
Turning the VOLUME knob coun-
terclockwise
HIGH (High)=MID (Middle)=
LOW (Low)=OFF (Off)
The initial setting is LOW.
SW: Subwoofer output phase can be
switched between normal and
reverse by pressing the MULTI
SELECTOR, Press the MULTI
SELECTOR up or down to adjust
the output level of the subwoofer.
Each time MULTI SELECTOR is
pushed up or down, subwoofer
level increases or decreases, +6 to
-24 is displayed as the level is
increased or decreased.

4SSP (Scion Sound Processing)SSP is a modified DSP (Digital Signal
Processing) system that provides a
customized sound for your vehicle.
You can select from the modes
below.
Neutral: A subdued sound that
does not interfere with
conversations.
Hear: A powerful, energetic,
“live” sound.
Feel: Player’s sound —> repro-
duces the sound on the
stage that musicians hear.
For more details, please visit the SCION
Web site at http://www.scion.com/.
Each time you press it, the SSP
changes in the following order:
Neutral =Hear =Feel =Neutral
5MUTE
To reduce the volume instantaneous-
ly, press the MUTE button.
MUTEwill flash on and off.
To cancel this mode, press the
MUTE button again.

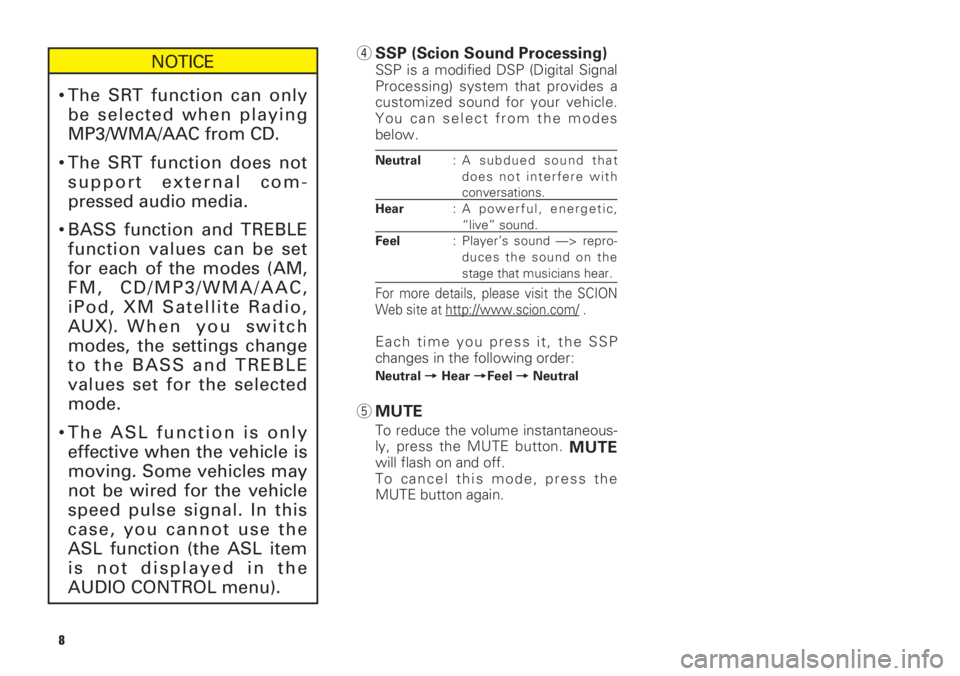

NOTICE
•The SRT function can only
be selected when playing
MP3/WMA/AAC from CD.
•The SRT function does not
support external com-
pressed audio media.
•BASS function and TREBLE
function values can be set
for each of the modes (AM,
FM, CD/MP3/WMA/AAC,
iPod, XM Satellite Radio,
AUX).When you switch
modes, the settings change
to the BASS and TREBLE
values set for the selected
mode.
•The ASL function is only
effective when the vehicle is
moving. Some vehicles may
not be wired for the vehicle
speed pulse signal. In this
case, you cannot use the
ASL function (the ASL item
is not displayed in the
AUDIO CONTROL menu).
8

9

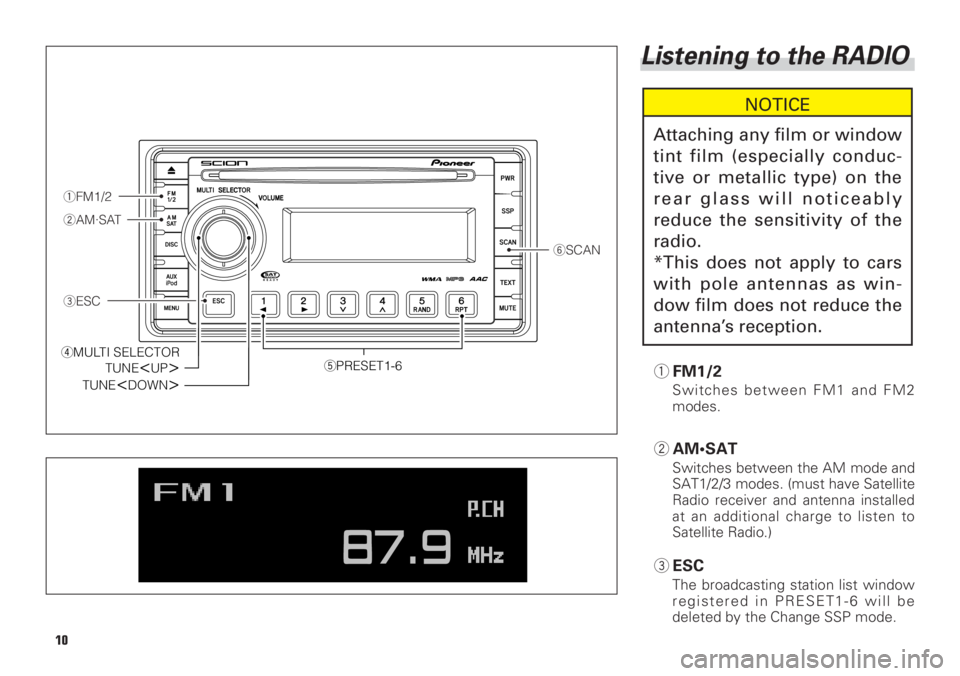

Listening to the RADIO
1FM1/2
Switches between FM1 and FM2
modes.
2AM•SAT
Switches between the AM mode and
SAT1/2/3 modes. (must have Satellite
Radio receiver and antenna installed
at an additional charge to listen to
Satellite Radio.)
3ESC
The broadcasting station list window
registered in PRESET1-6 will be
deleted by the Change SSP mode.
NOTICE
Attaching any film or window
tint film (especially conduc-
tive or metallic type) on the
rear glass will noticeably
reduce the sensitivity of the
radio.
*This does not apply to cars
with pole antennas as win-
dow film does not reduce the
antenna’s reception.
6SCAN
1FM1/2
2AM·SAT
3ESC
5PRESET1-6TUNE4MULTI SELECTOR
TUNE

10
