OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Multi−information display 142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Audio remote controls (steering switches) 145
. . . . . . . . . . . . . . . . . . . . .
AUX adapter 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
iPod jack 146
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Glove box 147
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Rear console box 147
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Cup holders 147
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Bottle holders 148
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Tie −down hooks 149
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Luggage storage box 149
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Floor mat 150
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 9

142

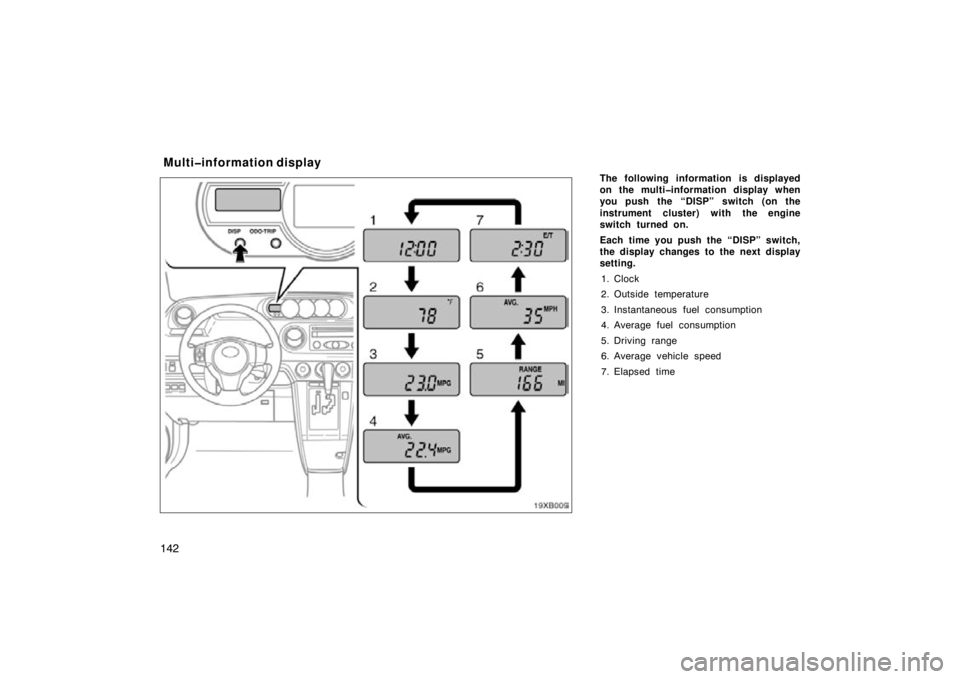

The following information is displayed
on the multiinformation display when
you push the “DISP” switch (on the
instrument cluster) with the engine
switch turned on.
Each time you push the “DISP” switch,
the display changes to the next display
setting.1. Clock
2. Outside temperature
3. Instantaneous fuel consumption
4. Average fuel consumption
5. Driving range
6. Average vehicle speed
7. Elapsed time
Multiinformation display

143
The displayed values in the multi−informa-
tion display indicate general driving condi-
tions. Accuracy varies with driving habits
and road conditions.
When the engine switch is on, the last
previously used mode displayed just be-
fore the engine switch is off will appear.
If the electrical power source has been
disconnected from the multi −information
display, the display will automatically be
set to the initial mode.
When the headlight switch is turned on,
the brightness of the display will be re-
duced.
You can adjust the brightness of the dis-
play. To adjust the brightness, see “Instru-
ment panel light control” on page 88.
CAUTION
Do not operate the switches while the
vehicle is moving. Make sure to oper-
ate the switches when the vehicle is
stopped.
1. Clock
To adjust the clock, the engine switch
must be in the “ON” position and the ve-
hicle must be stopped.
Pushing the “DISP” switch flashes the in-
dicator for the minute and you can adjust
the minute.
Press the “DISP” switch until the desired
minute will appear.
After 5 or more seconds pass without op-
erating, the indicator for the hour flashes.
Then you can adjust the hour.
Press the “DISP” switch until the desired
hour will appear.
After 5 or more seconds pass without op-
erating, the indicator will return to the nor-
mal display.
If quick adjustment to a full hour is de-
sired, push the “DISP” switch for 1 sec-
ond.
For example, if the “DISP” switch is de-
pressed when the time is between
1:01—1:29, the time will change to 1:00.
If the time is between 1:30—1:59, the
time will change to 2:00.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00. 2. Outside temperature display
(“C” or “ F”)
The display indicates between the range
of –30 C (–22 F) and 50 C (122 F).
Each time you push the “DISP” switch for
1 second, the display switches between
“  C” and “ F”.
If an abnormality exists in the connection
of the outside air temperature sensor, “––”
will appear on the display. If “––” appears,
contact your Scion dealer.
3. Instantaneous fuel consumption (“MPG”)
The instantaneous fuel consumption is
calculated and displayed based on dis-
tance and fuel consumption with the
engine running.
Note that an accurate figure may not be
shown in the following cases.
The vehicle is stopped with the engine
running. (The display will indicate the
extremely high fuel consumption.)
The vehicle is driving down a long
slope, applying the engine brake. (The
display will indicate the extremely low
fuel consumption.)
The calculation is reset when the engine
switch is turned off.

144
4. Average fuel consumption (“AVG. MPG”)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the engine running.
To reset the calculations, push and hold
the “DISP” switch for more than 1 second.
Every time you refuel the vehicle, the cal-
culation is reset.
5. Driving range (“RANGE MI”)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The driving range display indicates the
approximate distance that you can drive
until the fuel gauge reaches “E”. It is
different from the actual distance traveled.
Every time you refuel the vehicle, the cal-
culation is reset. However, when only a
small amount of fuel is added to the tank,
the display may not be reset. The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer than indicated. If fuel consumption
is poor, the driving range will be shorter
than indicated.
If the low fuel level warning light comes
on, refuel the vehicle even if the display
indicates that the vehicle can be driven
further.
6. Average vehicle speed (“AVG. MPH”)
Average vehicle speed is calculated and
displayed based on total driving dis-
tance and total driving time with the
engine running.
To reset the calculations, push and hold
the “DISP” switch for more than 1 second.
7. Elapsed time (“E/T”)
The elapsed time after the engine
switch is turned on is displayed.
When the engine switch is turned on, driv-
ing time is counted from 0:00. Up to 99:59
(99 hours, 59 minutes) can be displayed.
When the driving time exceeds 99:59, the
counter returns to 0:00.
To reset the calculations, push and hold
the “DISP” switch for more than 1 second.
Power outlet
The power outlet is designed for power
supply for car accessories. To use it,
open as shown.
The engine switch must be in the “ACC”
or “ON” position for the power outlet to be
used.

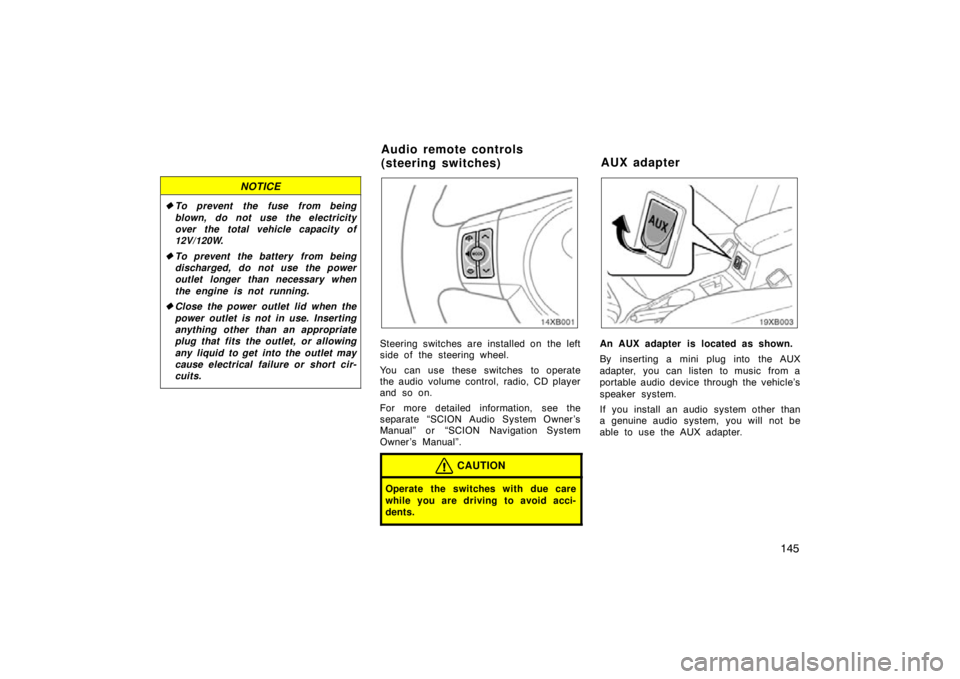

145
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
 Close the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet, or allowing
any liquid to get into the outlet may
cause electrical failure or short cir-
cuits.
14XB001
Steering switches are installed on the left
side of the steering wheel.
You can use these switches to operate
the audio volume control, radio, CD player
and so on.
For more detailed information, see the
separate “SCION Audio System Owner ’s
Manual” or “SCION Navigation System
Owner ’s Manual”.
CAUTION
Operate the switches with due care
while you are driving to avoid acci-
dents.
19XB003
An AUX adapter is located as shown.
By inserting a mini plug into the AUX
adapter, you can listen to music from a
portable audio device through the vehicle’s
speaker system.
If you install an audio system other than
a genuine audio system, you will not be
able to use the AUX adapter.
Audio remote controls
(steering switches) AUX adapter

146
For more detailed information, see the
separate “SCION Audio System Owner ’s
Manual” or “SCION Navigation System
Owner ’s Manual”.

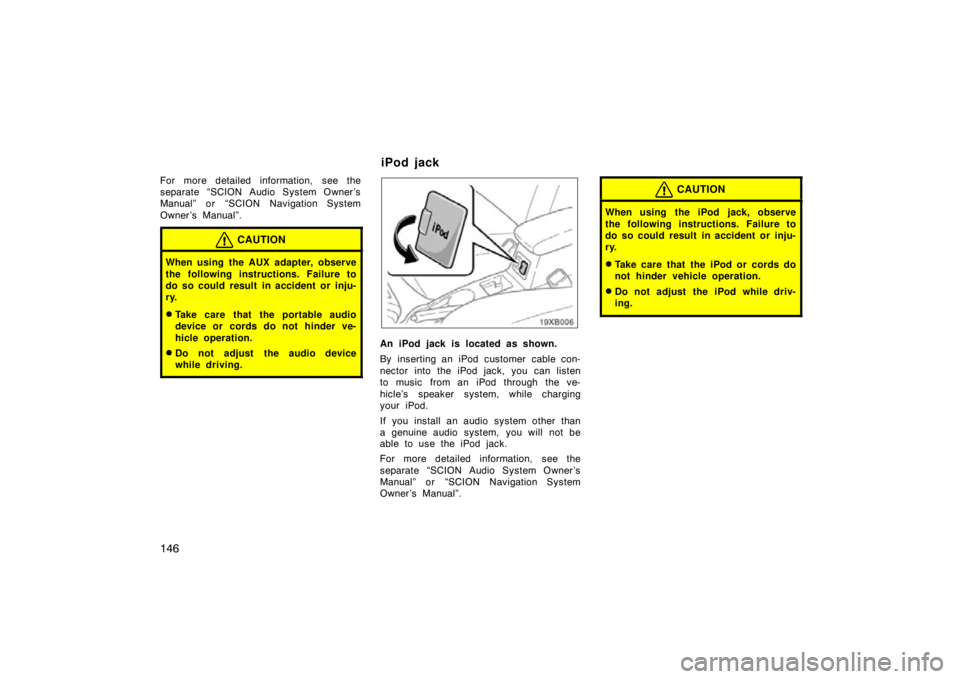

CAUTION
When using the AUX adapter, observe
the following instructions. Failure to
do so could result in accident or inju-
ry.
Take care that the portable audio
device or cords do not hinder ve-
hicle operation.
Do not adjust the audio device
while driving.
19XB006
An iPod jack is located as shown.
By inserting an iPod customer cable con-
nector into the iPod jack, you can listen
to music from an iPod through the ve-
hicle’s speaker system, while charging
your iPod.
If you install an audio system other than
a genuine audio system, you will not be
able to use the iPod jack.
For more detailed information, see the
separate “SCION Audio System Owner ’s
Manual” or “SCION Navigation System
Owner ’s Manual”.
CAUTION
When using the iPod jack, observe
the following instructions. Failure to
do so could result in accident or inju-
ry.
Take care that the iPod or cords do
not hinder vehicle operation.
Do not adjust the iPod while driv-
ing.
iPod jack

147

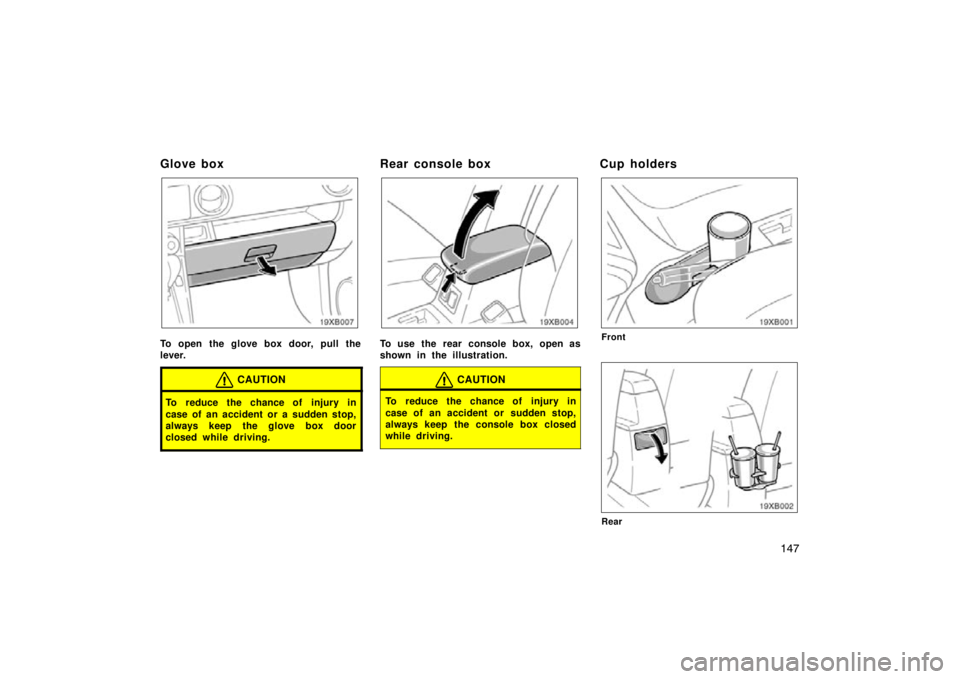

Glo ve bo x
To open the glove box door, pull the
lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Rear console box
19XB004
To use the rear console box, open as
shown in the illustration.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop,
always keep the console box closed
while driving.
Cup holders
19XB001
Front
19XB002
Rear

148

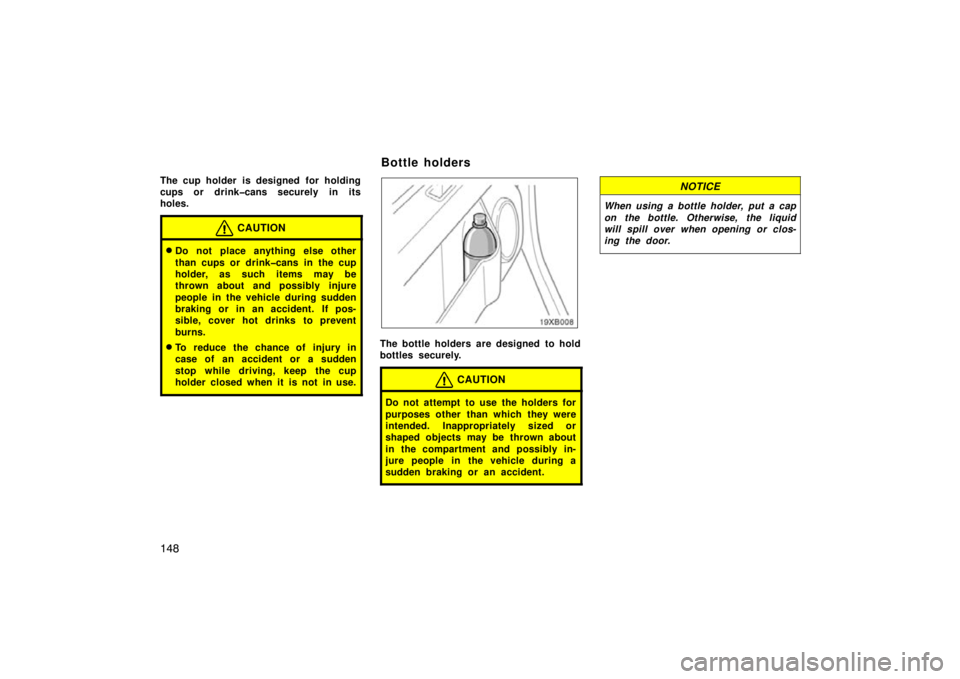

The cup holder is designed for holding
cups or drinkcans securely in its
holes.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about and possibly injure
people in the vehicle during sudden
braking or in an accident. If pos-
sible, cover hot drinks to prevent
burns.
To reduce the chance of injury in
case of an accident or a sudden
stop while driving, keep the cup
holder closed when it is not in use.The bottle holders are designed to hold
bottles securely.
CAUTION
Do not attempt to use the holders for
purposes other than which they were
intended. Inappropriately sized or
shaped objects may be thrown about
in the compartment and possibly in-
jure people in the vehicle during a
sudden braking or an accident.
NOTICE
When using a bottle holder, put a cap
on the bottle. Otherwise, the liquid
will spill over when opening or clos-
ing the door.
Bottle holders

149

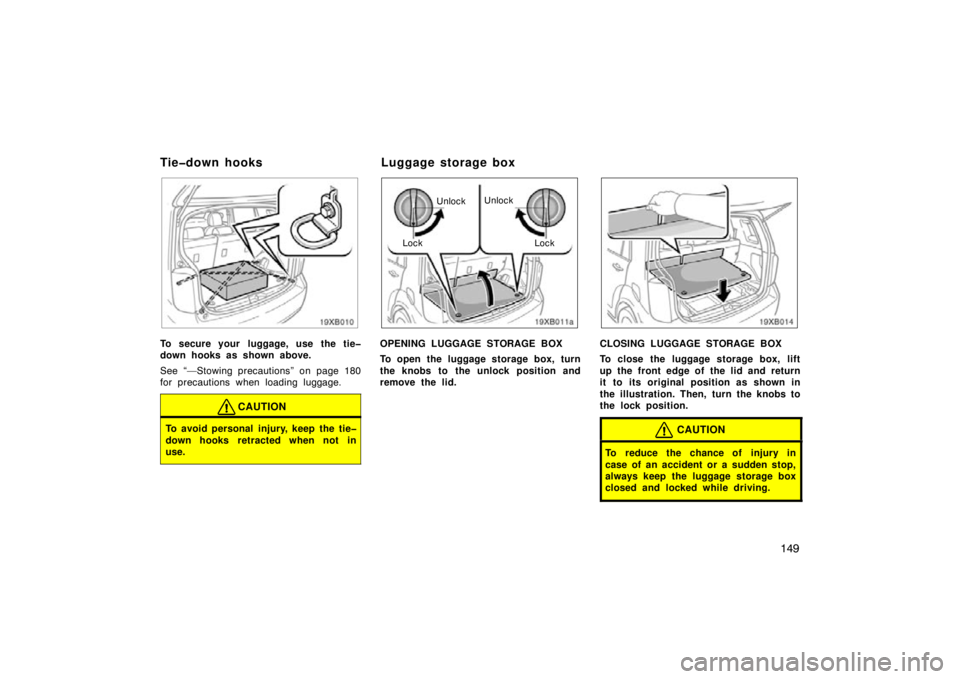

To secure your luggage, use the tie
down hooks as shown above.
See “—Stowing precautions” on page 180
for precautions when loading luggage.
CAUTION
To avoid personal injury, keep the tie
down hooks retracted when not in
use.
UnlockUnlock
Lock Lock
OPENING LUGGAGE STORAGE BOX
To open the luggage storage box, turn
the knobs to the unlock position and
remove the lid.CLOSING LUGGAGE STORAGE BOX
To close the luggage storage box, lift
up the front edge of the lid and return
it to its original position as shown in
the illustration. Then, turn the knobs to
the lock position.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the luggage storage box
closed and locked while driving.
Tiedown hooks Luggage storage box

150

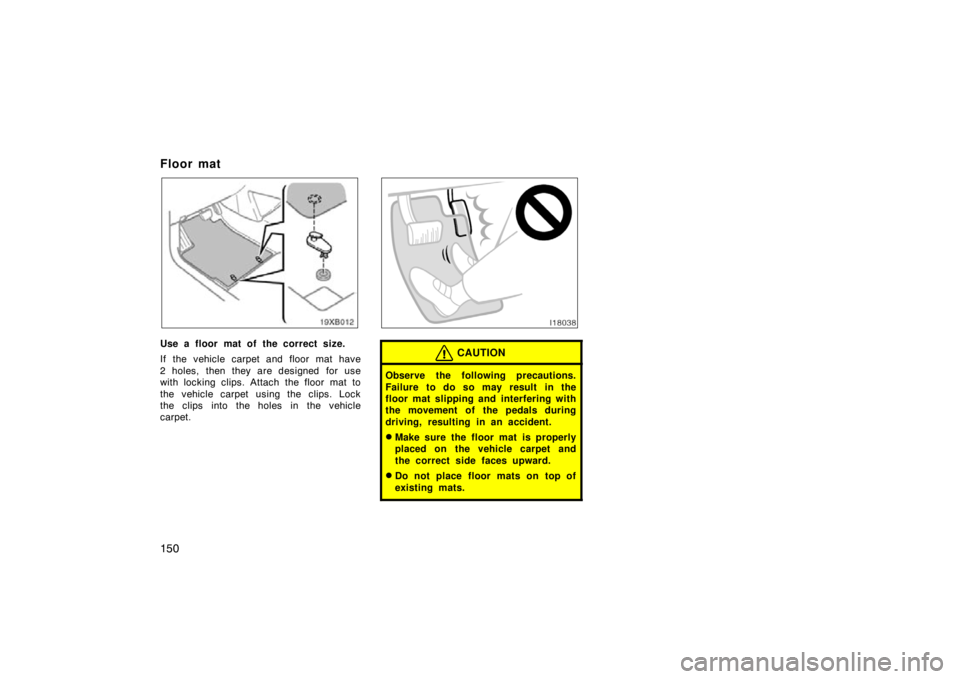

Floor mat
Use a floor mat of the correct size.
If the vehicle carpet and floor mat have
2 holes, then they are designed for use
with locking clips. Attach the floor mat to
the vehicle carpet using the clips. Lock
the clips into the holes in the vehicle
carpet.
I18038
CAUTION
Observe the following precautions.
Failure to do so may result in the
floor mat slipping and interfering with
the movement of the pedals during
driving, resulting in an accident.
Make sure the floor mat is properly
placed on the vehicle carpet and
the correct side faces upward.
Do not place floor mats on top of
existing mats.
