xB
SCHEDULED
MAINTENANCE
GUIDE
KEEP MOVING.
EXPLORE.

N
ow that you’ve got your Scion on the road, you want to make sure it keeps going.
That’s where scheduled maintenance comes in. Taking your car in for regular
service will help your ride run better and last longer. It will keep your repair bills down
too.
This booklet makes it easy to keep your Scion running smoothly. It lists all the
factory-recommended services and tells you when your vehicle needs them. Be sure
to look this booklet over carefully and keep it in your glove box. Do what it says and
your Scion should be happy for many miles to come.
Complimentary 5,000 Mile & 10,000 Mile Factory-Recommended
Maintenance Services
To help you get started with regular maintenance, Scion provides your vehicle’s 5,000
mile and 10,000 mile factory-recommended maintenance services on a
complimentary basis. To find out how to obtain your complimentary maintenance
services, see the section titled Complimentary Maintenance Services.
Please make sure that all the other services recommended in this booklet are
performed on your car as well.
Put it In Writing
To help you keep track of your Scion’s service history, each maintenance chart in this
booklet includes:
> Boxes to check for each service item performed
> Space for the maintenance provider to include a service verification stamp
> Space to write the date and mileage that service is performed
Documenting your service history may make your car worth more when you’re ready
to sell. There’s a reason smart people write things down.
In addition to scheduled maintenance, your vehicle requires general maintenance
such as fluid checks and visual inspections. These procedures are explained in the
“Vehicle Maintenance and Care” section of the
Owner’s Manual. To help keep your
Scion out of trouble, be sure to perform these procedures regularly.
Scion is a marque of Toyota Motor Sales, U.S.A., Inc.
xB
SCHEDULED
MAINTENANCE
GUIDE 2009

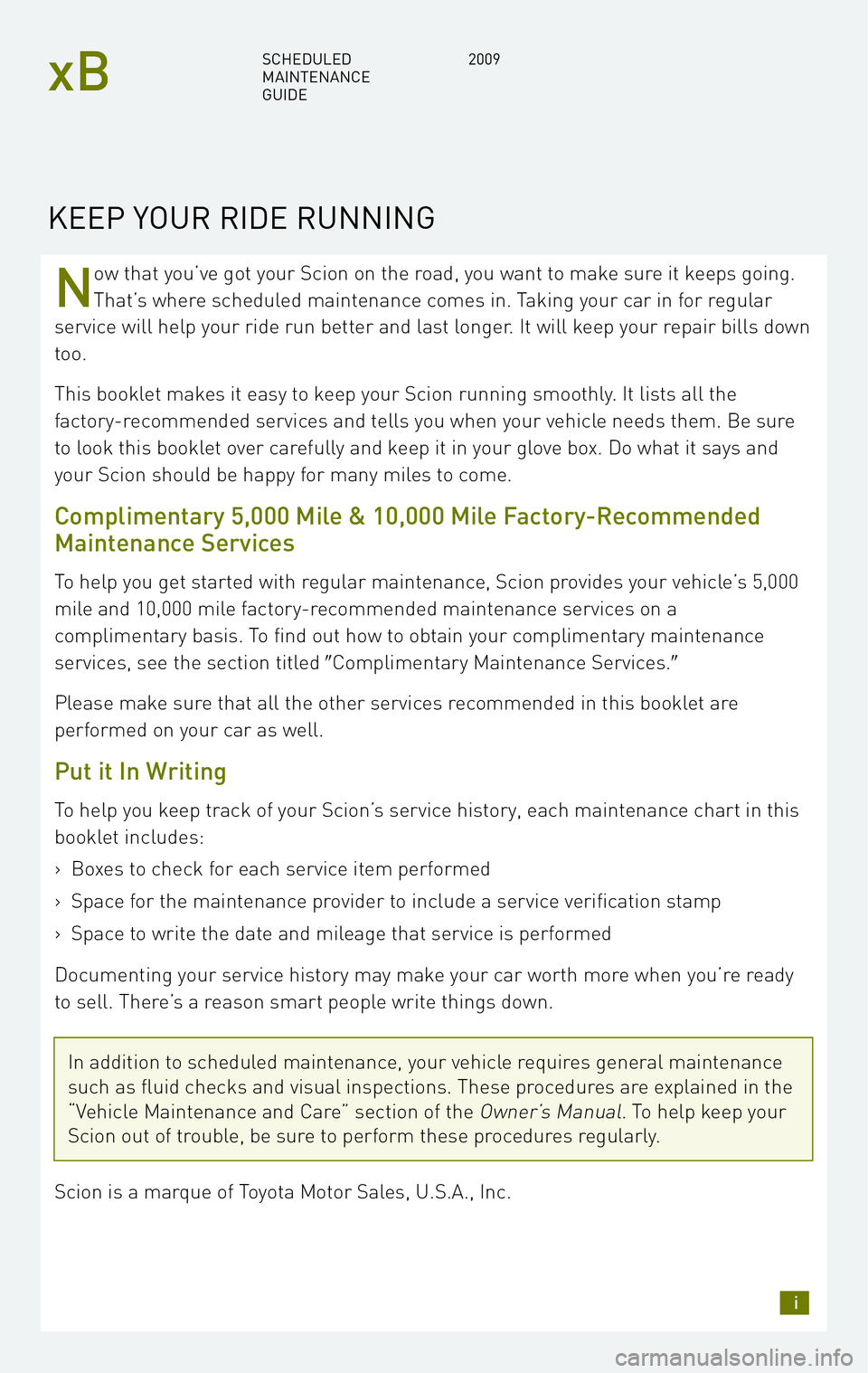

KEEP YOUR RIDE RUNNING
i

Maintenance Records
To make sure your warranty coverage stays intact, you need to maintain your Scion
according to the recommendations in this booklet. You should keep records of vehicle
maintenance, including date and mileage at time of service and a description of
service items performed and parts installed. The scheduled maintenance log can help
you keep track of this information. If you sell your car, be sure to give your
maintenance records to the new owner.
Scion will not deny a warranty claim solely because you don’t have records to show
that you maintained your vehicle. However, damage or failures caused by lack of
proper maintenance are not covered under warranty.
Maintenance Providers
You can have maintenance and repair services done by any automotive service
provider you choose, or you can do them yourself. Scion won’t deny a warranty claim
solely because you used a service provider other than a Scion dealership for
maintenance and repairs. However, damage or failures caused by improper
maintenance or repairs are not covered under warranty. Note: Only Scion dealerships and Toyota dealerships are authorized to provide
warranty service/repairs for your Scion.
Dealer-Recommended Maintenance
Your dealer may recommend more frequent maintenance intervals or more
maintenance services than those listed in the scheduled maintenance log. You don’t
need to have these additional services performed to maintain your warranty coverage.
Ask your dealer to explain any recommended maintenance that is not included in the
scheduled maintenance log.
For a complete description of Scion warranty coverages, check out the booklet
called
2009 Owner’s Warranty Information. You’ll find it in your glove box.
xB
SCHEDULED
MAINTENANCE
GUIDE 2009

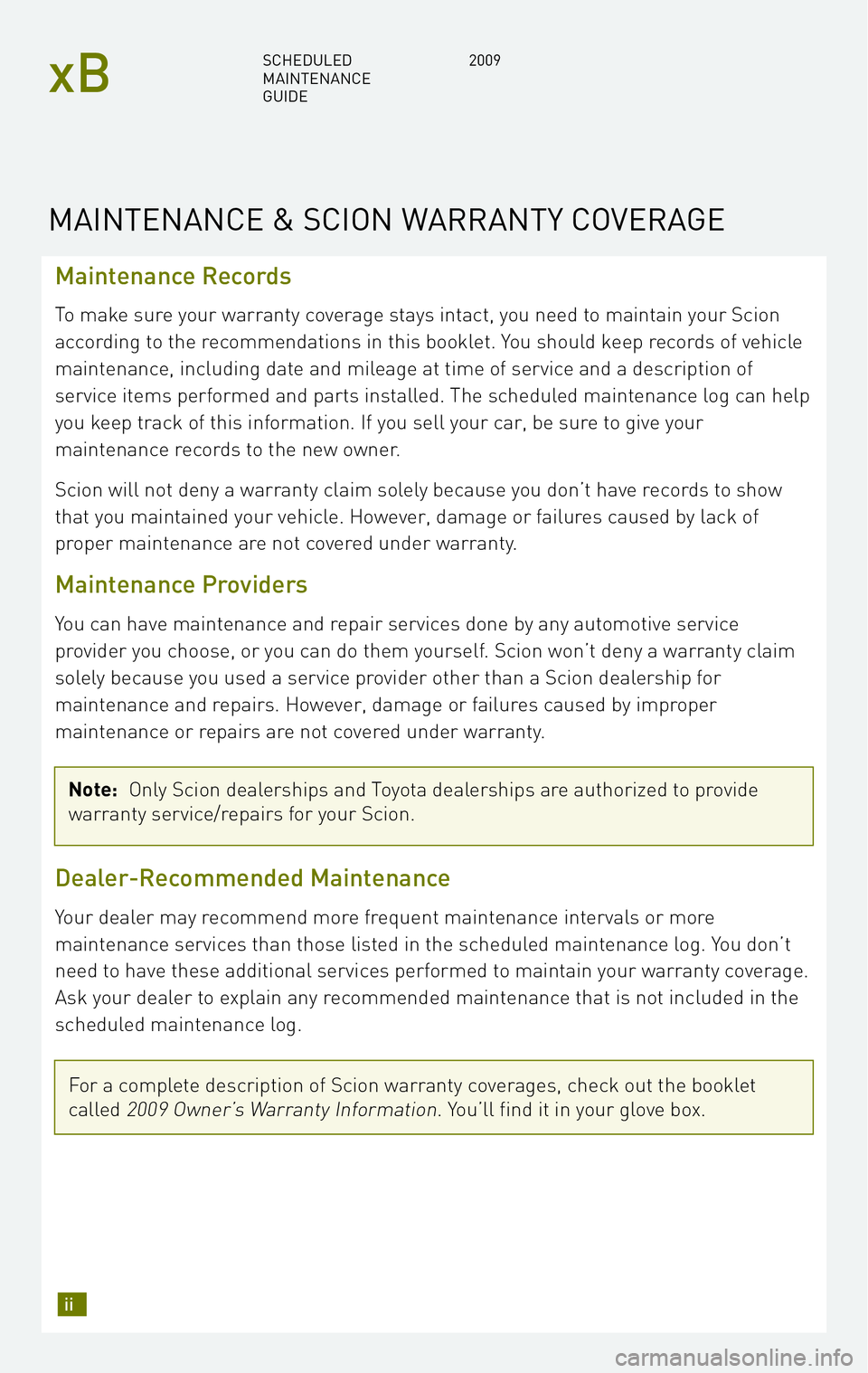

MAINTENANCE & SCION WARRANTY COVERAGE
ii

USING THE MAINTENANCE LOG CHARTS............................2
COMPLIMENTARY MAINTENANCE SERVICES .........................3
MAINTENANCE LOG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
EXPLANATION OF MAINTENANCE ITEMS ...........................20
Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identification Number
VEHICLE IDENTIFICATION
xB
SCHEDULED
MAINTENANCE
GUIDE 2009
TABLE OF CONTENTS
1

Miles or Months?
Scion recommends obtaining scheduled maintenance for your vehicle every 5,000
miles or six months, whichever comes first.
For example:
>If you drive 5,000 miles in less than six months, you should obtain maintenance at
5,000 miles - don’t wait until six months.
> If at six months you have driven less than 5,000 miles, you should obtain
maintenance at six months - don’t wait until 5,000 miles.
Be sure to keep an eye on your mileage so that you obtain maintenance when
recommended. If you are a low-mileage driver, mark your calendar to remind yourself
to obtain maintenance every six months.
Special Operating Conditions
In addition to standard maintenance items, the maintenance log indicates services
that should be performed on vehicles that are driven under especially demanding
conditions. These special operating conditions and their required maintenance items
are clearly indicated in each chart.
Note: You should perform these additional maintenance services if you drive
primarilyunder any of the special operating conditions indicated. If you drive only
occasionally under these conditions, it is not necessary to perform the additional
services.
xB
SCHEDULED
MAINTENANCE
GUIDE 2009

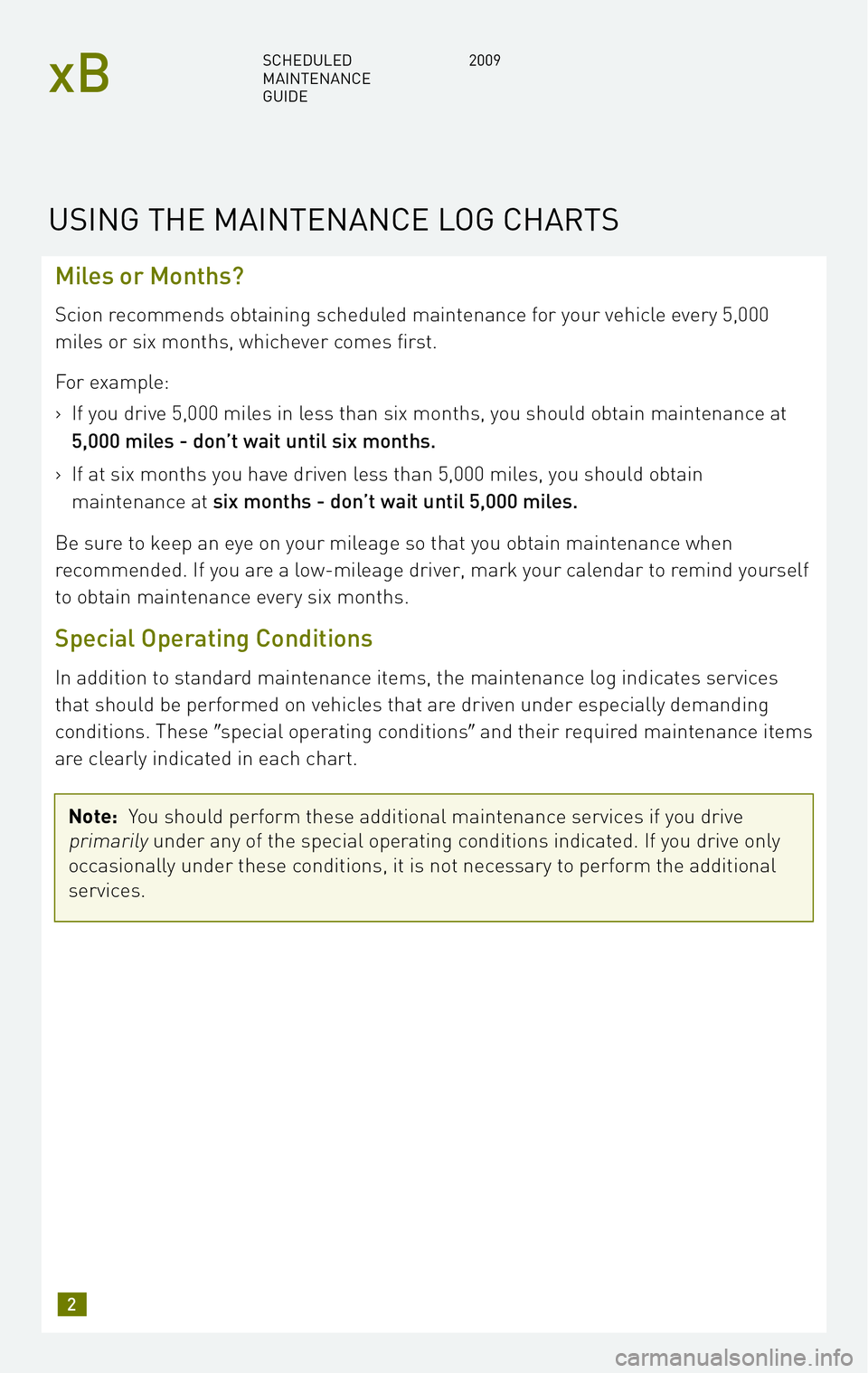

USING THE MAINTENANCE LOG CHARTS
2

T
o help you get started with regular maintenance, Scion provides your vehicle’s
5,000 mile and 10,000 mile factory-recommended maintenance services on a
complimentary basis. While these complimentary factory-recommended maintenance
services do not have to be performed at exactly 5,000 miles and 10,000 miles, the
complimentary services must be performed within 18 months or 12,000 miles
(whichever occurs first) of your vehicle’s original in-service date. It is important to note
that these services are not meant to be used for maintenance service on or after
15,000 miles. If you bought your Scion used and the previous owner did not use both of
the complimentary maintenance services, you are entitled to the remaining
complimentary maintenance service or services if your car is still within 18 months or
12,000 miles of its original in-service date.
To obtain a complimentary maintenance service, call a Scion dealership or
participating Toyota dealership to make an appointment. The dealership will verify that
the service was performed by completing the Dealer Service Verificationportion of
the Maintenance Log.
Complimentary maintenance services include change of engine oil, oil filter and drain
plug gasket, rotating tires and visually inspecting brake linings/drums and brake
pads/discs only. You are responsible for the cost of any other services performed at the
time of your complimentary maintenance services.
xB
SCHEDULED
MAINTENANCE
GUIDE 2009

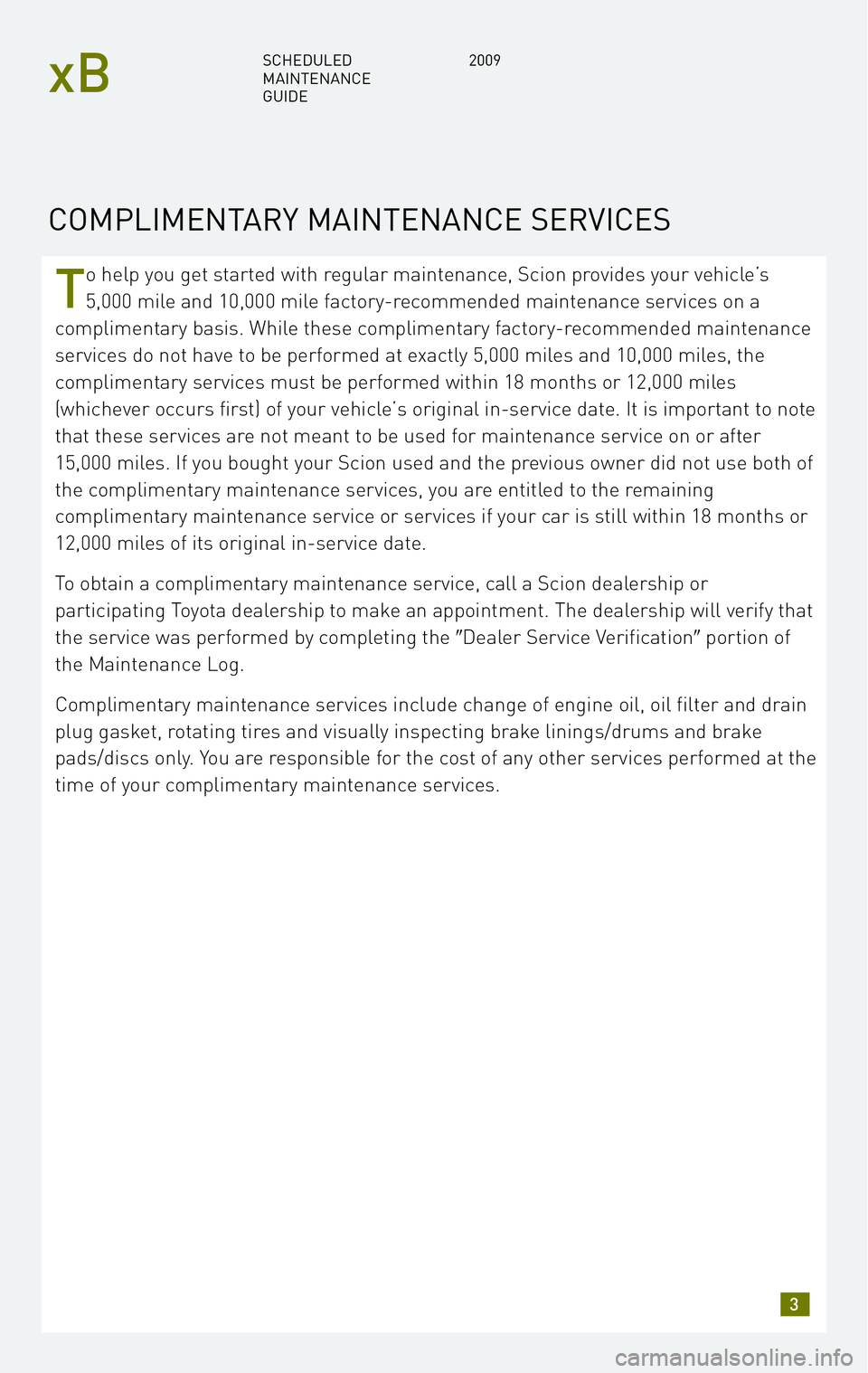

COMPLIMENTARY MAINTENANCE SERVICES
3

Complimentary Maintenance Services
5,000 Miles or 6 months
___ Replace engine oil and oil filter1
___ Rotate tires
___ Visually inspect brake linings/drums and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:
___ Inspect ball joints and dust covers
___ Inspect drive shaft boots
___ Inspect engine air filter
___ Inspect steering linkage and boots
___ Tighten nuts and bolts on chassis Dealer Service Verification:
Date: Mileage:
10,000 Miles or 12 months
___ Replace engine oil and oil filter1
___ Rotate tires
___ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:
___ Inspect ball joints and dust covers
___ Inspect drive shaft boots
___ Inspect engine air filter
___ Inspect steering linkage and boots
___ Tighten nuts and bolts on chassis Dealer Service Verification:
Date: Mileage:
xB
SCHEDULED
MAINTENANCE
GUIDE 2009

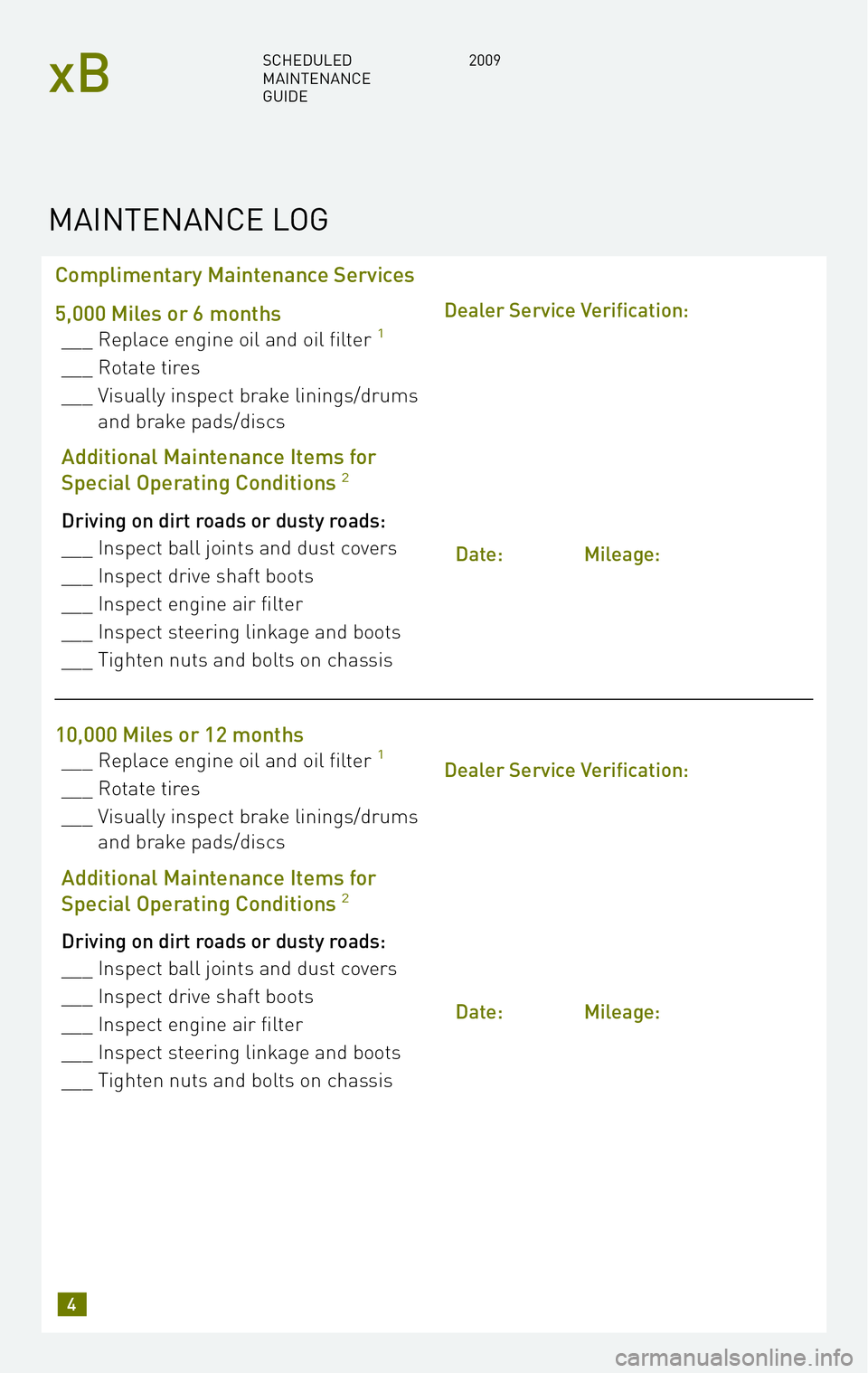

MAINTENANCE LOG
4

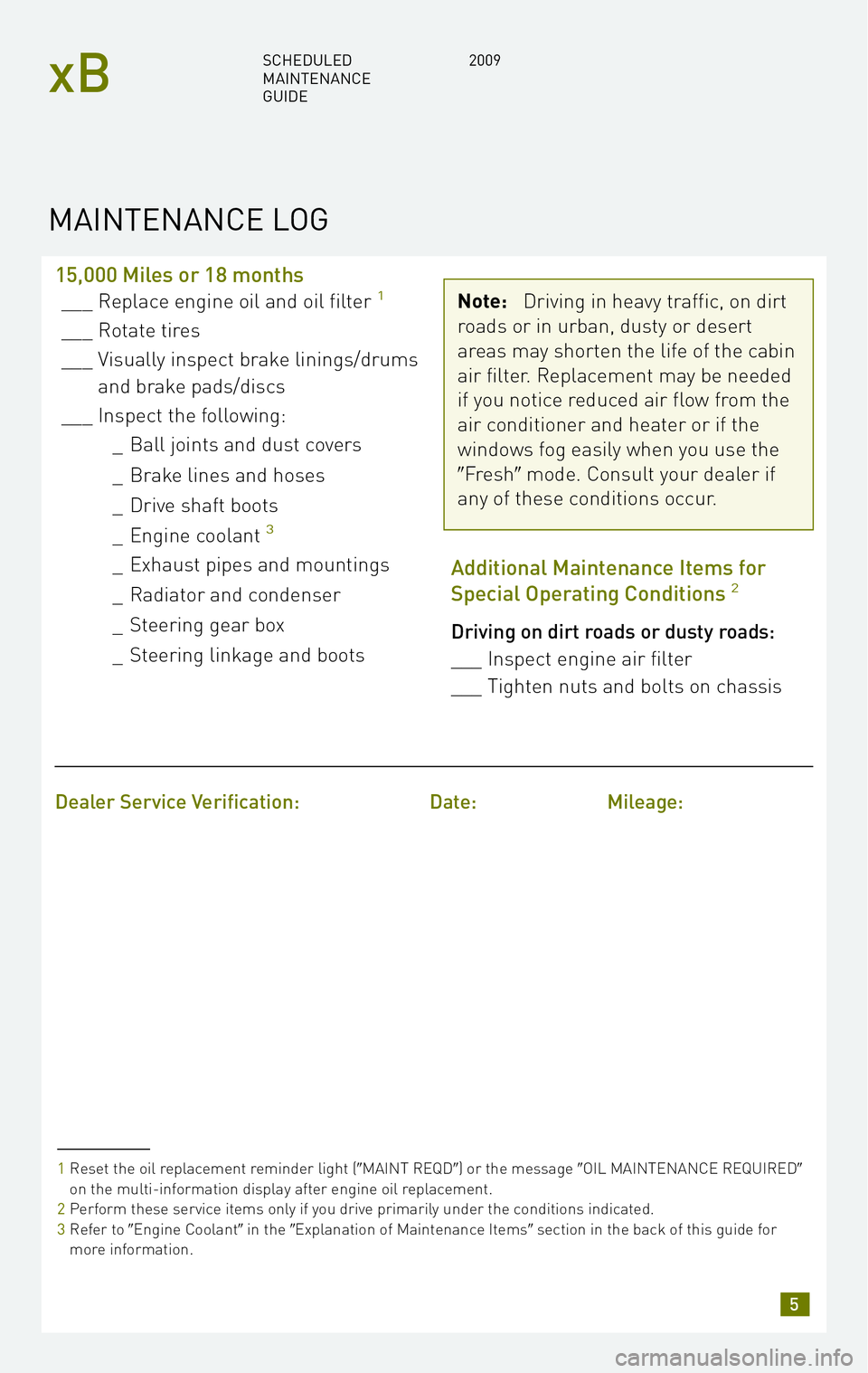

15,000 Miles or 18 months
___ Replace engine oil and oil filter1
___ Rotate tires
___ Visually inspect brake linings/drums and brake pads/discs
___ Inspect the following: _Ball joints and dust covers
_ Brake lines and hoses
_ Drive shaft boots
_ Engine coolant
3
_Exhaust pipes and mountings
_ Radiator and condenser
_ Steering gear box
_ Steering linkage and boots Note:
Driving in heavy traffic, on dirt
roads or in urban, dusty or desert
areas may shorten the life of the cabin
air filter. Replacement may be needed
if you notice reduced air flow from the
air conditioner and heater or if the
windows fog easily when you use the
 Fresh mode. Consult your dealer if
any of these conditions occur.Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:
___ Inspect engine air filter
___ Tighten nuts and bolts on chassis
Dealer Service Verification: Date:Mileage:
xB
SCHEDULED
MAINTENANCE
GUIDE 2009
MAINTENANCE LOG
5
1
Reset the oil replacement reminder light ( MAINT REQD) or the messageOIL MAINTENANCE REQUIRED
on the multi-information display after engine oil replacement.
2 Perform these service items only if you drive primarily under the conditions indicated.
3 Refer to Engine Coolant in theExplanation of Maintenance Items section in the back of this guide for
more information.

20,000 Miles or 24 months
___ Replace engine oil and oil filter1
___ Rotate tires
___ Visually inspect brake linings/drums and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:
___ Inspect ball joints and dust covers
___ Inspect drive shaft boots
___ Inspect engine air filter
___ Inspect steering linkage and boots
___ Tighten nuts and bolts on chassis Dealer Service Verification:
Date: Mileage:
25,000 Miles or 30 months
___ Replace engine oil and oil filter1
___ Rotate tires
___ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:
___ Inspect ball joints and dust covers
___ Inspect drive shaft boots
___ Inspect engine air filter
___ Inspect steering linkage and boots
___ Tighten nuts and bolts on chassis Dealer Service Verification:
Date: Mileage:
xB
SCHEDULED
MAINTENANCE
GUIDE 2009

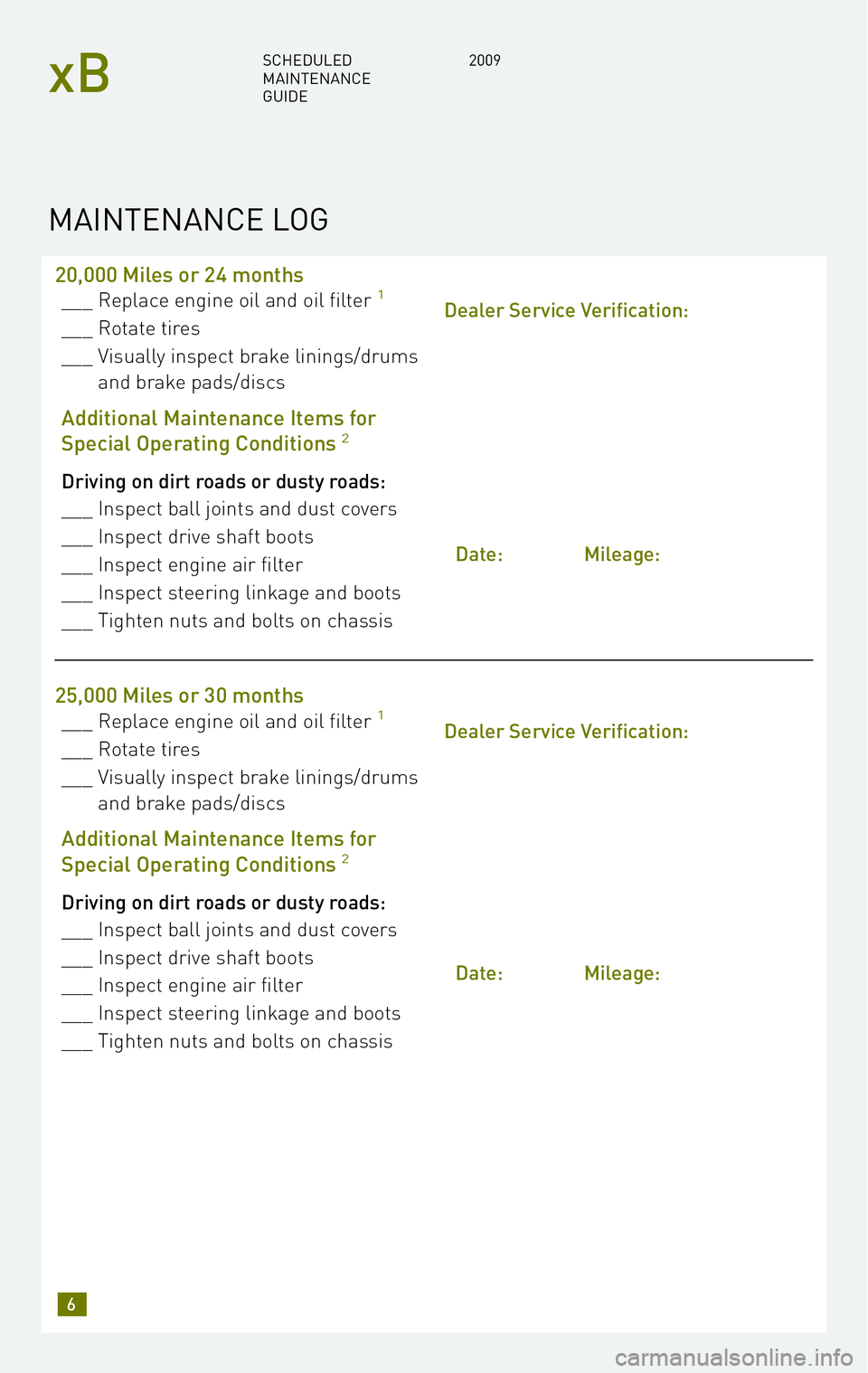

MAINTENANCE LOG
6

30,000 Miles or 36 months
___ Replace cabin air filter
___ Replace engine air filter
___ Replace engine oil and oil filter
1
___ Rotate tires
___ Inspect the following:_Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums and brake
pads/discs
4
_ Drive shaft boots
_ Engine coolant3
_Exhaust pipes and mountings
_ Front differential oil
_ Fuel lines and connections, fuel
tank band and fuel tank vapor
vent system hoses _
Fuel tank cap gasket
_ Radiator and condenser
_ Steering gear box
_ Steering linkage and boots
_ Transmission fluid or oil
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:
___ Tighten nuts and bolts on chassis
Dealer Service Verification: Date:Mileage:
xB
SCHEDULED
MAINTENANCE
GUIDE 2009

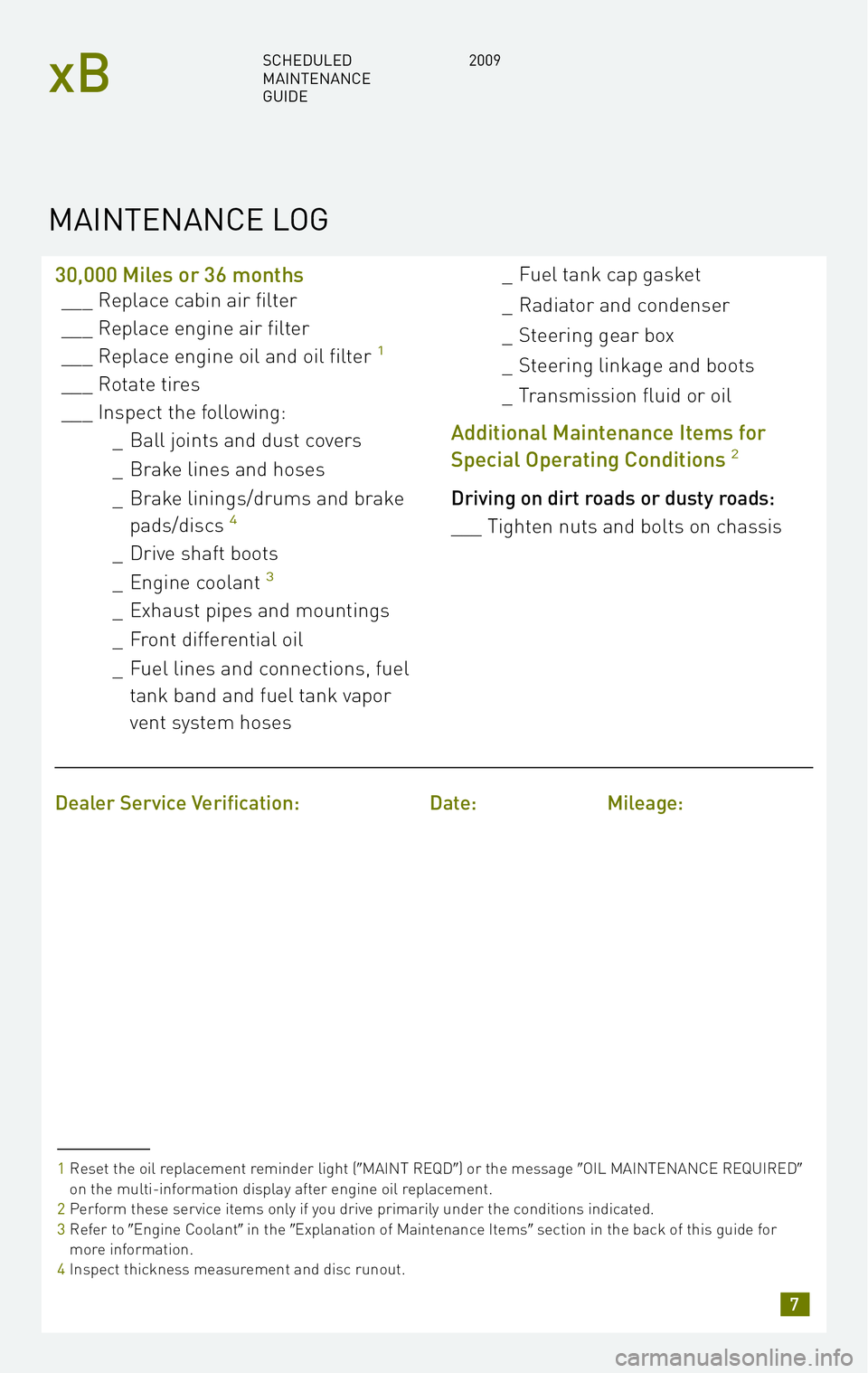

MAINTENANCE LOG
7
1
Reset the oil replacement reminder light ( MAINT REQD) or the messageOIL MAINTENANCE REQUIRED
on the multi-information display after engine oil replacement.
2 Perform these service items only if you drive primarily under the conditions indicated.
3 Refer to Engine Coolant in theExplanation of Maintenance Items section in the back of this guide for
more information.
4 Inspect thickness measurement and disc runout.
