TOYOTA xB 2009 Warranties & Maintenance Guides (in English)

Basic Warranty
This warranty covers repairs and adjust-
ments needed to correct defects in
materials or work manship of any part sup-
plied by Scion, subject to the exceptions
indicated under “What Is Not Covered” on
pages 10–12.
Coverage is for 36 months or 36,000 miles,
whichever occurs first, with the exception
of wheel alignment and wheel balancing,
which are covered for 12 months or 20,000
miles, whichever occurs first.
Powertrain Warranty
This warranty covers repairs needed to
correct defects in materials or work -
manship of any component listed in the
next two columns and supplied by Scion,
subject to the exceptions indicated under
“What Is Not Covered” on pages 10–12.
Coverage is for 60 months or 60,000 miles,
whichever occurs first. Rear-Wheel-Drive System
Axle housing and all internal parts,
propeller shafts, U-joints, axle shafts,
drive shafts, bearings, supports, seals
and gaskets.
Corrosion Perforation Warranty
This warranty covers repair or replace-
ment of any original body panel that
develops perforation from corrosion
(rust-through), subject to the exceptions
indicated under “What Is Not Covered”
on pages 10–12.
Coverage is for 60 months, regardless of
mileage.
For information on how to protect your
vehicle from corrosion, see the section
entitled “Corrosion Prevention and
Appearance Care” in the
Owner’s Manual.
WHAT IS COVERED AND
HOW LONG
NEW VEHICLE LIMITED WARRANTY
Engine
Cylinder block and head and all internal
parts, timing gears and gaskets, timing
chain/belt and cover, flywheel, valve cov-
ers, oil pan, oil pump, engine mounts,
turbocharger housing and all internal
parts, super
charger housing and all inter-
nal parts, engine control computer, water
pump, fuel pump, seals and gaskets.
Transmission and Transaxle
Case and all internal parts, torque con-
verter, clutch cover, transmission mounts,
transfer case and all internal parts, engine
control computer, seals and gaskets.
Front-Wheel-Drive System
Final drive housing and all internal parts,
axle shafts, drive shafts, constant velocity
joints, front hub and bearings, seals and
gaskets.
9Your Warranties in Detail
17881.Guts.qxd:Scion Warranty_text 2/15/08 7:43 PM Page 9

Restraint Systems Warranty
This warranty covers repairs needed to
correct defects in materials or work man -
ship of any seatbelt or air bag system
supplied by Scion, subject to the excep-
tions indicated under “What Is Not
Covered” on pages 10–12.
Coverage is for 60 months or 60,000 miles,
whichever occurs first.
For vehicles sold and registered in the
state of Kansas, the warranty for seatbelts
and related components is 10 years,
regardless of mileage.
Towing
When your vehicle is inoperable due to fail-
ure of a warranted part, towing service to
the nearest Authorized Servicing Dealer -
ship is covered. This warranty does not cover damage or
failures resulting directly or indirectly from
any of the following:
›Fire, accidents or theft
›Abuse or negligence
›Misuse — for example, racing or
overloading
›Improper repairs
›Alteration or tampering, including
installation of non-Scion Authorized
Accessories
›Lack of or improper maintenance,
including use of fluids other than those
specified in the
Owner’s Manual
›Installation of non-Scion Authorized
Parts
›Airborne chemicals, tree sap, road
debris (including stone chips), rail dust,
salt, hail, floods, wind storms, lightning
and other environmental conditions
›Water contamination
NEW VEHICLE LIMITED WARRANTY
WHAT IS NOT COVERED
10Your Warranties in Detail
17881.Guts.qxd:Scion Warranty_text 2/15/08 7:43 PM Page 10

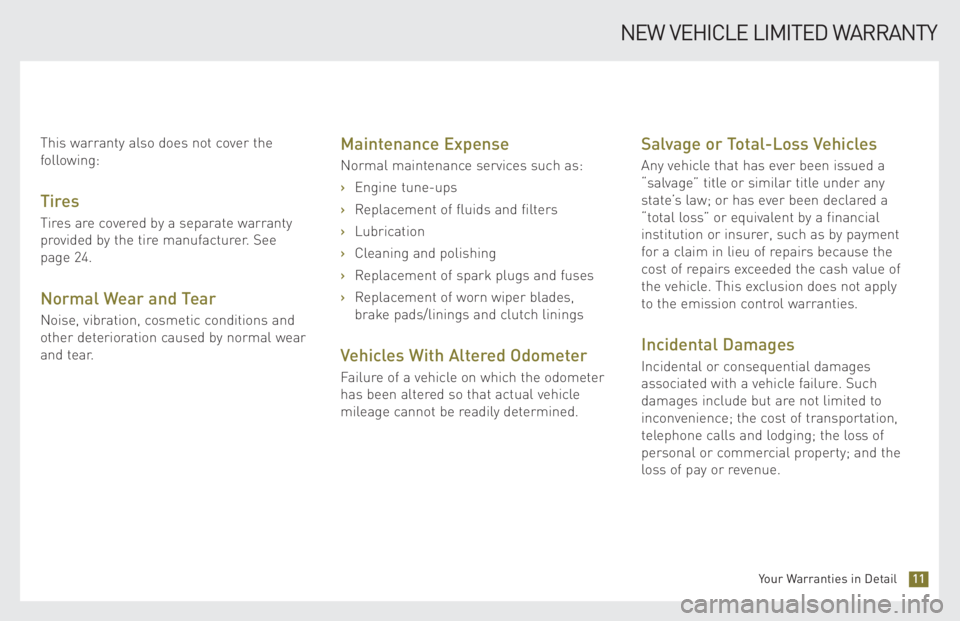

This warranty also does not cover the
following:
Tires
Tires are covered by a separate warranty
provided by the tire manufacturer. See
page 24.
Normal Wear and Tear
Noise, vibration, cosmetic conditions and
other deterioration caused by normal wear
and tear.
Salvage or Total-Loss Vehicles
Any vehicle that has ever been issued a
“salvage” title or similar title under any
state’s law; or has ever been declared a
“total loss” or equivalent by a financial
institution or insurer, such as by payment
for a claim in lieu of repairs because the
cost of repairs exceeded the cash value of
the vehicle. This exclusion does not apply
to the emission control warranties.
Incidental Damages
Incidental or consequential damages
associated with a vehicle failure. Such
damages include but are not limited to
inconvenience; the cost of transportation,
telephone calls and lodging; the loss of
personal or commercial property; and the
loss of pay or revenue.
NEW VEHICLE LIMITED WARRANTY
Maintenance Expense
Normal maintenance services such as:
›Engine tune-ups
›Replacement of fluids and filters
›Lubrication
›Cleaning and polishing
›Replacement of spark plugs and fuses
›Replacement of worn wiper blades,
brake pads/linings and clutch linings
Vehicles With Altered Odometer
Failure of a vehicle on which the odometer
has been altered so that actual vehicle
mileage cannot be readily determined.
11Your Warranties in Detail
17881.Guts.qxd:Scion Warranty_text 2/15/08 7:43 PM Page 11

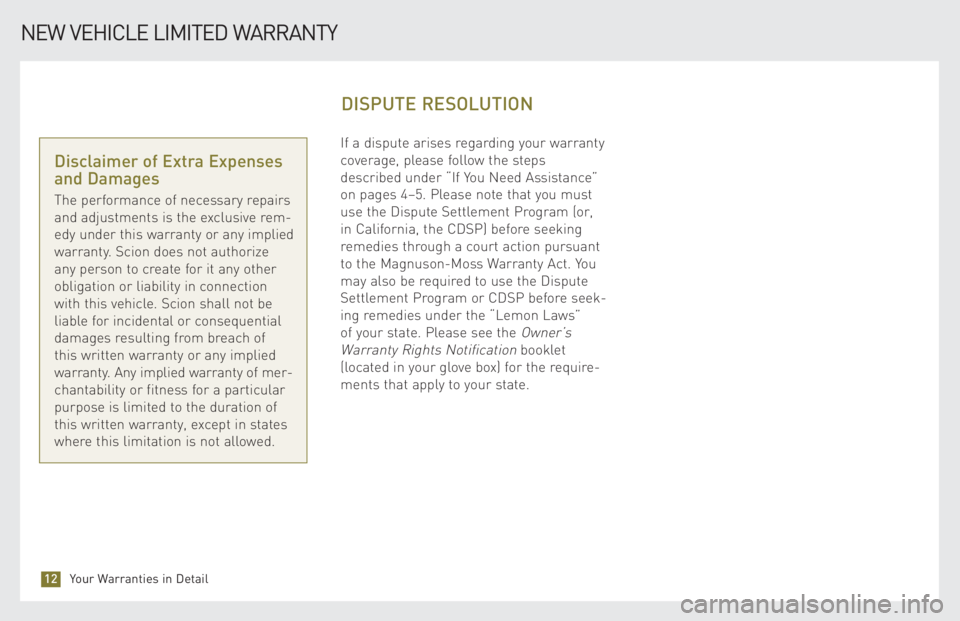

If a dispute arises regarding your warranty
coverage, please follow the steps
described under “If You Need Assistance”
on pages 4–5. Please note that you must
use the Dispute Settlement Program (or,
in California, the CDSP) before seeking
remedies through a court action pursuant
to the Magnuson-Moss Warranty Act. You
may also be required to use the Dispute
Settlement Program or CDSP before seek-
ing remedies under the “Lemon Laws”
of your state. Please see the
Owner’s
Warranty Rights Notification
booklet
(located in your glove box) for the require-
ments that apply to your state.
NEW VEHICLE LIMITED WARRANTY
DISPUTE RESOLUTION
12
Disclaimer of Extra Expenses
and Damages
The performance of necessary repairs
and adjustments is the exclusive rem-
edy under this warranty or any implied
warranty. Scion does not authorize
any person to create for it any other
obligation or liability in connection
with this vehicle. Scion shall not be
liable for incidental or consequential
damages resulting from breach of
this written warranty or any implied
warranty. Any implied warranty of mer-
chantability or fitness for a particular
purpose is limited to the duration of
this written warranty, except in states
where this limitation is not allowed.
Your Warranties in Detail
17881.Guts.qxd:Scion Warranty_text 2/15/08 7:43 PM Page 12

Emission Defect Warranty
Scion warrants that your vehicle:
›Was designed, built and equipped to
conform at the time of sale with applica -
ble federal emissions standards.
›Is free from defects in materials and
workmanship that may cause the vehicle
to fail to meet these standards.
Federal regulations require that this war-
ranty be in effect for two years or 24,000
miles from the vehicle’s in-service date,
whichever occurs first. However, under the
terms of the Basic Warranty, Scion pro-
vides coverage of three years or 36,000
miles, whichever occurs first. Specific
com ponents may have longer coverage
under the terms of the Powertrain
Warranty. Additionally, components
marked “8/80” in the parts list on pages
14–15 have coverage of eight years or
80,000 miles, whichever occurs first. This warranty is in effect for two years or
24,000 miles from the vehicle’s in-service
date, whichever occurs first. Additionally,
components marked “8/80” in the parts
list on pages 14–15 have coverage of eight
years or 80,000 miles, whichever occurs
first.
WHAT IS COVERED AND
HOW LONG
FEDERAL EMISSION CONTROL WARRANTY
Emission Performance Warranty
Some states and localities have estab-
lished vehicle inspection and maintenance
(I/M) programs to encourage proper vehi-
cle maintenance. If an EPA-approved I/M
program is in force in your area, you are
eligible for Emission Performance
Warranty coverage.
Under the terms of the Emission Perfor
-
mance Warranty and federal regulations,
Scion will make all necessary repairs if
both of the following occur:
›Your vehicle fails to meet applicable
emissions standards as determined by
an EPA-approved emissions test.
›This failure results or will result in some
penalty to you — such as a fine or denial
of the right to use your vehicle — under
local, state or federal law.
13Your Warranties in Detail
17881.Guts.qxd:Scion Warranty_text 2/15/08 7:43 PM Page 13

These warranty obligations do not apply to
failures or non-compliance caused by:
›The use of replacement parts not certi-
fied in accordance with aftermarket
parts certification regulations.
›The use of replacement parts not equiv-
alent in quality or design to original
equipment parts.
Provisions under the “What Is Not
Covered” section of the New Vehicle
Limited Warranty also apply to this
warranty.
Air/Fuel Metering System
›Air/fuel ratio feedback control system
›Cold-start enrichment system
›Deceleration control system
›Electronic fuel injection system
components
— Air flow sensor
— Engine control module (8/80)
— Throttle body
— Other components
Air Induction System
›Intake manifold and intake air surge
tank
Catalyst System
›Catalytic converter and protector (8/80)
›Constricted fuel filler neck
›Exhaust manifold
›Exhaust pipe (manifold to catalyst and/or
catalyst to catalyst)
Evaporative Control System
›Charcoal canister
›Diaphragm valve
›Fuel filler cap
›Fuel tank
›Vapor liquid separator
FEDERAL EMISSION CONTROL WARRANTY
WHAT IS NOT COVERED WARRANTY PARTS LIST
14Your Warranties in Detail
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
17881.Guts.qxd:Scion Warranty_text 2/15/08 7:43 PM Page 14

Exhaust Gas Recirculation (EGR)
System
›EGR gas temperature sensor
›EGR valve
›Associated parts
Ignition System
›Distributor and internal parts
›Ignition coil and ignitor
›Ignition wires
›Spark plugs*
Positive Crankcase Ventilation
(PCV) System
›Oil filler cap
›PCV valve or orifice You are responsible for performance of
the required maintenance indicated in
the
Owner’s Manualand the Scheduled
Maintenance Guide
. Scion will not deny a
warranty claim solely because you do not
have records to show that you maintained
your vehicle. However, any failure or non-
compliance caused by lack of maintenance
is not covered by this warranty.
When maintenance and repairs are paid
for by you, these services may be per-
formed by you or by any automotive
service provider you choose. Scion will
not deny a warranty claim solely because
you used a service provider other than
an Authorized Servicing Dealership for
maintenance and repairs. However, any
failure or noncompliance caused by im -
proper maintenance or repairs is not
covered by this warranty.
MAINTENANCE
FEDERAL EMISSION CONTROL WARRANTY
Other Parts Used in Systems
Listed
›Data link connector (8/80)
›Hoses, clamps, fittings, tubing and
mounting hardware
›Malfunction indicator light and bulb
(8/80)
›Pulleys, belts and idlers
›Sealing gaskets and devices
›Sensors, solenoids, switches and valves
15Your Warranties in Detail
*Warranted until first required maintenance under terms of the California Emission Control Warranty.
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
17881.Guts.qxd:Scion Warranty_text 2/15/08 7:43 PM Page 15

To ensure optimum performance and
maintain the quality built into your vehicle’s
emission control systems, Scion recom-
mends the use of Scion Authorized Parts
when servicing or repairing the systems.
Warranty coverage is not dependent
upon the use of any particular brand of
replacement parts, and you may elect
to use non–Scion Authorized Parts for
maintenance and repairs. However, use
of replacement parts that are not equiva -
lent in quality to Scion Authorized Parts
may impair the effectiveness of the emis-
sion control systems. If you use replacement parts that have
maintenance or replacement schedules
different from those of Scion Authorized
Parts, you must follow the maintenance
and replacement schedules for the parts
you are using. In addition, you should
ensure that such parts are warranted by
their manufacturers to be equivalent to
Scion Authorized Parts.
If your vehicle fails an EPA-approved emis-
sions test, you may make a claim under
the Emission Performance Warranty. To
do so, take your vehicle to an Authorized
Servicing Dealership and present a copy
of the emissions test report. Also, take
your maintenance records in case they
are needed.
If your claim qualifies for coverage, the
dealership will repair your vehicle within
30 days (unless a shorter period is required
by law). If your claim is denied, Scion will
notify you in writing of the reason within
the same period. If we fail to do so, we will
repair your vehicle free of charge. The only
exceptions allowed are when you request
or agree to a delay, or when a delay is
caused by factors beyond the control of
Scion or the dealership.
For information on how to obtain service
under the Emission Defect Warranty, see
page 27, “Obtaining Warranty Service.”
FEDERAL EMISSION CONTROL WARRANTY
REPLACEMENT PARTS
IF YOUR VEHICLE FAILS
AN EMISSIONS TEST
16Your Warranties in Detail
17881.Guts.qxd:Scion Warranty_text 2/15/08 7:43 PM Page 16

If you have questions or concerns about
your vehicle’s federal emission warranty
coverage, please follow the steps described
under “If You Need Assistance” on pages
4–5. In the case of the Emission Perfor -
mance Warranty, you may also request
informa tion from or report complaints to:
U.S. Environmental Protection Agency
Vehicle Programs & Compliance Division (6405J)
Attn: Warranty Complaints
401 M Street SW
Washington, D.C. 20460
IF YOU HAVE QUESTIONS
FEDERAL EMISSION CONTROL WARRANTY
17
Vehicles equipped with a California
Certified Emission Control System
that are registered and operated in
California or any state that adopts
California emission warranty provi-
sions are also covered by the California
Emission Control Warranty (see page
19). Currently, Connecticut, Maine,
Massachusetts, New Jersey, Oregon,
Pennsylvania, Rhode Island, Vermont
and Washington are the other states
to which the California Emission
Control Warranty applies.
Your Warranties in Detail
17881.Guts.qxd:Scion Warranty_text 2/15/08 7:43 PM Page 17

We (the dealership) want you to know that
at the time your new Scion vehicle is being
delivered:
1) On the basis of written notification fur- nished by Scion, we have knowledge
that the vehicle is covered by an EPA
Certificate of Conformity.
2) We have visually inspected those emis- sion control devices or portions thereof
that are visible without removing or
adjusting any components or systems,
emissions-related or otherwise. On the
basis of this inspec tion, there are no
apparent deficiencies in the installation
of emission control devices by Scion.
(For purposes of this certificate, “emis-
sion control devices” is limited to
devices installed on a vehicle for the
sole or primary purpose of controlling
emissions and which were not in gener-
al use before 1968.) 3) We have performed all emission control
system preparations required by Scion
prior to the sale of the vehicle as set
forth in Scion’s current pre-delivery
service manual.
4) Except as may be provided in Paragraph 5, if this vehicle fails an EPA-approved
emissions test within three months or
4,000 miles (whichever comes first) of
delivery to the ultimate purchaser, and
the vehicle has been main tained and
used in accordance with the written
instructions for proper mainte nance
and use, Scion will remedy the noncon-
formity free of charge under the terms
of the Emission Performance Warranty.
5) If vehicle was used as a company car or demonstrator, check box and complete
the following:
■■ The vehicle with which this statement
is delivered was placed into service as a company car or demonstrator
prior to delivery. The Emission
Performance Warranty period com-
menced on the date the vehicle was
first placed into service, which was:
Month Day Year
Note:
The dealership makes no represen-
tation or warranty that the emission
control system or any part thereof is with-
out defect or that the system will perform
properly. The Emission Performance
Warranty referred to in Paragraph 4 and
furnished with the vehicle is solely that of
the manufacturer.
This statement is required by section 207
of the Clean Air Act (42 U.S.C. 7541) and
the EPA regulations issued thereunder.
Dealership Name
FEDERAL EMISSION CONTROL WARRANTY
DEALER CERTIFICATE
18Your Warranties in Detail
17881.Guts.qxd:Scion Warranty_text 2/15/08 7:43 PM Page 18
