TOYOTA xB 2010 Owners Manual (in English)

263
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.19 – 0.29 (0.007 – 0.012)
Exhaust 0.38 – 0.48 (0.015 – 0.019)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm(in.): 1.1 (0.043)
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt.,
Imp.qt.): With filter 4.3 (4.5, 3.8)
Without filter 4.1 (4.3, 3.6)
“Genuine Motor Oil” is used in your Scion
vehicle. Use Scion approved “Genuine Mo-
tor Oil” or equivalent to satisfy the follow-
ing grade and viscosity. Oil grade:
ILSAC multigrade engine oil
Please contact your Scion dealer for fur-
ther details.

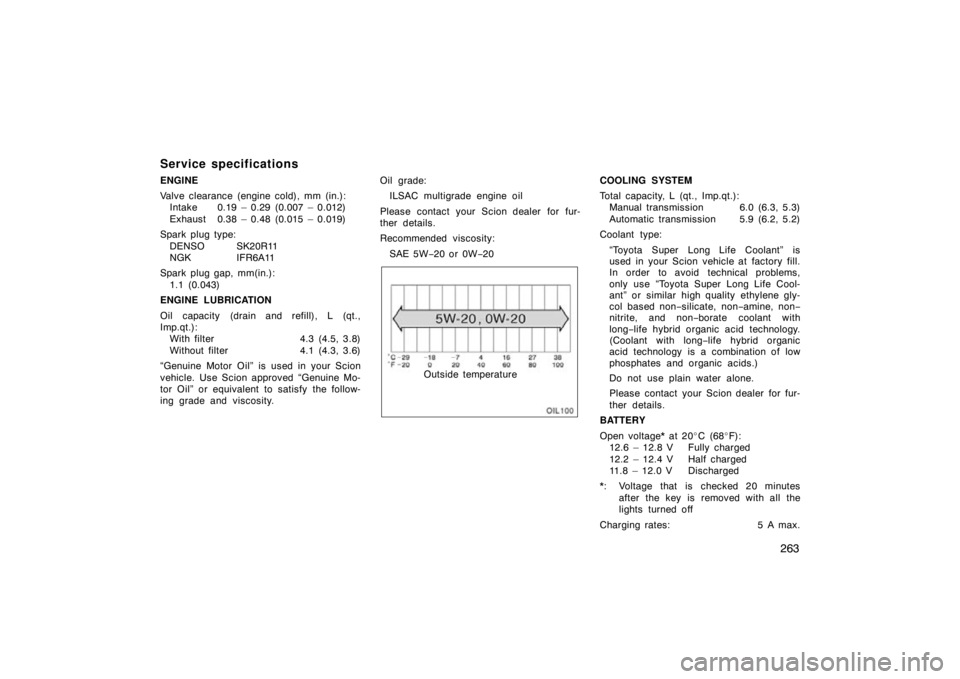

Recommended viscosity: SAE 5W −20 or 0W −20
Outside temperature
COOLING SYSTEM
Total capacity, L (qt., Imp.qt.):
Manual transmission 6.0 (6.3, 5.3)
Automatic transmission 5.9 (6.2, 5.2)
Coolant type:
“Toyota Super Long Life Coolant” is
used in your Scion vehicle at factory fill.
In order to avoid technical problems,
only use “Toyota Super Long Life Cool-
ant” or similar high quality ethylene gly-
col based non −silicate, non− amine, non−
nitrite, and non −borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Scion dealer for fur-
ther details.
BATTERY
Open voltage* at 20 C (68 F):
12.6 – 12.8 V Fully charged
12.2 – 12.4 V Half charged
11.8 – 12.0 V Discharged
*: Voltage that is checked 20 minutes after the key is removed with all the
lights turned off
Charging rates: 5 A max.

264
CLUTCH
Pedal free play, mm (in.):5 – 15 (0.2 – 0.6)
Fluid type: SAE J1703 or FMVSS No. 116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp.qt.): 2.5 (2.6, 2.2)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90
AUTOMATIC TRANSAXLE
Fluid capacity,
L (qt., Imp.qt.): 8.1 (8.6, 7.1)
Fluid type: Toyota Genuine ATF WS
Change automatic transmission fluid only
as necessary. Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF WS” to aid
in assuring optimum transaxle
performance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
WS” may cause deterioration in shift
quality, locking up of your transmission
accompanied by vibration, and ultimate-
ly damage the automatic transmission
of your vehicle.
BRAKES
Minimum pedal clearance when depressed
with the pressure of 294 N (30 kgf, 60
lbf) with the engine running, mm (in.):
87 (3.4)
Pedal free play, mm (in.): 1 – 6 (0.04 – 0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 6 – 9 clicks
Fluid type: SAE J1703 or FMVSS No. 116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)

265
Tires
Tire size and cold tire inflation pressure:
Front and rearkPa (kgf/cm
2 or bar, psi)
Ti r e siz e
FrontRearWheel size
P205/55R16 89H240 (2.4, 35)220 (2.2, 32)16 x 6 1/ 2J
Spare Ti r e siz e
Tire inflation pressure kPa (kgf/cm2 or bar, psi)Wheel size
T135/70D17 102M420 (4.2, 60)17 x 4T
Wheel nut torque, N·m (kgf·m, ft·Ibf):103 (10.5, 76)
NOTE: For complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure” through “Replacing wheels” on pages 243 through 250.

266
Fuses
80XB001
Engine compartment
Fuses1. DOME 10 A: Interior lights, personal
light, luggage compartment light, wire-
less remote control system
2. RAD NO.1 15 A: Audio system
3. ECUB 10 A: Gauges and meters,
power windows
4. AM2 30 A: Multiport fuel injection sys-
tem/ sequential multiport fuel injection
system
5. ETCS 10 A: Multiport fuel injection
system/ s equential multiport fuel injec-
tion system
80XB002a
Instrument panel
6. TURNHAZ 10 A: Turn signal lights,
emergency flashers
7. ALTS 7.5 A: Charging system
8. IG2 15 A: “IGN” and “METER” fuses
9. HORN 10 A: Horn
10. EFI MAIN 20 A: Multiport fuel injection
system/ s equential multiport fuel injec-
tion system, “EFI NO.1” and “EFI
NO.2” fuses
11. HLP LH LO 15 A: Left hand headlight
(low beam)
12. HLP RH LO 15 A: Right hand head-
light (low beam) 13. HLP LH HI 10 A:
Left hand headlight
(high beam)
14. HLP RH HI 10 A: Right hand head-
light (high beam)
15. EFI NO.1 10 A: Multiport fuel injection
system/ s equential multiport fuel injec-
tion system, air flow meter
16. EFI NO.2 10 A: Air conditioning sys-
tem, rear O2 sensor, Front air flow
sensor
17. IG2 NO.2 7.5 A: Starting system
18. SPARE 10 A: Spare fuse
19. SPARE 20 A: Spare fuse
20. SPARE 30 A: Spare fuse
21. HTR 50 A: Air conditioning system
22. ABS NO.1 50 A: Vehicle without ve- hicle stability control system Anti−
lock brake system
Vehicle with vehicle stability control
system Vehicle stability control system
23. ABS NO.3 30 A: Vehicle without ve- hicle stability control system Anti−
lock brake system
Vehicle with vehicle stability control
system Vehicle stability control system
24. RDI FAN 40 A: Electric cooling fan
25. CDS FAN 30 A: Electric cooling fan

267
26. HLP MAIN 50 A: “H−LP LH LO”, “H −
LP RH LO”, “H −LP LH HI” and “H −LP
RH HI” fuses
27. P/I 50 A: “EFI MAIN”, “HORN” and
“IG2” fuses
28. EPS 60 A: Electric power steering sys-
tem
29. ALT 120 A: “RDI FAN”, “CDS FAN”,
“ABS NO.1”, “ABS NO.3”, “HTR”,
“AM1”, “DOOR”, “STOP”, “FR DOOR”,
“RR DOOR”, “RL DOOR”, “OBD”,
“ACC −B”, “DEF”, ”TAIL” and “PANEL”
fuses
30. POWER 30 A: Power windows
31. DEF 30 A: Rear window defogger
32. PWR SEAT 30 A: No circuit
33. TAIL 10 A: Parking lights, tail lights,
side maker lights, gauges and meter,
licence plate light and multiport fuel
injection system/ sequential multiport
fuel injection system
34. PANEL 7.5 A: Instrument cluster lights,
instrument panel lights, gauges and
meters
35. FR DOOR 20 A: Power windows
36. RL DOOR 20 A: Power windows
37. RR DOOR 20 A: Power windows
38. SUNROOF 20 A: No circuit
39. CIG 15 A: Cigarette lighter 40. ACC 7.5 A:
Power rear view mirrors,
shift lock control system and audio
system
41. MIR HTR 10 A: Multiport fuel injection
system/ s equential multiport fuel injec-
tion system
42. IGN 7.5 A: Multiport fuel injection sys-
tem/ sequential multiport fuel injection
system, SRS airbag system and steer-
ing lock system
43. METER 7.5 A: Gauges and meters
44. HTRIG 10 A: Air conditioning system
45. WIPER 25 A: Front windshield wiper
46. RR WIPER 15 A: Rear windshield wip-
er
47. WASHER 15 A: Washer
48. ECUIG NO.1 10 A: Multiport fuel in-
jection system/ sequential multiport fuel
injection system, electric power steer-
ing, electric cooling fan, anti −lock brake
system, vehicle stability control system,
shift lock control system and audio
system
49. ECU IG NO.2 10 A: Back−up light,
emergency flasher, starting system, air
conditioning system and rear window
defogger
50. OBD 7.5 A: On−board diagnosis sys-
tem 51. STOP 10 A:
Stop lights, high mounted
stoplight, multiport fuel injection sys-
tem/ sequential multiport fuel injection
system and anti −lock brake assist sys-
tem
52. DOOR 25 A: Power door lock system
53. ACCB 25 A: “CIG” and “ACC” fuses
54. FR FOG 15 A: Front fog lights
55. AM1 7.5 A: Starting system and shift
lo

ck control system

268

269
REPORTING SAFETY DEFECTS FOR U.S.
OWNERS
Reporting safety defects for U.S. owners
Reporting safety defects for U.S. owners270
. . . . . . . . . . . . . . . . . . . . . .
SECTION 9

270
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Scion, a
marque of Toyota Motor Sales,
U.S.A., Inc.
(Toll−free: 1 −866 −707 −2466).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of ve-
hicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Scion, a
marque of Toyota Motor Sales,
U.S.A., Inc. To contact NHTSA, you may call
the Vehicle Safety Hotline toll
−free
at 1 −888 −327 −4236 (TTY:
1 −800 −424 −9153); go to
http://www.safercar.gov ; or wr i te to:
Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC
20590. You can also obtain other
information about motor vehicle
safety from http://www.safercar.gov .
Reporting safety defects for
U.S. owners

WE REALLY CARE ABOUT YOU  PLEASE BUCKLE UP
Scion has made a special effort to encourage use of seat belts.
Scion belts are:
Comfortable
Easy to use
Convenient
We encourage you to use your belts every time you drive.
U

You should know as much about the quality and
importance of proper main tenance of your new
vehicle as the people who built it.
The Scion authorized Repair Manual
tells you how to maint ain your vehicle and
enables you to correct ly perform your own
maintenance.
The best way to keep your new vehicle in top
running order is to maintain it properly from
the moment you drive it off the showroom
floor.
The Scion authorized Repair Manual is
packed with literally everything you need to
know to perform your own maintenance in
virtually every area of your new vehicle.
