!A word about safe vehicle operations This Quick Reference Guideis a summary of basic vehicle operations.
It contains brief descriptions of fundamental operations so you can
locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guideis not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review theOwner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Scion xB.
This Quick Reference Guideis not a full description of Scion xB
operations. Every Scion xB owner should review the Owner’s
Manualthat accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guideis current at the
time of printing. Toyota reserves the right to make changes at any
time without notice.
2010
Scion xB
17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Spare tire & tools
Tool and spare tire location
Removing the spare tire
Jack
Jack handle
Wheel nut wrench
Spare tire
Refer to the Owner’s Manualfor jack positioning and tire changing
procedures.
(1) Remove the spare tire cover.
(2) Loosen and remove the bolt.
(1)
(2)
If tire pressure indicator
is on, check/adjust each
tire.
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the
“ SET” button until indicator blinks three times. Let the vehicle sit for a
few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
Note: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
1 Visit your Scion dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Engine maintenance 7Fuel tank door release and cap 7Hood release 6Indicator symbols 5Instrument cluster 4Instrument panel 2-3Keyless entry16
Light control-Instrument panel 6
Air Conditioning/Heating 12Auto lock functions28Automatic Transmission 8Bottle holders 14Cruise control 11Lights & turn signals 10Multi-information display 15Parking brake 8Power outlet 14Seat adjustments-Front 9Seat-Folding down rear seat 9Seats-Head restraints 9Steering wheel switches 13Tilt steering wheel 12USB/AUX audio jack 13Windows 11
Window wipers & washers 10
Door locks 16Doors-Child safety locks 16Seatbelts 16Seat belts-Shoulder belt anchor 16Spare tire & tools 17
Tire Pressure Monitoring (warning) System 17

2
OVERVIEW
Instrument panel
Headlight and turn signal controls
Steering wheel audio controls*
Wiper and washer controls
Rear window defogger button
Air Conditioning controls
Front passenger occupant classification indicator/
Front passenger seatbelt reminder light
Power outlet
Emergency flasher button

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Cruise control
Ignition switch
Tire Pressure Monitoring (warning) System reset
Tilt steering lock release
“VSC OFF” (Vehicle Stability Control “OFF”)
Instrument panel light control dial
Power outside rearview mirror controls
* For details, refer to the
SCION Audio System Owner’s Manualor SCION
Navigation System Owner’s Manual.

4
OVERVIEW
Instrument cluster
Service indicator and reminder
Speedometer
Tachometer
Fuel gauge
Engine coolant temperature
Odometer and two trip meters
Trip meter reset knob
Multi-information display
Multi-information display control switch
Automatic Transmission shift position indicator

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Low engine oil pressure warning1
Driver seatbelt reminder1
(alarm will sound if speed is over 12 mph)
Front passenger seatbelt reminder1
(alarm will sound if speed is over 12 mph) Brake system warning
1
Charging system warning1
Anti-lock Brake System warning1
Malfunction/Check Engine indicator1
Indicator symbols
Open door warning1
Low Tire Pressure Warning1
Engine oil replacement reminder1
Headlight low beam indicator
Turn signal indicator Headlight high beam indicator
Cruise control indicator
2
Electric power steering system warning1
Slip indicator
Vehicle Stability Control OFF indicator
1
Airbag SRS warning1
Low fuel level warning1
1
For details, refer to “Service reminder indicators and warning buzzers,” Section 1-6,
2010 Owner’s Manual.
2If this light flashes, refer to “Cruise control,” Section 1-7, 2010 Owner’s Manual.
Front passenger occupant classification indicator

6
OVERVIEW
Keyless entry
Locking operationUnlocking operation
NOTE:If a door is not opened
within 60 seconds of unlocking, all
doors will relock for safety.
PushPush ONCE: Driver door
TWICE: ALL doors
Panic button
Push and hold
Hood release
PullPull up latch
and raise hood
Light control-Instrument panel
Bright
Dark

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Fuel tank door release and cap
Pull upStoreTu r n
Windshield washer fluid tank
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
Driver seat
NOTE:Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “ ” indicator may illuminate.

8
FEATURES/OPERATIONS

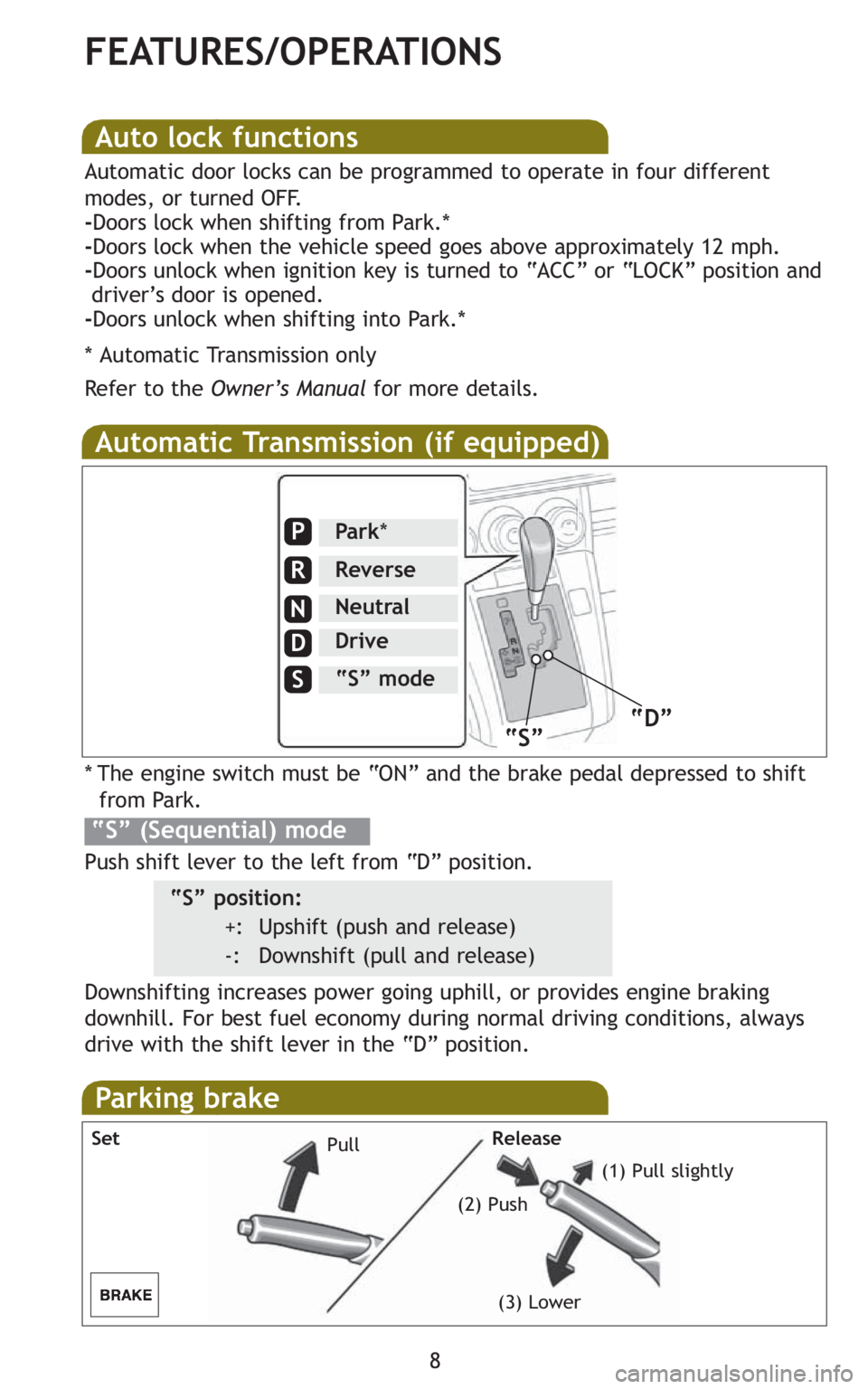

Auto lock functions
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
-Doors lock when shifting from Park.*
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when ignition key is turned to “ACC” or “LOCK” position and
driver’s door is opened.
-Doors unlock when shifting into Park.*
* Automatic Transmission only
Refer to theOwner’s Manual for more details.
Automatic Transmission (if equipped)
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
“S” position:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Push shift lever to the left from “D” position. * The engine switch must be “ON” and the brake pedal depressed to shift
from Park.
Parking brake
Pull
(2) Push(1) Pull slightly
(3) Lower Set Release
Park*
Reverse
Neutral
Drive
P
R
N
D
N
S
