TOYOTA xB 2010 (in English) User Guide

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Seats-Head restraints
Lock release buttonLock release button Front Rear
Seat adjustments-Front
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat-Folding down rear seat
(2) Lower(1) Push
(4) Fold down(3) Push

10
FEATURES/OPERATIONS
Window wipers & washers
Interval wipe
Slow
Fast
Pull to wash and wipeSingle wipe
Front
Rear
Wash and wipe
Wipe
Wash and wipe
Lights & turn signals
Turn signals
Headlights
Headlights
Parking lights
Right turn
Lane change
Lane change
Left turnLow beam
High beam flasher
High beam

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

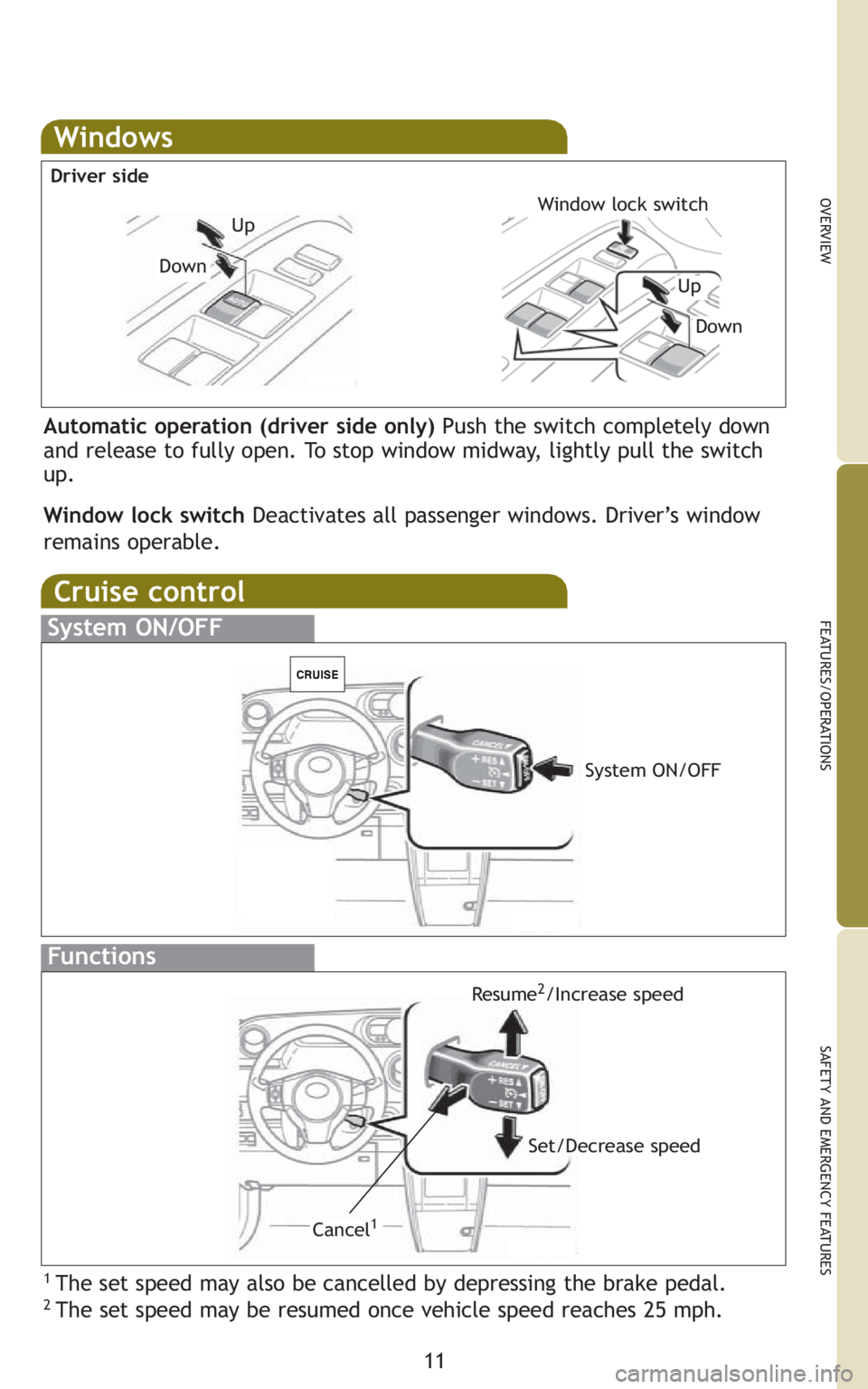

Windows
Automatic operation (driver side only) Push the switch completely down
and release to fully open. To stop window midway, lightly pull the switch
up.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Up
UpDown
Down Driver side
Window lock switch
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed reaches 25 mph.
System ON/OFF
Functions
System ON/OFF
Resume
2/Increase speed
Set/Decrease speed
Cancel1

12
FEATURES/OPERATIONS

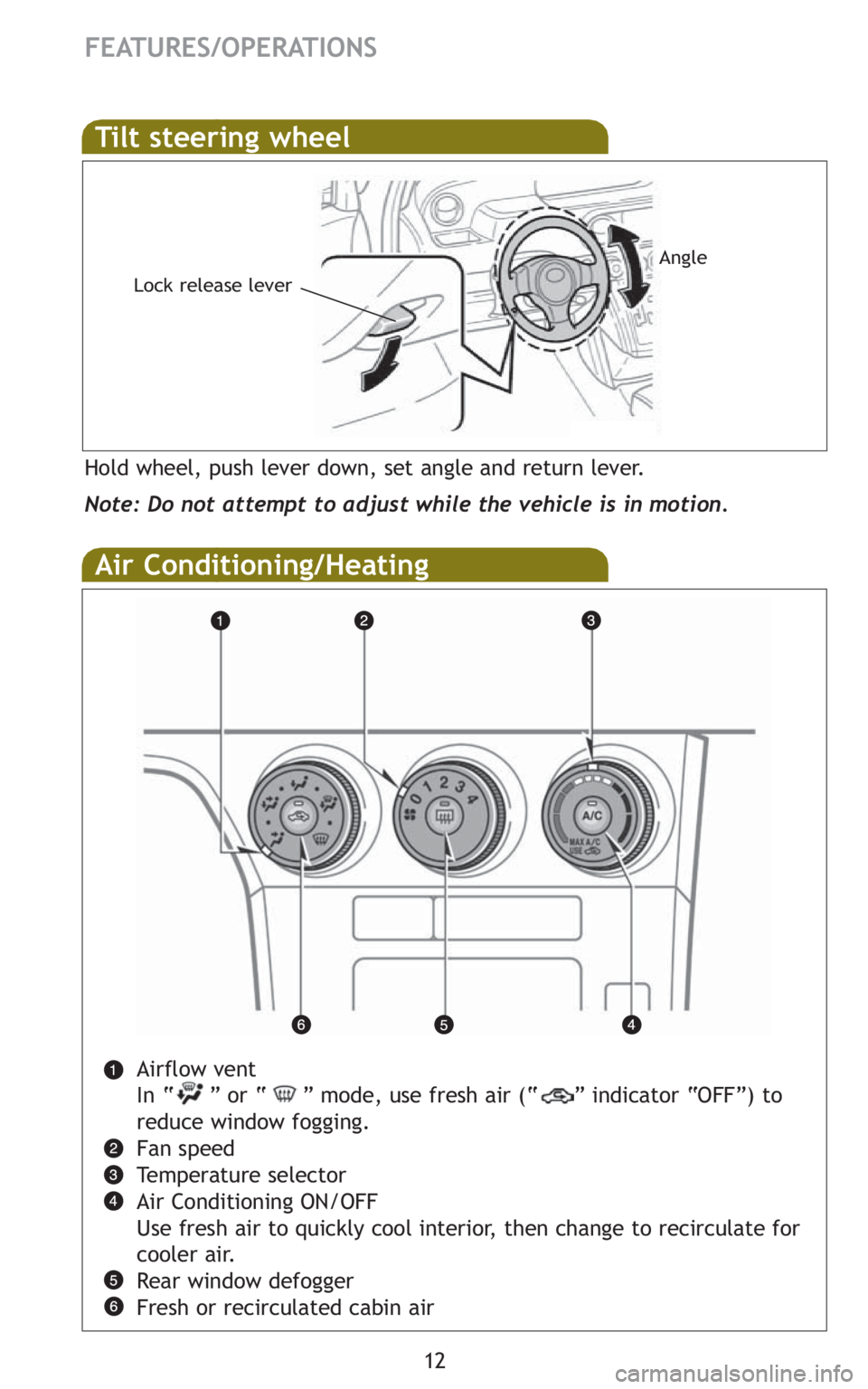

Air Conditioning/Heating
Airflow vent
In “ ” or “ ” mode, use fresh air (“ ” indicator “OFF”) to
reduce window fogging.
Fan speed
Temperature selector
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Rear window defogger
Fresh or recirculated cabin air
Hold wheel, push lever down, set angle and return lever.
Note: Do not attempt to adjust while the vehicle is in motion.
Tilt steering wheel
Lock release lever
Angle

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

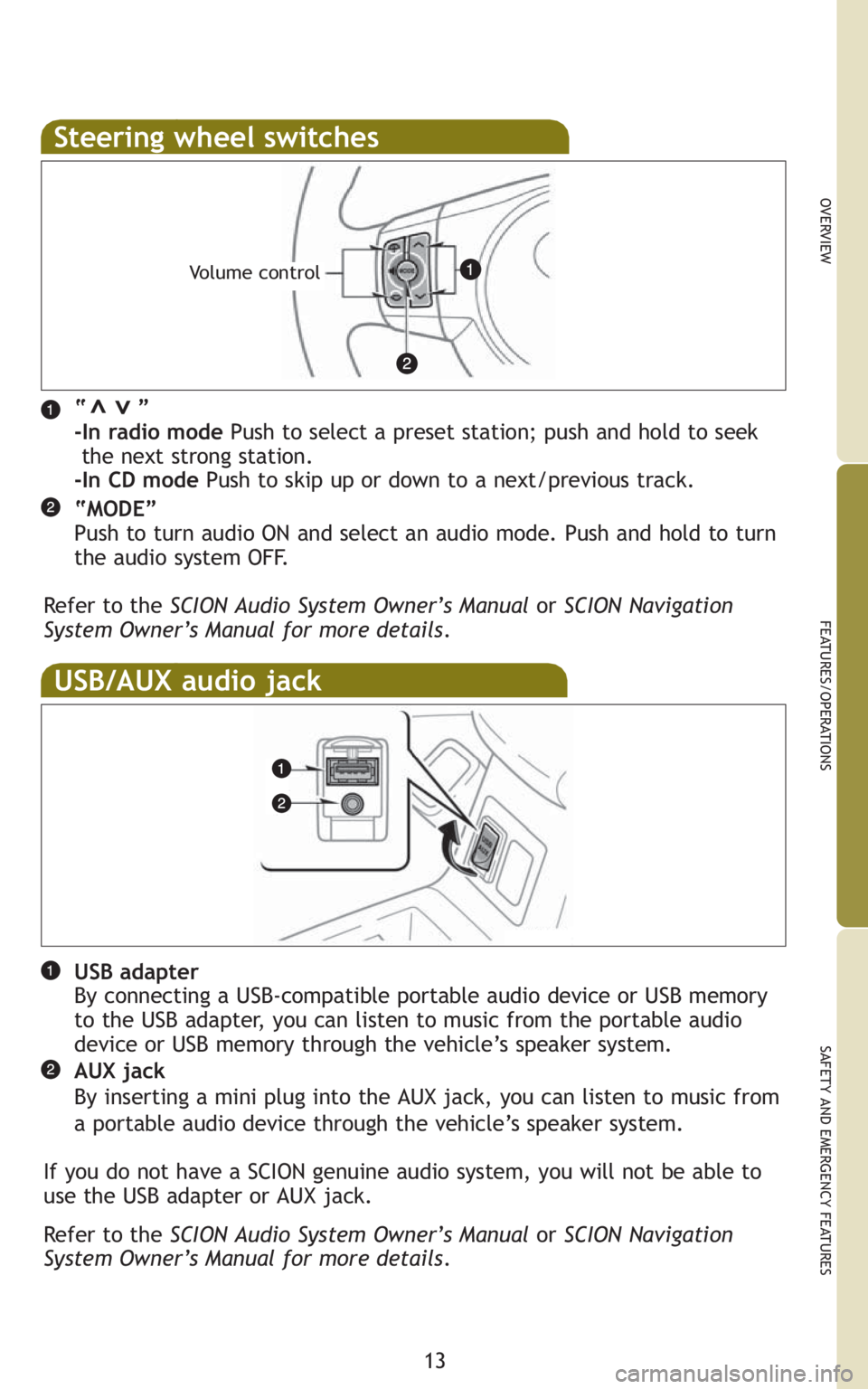

Steering wheel switches
“ ”
-In radio modePush to select a preset station; push and hold to seek
the next strong station.
-In CD modePush to skip up or down to a next/previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF.
Refer to the SCION Audio System Owner’s Manualor SCION Navigation
System Owner’s Manual for more details.>>
USB/AUX audio jack
USB adapter
By connecting a USB-compatible portable audio device or USB memory
to the USB adapter, you can listen to music from the portable audio
device or USB memory through the vehicle’s speaker system.
AUX jack
By inserting a mini plug into the AUX jack, you can listen to music from
a portable audio device through the vehicle’s speaker system.
If you do not have a SCION genuine audio system, you will not be able to
use the USB adapter or AUX jack.
Refer to the SCION Audio System Owner’s Manualor SCION Navigation
System Owner’s Manual for more details.
Volume control

14
FEATURES/OPERATIONS

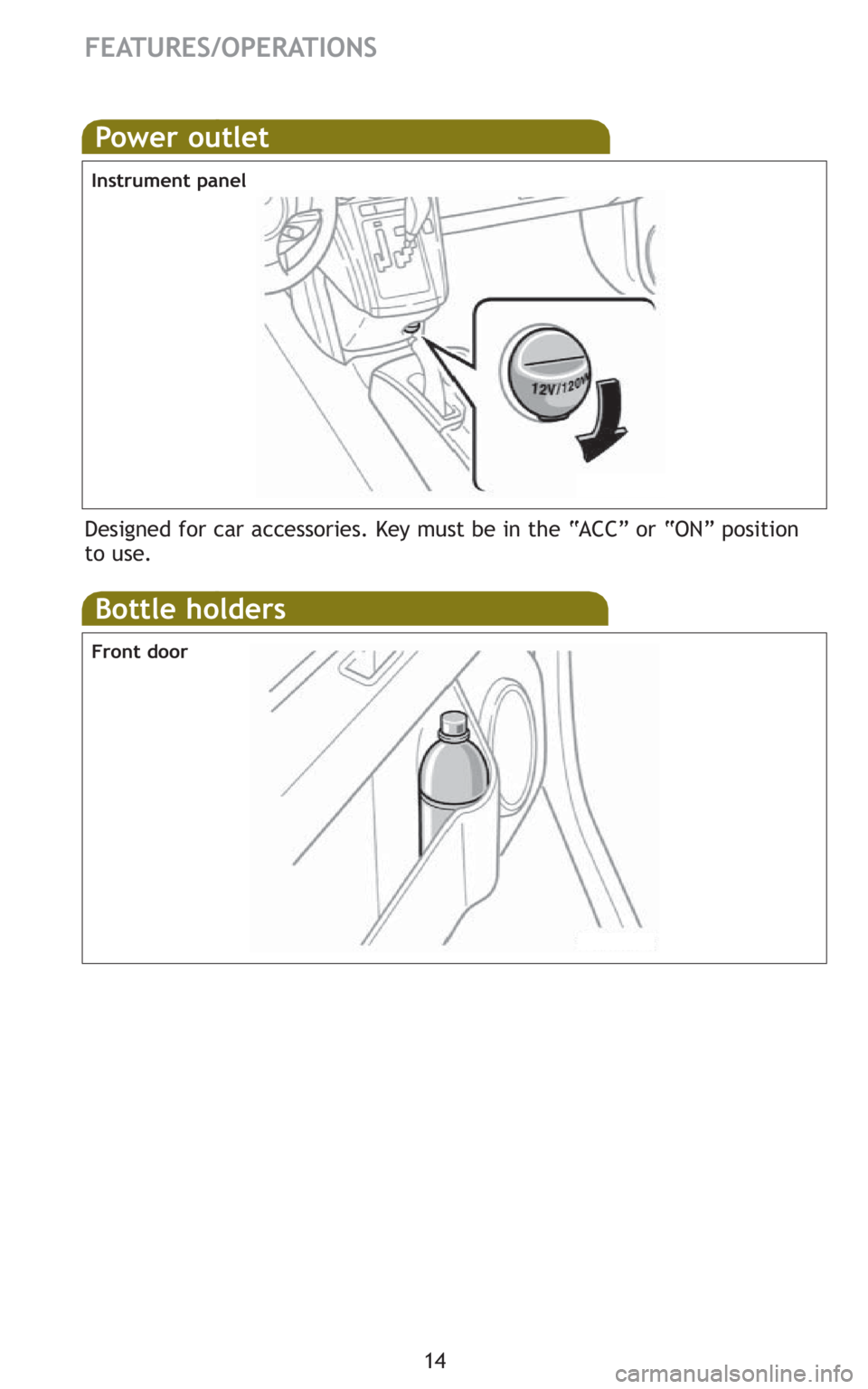

Power outlet
Instrument panel
Designed for car accessories. Key must be in the “ACC” or “ON” position
to use.
Bottle holders
Front door

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

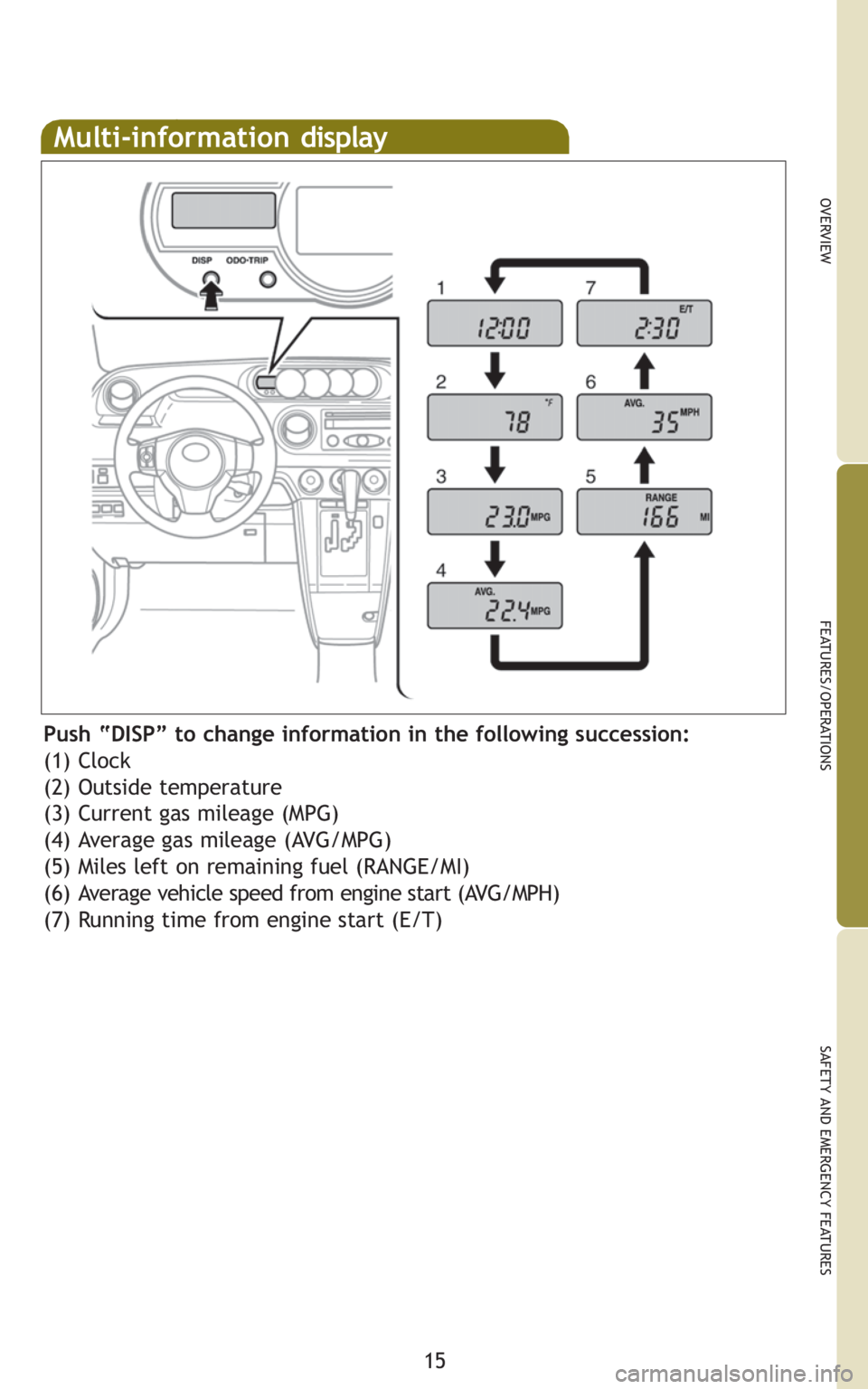

Multi-information display
Push “DISP” to change information in the following succession:
(1) Clock
(2) Outside temperature
(3) Current gas mileage (MPG)
(4) Average gas mileage (AVG/MPG)
(5) Miles left on remaining fuel (RANGE/MI)
(6) Average vehicle speed from engine start (AVG/MPH)
(7) Running time from engine start (E/T)

16
SAFETY AND EMERGENCY FEATURES

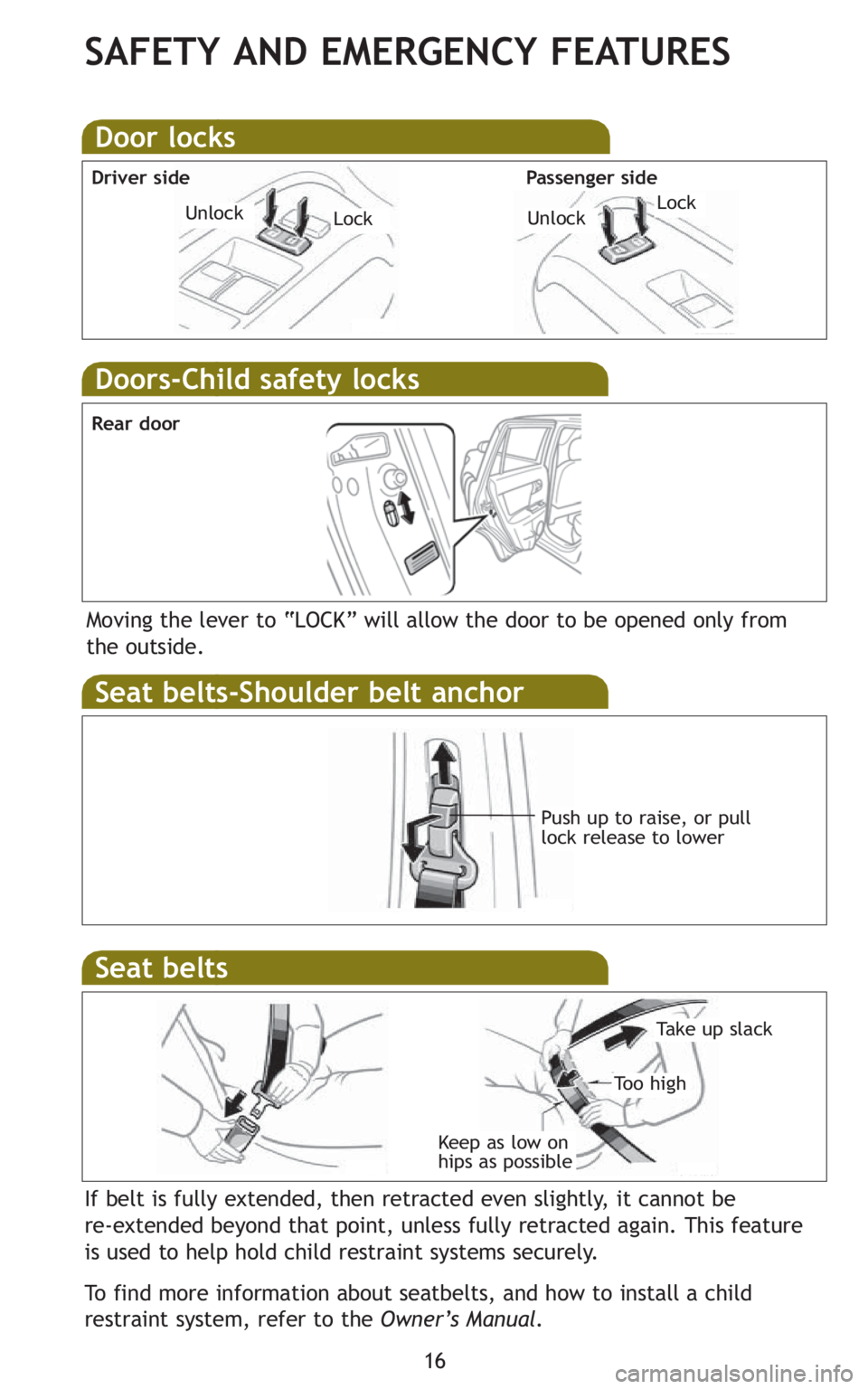

Doors-Child safety locks
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Seat belts-Shoulder belt anchor
Push up to raise, or pull
lock release to lower
Rear door
Door locks
UnlockLock Driver side Passenger sideUnlockLock
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seatbelts, and how to install a child
restraint system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
