TOYOTA xB 2011 Accessories, Audio & Navigation (in English)

ADVANCED FUNCTIONS
110
V573_E
z Estimated travel time
The speed that is used for the calculation
of the estimated travel time and the es-
timated arrival time can be set.
1. Push the “NAVI” button.
2. Touch “Setup” on the “Menu”
screen.

3. Touch “Set Speed” of the “Esti-
mated Travel Time”.

4. Touch or to set the av-
erage vehicle speeds for “Residen-
tial”, “Main street”, and “Freeway”.
To set the default speeds, touch “De-
fault” .
5. After setting of the desired
speeds is completed, touch “OK”.

INFORMATION
z The displayed time to the destina-
tion is the approximate driving
time that is calculated based on
the selected speeds and the ac-
tual position along the guidance
route.
z The time shown on the screen
may vary greatly depending on
progress along the route, which
may be affected by road condi-
tions such as traffic jams and,
construction work.
z It is possible to display up to 99
hours 59 minutes.

ADVANCED FUNCTIONS
111
V573_E

z Input keyboard layout
Keyboard layout can be changed.
1. Push the “NAVI” button.
2. Touch “Setup” on the “Menu”
screen.

3. Touch “ABC” or “QWE” of “Key-
board Layout” to choose the key-
board layout. LAYOUT TYPE

►
“ABC” type

► “QWE” type
The selected button is highlighted.
4. Touch “OK”.

ADVANCED FUNCTIONS
112
V573_E
z Time zone
Time zone can be changed.
1. Push the “NAVI” button.
2. Touch “Setup” on the “Menu”
screen.

3. Touch “Change” of “Time Zone”.
The “Adjust Time Zone” screen will be
displayed on the display.

4. Touch the desired time zone.
The selected button is highlighted.
“ Daylight Saving Time”: Daylight sav-
ing time can be set or cancelled.
To set daylight saving time, touch “ON”,
and to cancel it, touch “OFF”.
5. Touch “OK”. z
Screen layout function (
Function)
Each touch screen button and current
street name on the map screen can be
displayed or hidden.
1. Push the “NAVI” button.
2. Touch “Setup” on the “Menu”
screen.

3. Touch “Change” of “ Func-
tion”.

4. Touch the touch screen button to
be turned off. The button becomes
dimmed.
To set the default, touch “Default”.
5. Touch “OK”.

ADVANCED FUNCTIONS
113
V573_E

z POI category change
(Display POI Icons)
Select from among the 6 icons displayed
on the “Display POI Icons” top screen, so
that setting of the icons to be displayed
on the map screen can be done easily.
1. Push the “NAVI” button.
2. Touch “Setup” on the “Menu”
screen.
Then touch
to display page 2 of the
“Setup” screen.

3. Touch “Change” of “Display POI
Icons”.

4. Touch the category button to be
changed.

5. Touch the category button to be
displayed on the “Display POI Icons”
top screen.
6. Touch “OK”.

ADVANCED FUNCTIONS
114
V573_E
z 3D landmark
When the “3D landmark” feature is
turned on, the system will display the 3D
landmark on the map.
To turn the “3D landmark” mode on:
1. Push the “NAVI” button.
2. Touch “Setup” on the “Menu”
screen.
Then touch
to display page 2 of the
“Setup” screen.

3. Touch “ON” of “3D landmark”.
The selected button is highlighted.
4. Touch “OK”. z
Notifying traffic restriction
When the “Traffic Restrict. Notification”
feature is turned on, the system notifies
you of traffic or seasonal restrictions.
To turn the “Traffic Restrict. Notification”
on:
1. Push the “NAVI” button.
2. Touch “Setup” on the “Menu”
screen.
Then touch
to display page 2 of the
“Setup” screen.

3. Touch “ON” of “Traffic Restrict.
Notification”.
The selected button is highlighted.
4. Touch “OK”.

ADVANCED FUNCTIONS
115
V573_E

z Voice guidance in all modes
When the “Voice Guidance in All Modes”
feature is turned on, the voice guidance
in all modes can be heard.
When the “Voice Guidance in All Modes”
feature is turned off, the voice guidance
cannot be heard when using the au-
dio/video system.
To turn the “Voice Guidance in All
Modes” on:
1. Push the “NAVI” button.
2. Touch “Setup” on the “Menu”
screen.
Then touch
to display page 2 of the
“Setup” screen.

3. Touch “ON” of “Voice Guidance
in All Modes”.
The selected button is highlighted.
4. Touch “OK”. z
Auto voice guidance
When the “Auto Voice Guidance” feature
is turned on, the voice guidance can be
heard automatically.
When the “Auto Voice Guidance” feature
is turned off, the voice guidance can be
heard only if the “MAP” button is
pushed.
To turn the “Auto Voice Guidance” mode
on:
1. Push the “NAVI” button.
2. Touch “Setup” on the “Menu”
screen.
Then touch
twice to display page 3
of the “Setup” screen.

3. Touch “ON” of “Auto Voice Guid-
ance”.
The selected button is highlighted.
4. Touch “OK”.

ADVANCED FUNCTIONS
116
V573_E

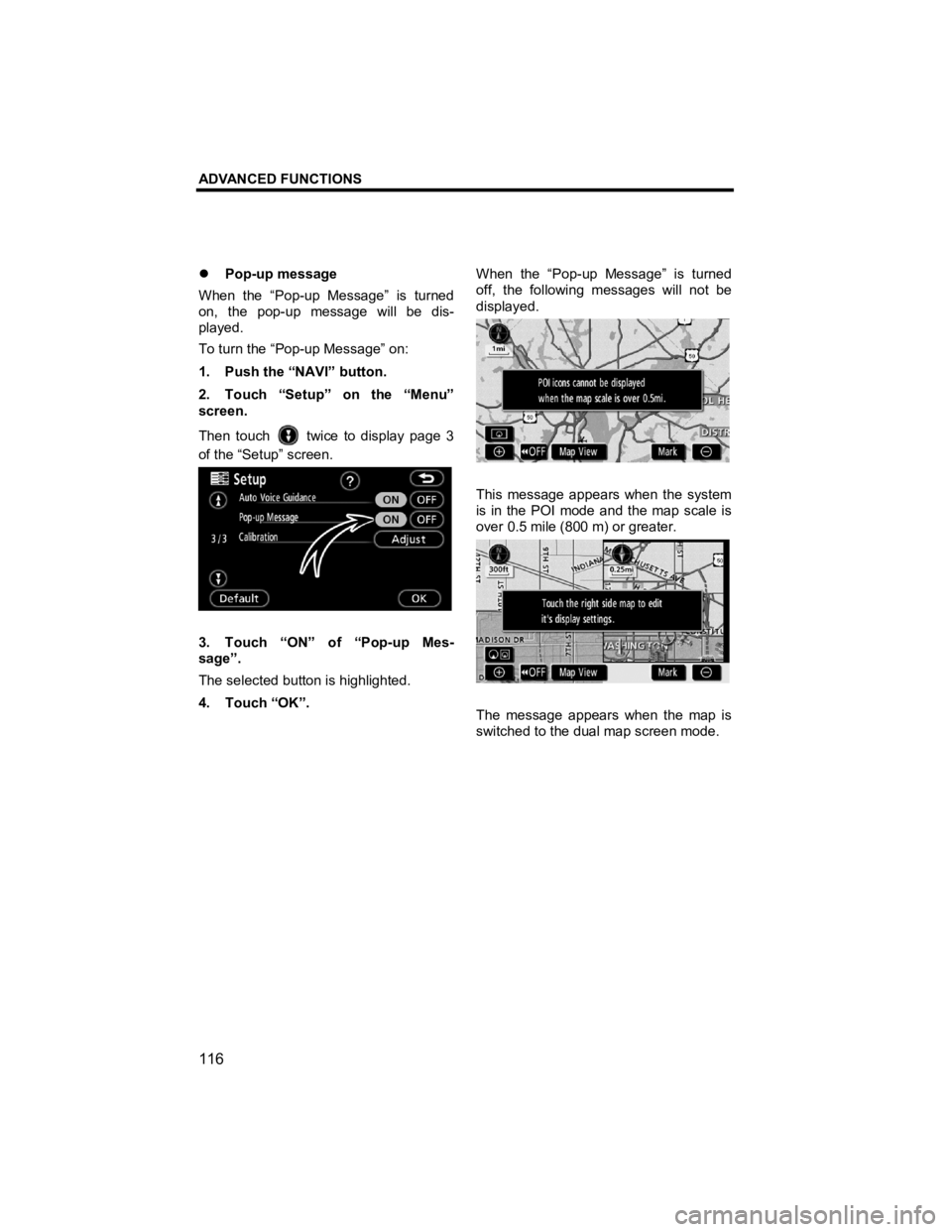

z Pop-up message
When the “Pop-up Message” is turned
on, the pop-up message will be dis-
played.
To turn the “Pop-up Message” on:
1. Push the “NAVI” button.
2. Touch “Setup” on the “Menu”
screen.
Then touch
twice to display page 3
of the “Setup” screen.

3. Touch “ON” of “Pop-up Mes-
sage”.
The selected button is highlighted.
4. Touch “OK”.

When the “Pop-up Message” is turned
off, the following messages will not be
displayed.

This message appears when the system
is in the POI mode and the map scale is
over 0.5 mile (800 m) or greater.

The message appears when the map is
switched to the dual map screen mode.

ADVANCED FUNCTIONS
117
V573_E

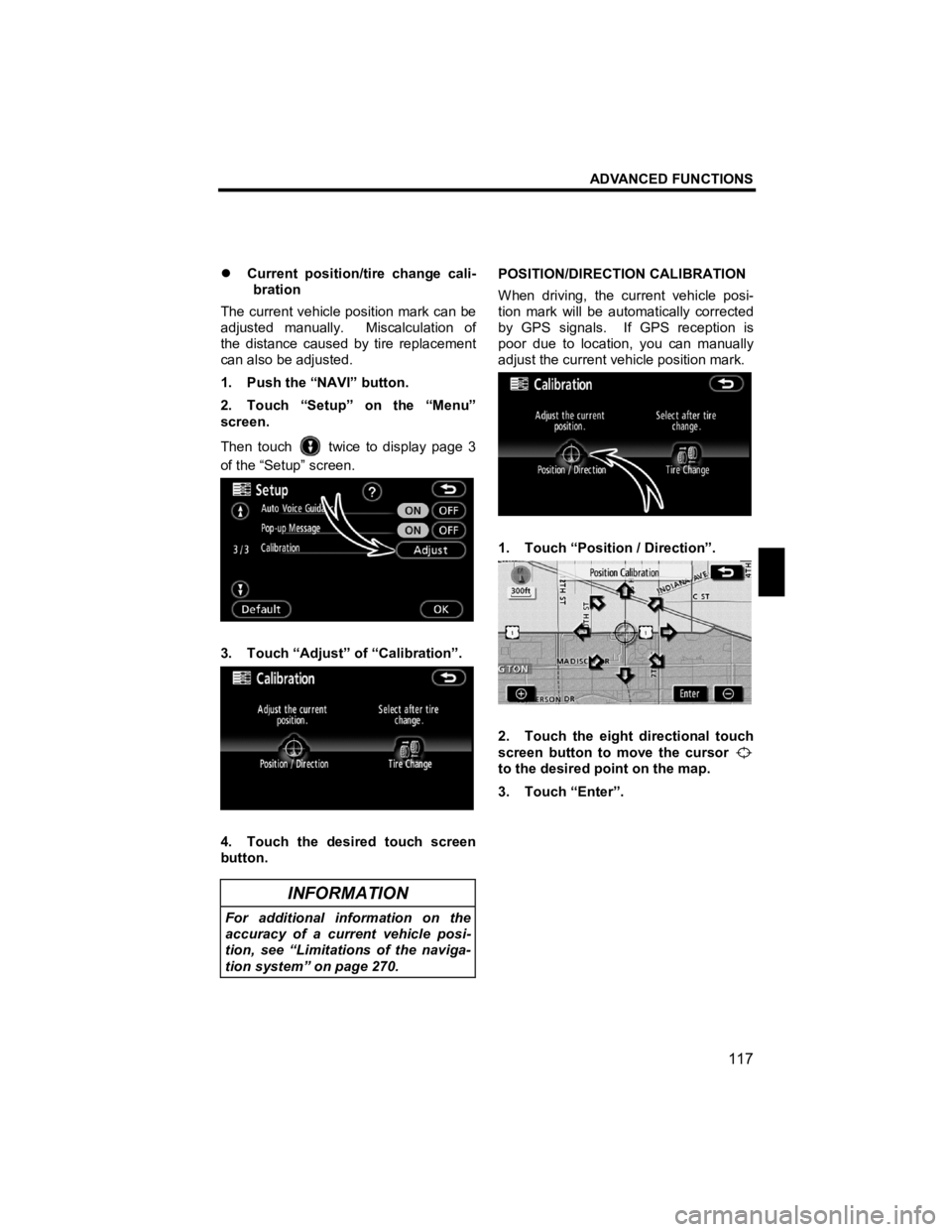

z Current position/tire change cali-
bration
The current vehicle position mark can be
adjusted manually. Miscalculation of
the distance caused by tire replacement
can also be adjusted.
1. Push the “NAVI” button.
2. Touch “Setup” on the “Menu”
screen.
Then touch
twice to display page 3
of the “Setup” screen.

3. Touch “Adjust” of “Calibration”.

4. Touch the desired touch screen
button.

INFORMATION
For additional information on the
accuracy of a current vehicle posi-
tion, see “Limitations of the naviga-
tion system” on page 270.

POSITION/DIRECTION CALIBRATION
When driving, the current vehicle posi-
tion mark will be automatically corrected
by GPS signals. If GPS reception is
poor due to location, you can manually
adjust the current vehicle position mark.

1. Touch “Position / Direction”.

2. Touch the eight directional touch
screen button to move the cursor

to the desired point on the map.
3. Touch “Enter”.

ADVANCED FUNCTIONS
118
V573_E

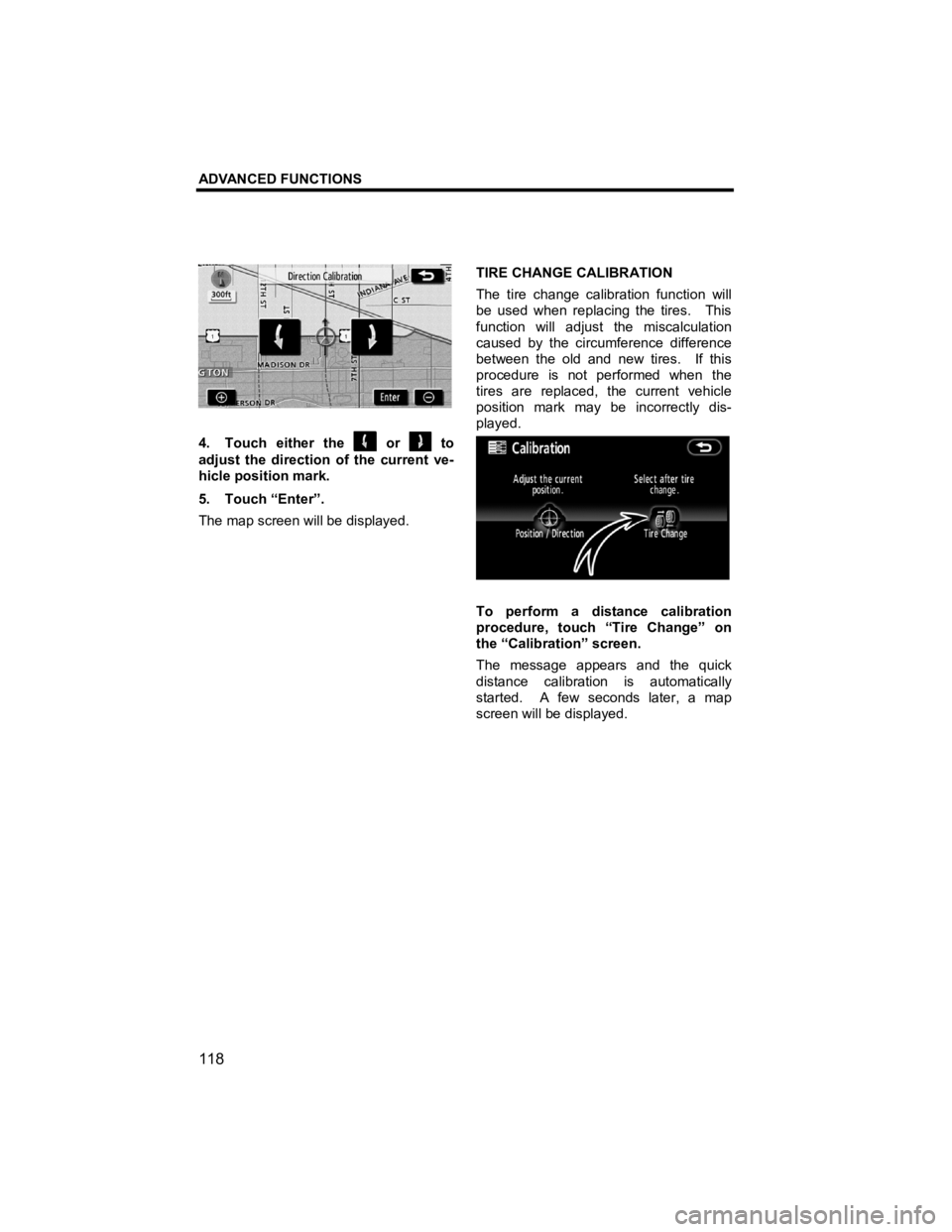

4. Touch either the or to
adjust the direction of the current ve-
hicle position mark.
5. Touch “Enter”.
The map screen will be displayed. TIRE CHANGE CALIBRATION
The tire change calibration function will
be used when replacing the tires. This
function will adjust the miscalculation
caused by the circumference difference
between the old and new tires. If this
procedure is not performed when the
tires are replaced, the current vehicle
position mark may be incorrectly dis-
played.

To perform a distance calibration
procedure, touch “Tire Change” on
the “Calibration” screen.
The message appears and the quick
distance calibration is automatically
started. A few seconds later, a map
screen will be displayed.

OTHER FUNCTIONS
119
V573_E

SECTION 5
OTHER FUNCTIONS
z Maintenance information ··················\
··················\
··················\
········· 120
Maintenance inform ation setting ··················\
··················\
················ 120
Dealer setting ··················\
··················\
··················\
··················\
········· 122
z Calendar with memo ··················\
··················\
··················\
················ 124
Adding a memo ··················\
··················\
··················\
··················\
······ 126
Editing a memo ··················\
··················\
··················\
··················\
······ 127
Memo list··················\
··················\
··················\
··················\
················ 127
z Hands-free system (for cellular phone) ··················\
··················\
···· 129
Register a Bluetooth
® phone··················\
··················\
··················\
···· 133
Call on the Bluetooth® phone ··················\
··················\
··················\
··· 137
Receive on the Bluetooth® phone ··················\
··················\
·············· 141
Talk on the Bluetooth® phone ··················\
··················\
··················\
·· 141
Change the settings of the Bluetooth® phone ··················\
·············· 143
Set a Bluetooth® phone··················\
··················\
··················\
············ 167
z Screen adjus tment··················\
··················\
··················\
··················\
···· 173
z Settings ··················\
··················\
··················\
··················\
··················\
··· 174
z Select language ··················\
··················\
··················\
··················\
········ 176
z Rear view camera system ··················\
··················\
··················\
·········· 176
